01 Work N Kids Interior Architecture IV - Work and Play Centre Project Title Work and Play Centre Project Brief Student to discover the Sustainable Development Goal (SGD) cluster, develop concept ideas representing the allegory of the issue and interpret the findings into narrative representation.

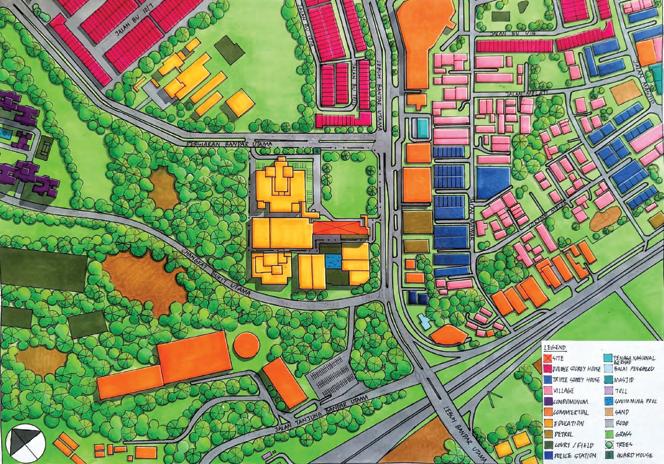

To explore, identify, invent and activate suitable spaces and divert to a functional programming approach. Student will need to identify what you are designing and begin to develop your programme narrative, through objects.

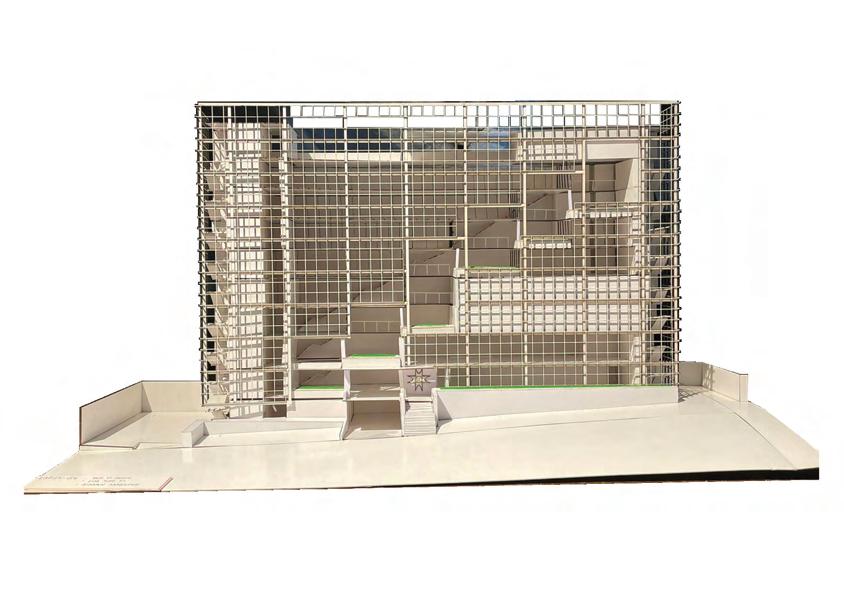

Existing Building Model

The PAM Centre (for Pertubuhan Akitek Malaysia)located at Bangsar, Kuala Lumpur. The core of the building is formed by the stepped atrium that brings courtyard and garden elements inside. Staircases serve as the choreographers of movement, drawing people off the street and into the building.

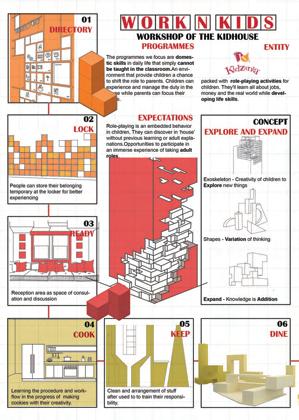

Design Statement Work N Kids is a workshop introduced theknowledge of domestic skills to children that cannot be taught in the classroom through role-playing activities.

Regarding the data analysis SDG 4 quality education, one of the issues we facing are lack of learning material in the range of student. The aim of the design is allowing children to shift the role to parents for experiencing and managing the duty while their parents can focus their work. The workshop of the kid house that designed for the children from 4 to 6 years old comprised the spaces in house.

Concept Inspiration Explore & Expand

Client Kidzania Kuala Lumpur

Exoskeleton - Creativity of children to Explore new things

Shapes - Variation of thinking

Expand - Knowledge is Addition

Narrative Issue Data Analysis - Gender inequality for learning - 57 million primary-aged children remain out of school - Lack of learning outcome material - Lack of acess to data or device

Narrative Program Design Ideas: Charity Program Preschool Mission Target Bookxcess Art, Math & Science Space High Tech Classroom Game Station

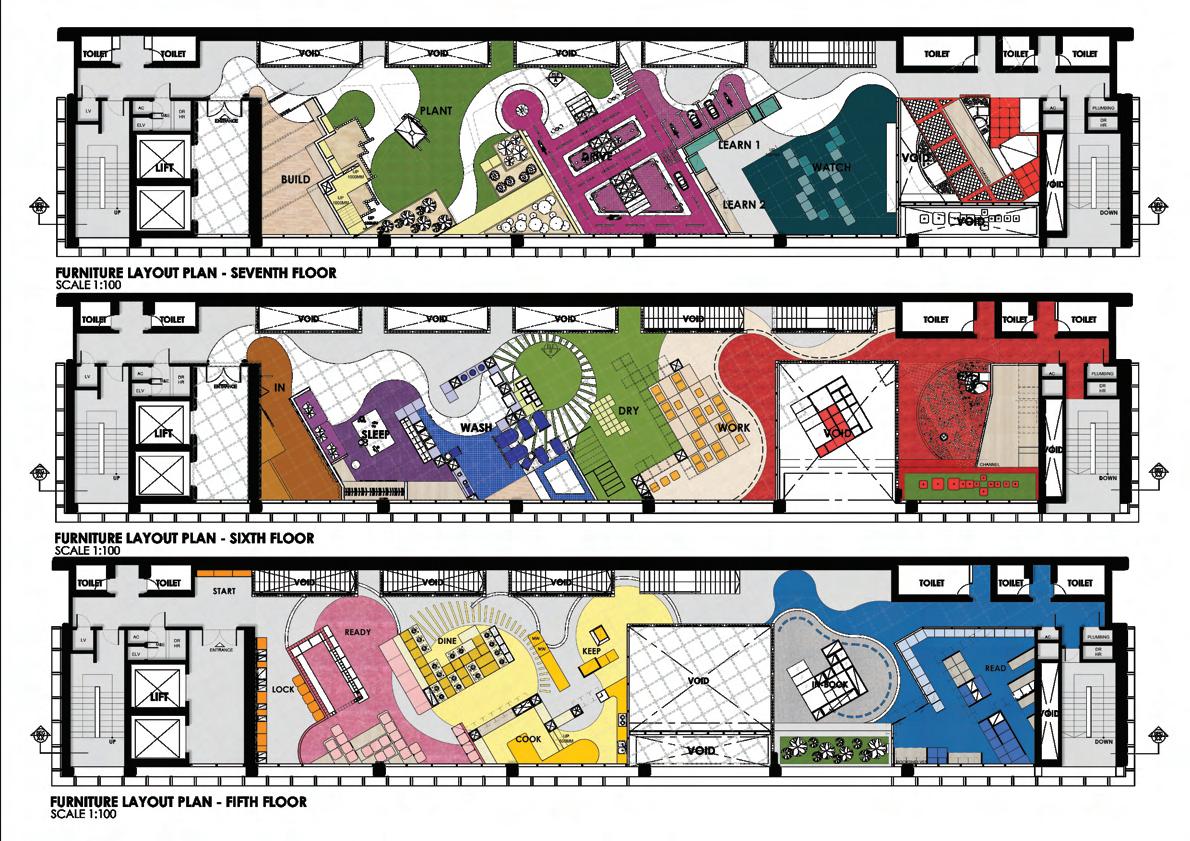

Plant

PLANT, 7TH FLOOR

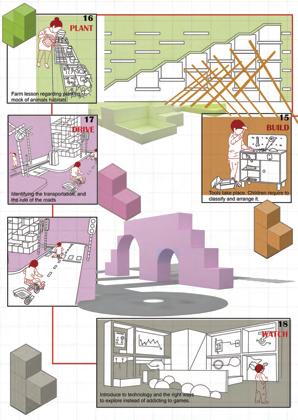

Children can plant and water the greenery at the garden. The sand acts as Farming Simulator.

Children can recognise the animals and their habitats and shelters.

Drive

DRIVE, 7TH FLOOR

LEARN, 7TH FLOOR

Children park their vehicle at rossy garage.

They can identify the transportation and the rule of the roads. There is a pedestrian bridge at the middle.

Learn

Play

Introduce the lesson at blue green study room.

Infront it is watch acts a small theatre where children can watch informative video or movie here.

Located at the 6th floor double volume height void.

Children can climb, crawl, slide and play with the balls.

PLAY, 7TH FLOOR

Dine & Cook & Keep Children will be introduce to dinnerware and equipment in the kitchen. They can prepare some easy food like sandwich and salad. They will know how to keep and arrange the kitchen appliance.

Read It is a library. The mezzanine floor allows the children to climb up to read in a secure zone.

READ, 5TH FLOOR

READY, 5TH FLOOR

Read The pink zone is registration counter that people can make consultation or enquiry here.

Work

WORK, 6TH FLOOR

A home office where parents can focus their work . There are string behind the seating area that children can enjoy weaving the string to become a curtain.

Dry & Wash

DRY, 6th FLOOR

The laundry in green that equip with washing machine. Children can learn to categories and folding clothes.The toilet in indigo that children can wash their hands and gain knowledge regarding the water flow through the tape and piping system.

SLEEP

Sleep SLEEP, 6TH FLOOR

Sleep is a bedroom. Children can learn tify up the bed and arrange clothes in wardrobe. Also, girls can learn to comb and tie their hair.

In-book

IN-BOOK, 5TH FLOOR

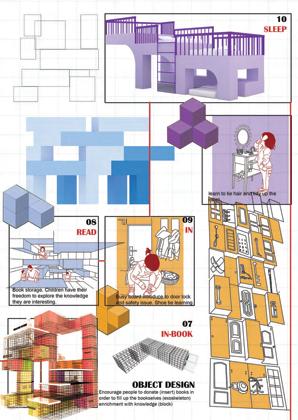

Object design which focused on charity programme. People can donate the book at the machine then the book will transport to different canal. Various colour of the canal used to indicate the categories. The books will go around the structure and the children can easily reach the book and read here.

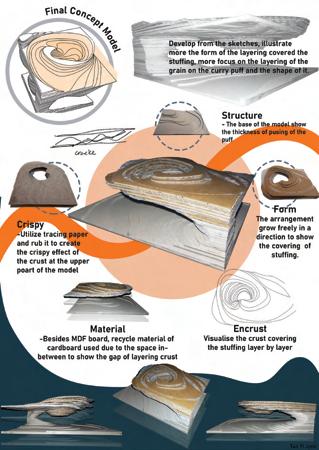

02 En-crust Interior Architecture III Project Title [Re-Imagined] Alternative Narrative

Project Brief [Re-Imagined] Alternative Narrative project is to reimagine the spaces that revolutionary ideas of either Living, Working, Shopping and Learning.

The design ideas where the users will get to experience interactive spaces and the arts of making by exploring the spaces provided. The idea of ‘storytelling’ in the space is to uniquely create a narrative space interactively and the desire to mesmerise the storyline of the space that showcasing the conceptual ideas from project 2.

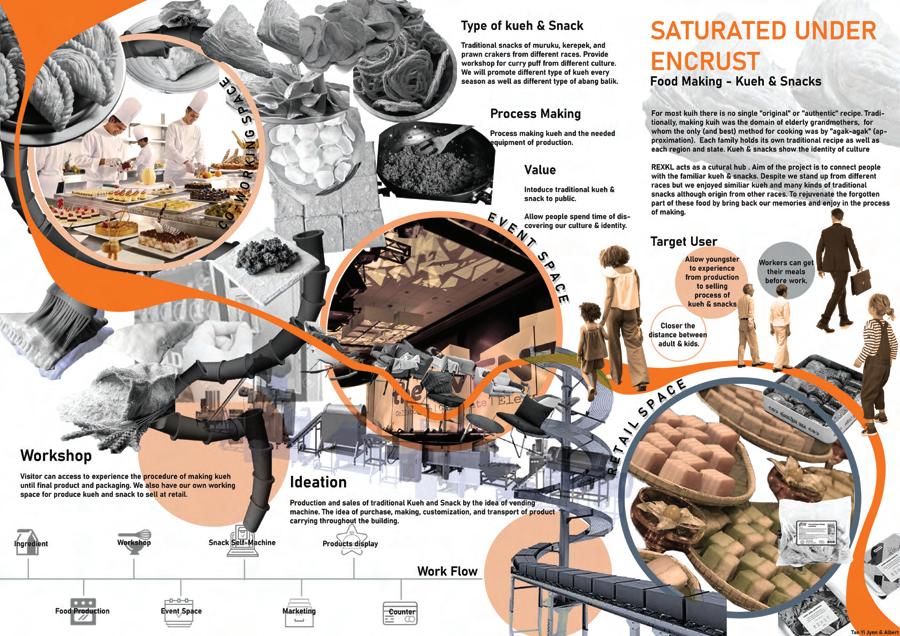

Subject Matter Traditional Kuih & Snack

Project 01: Building [nooks]: Site Explorative

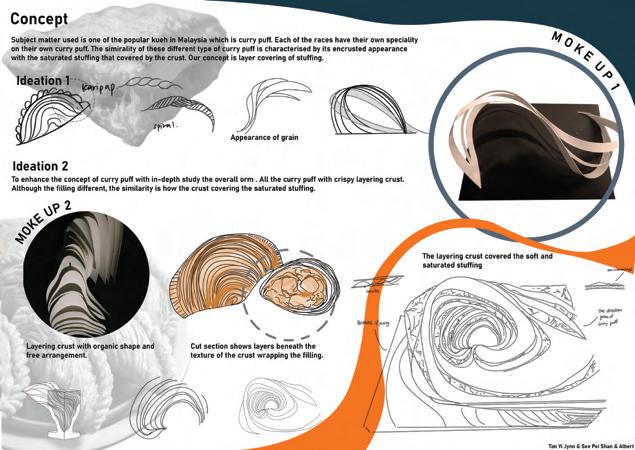

Conceptual idea

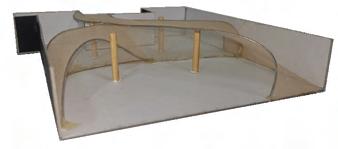

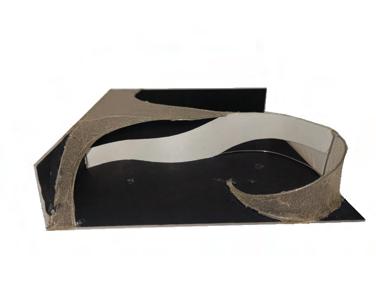

Concept model

Space ideation

Issue Board

Space Programming

PROJECT 02: IMAGINATIVE DESIGN MAKING

Space ideation

Space ideation

Narrative Programming

Seating Area Children can plant and water the greenery at the garden. The sand acts as Farming Simulator. They can recognise the animals and their habitats and shelters.

Open Workshop People can use the facilities to make kuih.

Aprons are prepared at the ready zone. There are some bar seating provided

Auntie’s Fried Zone Fried Food Display Area.

2nd floor - Workshop

People can obverse the process of food making through the display window at chef’s live kitchen. There are four workshop located at the mezzanine floor which is above the Chef’s live kitchen. The conveyor blet transport the ingredient from first floor to second floor and mezzanine floor. The counter is located beside the entrance of second floor.

Gathering space Gathering space suitable for people to carry out meeting, discussion or even chatime.

Kueh tester People can gathering here, enjoy the event at auditorium where the padding is prepared and served with unilimited kueh and snack tester.

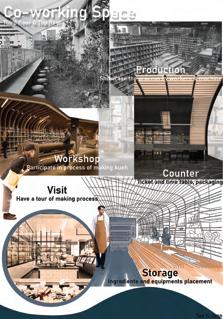

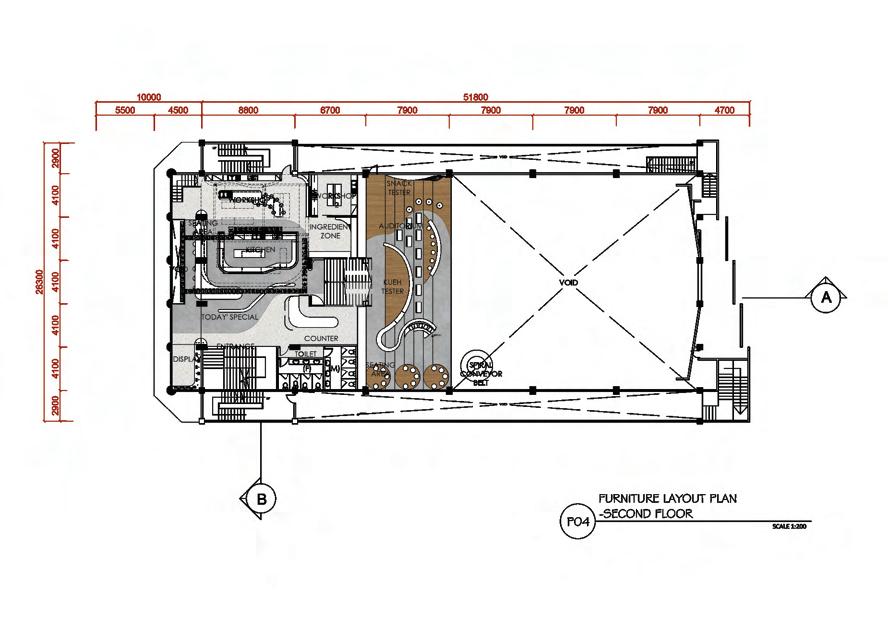

Snack tester 2nd Mezzanine floor - Co-working space

Working space allow people to do their own task together. Different type of seating to suit people needs either individual or in group.

Snack dispenser system that can can refill the snack from the manufacture area.

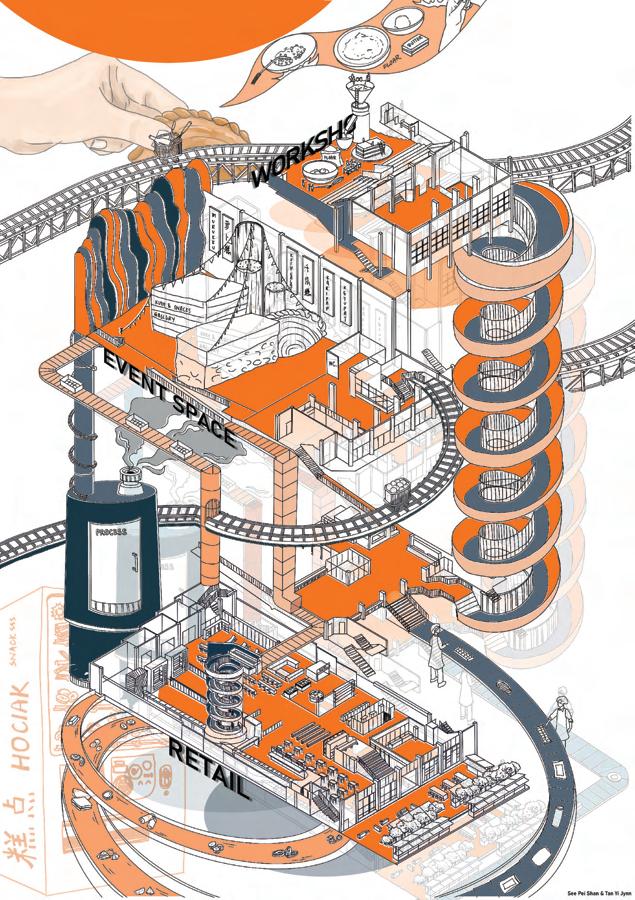

Axonometric Space Programming Manufacture display

Craft making

Spiral conveyor belt

Projector screen

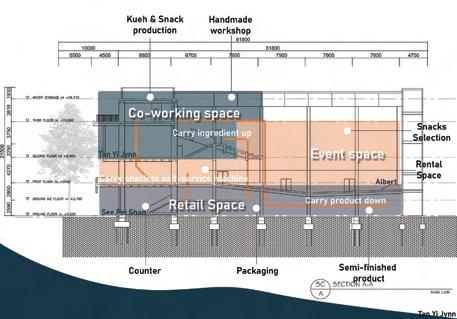

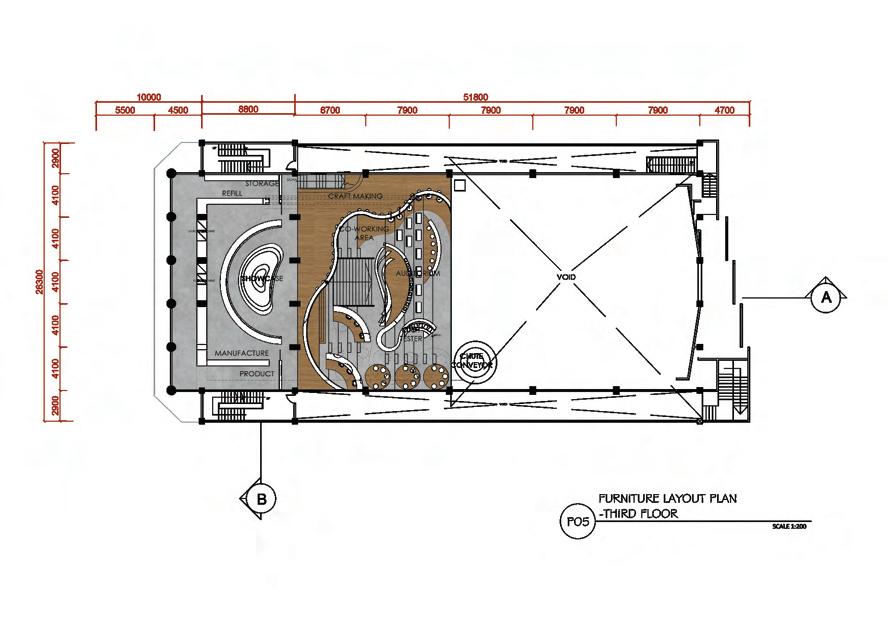

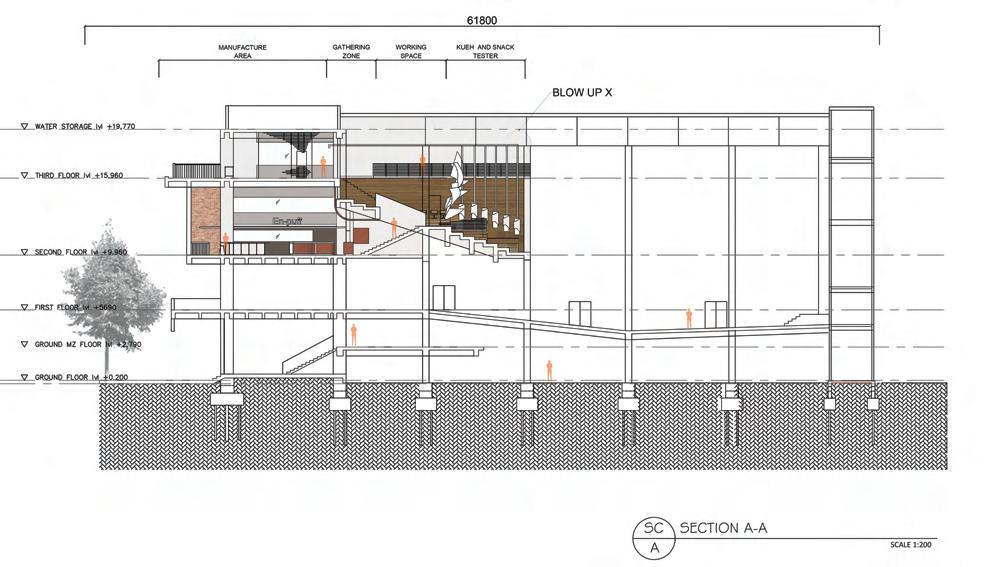

3nd floor - Manufacturing Manufacturing space is semi private space only allow people to view the process. People can understand the work flow through the transportation of ingredient from downstairs and sending out the products, Also, the tester will carry out form the manufacturing space via the piping system.

03 Make Waves Moments Interior Design V Project Title Retail Design

Project Brief The task for this project is to RETAIL DESIGN either in trading goods, services or food & products.This project consists of two parts in which you will be proposing your design based on a researched and selected theme; and the realization of detail design. The theme will be at the centre of your design and be your reference point in designing the layout, spatial character, furniture and furnishings, lighting policies, display policy – all to create complete immersive environment.

Client

Yamaha Music (Malaysia) Sdn. Bhd.

Site Introduction

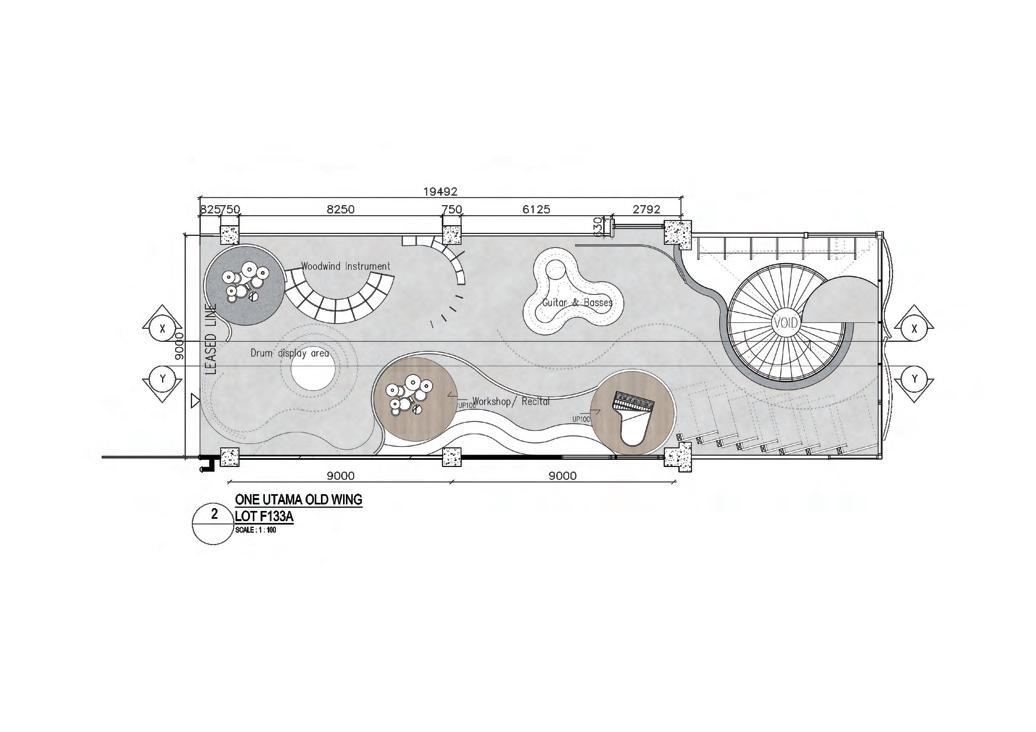

The site is located at the 1 Utama Shopping Centre in Bandar Utama, Petaling JayaThe proposed side is Lot G130, G130A & F133A, two floors with void & staircase. There is two entrances in internal mall & facade exterior. The total area is 4647ft².

Concept

Collaboration to make waves. Yamaha have organise a series of event and activities like orchestra. Integration of the collaboration in performance and the brand promise.

Space Programming

Client Introduction Yamaha began in Japan by its founder, Torakusu Yamaha in 1877. Since then, Yamaha has continued to produce high-quality musical instruments by blending traditional craftsmanship with advanced digital technology.

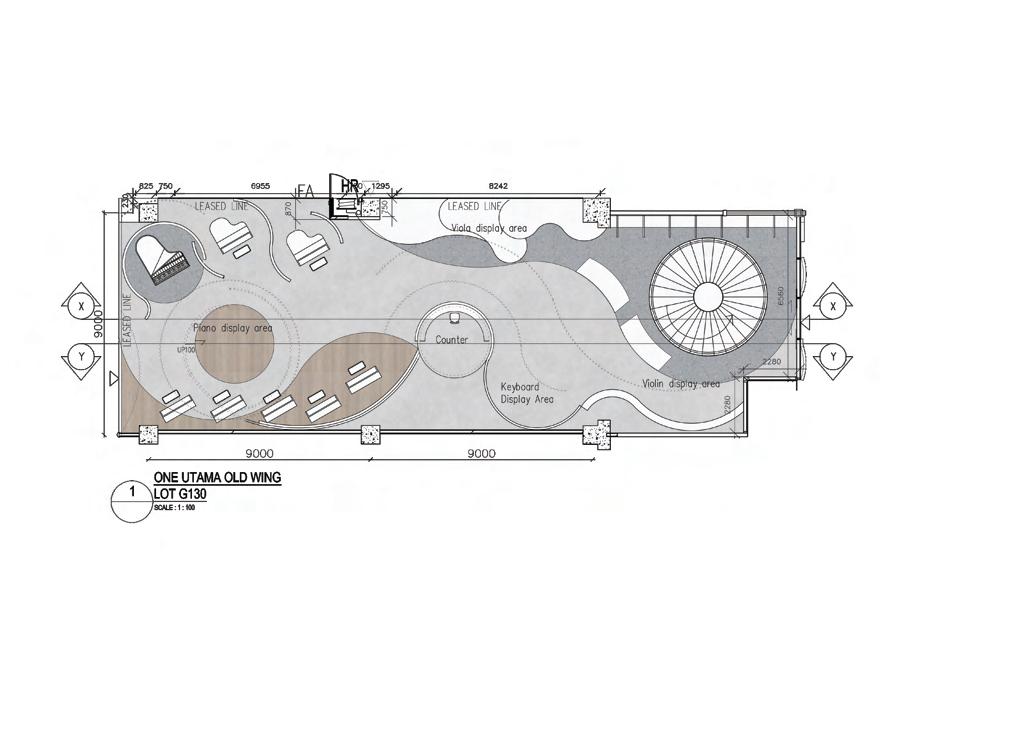

Upright Piano Upright piano arranged againt the partition.

Viola Display Area This is the viola display area after the piano display area. The viola display with the stand on the platform. In front it is the counter with dropped ceiling. .

Violin Display Area

Ground floor Entrance

The ceiling structure will connected to the ground and perform a space for keyboard display area. Violin hanged at the partition that completed with LED light strip.

Ground floor mall entrance of retail. This section is the piano display area. There is a suspended signage to follow the form of display window. Application of advertisement.

Reatail Store Facade

1st Floor Mall Entrance There is the display area of drum and percussion. The middle is the hot seller display window.

Guitar Display Area

SEE's Design Studio

SEE's SEE'sDesign Design Studio Studio

47-03. Jalan Kenari 19a, Bandar Puchong Jaya, 47100 Puchong, Selangor.

47-03. Jalan Kenari 19a, 47-03. Jalan Kenari 19a, Bandar Puchong Jaya, 47100 Puchong, Selangor.

Tel: 603-77100110

Bandar Puchong Jaya, 47100 Puchong, Selangor.

SEE's Design Studio

INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE COPYRIGHT OF GUSTO DESIGN & BUILD AND IS NOT TO BE REPRODUCED WITHOUT THEIR PERMISSION 47-03. Jalan Kenari 19a, Note Bandar Puchong Jaya, 47100 Puchong, Selangor.

DATE

Tel: Tel:603-77100110 603-77100110

INFORMATION CONTAINED THESOLE SOLE INFORMATION CONTAINEDIN INTHIS THIS DRAWING DRAWING ISISTHE COPYRIGHT OFOF GUSTO ANDISIS COPYRIGHT GUSTODESIGN DESIGN& & BUILD BUILD AND NOTNOT TO TO BE BE REPRODUCED PERMISSION REPRODUCEDWITHOUT WITHOUT THEIR THEIR PERMISSION

Note Note

Tel: 603-77100110 REVISION

INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE COPYRIGHT OF GUSTO DESIGN & BUILD AND IS NOT TO BE REPRODUCED WITHOUT THEIR PERMISSION

DATE DATE

Bottom part from the reinforced concrete floor is a platform to display the guitar with stand and comes together with the seating area at sides to provide a space for them to experience the guitar. While the guitar at upper part as the showcase purpose.

REVISION REVISION

Note

DATE

D3 BLOW UP DETAIL U 04 SCALE 1:3

REVISION

PROJECT TITLE TO PROPOSE A RETAIL DESIGN FOR YAMAHA MUSIC (M) SDN BHD. PROJECT TITLE

D3 BLOW UP DETAIL U 04 SCALE 1:3

TO PROPOSE A RETAIL DESIGN FOR YAMAHA MUSIC (M) SDN BHD.

01

01

BLOW UP DETAIL

BLOWNTS UP DETAIL NTS

PROJECT TITLE

PROJECT TITLEA RETAIL TO PROPOSE

DESIGN FOR YAMAHA MUSIC

SDN BHD.A RETAIL TO(M) PROPOSE DESIGN FOR YAMAHA MUSIC (M) SDN BHD.

CLIENT SIGNATURE CLIENT SIGNATURE

CLIENT SIGNATURE

CLIENT SIGNATURE

SCALE DRAWN BY DATE CHECKED BY

: REFER DRAWING : YIJYNN : 13 JULY 2021 :

SCALE : REFER DRAWING DRAWING TITLE DRAWN BY : YIJYNN DATE DISPLAY METHOD: 313 JULY 2021 CHECKED BY- BASSES : FIRST FLOOR DISPLAY AREA DRAWING TITLE

SECTION U-U

D3 03

SECTION U-U

1:100 (A3) YIJYNN 13 JULY 2021

1:100 (A3) DRAWN BY : YIJYNN DRAWING TITLE DATE : 13 JULY 2021 CHECKED : PLAN EXISTING BY LAYOUT GROUND FLOOR

EXISTING LAYOUT PLAN GROUND FLOOR DRAWING NO : EP-01

THIS DRAWING AND ANY

SPECIFICATION NO THAT MAY DRAWING :

01

SCALE 1:30

SCALE 1:30

: : : ::

DRAWING TITLE

DISPLAY METHOD 3 DRAWING NO :- BASSES FIRST FLOOR DISPLAY AREA DD2-02

D3 03

SCALE DRAWN BY DATE CHECKED BY SCALE

01

SECTION S-S

ACCOMPANY IT ARE THE SOLE PROPERTY OF SEE's Design Studio DD2-02 CONTRACTOR MUST CHECK ALL THE DIMENSION ON SITE .ONLY FIGURED DIMENSIONSNTS ARE TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED TO THE THIS DRAWING AND ANY DESIGNER BEFORE PROCEEDING. SPECIFICATION THAT MAY ACCOMPANY IT ARE THE SOLE PROPERTY OF SEE's Design Studio CONTRACTOR MUST CHECK ALL THE DIMENSION ON SITE .ONLY FIGURED DIMENSIONS ARE TO BE WORKED NTS ON. DISCREPANCIES MUST BE REPORTED TO THE DESIGNER BEFORE PROCEEDING.

SECTION S-S

THIS DRAWING AND ANY

DRAWING NO SPECIFICATION THAT: MAY

ACCOMPANY IT ARE THE SOLE

PROPERTY OF SEE's Design Studio EP-01 CONTRACTOR MUST CHECK ALL THE DIMENSION ON

SITE .ONLY FIGURED DIMENSIONS ARE TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED TO THE

BEFORE THISDESIGNER DRAWING AND PROCEEDING. ANY SPECIFICATION THAT MAY ACCOMPANY IT ARE THE SOLE PROPERTY OF SEE's Design Studio CONTRACTOR MUST CHECK ALL THE DIMENSION ON SITE .ONLY FIGURED DIMENSIONS ARE TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED TO THE DESIGNER BEFORE PROCEEDING.

Sectional Perspective

It is constructed by the frosted glass and each of the panel have different cut curve lines to show the waves movement.

Basses Display Area

01

SECTION S-S NTS

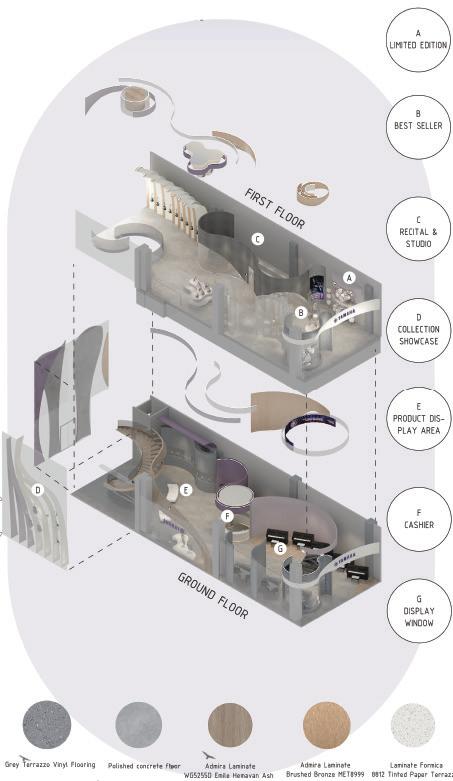

Axonometric Space Programming

Brass & Woodwind

SEE's Design Studio 47-03. Jalan Kenari 19a, Bandar Puchong Jaya, 47100 Puchong, Selangor.

Tel: 603-77100110 INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE COPYRIGHT OF GUSTO DESIGN & BUILD AND IS NOT TO BE REPRODUCED WITHOUT THEIR PERMISSION

Note

DATE

PROJECT TITLE TO PROPOSE A RETAIL DESIGN FOR YAMAHA MUSIC (M) SDN BHD.

CLIENT SIGNATURE

SCALE DRAWN BY DATE CHECKED BY

DISPLAY METHOD 1 FIRST FLOOR - BRASS & WOODWIND DISPLAY AREA

DRAWING NO : DD1-01

47-03. Jalan Kenari 19a, SCALE 1:2 Bandar Puchong Jaya, 47100 Puchong, Selangor.

Tel: 603-77100110

INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE COPYRIGHT OF GUSTO DESIGN & BUILD AND IS NOT TO BE REPRODUCED WITHOUT THEIR PERMISSION

Note

This is the basses display are which is located at first floor of the retail store and placed beside the staircase.

REVISION

PROJECT TITLE TO PROPOSE A RETAIL DESIGN FOR YAMAHA MUSIC (M) SDN BHD.

Recital & studio

01

Stairs seating type. The spaces can be combine as a recital spaces and band SECTION S-S can take places.

CLIENT SIGNATURE

SCALE DRAWN BY DATE CHECKED BY

: REFER DRAWING : YIJYNN : 13 JULY 2021 :

DRAWING TITLE DISPLAY METHOD 1 FIRST FLOOR - BRASS & WOODWIND DISPLAY AREA

DRAWING NO : DD1-01

01

NTS

BLOW UP DETAIL SCALE 1:2

Staircase This is the display area of the violin. The violin is display inside the built-in curve partition. The lighting fitting used is the LED strip to light up the violin. Infront it is the staircase that can access to first floor.

: REFER DRAWING : YIJYNN : 13 JULY 2021 :

DRAWING TITLE

SEE's Design UP Studio DETAIL 01 BLOW

DATE

REVISION

THIS DRAWING AND ANY SPECIFICATION THAT MAY ACCOMPANY IT ARE THE SOLE PROPERTY OF SEE's Design Studio CONTRACTOR MUST CHECK ALL THE DIMENSION ON SITE .ONLY FIGURED DIMENSIONS ARE TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED TO THE DESIGNER BEFORE PROCEEDING.

THIS DRAWING AND ANY SPECIFICATION THAT MAY ACCOMPANY IT ARE THE SOLE PROPERTY OF SEE's Design Studio CONTRACTOR MUST CHECK ALL THE DIMENSION ON SITE .ONLY FIGURED DIMENSIONS ARE TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED TO THE DESIGNER BEFORE PROCEEDING.

04

Site Introduction First City University College is located at No.1, Persiaran Bukit Utama, Bandar Utama, 47800 Petaling Jaya, Selangor

Incessant Inspiration

Development

Hierarchy is created to show the different views and inspiration from each of person.

Interior Architecture IV

Client Brief

Project Title

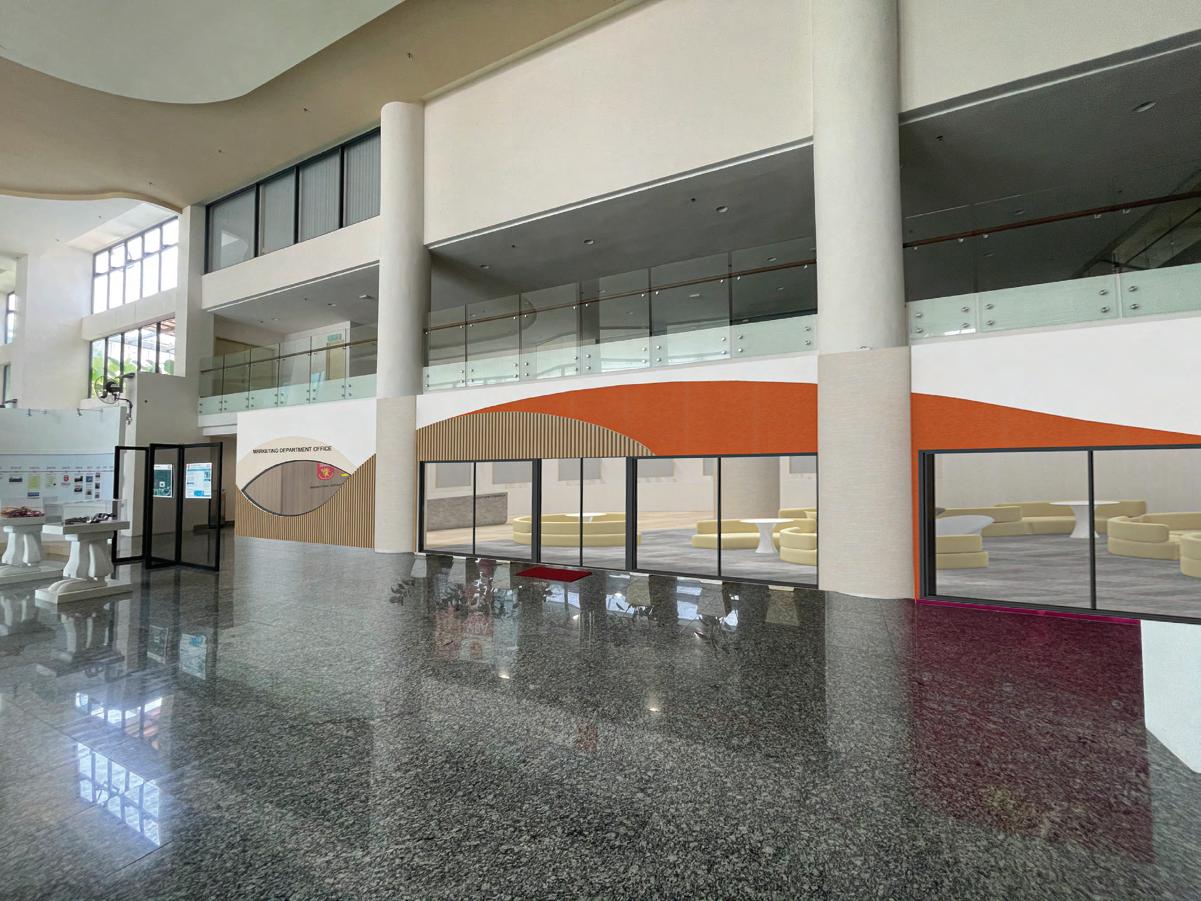

Marketing Department office is located at the main entrance of college. Office involved 2 main parts, semi- private area for workers and public area for students and parents consultation.

Office Design

Project Brief For this project, you are required to design the Marketing Department office of FCUC, the same organization from Project 1. Based on the proposed concept from Project 1, you will design the spaces, elements, and the planning of furniture to achieve the ideal combination of both functionality and space characteristics. Consider the strategies and organizational structure and provide detailed understanding of the task performed, the methods and processes to carry out the job.

Client

Y

5600 3600

SEC

First City University College

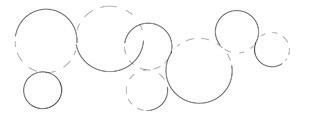

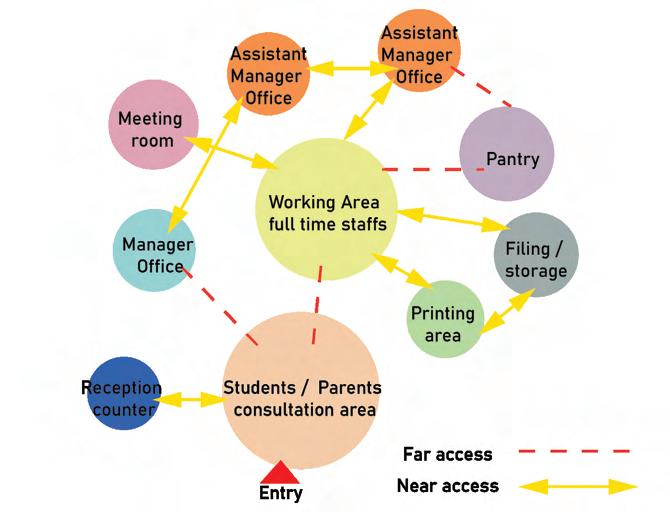

Bubble Diagram

The structure of the model dividing the space into 2 main parts

Continuous line acts as a guide of the pathway.

Schematic model

Reception Counter A window is placed beside the reception counter. It can ensure the field of vision from the reception counter and enhance visibility.

Main Entrance Facade Design Glass door used to ensure the natural lighting to penetrate to interior. The material proposed at facade are wood strip, paint and laminate.

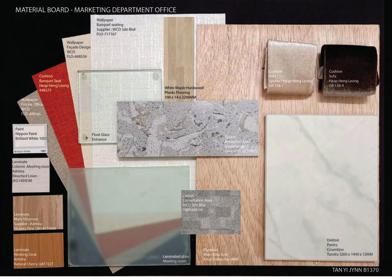

Material Board

Consultation Area Students & parents consultation space which provide small discussion space.

Working Area The partition board and small shelf are available for each of the staff to enhance privacy and provide an extra storage for them.

Meeting Room

he curved frosted glass sliding door is act as the entrance of the space. It can enhance the privacy of the meeting area.

Pantry

Different type of tables and seats are provide for staff. It can ensure the comfortability for them to take their lunch or break.

Discussion Area Discussion area is a opened area and it placed beside the working area for easy access. A small or informal meeting can be done at there.

Assistant Manager Room Manager Room

Build in cabinets are available in dean office. It can provided enough spaces for dean to store documents and display certificates.

Project Display Area

The structure of the project display area, it can acts as a guide for staffs to their office. It also acts as the project display area for visitors.

The space of the assistant manager room is sufficient for 1-3 pax. A small meeting can be done in the done and the privacy is guaranteed.

05

Project Title Case Study Presentation (Utopian Paradise) Project Brief

Continuous Monument

Contemporary Design Theories - Stylecapes

The act of investigating sources, digesting information, and summarising your design practice as a whole will help to clarify these matters in your mind. You will also develop your confidence in handling information, making useful notes, diagrams, illustration and presenting an argument. The case study presentation should be visualise and verbalise. The students are encouraged to speculate the revised version of the case study in a form of digital collage.

Topic / Manifesto Continuous Monument (Superstudio)

06 Traditional Chinese Architecture Theories of Asian Architecture - Infographic

Adaptive reuse as a strategy of conservation attempts on shophouses

07

Abstract :

Introduction:

The aim of this research is to identify the factors and strategies to overcome the insufficient conservation attempt of

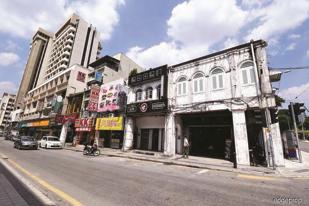

During the site visit to Jalan Tun H. S. Lee, we have observed several issues. One of the obvious factors that can be seen

intangible qualities on traditional streets. Having a site visit at Jalan Tun H.S Lee we have observed that heritage/ historical buildings and shophouses have been revamped into something else without sustaining the original looks of the place, this has made a huge impact on the attraction towards younger generations and history of the shophouses in terms of the condition. The first main factor that affects what has happened is because of tenants that have different aesthetic designs when it comes to renovations to the facade of the building, as some may make rapid design changes to the exterior and demolish some structures. Second factor would be, inheritance of the building from the older generation to younger generation. This causes the younger generation to not know about in-depth history of the building which then leads them

which might cause some changes in the structures of the original building itself. Next issue would be the generation to come that has less knowledge in historical architecture and its importance which would then lead them to not appreciate the existing cultural values. During the site visit, we can also clearly see there aren't many youngsters. Last but not least, factors of the rapid modern building development around the traditional shophouses. It might greatly affect the entire street of the historical shophouses to be not visible to the public, especially the younger generation to come as it was covered by tall skyscrapers and buildings. In addition to that, it also might cause the ethnic and regional features contained

to not know how to value the existing culture of the building and place. The last factor would be rapid modern building

in buildings loss gradually.

development around the shophouses might affect the entire historical streets to be "unseen" to the public or even mistaken them as run down buildings. Might also cause the ethnic and regional features contained in the buildings to lose

Methodology:

gradually. Our research has covered how to overcome the issues found by restricting the materials used or aesthetic looks when it comes to renovation done by new tenants or owners for example enhancing traditional trading shop designs that was once there before, to bring back the old traditional trades but in a modern way. Secondly, organizing campaigns regarding historical buildings in Jalan Tun H.S Lee towards the younger generation by flyers, infographic posters or social media. Lastly, propose a contract or strengthen the law to not demolish historical buildings and shophouses to ensure the cultural identity of Malaysia is well preserved and protected. Niko Neko Matcha store located on Jalan Tun H. S. Lee is a

Adaptive Reuse

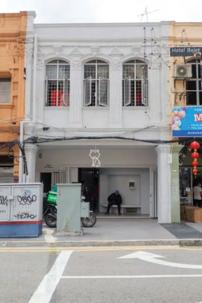

during the site visit are constant renovations of traditional shophouses to integrate the aesthetic of certain shop owners

new café with new interior as well as new façade designs. For example, The strategies of Niko Neko Matcha have use in adaptive reuse from an intangible cultural heritage, effectively able to attract more younger customers to visit.

Case Study

Identify the factors and affected areas leading to the potential solution.

In- depth learning and study about strategy of conversation attempt on shophouses

Conceptual Framework: ISSUES: LACK OF CONVERSATION ATTEMPT

Research Question 1:

Theories of Asian Architecture

Analysis

Precedent Study Investigation on the issues and basic knowledge of adaptive reuse and heritage.

1 What are the perceptions of abandoned buildings and how would it affect the current traditional shophouses located at Jalan Tun H. S. Lee?

FACTORS

RENOVATION

PERSEVERING THE ORIGINALITY OF THE ARCHITECTURE

AFFECTED AREAS

DIFFERENT AESTHETIC PERSPECTIVE

ARCHITECTURE

GENERATION

ENVIRONMENTAL

YOUNGER GENERATION PUT LESS EFFORT TO PRESERVE HISTORICAL BUILDING

RAPID MODERN BUILDING DEVELOPMENT

YOUNGER GENERATION PUT LESS EFFORT TO CONSERVE HISTORICAL BUILDING

YOUNGER GENERATION PUT LESS EFFORT TO CONSERVE HISTORICAL BUILDING

SOCIAL GROUP

BUILDING CONDITION

INSUFFICIENT ADAPTIVE REUSE STRATEGIES ON INTANGIBLE QUALITIES OF CONSERVATION ATTEMPT

Research Question 3 :

3 Can renovation of traditional shophouses be associated with adaptive reuse?

Project Title Research in Asian Architecture Issue Adaptive reuse of traditional architecture

“Abandoned buildings are places where remembrance and history holds” (Prof. Shaher Moh’d Rababeh, 29th January 2014).

However, people see it only as old buildings, especially from a young people point of view. This will greatly affect the traditional shophouses located at Jalan Tun H. S. Lee, as people view the shophouses as abandoned buildings and it doesn't hold any values which make them not want to do anything with it. This will result in traditional shophouses left abandoned and not well maintained as no one tries to revitalize it.

Research Question 2:

2 Can adaptive reuse be considered as a sustainable solution in conserving traditional shophouses?

According to an article from ‘Rethinking The Future’, many UNESCO declared heritage sites are restored and turned into tourist hot spots. Even little alterations and some new usage to be integrated into existing buildings can be proposed, especially to replace the old water piping system, electrical system as well HVAC. However, having too much addition into traditional shophouses would los e the cultural identity.

Research Question 4 :

4 Should all the adaptive reuse projects on the traditional shophouses be designed with flexibility for greater adaptability in the future?

According to research findings from ‘Adaptive Reuse as a Sustainable Solution’, it shows that most people only find adaptive reuse socially and environmentally sustainable not economically. (Breckenridge Lauren, 2018) It is also stated in the findings that adaptive reuse is essentially a practice for the current environmental issues our planet is facing because by doing so we are able to do new or bringing back old trades into business without having to change the entire shophouses.

Adaptive reuse can prevent further new building construction which leads to wasting of money material in creating new buildings than having an existing building to remodel it.

Conclusion: In a nutshell, this research aim is to restore cultural values to the shophouses and heritage buildings of Jalan Tun H.S Lee. We have observed the site condition problem that happened frequently with renovation on heritage building, younger generation less concentration with the historical building and the rapid modern building development speed. As a result of case study, we have deep learning on the potential solution that can be implement on the site for further development, such as restrict the building material that allowed to the facade and interior space, organize some campaign activities regarding historical building in Jalan Tun H.S Lee and propose a contract or strengthen the law related, to not demolish the historical buildings and shophouses to ensure the cultural identity of Malaysia is still well protected and reserved. Last but not least, it is important to protect and inherit the cultural values of heritage and shophouses in every generation.

Wong Siew Tong (0354729) Chiang Xin Yee (0354774) Valerie Poh Jun Yee (0339510) Erica Wong Xin Eu (0353736) Grace Wong Jing Yee (0353138) Lim Xin Yi (0354725)

Tan Yi Jynn (0353247)

This is to ensure that the future traditional shophouses owner is able to renovate or refurbish the space according to their design aesthetic easily without having to go through too much work. In addition to forbid them to have any permanent renovation in the process so that the future tenants are able to do another refurbishment if the design aesthetic differs. At once, the traditional shophouses will constantly be in use and maintained.

Adaptive reuse refers to any intervention to make adjustment, reuse, upgrade or even changes to the capacity of a building to suit new conditions or requirements only when the former become obsolete. (Douglas, 2016)

References : Professor Shaher Moh’d Rababeh, (30th January 2014). “What are the perceptions of abandoned buildings?”, Retrieved from: https://www.researchgate.net/post/What-are-the-perceptions-of-abandoned-buildings Kanchi Modi, (2022). “20 Thesis topics to Adaptive Reuse”, Retrieved from: https://www.re-thinkingthefuture.com/architectural-community/a3478-20-thesis-topics-related-to-adaptive-reuse/ Lisa Eisen, (27th May 2020). “19 questions for the Noordwijk on adaptive reuse”, Retrieved from: https://issuu.com/welcometojasperstown/docs/booklet Breckenridge Lauren, (2018). “Adaptive Reuse as a Sustainable Solution”, Retrieved from:https://repository.arizona.edu/bitstream/handle/10150/631206/SBE498_2018F_Senior%20Capstone%20Final_Brecken ridge_L.pdf?sequence=5&isAllowed=y Ida Lim, (2022). “Fung Wong: The story of a 113 year old Chinese Pastry Shop in Petaling Street and its new hip home”, Retrieved from:Fung Wong: The story of a 113-year-old Chinese pastry shop in Petaling Street and its new hip home (yahoo.com) https://www.academia.edu/31169416/Adaptive_reuse_of_traditional_Chinese_shophouses_in_government_led_urban_renew al_projects_in_Hong_Kong

08 Sustainable Education Hub Detailing Working Drawing - Assignment 2

Project Title 02: AS-BUILT DRAWINGS: ‘Sustainable Education Hub’

Project Brief

Furniture Layout Plan F

G

6050

4040

All intellectual property rights of whatever na indicated or represented on this drawing are ow and must be return upon request. No disclo person, firm or company without the expressed

H

2

E

SEC

This assignment requires students to source existing precedent studies related to office design/coworking space of educational hub, recognise the layout to extract the Schedule of Accommodation (SOA) and FF&E of the precedent study. It also introduces students to the UBBL and/or fire requirements that are required to be focused in designing the space. Students will be producing a set of as built drawings including plan, internal elevation, section, SOA, FF&E and an analysis related to UBBL and materials application based on the selected precedent study.

NOTE:

8136

Do not scale this drawings for construction pur be clarify with GW Design.

2 2640

W2

W4

W3

W1

L2

NO.

TERRACE

L5

CONCRETE FLOORING Area: 20.466 sqm

W5

F5

DESCRIPTION

F4

3

D3

L5

D1

W6

L5 L2

L2

FRIDGE

F7

6030

L10

PANTRY

FRIDGE

RETAIL AREA

SEATING AREA

CONCRETE FLOORING Area: 45.31 sqm

CONCRETE FLOORING Area: 46.63 sqm

CONCRETE FLOORING Area: 37.83 sqm

L11

L6

L5

L4

BOOKSHELVE

F3

L5

L3

L2

B

ELE KITCHEN CABINET

4

BOOKSHELVE

BOOKSHELVE

F8

L5 L1

F2

COFFEE WORKSHOP CONCRETE FLOORING Area: 19.05 sqm

1

L4

2200MM(L) x 1000MM(W) x 750MM(H) 10 SEATERS DINING TABLE

1

L5

450(W) x 520(L) x 450(SH) x 840(H) INDUSTRIAL DINING CHAIR

30

L6

400MM(L) X 400MM(W) X 450MM(H) LOFT BAR STOOL

10 2 4

F1

1600MM(L) x 900MM(W) x 750MM(H) BAR TABLE C/W THE 30MM COUNTERTOP

1

F2

3779MM(L) x 900MM(W) x 750MM(H) CASHIER AND ORDER COUNTER

1

F3

2400MM(L) x 1020MM(W) x 1000MM(H) BAR TABLE SET C/W 4 BAR SEATS

1

F4

2500MM(L) x 1700MM(W) x 900MM(H) KITCHEN ISLAND C/W 50MM THK QUARTZ

1

F5

3300MM(L) x 600MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

1

F6

3090MM(L) x 600MM(W) x 2000MM(H) CABINET C/W LAMINATE FIN.

1

F7

BUILT- IN BOOKSHELF C/W CHIPBOARD STRUCTURED SHELVING AND LOW CABINET

1

F8

2OMM THK PLYWOOD STRUCTURED SHELVING C/W BLACK SPRAY PAINT

1

F1

UP

W3

2

INTERIOR DESIGN CONSULTANT:

1900MM(L) x 1000MM(W) x 750MM(H) 6 SEATERS DINING TABLE

L5

D2

ARCHITECT:

4

L3

400MM(L) X 400MM(W) X 600MM(H) LOFT BAR STOOL

SEC

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any

CLIENT:

1600MM(L) x 900MM(W) x 750MM(H) 4 SEATERS DININNG TABLE

1000MM(L) X 750MM(W) X 2100MM(H) 660L SIDE

BY SIDE WITH LARGE CAPACITY (SPACEMAX)

ENTRANCE

NOTE:

2

L2

L11

SELECTED BESPOKE

5

NO.

900MM(L) x 900MM(W) x 750M(H) WOODEN TABLE W STEEL LEG

L10

L1

Hubba-to by supermachine studio

DESCRIPTION

L1

CAFE AREA CONCRETE FLOORING Area: 27.47 sqm

8080

Client

LEGEND

SYMBOL

F6

QUANTITY SURVEYOR:

PROJECT NAME:

DRAWING TITLE:

ASSIGNMENT 2: SUSTAINABLE EDUCATION HUB

FURNITURE LAYOUT PLAN

NOTE

All intelle indicated and mus person, fi

Do not sc be clarify

NO.

D

F1B 2000

Z

COFFEE WORKSHOP CONCRETE FLOORING

F1

ELE

19.05 sqm

Be-spoke detail 2100

400

F2

670

25MM THK STEEL ELECTRIC PIPE

Y

SEC

700 3200

330

SELECTED BESPOKE

01

600

BE-SPOKE DETAIL SECTION SCALE 1:50

DRAWER

DRAWER

ADJ.SHELF

DRAWER

DRAWER

ADJ.SHELF

DRAWER

ADJ.SHELF

F1

ADJ.SHELF

04

05

Y

900

Haier

F2

900

F1

Y

SEC 600

4

REGISTER SPACE

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

L12

L14

L15

L23

L23

L23

DESCRIPTION

DATE

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

600MM THK FLOOR SLAB

900

3500

F1

BLOW UP DETAIL D2 - COUNTERTOP SCALE 1:10

BORCELLE Q.S COMPANY

Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

CHECK BY: MS SIN AI

2, Jalan PJU 7/2, Mutiara Damansara, 4780 DATE: 8/10/2022

DRAWN BY: TAN YI JYNN

5385

PROJECT NAME:

DRAWING TITLE:

ASSIGNMENT 2: SUSTAINABLE EDUCATION HUB

BE-SPOKE DETAIL ELE, SEC, BLOW UP DETAIL

G FLOOR LEVEL

W2

W4

DOUBLE PIVOT GLASS DOOR C/W 2 TRANSFOM WINDOWS & 2 SIDELITES

F3

SEC 02

SCALE 1:50

F1B 01

SECTION 2-2 SCALE 1:75

E:

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

8941

25MM THK RUBBER WOOD COUNTERTOP C/W VARNISH

W3

W1

D3 L5

DATE

JYNN'S SDN.BHD. ARCHITECT:

GW DESIGN & BUILT SDN. BHD. INTERIOR DESIGN CONSULTANT: QUANTITY SURVEYOR:

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor

L3

1900MM(L) x 1000MM(W) x 750MM(H) 6 SEATERS DINING TABLE

PANTRY AREA

INDUSTRIAL DINING CHAIR

4

L12

1800MM(L) x 900MM(W) x 750MM(H) 4 SEATER WOODEN TABLE W STEEL LEG

1

L14

1600MM(L) x 500MM(W) x 750MM(H) WORKING TABLE W STEEL LEG

1

1200MM(L) x 900MM(W) x 750(H) WOODEN TABLE W STEEL LEG

1

L23

450MM(L) x 450MM(W) x 400(H) ELON SERIES PLASTIC CHAIR

5

F1

1600MM(L) x 900MM(W) x 750MM(H) BAR TABLE C/W THE 30MM COUNTERTOP

1

F2

3779MM(L) x 900MM(W) x 750MM(H) CASHIER AND ORDER COUNTER

1

F7

BUILT- IN BOOKSHELF C/W CHIPBOARD STRUCTURED SHELVING AND LOW CABINET

1

BORCELLE Q.S COMPANY

SECTION X-XLot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara,

4740 Petaling Jaya, Selangor

L5

L2

SEATING AREA

L3

SEATING AREA

RETAIL AREA TERRACE

1

L5

QUANTITY SURVEYOR: L15

PATRICIA J. INTERIOR PROJECT NAME: DESIGN SDN. BHD.DRAWING TITLE: 2, Jalan PJU 7/2, Mutiara Damansara, 4780 ASSIGNMENT 2: SUSTAINABLE PetalingHUB Jaya, Selangor EDUCATION

L4

F7

W6

LEGEND

SCALE 1:25 450(W) x 520(L) x 450(SH) x 840(H)

02

3750

HANGING WALL CABINET ELEVATION DESCRIPTION NO.

SYMBOL

ectual property rights of whatever nature, ideas, design arrangement and plans d or represented on this drawing are owned by and are the property of GW Design st be return upon request. No disclosure of this drawing may be made to any irm or company without the expressed permission in writing to GW Design.

cale this drawings for construction purposes. Any discrepancies found, they are to y with GWNOTE: Design.

CLIENT:

F6

G FLOOR LEVEL

300MM THK CONCRETE FLOOR SLAB

CABINET ELEVATION Z

REV NO.:

SLIDING BLACKBOARD C/W 25MM THK BLACK POWDER COATED ALUMINIUM FRAME

F11

DRIP COFFEE WORKSHOP

RETAIL AREA

DRAWN BY: TAN YI JYNN

25MM THK BLACK POWDER COATED ALUMINIUM STRUCTURED FRAME

LED PANDANT LIGHT COATED W/ LIGHT BLUE GREEN G6-A2-2 (KANSAI PAINT)

3500MM(H) x 1350MM(L) FIXED WINDOW C/W 5MM TEMPERED GLASS TERRACE

CHECK BY: MS SIN AI

02

G FLOOR CH 3500

F1

F2

DATE: 8/10/2022

DRAWING NO.: DWD_A2_BSD_04

D4

L5

SCALE: REFER TO DWG.

18076

REV NO.:

DRAWING NO.: DWD_A2_BSD_04 900 900

900

QUANTITY SURVEYOR:

PATRICIA J. INTERIOR DESIGN SDN. BHD.

METAL CHANNEL SUPPORT C/W SEISMIC BRACING CABLE KIT SYSTEM

L3

ESCRIPTION

INTERIOR DESIGN CONSULTANT:

Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

3600

REFER TO DWD_A2_BDD_04 FOR DETAIL

F7

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any

Elevation

Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

25MM NETWORK LINE C/W VIVID TURQUOISE PAINT

Haier

02

ARCHITECT:

DRAWING TITLE: IMAGE REFERENCE and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing ASSIGNMENT to GW Design.

BE-SPOKE DETAIL PLAN, ELE 2: SUSTAINABLE Do not scale this drawings for construction purposes. Any discrepancies found, they are to EDUCATION HUB JYNN'S SDN.BHD. be clarify with GW Design.

GW DESIGN & BUILT SDN. BHD. 10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala 2, Jalan PJU 7/2, MutiaraTO Damansara, 4780 SCALE: REFER DWG.

BORCELLE Q.S COMPANY

Haier

BSD

CLIENT:

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, AIR-COND DUCT 4740 Petaling Jaya, Selangor FIRE PROTECTION PIPES Tel: 019-8681962 Email: borchelle.qs_@gmail.com 900

700

F1B

NOTE:

PATRICIA J. INTERIOR DESIGN SDN. BHD.

600

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

BSD D2

AllSURVEYOR: intellectual property rights of whatever nature, ideas, design arrangement and plans NAME: QUANTITYindicated PROJECT or represented on this drawing are owned by and are the property of GW Design

NO.

VOID

GW DESIGN & BUILT SDN. BHD.

30MM(W) x 50MM(H) THK PLYWOOD STRUCTURED PANEL C/W LAMINATE CODE DXP 1336K (ADMIRA)

SCALE 1:25

5

600

FIRST FLOOR LEVEL G FLOOR CH 3500

17825

JYNN'S SDN.BHD.

3500

DATE

INTERIOR DESIGN CONSULTANT:

5600

3

TERRACE

rposes. Any discrepancies found, they are to FIRST FLOOR CH 3500

3600

30MM(W) X 50MM(H) PLYWOOD STRUCTURED FRAME 30MM(W) x 50MM(H) WOOD BLOCK

SCALE 1:5

600

2

25MM THK RUBBER WOOD COUNTERTOP C/W VARNISH

3500

Section

ature, ideas, design arrangement and plans wned by and are the property of GW Design osure of this drawing may be made to any d permission in writing to GW Design.

D1

01

ARCHITECT:

25MM THK RUBBER WOOD COUNTERTOP C/W VARNISH

30MM THK PLYWOOD STRUCTURED CARCASE

BLOW UP DETAIL D1 - SLIDING BLACKBOARD HANGING WALLBSD CABINET ELEVATION

F1B

SCALE 1:50

CLIENT:

SLIDING BLACKBOARD C/W 25MM THK BLACK POWDER COATED ALUMINIUM FRAME

SLIDING DOOR ROLLER GUIDE WHEELS

CABINET ELEVATION Z BSD BE-SPOKE DETAIL SECTION 01

SLIDING DOOR ROLLER GUIDE WHEELS

30MM THK RUBBER WOOD COUNTERTOP C/W VARNISH

25MM THK BLACK POWDER COATED ALUMINIUM STRUCTURED FRAME

SELECTED BESPOKE

SCALE 1:50

25MM THK BLACK POWDER COATED ALUMINIUM STRUCTURED FRAME

SLIDING BLACKBOARD C/W 25MM THK BLACK POWDER COATED ALUMINIUM FRAME

600

F1

2000

Z

ELE

700

F1B

900

30

900

600

900

190

F1B

02

SCALE 1:50

3600

25 25

BSD

BE-SPOKE DETAIL SECTION Y-Y

BSD

SEC

5600

19.05 sqm

300MM THK CONCRETE FLOOR SLAB

SCALE 1:50

3600

COFFEE WORKSHOP CONCRETE FLOORING

50MM THK PLYWOOD STRUCTURED PANEL C/W LAMINATE CODE DXP 1336K (ADMIRA) 30MM THK PLYWOOD STRUCTURED BACK

CABINET DETAIL ELEVATION Z

BSD

3600

30MM THK RUBBER WOOD COUNTERTOP C/W VARNISH

DRAWER

IMAGE REFERENCE 5600

REFER TO BLOW UP DETAIL D1 1000MM(L) x 400MM(W) x 600MM(H) GLASS DISPLAY WINDOW C/W 5MM THK CLEAR GLASS

REFER TO BLOW UP DETAIL D2

Haier

DRAWER

900

BSD

25MM THK ALUMINIUM STRUCTURED FRAME AND SHELVING

ELE B

SYMBOL

ELEVATION B SCALE 1:50

PROJECT NAME:

DRAWING TITLE:

ASSIGNMENT 2: SUSTAINABLE EDUCATION HUB

BE-SPOKE DETAIL PLAN, ELE

NOTE: All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any

SCALE: REFER TO DWG. CLIENT:

ARCHITECT:

CHECK BY: MS SIN AI

DATE: 8/10/2022 INTERIOR DESIGN CONSULTANT:

DRAWN BY: TAN YI JYNN

QUANTITY SURVEYOR:

PROJECT NAME:

DRAWING TITLE:

ASSIGNMENT 2: SUSTAINABLE EDUCATION HUB

ELEVATION A

LEGEND

DESCRIPTION

NO.

L2

1600MM(L) x 900MM(W) x 750MM(H) 4 SEATERS DININNG TABLE

4

L3

1900MM(L) x 1000MM(W) x 750MM(H) 6 SEATERS DINING TABLE

1

L4

2200MM(L) x 1000MM(W) x 750MM(H) 10 SEATERS DINING TABLE

1

L5

450(W) x 520(L) x 450(SH) x 840(H) INDUSTRIAL DINING CHAIR

L11

400MM(L) X 400MM(W) X 600MM(H) LOFT BAR STOOL

4

F3

2400MM(L) x 1020MM(W) x 1000MM(H) BAR TABLE SET C/W 4 BAR SEATS

1

F6

3090MM(L) x 600MM(W) x 2000MM(H) CABINET C/W LAMINATE FIN.

1

F7

BUILT- IN BOOKSHELF C/W CHIPBOARD STRUCTURED SHELVING AND LOW CABINET

1

30

Thank You Behance: https://www.behance.net/yijynntan Email: tanyijynn@gmail.com IG: yijynn

Portfolio 2020 by Tan Yi Jynn

To be continue...
