Work Samples

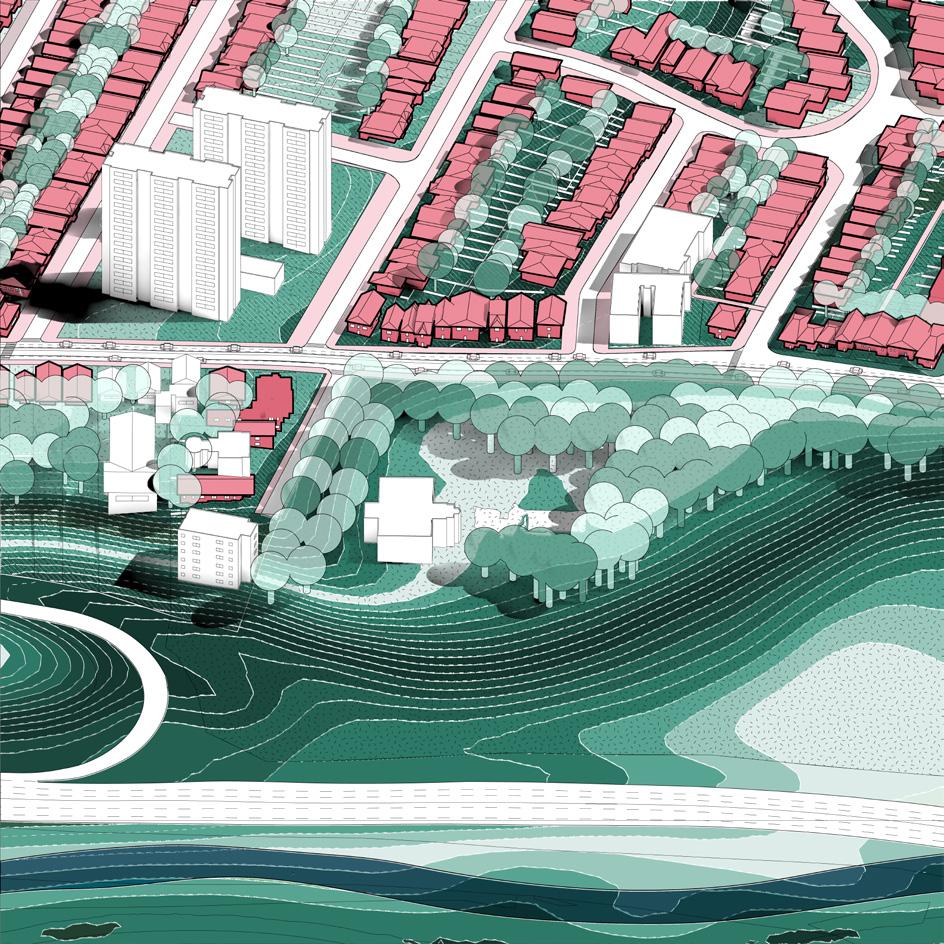

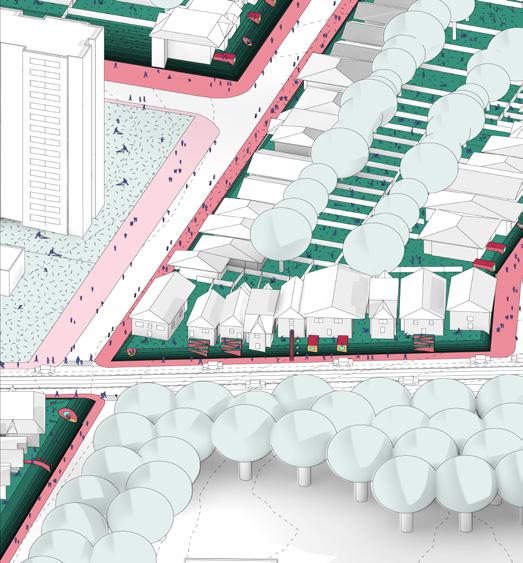

Topography and Houses near Don River
arc200: Drawing and Represenation II
Instructor: Sam Ghantous
Cousre Coordinator: Michael Piper
Completed in December 2021
If you never touch the ground, you are incapable of caring what’s on the ground
When I was exploring the site, noticed the uneven parts of the ground and found that each house has different approach to those conditions with different types of landscapes and I got an idea that even though these landscapes are different, they sit on the same ground and therefore are connected to each other by the Topography
Types of existing Landscapes
Landscapes in which most parts are untrimmed/unmanicured vegatations

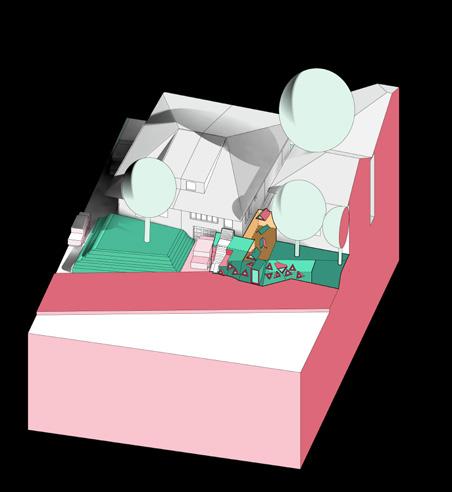

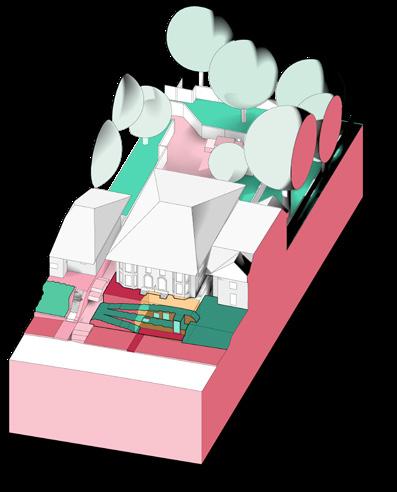

Secondary Dwelling Units Proposals - Based on Types of Landscapes
The units are made so that the dwellers remain connected to the world by being a part of landscapes and therefore, part of topographical network that maintains all relationships of the grounds together. Like each of the residential landscapes that was built based on the shape of the ground it’s on, the interventions are differently adjusted to each type of landscapes to engage with the connection of topography
Formal Landscape: formally trimmed and defined plants/ topiary and/or formal hardscape( such as terraces)

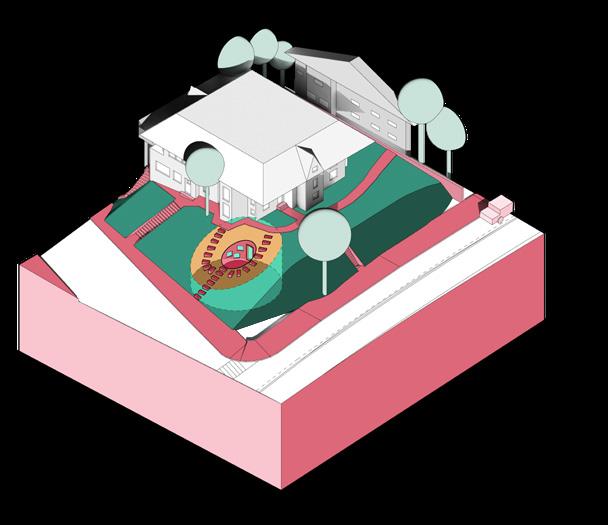

Softscape in the shape of a mound

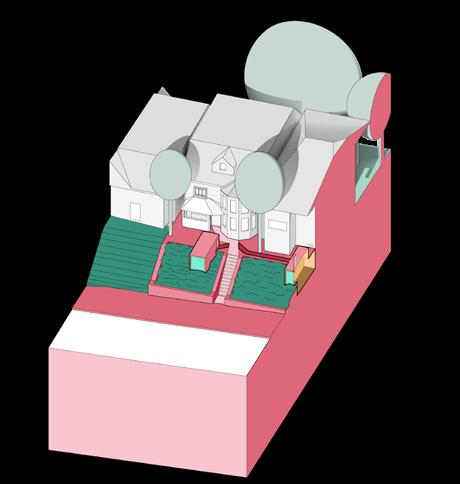

Hardscape where stair is the main element of landscape
4 Boxes on Informal Plants occupiable volume where its bottom half is covered by the plants while the top half sits above the plants

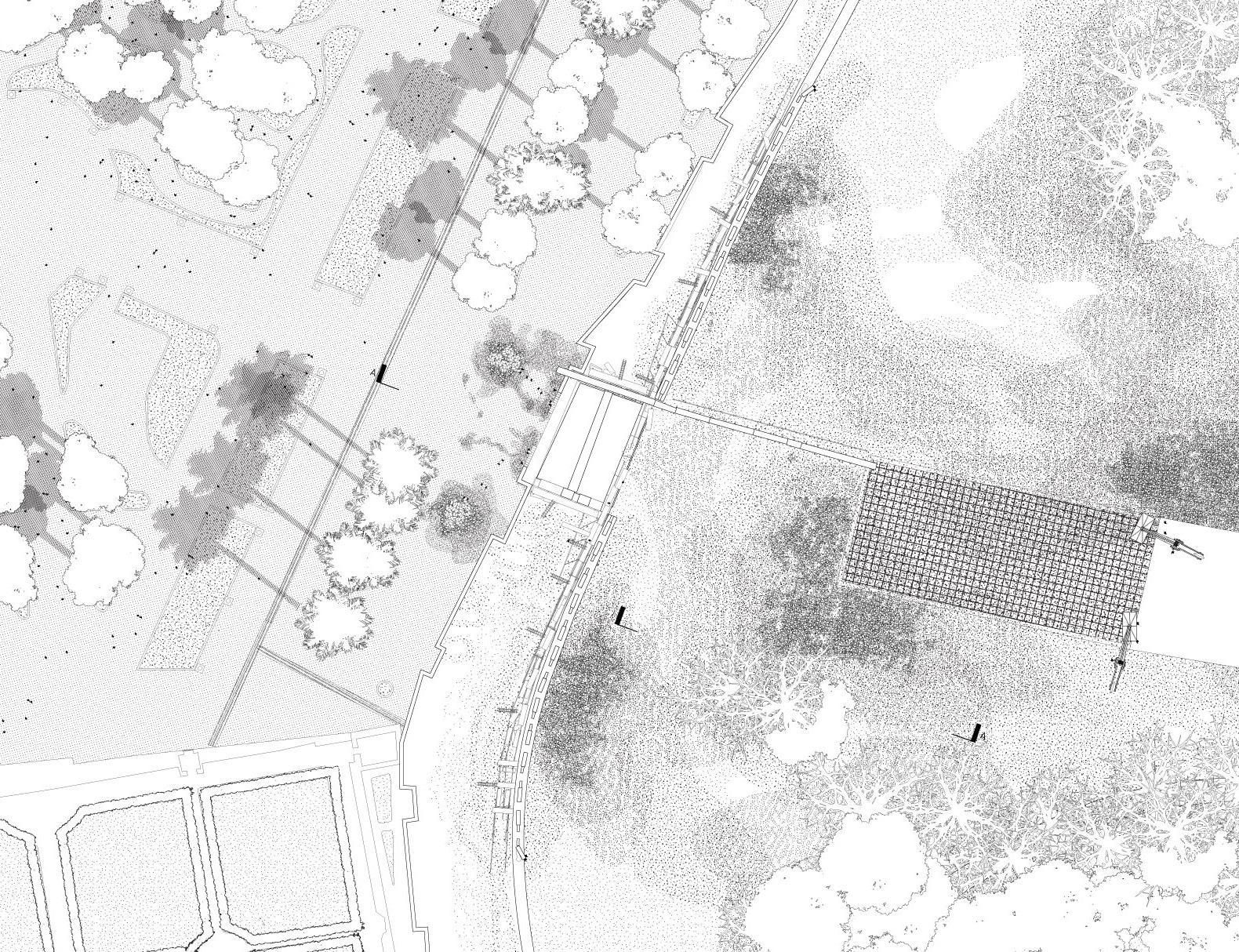

Connectivity to Villa Borghese
arc363: Landscape Architecture Studio III
Instructor: Behnaz Assadi
Cousre Coordinator: Behnaz Assadi
Completed in December 2023
There is an innate and passionate desire in humans to be connected with nature
To be and live as one with landscapes, people will be conscious of the land they are on, and realize that, to maintain the systems, they have to contribute to the topographical network to breath, live and lie there toghether in harmony.
The Borghese Family was so obsessed with nature that they wanted to keep all of Villa Borghese park to their own:
But the connectivity to the nature isn’t something to be owned.
In 1909, the Cavalcavia Overpass that connects Villa Borghese to the public promenade, Pincio,was completed and thus the basic right for humans to connect with the nature was given to the public in Rome

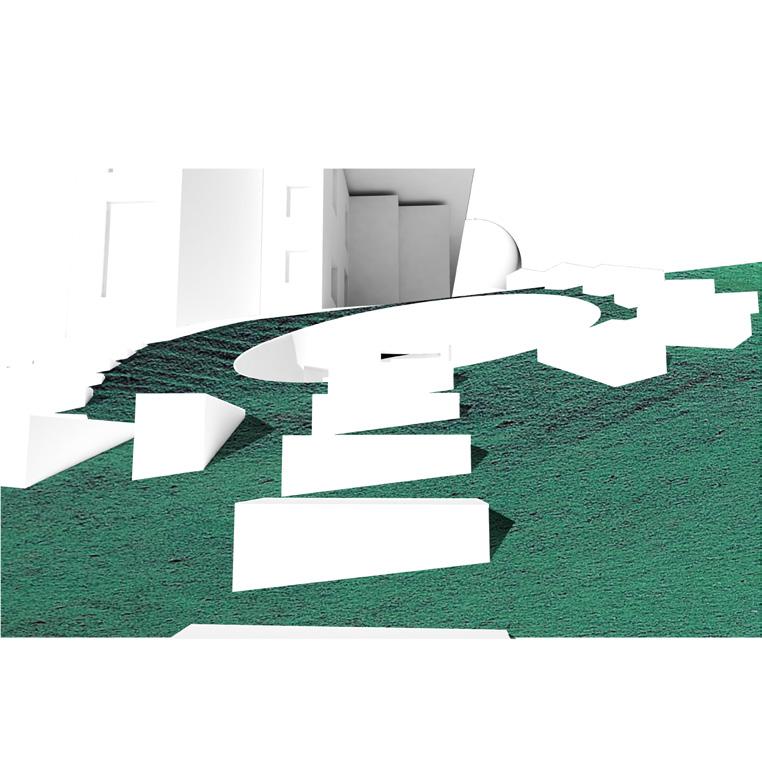

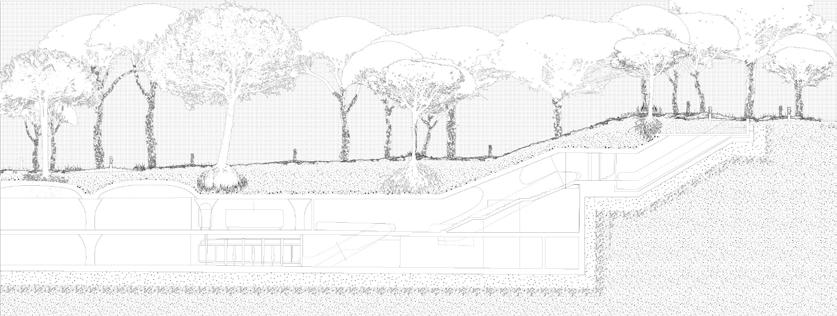

2 Donut in a Hill underground volume nestled in the hill, which is excavated to make a balcony that also serves as entry
3 Terrace Units
mimicking the shape of the existing terrace for interior volume occupation

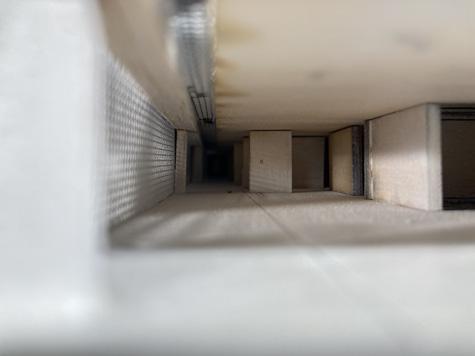

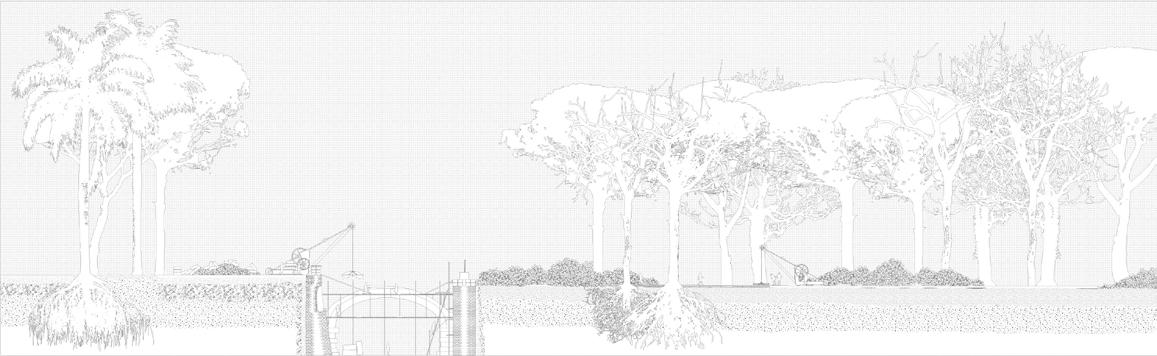

However, human-nature connectivity has evolved ever since. It is not only about being physically in the nature but also emotional connections to the park. I design posts that grow mosses to absorb the heavy metals on the site as a result of extreme accessibility like the underground garage.
to Converge: Intimacy of Spaces
arc201: How to Design Almost Nothing
Instructor: Shane Williamson
Course Coordinator: Fiona Lim Tung
Completed in April 2022
A good space will converge you with its circulation, and allow you to pause, to experience its spatial intimacy
There is nothing that makes us more disconnected to nature than witnessing how selfish we are to destroy the life of nature. In the end, mosses will heal everything and wash away the disconnectivity if we let them.

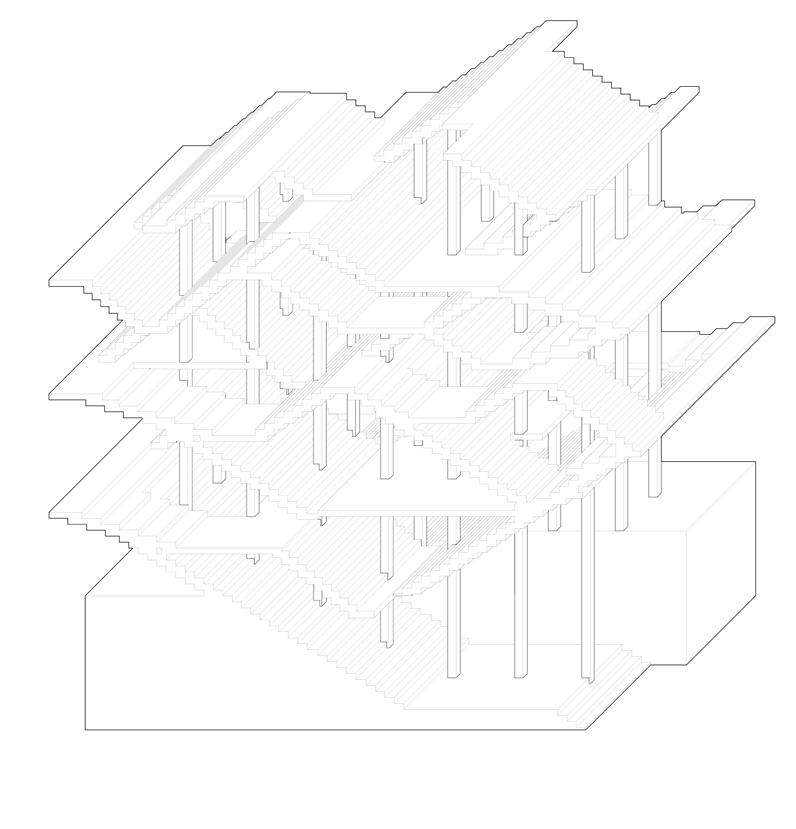

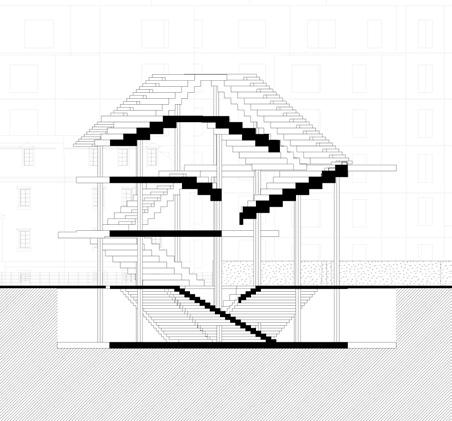

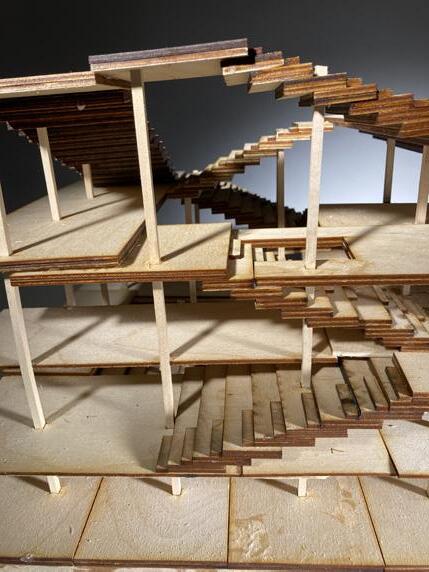

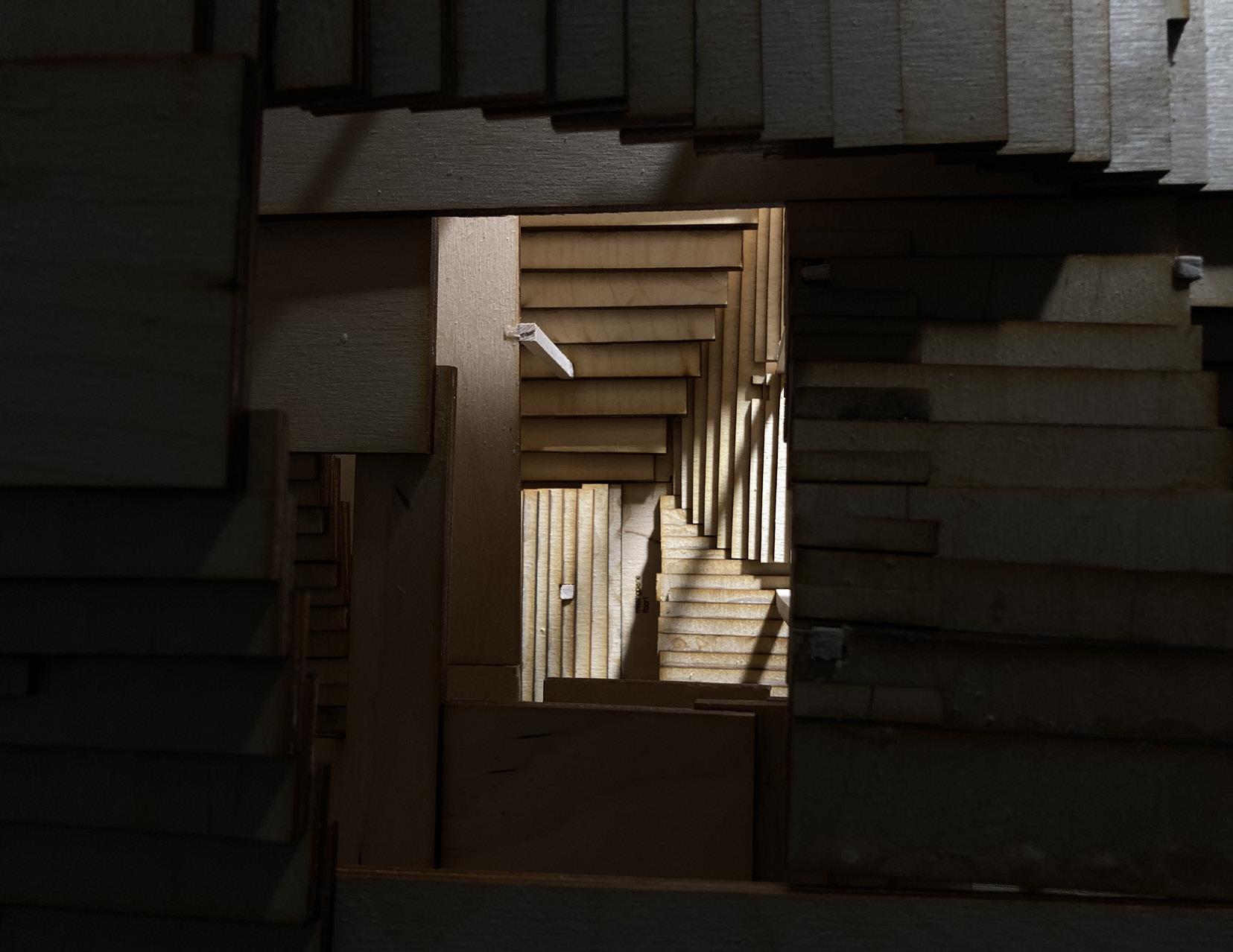

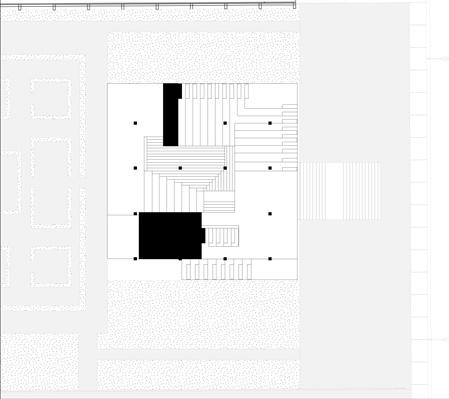

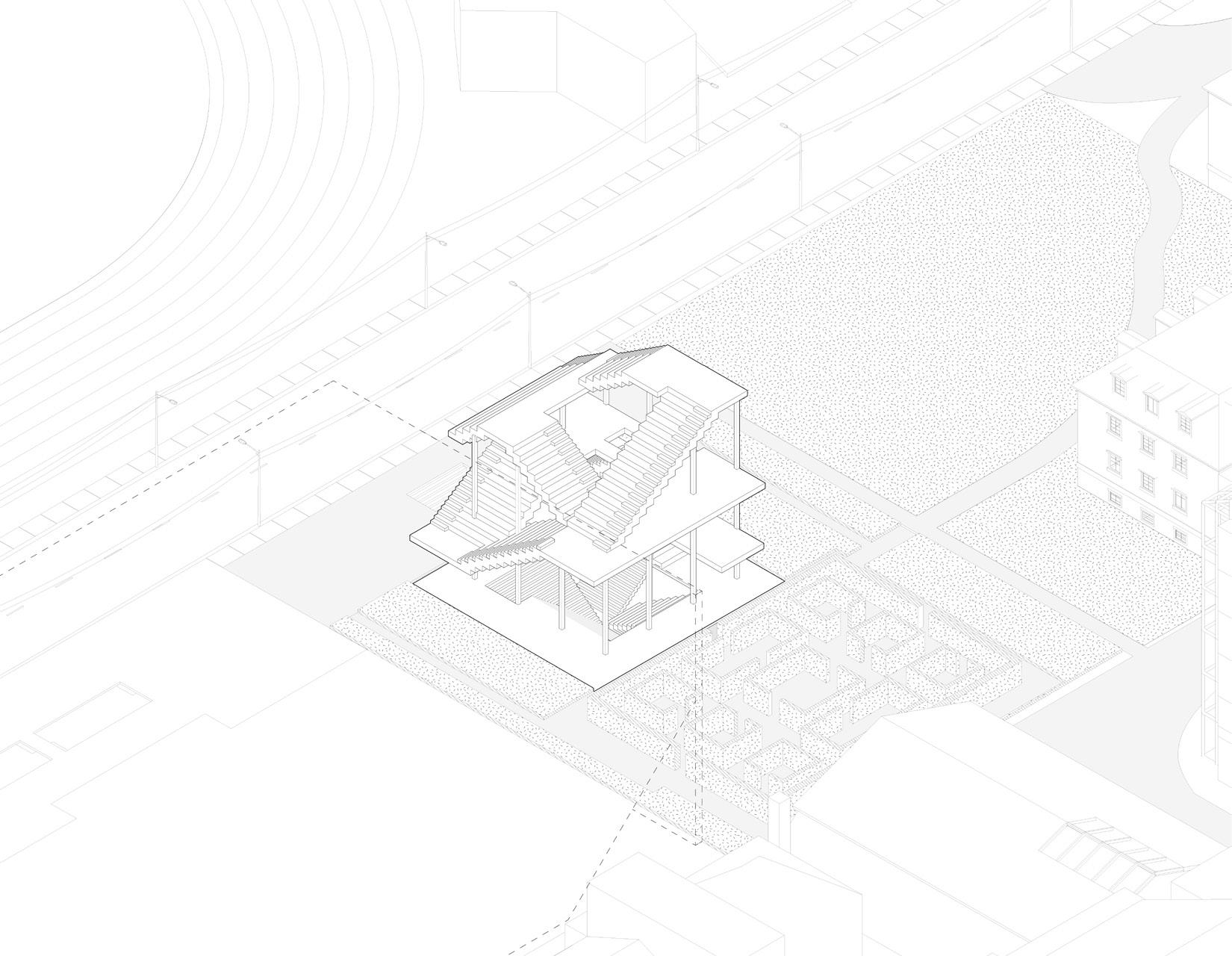

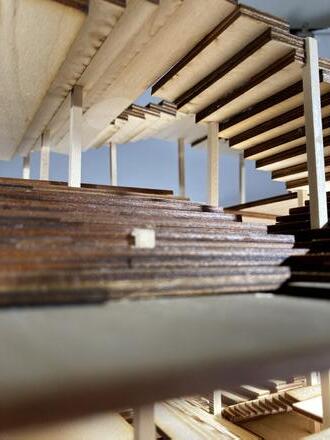

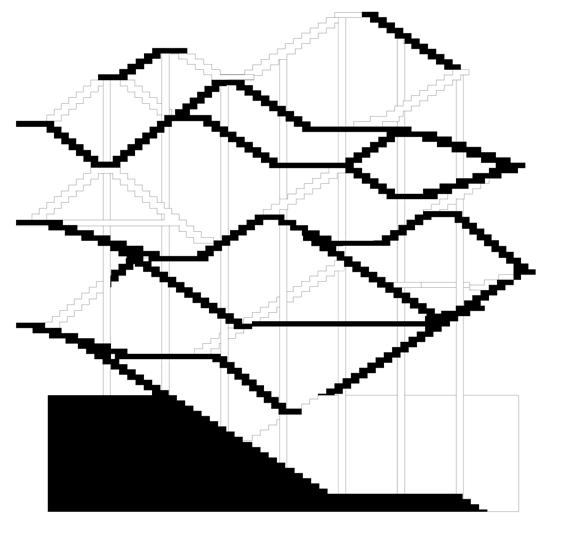

I began with the process of convergence, using stairs, by organizing them sectionally, before extuding them and add voids and activities to make the spaces accessible to Converge- Final Design
By the end of the this experimentation, I discovered that by using only stairs, am able to create a space where people can be intimate with the spaces, circulations and each other through convergence.
3. Landings of convergence How Stairs lead to gathering landings
4. Dispersion How stairs disperse people

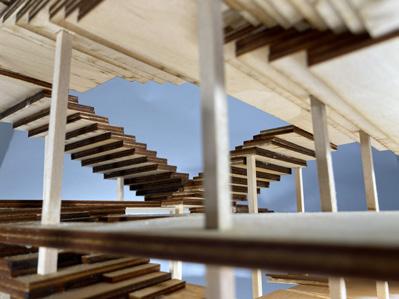

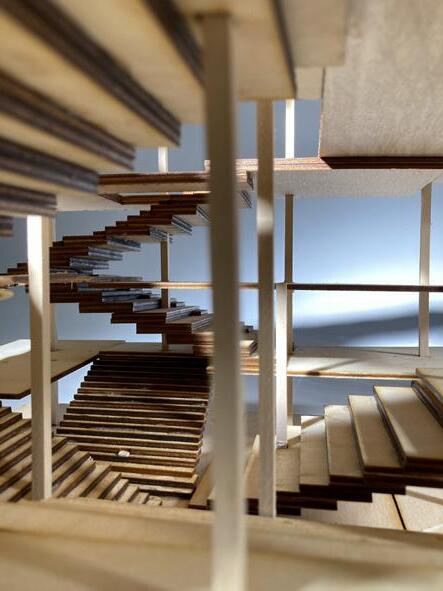

In the final look of this design, I created a building of stairs that converge everything together. As you enter the building, you’ll be intrigued by a series of stairs that invite you to be parts of their circulations, either by lingering or walking up on them.
When you circulate around the void and pause to mesmerize the views and breath the air, the stairs would remind you voids are more powerful when they aren’t enclosed by walls.
Cone-Cube Student Housing
arc362: Architecture Studio IV
Instructor: Mauricio Quiros Pacheco
Cousre Coordinator: Jon Cummings Course Completed in : April 2024

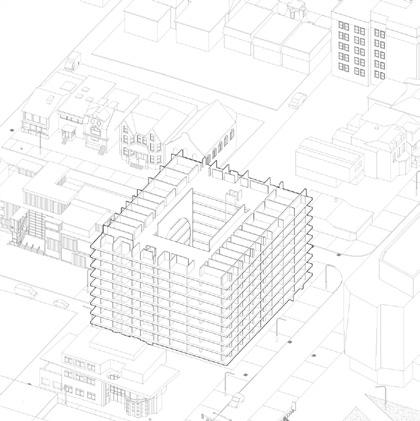

Aggregations Experimentation -Maison Du Brésil
If you decide to enter from the labyrinth, you’ll be transitioned from the softscape structure to the wooden structure
Aggregation 1
The chassis structure is treated as an open free-ground floor that’s overlapped with landscape and creates a semi-public space.The tower is tilted to align with property lines.
Aggregation 2
All the units and rooms are placed along the outer edge which leaves the O shape hallways along the voids.
Aggregation 1
The project began by creating 3D diagrams of precedents to find barriers within the Toronto site. I am fasicated by Le Corbusier’s chassis structures and Luis Kahn’s atrium’s void that I combined them. Now we have a massively structured student residence that breathes through the centric hallways and void. The void allows students to admire to structural mess from their organized units.
Aggregation 2
This section cuts through elevator’s vertical circulation. The units are vertically aligned. Private units are on the right and service rooms are on the left. They are separated by the hallways
The same kinds of spaces are placed opposite to each other. The O facade that creates a threshold of light in Luis Kahn’s library atrium is now used as a threshold of privacy. This section cuts through elevator’s vertical circulation on the right.

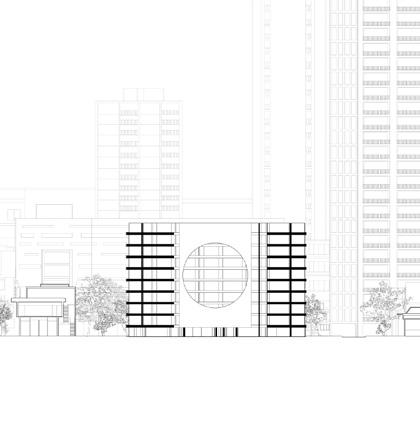

Eye View

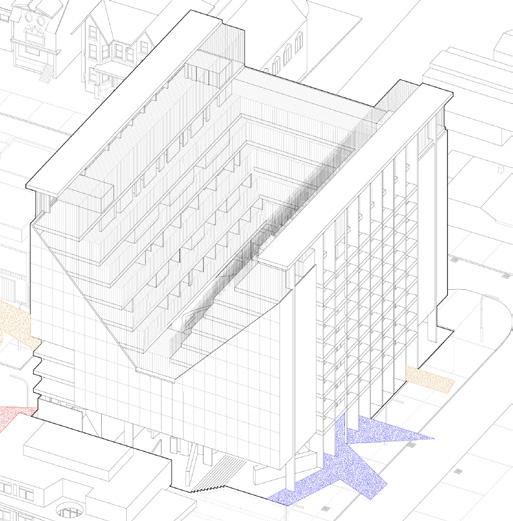

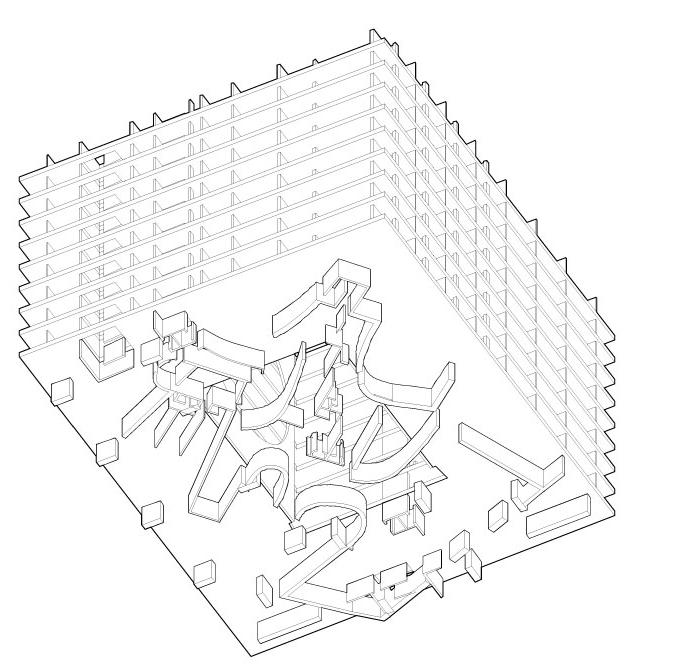

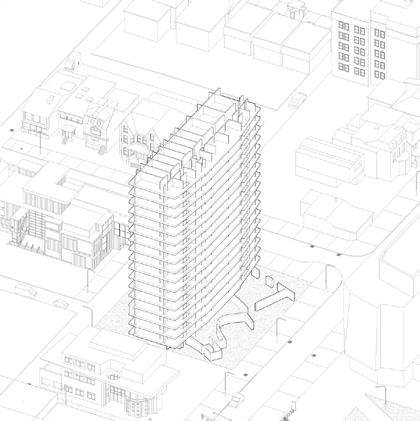

Isometric
The facade is triangularly exposed to show off the cube scheme.
The funky-shaped pavements are designed to blur the thresholds between the ground floor and street; street walkers become parts of building just by being on the curbs.
The upper floors have double loaded corridors that allow the circulations to terrace.

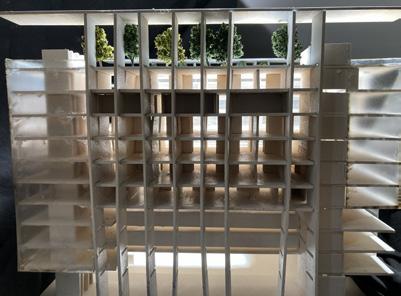

Cone-Cube Student Housing -Final Design
The winter garden is at the top floor.
Buidling on the chassis structure, the maze is designed for children from the Early learning centre while the free-plan funky-shaped walls are designed for semi-public study area for the students from Robarts.
The Cone and Cube schemes are used and can be seen in the section.
The cone(or triangle) is used to give the fullest amount of sunlight access possible while the cube gives the student residents on the lower floors an opportunity to appreciate the interior of the building’s atrium.
For lower floor aggregation, the units align along the atrium which also provides light access.
The terracing provides a kind of socializing spaces that also works as circulations for students who prioritize socialization.
Each floor has a zen garden and open kitchen/ communal eating area for semi-private communal area
The toilet and shower are separated so each occupant can use one of them while the other is occupied.

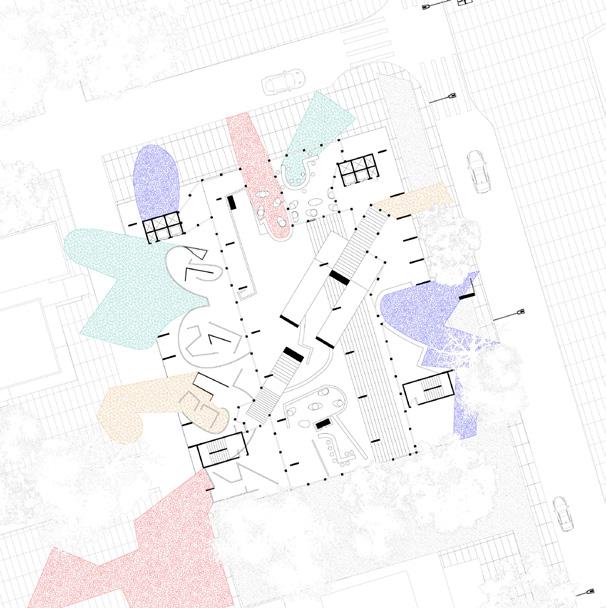

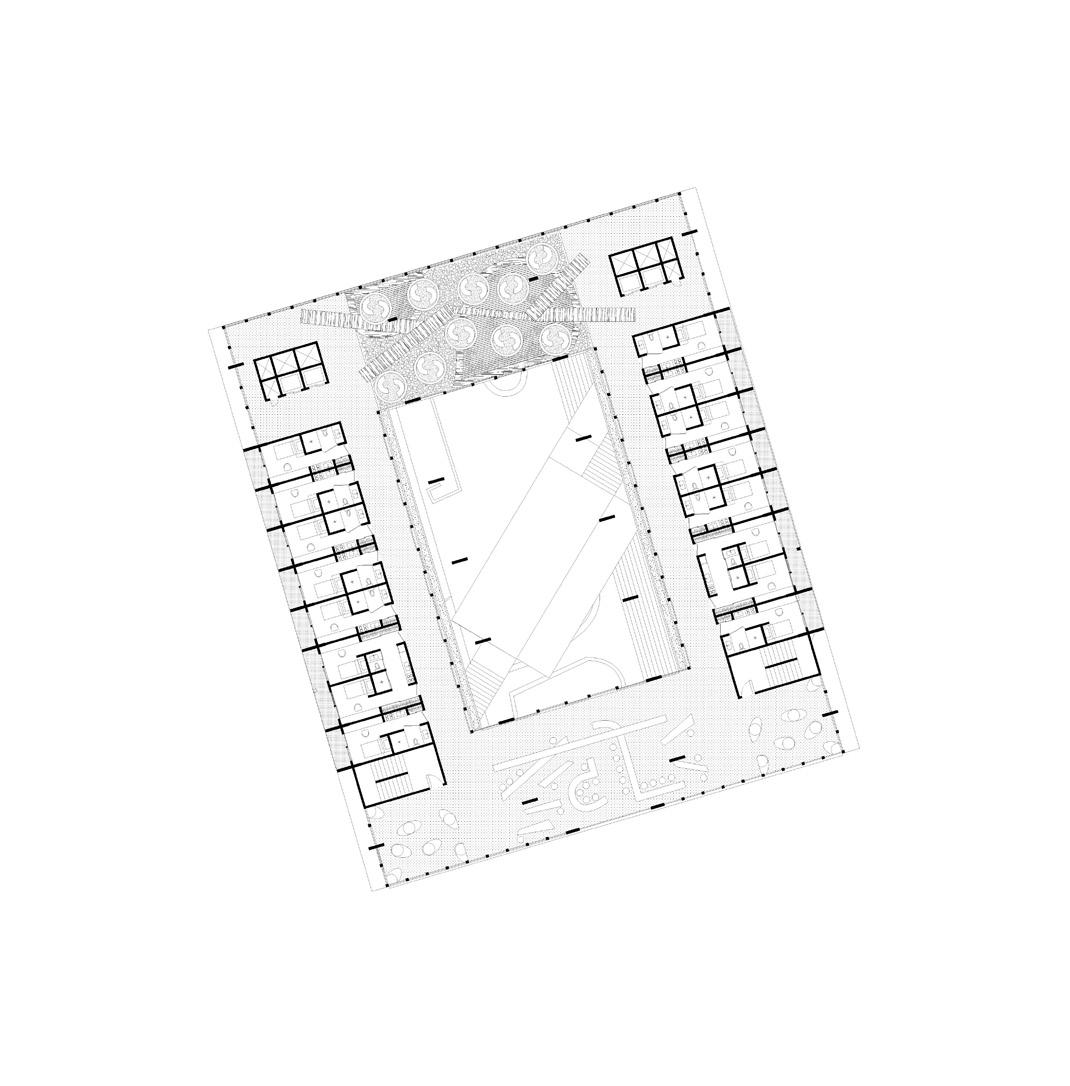

Floor Plan

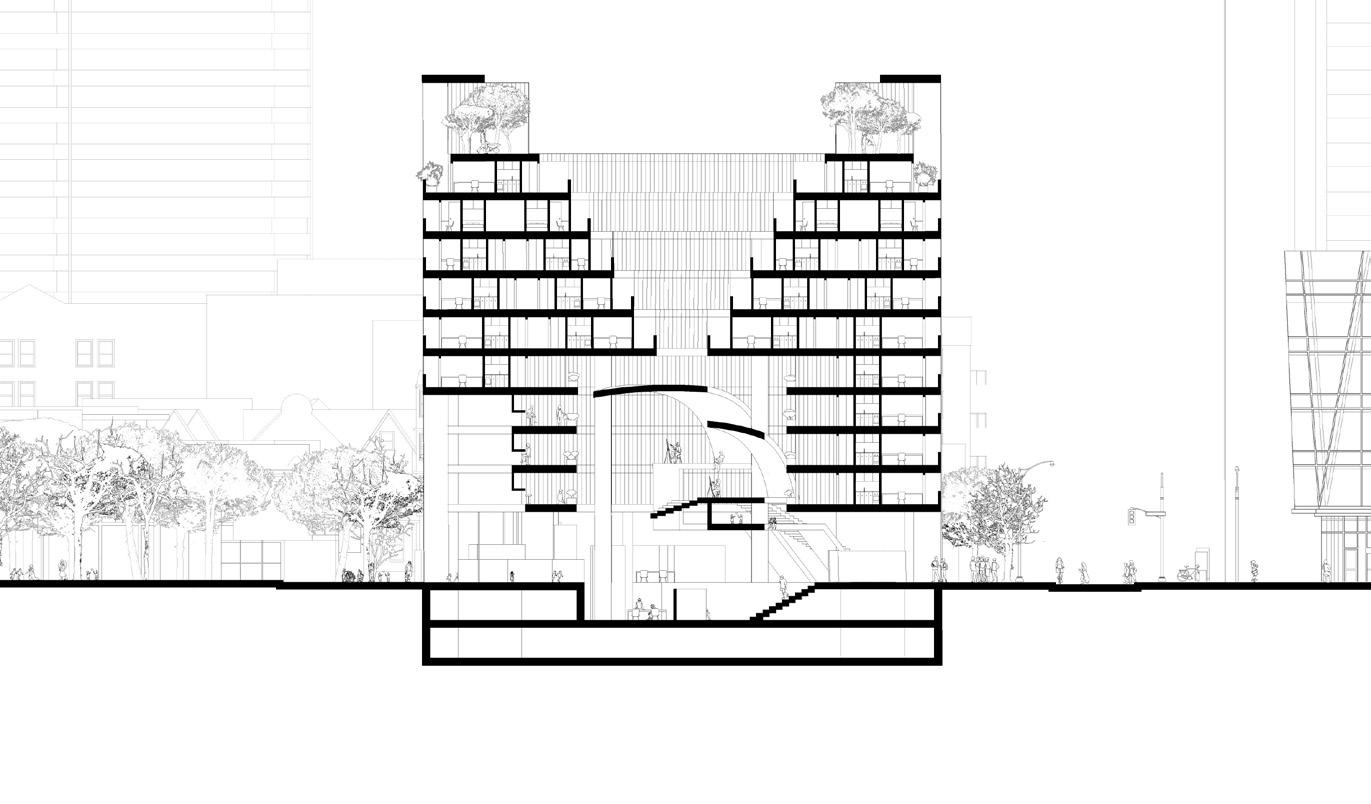

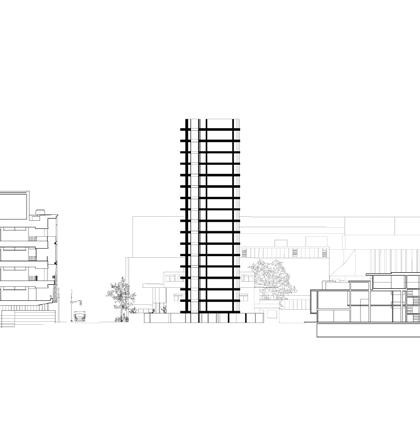

Section
Ontario Place Public Realm: Physical Models
Design Proposed by LANDinc
Supervisor: Mansoor Ma
Models made by: June Chuenkittivorawat (me), Julie Lee, Miles Yipeng Huang, Mcqueen Huang, Randall Wang, and Jun Heng Tan
Status: On-Going

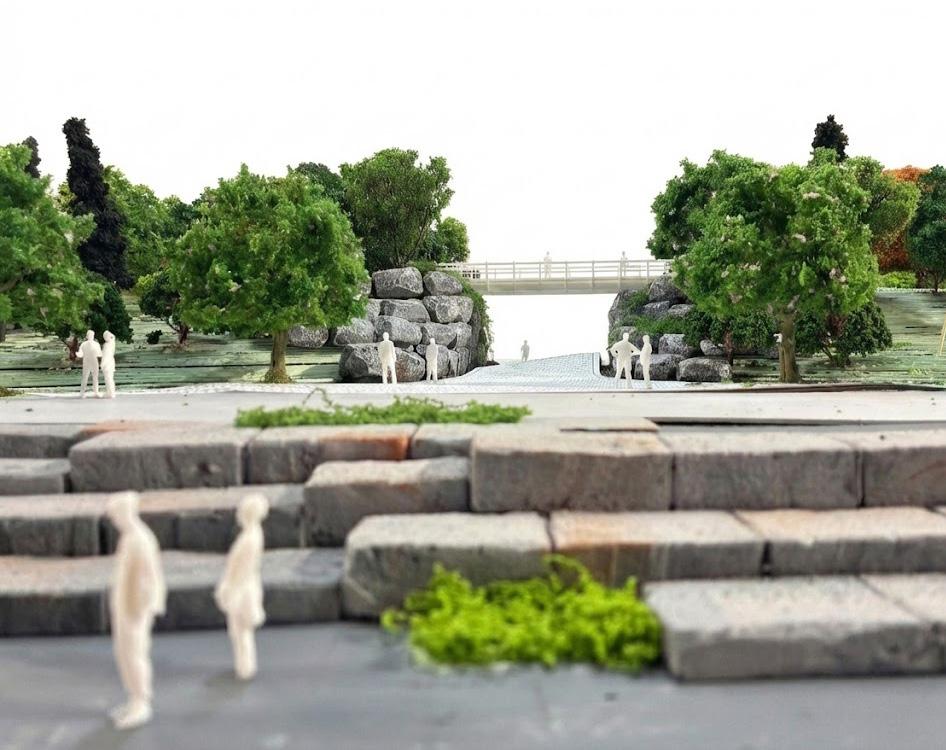

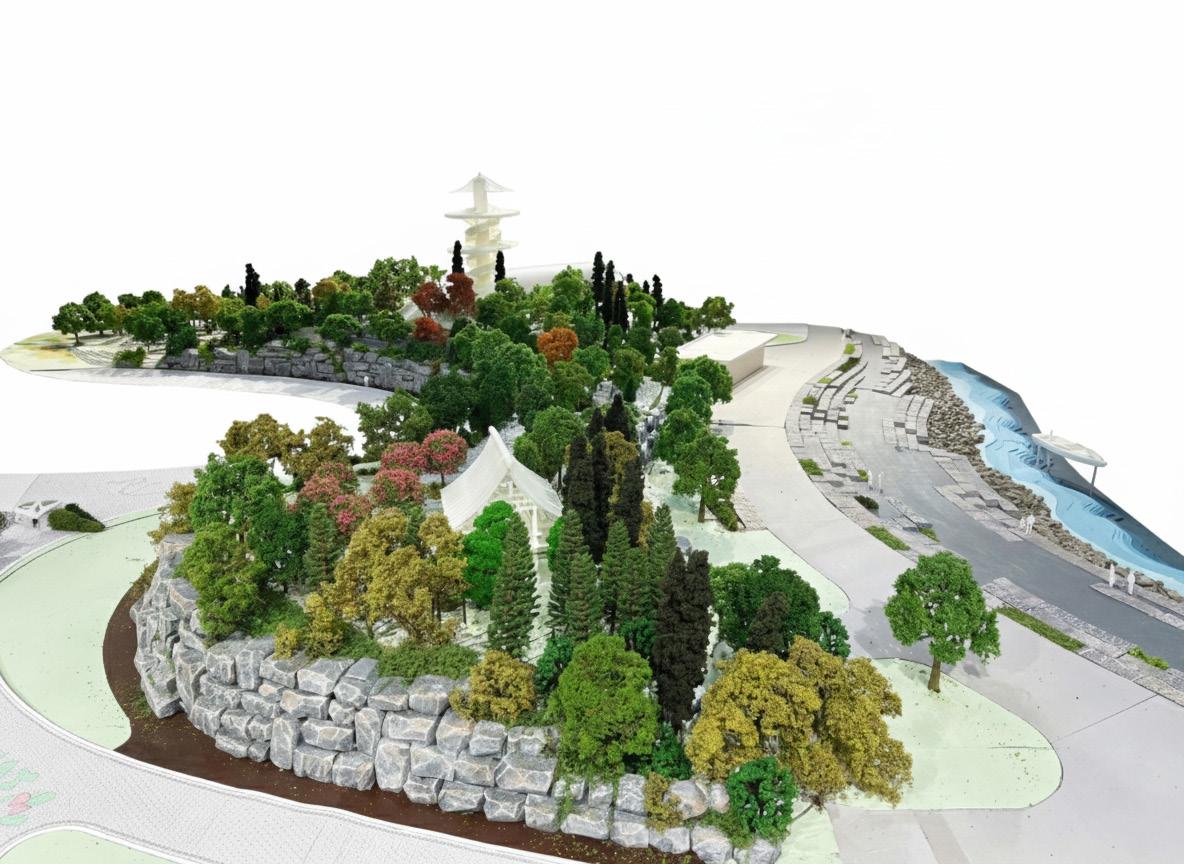

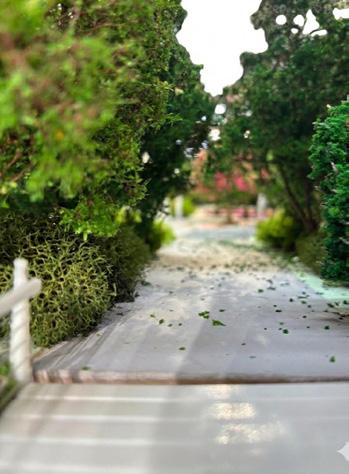

In this project, my coworkers and I are hired by the landscape architecture firm Landinc to create physical models to represent the design proposal of Ontario Place Public Realm

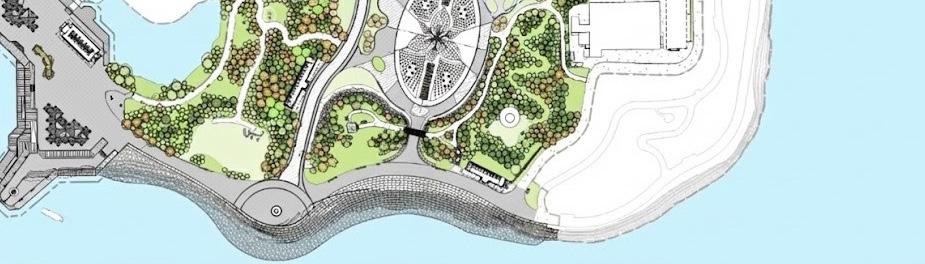

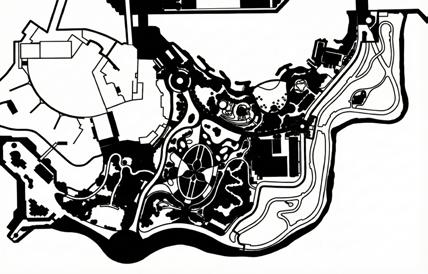

Composite Plan by LANDinc 1:1000 - Southshore
Renders by LANDinc

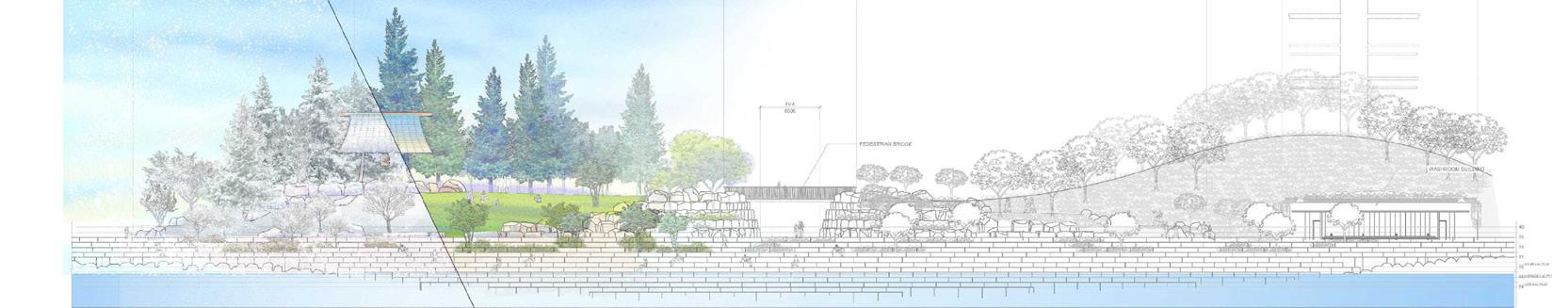

Southshore Elevationby LANDinc

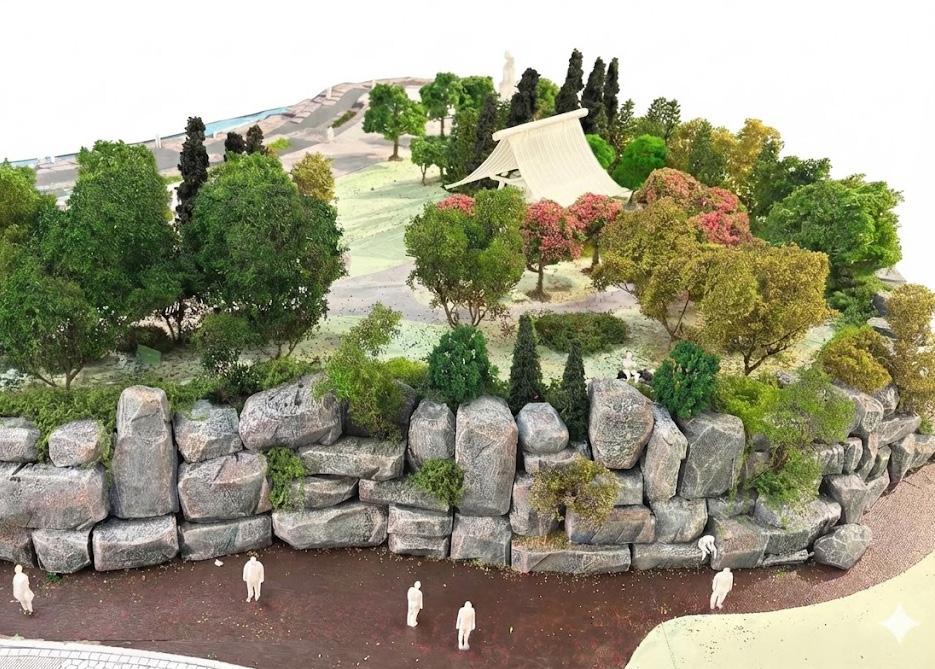

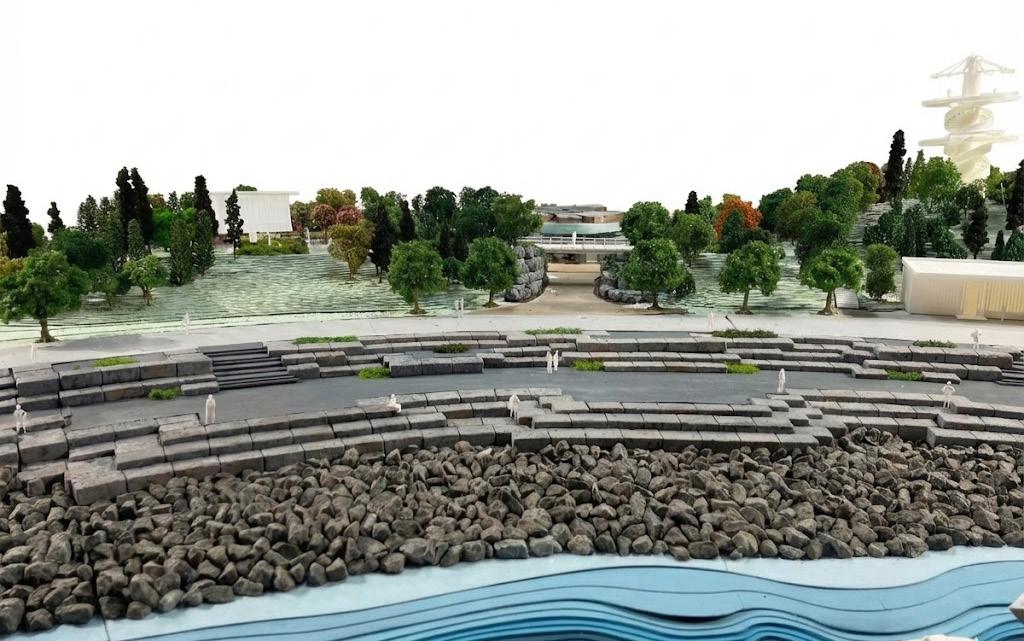

1. Water Tower 2. Japanese Hill
3.The Eye and Water’s Edge
4. Water’s Edge
5.Perspective: the Bridge

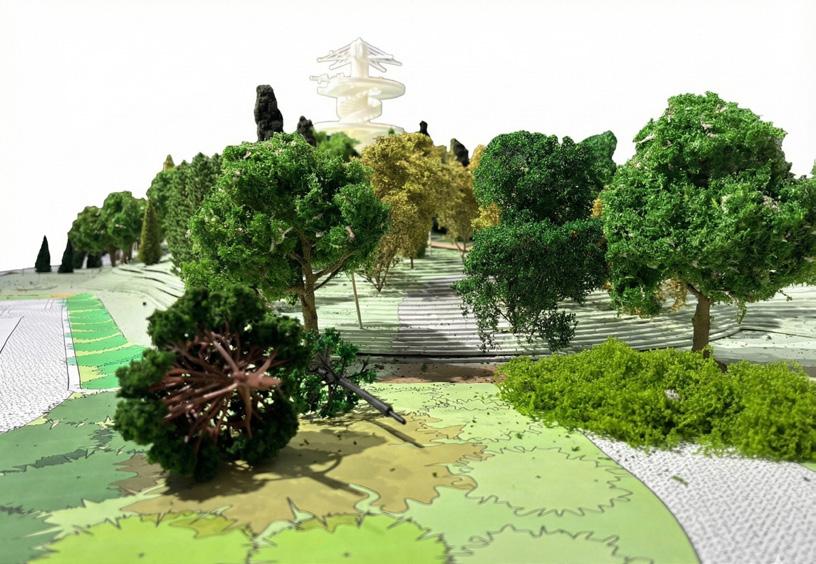

6. Perspective: Path of Water Tower Hill
7.Perspective: Crossing the Brdige to The Japanese Hill

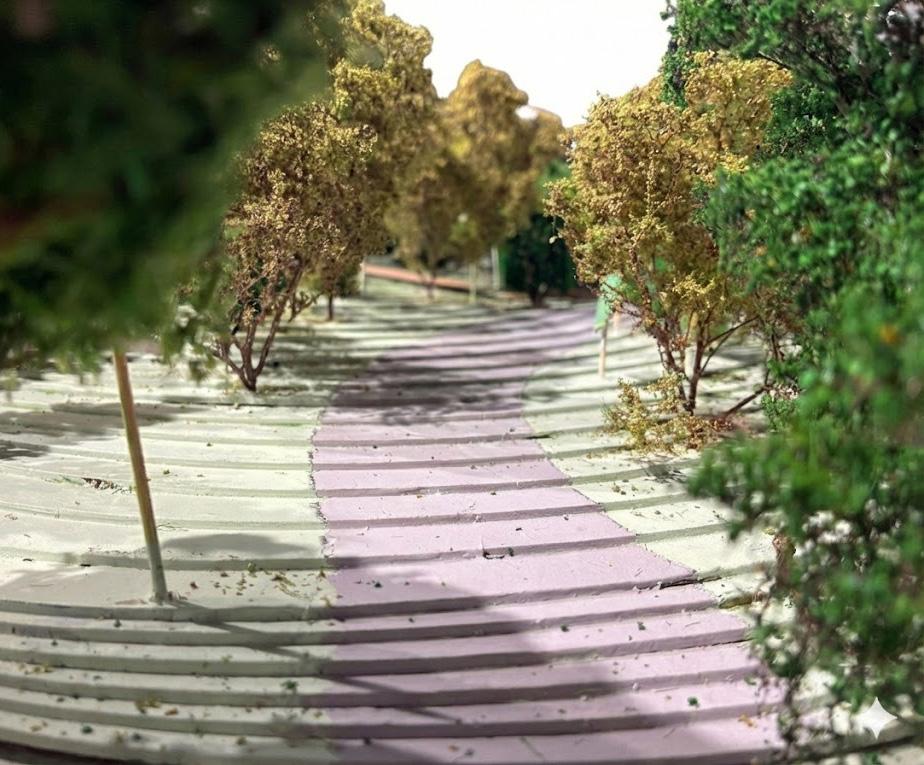

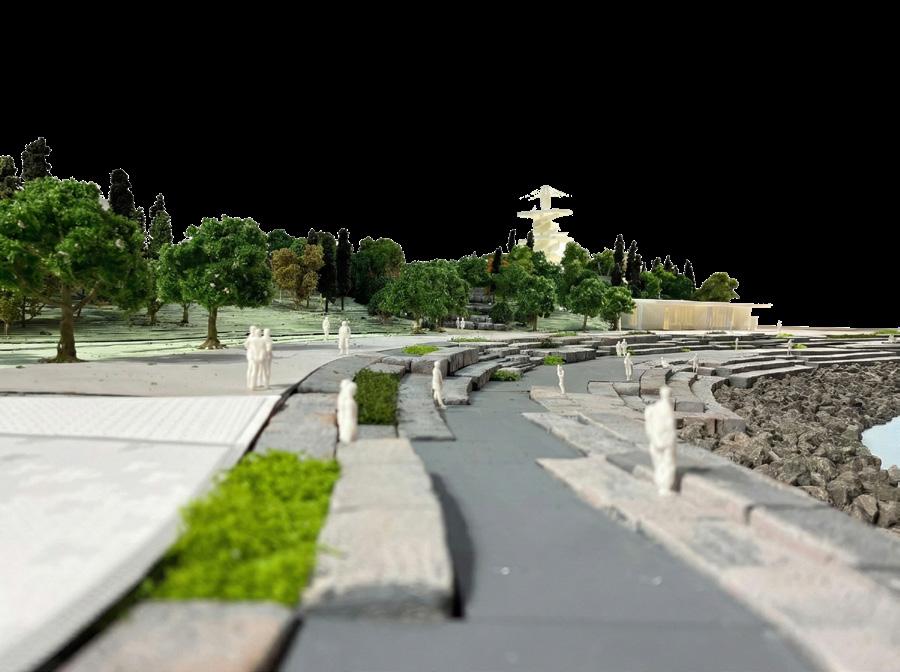

8.Perspective: Pathway along the Water’s Edge
When there is one more good design, there is one more hope.
