CONTENTS 04-08 TAIZHOU CONTEMPORARY ART MUSEUM

Second Year Design California State Polytechnic University, Pomona Fall 2023 Instructor:Noam Saragosti Group Project: Jayvion Campbell | Ethan Eslamboli | Gershwin Mason

09-17 LEIMERT PARK COMMUNITY ARTS CENTER

Second Year Design California State Polytechnic University, Pomona Fall 2023 Instructor: Noam Saragosti

Individual Project

18-27 SCHOOL OF ARCHITECTURE

Second Year Design 2 California State Polytechnic University, Pomona Spring 2024 Instructor: Pablo La Roche Individual Project

28-37 Scientist Retreat

Third Year Design 1 California State Polytechnic University, Pomona Fall 2024 Instructor: Roberto sheinberg Individual Project

38-43 BLACK GABLES

Building Construction 1 California State Polytechnic University, Pomona Fall 2023 Instructor: Professor Michael Fox Group Project: Blossom Sumardi | Asada Bell | Johanna Aquino

44-49 College Of Environmental Design Model

Model Shop- Volunteer Project California State Polytechnic University, Pomona Spring 2024 Instructor: Group Project: Blossom Sumardi

50-51 Personal Drawings

TAIZHOU CONTEMPORARY ART MUSEUM Case Study ARC 2011 Second Year Design 1 Activity California State Polytechnic University, Pomona Fall 2023 Instructor: Noam Saragosti Group Project: Jayvion Campbell | Ethan Eslamboli | Gershwin Mason

Located in culural and creative park that was converte from a former gain storage facility in China, the Taizhou Contemporary Art Museum is a new project finished in 2019 by the architecture firm Atelier Deshaus as a way to bring bakc life and attention to the once dreary space.

With the south main entrance facing a small plaza, the museum welcomes all visitors to enjoy the works on display. With a total floor area of approx. 2,500 square meters, the museum has 8 exhibition spaces that overlap in quadrants of the main buiding. With each exhibition area being quite small, they have high ceilings and interlocking levels in order to decrease the overall height from the lower saces to the higher ones, while also making for an intereting journey for the visitors as they can see where they once were and where they will soon be.

4

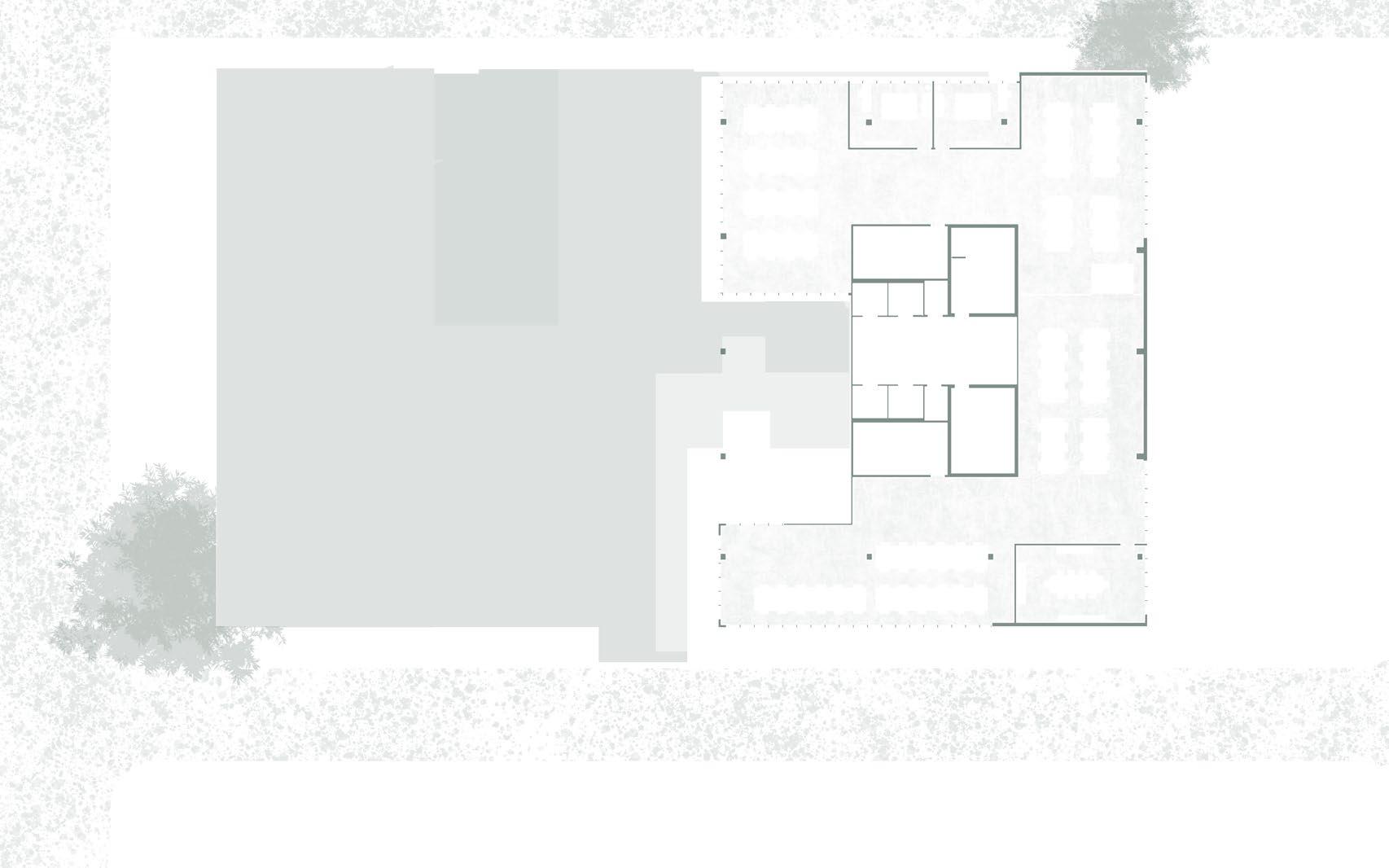

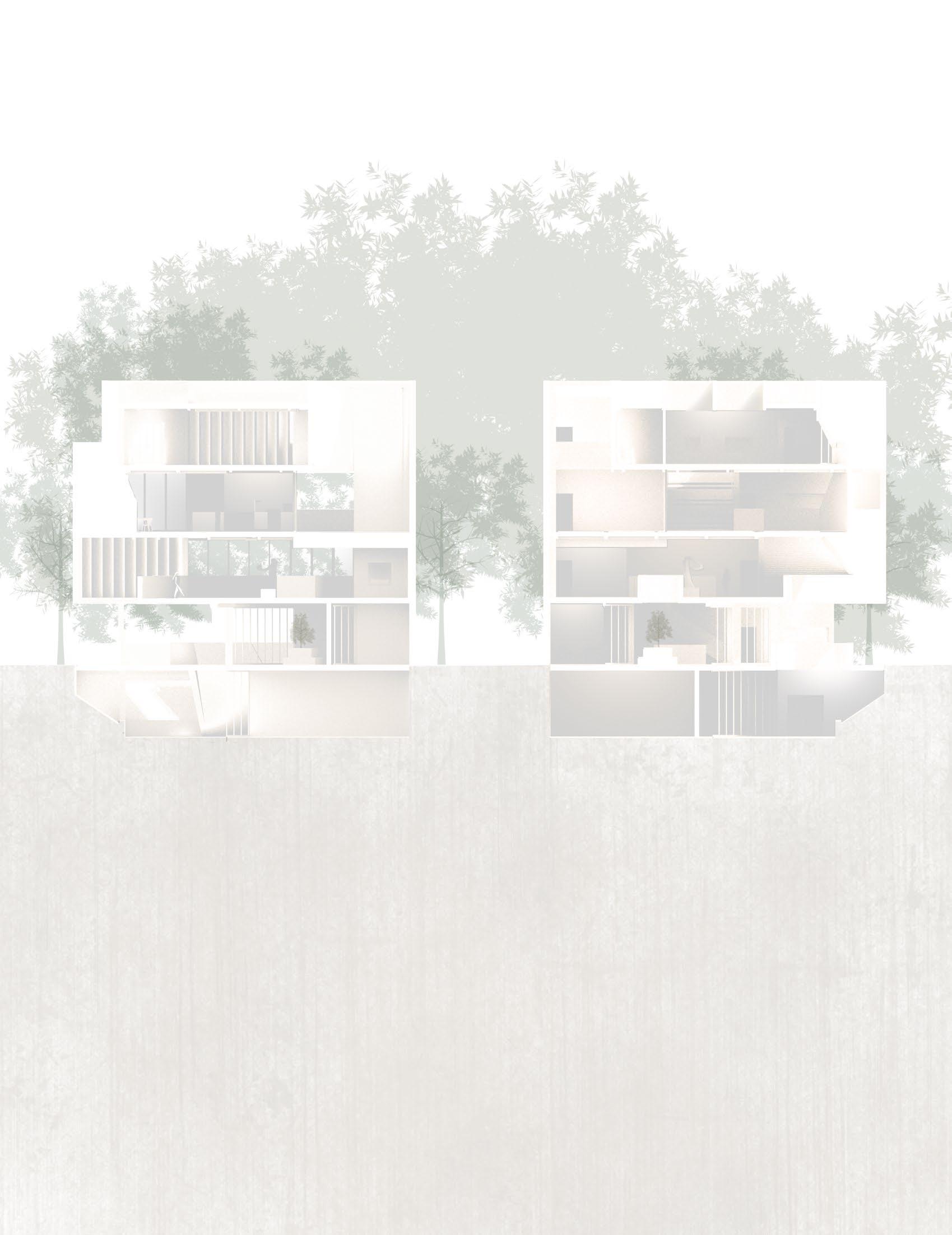

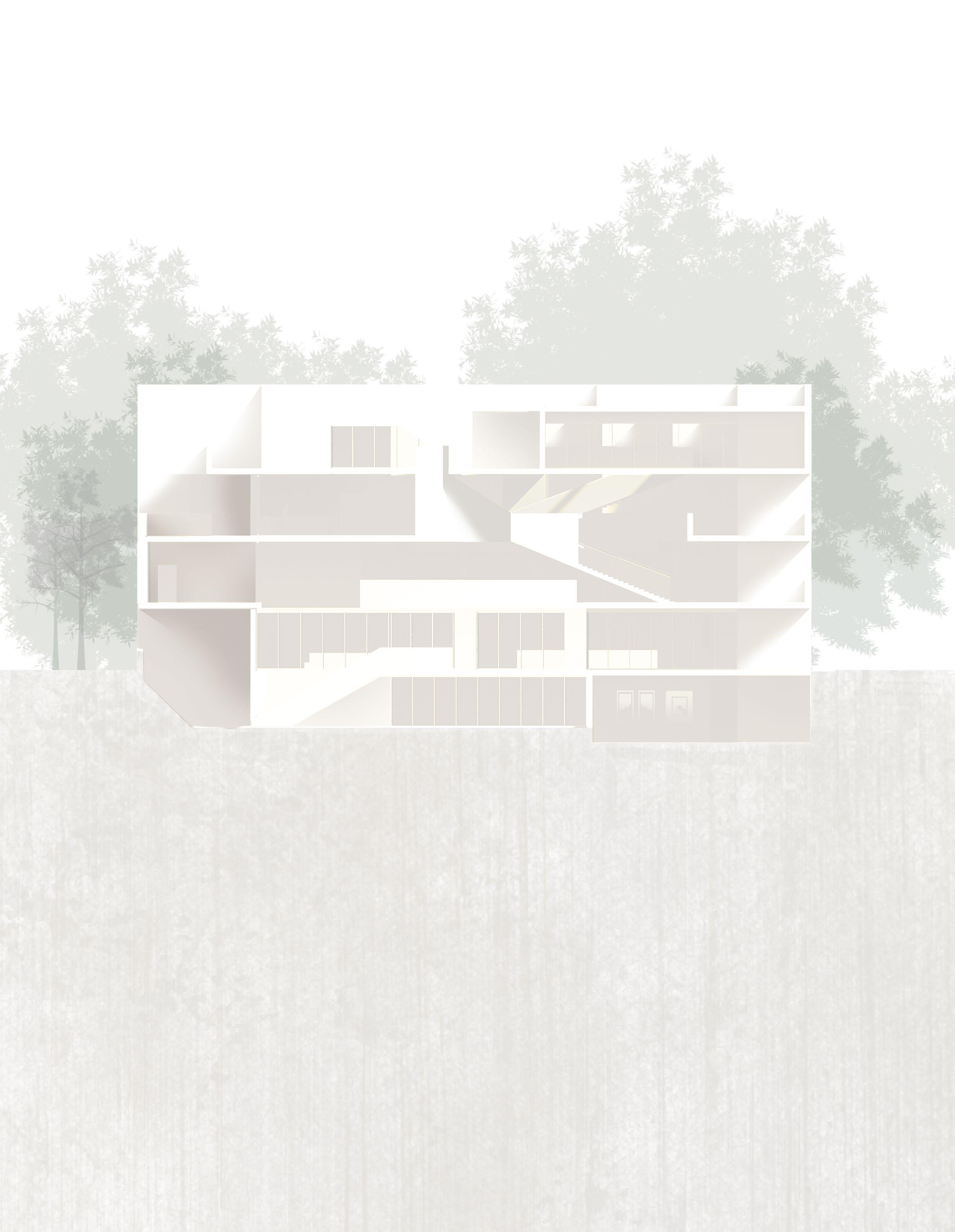

FLOOR PLAN AND SECTION SCALE: NTS

5

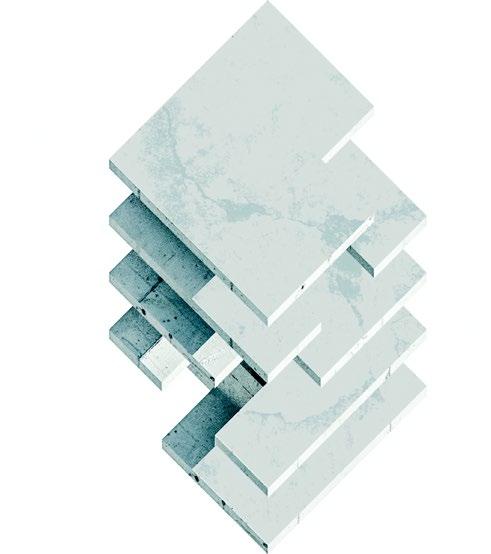

AXONOMETRIC VIEW SCALE: NTS

6

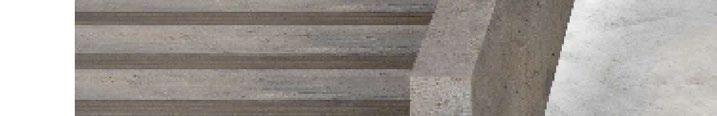

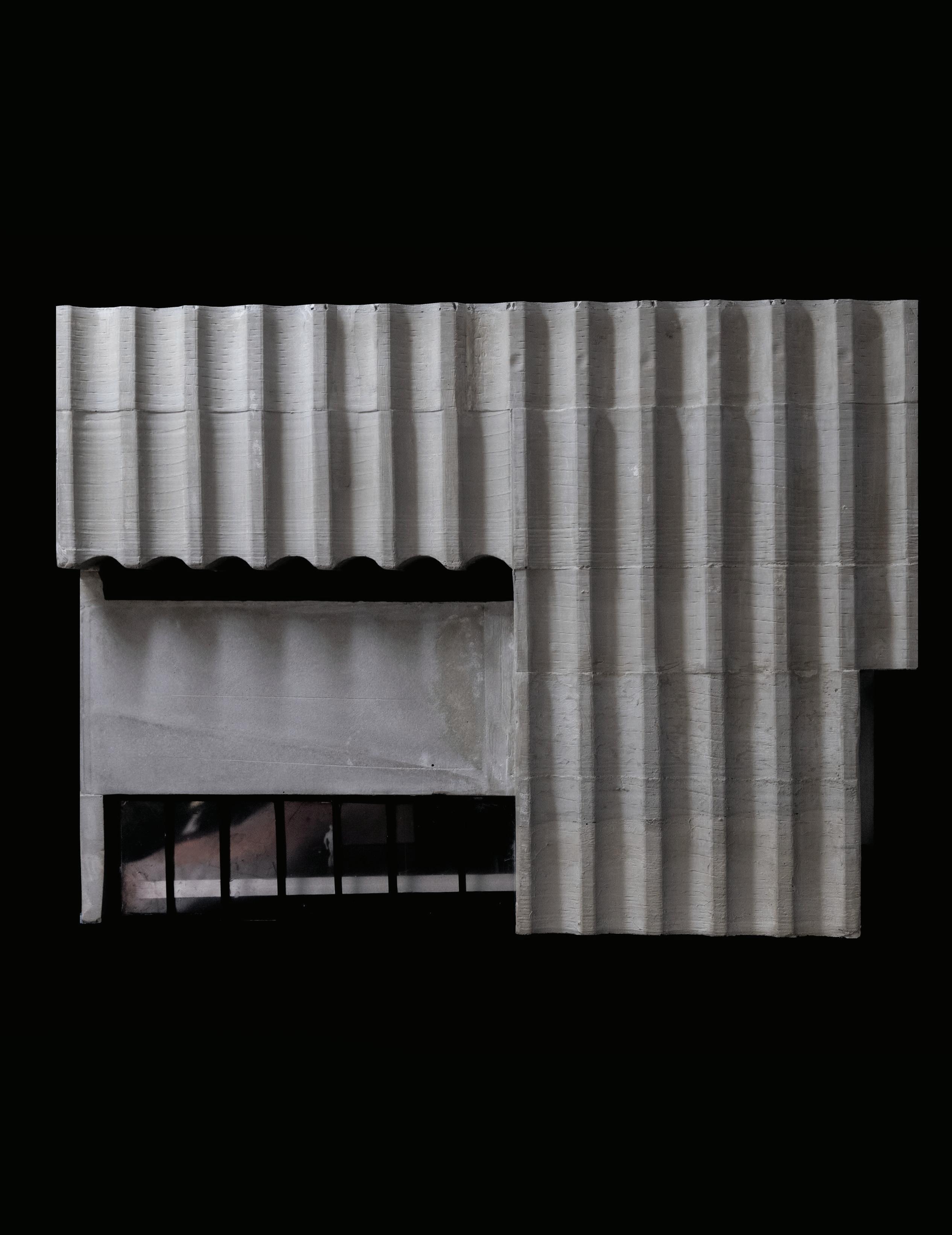

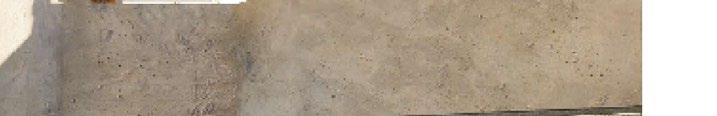

CONCRETE MODEL

7

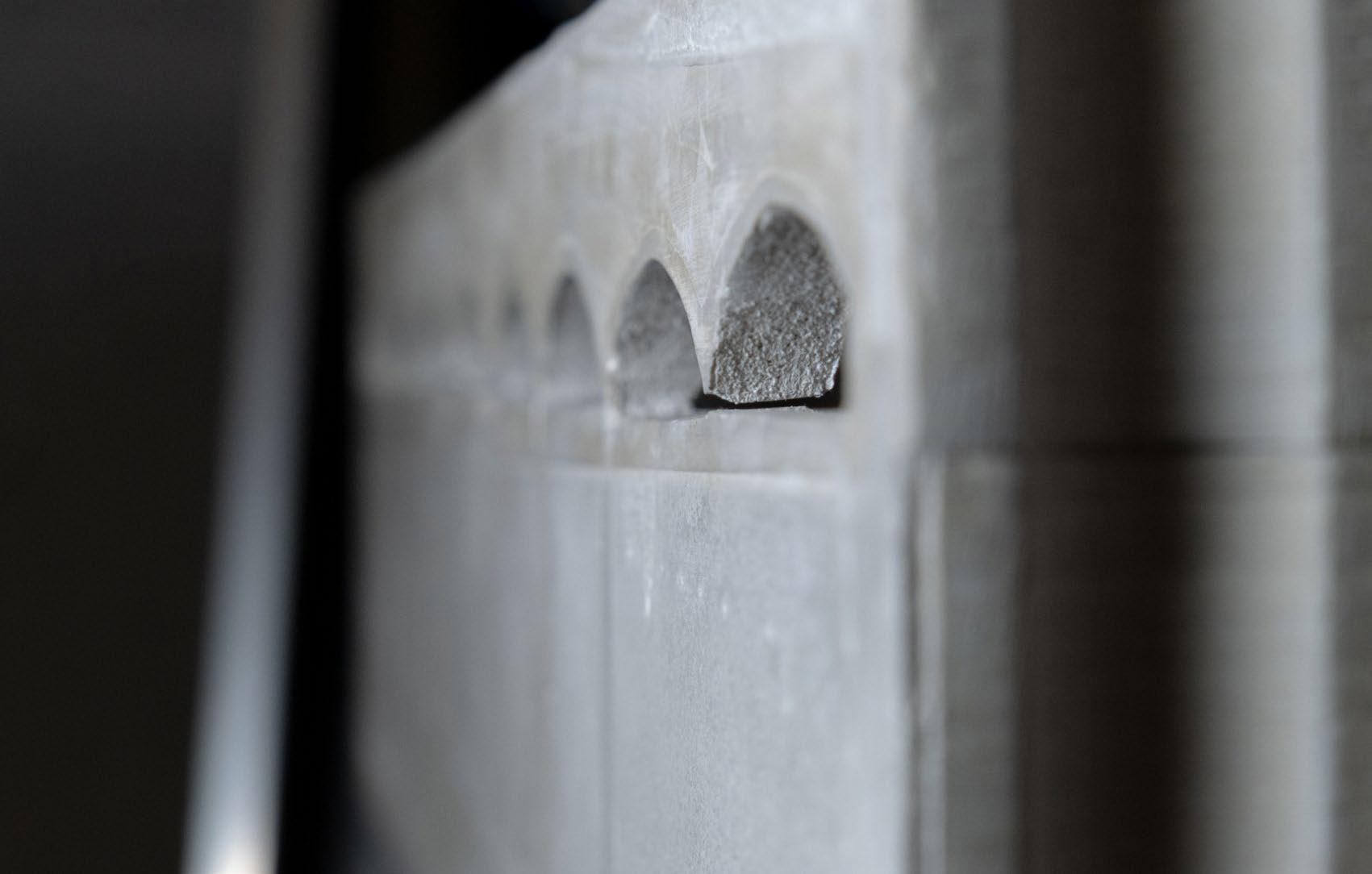

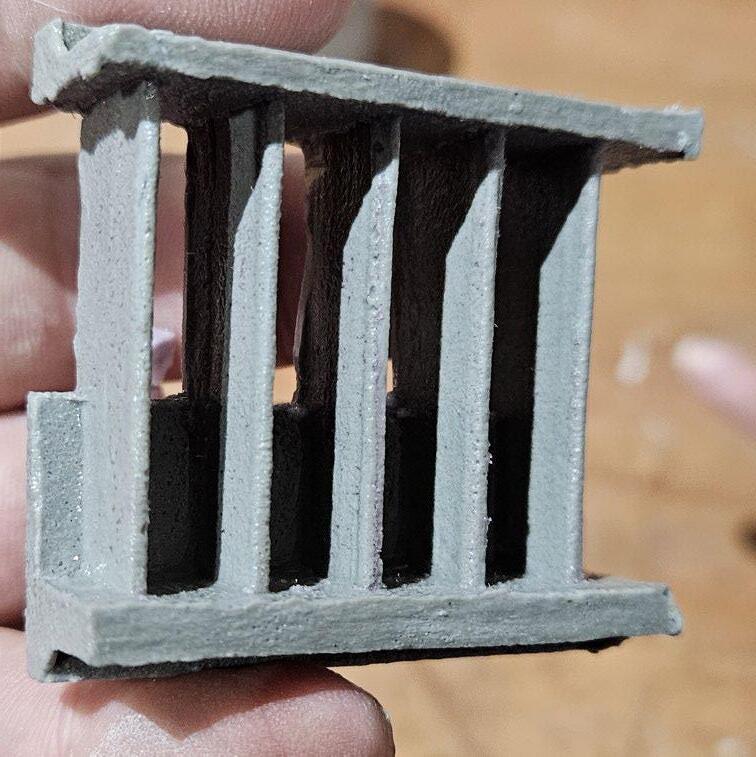

MODEL DETAILS

8

LEIMERT PARK COMMUNITY ARTS CENTER ARC 2011 Second Year Design 1 California State Polytechnic University, Pomona Fall 2023 Instructor: Noam Saragosti Individual Project

Located in a historic African American community, this project aims to design a community arts center focusing on the community’s needs. The project integrates three core concepts: promenade, circulation, and curiosity. The building’s main concept lies in the series of gracefully protruding planes, not only framing the entrance but also serving as an overhang that offers protection to the lower level. Windows and balconies capture and frame the building’s inherent drama, creating curiosity about what is waiting to be visited.

Occupants are welcomed with a glass entrance that blurs the lines of public and private. They have the option to take the stairs down to the auditorium, enter through the lobby, or take the elevator directly to their destination. Visitors traveling through the building encounter many double-height ceilings and terraces strategically placed to offer stunning panoramic views. These architectural elements not only enrich the visitor’s experience but also serve as a visual guide directing their gaze upward.

9

EXTERIOR RENDERING ENTRANCE TO ARUDITORIUM

10

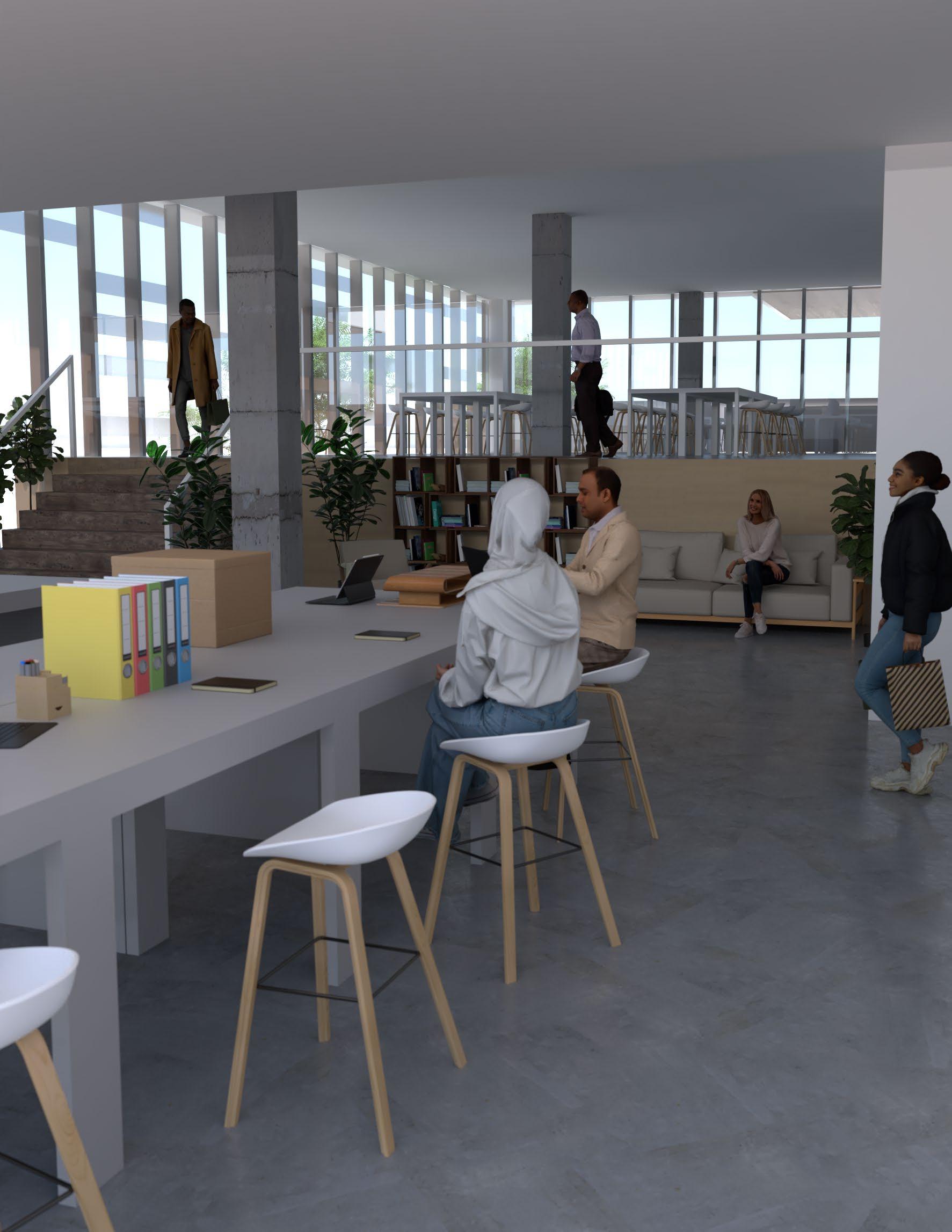

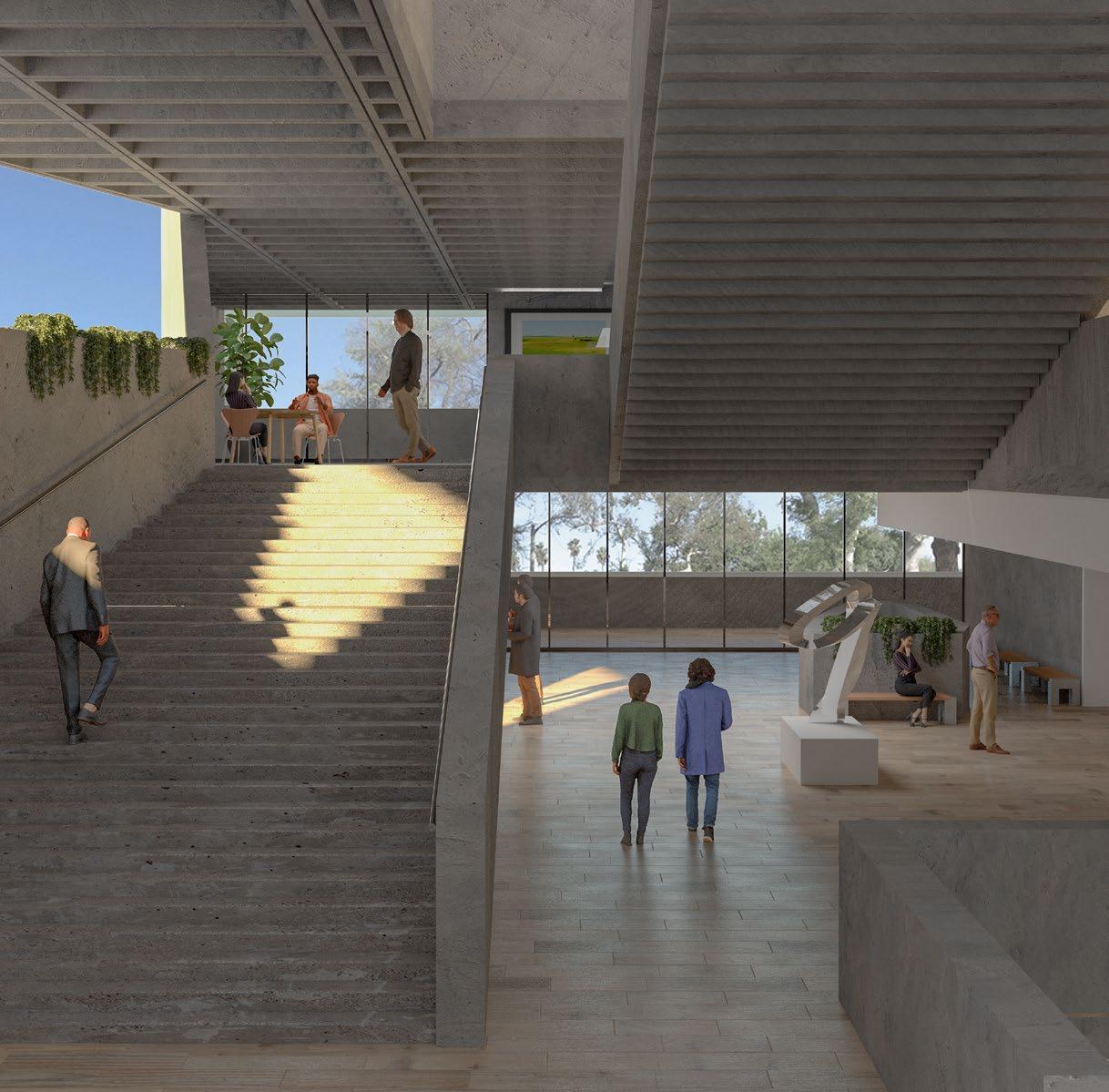

INTERIOR RENDERING ART EXHIBITION AND CAFE

11

B

UP

C

12

DN

11

1 DN

UP

A

DN

A

15

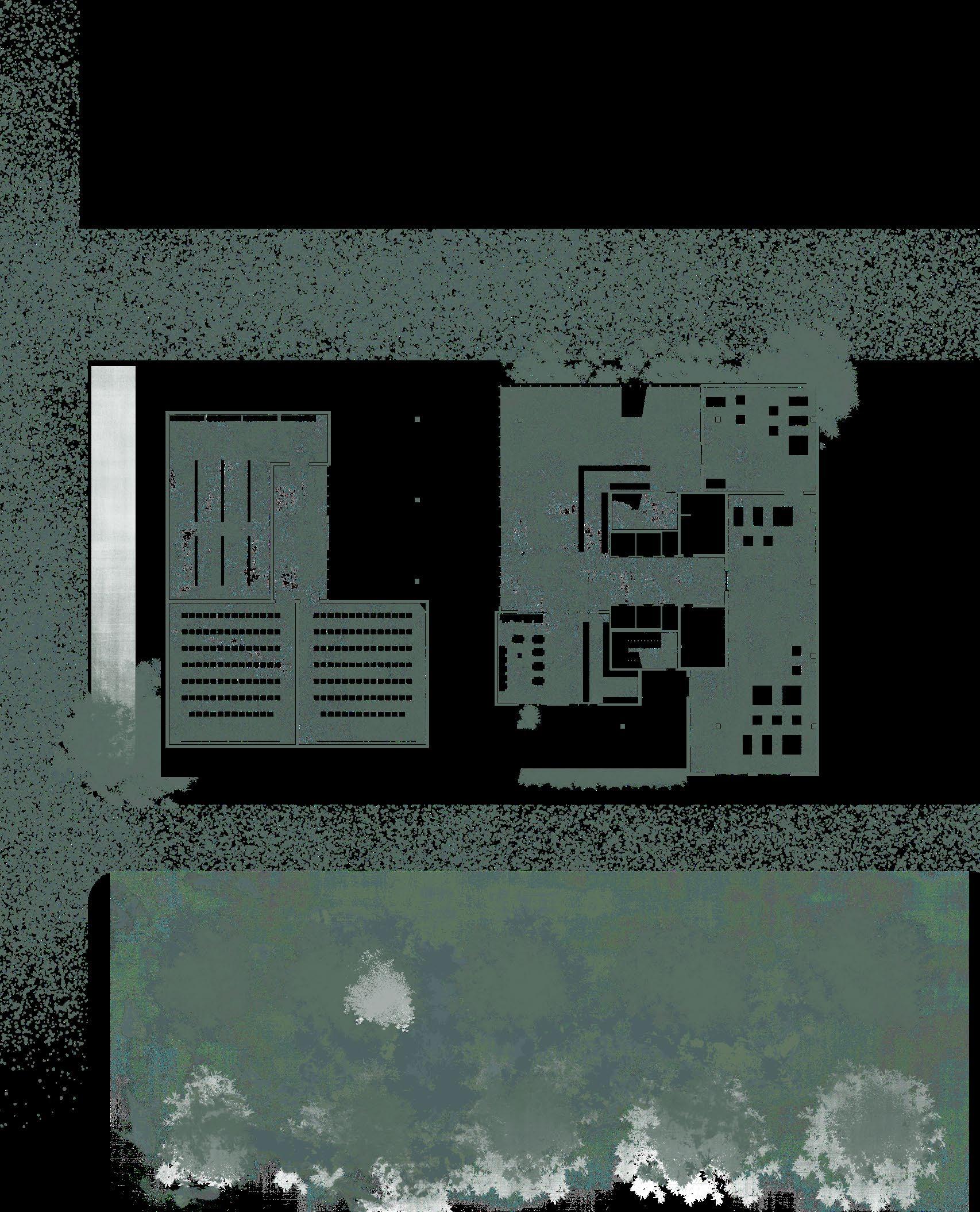

GROUND FLOOR PLAN

B

C

SCALE: NTS PUBLIC

STAFF

SUPPORT

1. LOBBY 2. ART EXHIBITIONS 3. COMMUNITY WORKSHOP 4. PUBLIC RESTROOM 5. PERFORMANCES/ ARTIST TALK 6. AUDITORIUM 7. GALLERY 8. LIBRARY/ STUDY AREA 9. CLASSROOM 10. STUDY AREA

11. CONFERENCE ROOM 12. OFFICE + STAFF RESTROOM

13.

14.

15.

16.

B

ARCHIVE MECHANICAL ROOM LOADING DOCK / STORAGE CONTROL ROOM

C

UP 2

DN

4

3

UP

DN

9

A

A

SECOND FLOOR PLAN

B

C 01

5

10

SCALE: NTS

12

PUBLIC

STAFF

SUPPORT

1. LOBBY 2. ART EXHIBITIONS 3. COMMUNITY WORKSHOP 4. PUBLIC RESTROOM 5. PERFORMANCES/ ARTIST TALK 6. AUDITORIUM 7. GALLERY 8. LIBRARY/ STUDY AREA 9. CLASSROOM 10. STUDY AREA

11. CONFERENCE ROOM 12. OFFICE + STAFF RESTROOM

13.

14.

15.

16.

ARCHIVE MECHANICAL ROOM LOADING DOCK / STORAGE CONTROL ROOM

20

B

C

UP

10

DN

4

UP 1 UP

8

DN

DN

10

A

A

B

THIRD FLOOR PLAN

C

SCALE: NTS PUBLIC

STAFF

SUPPORT

1. CAFE 2. ART EXHIBITIONS 3. COMMUNITY WORKSHOP 4. PUBLIC RESTROOM 5. PERFORMANCES/ ARTIST TALK 6. AUDITORIUM 7. GALLERY 8. LIBRARY/ STUDY AREA 9. CLASSROOM 10. OUTDOOR STUDY AREA

11. CONFERENCE ROOM 12. OFFICE + STAFF RESTROOM

13.

14.

15.

16.

B

ARCHIVE MECHANICAL ROOM LOADING DOCK / STORAGE CONTROL ROOM

C

UP

10

DN

4

13

7 UP

A

DN

A

13

B

FOURTH FLOOR PLAN

C 01

5

10

20

SCALE: NTS PUBLIC

STAFF

SUPPORT

1. LOBBY 2. ART EXHIBITIONS 3. COMMUNITY WORKSHOP 4. PUBLIC RESTROOM 5. PERFORMANCES/ ARTIST TALK 6. AUDITORIUM 7. GALLERY 8. LIBRARY/ STUDY AREA 9. CLASSROOM 10. OUTDOOR STUDY AREA

11. CONFERENCE ROOM 12. OFFICE + STAFF RESTROOM

13.

14.

15.

16.

ARCHIVE MECHANICAL ROOM LOADING DOCK / STORAGE CONTROL ROOM

13

7

13

8

3

2

1

15

6

PUBLIC

STAFF

SUPPORT

1. LOBBY 2. ART EXHIBITIONS 3. COMMUNITY WORKSHOP 4. PUBLIC RESTROOM 5. PERFORMANCES/ ARTIST TALK 6. AUDITORIUM 7. GALLERY 8. LIBRARY/ CAFE 9. CLASSROOM 10. STUDY AREA

11. CONFERENCE ROOM 12. OFFICE + STAFF RESTROOM

13.

14.

15.

16.

ARCHIVE MECHANICAL ROOM LOADING DOCK CONTROL ROOM

SECTION A-A SCALE: NTS

14

16

01

5

10

20

7

7

8

5

10

3

10

2

2

11

1

1

6

PUBLIC

STAFF

SUPPORT

1. LOBBY 2. ART EXHIBITIONS 3. COMMUNITY WORKSHOP 4. PUBLIC RESTROOM 5. PERFORMANCES/ ARTIST TALK 6. AUDITORIUM 7. GALLERY 8. LIBRARY/ CAFE 9. CLASSROOM 10. STUDY AREA

11. CONFERENCE ROOM 12. OFFICE + STAFF RESTROOM

13.

14.

15.

16.

SCALE: NTS

3

11

5

SECTION B-B

8

ARCHIVE MECHANICAL ROOM LOADING DOCK CONTROL ROOM

01

5

10

20

SECTION C-C SCALE: NTS

15

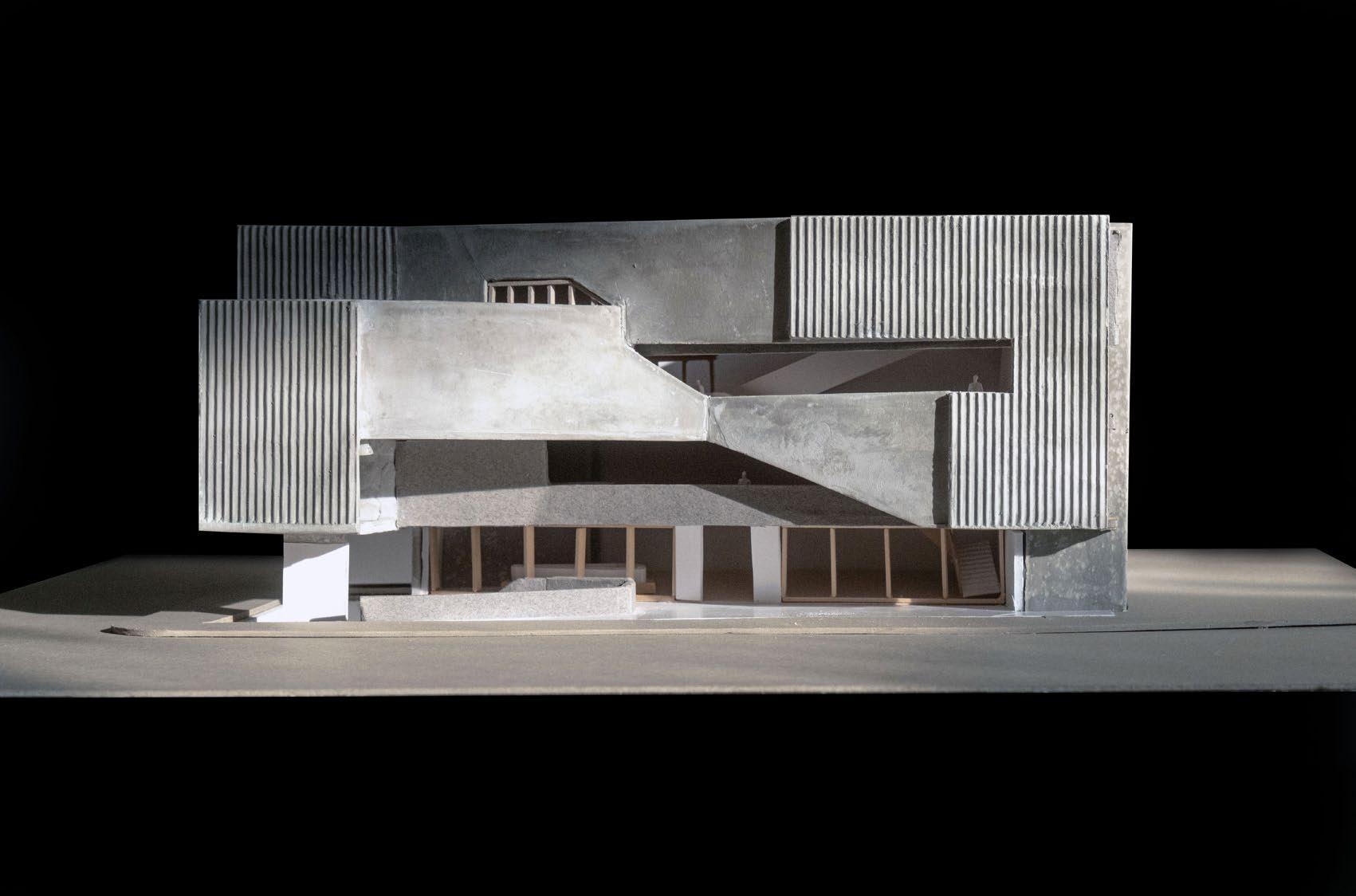

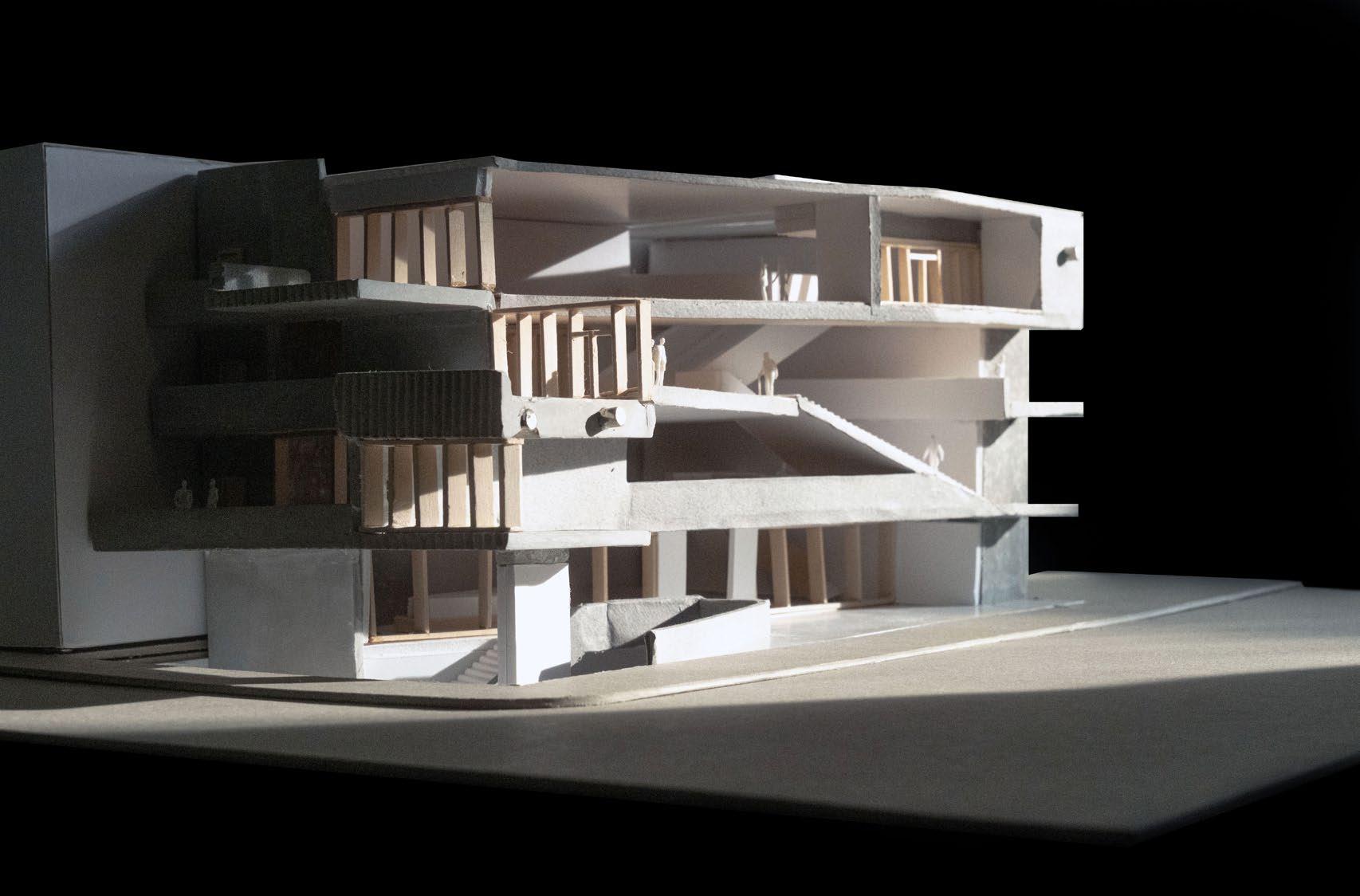

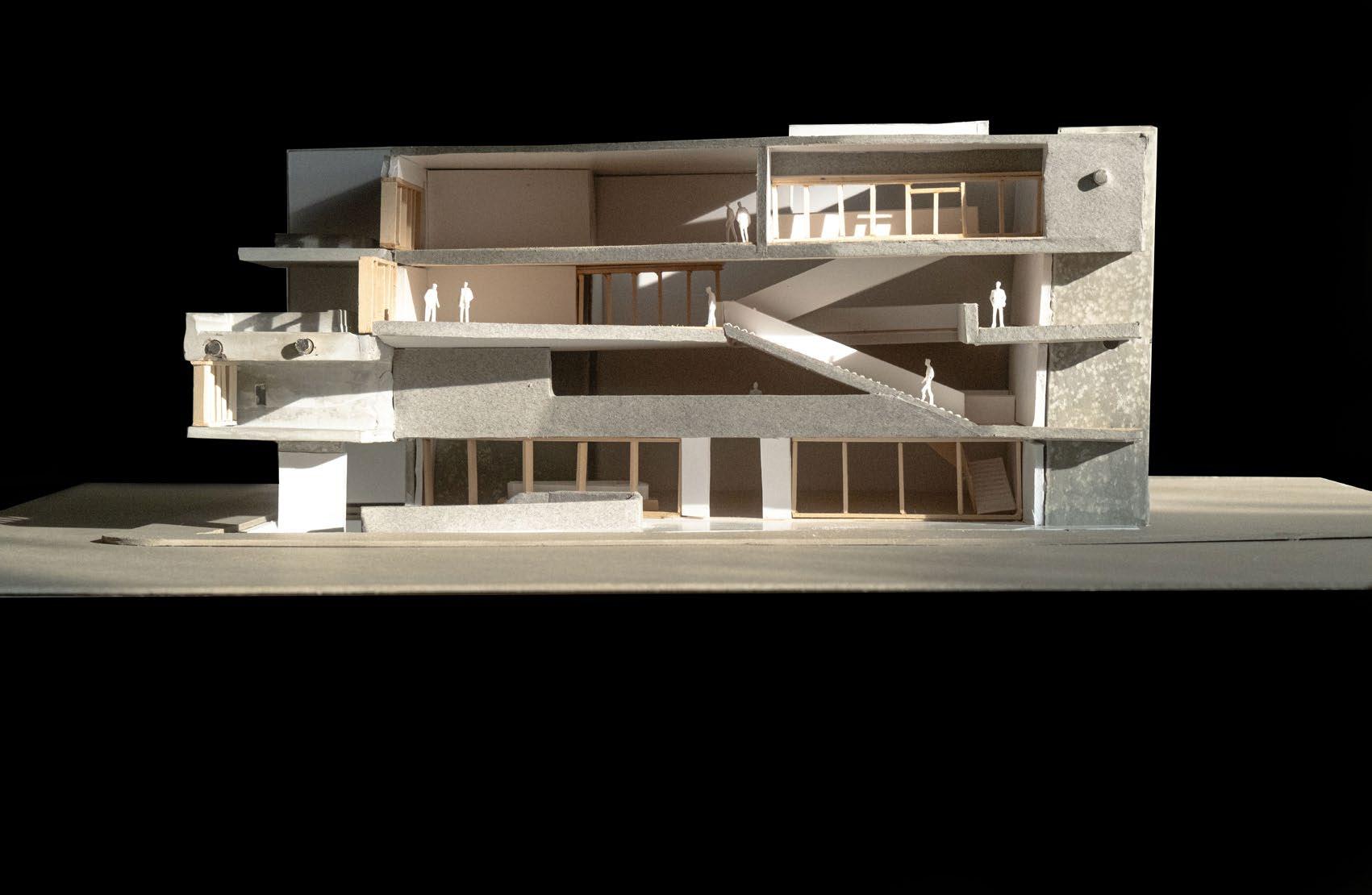

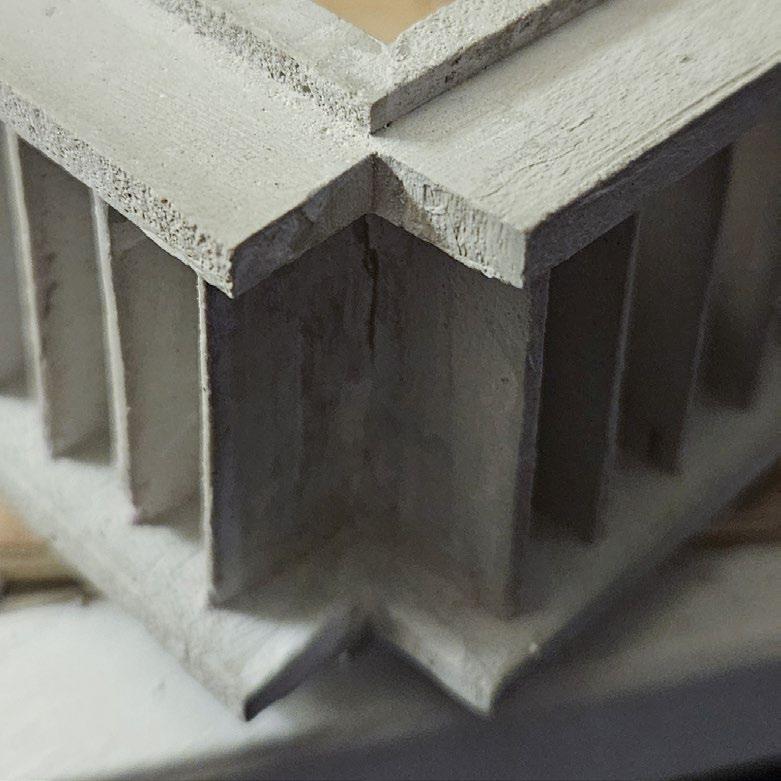

TOP: PHYSICAL MODEL WITH CONCREETE FACADE BOTTOM: MODEL INTERIOR

16

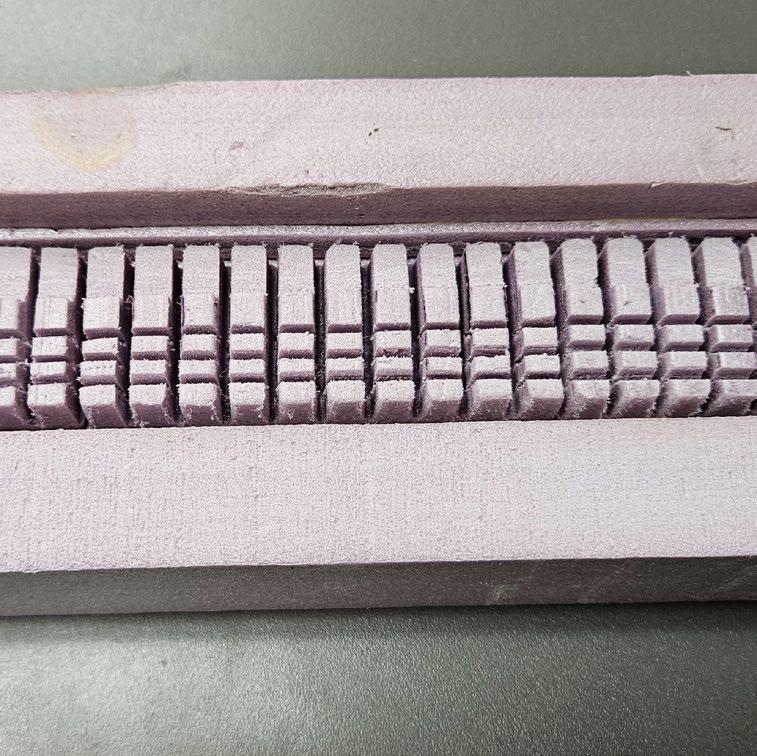

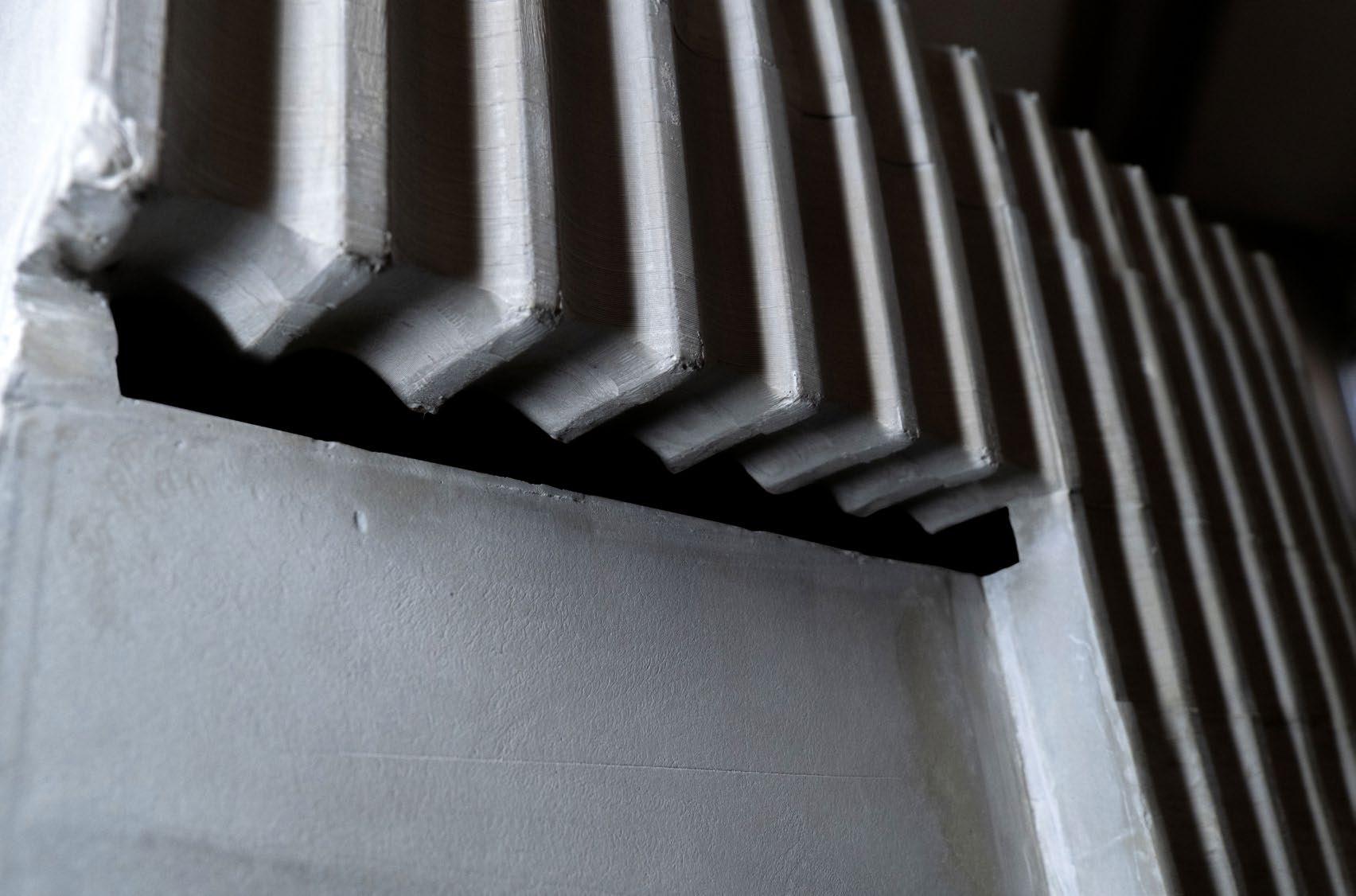

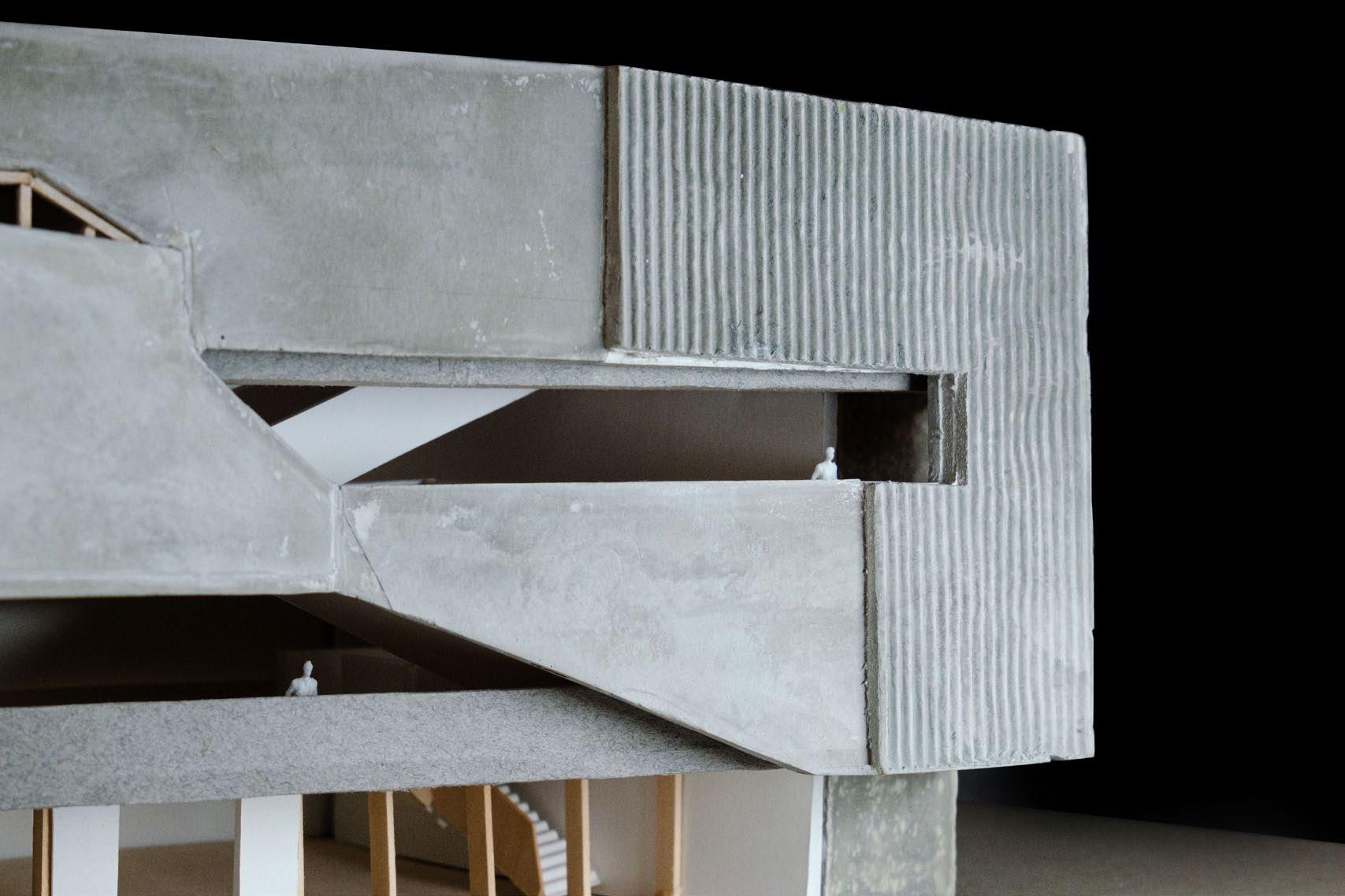

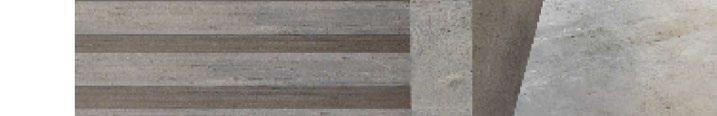

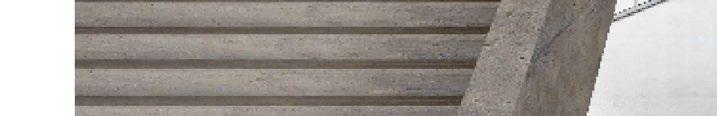

TOP: MODEL SIDE VIEW BOTTOM: TEXTURE DETAILS

17

THE SCHOOL OF ARCHITECTURE POMONA, CA ARC 2021 Second Year Design 2 California State Polytechnic University, Pomona Spring 2024 Instructor: Pablo La Roche Individual Project

Located in a historic African American community, this project aims to design a community arts center focusing on the community’s needs. The project integrates three core concepts: promenade, circulation, and curiosity. The building’s main concept lies in the series of gracefully protruding planes, not only framing the entrance but also serving as an overhang that offers protection to the lower level. Windows and balconies capture and frame the building’s inherent drama, creating curiosity about what is waiting to be visited.

Occupants are welcomed with a glass entrance that blurs the lines of public and private. They have the option to take the stairs down to the auditorium, enter through the lobby, or take the elevator directly to their destination. Visitors traveling through the building encounter many double-height ceilings and terraces strategically placed to offer stunning panoramic views. These architectural elements not only enrich the visitor’s experience but also serve as a visual guide directing their gaze upward.

18

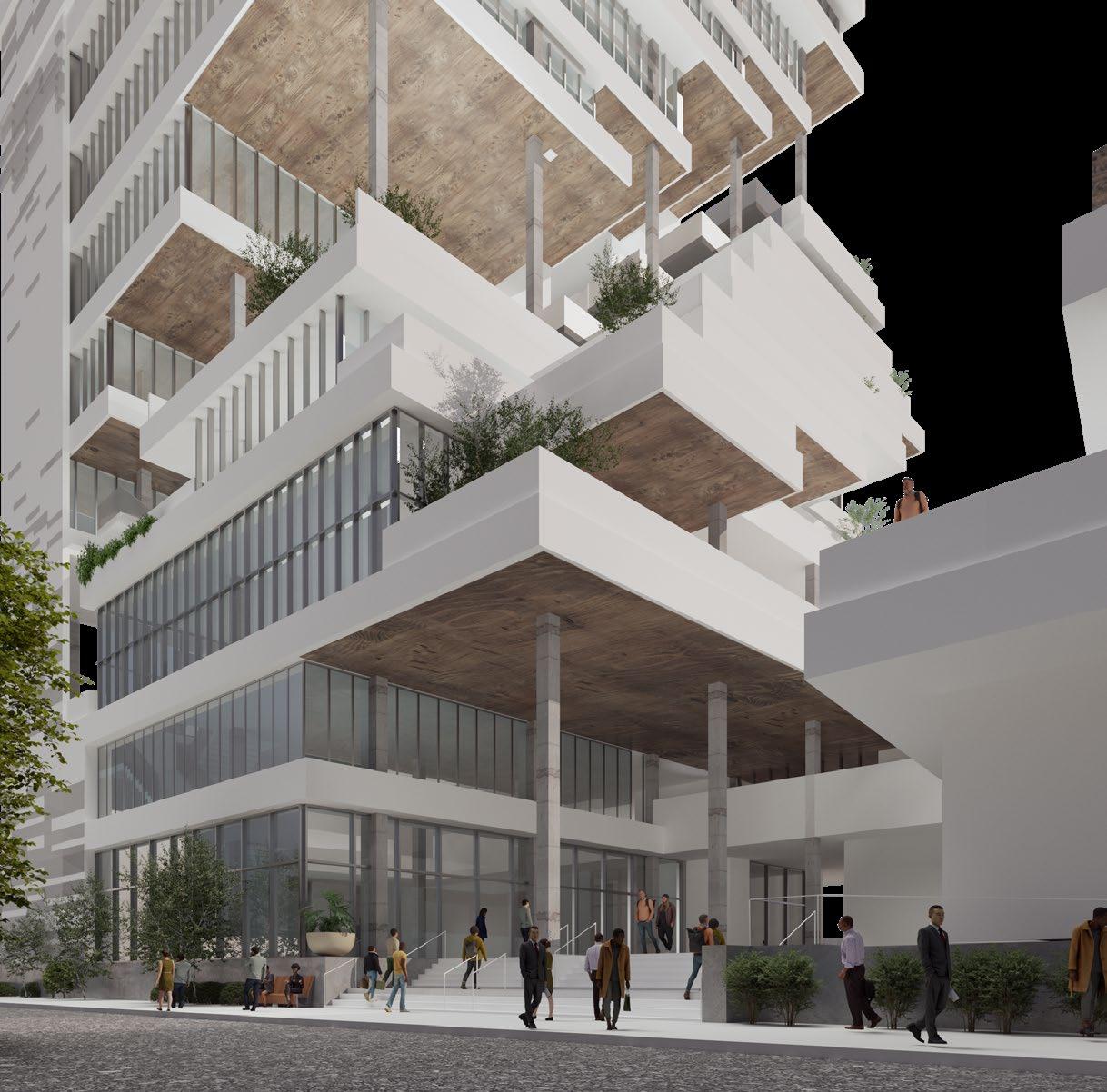

EXTERIOR RENDERING WEST 2ND STREET ENTRANCE

19

WEST 2ND STREET

5 SOUTH PARK AVE

4

7

6

1

6

9

7

GENERAL

STAFF 11. FAULTY OFFICE 12. BREAK ROOM

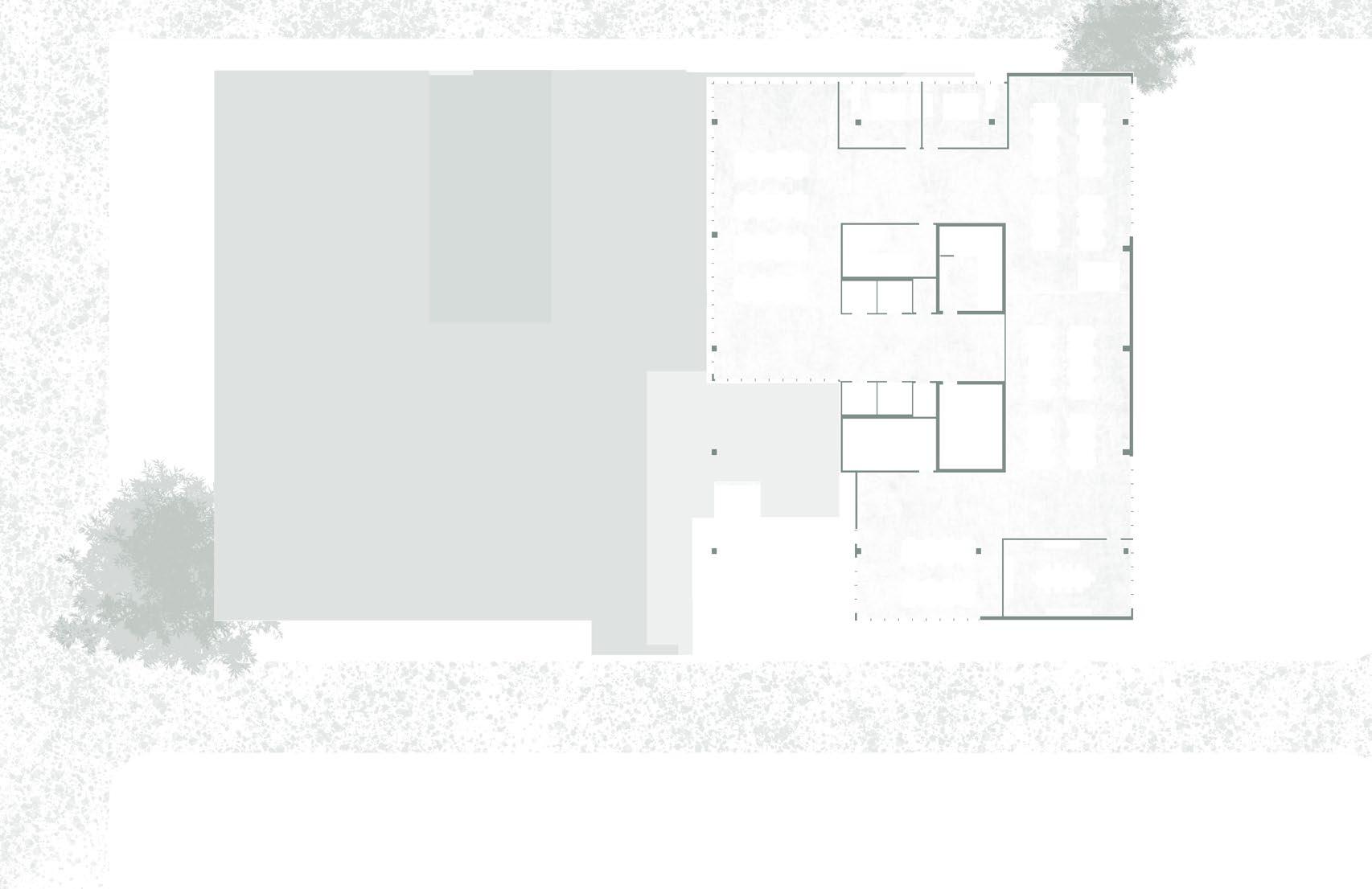

GROUND FLOOR PLAN SCALE: NTS

20

8

8

8

2 9

3

1. LOBBY 2. MODEL SHOP 3. CAFE 4. GALLERY 5. FABRICATION LAB 6. LECTURE HALL 7. PUBLIC PLAZA 8. ELEVATOR 9. RESTROOM 10. STUDIO

8

B

WEST 2ND STREET

2

2 1

SOUTH PARK AVE

1

4 3

3

3

3 4

DN

1

UP

A

A 1

2

GENERAL 1.

2.

3.

4.

STUDIO FACULTY OFFICE ELEVATOR RESTROOM

B EIGHTH FLOOR PLAN SCALE: NTS

WEST 2ND STREET

B

2

2

SOUTH PARK AVE

1 1 4 3

3

3

3 4

1

DN

A

A 1

2

GENERAL 1.

2.

3.

4.

STUDIO FACULTY OFFICE ELEVATOR RESTROOM

B NINTH FLOOR PLAN SCALE: NTS

21

10 10 10 10 10

10

10

10

10 10 10 10 10

11

11

12

6

6

GENERAL

STAFF

1. LOBBY 2. MODEL SHOP 3. CAFE 4. GALLERY 5. FABRICATION LAB 6. LECTURE HALL 7. PUBLIC PLAZA 8. ELEVATOR 9. RESTROOM 10. STUDIO

11. FAULTY OFFICE 12. BREAK ROOM

7

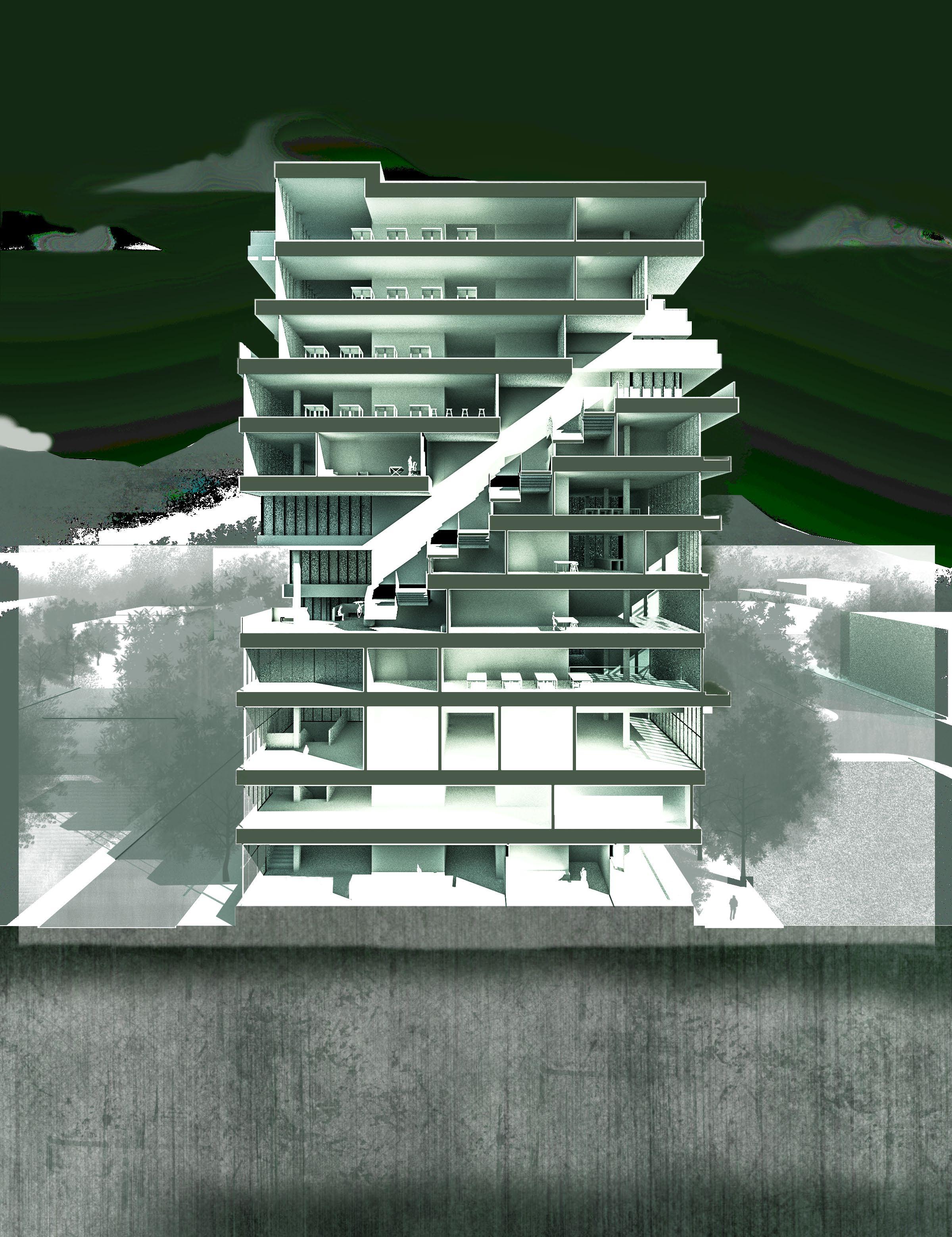

SECTION A-A SCALE: NTS

22

2

11

3

5

10

10

11

10

10 10

11 10

10

10

10

11

1

GENERAL

STAFF

1. LOBBY 2. MODEL SHOP 3. CAFE 4. GALLERY 5. FABRICATION LAB 6. LECTURE HALL 7. PUBLIC PLAZA 8. ELEVATOR 9. RESTROOM 10. STUDIO

11. FAULTY OFFICE 12. BREAK ROOM

3

SECTION B-B SCALE: NTS

23

INTERIOR RENDERING STUDIO VIEW

24

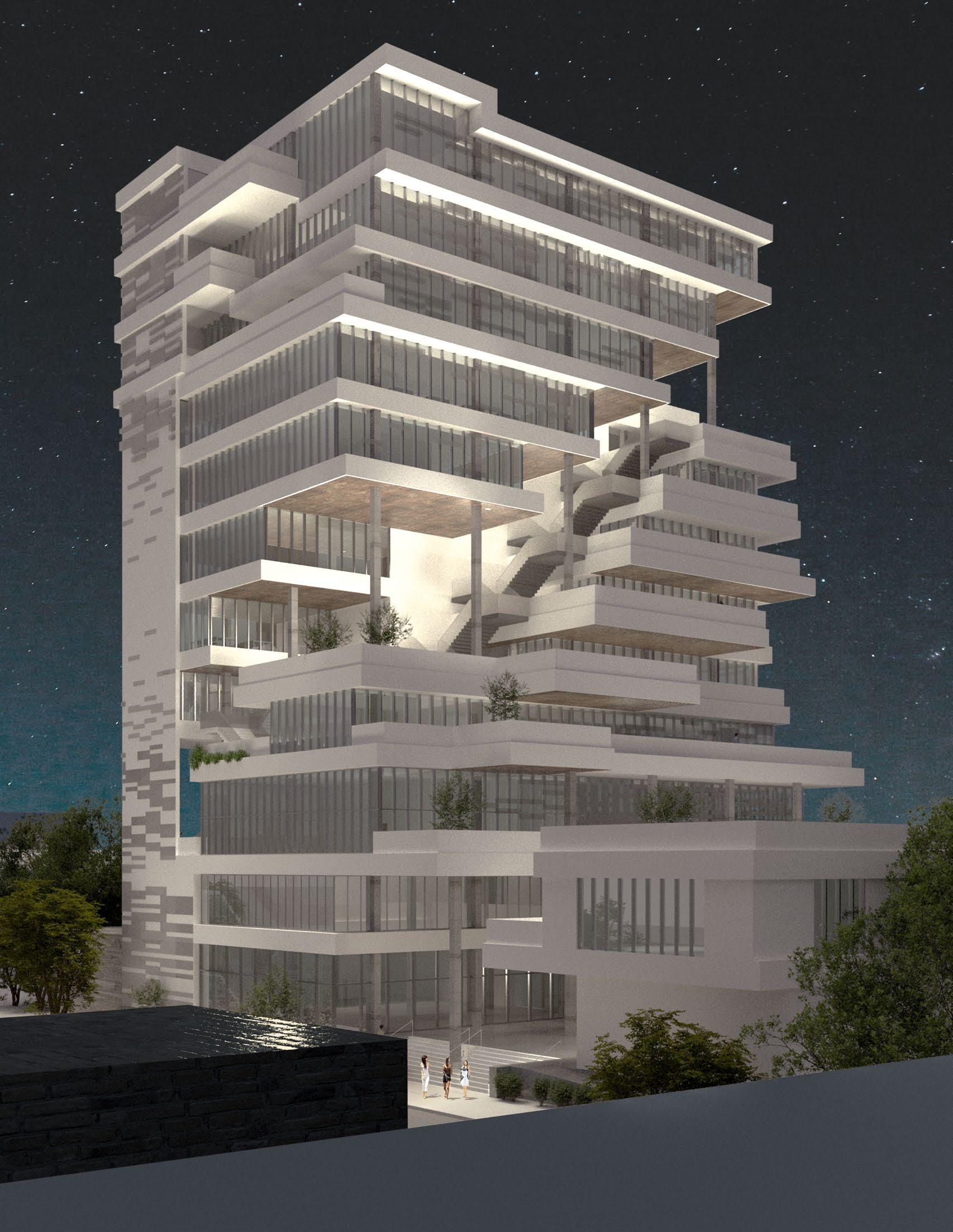

NIGHT RENDERING WEST 2ND STREET / SOUTH PARK AVE

25

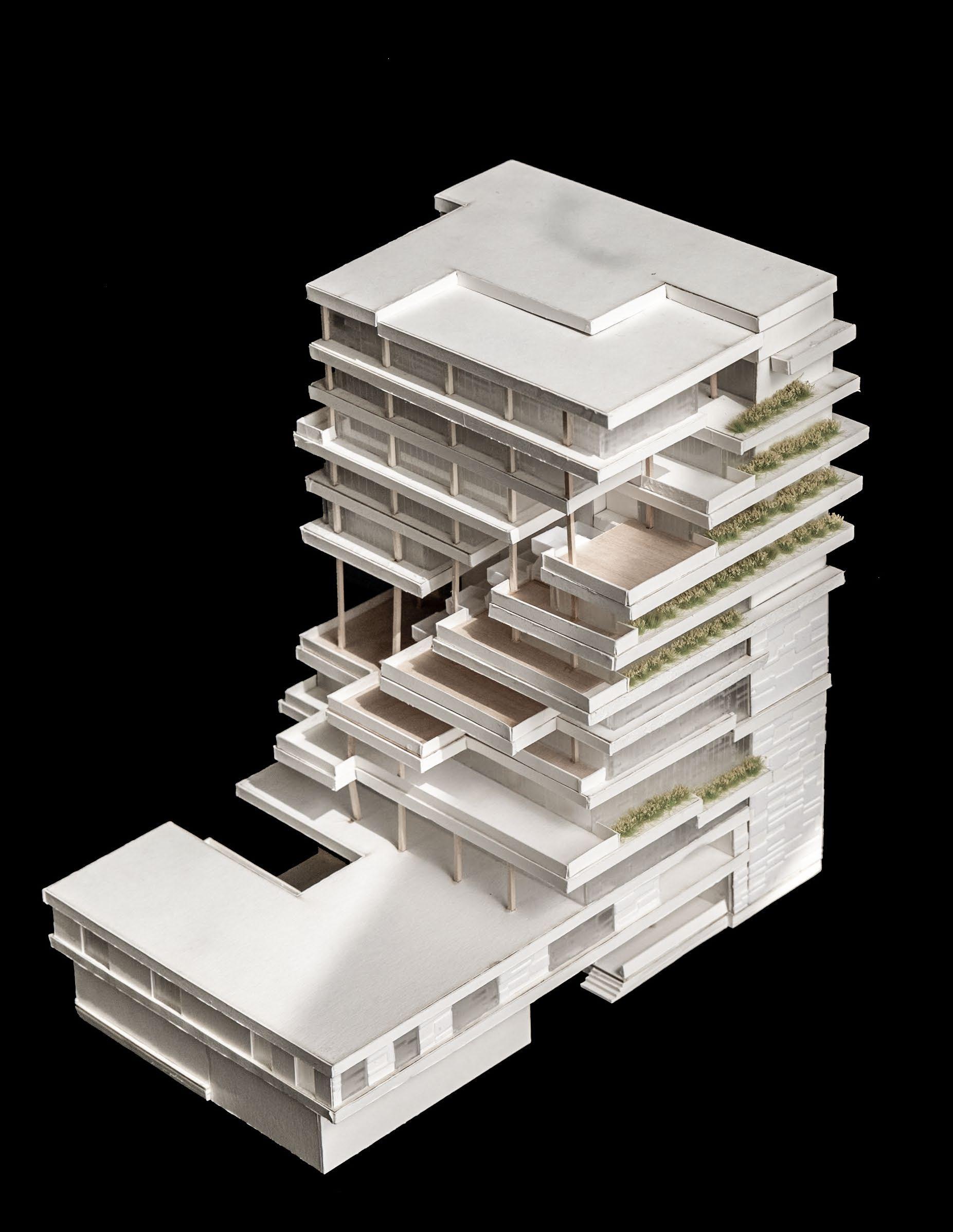

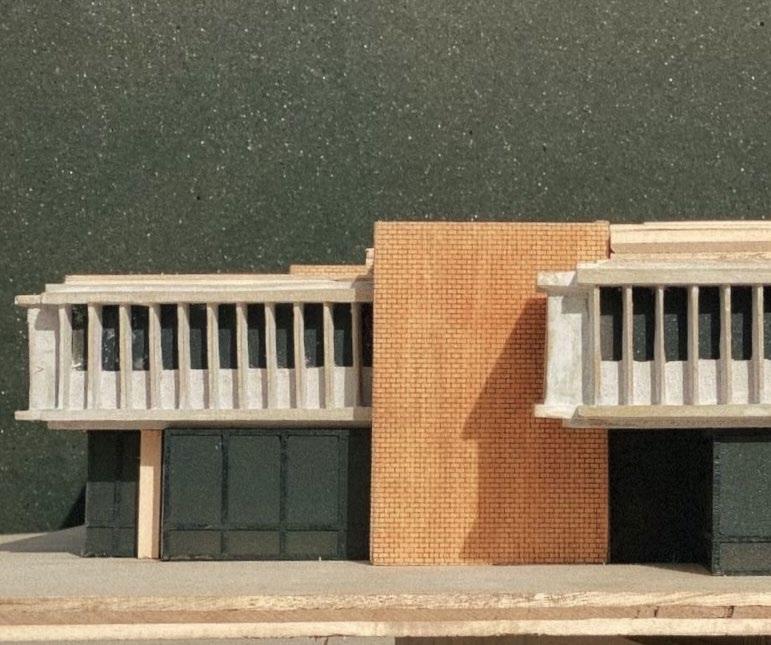

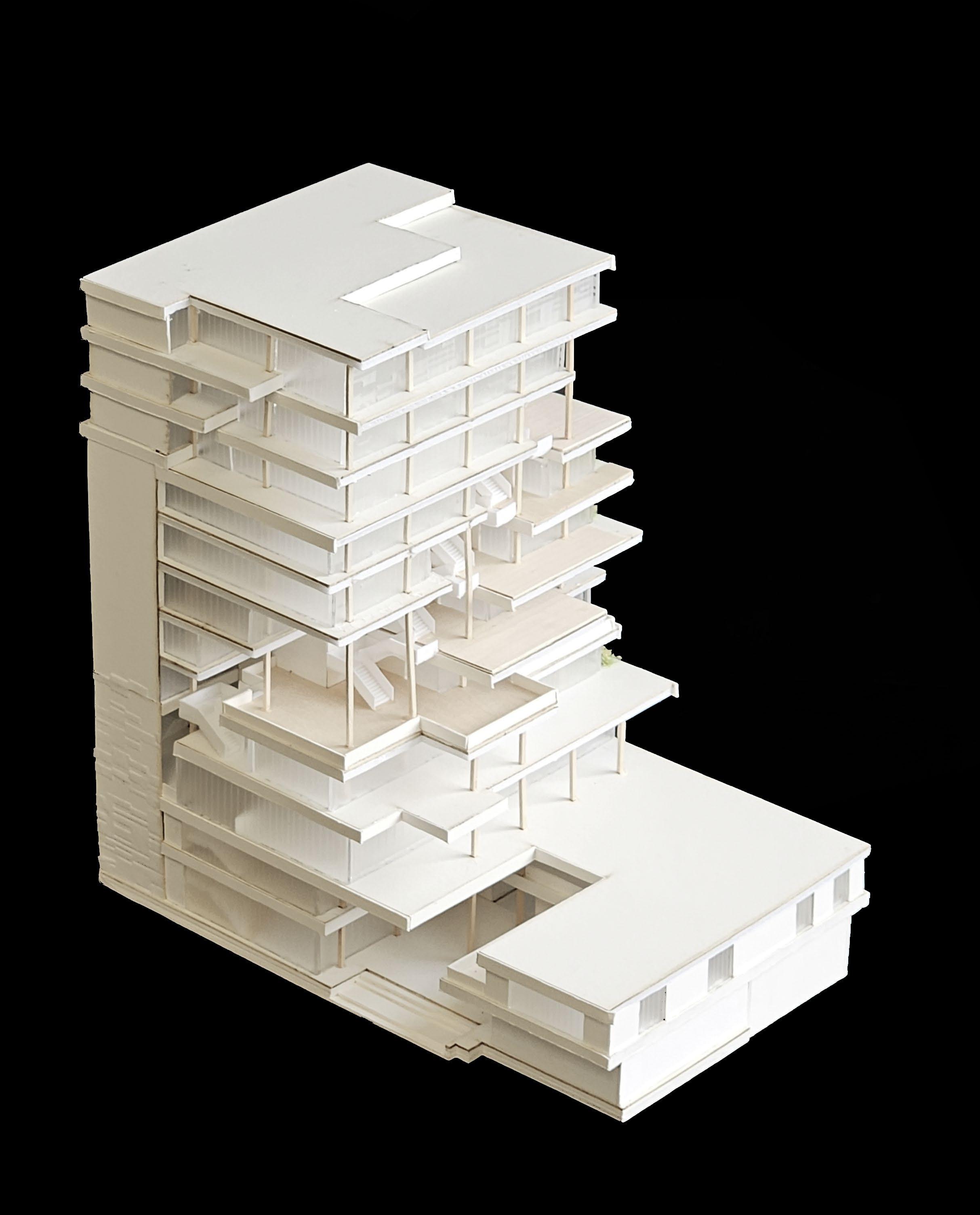

PHYSICAL MODEL

26

PHYSICAL MODEL

27

MT. WILSON SCIENTIST RETREAT MT WILSON, CA ARC 3011 Third Year Design 1 California State Polytechnic University, Pomona Fall 2024 Instructor: Roberto Sheinberg Individual Project

Location: Mt Wilson Located on Mt. Wilson in the Angeles National Forest, the Scientist Retreat offers breathtaking views overlooking the San Gabriel Valley. This innovative observation and research facility is thoughtfully positioned on existing platforms, minimizing environmental disruption while repurposing underutilized structures.

The retreat is designed around a central courtyard, which serves as the heart of the facility, fostering natural circulation and creating a seamless flow between living quarters, office spaces, and public areas.

The courtyard design not only enhances connectivity but also encourages interaction and collaboration among its users. Paths and walkways organically branch out from the courtyard, linking to key spaces such as the sky amphitheater, equipment repair shop, and observation points, ensuring intuitive and efficient movement throughout the facility.

28

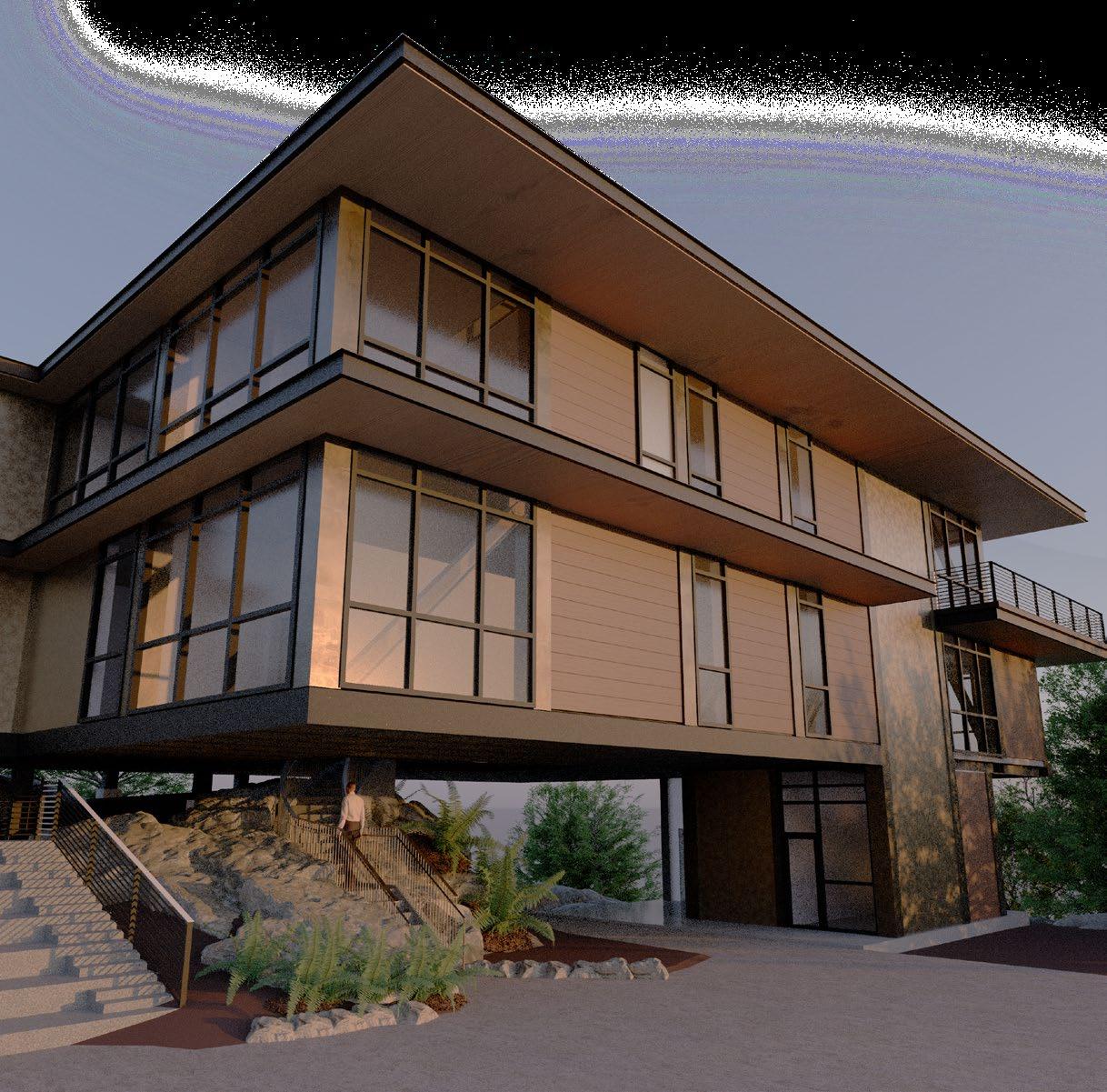

EXTERIOR RENDERING ENRANCE

29

1

2 17'-0"

17'-0"

3

A

4 17'-0"

12'-0"

A

1

B 12'-0"

11

18

C 12'-0"

2

D

3

12'-0"

DN

E 12'-0"

2

F 12'-0"

3

UP

12'-0"

G 20 4

H 12'-0"

A

I

SECOND FLOOR PLAN SCALE: NTS

30

1. MAIN OFFICE 2. RESEARCH OFFICE 3. RESEARCH LAB 4. MACHINE ROOM/ SHOP 5. EQUIPMENT SEVICE CLOSET 6. TRASH 7. ADA RESTROOM 8. PARKING 9. AMPITHEATER 11. POWDER ROOM 12 . DAY ROOM 13. KITCHEN 14. SUPERINTENDANT BEDROOM BATHROOM 15. BEDROOM SINGLE BATHROOM 16. BEDROOM DOUBLE BATHROOM 17. LAUNDRY/ STORAGE 18. STORAGE 19. LIBRARY 20. ELEVATOR

200 250 200 600 120 50 80 60 400 200 240 60 160 60 240 60 120 60 120 40

1

2 17'-0"

17'-0"

A

3

4 17'-0"

6'-9"

12'-0"

A

14

B 12'-0"

19 2

16

12'-0"

C

D 12'-0"

17

12'-0"

15

13

E

F 12'-0"

15

DN

G 20

12'-0"

12

12'-0"

H A

7'-2"

I

THIRD FLOOR PLAN SCALE: NTS

1. MAIN OFFICE 2. RESEARCH OFFICE 3. RESEARCH LAB 4. MACHINE ROOM/ SHOP 5. EQUIPMENT SEVICE CLOSET 6. TRASH 7. ADA RESTROOM 8. PARKING 9. AMPITHEATER 11. POWDER ROOM 12 . DAY ROOM 13. KITCHEN 14. SUPERINTENDANT BEDROOM BATHROOM 15. BEDROOM SINGLE BATHROOM 16. BEDROOM DOUBLE BATHROOM 17. LAUNDRY/ STORAGE 18. STORAGE 19. LIBRARY 20. ELEVATOR

200 250 200 600 120 50 80 60 400 200 240 60 160 60 240 60 120 60 120 40

31

37' - 10" THIRD FLOOR

12

19 25' - 6" THIRD FLOOR

3

15 13' - 6" SECOND FLOOR

9

5

0' - 0" GROUND FLOOR

SECTION A-A SCALE: NTS

32

1. MAIN OFFICE 2. RESEARCH OFFICE 3. RESEARCH LAB 4. MACHINE ROOM/ SHOP 5. EQUIPMENT SEVICE CLOSET 6. TRASH 7. ADA RESTROOM 8. PARKING 9. AMPITHEATER 11. POWDER ROOM 12 . DAY ROOM 13. KITCHEN 14. SUPERINTENDANT BEDROOM BATHROOM 15. BEDROOM SINGLE BATHROOM 16. BEDROOM DOUBLE BATHROOM 17. LAUNDRY/ STORAGE 18. STORAGE 19. LIBRARY 20. ELEVATOR

200 250 200 600 120 50 80 60 400 200 240 60 160 60 240 60 120 60 120 40

SINGLE PLY ROOF MEMBRANE COVER BOARD SUBSTRATE INSULATION FASTENERS RIGID INSULATION 9 GUAGE STEEL DECKING

METAL GUTTER

STEEL WIDE FLANGE W12X65

C CHANEL FACIA TRANSPARANT DOUBLE PANE WINSOWS

CURTAIN WALL STOOL TRIM CURTAIN WALL BRACKET

STEEL MULLION STEEL GUARDRAIL

4.5" CONCRETE FILL EDGE TRIM AND RESTRAINT STRAP

CONCRETE PEDESTAL PAVERS

SHEET METAL COVER MILBOARD COMPOSITE SIDING METAL HAT CHANEL

SHEAR STUD NO 5 REBAR METAL DECKING

BATT INSULATION STEEL FRAMING WEATHER BARRIER ZIP SYSTEM INSULATED R-SHEATHING 2" DECKING PEDESTAL EDGE DRAIN WEATHER MEMBRANE RIGID INSULATION

WIDE FLANGE W10X39 CROSS MEMBER MILBOARD COMPOSITE SIDING HAT CHANEL WEATHER BARRIER ZIP SYSTEM INSULATED R-SHEATHING 2" RIGID INSULATION BATT INSULATION 6" STEEL FRAMING DRIP EDGE

4.5" CONCRETE FILL METAL DECKING

CONCRETE PAVERS DECKING PEDESTAL RIGID INSULATION METAL DECKING

BATT INSULATION

PVC WOOD PRINT SOFFIT

HANG WIRE AND BRACKET DRYWALL SUSPENSION SYSTEM 0.5" GYPSUM CEILING

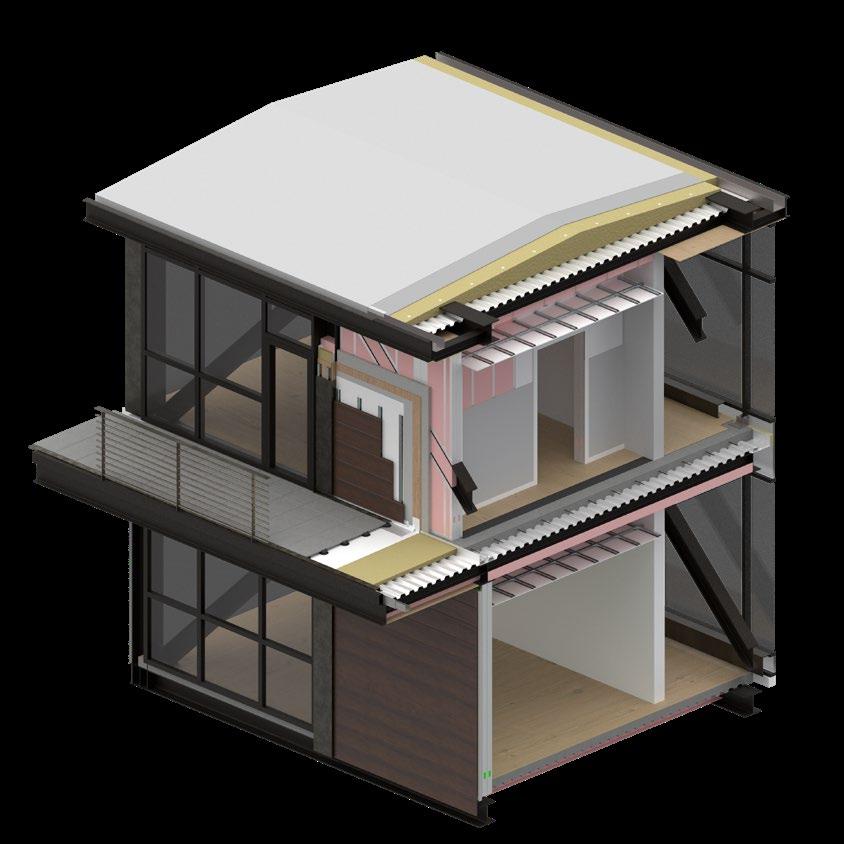

DETAILED CHUNK MODEL SCALE: NTS

33

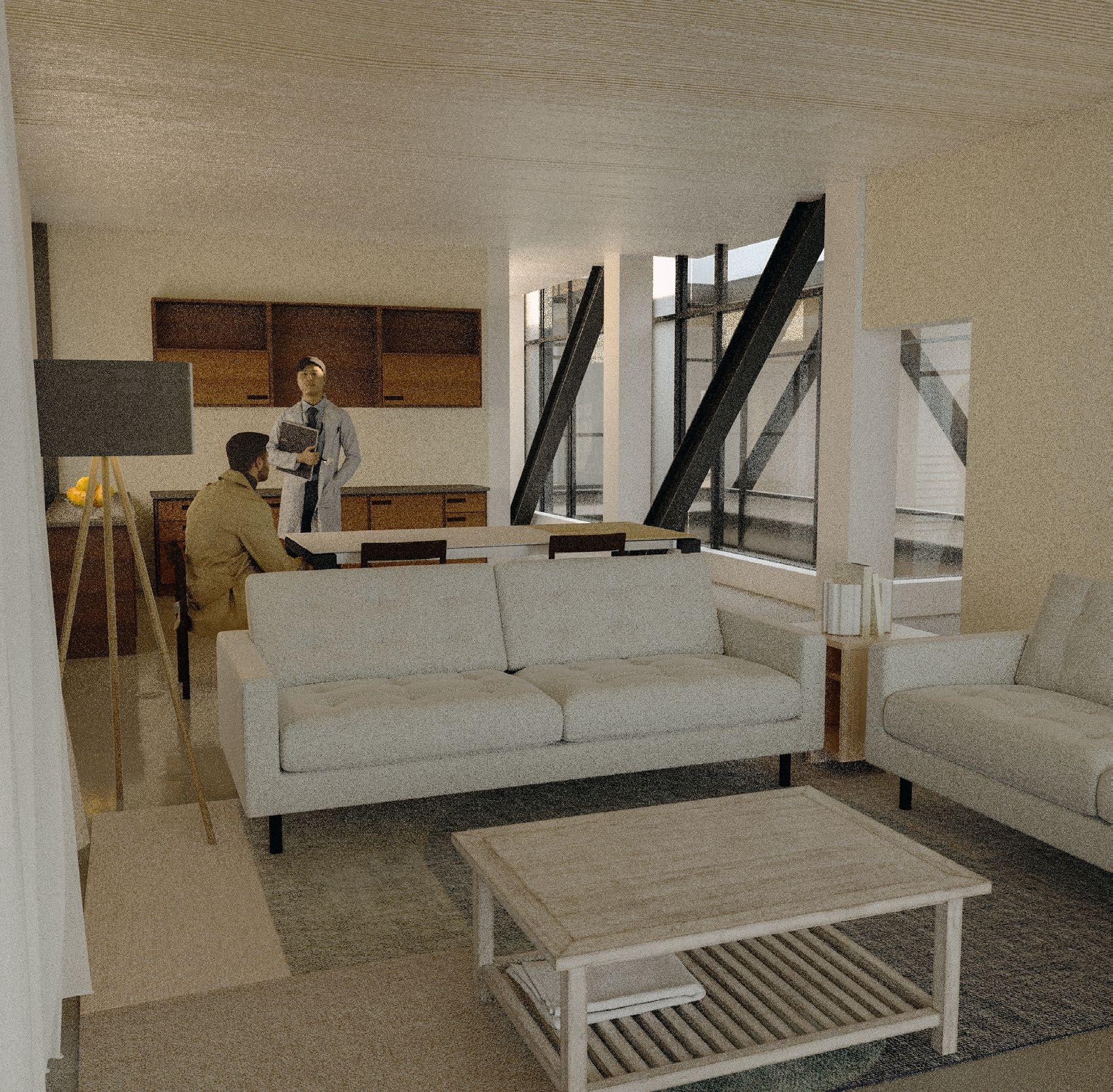

INTERIOR RENDERING DAY ROOM

34

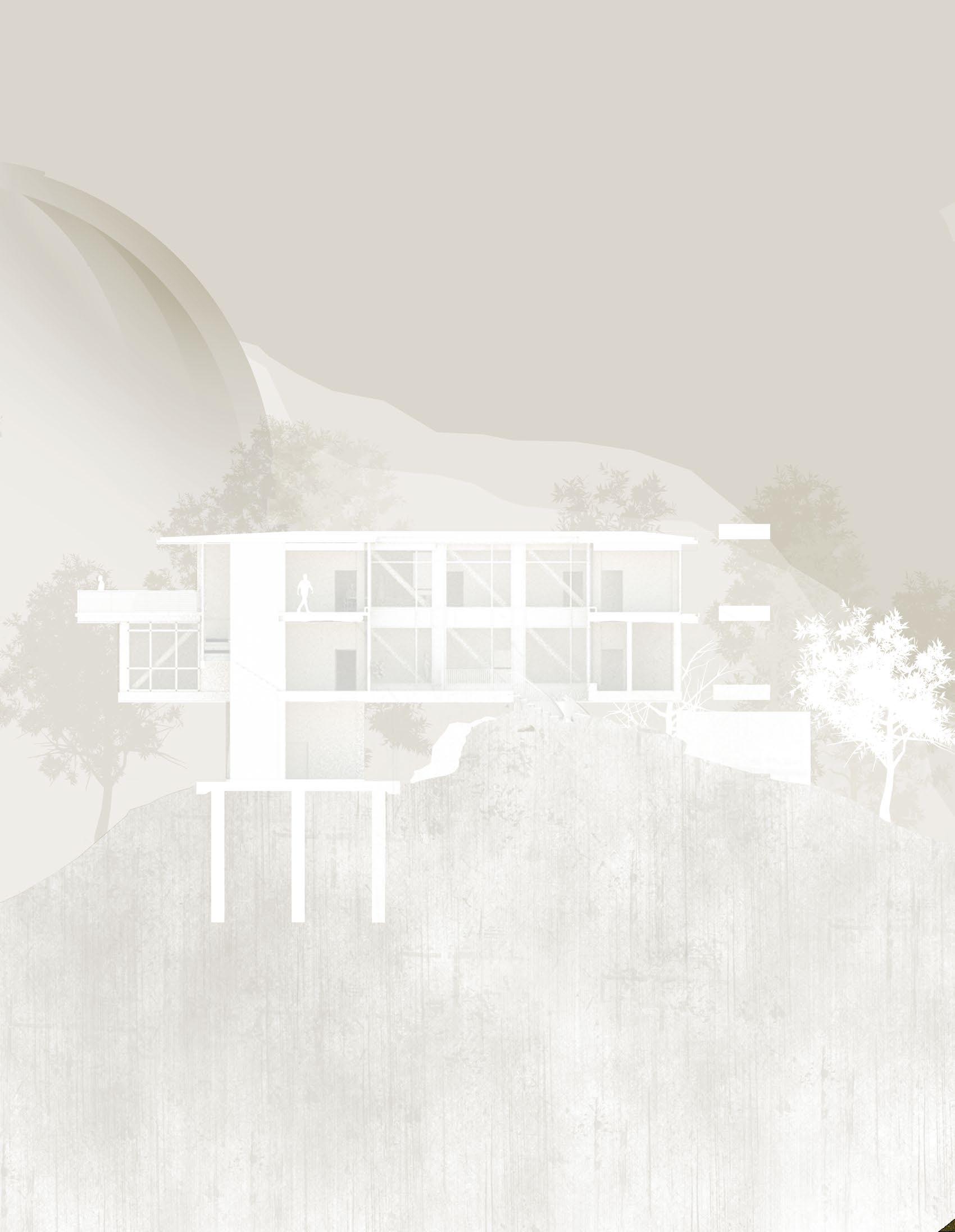

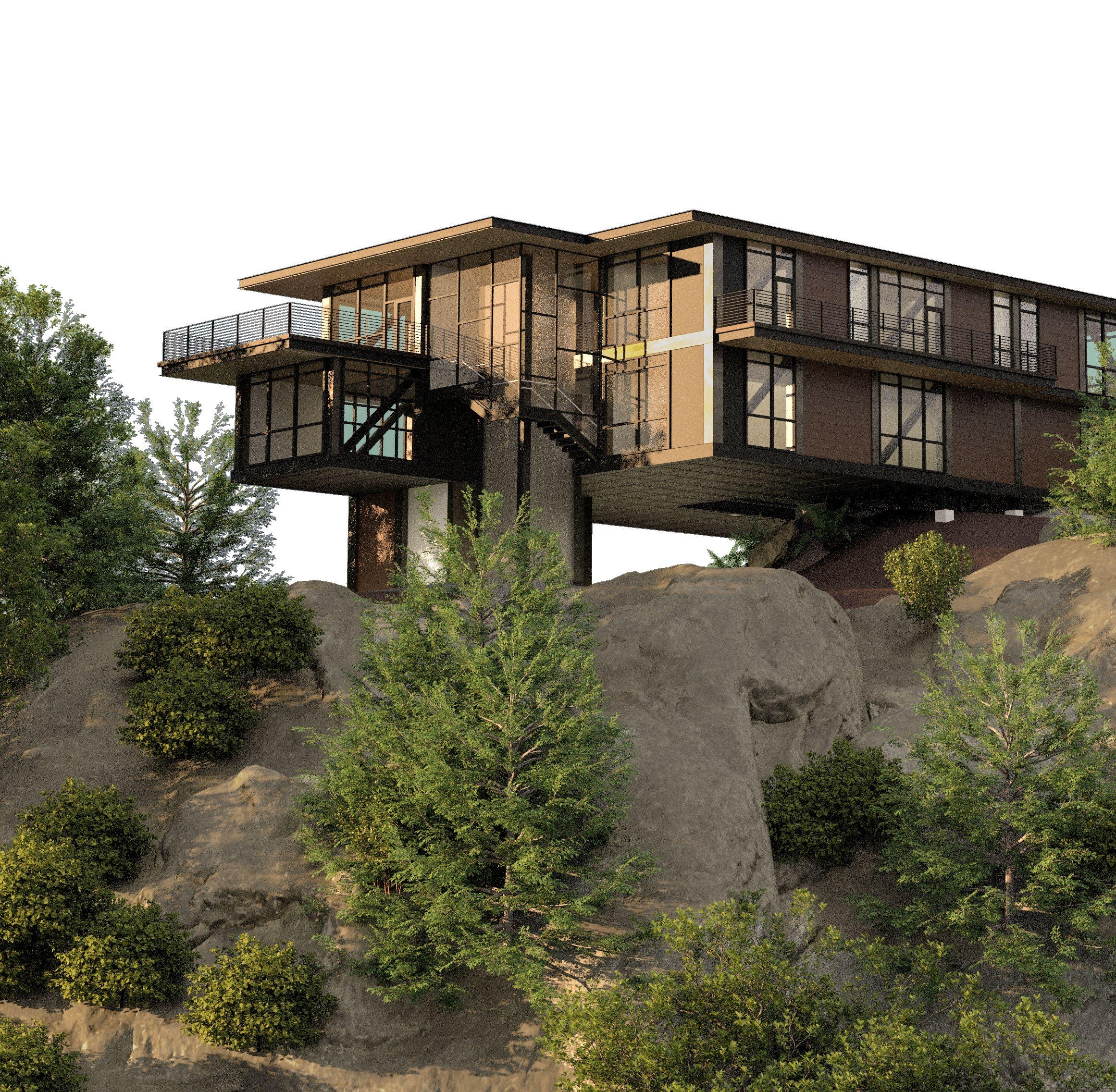

EXTERIOR RENDERING SOUTH VIEW

35

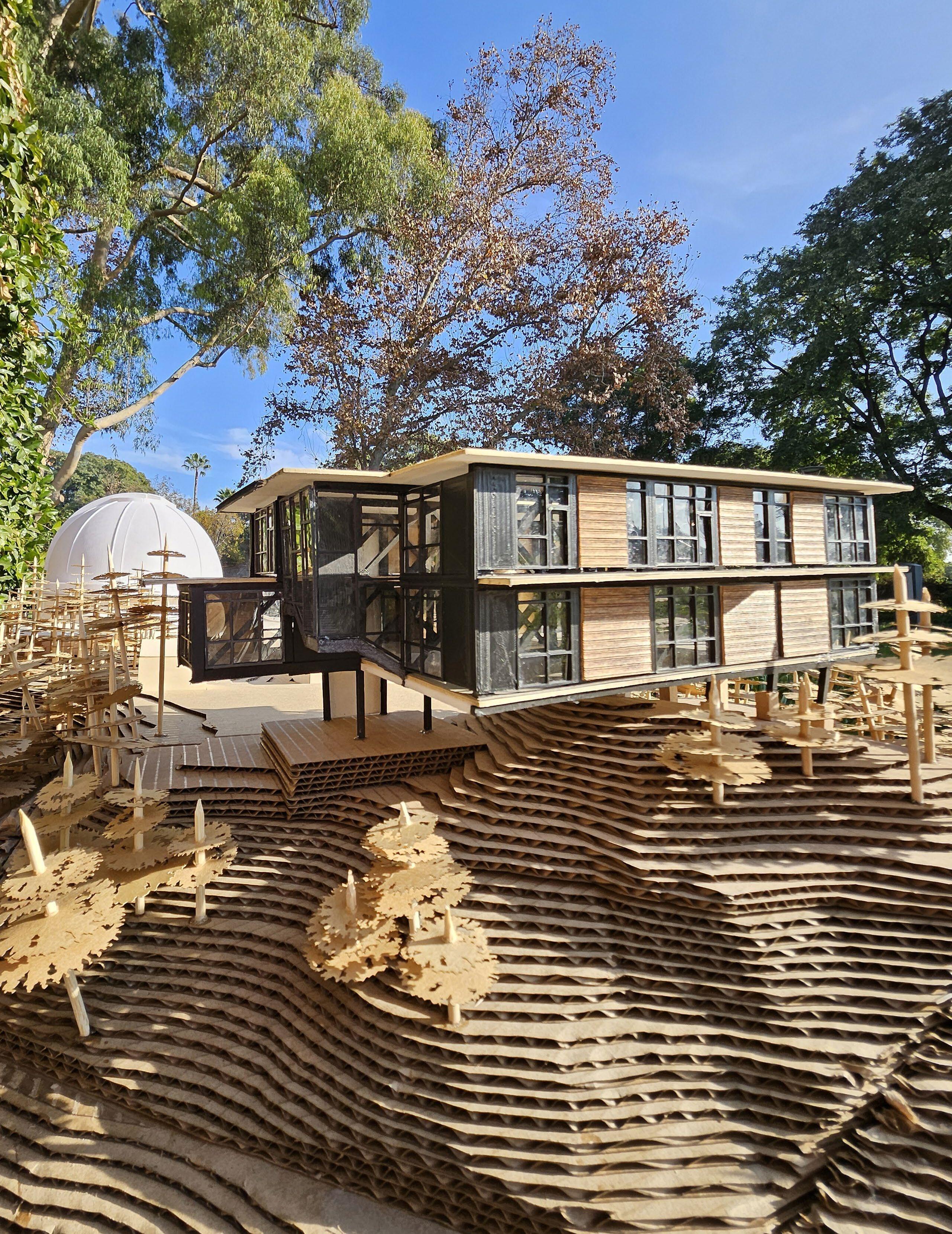

PHYSICAL MODEL

36

PHYSICAL MODEL

37

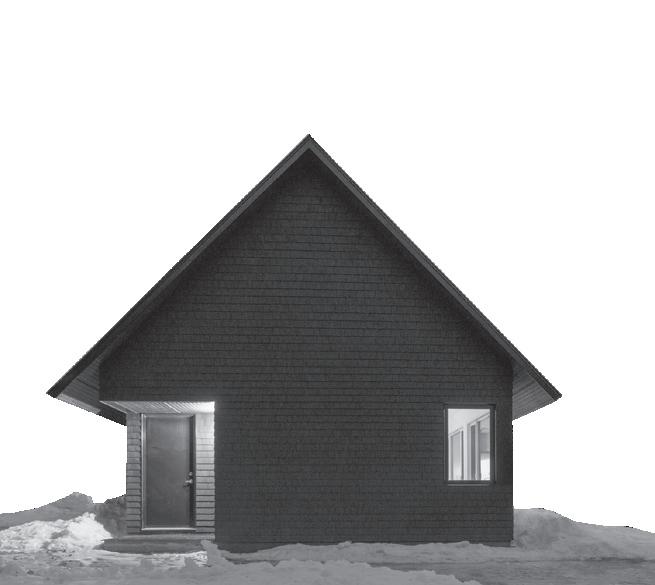

BLACK GABLES Case Study ARC 3410 Building Construction 1 California State Polytechnic University, Pomona Fall 2023 Instructor: Michael Fox Group Project: Blossom Sumardi | Asada Ball | Johanna Aquino

Architect: Omar Gandhi Location: Luisdale Nova Scotia, Canada This case study focuses on the construction methods of a prefabricated structure and the usage of materials.Black Gables consists of two modest-sized gabled buildings with a black ecterior and Metal roof system. the choice of black materials contrasts the environement allowing it to stand out and claim its presence its landscape. The goal was to be economical with both the budget and space in the forest utilizing local materials and labor to boost the local economy.

The house is situated in a concrete slab with a wood frame, the exterior freatures a composition of textures, including a metal jacket roof system, cedar shingles and metal cladding.

38

JB A

380 PO JB.A 559 INS

METAL JACKET ROOF SYSTEM

FOUNDATION

WOOD SHINGLE SIDING

CLIE

JAV ISLA LOU CAN

PR

BL

#

PROJECT NU

DRAWN BY DATE

S

SCALE

SHEET NAM

Ax

3D Axon

SHEET NU

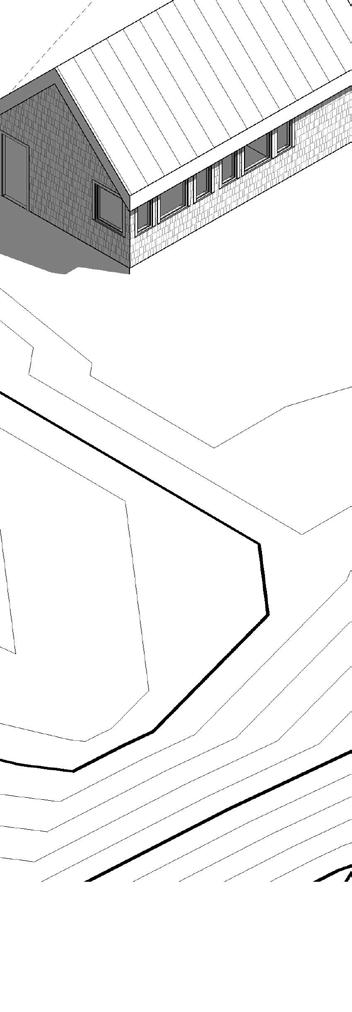

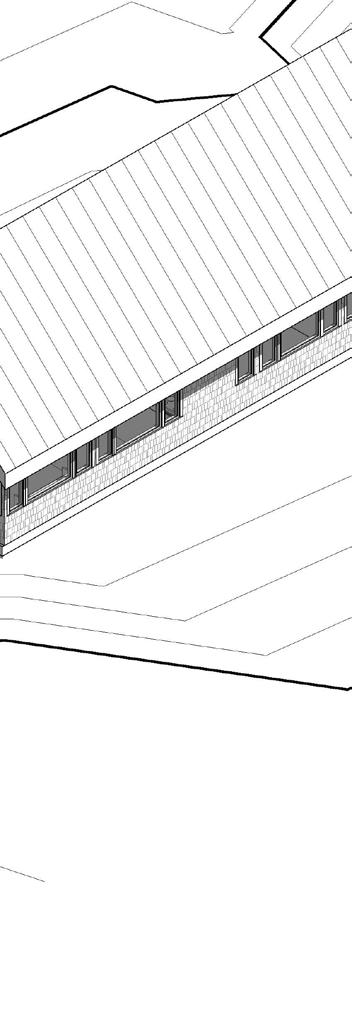

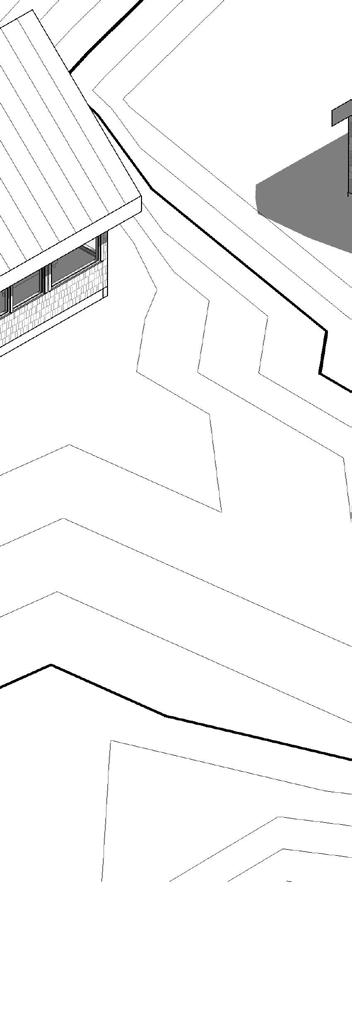

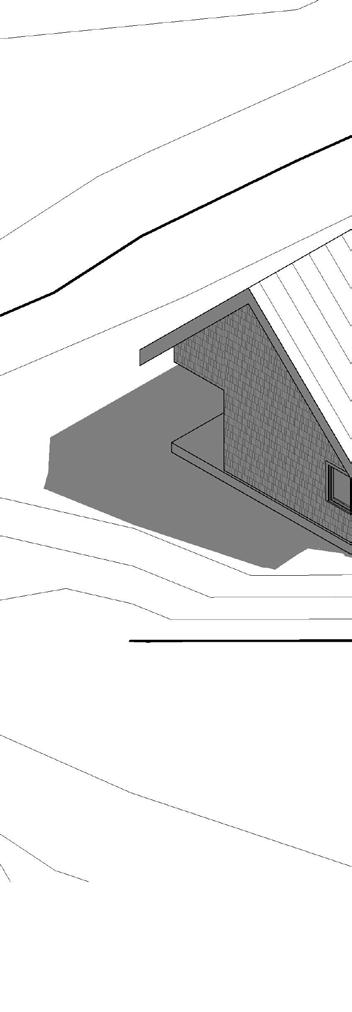

AXONOMETRIC VIEW SCALE: NTS

39

8

A

9

10

11

12

13

14

7' - 0"

8' - 6"

1' - 11"

DESIGN

3801 WEST TEMPLE POMONA, CA, 91768 JB.ARCH.DESIGN.COM 559-356-8736 INSTAGRAM- JB.ARC.ART

55' - 2" 6' - 0"

JB ARCH

7' - 1"

10' - 2"

3' - 7"

10' - 11"

2' - 9"

6' - 5"

6' - 0"

B

CLIENT JAVIER JUAREZBALTAZAR ISLAND VIEW RD LOUISDALE, NOVA SCOTIA CANADA

12' - 11"

16' - 1"

22' - 1"

22' - 1"

C

-

PROJECT NAME

---

BLACK GABLES

D

#

DESCRIPTION

DATE

---

CEMENT FINISH FLOORING

E

PROJECT NUMBER DRAWN BY DATE

3412.01/ EX 1.1 JAVIER JB

SEPTEMBER 21, 2023

SCALE

3/16" = 1'-0"

SHEET NAME

FLOOR PLAN 1

SHEET NUMBER

A-101

First Floor.

1 3/16" = 1'-0"

FLOOR PLAN SCALE: NTS

40

JB ARCH

D

E

---

C

B

T. O. ROOF 22' - 10" Roof 21' - 2"

-

C

B

---

D

DE

3801 WEST TEM POMONA, CA, JB.ARCH.DESIG 559-356-8736 INSTAGRAM- JB

E T. O. ROOF 22' - 10"

Roof 21' - 2"

METAL JACKET ROOF

12' - 6"

WOOD SHINGLE SIDING

CLIENT

24' - 1"

FRAMED WINDOWS

PLATE HEIGHT 10' - 4"

PROJECT NAM

10' - 4"

PLATE HEIGHT 10' - 4"

JAVIER JUAREZB ISLAND VIEW R LOUISDALE, NO CANADA

FOUNDATION -1' - 3" East 3/16" = 1'-0"

1

DESCRIPTION

West 3/16" = 1'-0" PROJECT NUMBER

3412.

DRAWN BY DATE

SEPTEMBER

SCALE

3/

SHEET NAME JB ARCH

EAST WEST

SHEET NUMBER

3801 WE

POMONA A-20 JB.ARCH.

559-356INSTAGR

-

METAL JACKET ROOF SYSTEM

---

8

9

10

11

12

13

14

15

T. O. ROOF 22' - 10" Roof 21' - 2"

12' - 6"

CLIENT

JAVIER JU ISLAND V LOUISDA CANADA 24' - 1"

12

PLATE HEIGHT 10' - 4"

PROJEC

BLACK G

#

1' - 0" 3' - 0"

4' - 0"

3' - 4"

10/12/2023 8:07:44 PM

2

#

REFLECTED CEILING PLAN 0' - 0" FOUNDATION -1' - 3"

1' - 3"

REFLECTED CEILING PLAN - 0"

BLACK GABLES

FRAMED WINDOWS

DESCR

REFLECTED CEILING PLAN FOUNDATION0' - 0" -1' - 3"

WOOD SHINGLES

PROJECT NUMBER DRAWN BY DATE

SEPTE

SCALE SHEET NAME

1

South 3/16" = 1'-0"

ELEVAT

SHEET NUMBER

A-

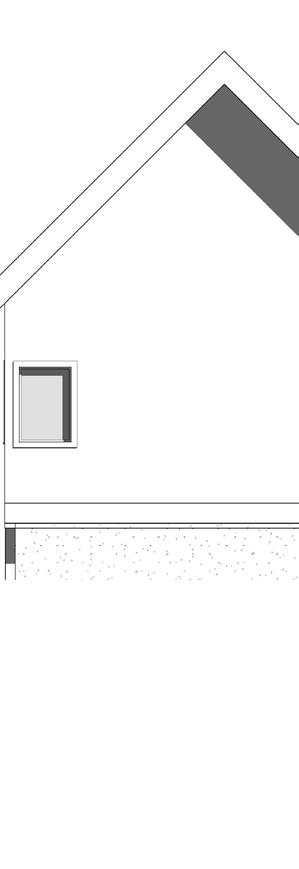

ELEVATIONS

41

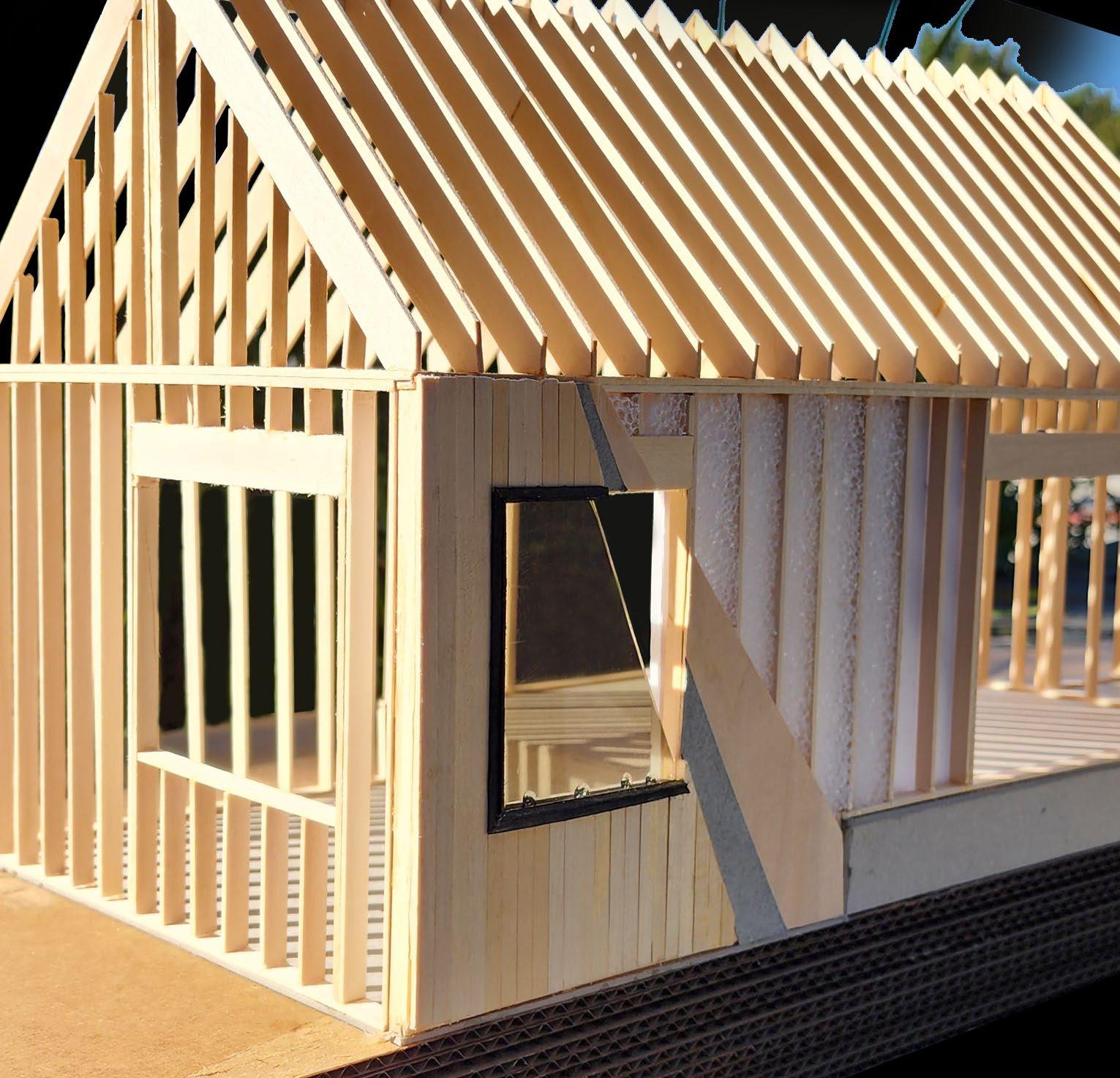

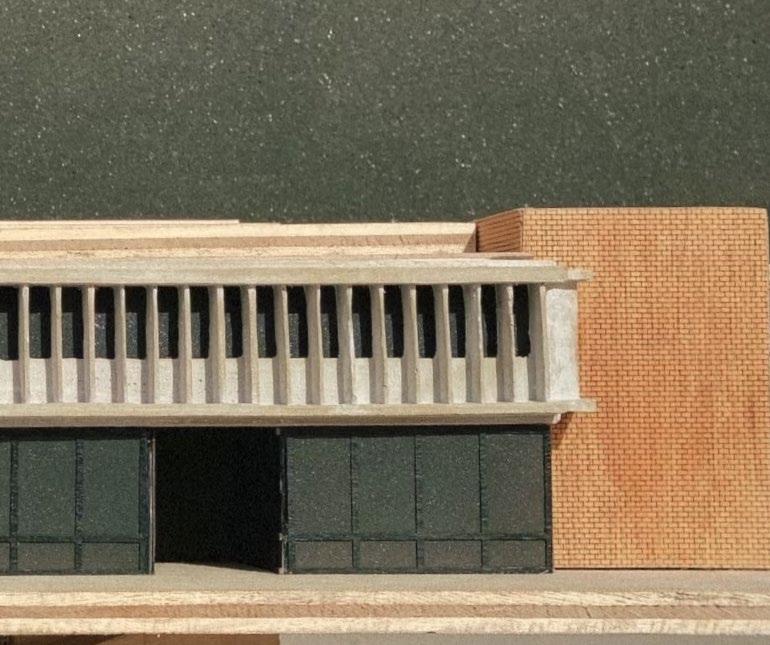

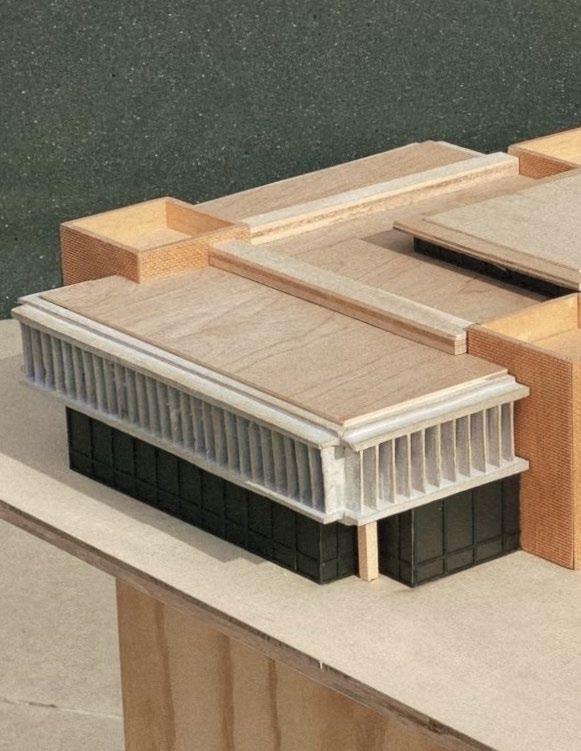

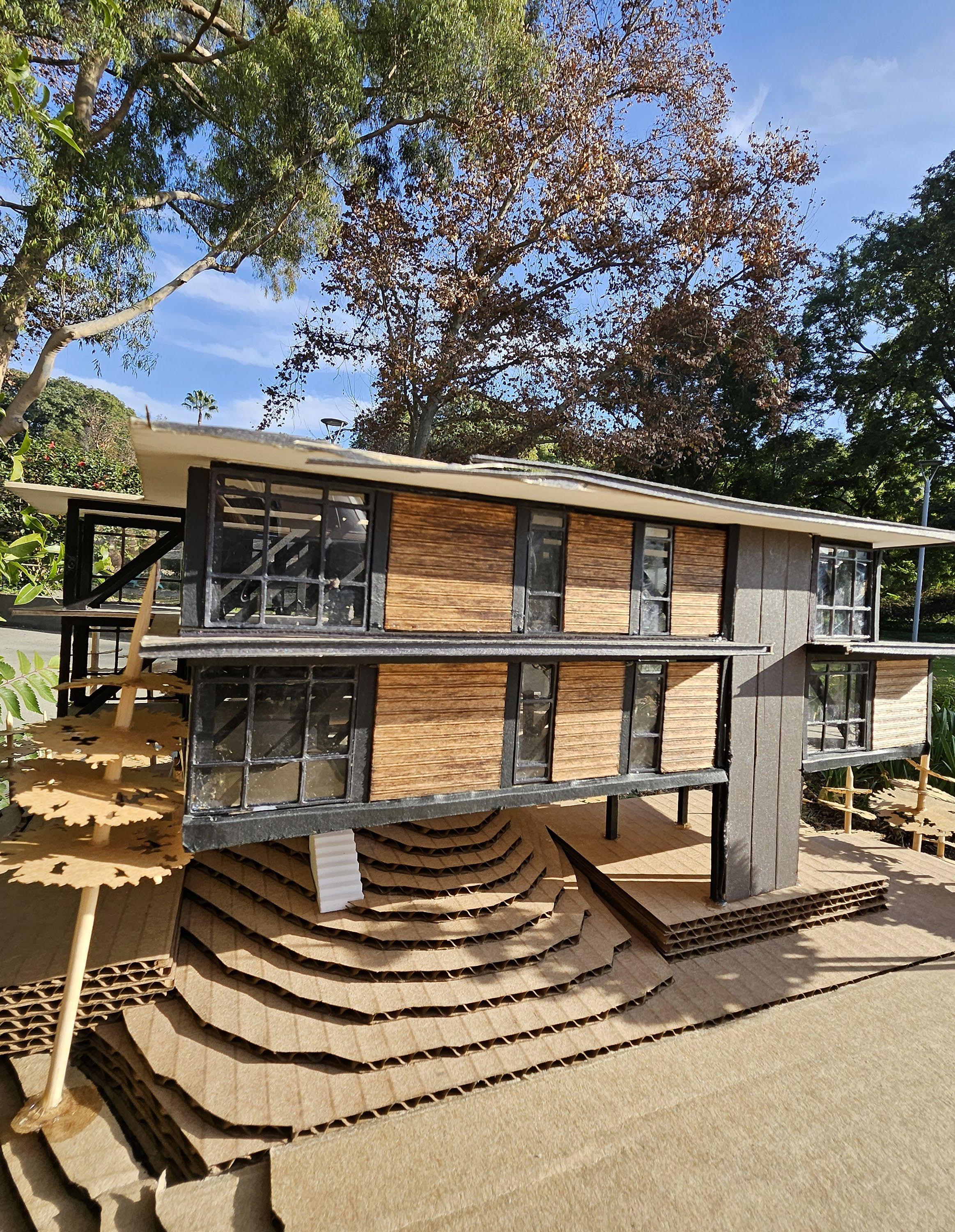

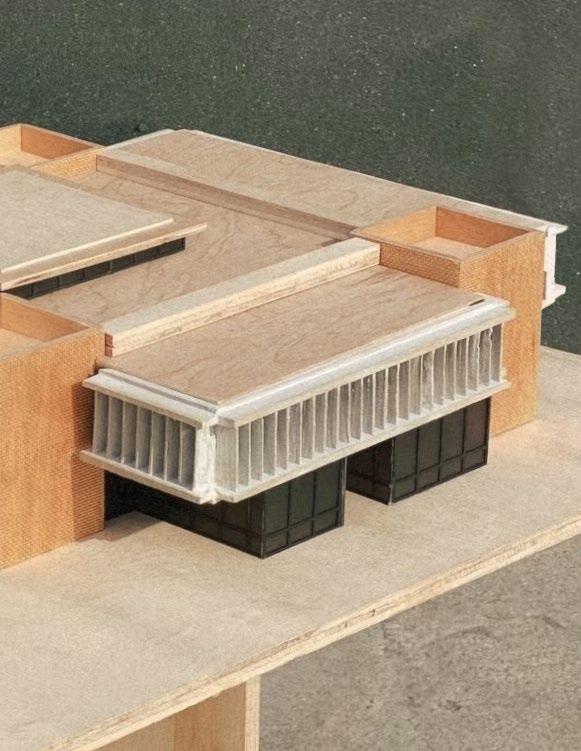

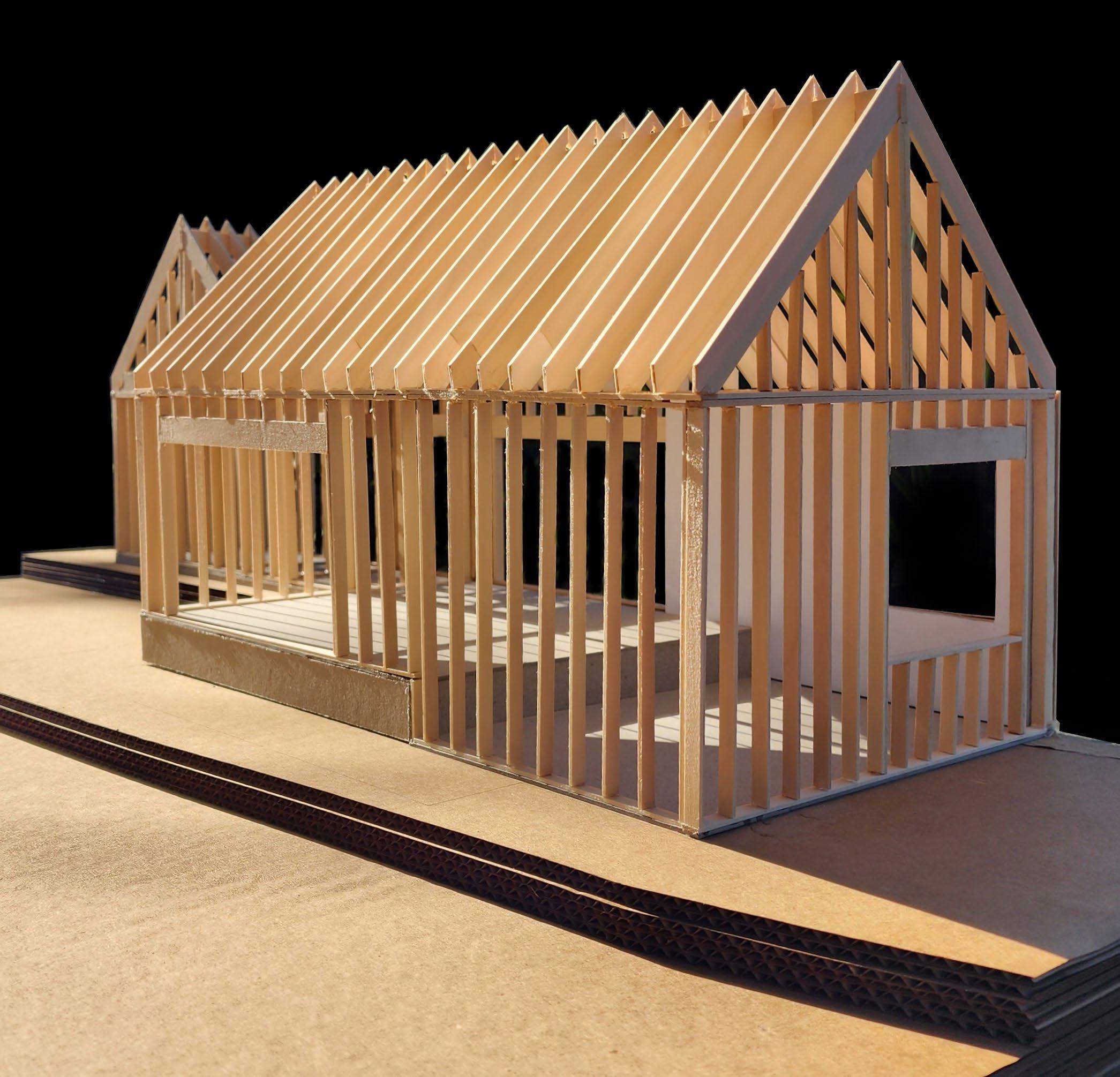

PHYSICAL MODEL BALSA WOOD/ CARDBOARD

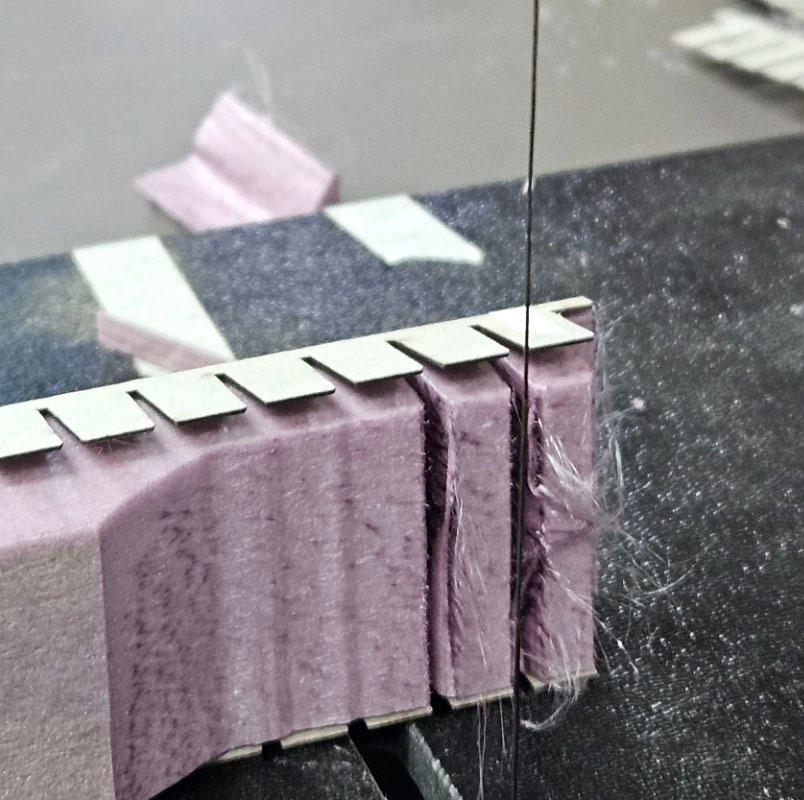

42

PHYSICAL MODEL DETAILS

43

COLLEGE OF ENVIRONMENTAL DESIGN Case Study Volunteer Cal Poly Pomona Shop California State Polytechnic University, Pomona Spring 2024 Instructor: Group Project: Blossom Sumardi

Architect: Carl Maston Location: California State Polytechnic University, Ca Building 7 at Cal Poly Pomona is a multifunctional facility that embodies the university’s commitment to hands-on learning and innovation. As a hub for design and fabrication, the building houses the model shop, which serves as a dynamic space where students bring their creative visions to life using a variety of materials and advanced tools.

The physical model of Building 7 was crafted using concrete, acrylic, and wood, showcasing the diverse capabilities of the model shop. This representation highlights the building’s architectural features while celebrating the versatility and precision achievable through the shop’s resources. The concrete symbolizes the building’s sturdy foundation, the acrylic reflects its modern and transparent design, and the wood emphasizes its connection to craftsmanship and sustainability.

This project underscores the role of Building 7 as a cornerstone for experiential learning at Cal Poly Pomona, where students are empowered to explore, innovate, and build their future.

44

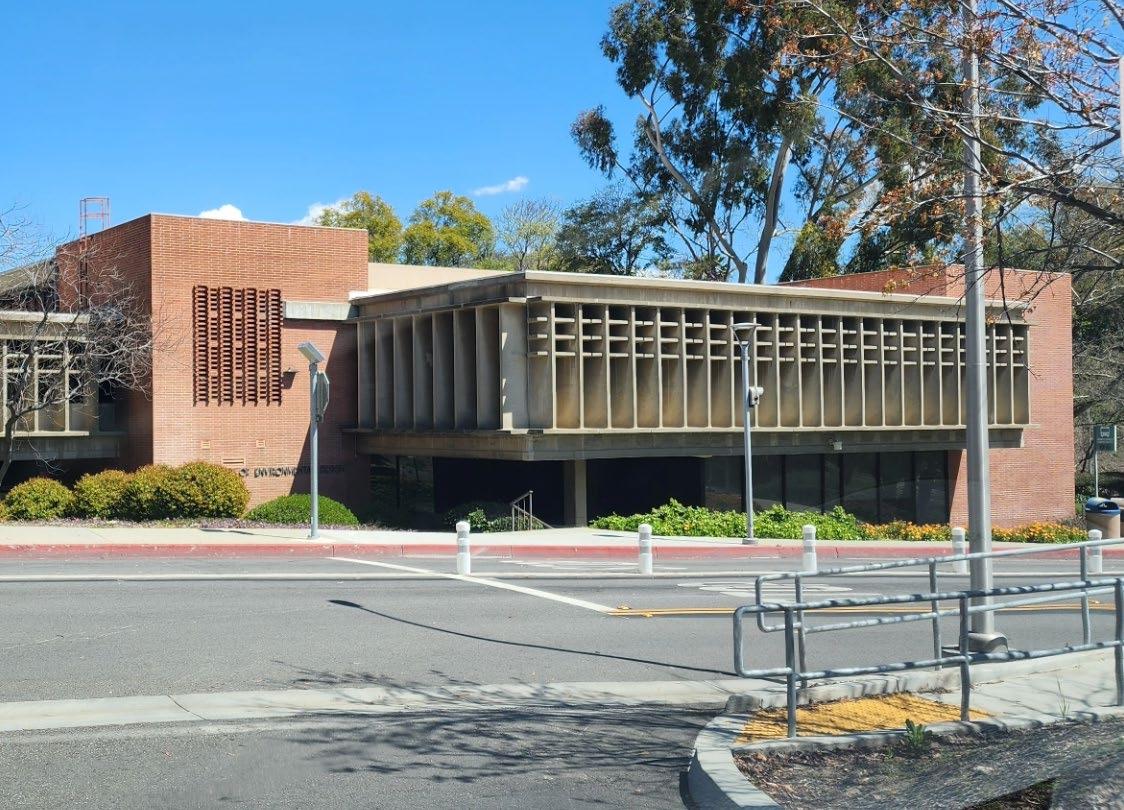

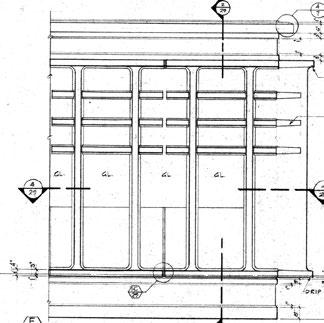

BUILDING 7 COLLEGE OF ENVIRONMENTAL DESIGN

45

PHYSICAL MODEL CONCRETE/ BALSA WOOD/ ACRYLIC

46

47

PHYSICAL MODEL

48

49

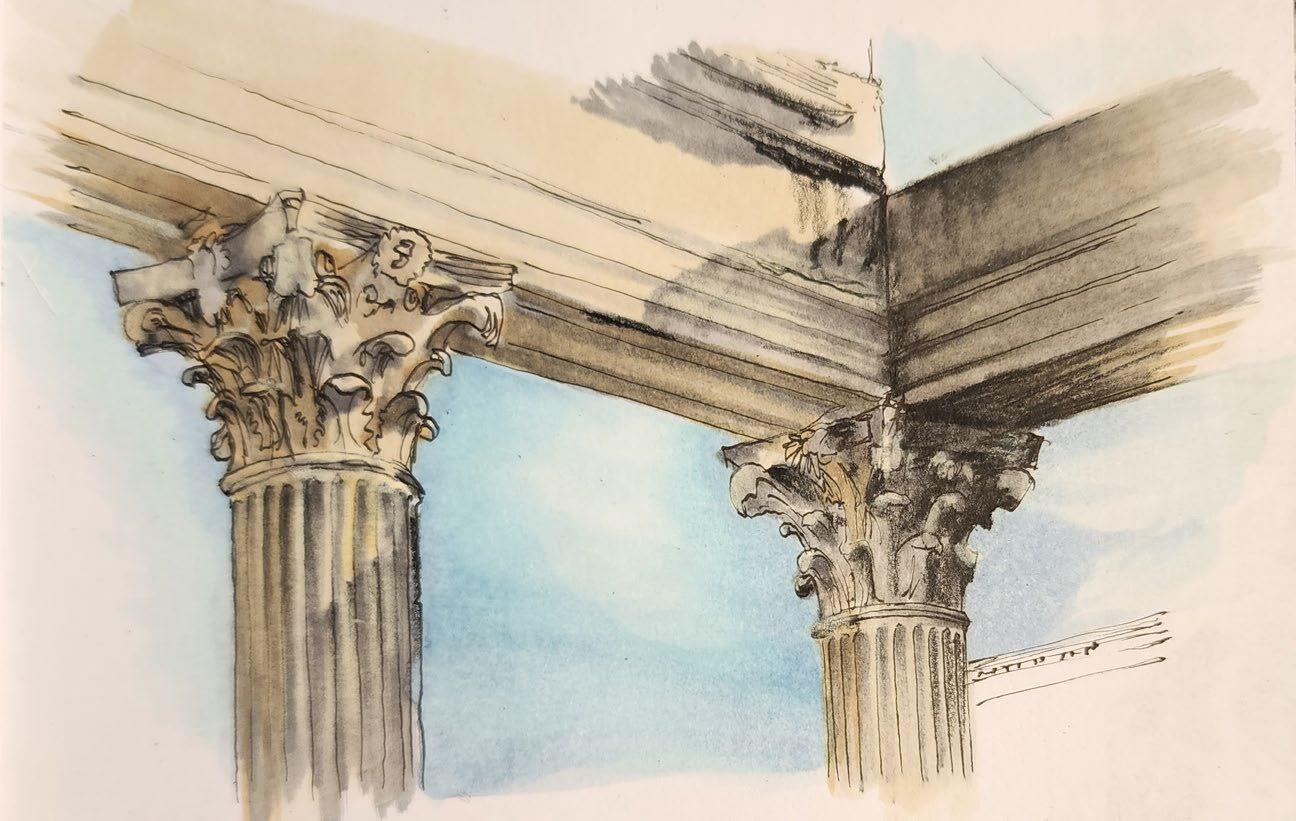

50

51
