Sleep disorders

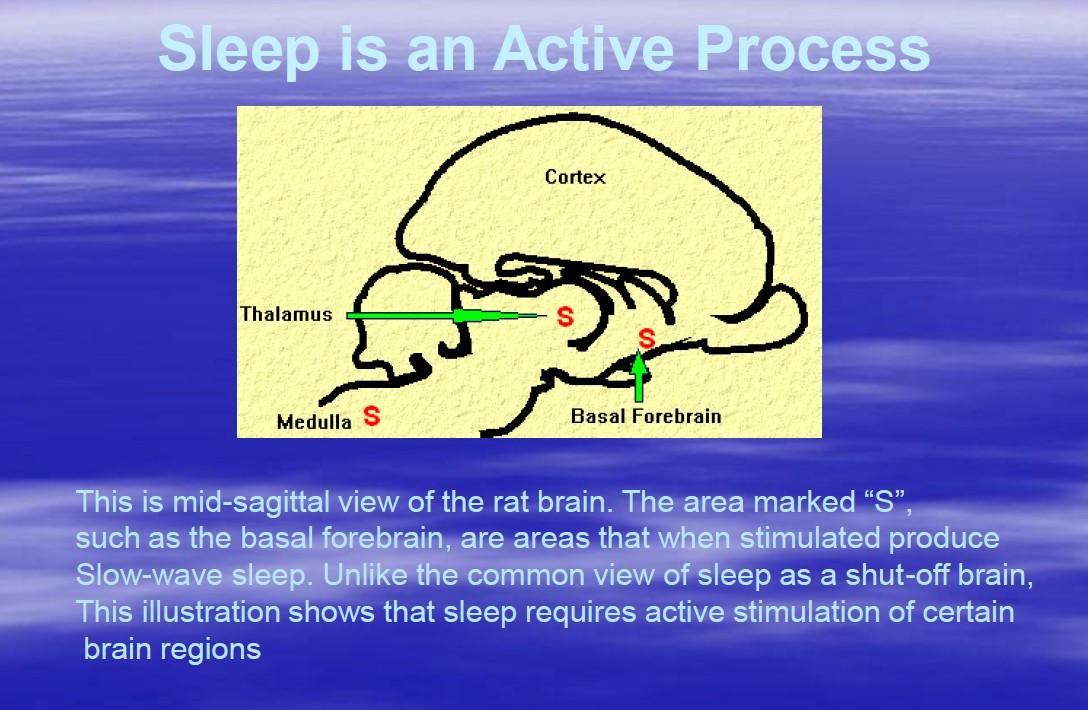

Sleep
2. Sleep related

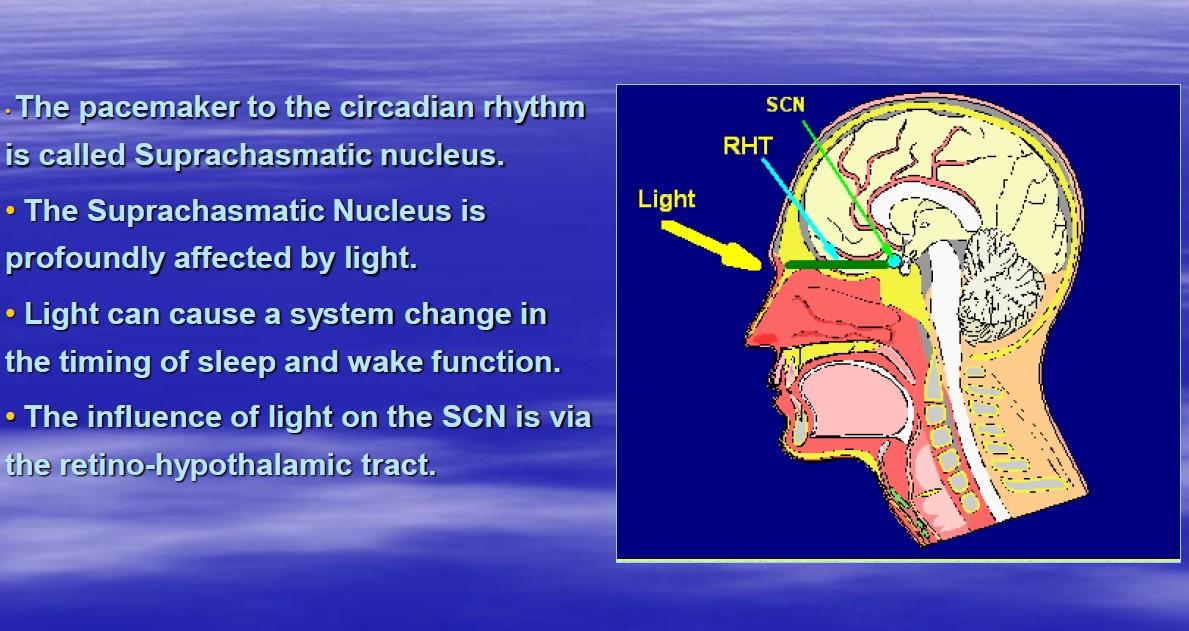

3. Insomnias 4. Parasomnias 5. Hypersomnias 6. Circadium rhythm sleep-wake disorders
1.
related breathing disorders
movement disorders
Sleep related breathing disorder • Central sleep apnea due to drug or substance • Primary sleep apnea of infancy • Obstructive sleep apnea • Sleep-related nonobstructive alveolar hypoventilation, idiopathic • Primary central sleep apnea • Central sleep apnea due to Cheyne Stokes breathing pattern • Central sleep apnea due to medical condition not Cheyne Stokes
Spectrum of sleep disorder breathing • Obesity-hypoventilation syndrome • Severe obstructive sleep apnea • Moderate obstructive sleep apnea • Mild obstructive sleep apnea • Upper airways resistance syndrome • Chronic, heavy snoring • Intermittent snoring • Quiet breathing

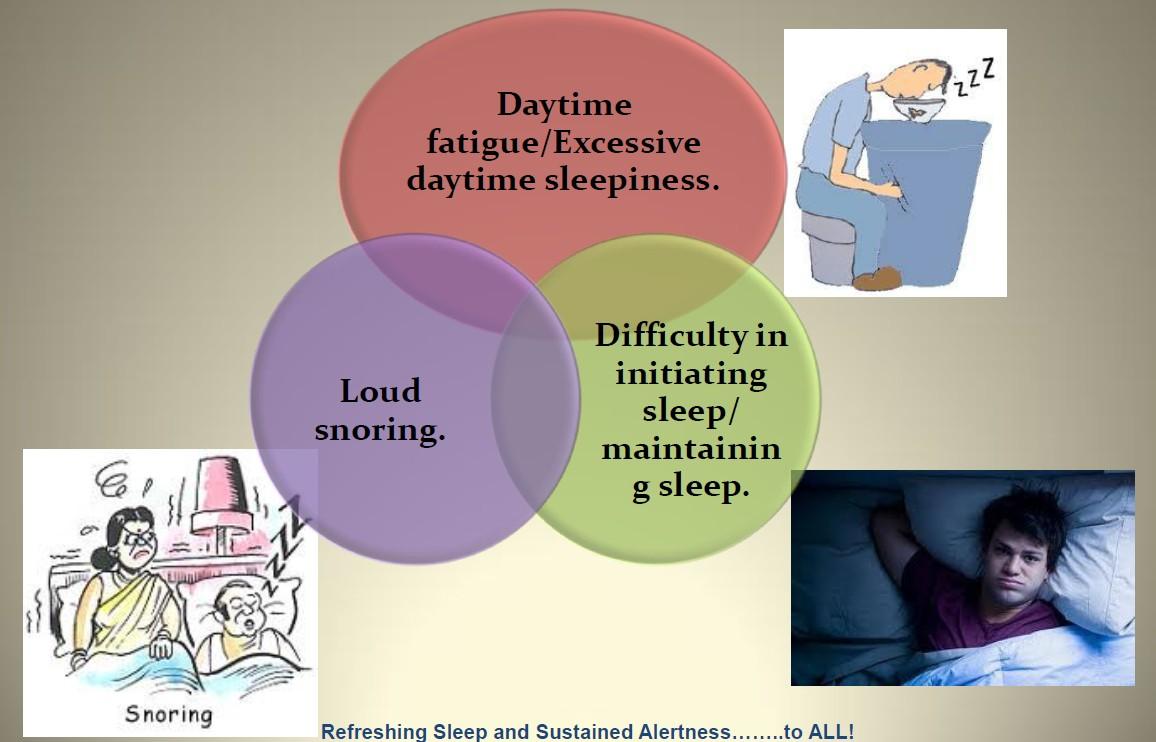

What is OSA?
OSA is a syndrome characterized by frequent episodes of upper airway obstruction during sleep, associated with recurrent arousals, oxygen desaturation, and daytime symptoms
Pathophysiology

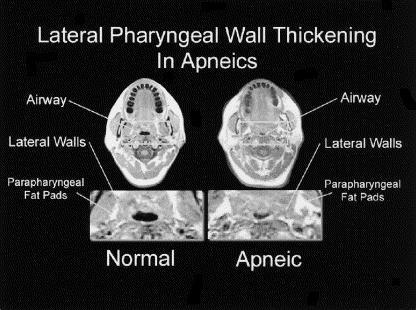

of OSA Interplay between three important factors • Anatomic Structural narrowing of airway • Neurologic Inadequate upper airway dilator muscle function • Mechanical Altered upper airway collapsibility
Veasey, CCNA 2003

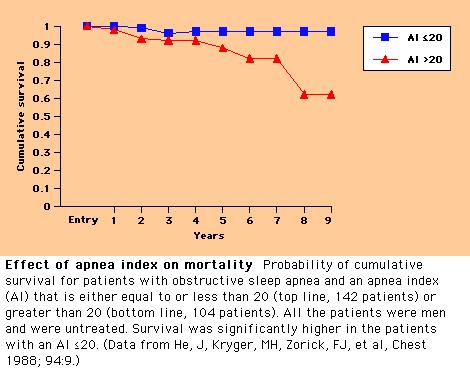

Risk of Untreated OSA
Primary events Secondary events Clinical consequences • Vibration of soft palate • Snoring • Pulmonary arterial vasoconstriction • Pulmonary hypertension • Right heart failure • Systemic arterial vasoconstriction • Systemic hypertension • Vagal bradycardia • Cardiac ischemia and irritiability • Cardiac arrhythmias • Sudden unexplained cardiac death • Cerebral vascular dilatation • Morning headache • Hypothalamic-pituitarytesticular dysfunction • Reduced libido • Impotence • Stimulation of erythropoeisis • Polycythemia • Cerebral impairment and/or damage • Excessive daytime sleepiness • Intellectual deterioration • Behavioural disorders • Sleep fragmentation • Loss of deep sleep • Excessive motor activity • Nocturnal “epilepsy” Sleep onset Upper airway narrowing Obstructive apnea ipO2,hpCO2,ipH Arousal from sleep Airflow resumption Return to sleep
Sleep studies
Overnight
• Count number of respiratory events and divide by hours of sleep to generate AHI
polysomnography is the ‘gold standard’ for diagnosis of OSA

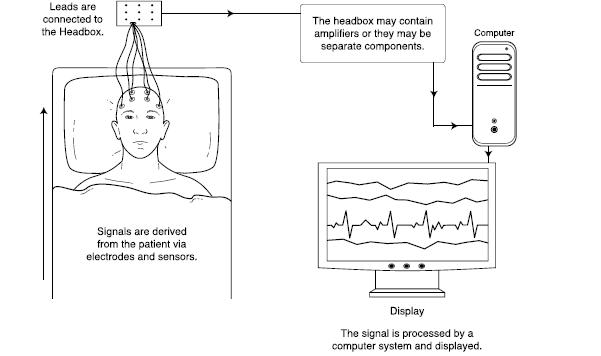

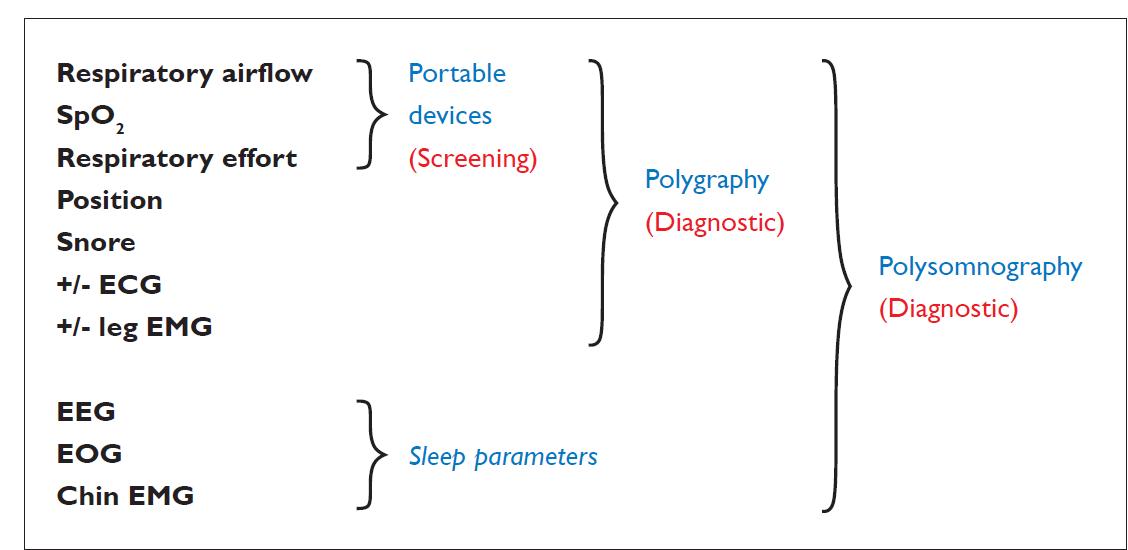

Sleep staging Oronasal Flow Snoring Rate, rhythm Respiratory effort Body position Leg movement SaO2 EEG EOG Flow sensor EMG Microphone ECG Thoracic Abdominal Position EMG Oximeter

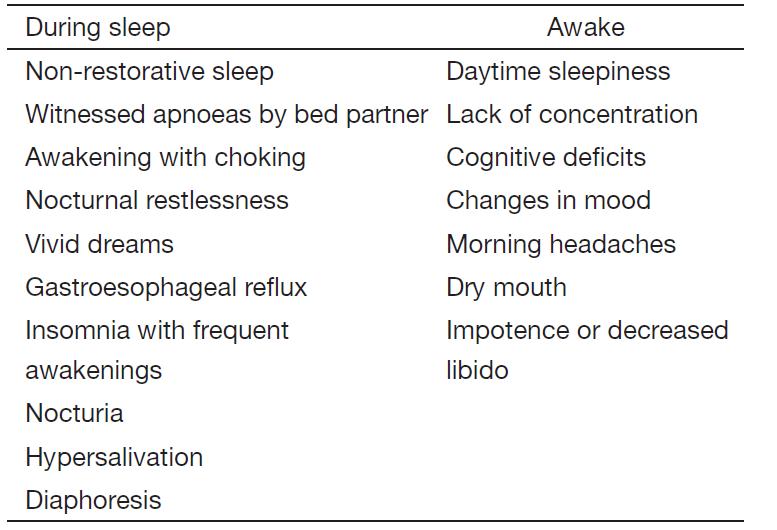

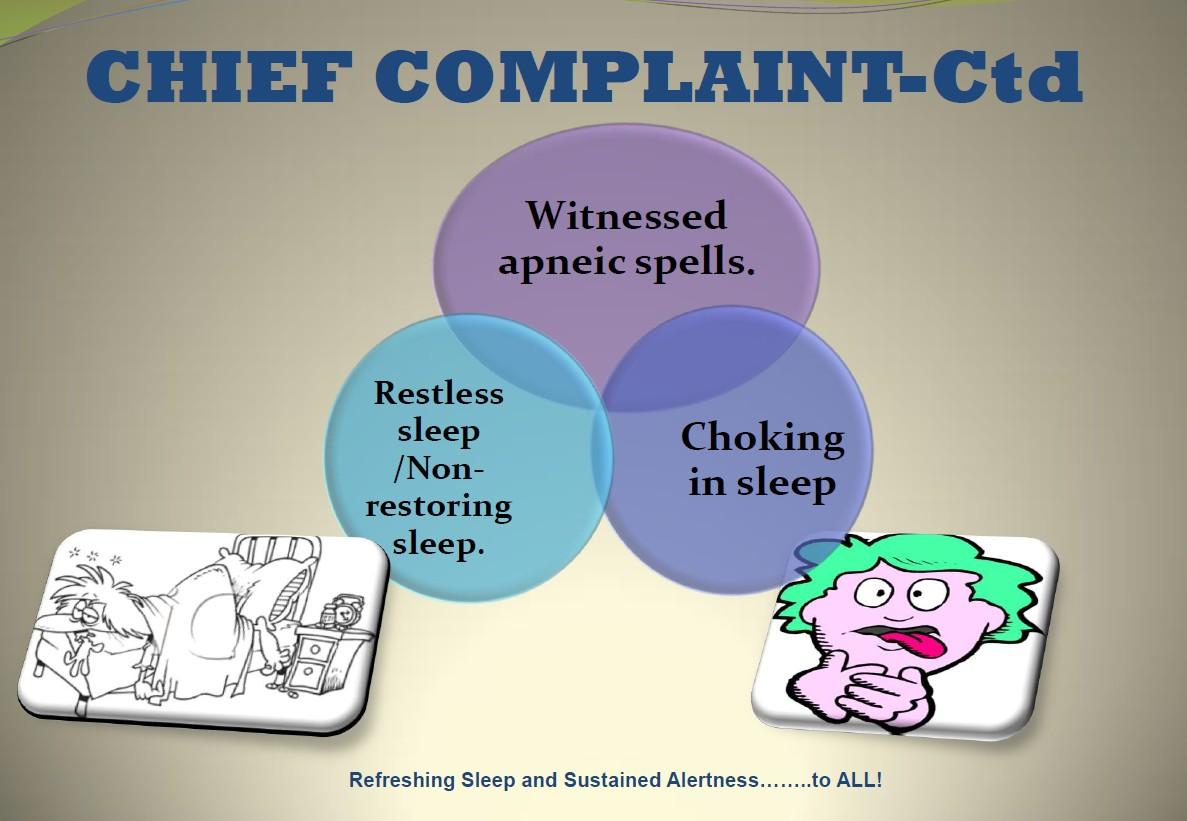

Diagnosis

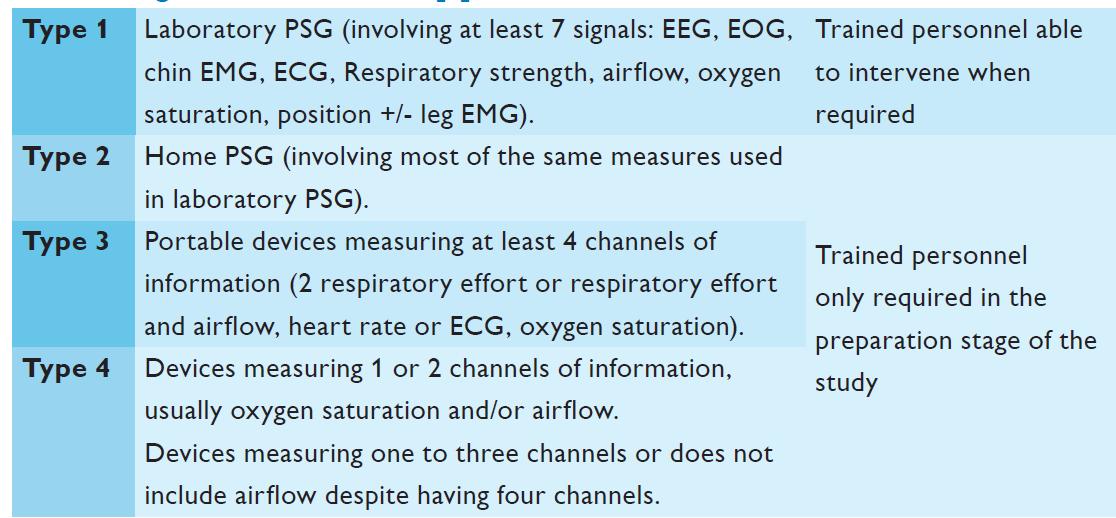

Types of PSG
Potentials generated by the cerebral cortex
EEG

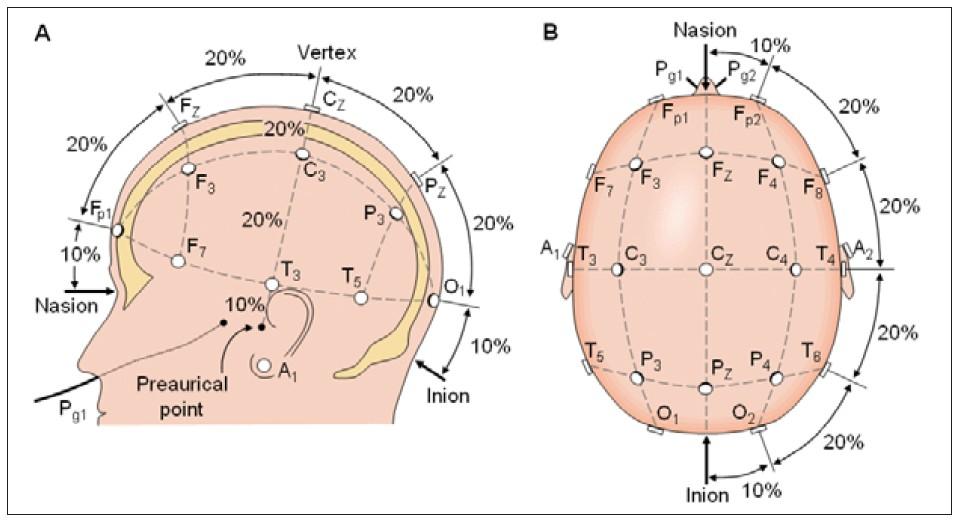

10-20 electrode placement

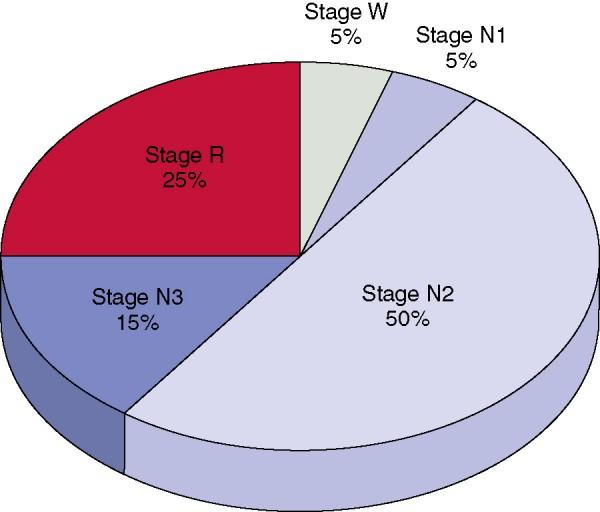

Sleep staging
Rechtschaffen and Kales (R and K) 1967 stage W,N1-4 & R
AASM 2007stage W,N1-3 & R
•
•
Hypnogram in normal adult

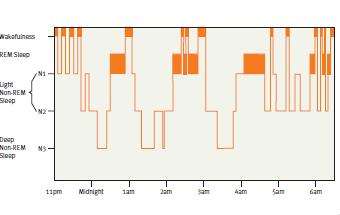

Hypnogram in OSA pt
Stage N3 N2 N1 R W 21:03:53 23:00 00:00 01:00 02:00 03:00 04:00 05:00 06:00

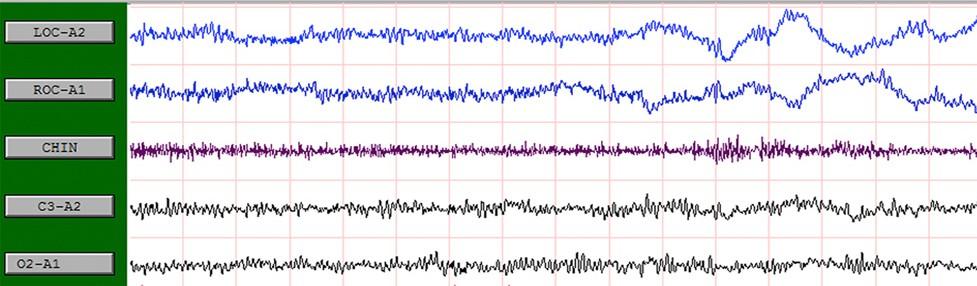

Awake Alpha rhythm-trains of sinusoidal 8-13 activity over occipital region ; attenuating with eye opening

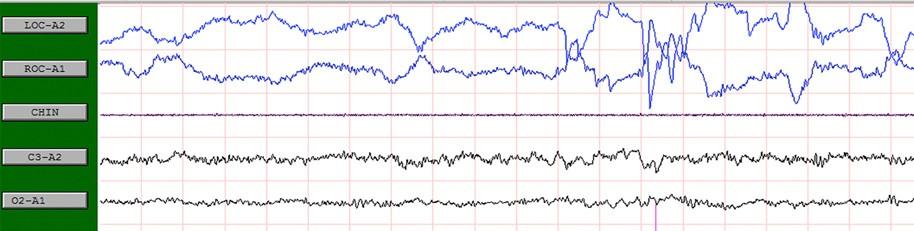

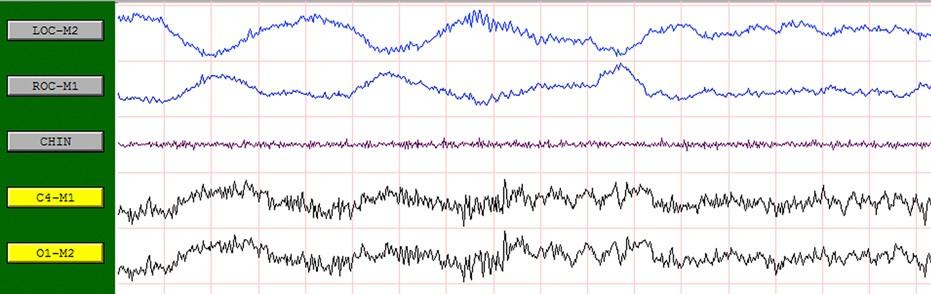

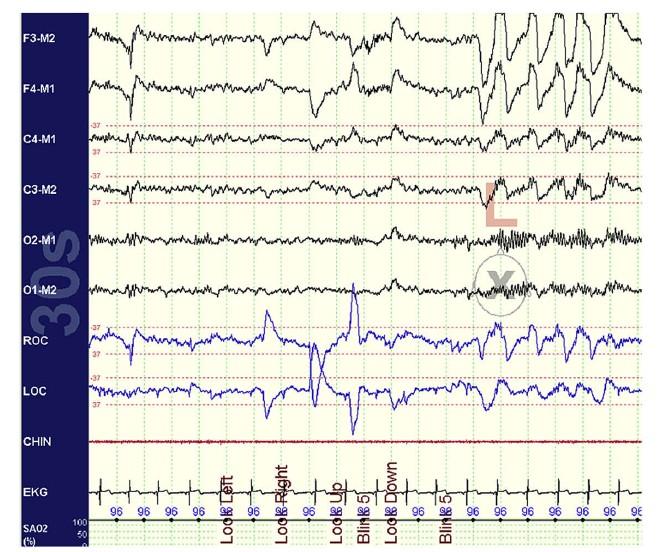

Eye blinks- conjugate vertical eye movementsat a frequency of .5-2hz REM may be seen with initial deflection lasting < 500msec
Submental EMG - relatively high tone
NREM 1
slow eye movements: conjugate, regular , sinusoidal eye movement with initial deflection >500 msec
vertex sharp waves low amplitude 4-7 Hz/ mixed frequency activity

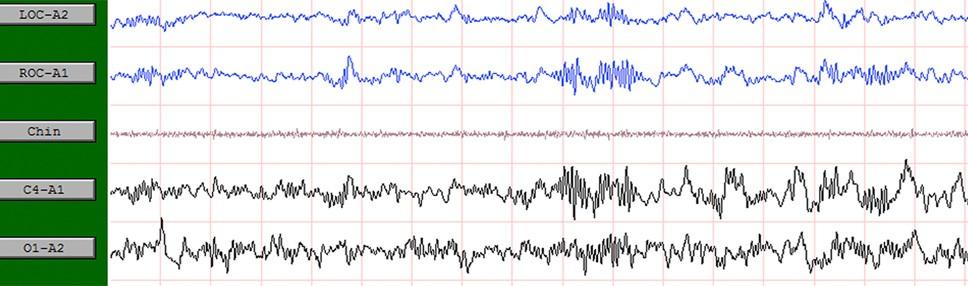

NREM 2
• • • • • • • •

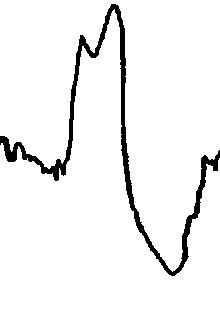

• Sharp, slow waves, with a negative then positive deflection • No amplitude criteria • >.5 second in duration • Central in origin

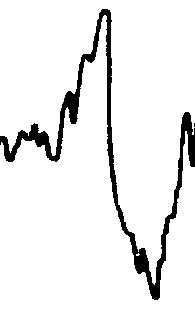

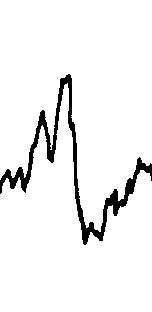

K Complexes K Complexes

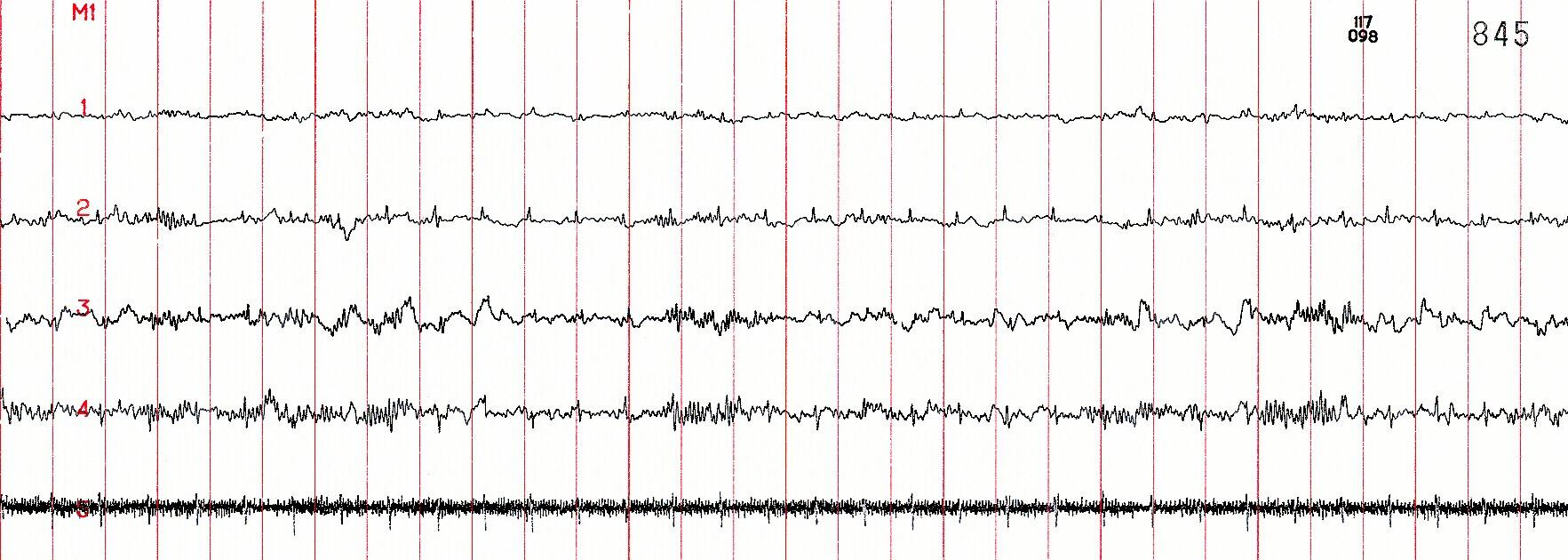

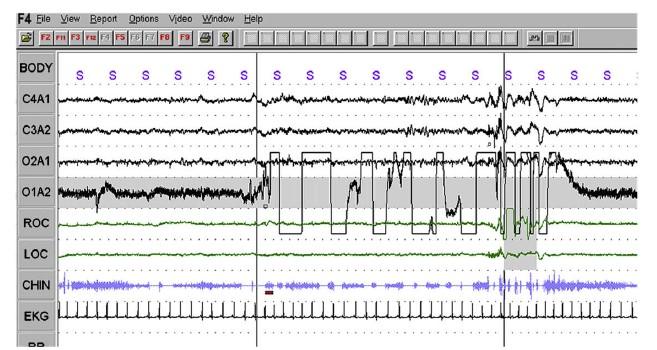

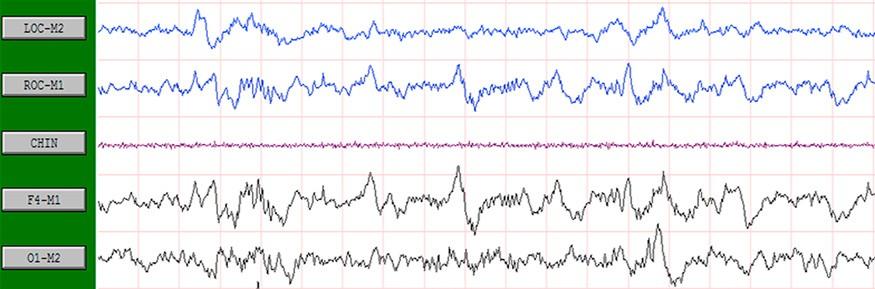

NREM 3 •>20% Delta Activity ( .5-2 Hz with amplitude >75 uV)is seen over frontal region •no eye movements •EOG leads will only pick up the EEG activity •about thirty to forty five minutes after sleep onset •far more difficult to awaken

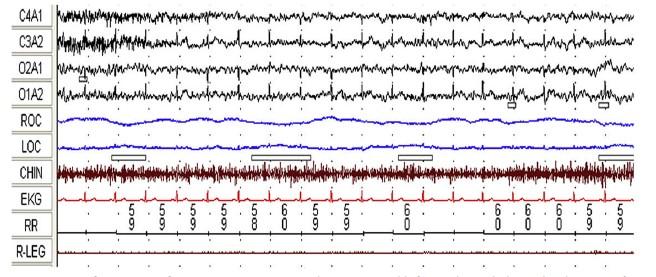

Stage R

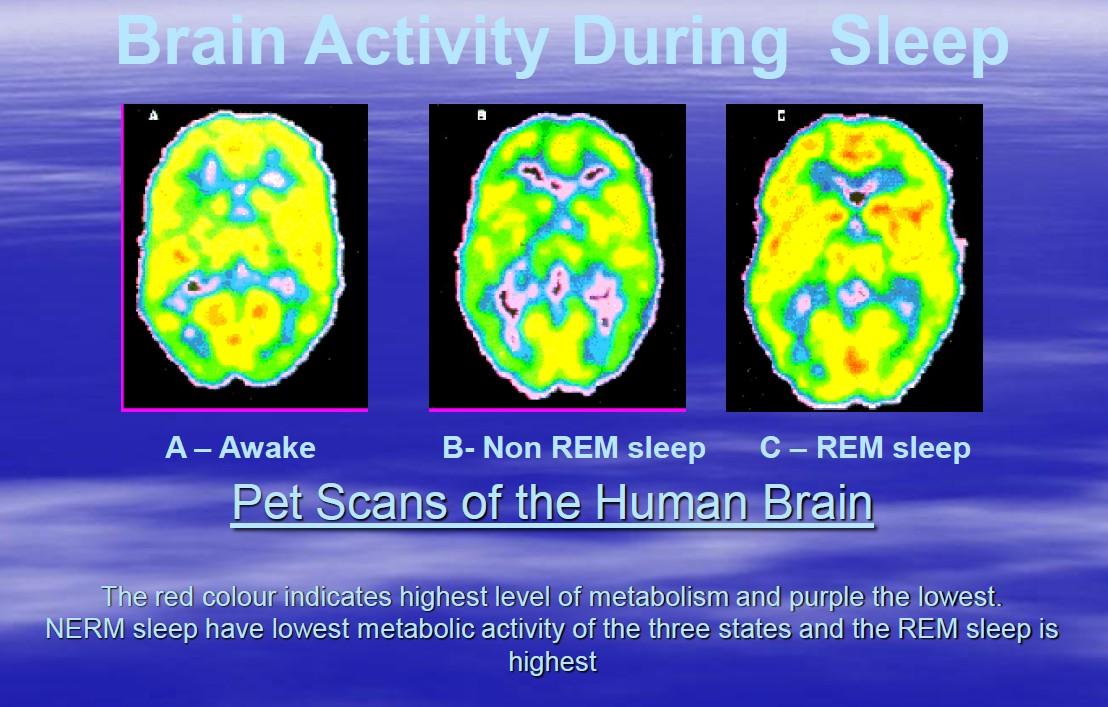

•Brain suddenly becomes much more active.
•REM-conjugate, irregular, sharply peaked eye movements with initial deflection< 500 msec
•Low chin EMG activity
•Sawtooth waves- low amplitide sharply contoured or triangular (26hz); over central head regions
• E1 • M1 • M2 • E2 • CHIN EMG
EOG and EMG Placements
Corneoretinal potential

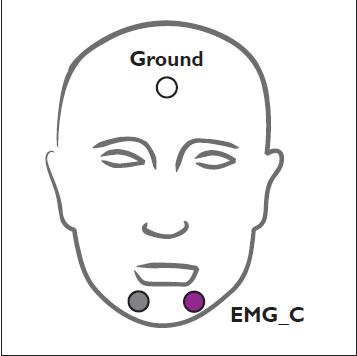

EMG placement

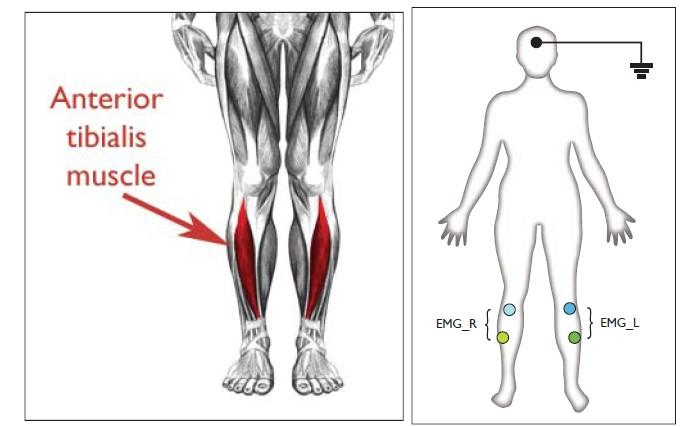

Leg EMG

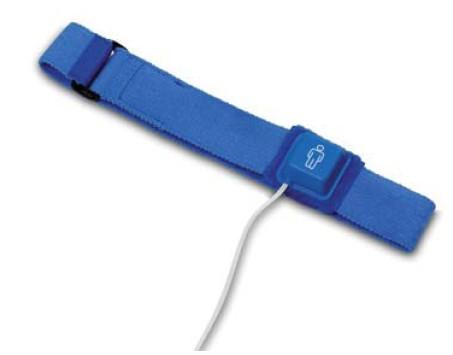

Position sensor

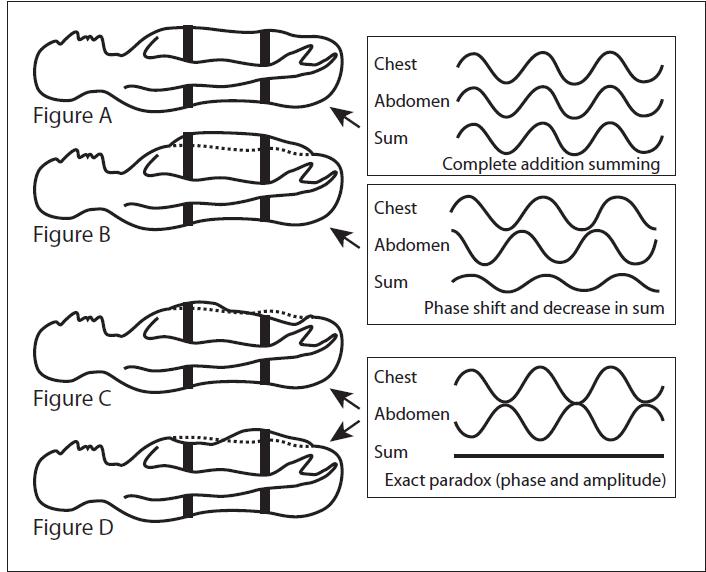

Thoraco-abdominal movements
Flow tracing

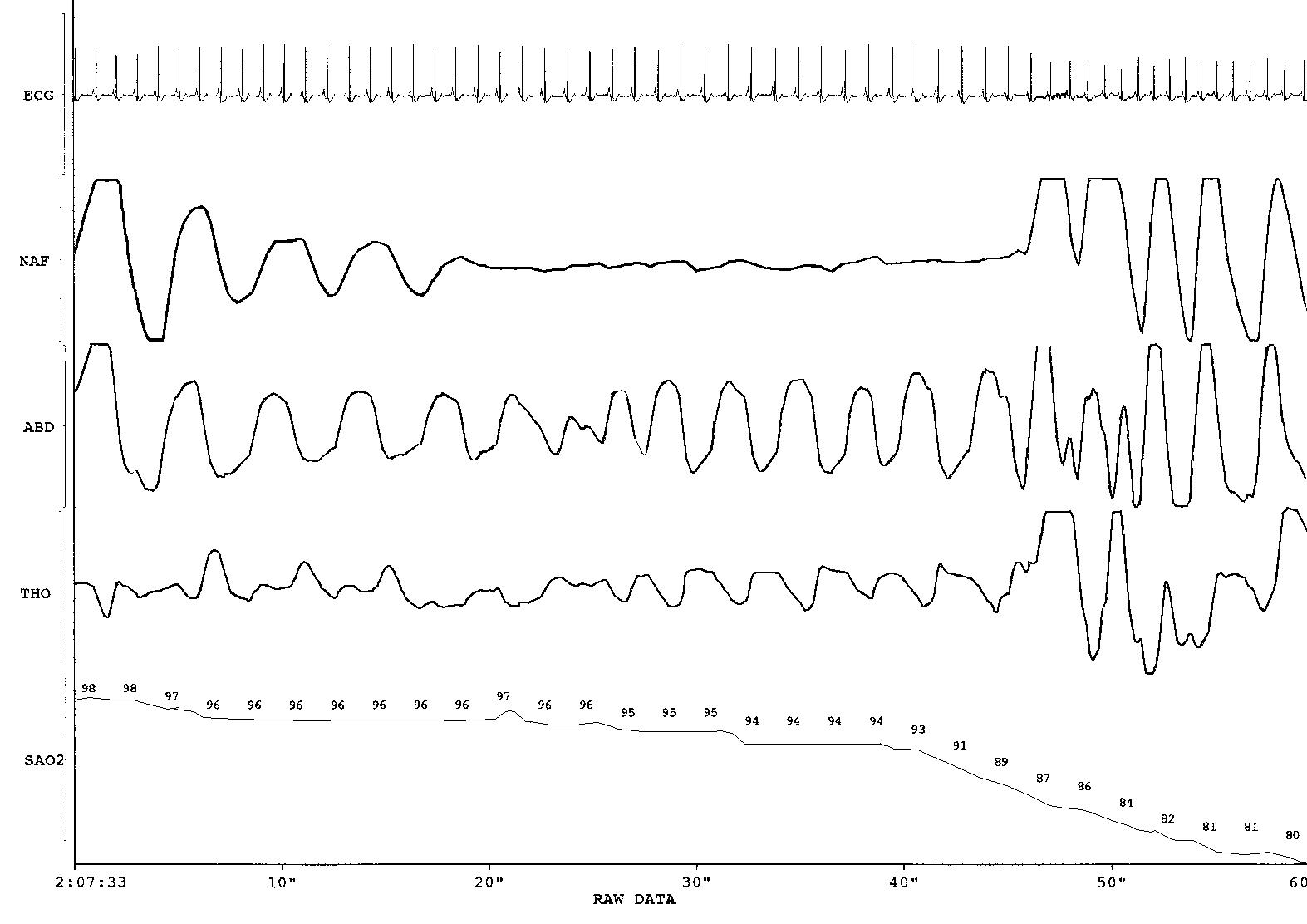

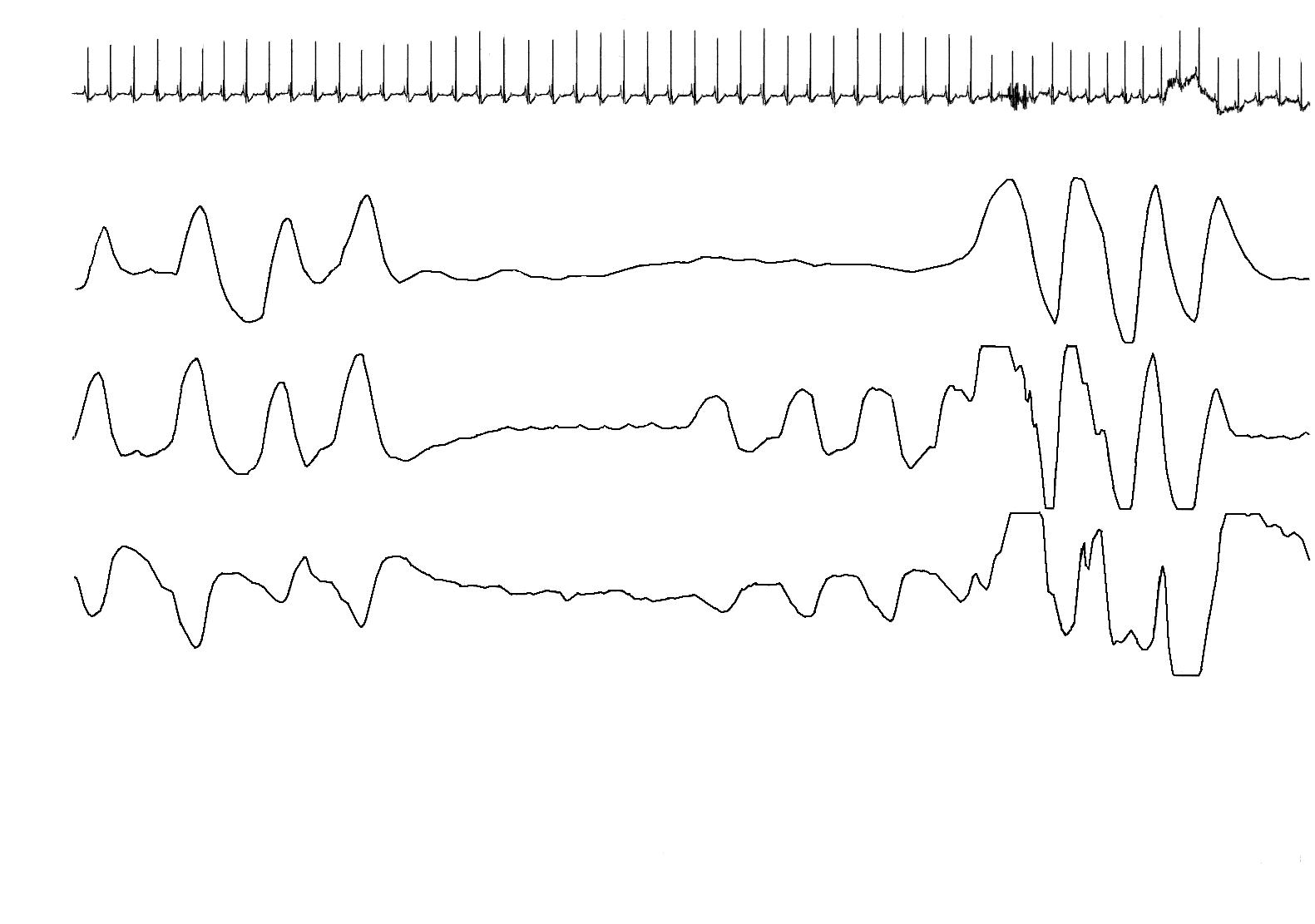

Obstructive Apnea A complete blockage of the airway despite efforts to breath. Notice the effort gradually increasing ending in airway opening. Blood oxygen levels reduce to < 3% of basline value Inhal e Exhal e Airway obstructs Airway opens Paradoxi ng Paradoxing Ends EKG Airflow Thoraci c effort Abd. effort SAO2 Effort gradually increases
Abd. Effor t
SAO
SAO
Central
Apnea Airflo 2
w Airflo w Thor. Effor t 2
Thor. Effor t Abd. Effor t
ECGECG
Airflow
Thoracic Effort
Abdominal Effort SAO2
EKG
Inhale
Exhale
> effort with paradox Paradox ends
Airflow reduction SAO2 desaturation

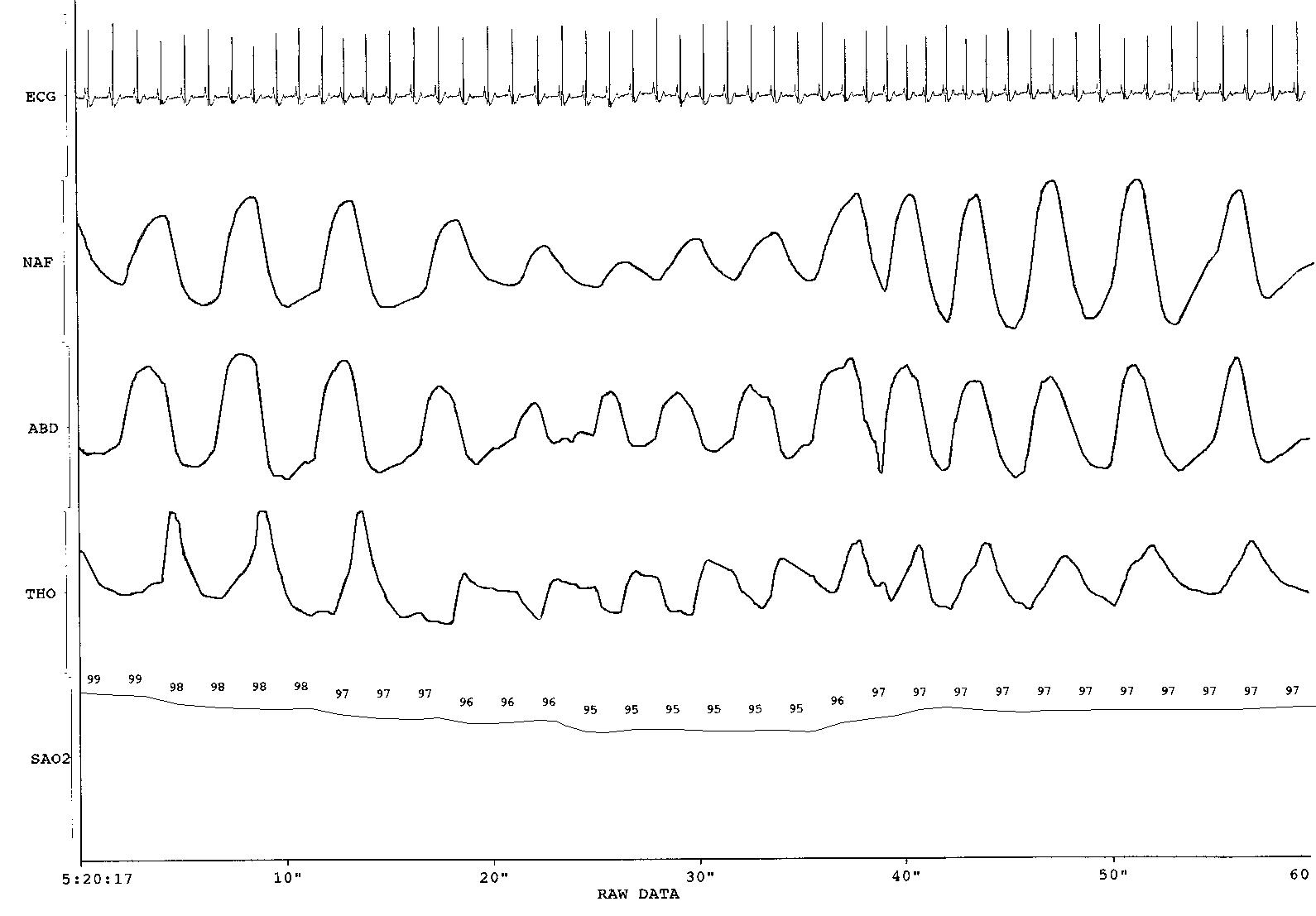

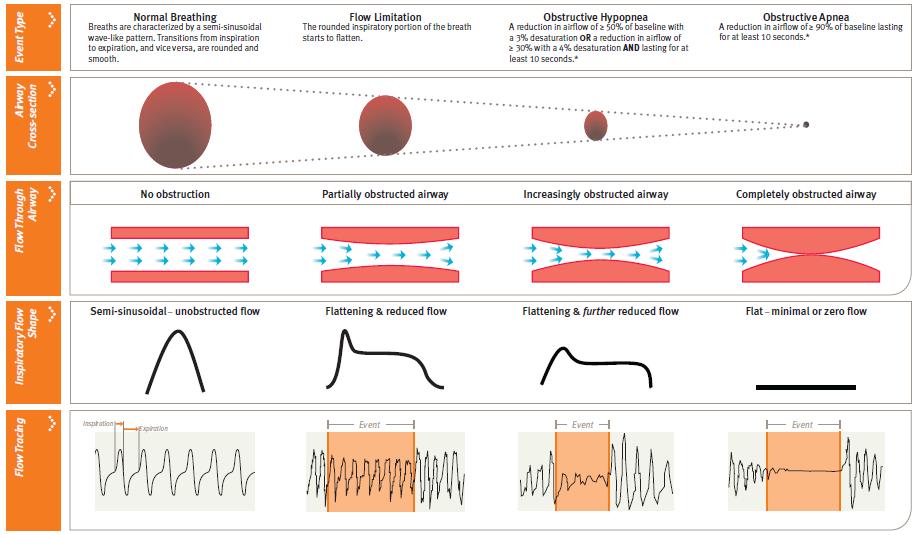

Hypopnea This is an 18 second hypopneic event. The airflow signal is reduced by approximately 50% during this event.
Scoring SDB Severity Mild Moderate Severe AHI 5-15 15-30 >30 RDI 15-20 20-40 >40
OSA Treatment: CPAP
5 Questions to Monitor CPAP • Snoring despite CPAP? • Weight change since CPAP started? • When was equipment last checked? • Still symptomatic? • Problems?
CPAP Compliance -Widely variable rates 50-70% overall –-Probably need >4 hrs. nightly for response –-Compliance determined early on
CPAP Compliance • Man or Machine? – Man • -Monitoring- Compliance feedback • -Education/Reassurance/Reevaluation • -Partner involvement – Machine • -Humidification- Warm Vs. Cold • -Mask- Nasal Pillows, Full Face, Other • -Blower- Bi-level, Auto-titration • Berry RB. Sleep Med (1): 175; 2000
• Auto-CPAP offers no benefit over fixed CPAP in terms of efficacy on the AHI
• It has not been established that unattended auto-CPAP titration is safe without a previous diagnostic PSG
• Some, but not all, studies indicate auto-CPAP results in a lower cumulative CPAP level. However, the importance of the amount of applied pressure on CPAP adherence is not consistently demonstrated
• Auto-CPAP has variable effects on adherence
Practice points: Auto-Adjusting CPAP
OSA Treatment: Surgery • Laser-assisted uvulopalatoplasty (LAUP) – AASM: not advised for OSA • Uvulopalatopharyngoplasty (UPPP) – 40% patients achieve AHI < 5 • Somnoplasty or Radiofrequency volumetric tissue reduction (RFVTR) – Role has yet to be fully defined • Maxillofacial surgery – Infrequently performed, but can be very effective

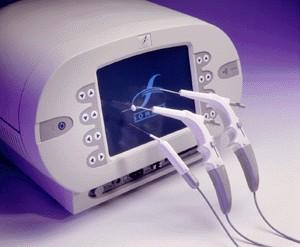

Radiofrequency Ablation
-Programmable levels of radiofrequency energy delivered by a proprietary disposable device into upper airway structures causing tissue necrosis and fibrosis -Less painful; ambulatory procedure -Unlikely to be singularly effective for most OSA -May be effective in combination procedures -Minimal peer-reviewed data
Oral Appliances

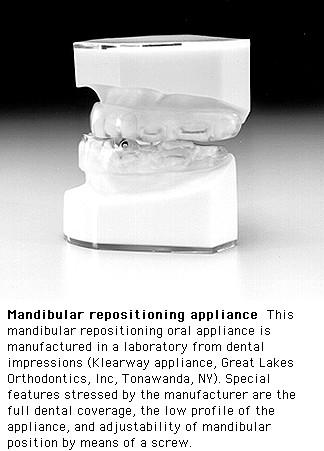

Tongue advancing device

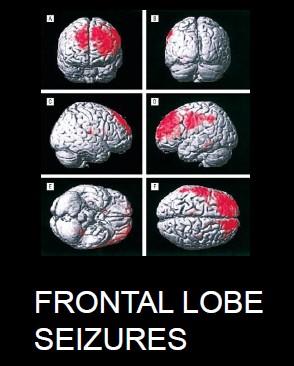

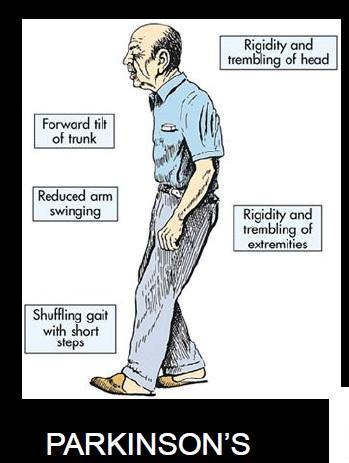

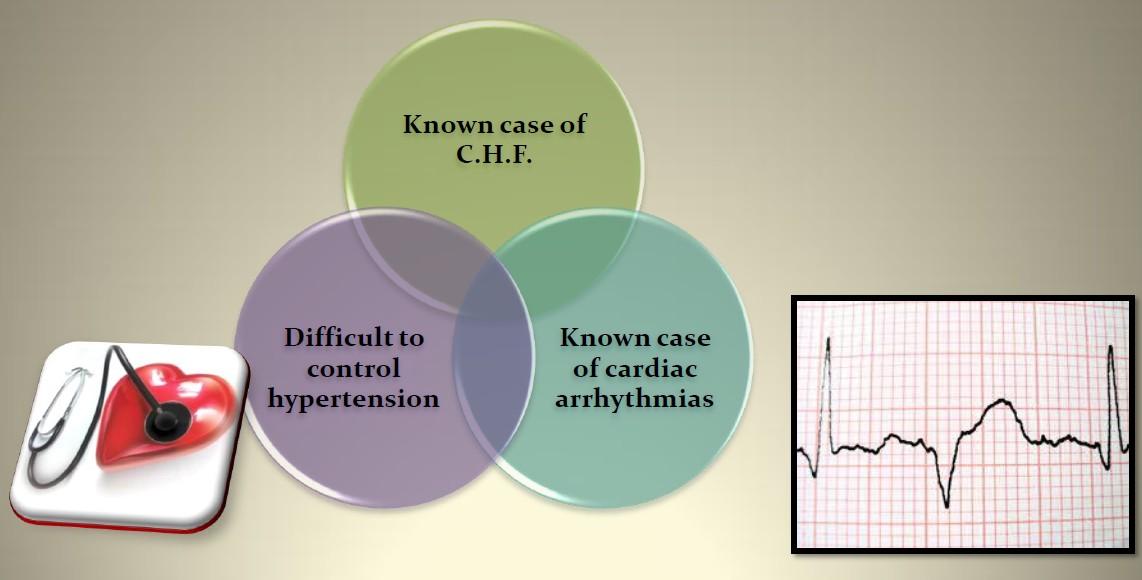

Sleep related disorders in other specialities

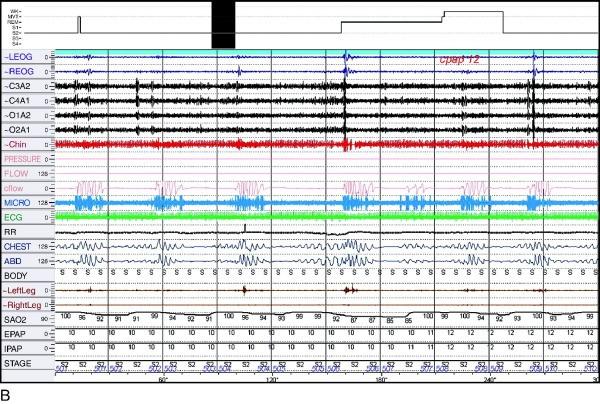

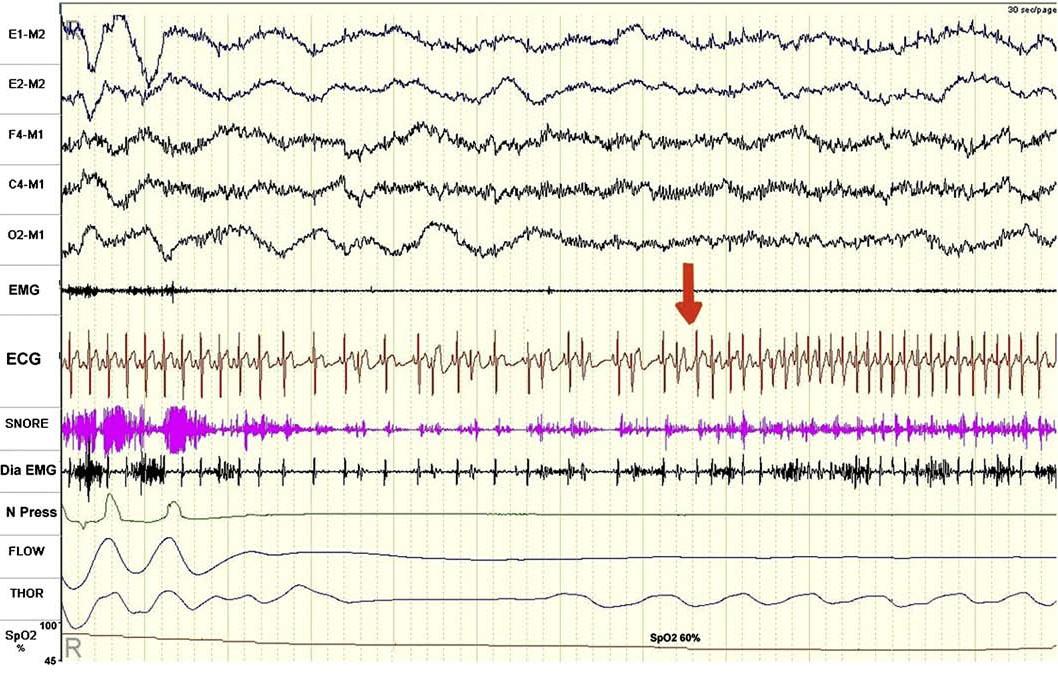

VPC, tachycardia in OSA pt
After CPAP

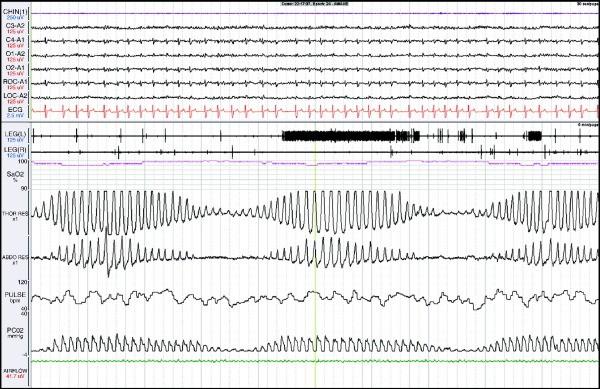

CSR • If there is at least 3 consecutive cycles of cyclical crescendo and decrescendo change in breathing amplitude • + atleast one of the below : 1. 5 or more central apnea / hypopnea per hr of sleep. 2. The cyclic cresendo and decresendo change in breathing amplitude has a duration of atleast 10 consecutive mins. CSR has variable cycle length that is most commonly in the range of 60 seconds.

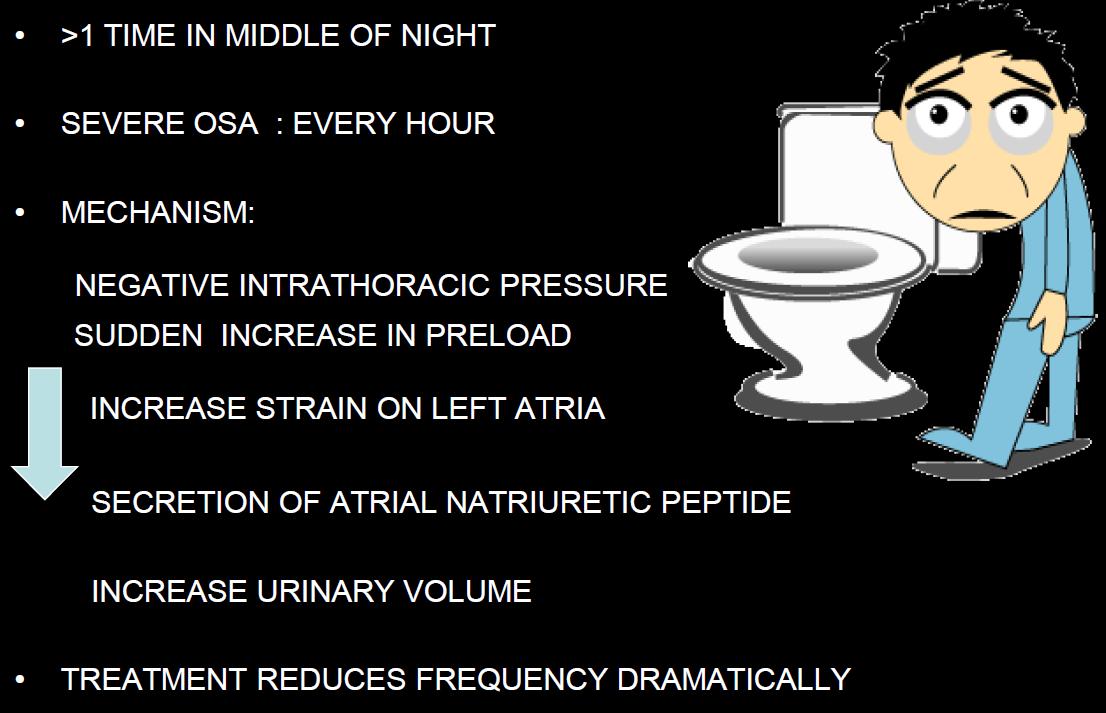

Nocturia

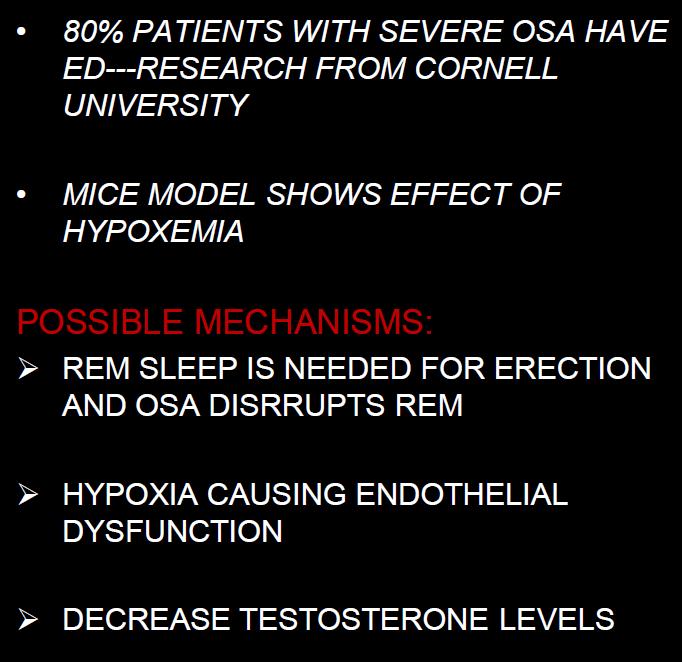

Erectile dysfunction
ADHD
Depression
Bipolar disorders
Alcoholism
PTSD
• Psychiatry –
–
–
–
–
•
–
•
–
Gastro
GERD
Dental
Bruxism
1. Artifacts 2. Misdiagnosis 3. Superadded apnoea 4. Inadequate relief
Pitfalls

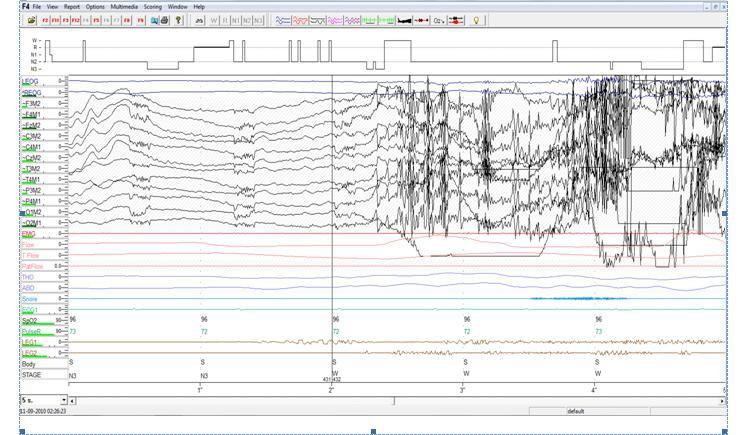

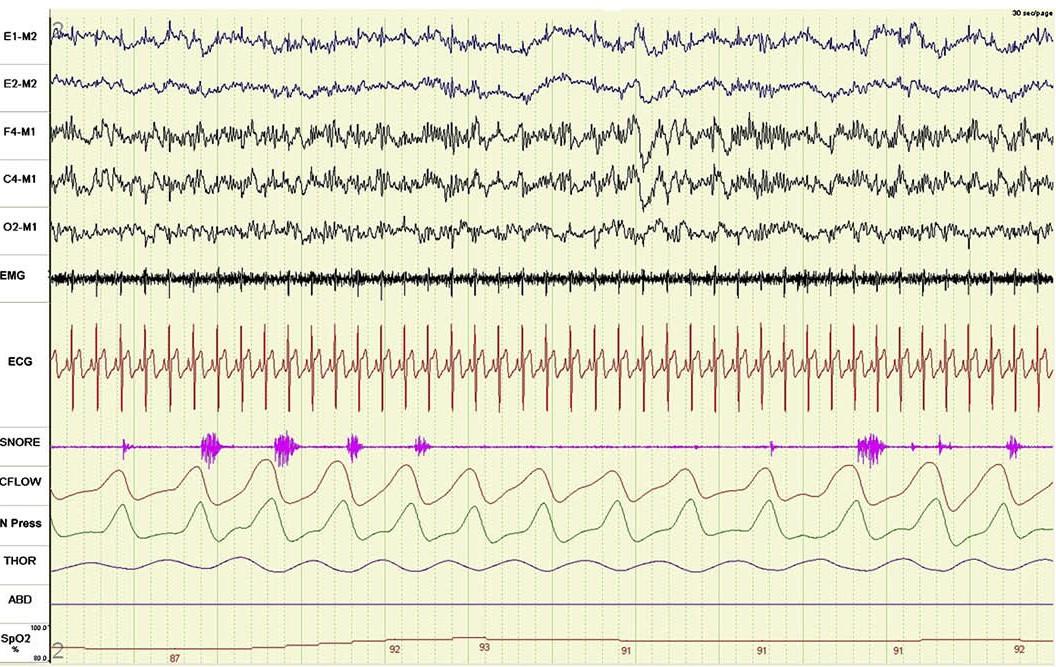

POPPING ARTIFACT
MOISTURE ARTIFACT

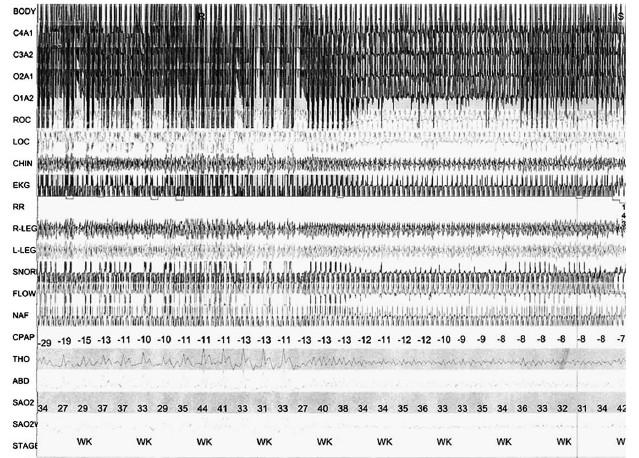

Equipment malfunction

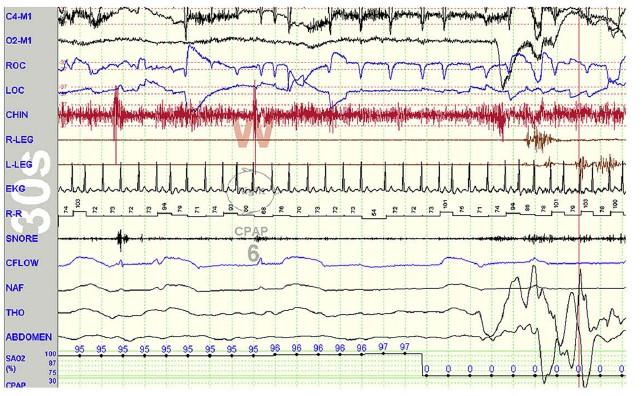

Oximetry probe malfunction
ECG artifact
Eye movement artifact

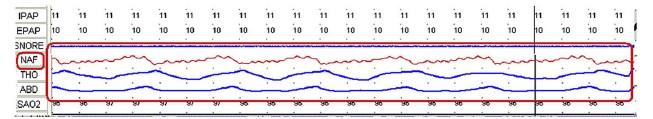

Complex sleep apnea
Kapur et al.
Clinical

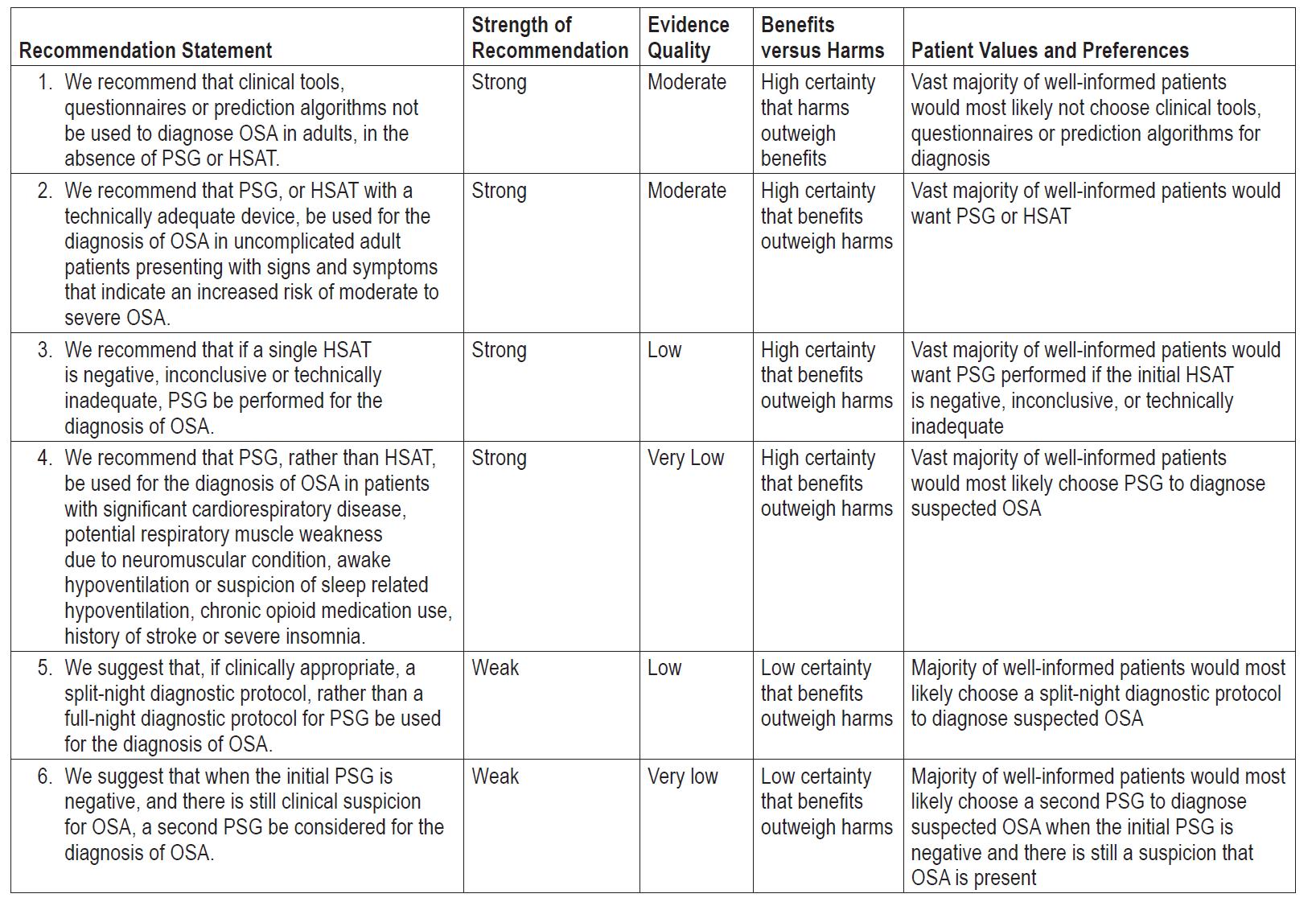

practice guideline for diagnostic testing for adult obstructive sleep apnea: an American Academy of Sleep Medicine clinical practice guideline. J Clin Sleep Med.
2017
Take home message 1. Have a high index of suspicion 2. In hospital/ clinic study (both diagnostic & titration) is recommended 3. Use home sleep testing only if parameters are met 4. Be aware of sleep related non-respiratory disorders 5. Be ready to tackle problems!
