- Older Women's Housing in the Inner West
Bachelors of Architecture Studio 5B Jiawei HUANG 500034125 Tutor：Eddie Ma
CONTENT
The design revolves around creating a stable and secure complex of units for elderly women in need in the INNER WEST. The complex integrates production, residential, commercial and other facilities, focuses on meeting the living needs of the elderly, focuses on sustainable ecology, community awareness and other aspects, and is designed around the community's sustainable vegetable garden. The design is people-oriented and meets the needs of the community and individuals. The design integrates with nature and transforms the existing landscape and its characteristic river into a recreational space, providing a harmonious interaction space for residents
2 3
3 4 6 8 36
CONCEPT SITE ANALYSIS BACKGROUND RESEARCH DESIGN MODEL DISPLAY
10
THE SITE:
The site located in 74-76 Salisbury Rd, has good greenery, easy access to public transport, but faces the heavily trafficked Salisbury Rd, and is close to Johnstons creek, which has noise and flooding problems.
Coles Leichhardt, 25min walk, 1.9km
Foodworld Petersham, 21min walk, 1.6km
Ezymart, 5min walk, 400m
Laobaozen Mixed Business, 5min walk, 400m
6-TEN Suoermarket, Groceries Provisions, 10min walk, 750m
Mayfair Fresh, 20min walk, a1.5km
STANMORE STATION
IGA Stanmore Plaza, 12min walk, 900m
SITE
FoodWorks Newtown, 17min walk, 1.2km
FoodWorks Enmore NSW, IGA Enmore,15min walk, 1km

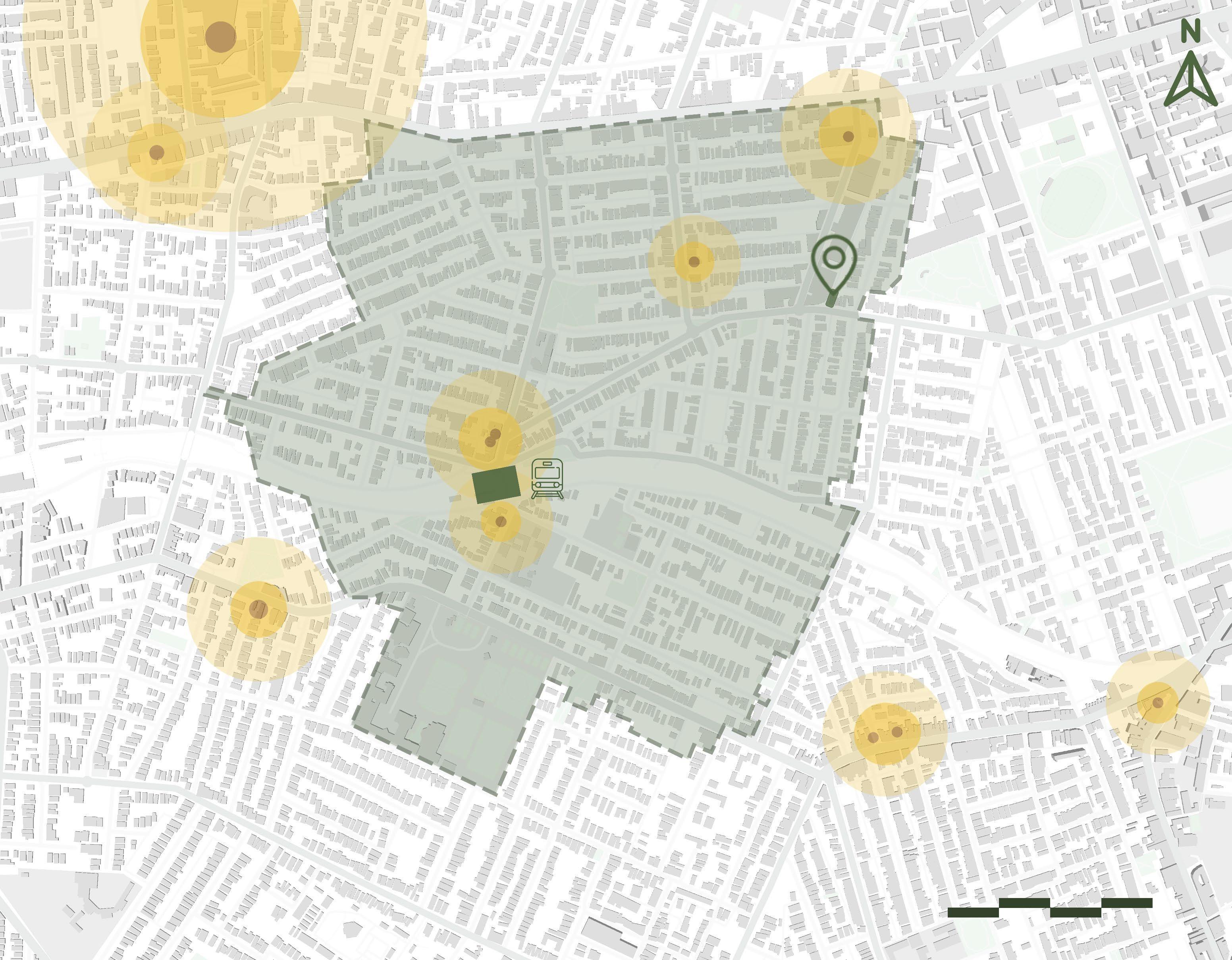

LEVEL OF IMPACT OF SUPERMARKET AROUND THE SITE
20 30 40M 0 0 100 200 300 400M
4 5

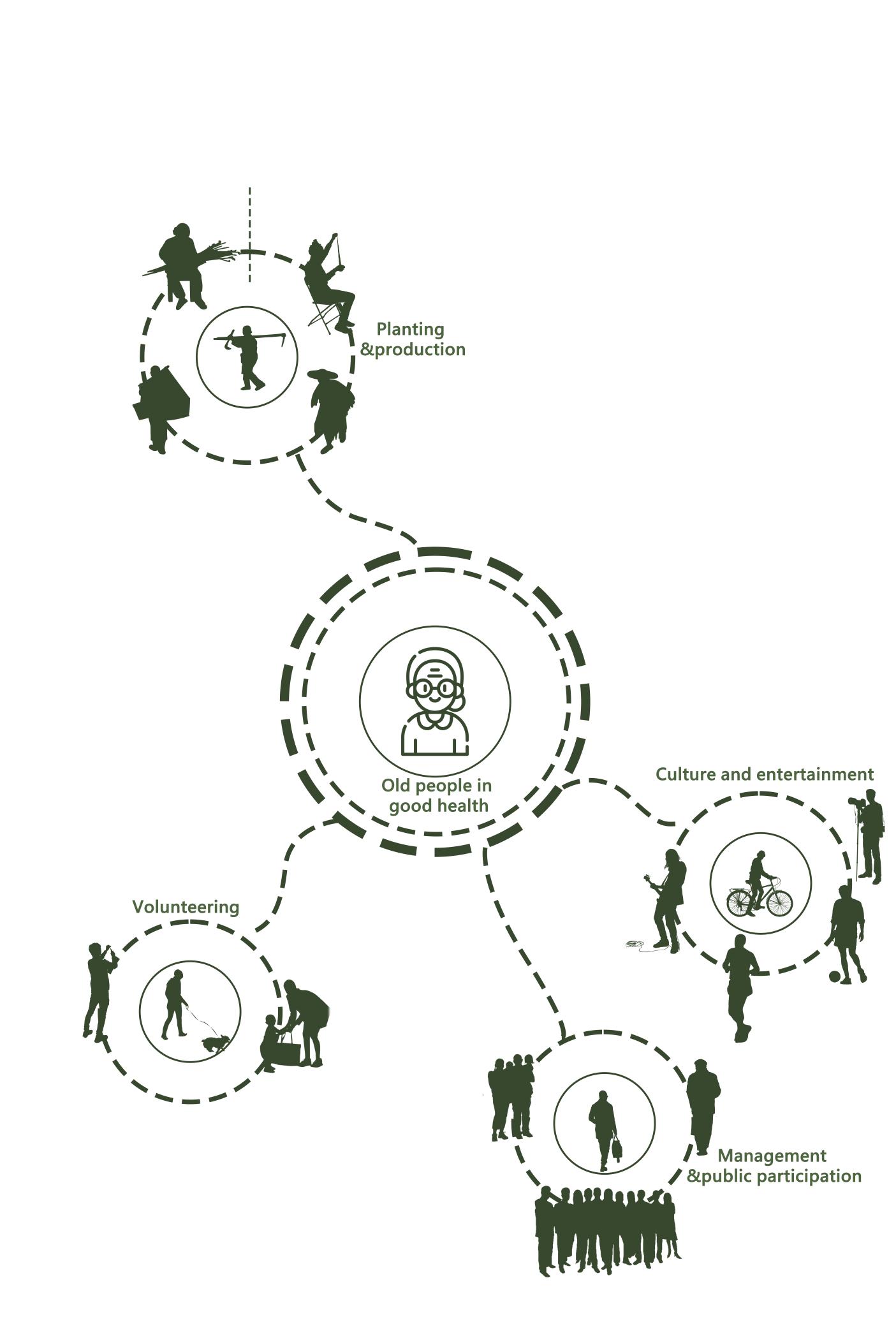

Productive pension means that elderly can properly engage in produtives activities and get a certain reture on income while maintaining good health. In the course of visiting old people's houses, I found that many of local low-income residents spontaneously carry out planting activities, which have changed the quality of their living. So if they can be provided with productive pension communities that bring income supplement whether it can fundamentally change their quality of life

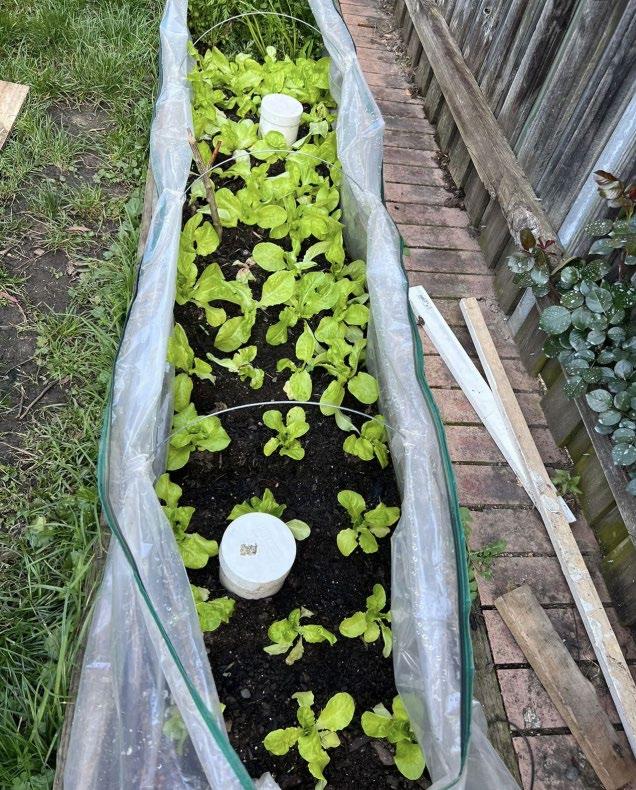

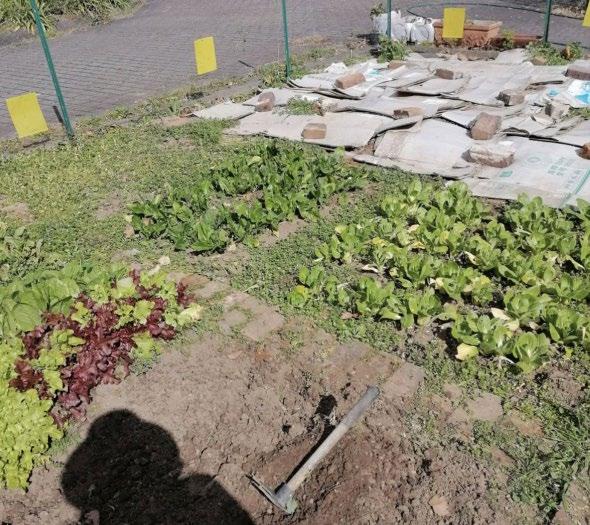

SPONTANEOUS CUITIVATION

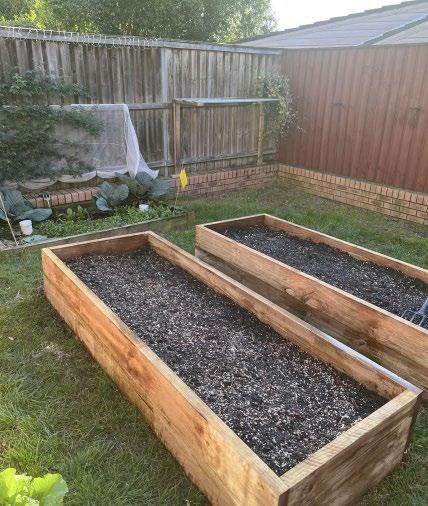

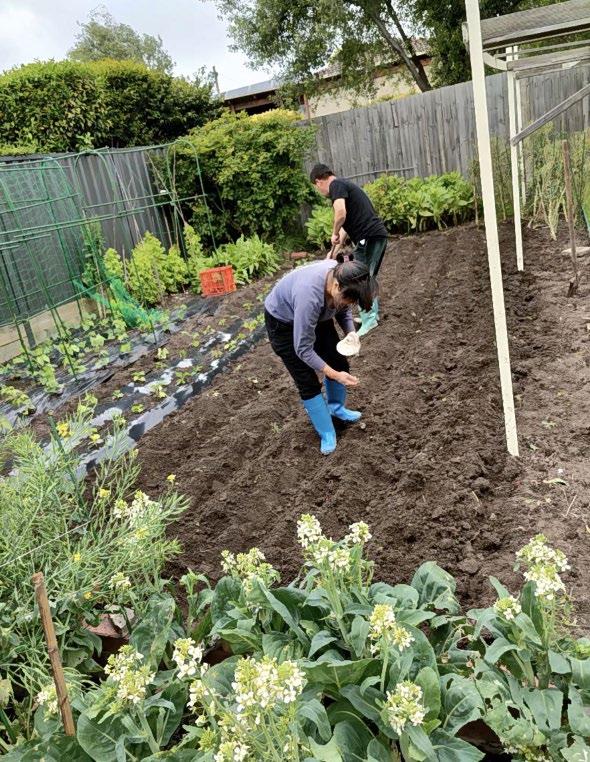

In the process of visiting different old people, I found that many old people planted fruits and vegetables in their homes. In urban residential areas, it can be found that some public green areas are reclaimed as vegetable gardens, which not only causes a lot of neighborhood conflicts, but also affects the beauty of the city due to the lack of reasonable planning
SUPPLEMENT
HEALTHY OLD PEOPLE
Melons, fruits and vegetables are the main landscape plant species applied in the appropriate urban public space, creating a new landscape experience mode to give viewers a fresh sense of vision. Urban gardens satisfy urbanites' yearning for nature, while bringing vitality to the community through planting chain, so that the elderly and the community have more connection, no longer out of social
SELLING
PARTICIPATE FARMING SERVICE
AGE CARE
6 7
Nature Sunlight Ventilation Water Collection

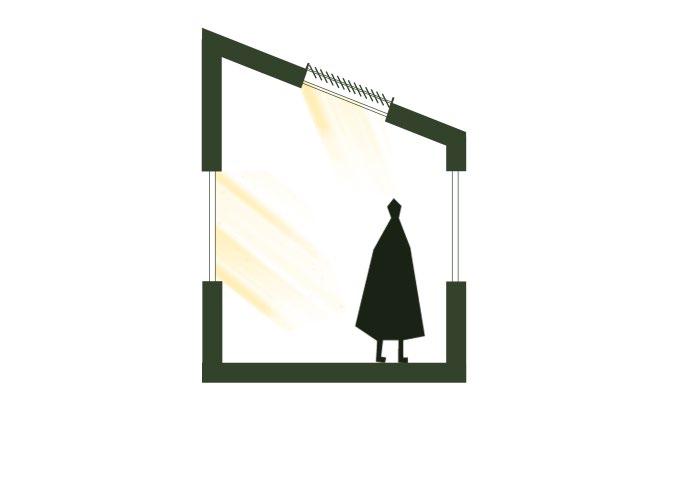

The shutters are set to provide controlled natural light in the house

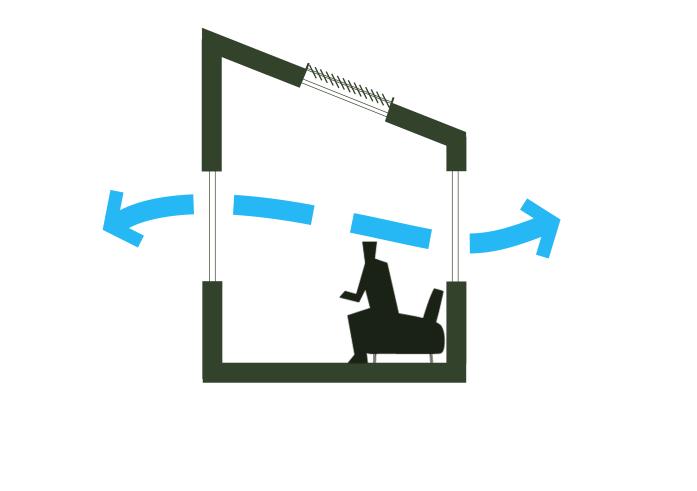

Cross Ventilation helps to improve the thermal comfort of a house
Water can be collected from the surface drain and gutter and recycled for cleaning and watering plants
Material Green Wall Close to Nature

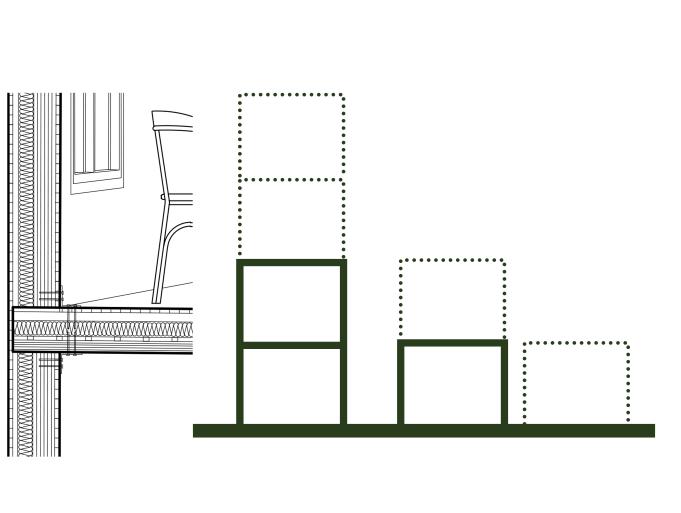

Timber for CLT structure allows for incremental design for future expamsion and recycle used of material

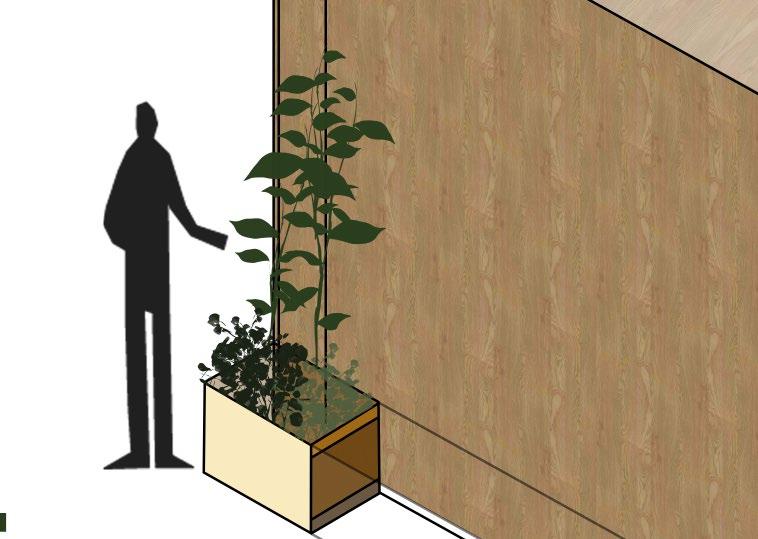

Clambing plants around the building helps to remove air pollutants and increases building's insulation

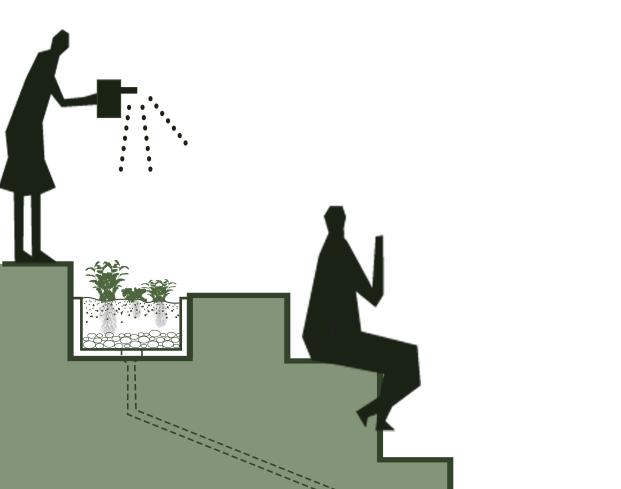

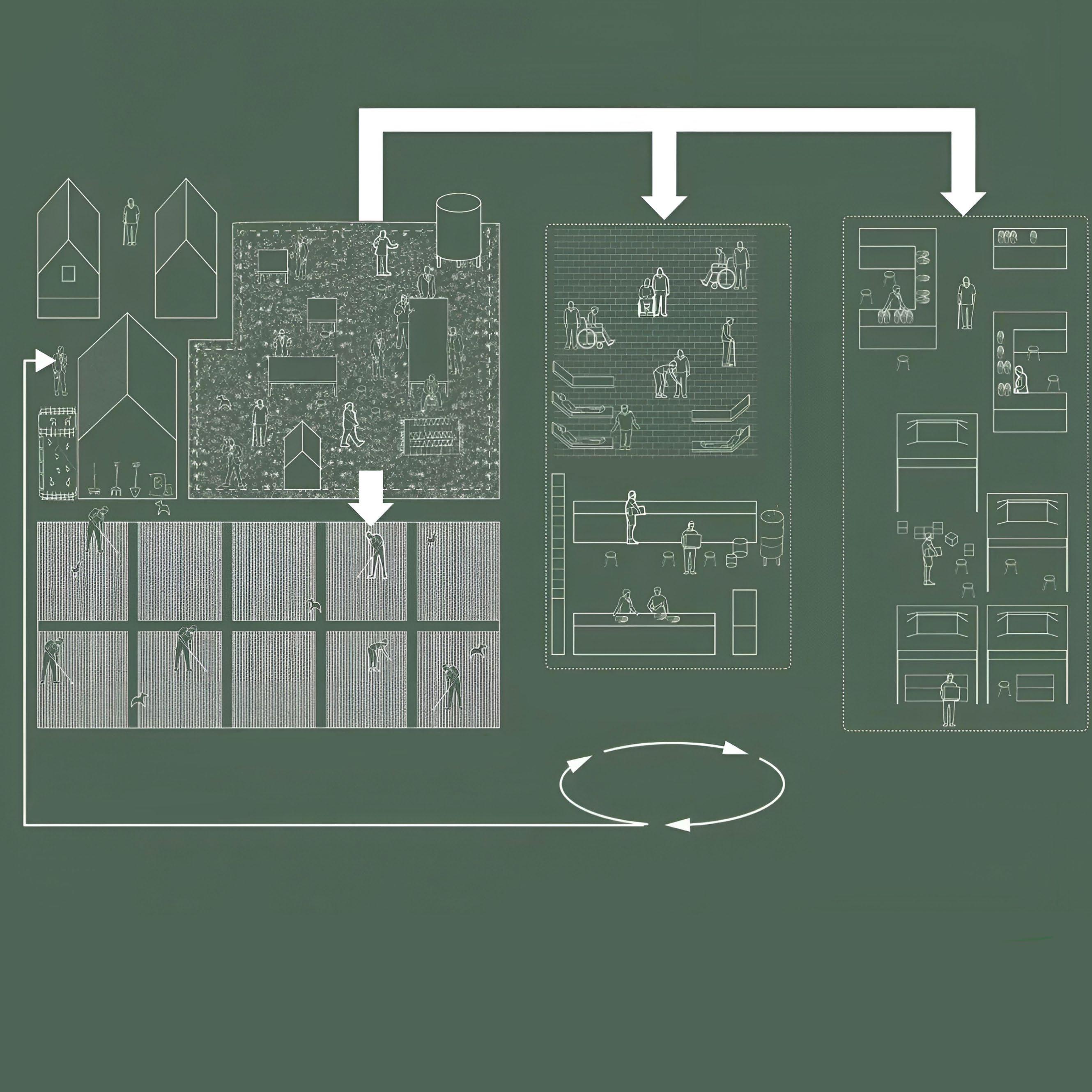

Stair Garden Planting Chain
Various heights of stairs satisfied the need for planting, chatting and resting

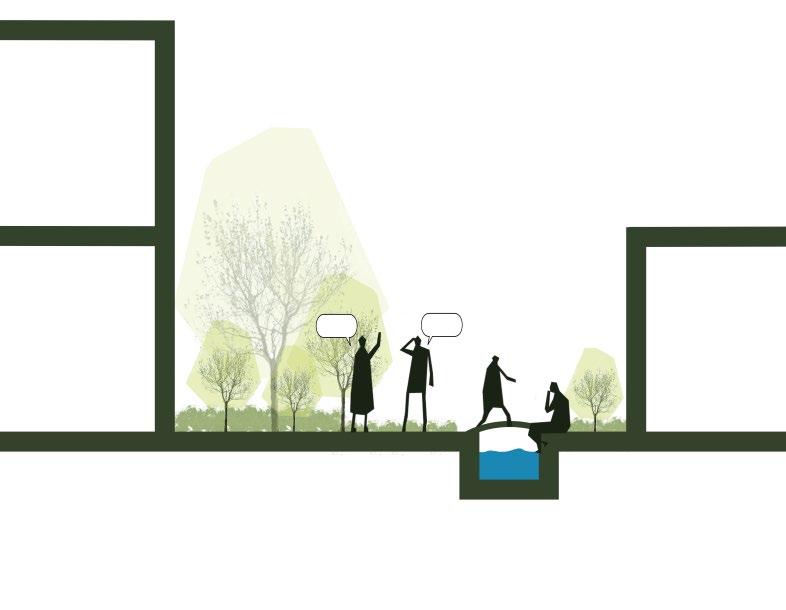

Small river and vegetation provides excellent scenery, create an opportunity to connect with nature in the city

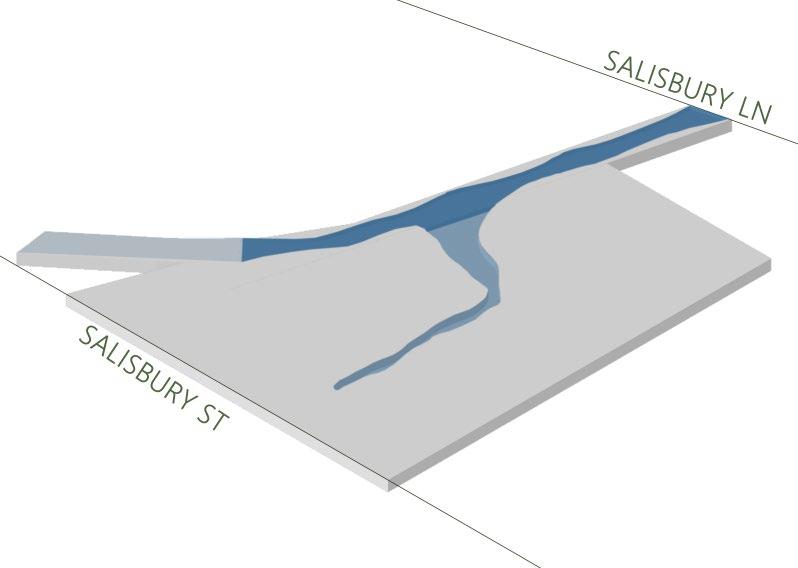

Adjust measures to local conditions, introduce the river as a connection with nature

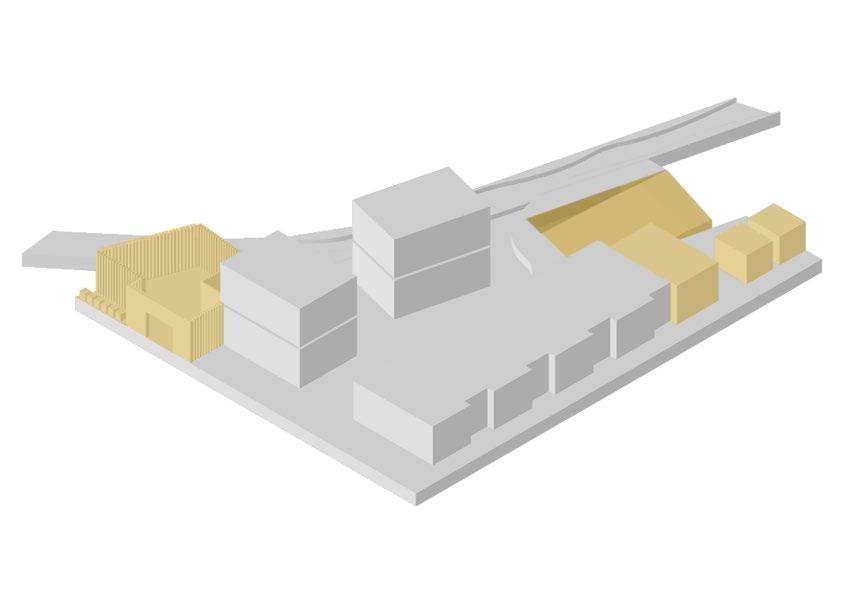

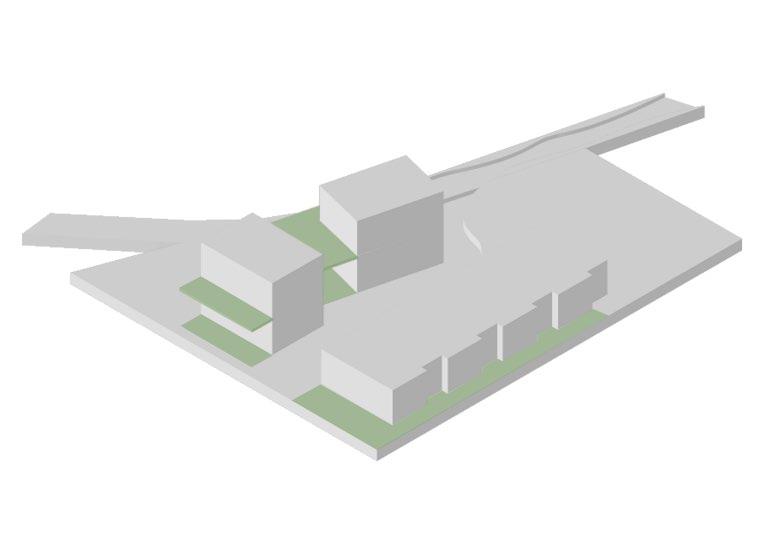

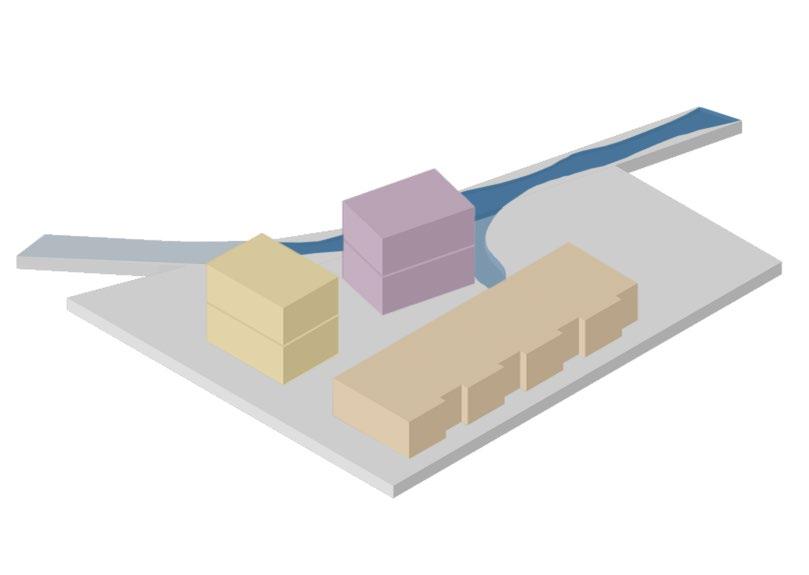

SITE STRATEGY
3 Types of unit design Private balcony for each unit

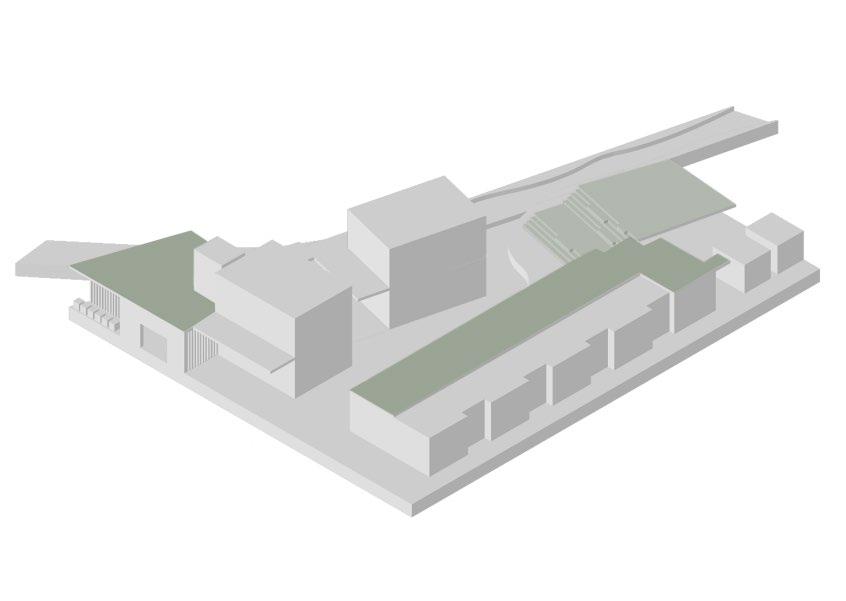

Define functional space: public facilities, underground parking, temporary shops, rubbish bins Use the roof as an area for growing veagetables

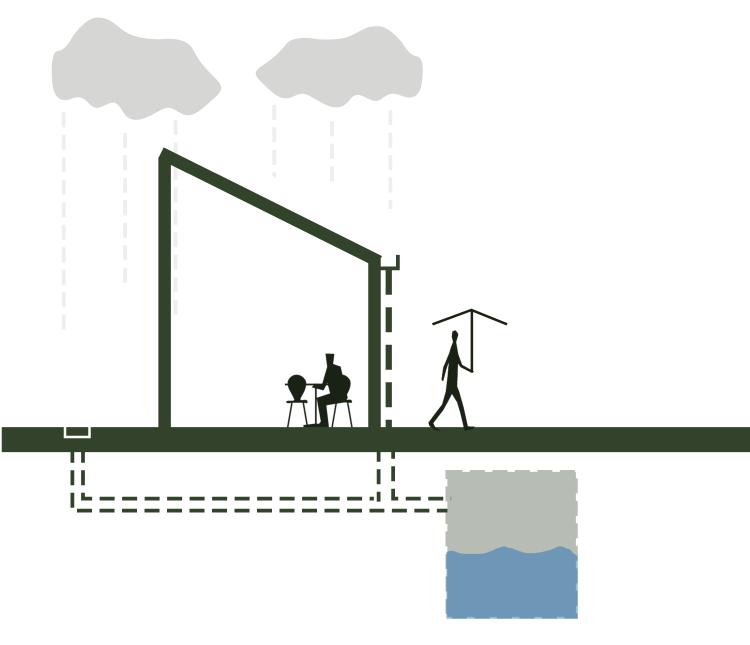

Clerestory windows to maximise sunlight Shed roof to collecting water

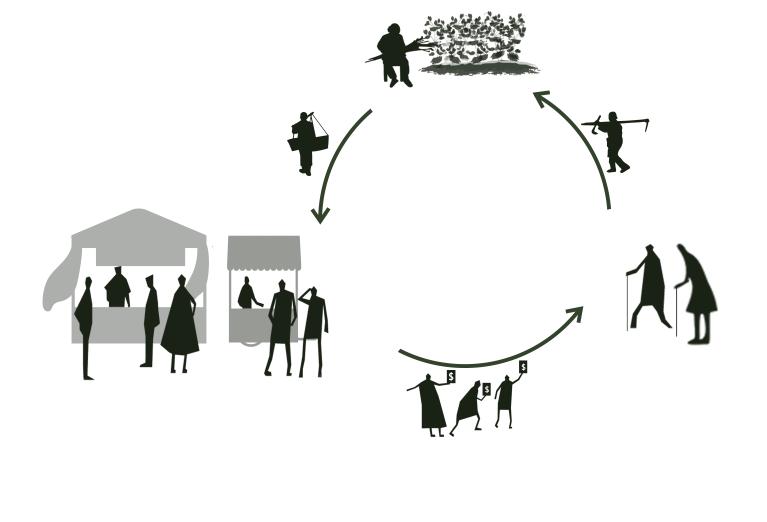

The old women plant vegetable and sell to neibours for more income and working opportunities in order to have better living
Privacy
The landscape and greening around the house provides privacy
DESIGN
PRINCIPLE
8 9
DEAF OLD ARTIST
63 YEAR OLD--MY NEIGHBOR Careful Concentrate Talented
PERSONALITIES:
LIFE AND STORY:
Not enough medical conditions to treat congenital deafness and unable to learn sign language at her early age Found her talent in art, she spent her time in drawing and knit art for years and sell them for living. With help from community welfare workers, now she could use sign language to communicate
WHERE WOULD LIKE TO LIVE:
A big comfortable house, Near the community service center She would like to offer some help if necessary Enjoy alone most of time but still like to communicate and share the technique of knit art with others
INDIVIDUALS NEED:
-Place to do the knit art
-Need to be private but still close to communities
-A sign Language assistant -Emergency light
-Emergency ring direct connect to nursing assistant -place to share/ sold her artwork

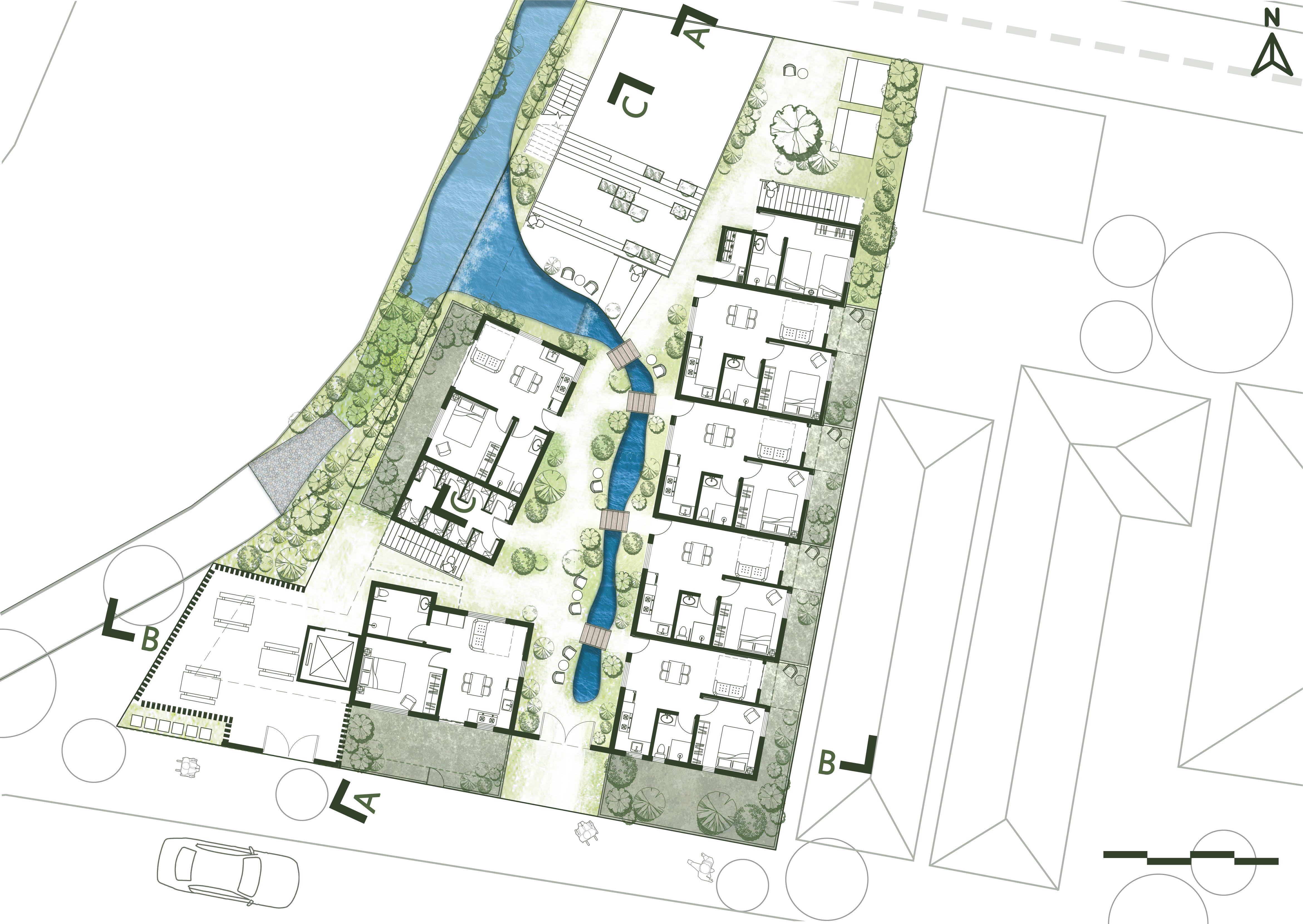

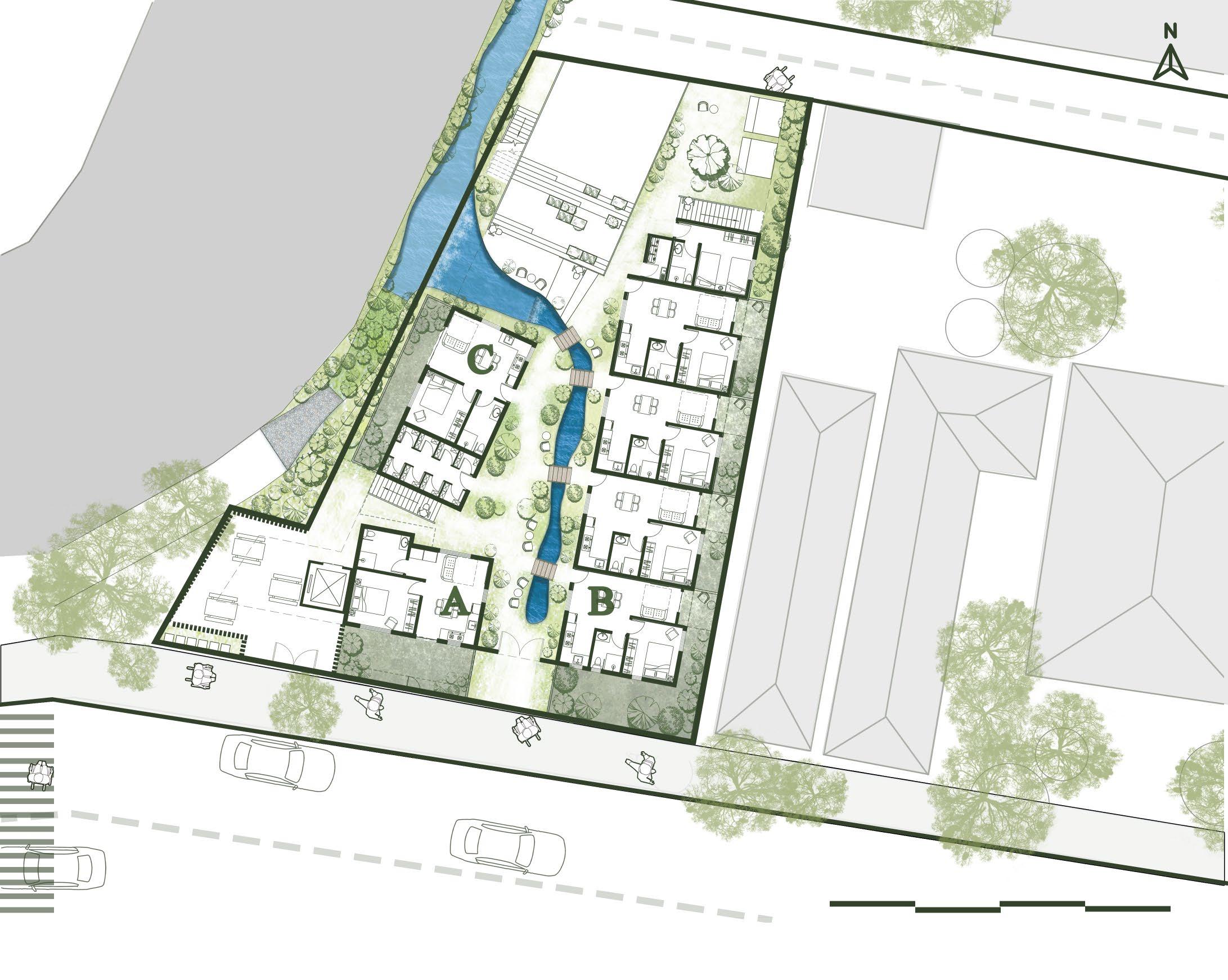

Marketing Warehouse Salisbury Ln Salisbury Rd 78 80 82 0 5 10 15 20M SITE PLAN
10 11
Special light alarm in kitchen and bedroom to prevent dangerous situation
TOILET
BEDROOM
LIVING ROOM KITCHEN
Special lights in the room are automatically turned on in case of danger to achieve the purpose of warning. The room is equipped with special telephone and first aid measures

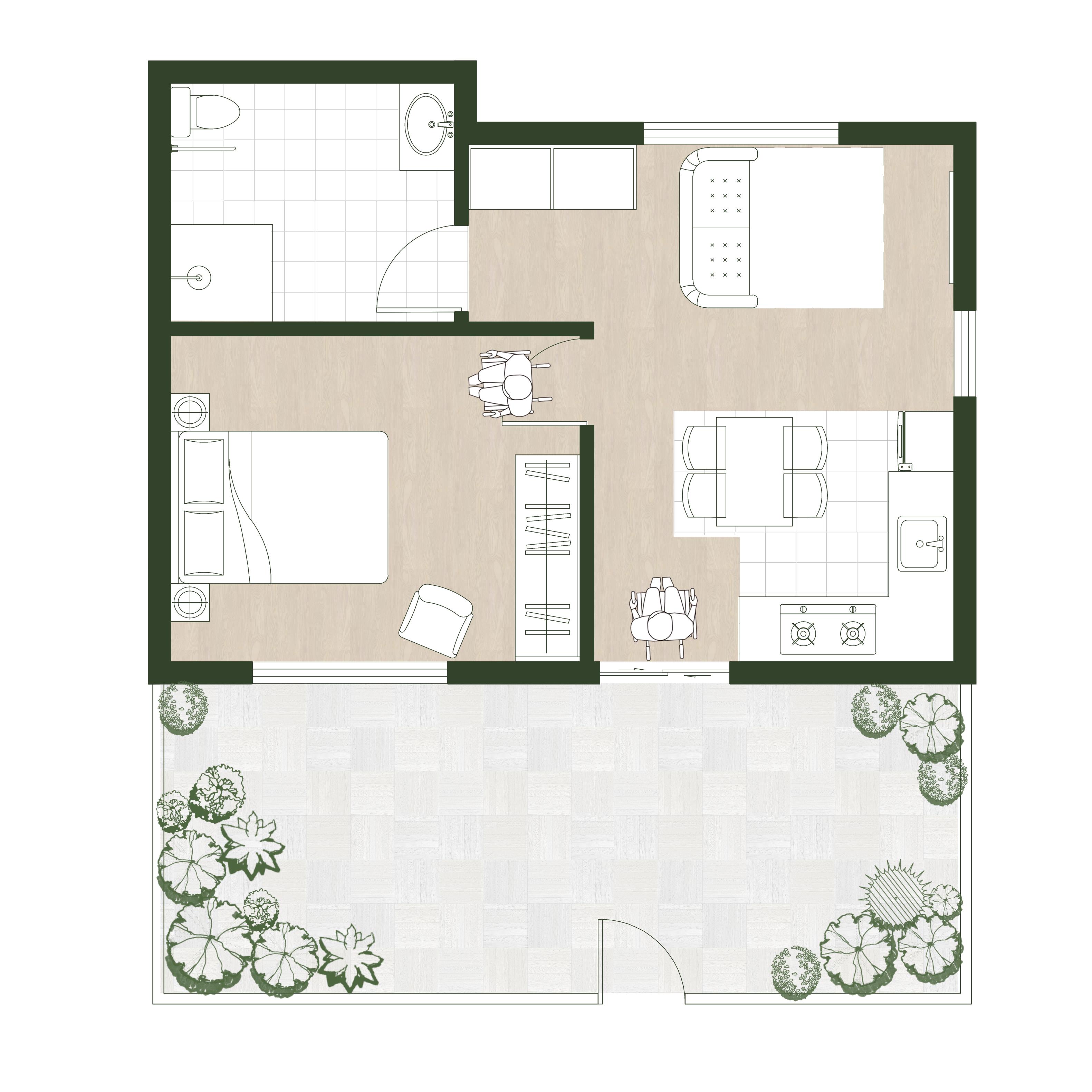

UNIT PLAN A --FOR DEAF OLD ARTIST
North faced living room enjoys the maxiamum sunlight. Foldable sofa allows short lives for nursing assistant Cabinet for artworks facility Barrier Free Design Roomy windows and sofa for knit art making and relax
12 13
OLD AGRICULTURER DEVOTEE
78 YEAR OLD--MY GRANDMA
PERSONALITY: Caring Active
Easy going
WHERE WOULD LIKE TO LIVE:
Houses don't need to be big but need to have big garden for planting
Near the public space for everyday chatting
Near the market for vegetable selling
Would like to share experience of vegetable growing
STORY:
Used to be a primary school teacher
After unemployed she worked as farmer and housewife
Growing vegetable is her main hobbit and main source of income
Get used to chatting with friends every day
Love reading
Like lively at the same time also want to have own private space
LIVING ROOM
The semi-open balcony allows her to read outside and get close to nature. Big balcony allows her to plant vegetable
BEDROOM
KITCHEN TOILET
Big kitchen satisfied her love for cooking
Bedroom and balcony get plenty of sunlight. Big balcony allows her to read with beautiful scenery
INDIVIDUALS NEED:
-A big garden for planting
-Near the public space for everyday chatting
-Near the market for vegetable selling
-Family doctor for chronic dieases
-Handrail needed in special space like toilet
-Quiet place for reading
-Big kitchen
UNIT PLAN B
--FOR THE OLD AGRICULTURE DEVOTEE
14 15
HOMELESS OLD WOMEN
55 YEAR OLD--KAY DOLMAN
PERSONALITY:
Economical Accommodating Voluble
LIFE AND STORY:
No steady job
Would like to try any works if it provides income
Got divorced and lose her residence
Felt despaired and shamed to stay at his friend's house for so long
Having an affordable home means she can save money, and she can be part of the population in a normal way
Can't afford the rent and life
WHERE WOULD LIKE TO LIVE:
An affordable and stable home
Provide works for more income
Could accept shared facilities for lower price
INDIVIDUALS NEED:
-A working opportunities near home
-Close to activity space for communicating and make fridens
-Big garden for planting
-Place for friends to short live
16 17
Semi-open balcony provides a place for her to read or rest, folding sofa allows her grandchildren for short live
Foldable sofa allows friends for short live
Big garden for planting vegetables and flowers
LIVING ROOM
KITCHEN
Vegetable planting and solding provides working opportunities for better living

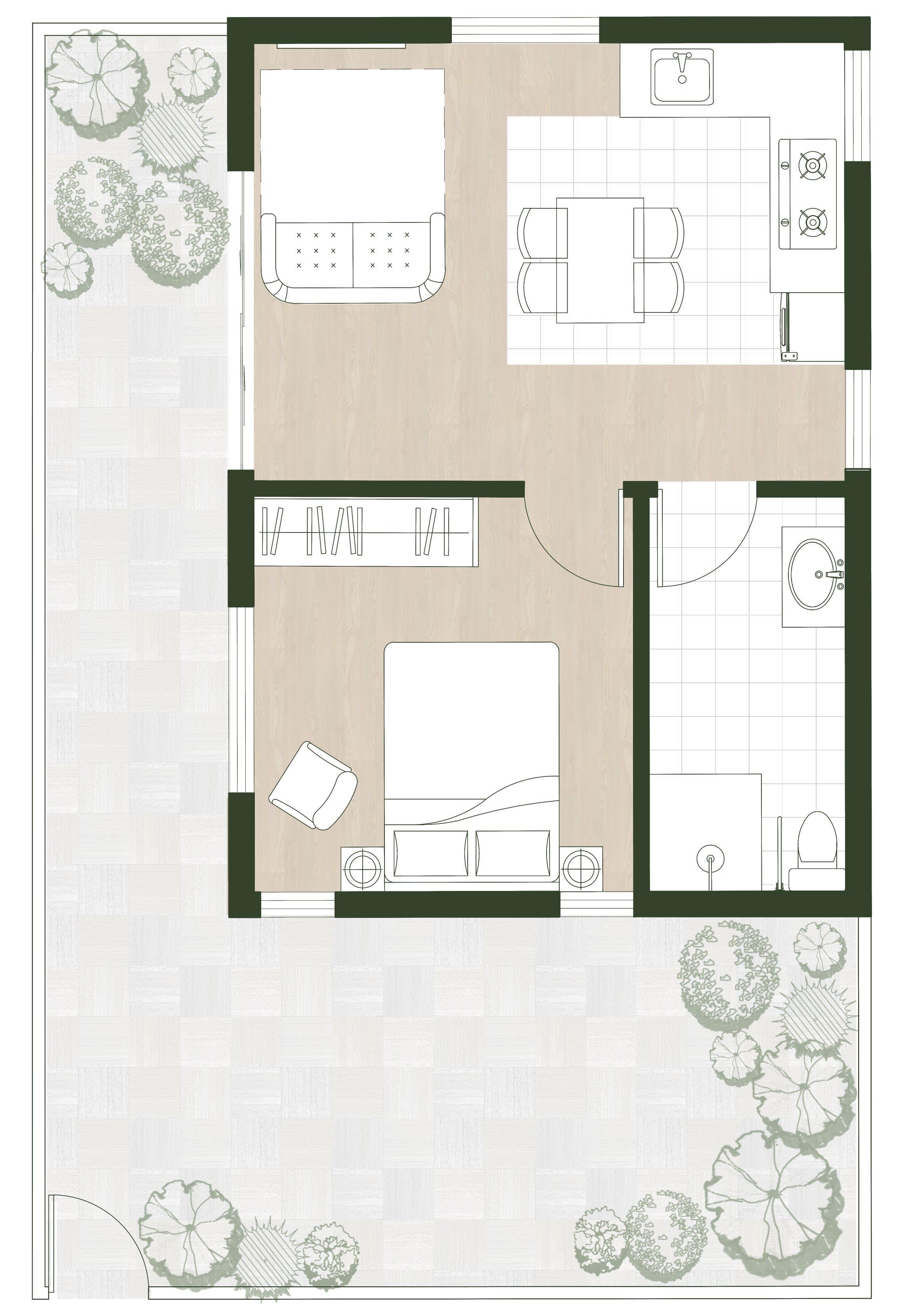

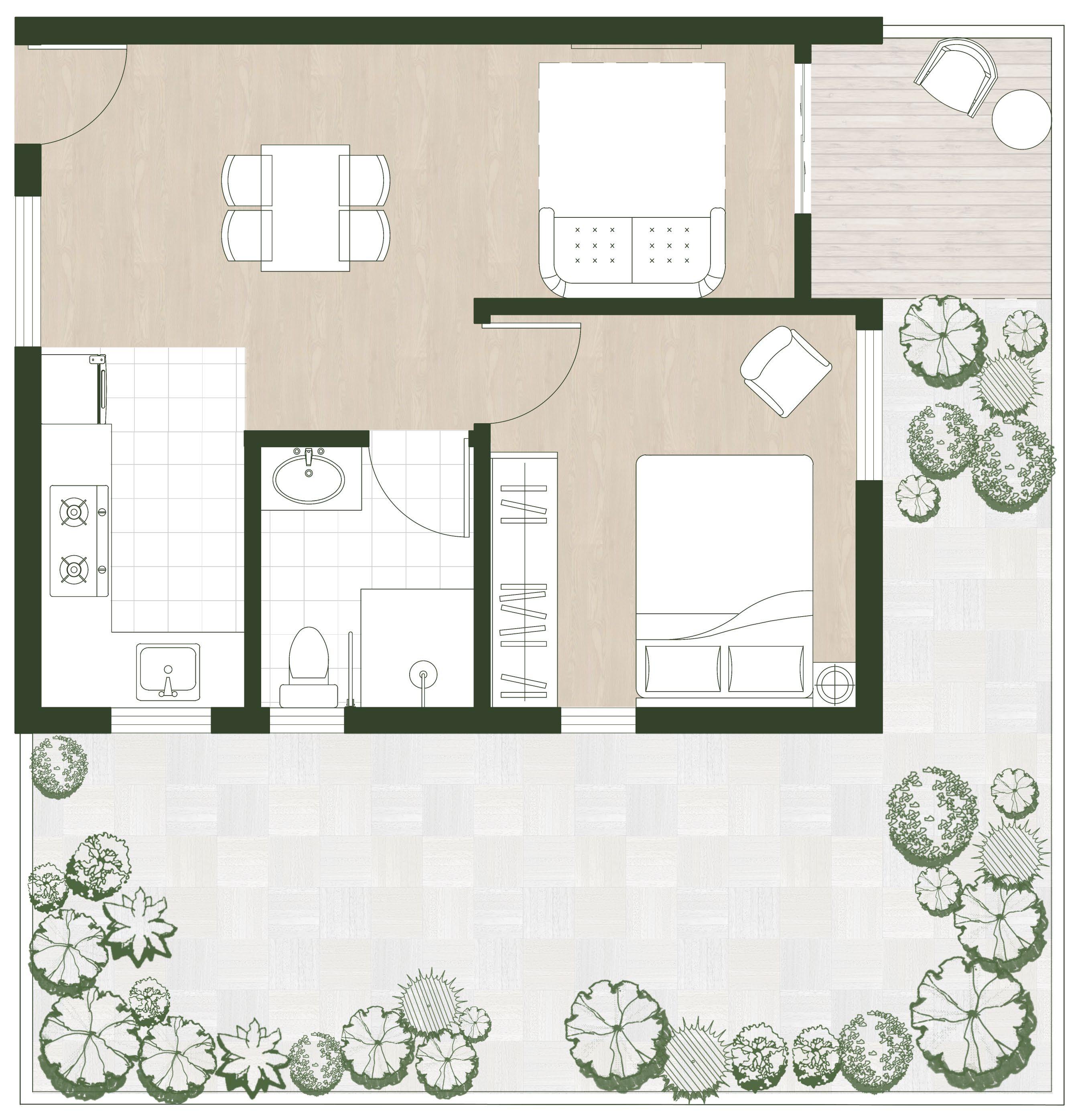

UNIT PLAN C
-FOR THE HOMELESS OLD WOMEN
BEDROOM TOILET
Planting vegetables and flowers helps her to have better life
18 19

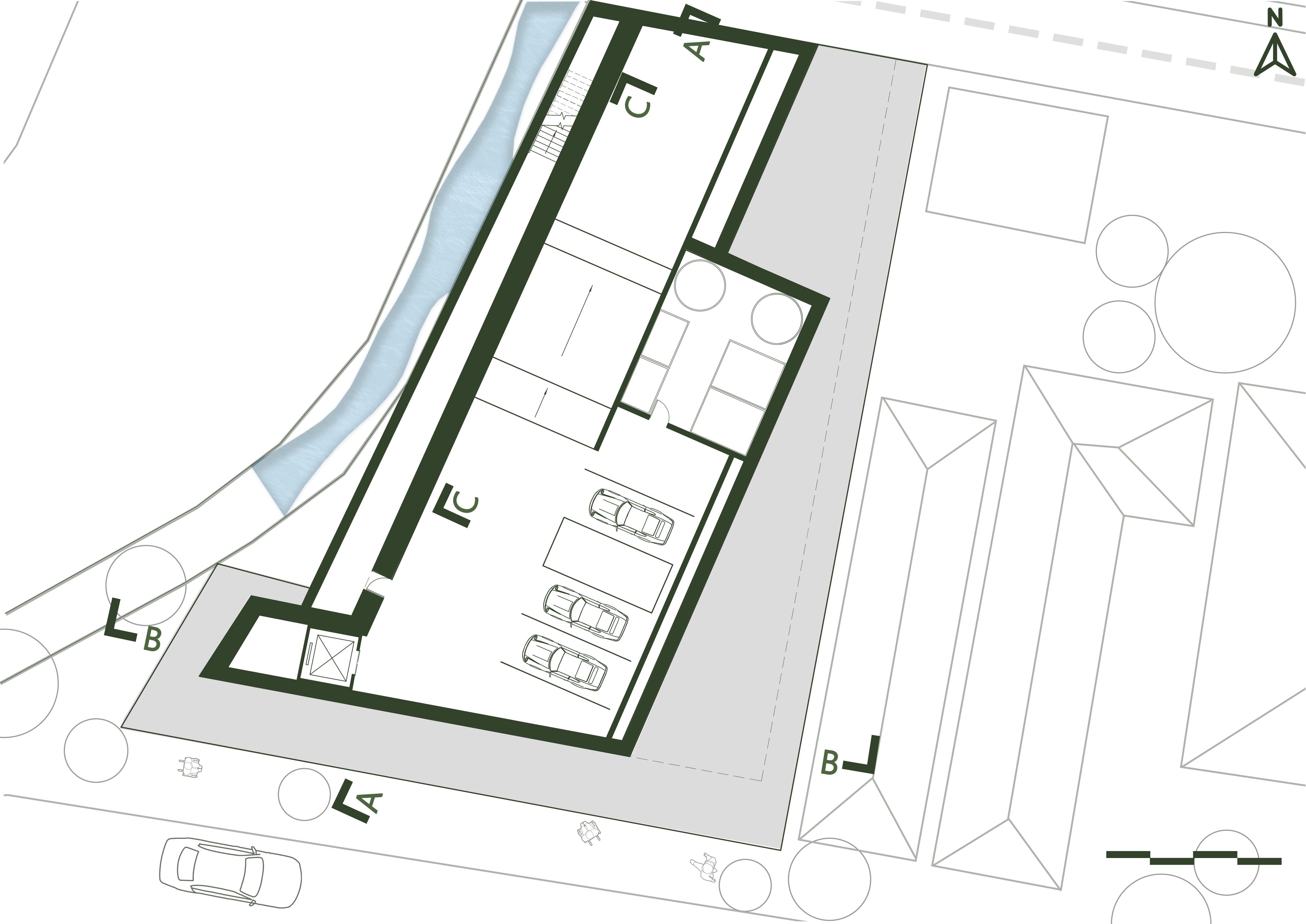

BASEMENT FLOOR PLAN 0 2 4 6 8M 1 2 1. PLANT ROOM 2..PARKING AREA 20 21

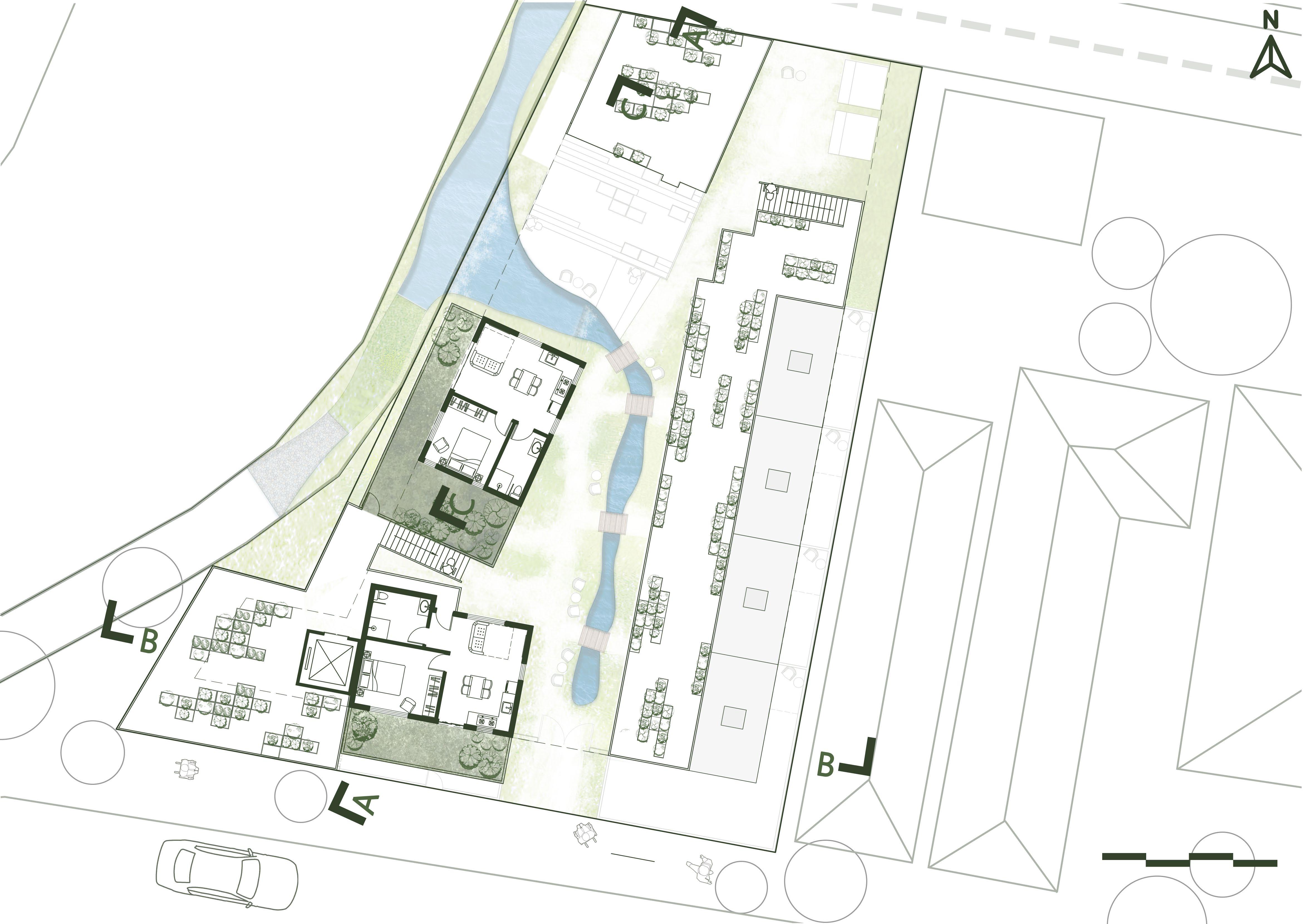

GROUND FLOOR PLAN 0 2 4 6 8M
SELLING PLACE 2.STORAGE 3.GUEST ROOM 4.LAUNDRY 5.STAIR GARDEN 6.TEMPORARY SELLING PLACE 7.RUBBISH BINS 1 6 7 2 3 4 5 A B C 22 23
1.TEMPORARY
FIRST FLOOR PLAN 0 2 4 6 8M A C 1. SMALL PUBLIC FARM 2. VERTICAL FARM ABOVE THE BASEMENT ENTRANC 3. SKY FARM 1 2 3 24 25

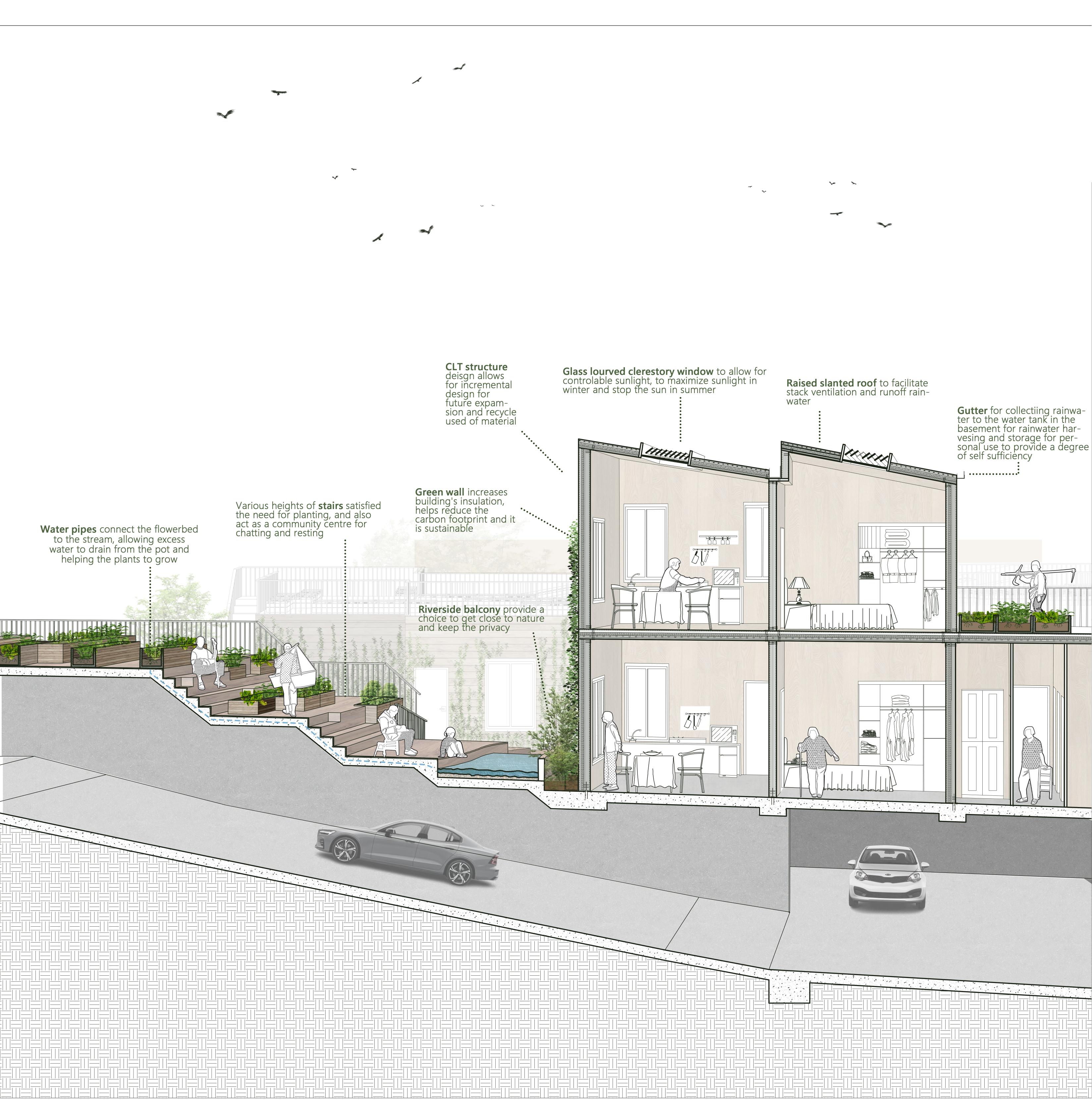

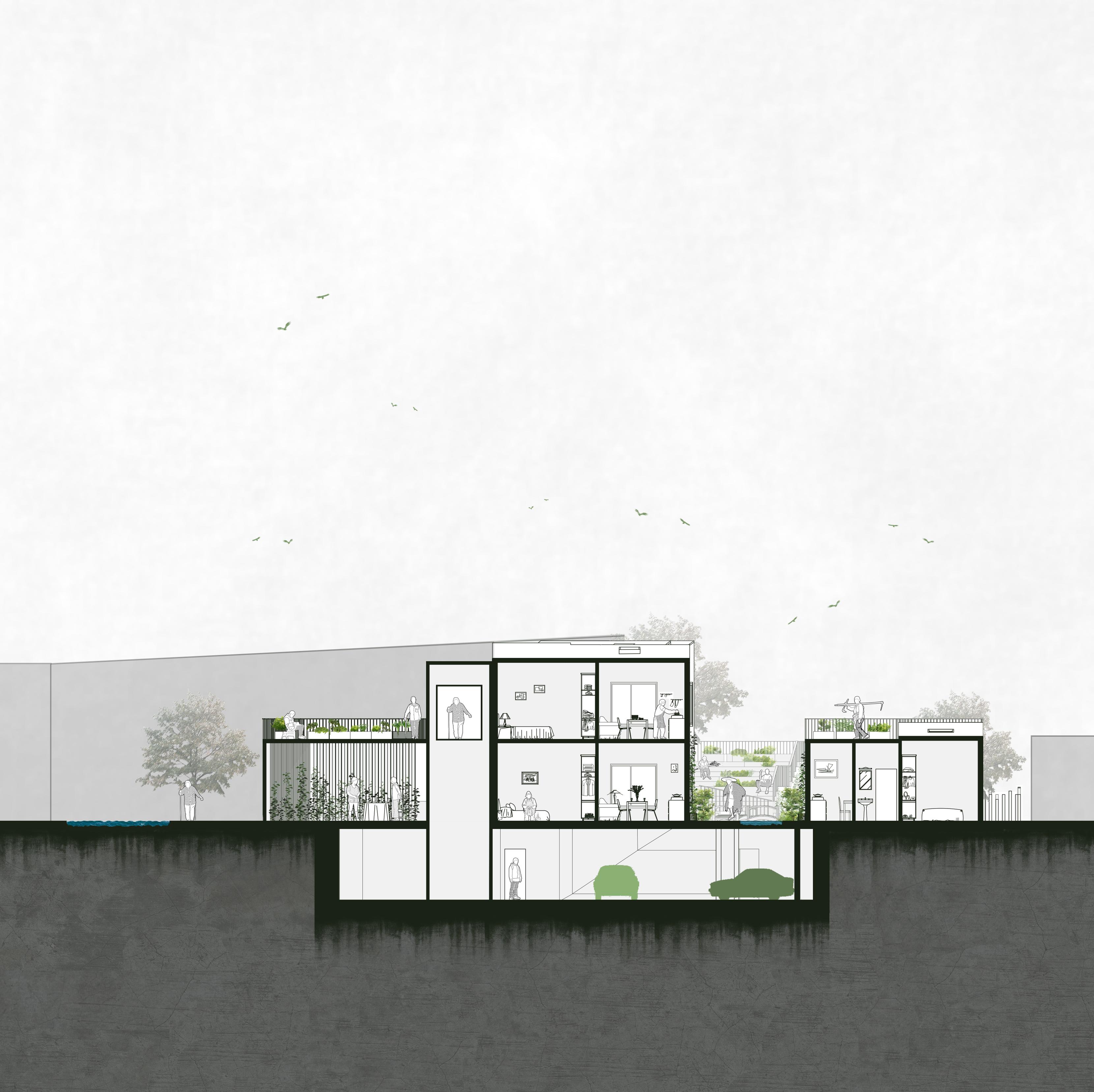

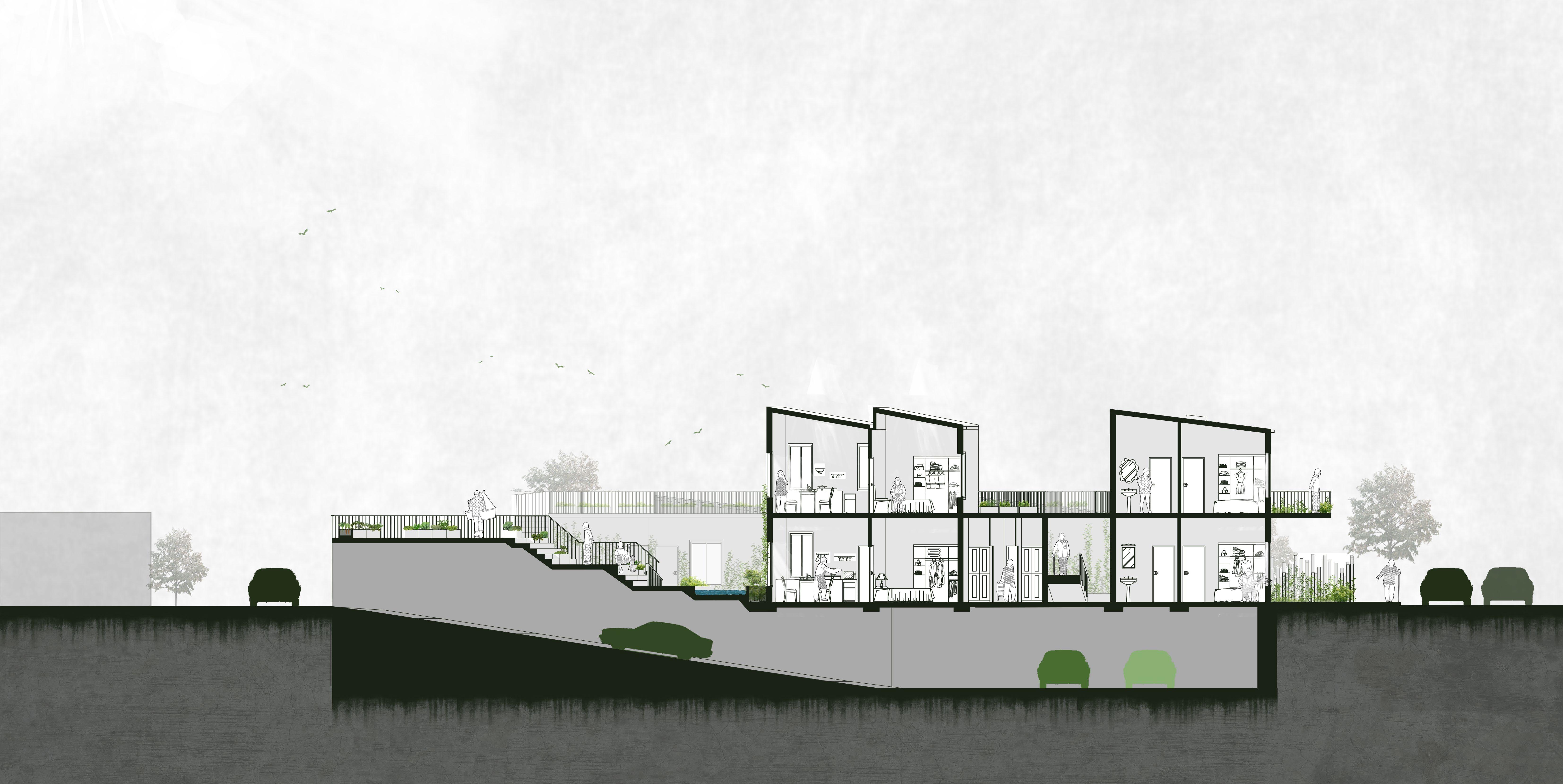

SECTION-AA 0 2 4 6 8M 26 27
SECTION-BB 0 2 4 6 8M 0 1 2 3 4M SECTION-CC 28 29
ELEVATION 0 2 4 6 8M

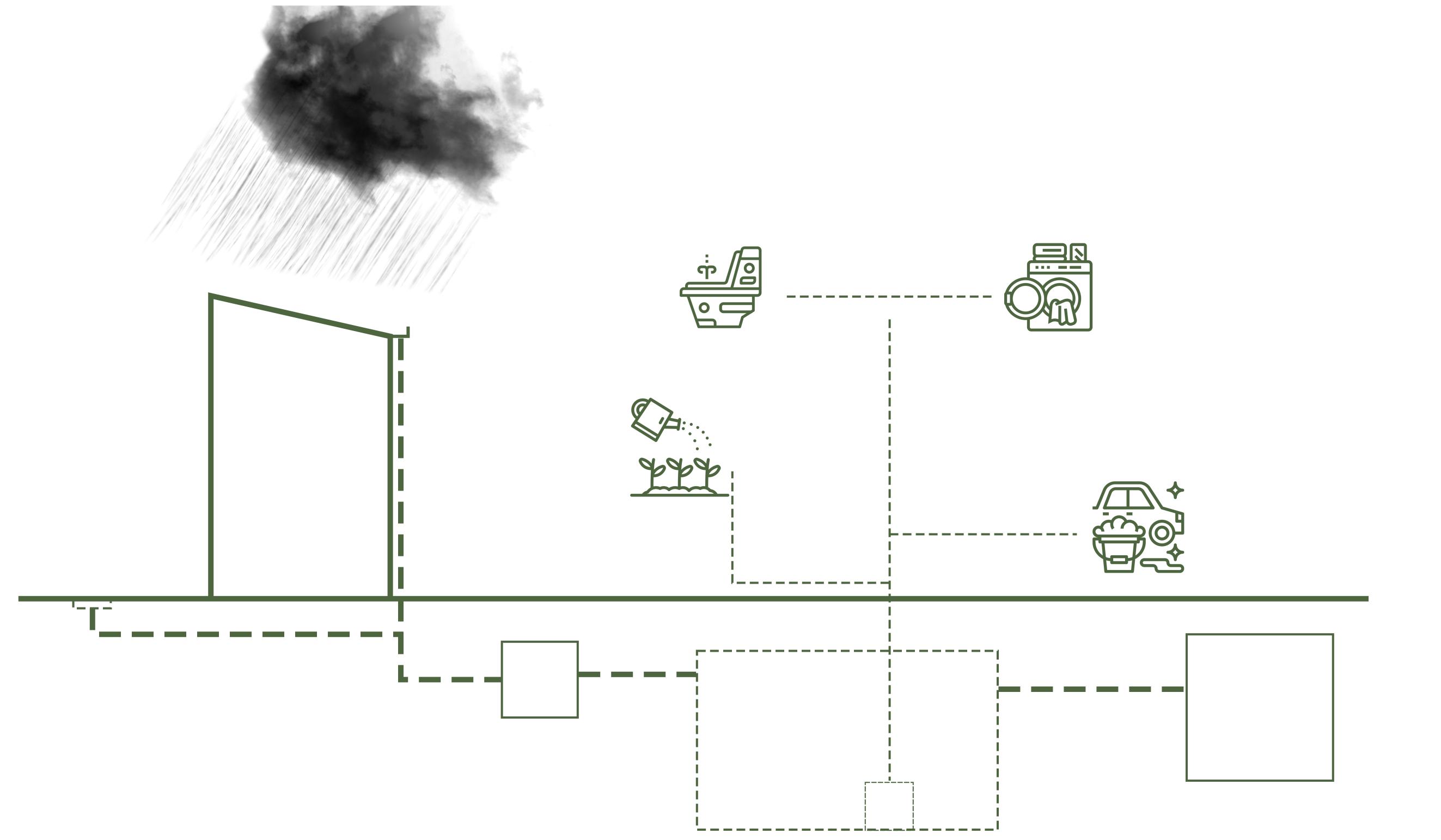

WATER RECYCLING 30 31
Surface drain Gutter Piping Filter Water Tank Pump Garden watering Clothes washing Toilet flushing Car washing Overflow Well to ground water

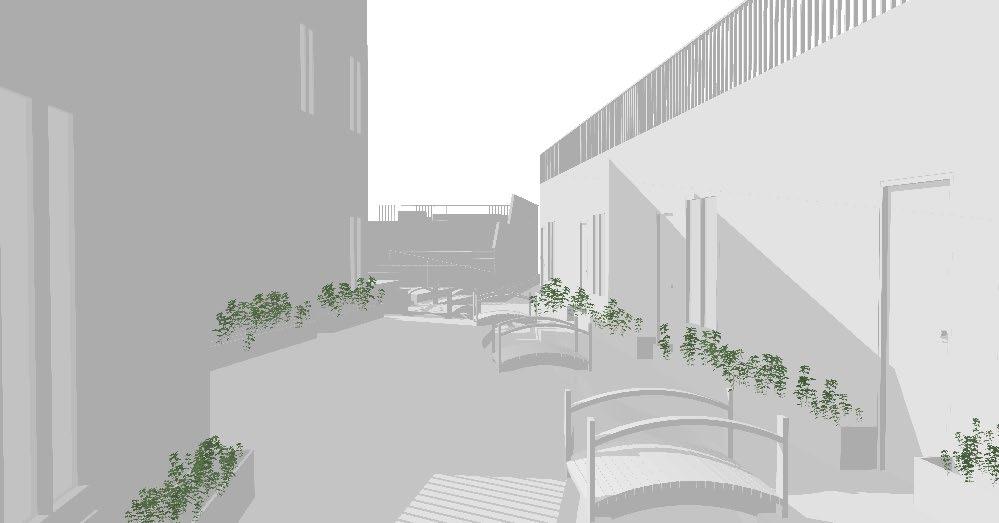

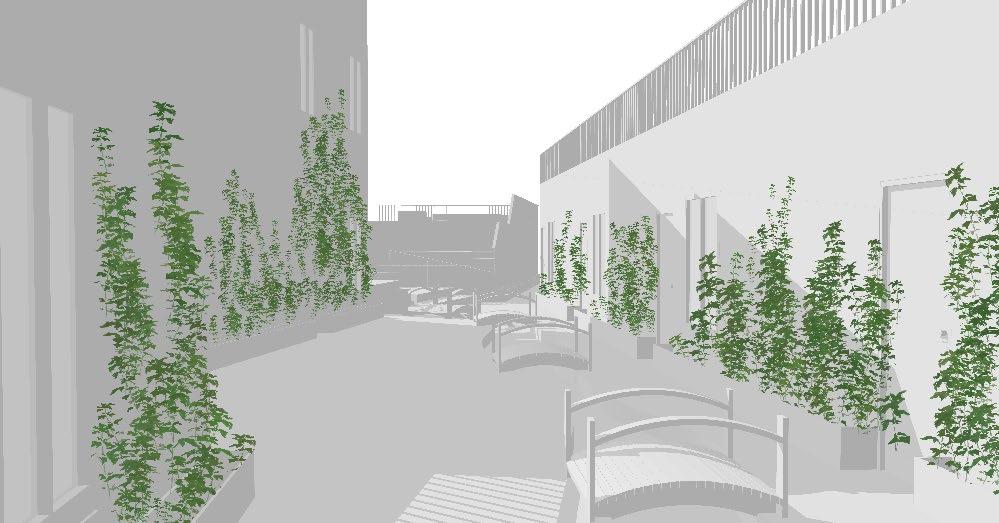

PLANTS GROW OVER TIME 32 33

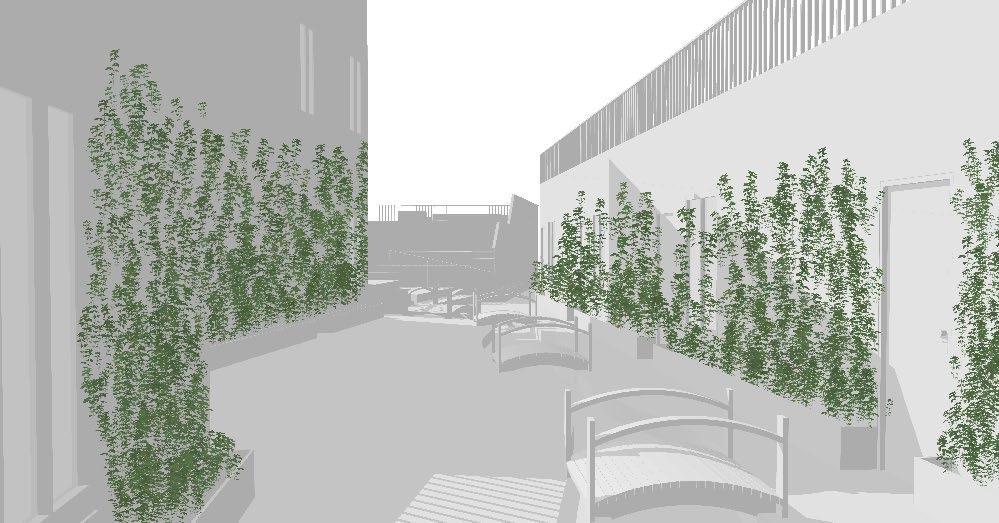

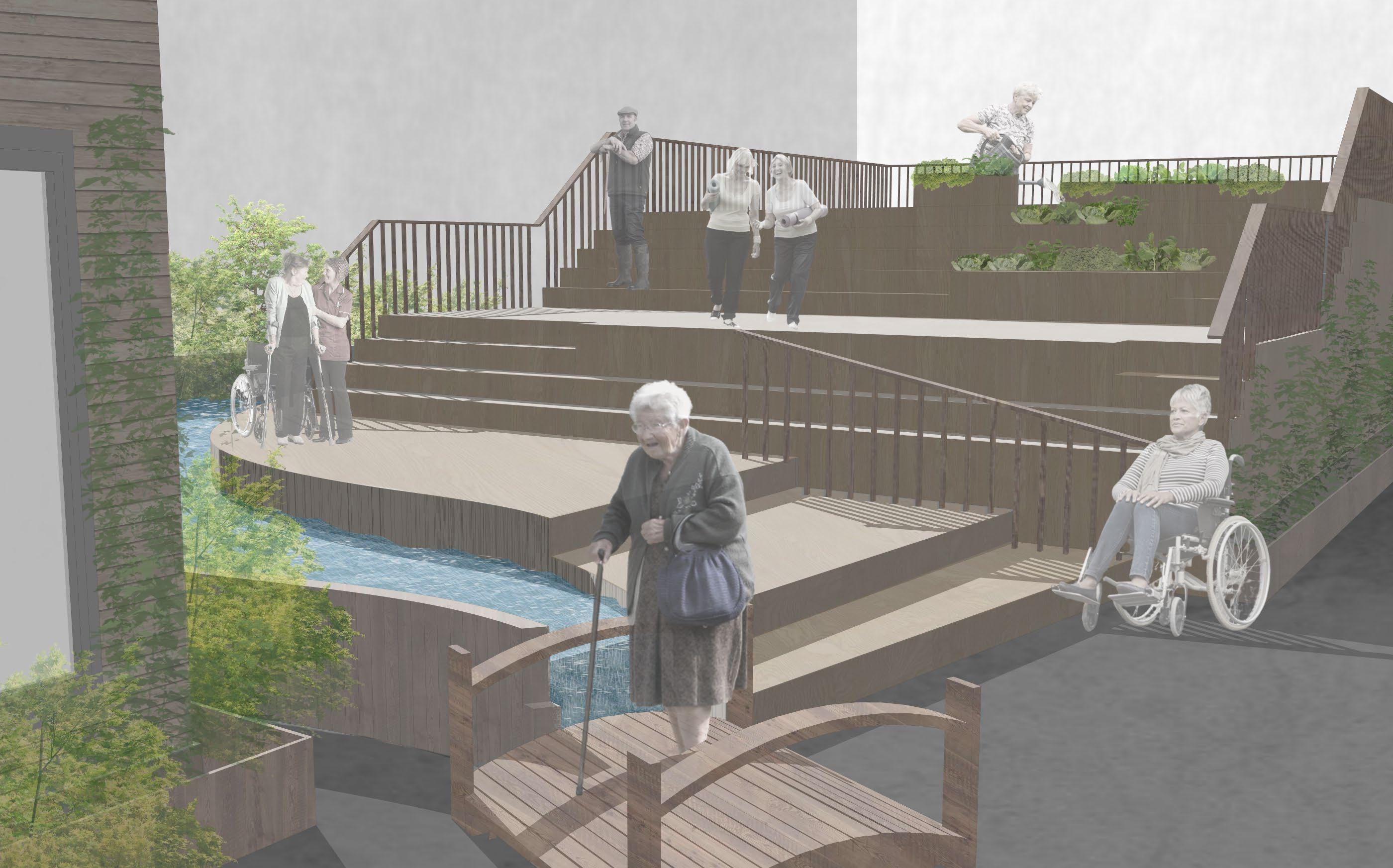

STAIR GARDEN- USING GREEN VEGETABLES AS LANDSCAPE CREATES NOVEL AND ENGAGING EXPERIENCES PLANTS
IN DIFFERENT SEASONS
TEMPORARY SHOP- PROVIDES FRESHFOOD AND HANDMADE PRODUCT TO COMMUNITIES
ENTRANCE FROM SALISBURY ST- FEELS LIKE WALKINNG IN THE REAL NATURE
34 35

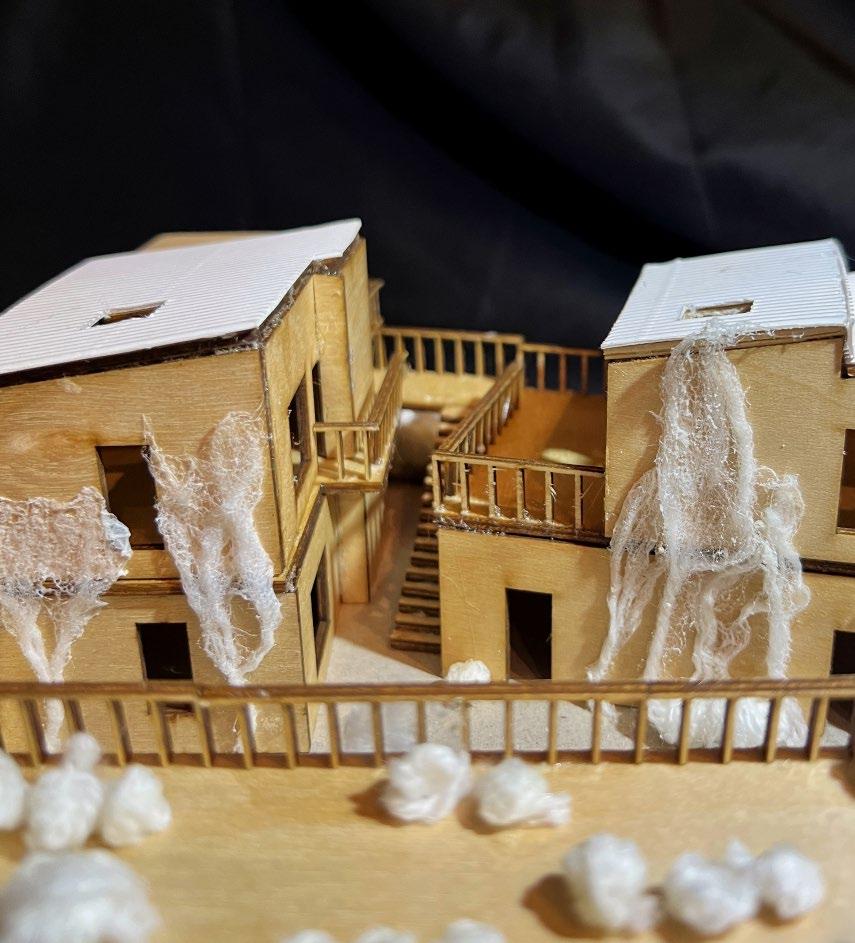

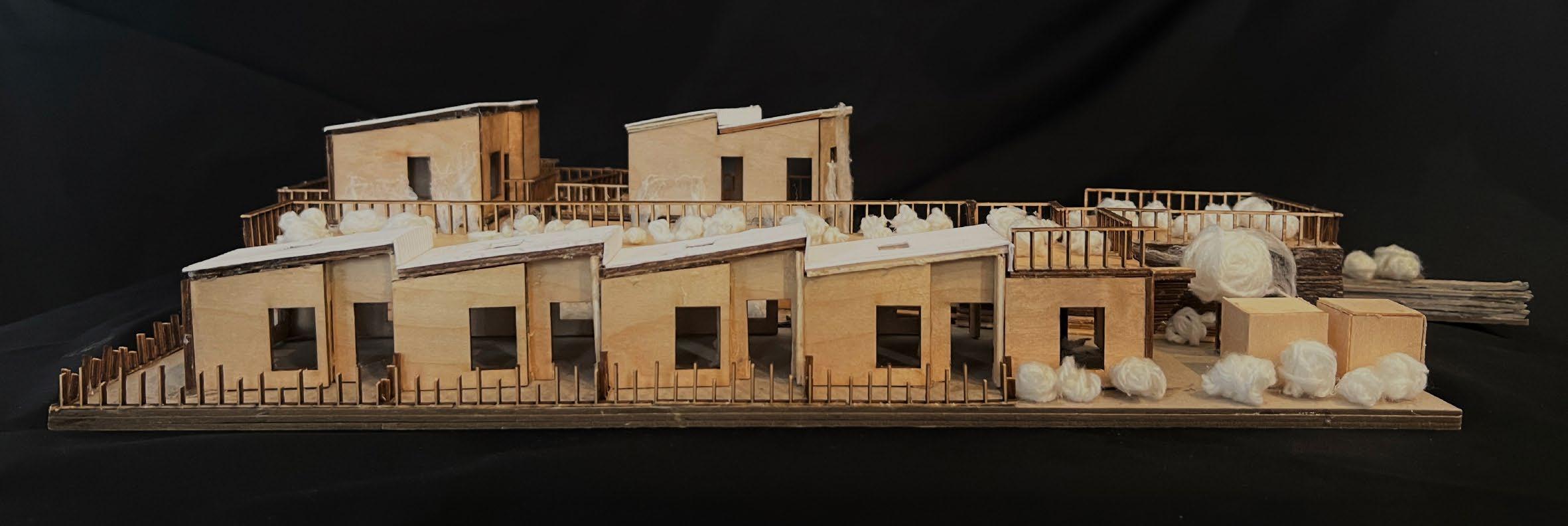

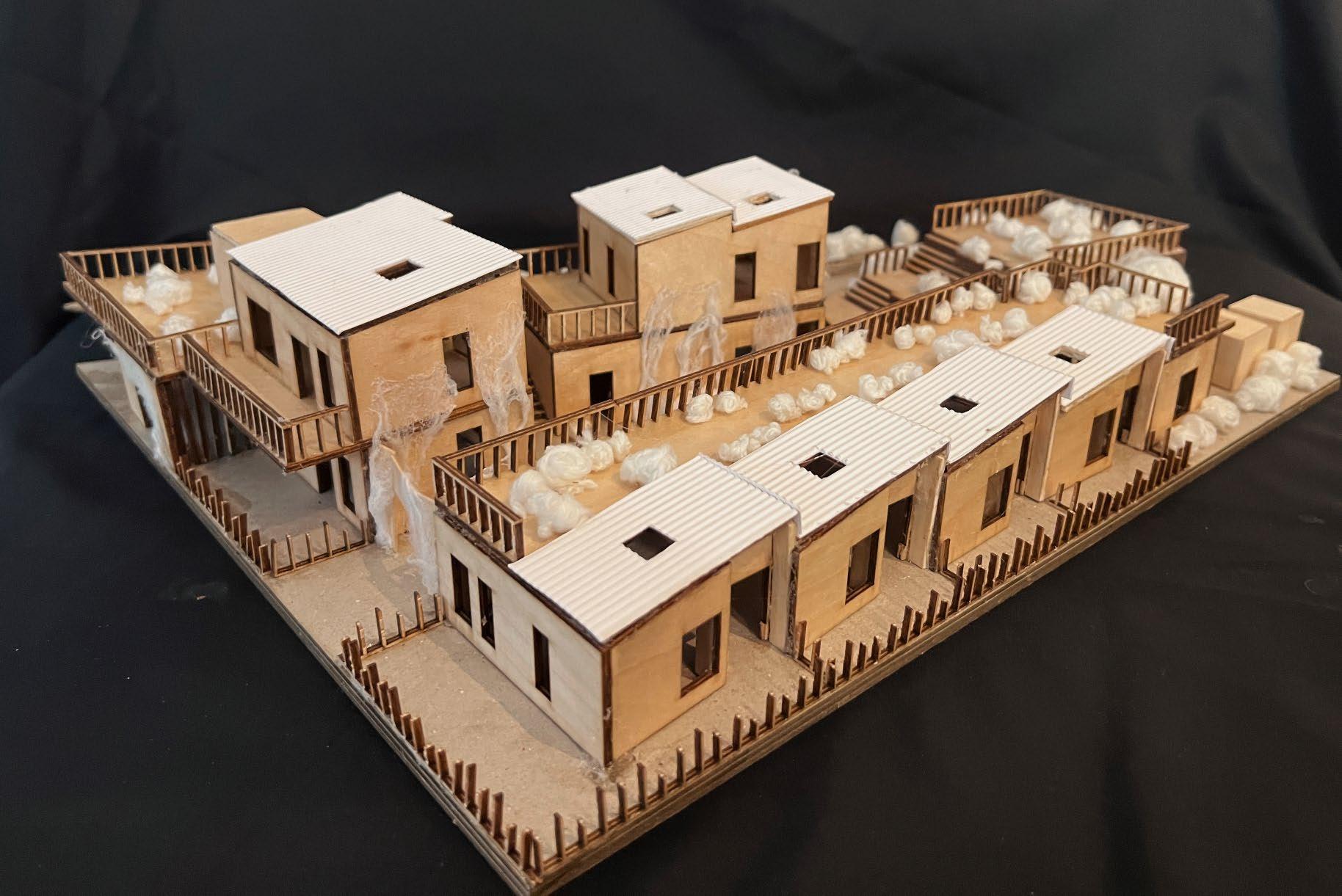

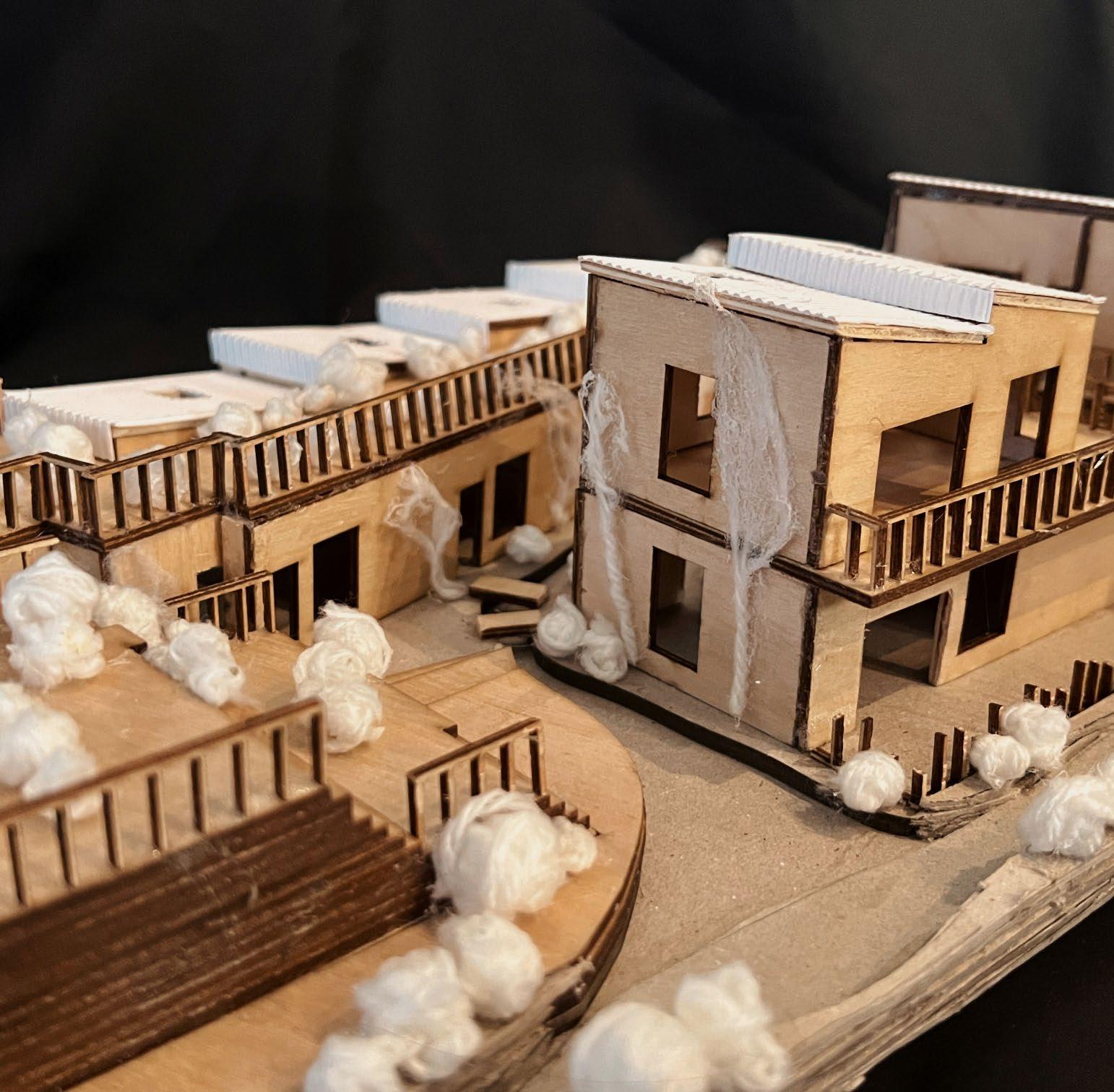

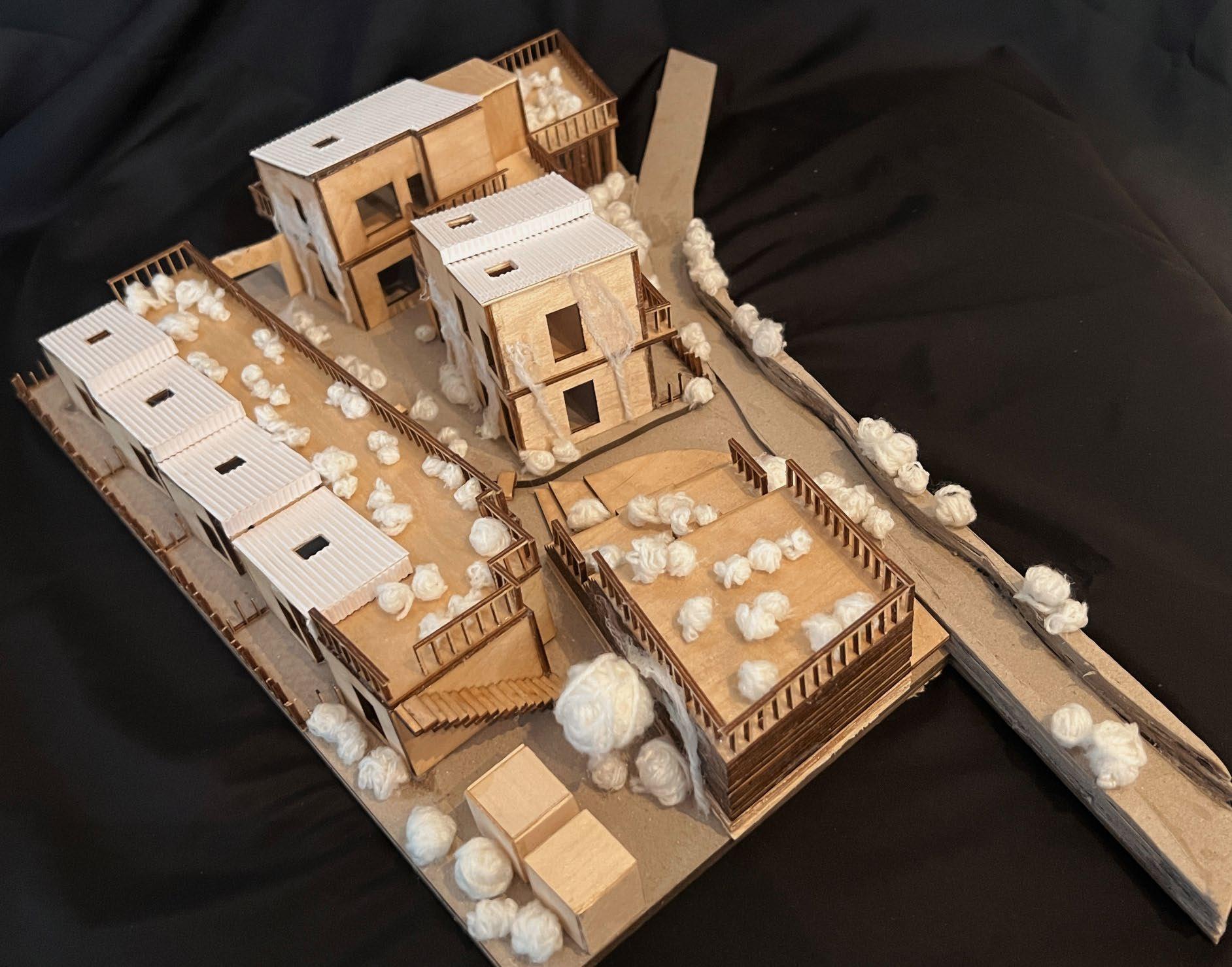

1:100 MODEL 36 37

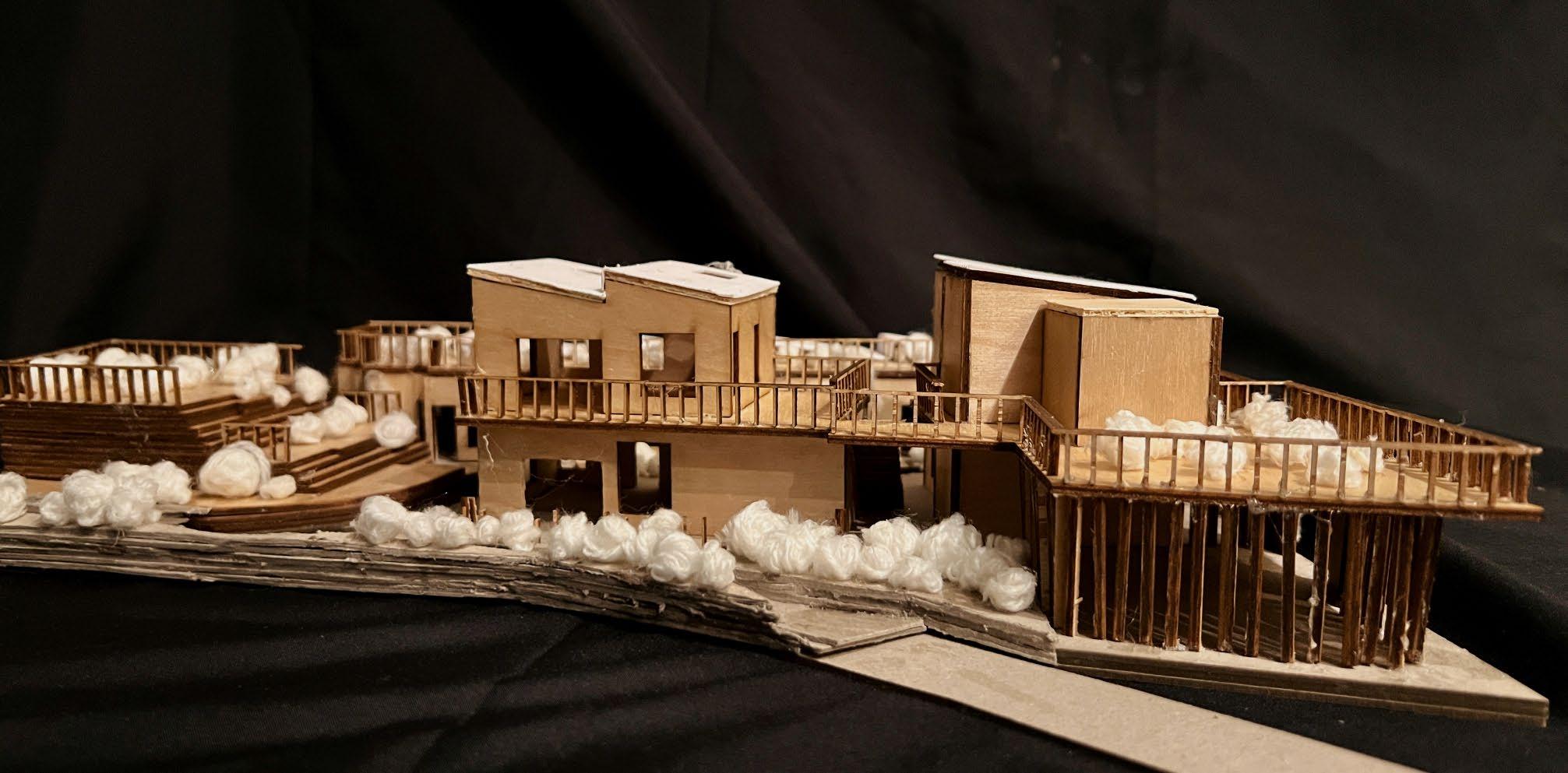

VIEW OF ELEVATION OF THE BUILDING
38 39

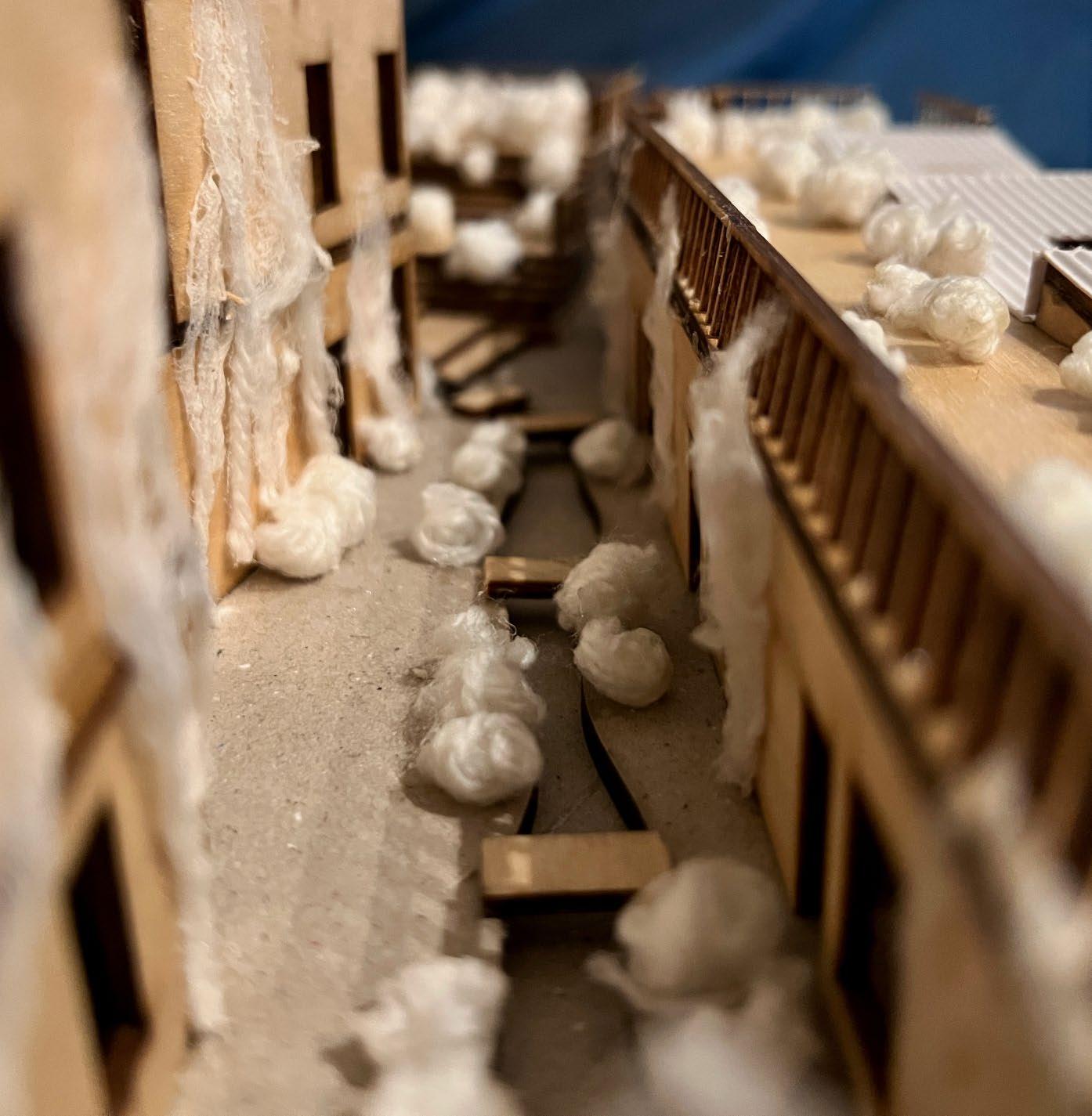

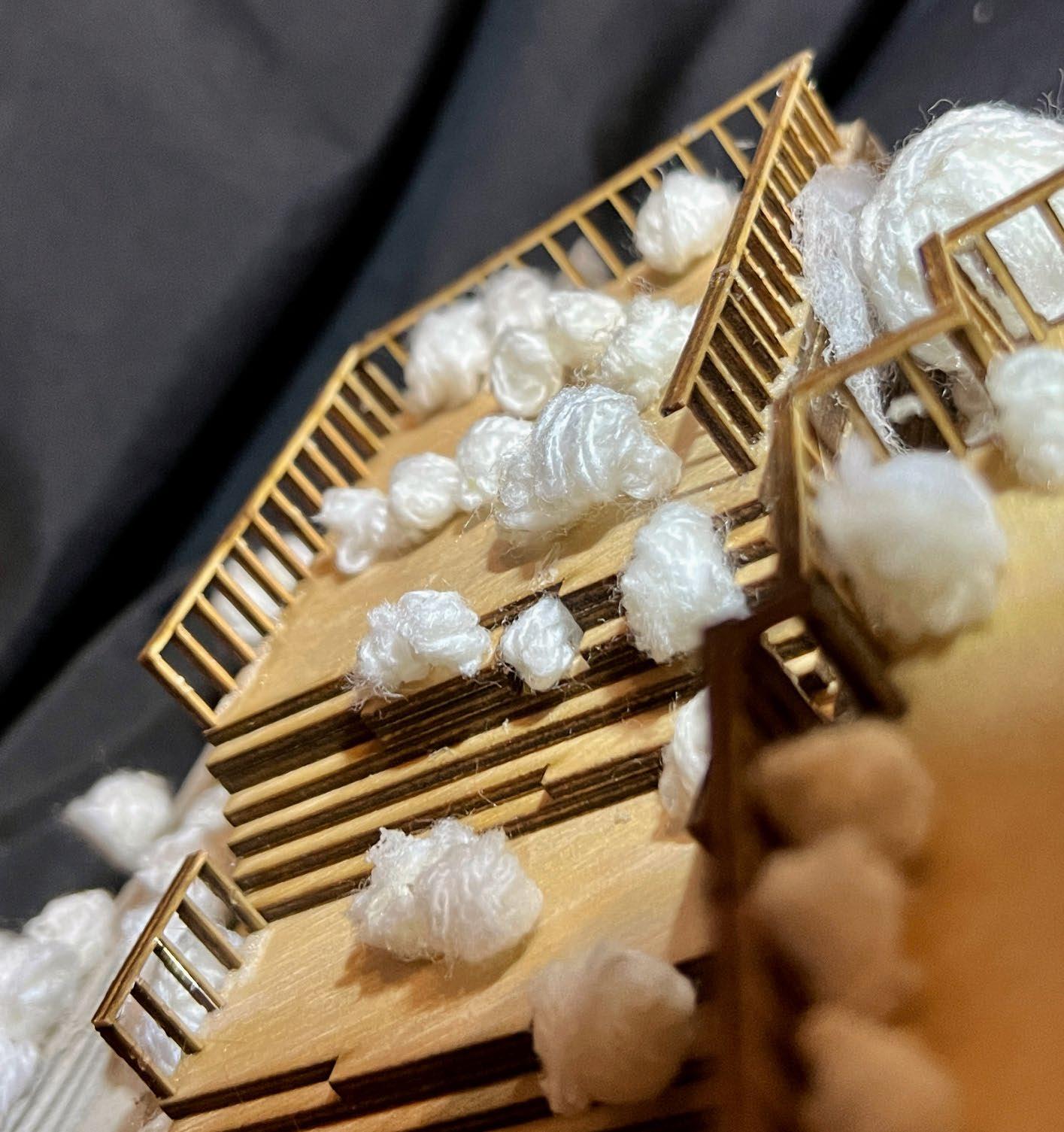

DETAIL SCENE OF THE MODEL
DETAIL SCENE OF THE MODEL
