LIFE CIRCLES JIAWEI HUANG 500034125 BDES2026 TUTOR:EMILY MALEK PORTFOLIO
2.CONCEPT----------------------------------------------------
4.THE FUTURE------------------------------------------------
PAGE 3-5 PAGE 6-10 PAGE 11-32 PAGE 33-34
TABLE OF CONTENTS
1.THE SITE----------------------------------------------------3.THE DESIGN------------------------------------------------

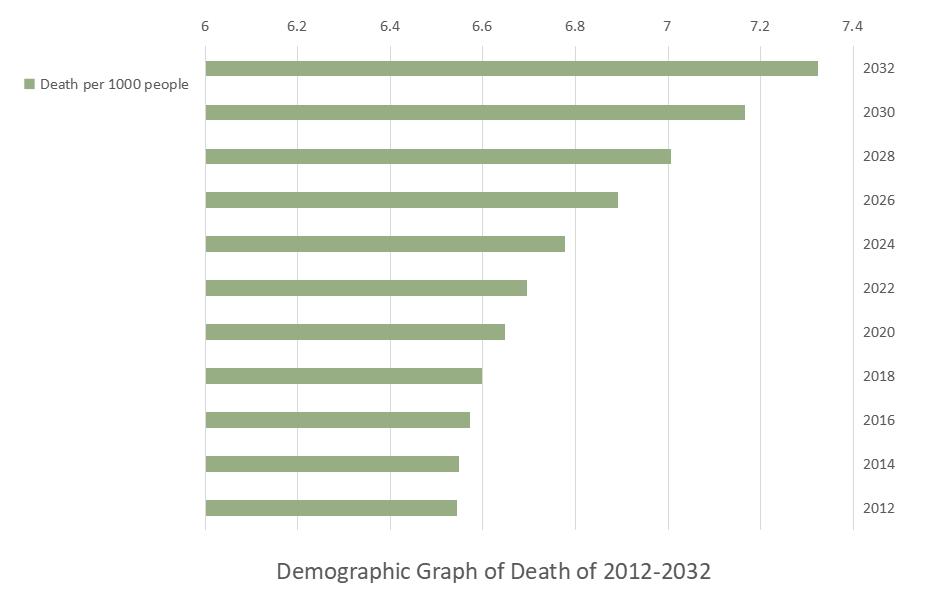

ACCORDING TO RECENT STUDIES, POPULATION AGING IS ACCELERATING DURING THE PERIOD FROM 2012 TO 2036. EVERY YEAR, THE NUMBER OF DEATHS RISES, AND THE DEMAND FOR CEMETERY PLOTS RISES AS WELL. HOWEVER, CEMETERY GROWTH IS CONSTRAINED BY VARIOUS RESTRAINTS AND LIMITED LAND, SO THE LACK OF CEMETERY PLOTS HAS BECOME ONE OF THE CONCERNS THAT MUST BE HANDLED IN NSW.

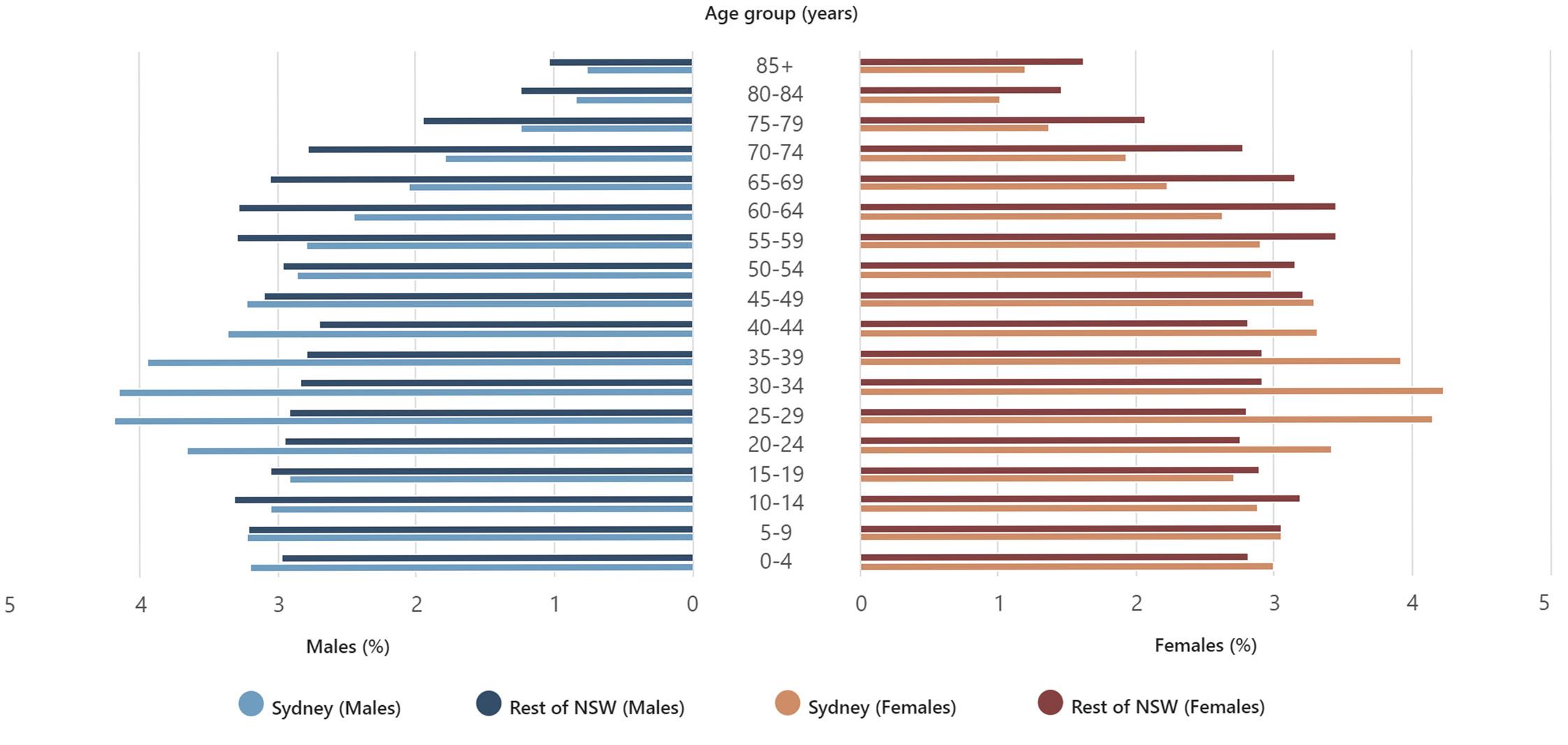

SITE-STATISTICAL GRAPHIC
3

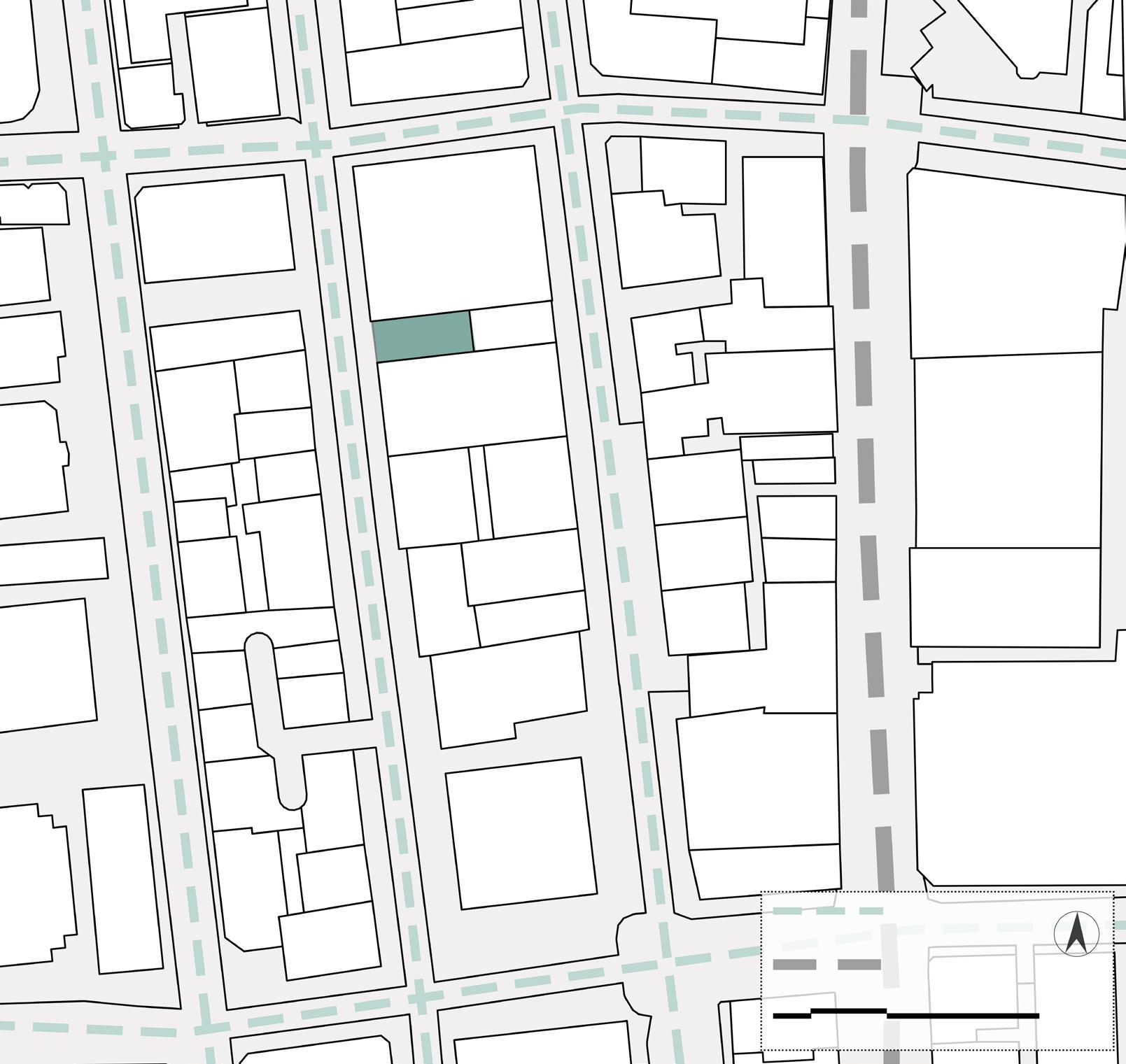

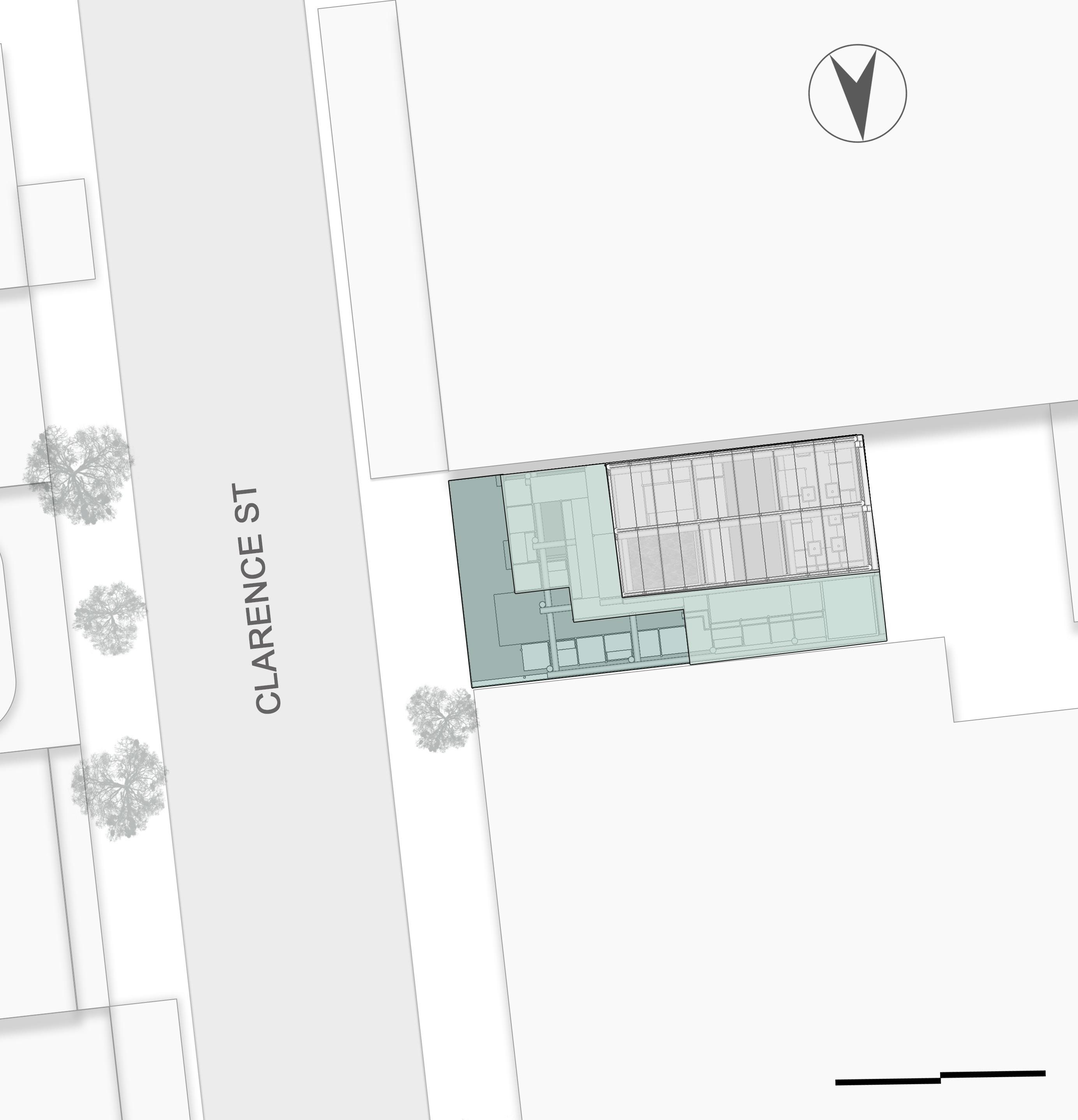

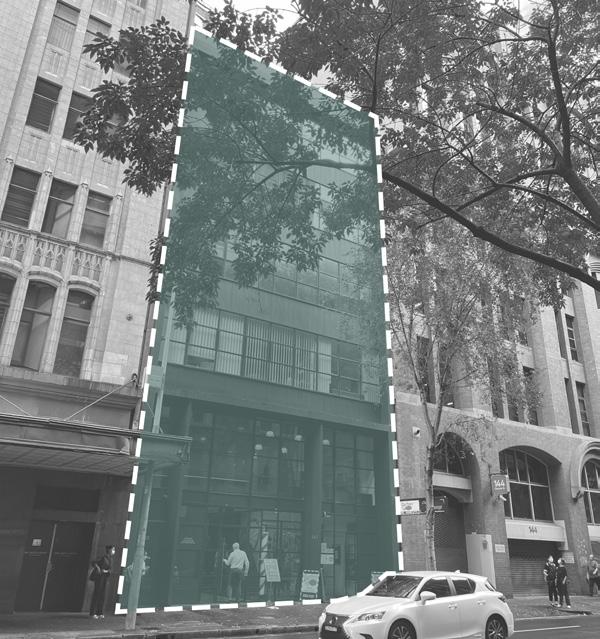

LOCATED AT 142 CLARENCE STREET, SYDNEY. IT IS LOCATED IN THE HEART OF SYDNEY'S CENTRAL BUSINESS DISTRICT AND HAS RELATIVELY CONVENIENT PUBLIC TRANSPORT, CLOSE TO WYNYARD STATION, TOWN HALL STATION AND BUS STATION.
SITE-SITE CONTEXT MAIN
PEDESTRIAN
0 10
ROAD
STREET
20 40

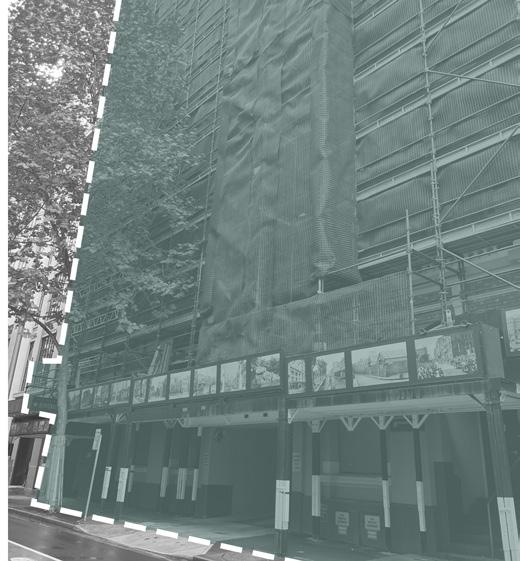

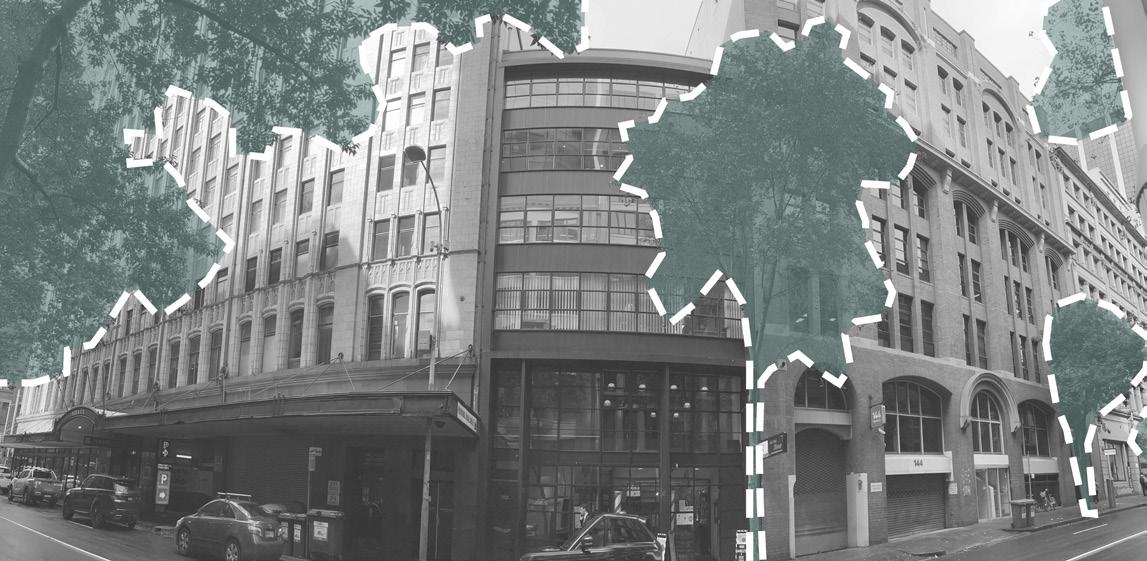

MANY BUILDINGS ARE UNDER CONSTRUCTION IN THE CITY CENTER, AND THERE IS A LOT OF CONSTRUCTION WASTE THE GREENING RATE IN THE CITY CENTER IS LOW, ONLY A FEW TREES ARE USED AS GREENING 4
0 5 10 SITE-SITE CONTEXT 5
EVERY MORTAL DIES, AND A CEMETERY IS COMMONLY THOUGHT TO BE WHERE THE DECEASED LIE ONCE THEIR LIFE HAS COME TO AN END, HOWEVER, THE END OF LIFE DOES NOT MEAN VIRTUALLY MEANINGLESS SLEEP UNDERGROUND.IT IS NOT ONLY A SITE WHERE THE LIVING REMEMBER THE DECEASED, BUT IT IS ALSO A STATION WHERE THE DECEASED CAN REINCARNATE AND CONTINUE TO PROVIDE NATURE AND THE LIVING WITH A DIFFERENT FORM OF LIFE.
WHAT I HOPE IS THAT THE COMBINATION OF WILDFLOWER NURSERY AND CREMATORIUM WILL SERVE AS A BRIDGE BETWEEN THE LIVING AND THE DEAD, CARRYING THE AFFECTION OF THE LIVING WHILE ALLOWING THE LIFE VALUE OF THE DEAD TO CONTINUE AND ALLOWING SPIRITUAL DISCOURSE BETWEEN THE TWO.
CONCEPT-STATEMENT
6

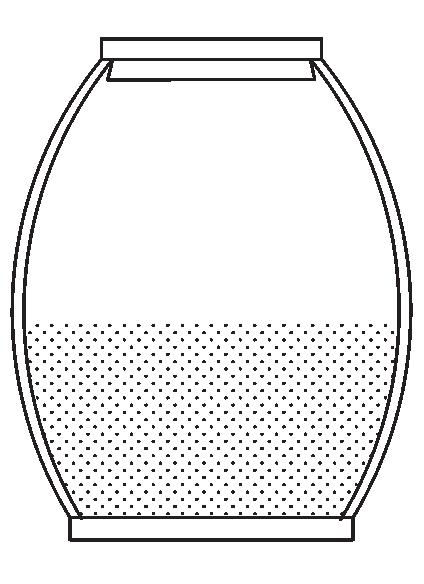

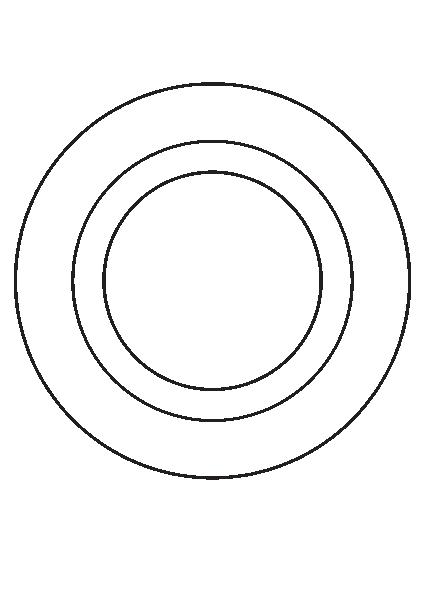

SYMBOLIZATION OF CREMETORIUM

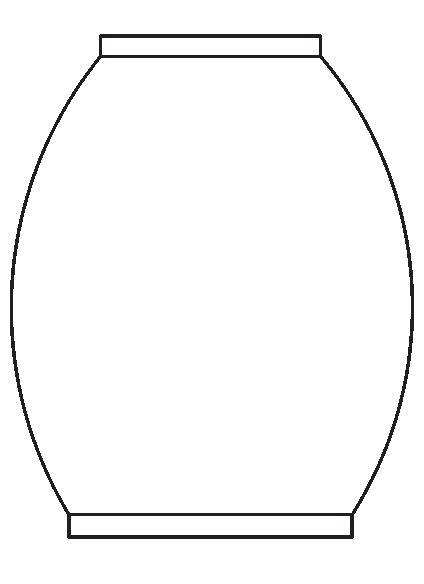

SYMBOLIZATION OF WIDEFLOWER NURSERY
CONCEPT-ORTHOGRAPHIC DRAWINGS
7
THE CREMATORIUM IS THE PLACE THAT TRADITIONALLY REPRESENTS DEATH, DUST, SADNESS AND HEAT. FOR WILDFLOWER NURSERIES, FLOWERS ARE ALWAYS A SYMBOL OF ALIVE, LIVING AND NATURE. FLOWERS ARE USED TO MAKING DEATH SEEM MORE BEAUTIFUL. ALSO, FLOWERS ARE THE SPIRITUAL SUSTENANCE OF THE BEREAVED. IN A SPECIAL SITUATION, TIME STOPPED FOR DEATH, BUT THE PLANTS’ TIME CONTINUES, IT CAN SEEM AS IF PLANTS ARE THE CONTINUATION OF LIFE.
AIMED TO FIND A RECYCLABLE BURIED METHOD IN URBAN PLACES, COMBING THE CREMATORIUM AND WILDFLOWER NURSERY HELPS TO SOLVE THE PROBLEM OF ASHES STORAGE AND FUNERAL PROBLEM, WHICH SATISFIES THE POSSIBILITY OF ECOLOGICAL CIRCULATION.
CONCEPT-COLLAGE
8

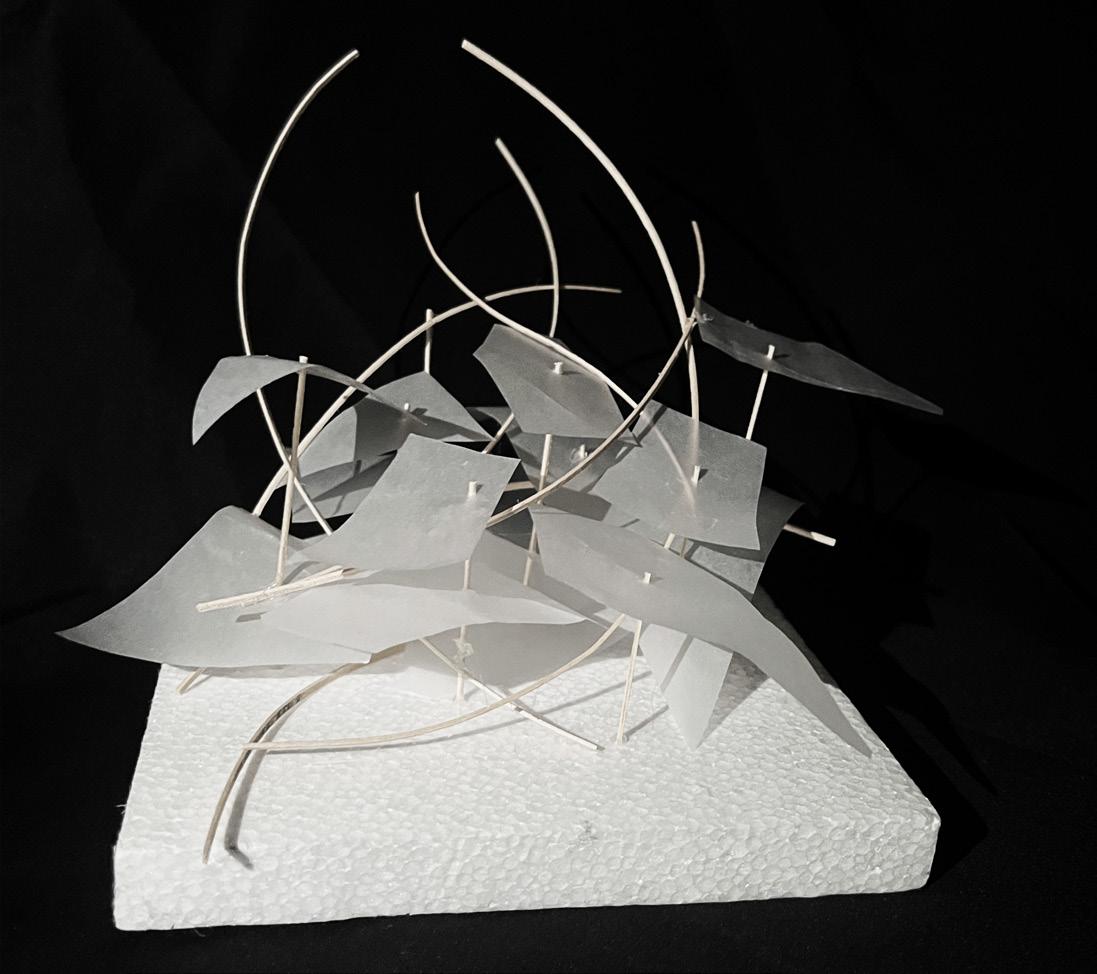

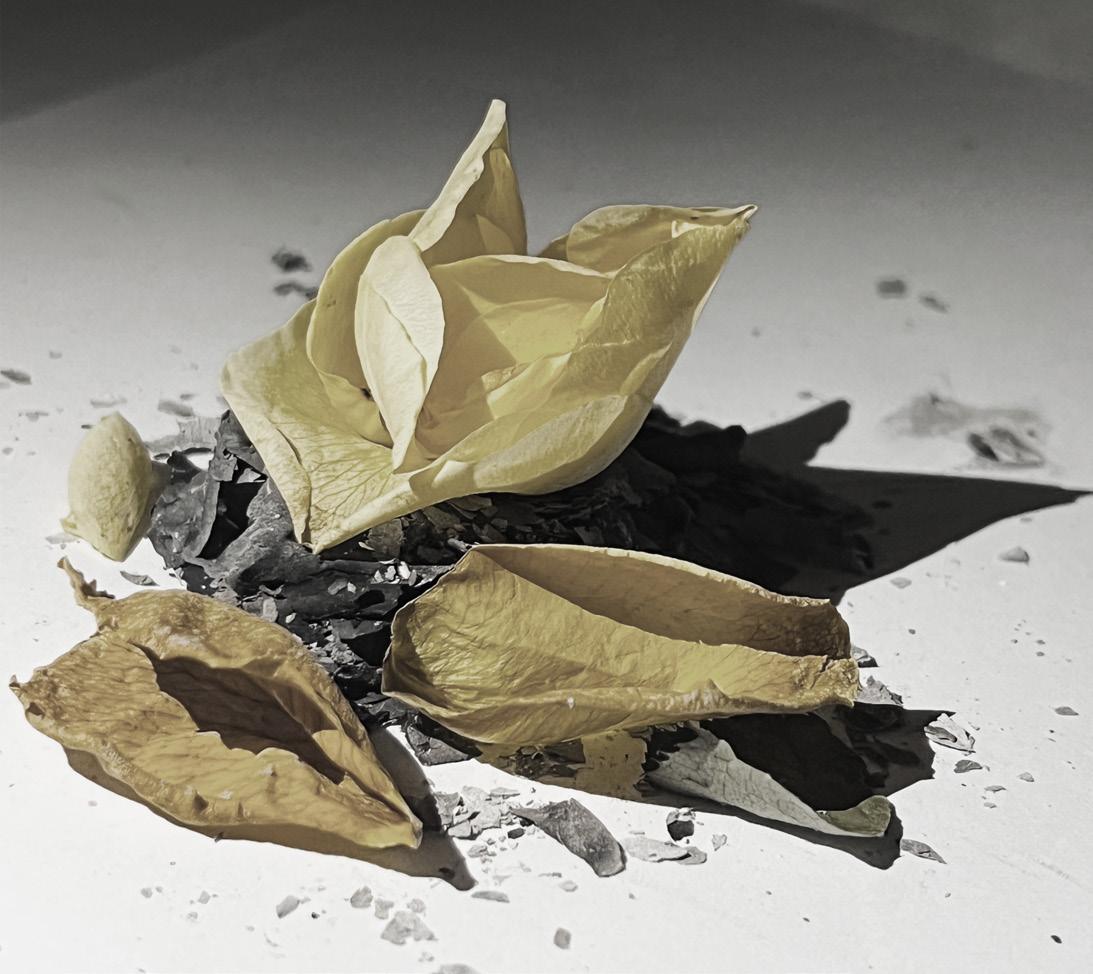

USING FIGURATIVE PETALS AND ASH TO REPRESENT THE WILDFLOWER NURSERY AND CREMATORIUM. THE CREMATORIUM IS REPRESENTED BY THE ASHES, IT REPRESENTS SILENCE, AND THE URN IS MONOTONOUS. NURSERY IS REPRESENTED BY PETALS, IT IS VIBRANT AND WILDFLOWERS ARE UNIQUE.THE MODEL SHOWS A STRONG CONTRAST IN THE RELATIONSHIP BETWEEN THE TWO FUNCTION.
CONCEPT-CONCEPTUAL
9
MODEL1

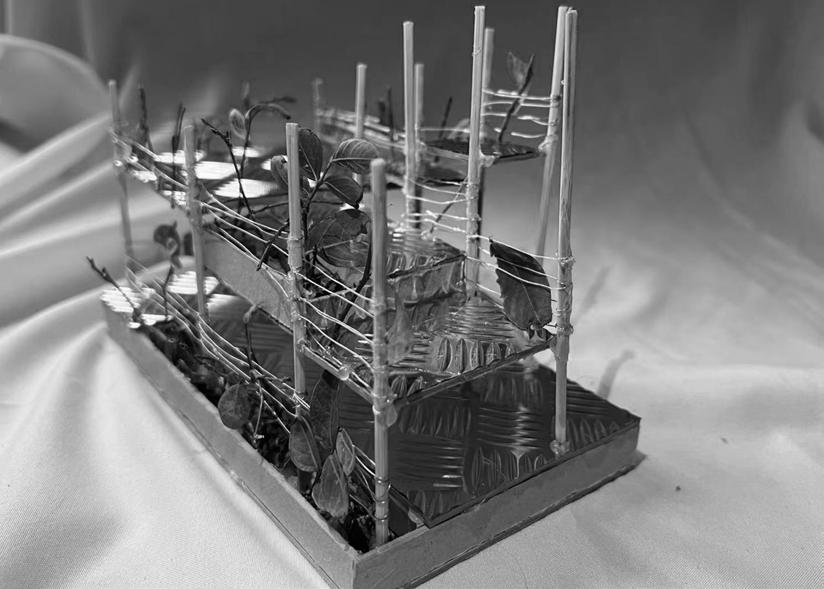

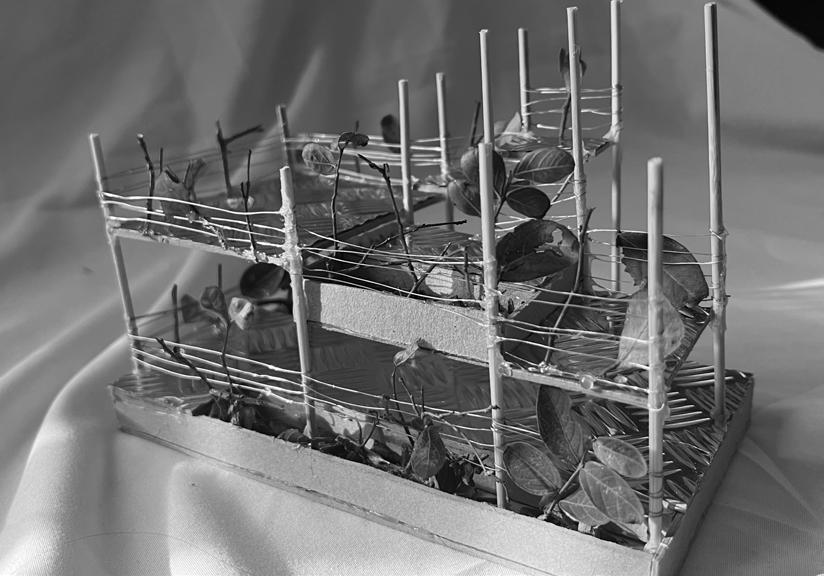

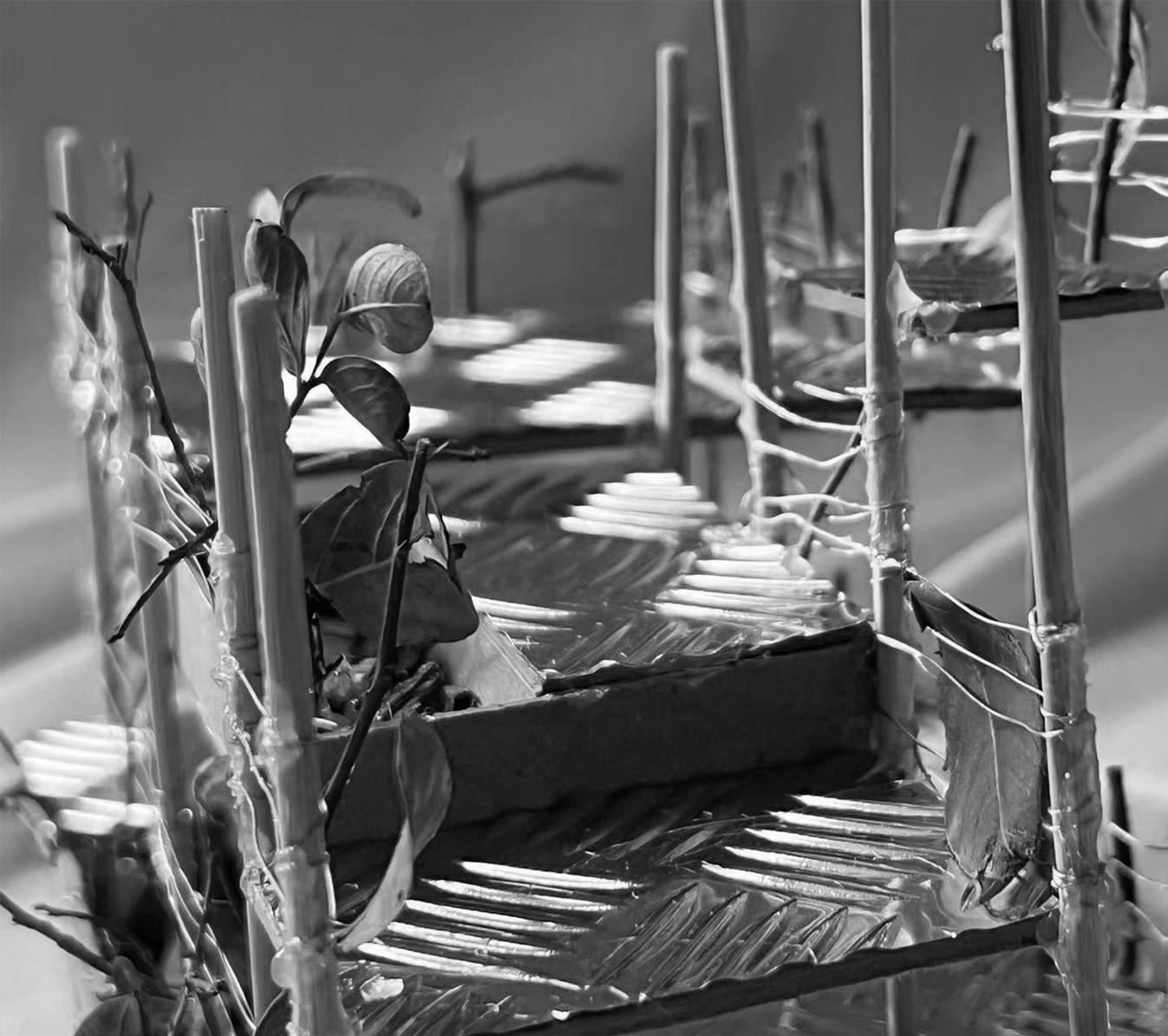

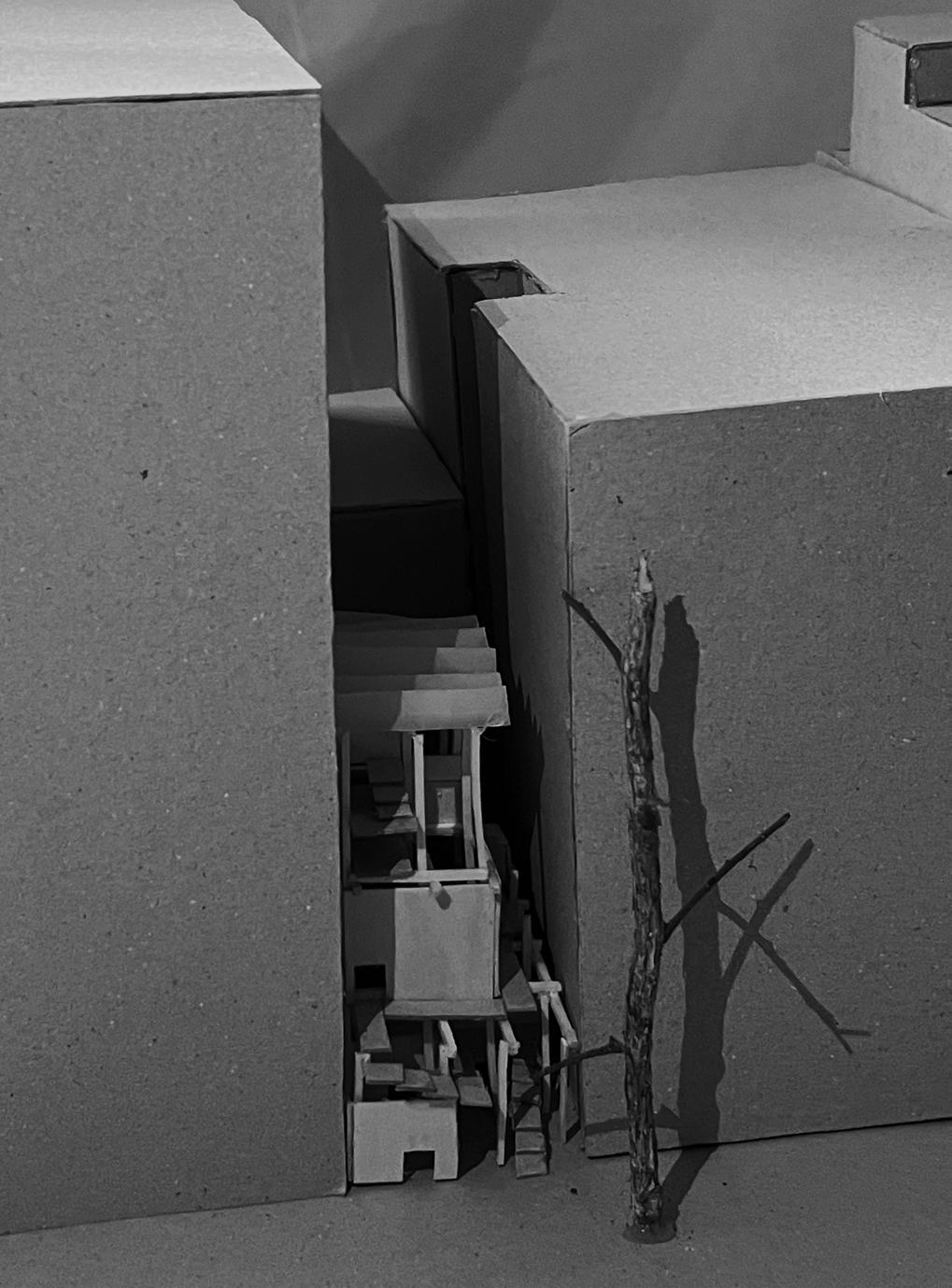

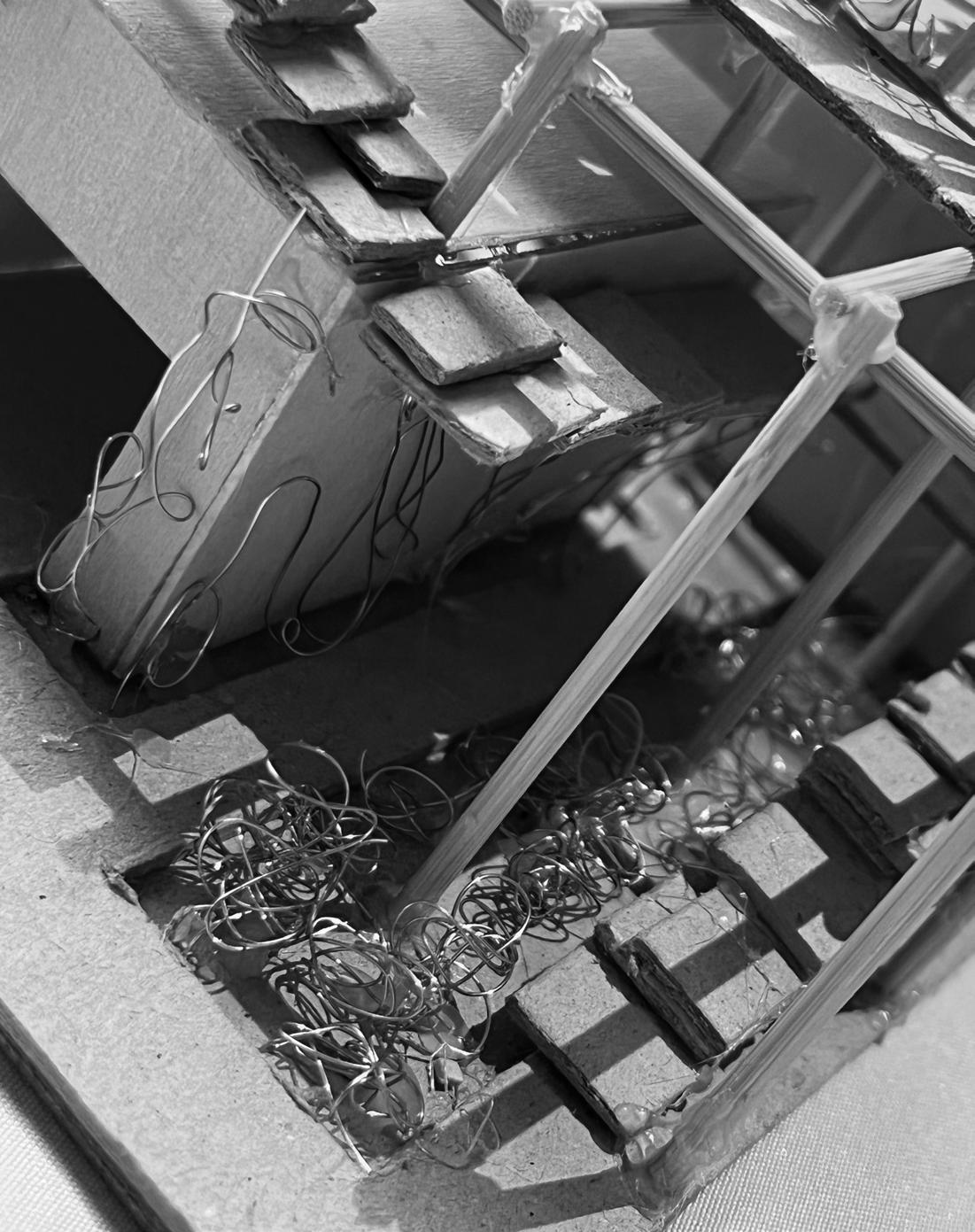

WILDFLOWERS HAVE A GREAT DEAL OF STRENGTH AND VIGOUR. TO DEMONSTRATE THIS, I UTILISED TOUGHER WOOD STICKS. INSTEAD, IN A CREMATORIUM, THE DECEASED LOSE THEIR LIFE AND BECOME ASHES, THEY ARE LIGHT, AND I DEMONSTRATED THIS WITH TRACING PAPER.

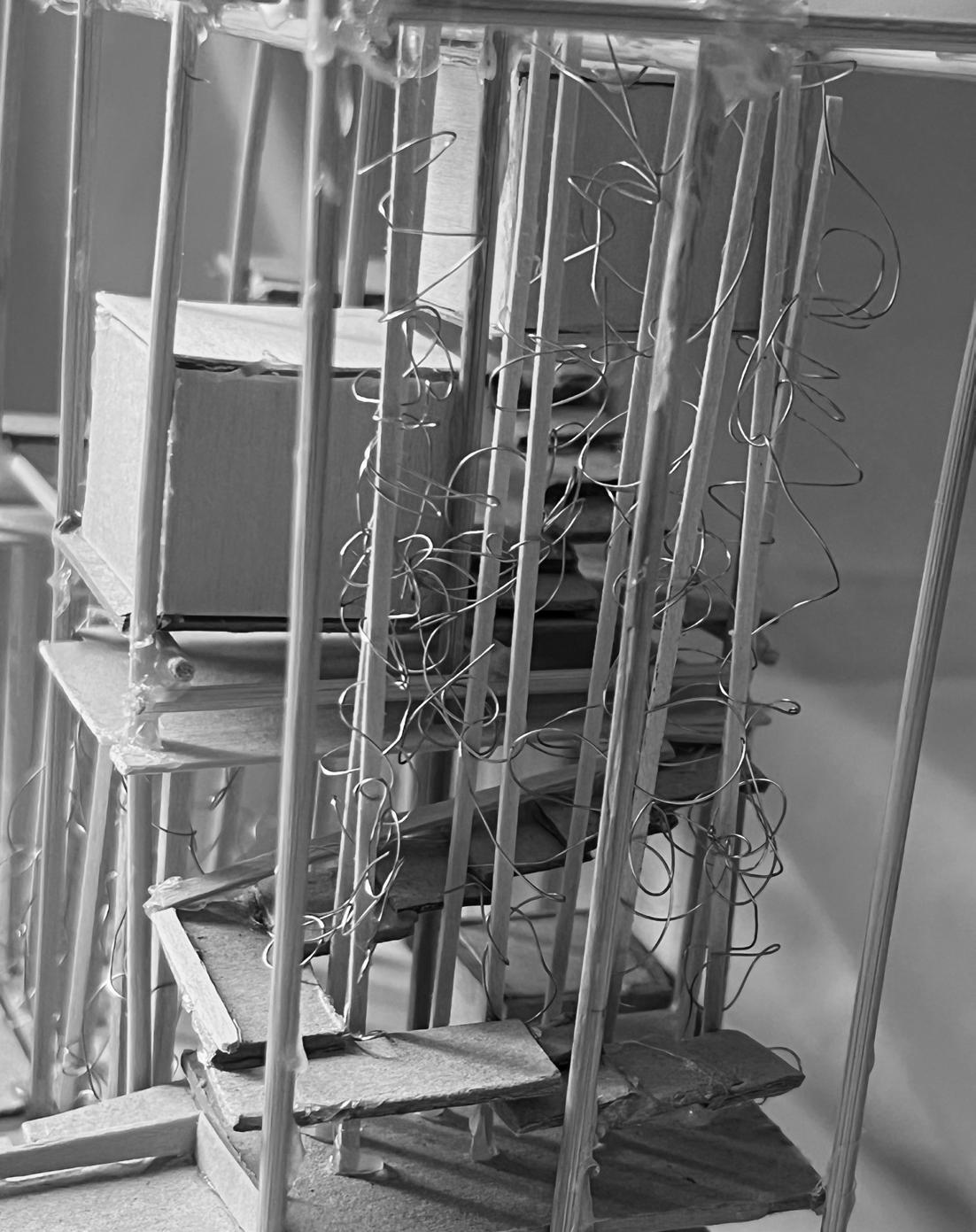

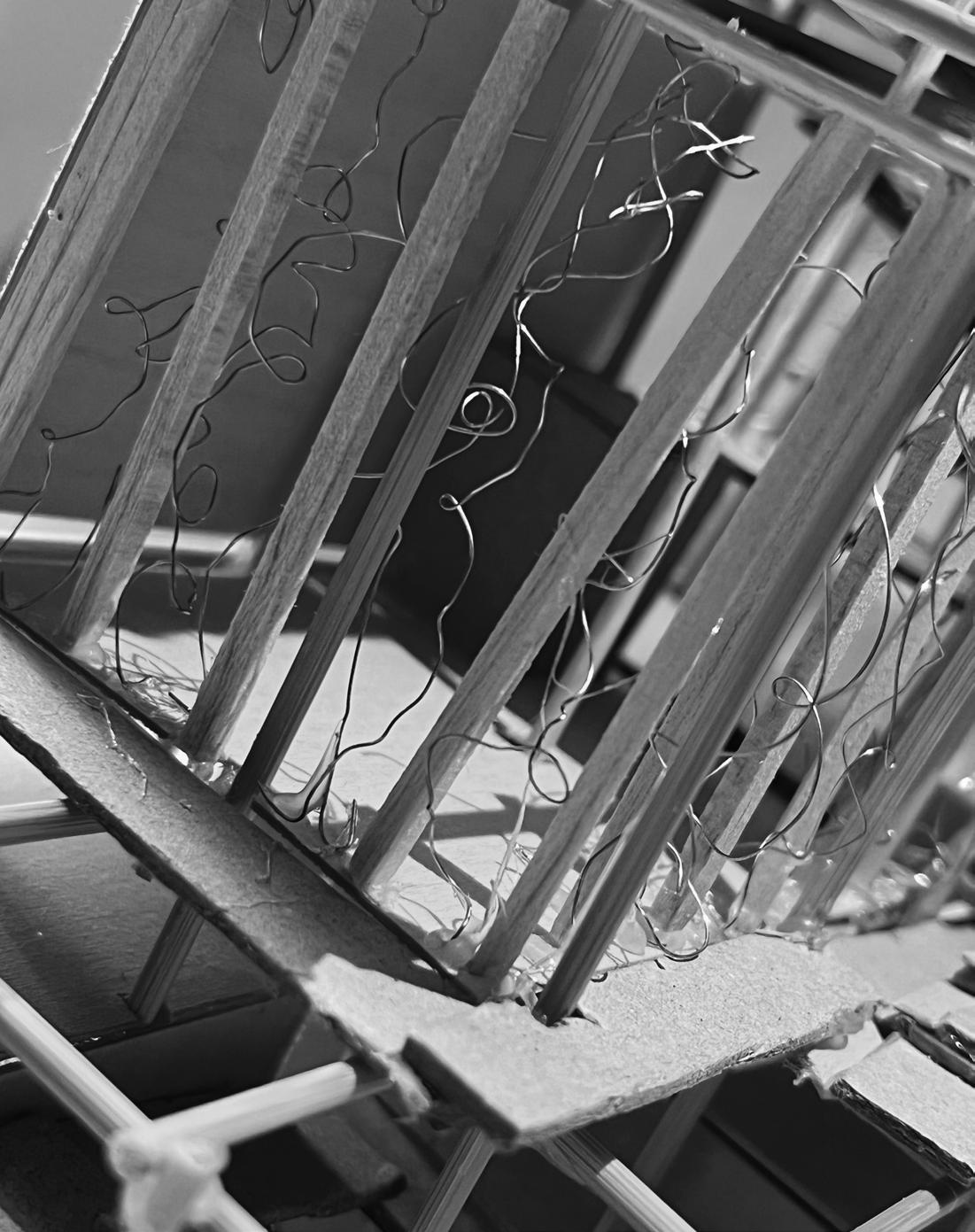

ADVANCING THE CONCEPT OF USING THE CREMAINS OF THE DECEASED AS SEED GERMINATION NUTRIENTS TO REPRESENT THE REINCARNATION OF LIFE THROUGH THE PROCESS OF SEED GERMINATION AND GROWTH.
CONCEPT-CONCEPTUAL
MODEL2
10
CHALLENGES
STATEGIES
-DUE TO THE INFLUENCE OF SURROUNDING BUILDINGS ON LIGHT, THERE IS A PROBLEM OF INSUFFICIENT LIGHT
-MINIMIZE BLOCKING OF LIGHT AS MUCH AS POSSIBLE AND USE A STEPPED APPROACH TO BRING LIGHT INTO THE ROOM
-INSUFFICIENT GREENING IN URBAN CENTERS
-FOR THE FUTURE DEVELOPMENT OF THE CITY, THE BUILDING NEEDS TO BE ECO FRIENDLY
-TURN THE WILDFLOWER NUESERY INTO AN URBAN VERTICAL PARK, A GREEN LUNG OF THE CITY, WHICH PROVIDES OXYGEN AND ABSORBS CARBON DIOXIDE FOR THE CITY -MAKING BUILDINGS ENVIRONMENTALLY FRIENDLY IN TERMS OF EXHAUST GAS TREATMENT, USE OF BUILDING MATERIALS, GREENERY IN BUILDINGS, ENERGY RECOVERY AND ASH DISPOSAL
DESIGN-CHALLENGE & STATEGIES
11
BRING BACK HOME
-DISPOSED BY FAMILIES
DEPOSITING ASHES CREMAINS (SPEACIAL TREATED) SEEDING GERMINATING MATURING
THE DEATH CAN REINCANATE AND CONTINUE TO NATURE
DESIGN-PROCESS STEPS OF ASHES
12
NOT BRING BACK HOME
-DISPOSED BY WILDFLOWER NURSERY
DESIGN-PROCESS STEPS OF ASHES
USED AS MUNICIPAL GREENING 13
THE DEATH CAN REINCANATE AND CONTINUE TO NATURE DEPOSITING ASHES CREMAINS (SPEACIAL TREATED) SEEDING QR CODE PHONE MONITORING MANAGEMENT HANDICRAFT GERMINATING MATURING DISPLAY
SALE AS NORMAL FLOWERS
14
1 2 3 4 DESIGN-DESIGN PROGRESS REQUIRED STRUCTURE ENSURE THE STABILITY ENSURE TRAFFIC RATIONALITY LOAD INTO INTROVERTED SPACE
CROSS SECTION
0 1 2 3 4 5 LONG
SECTION
DESIGN-GROUND
15

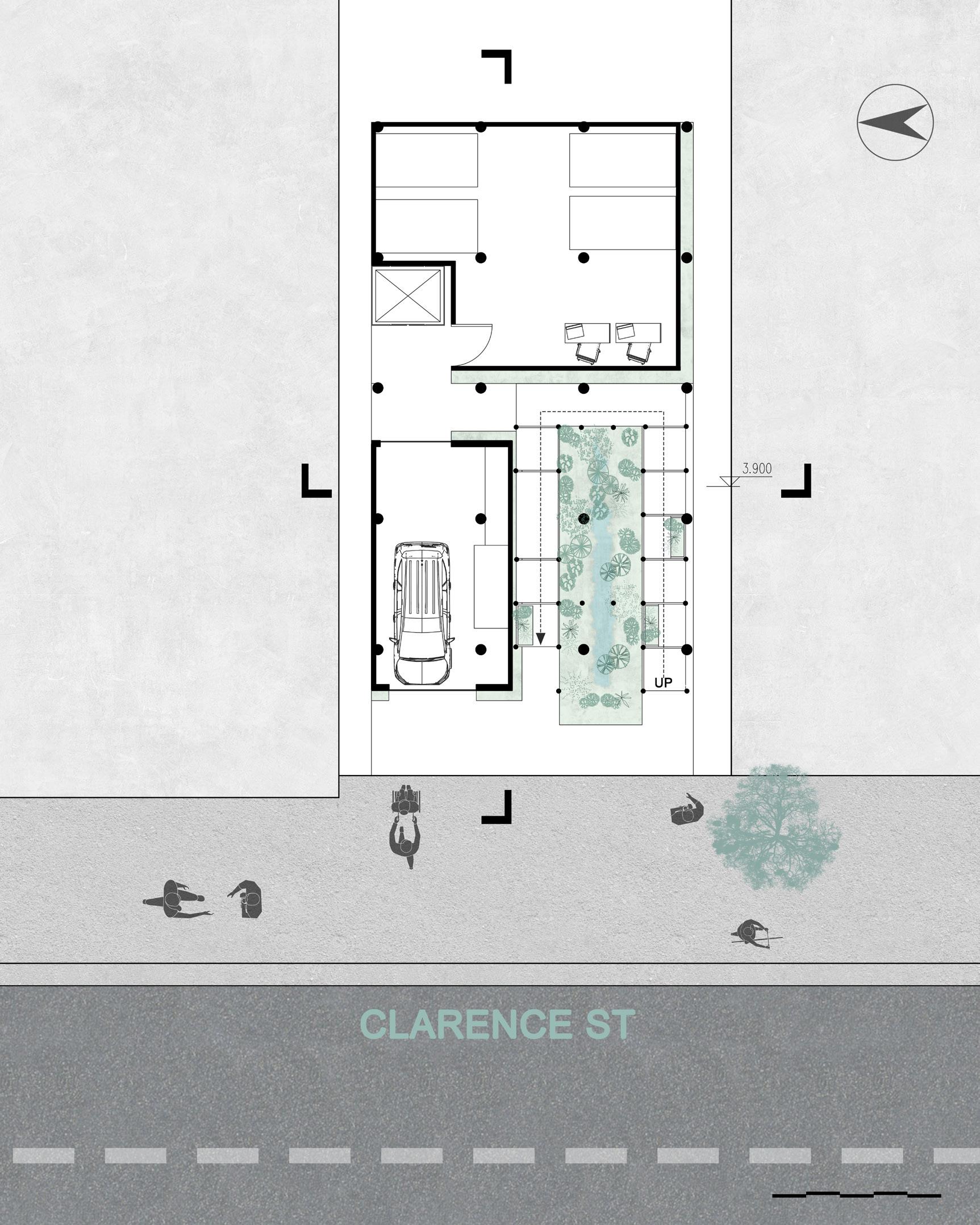

FLOOR PLAN

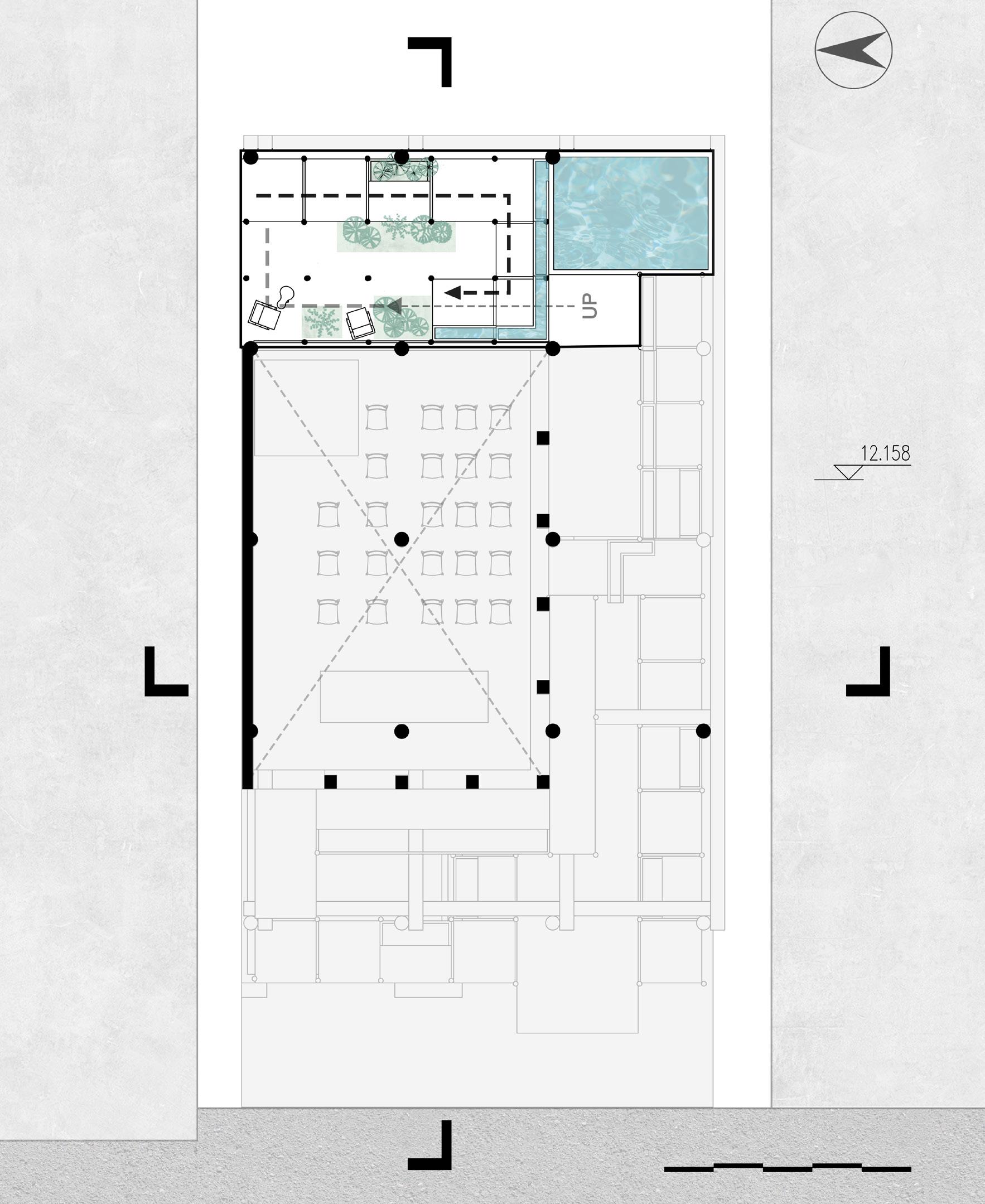

0 1 2 3 4 5 DESIGN-FIRST FLOOR PLAN
LONG SECTION 16
CROSS SECTION

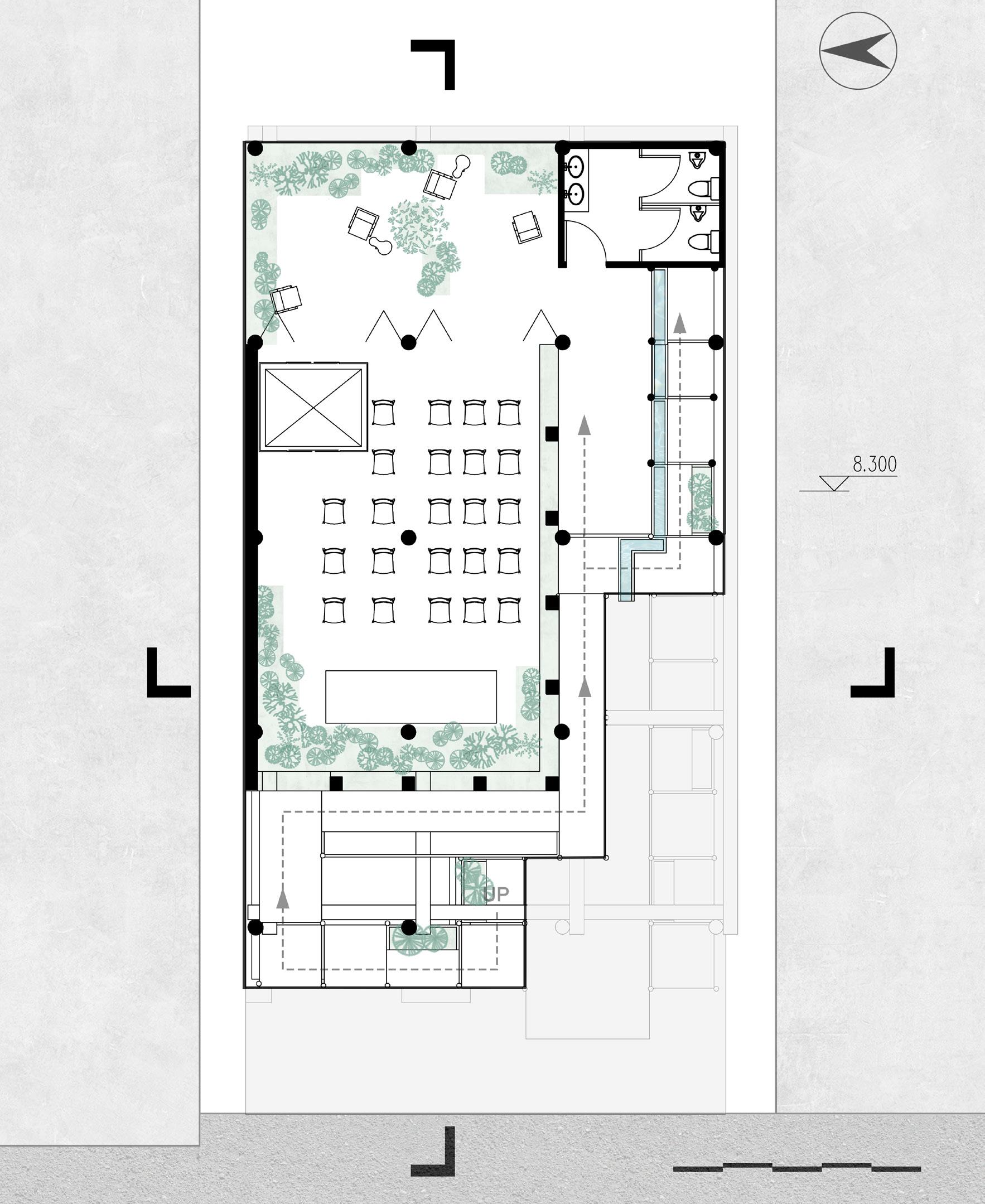

DESIGN-SECOND FLOOR PLAN
LONG SECTION 0 1 2 3 4 5 17
CROSS SECTION
CROSS SECTION

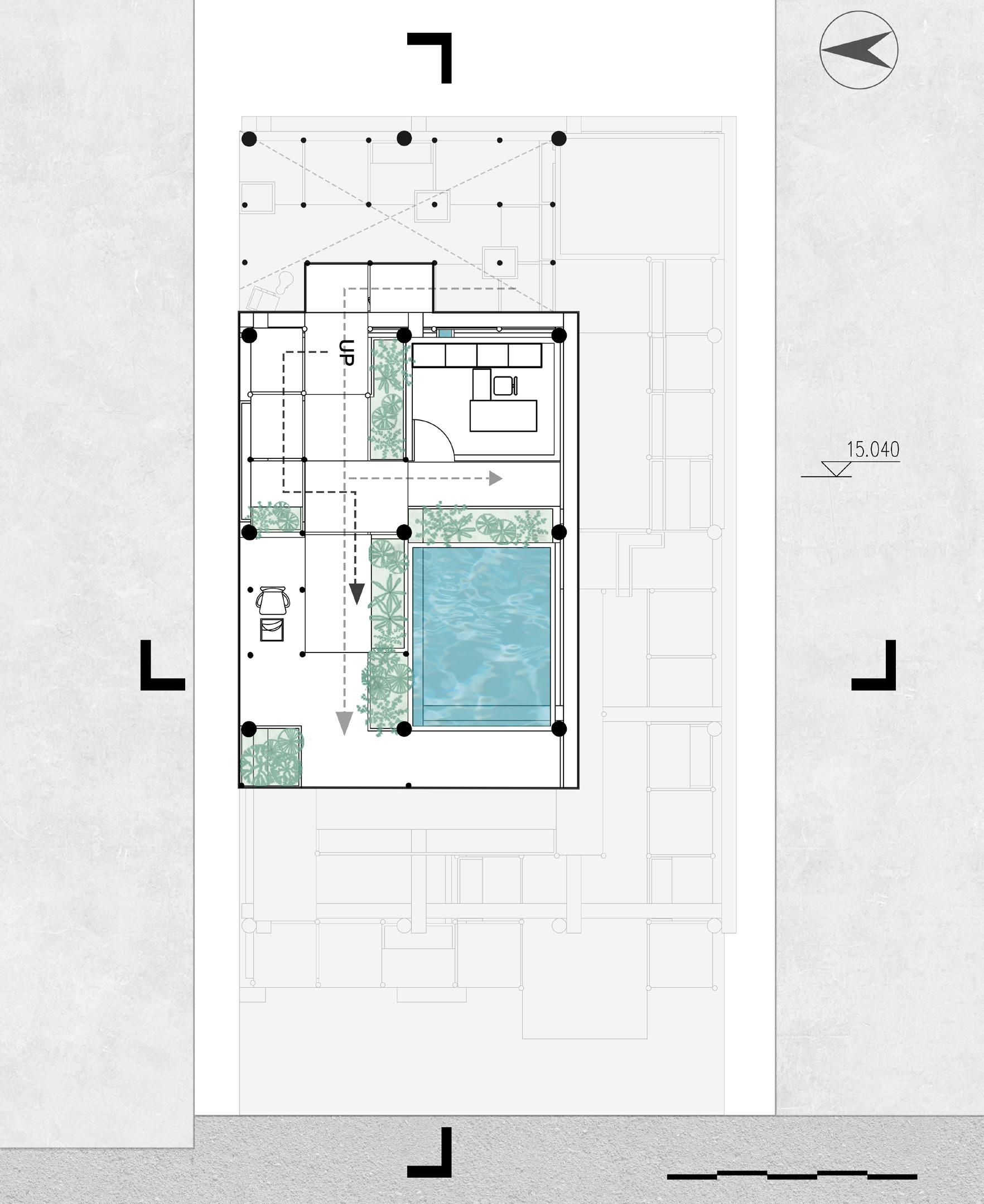

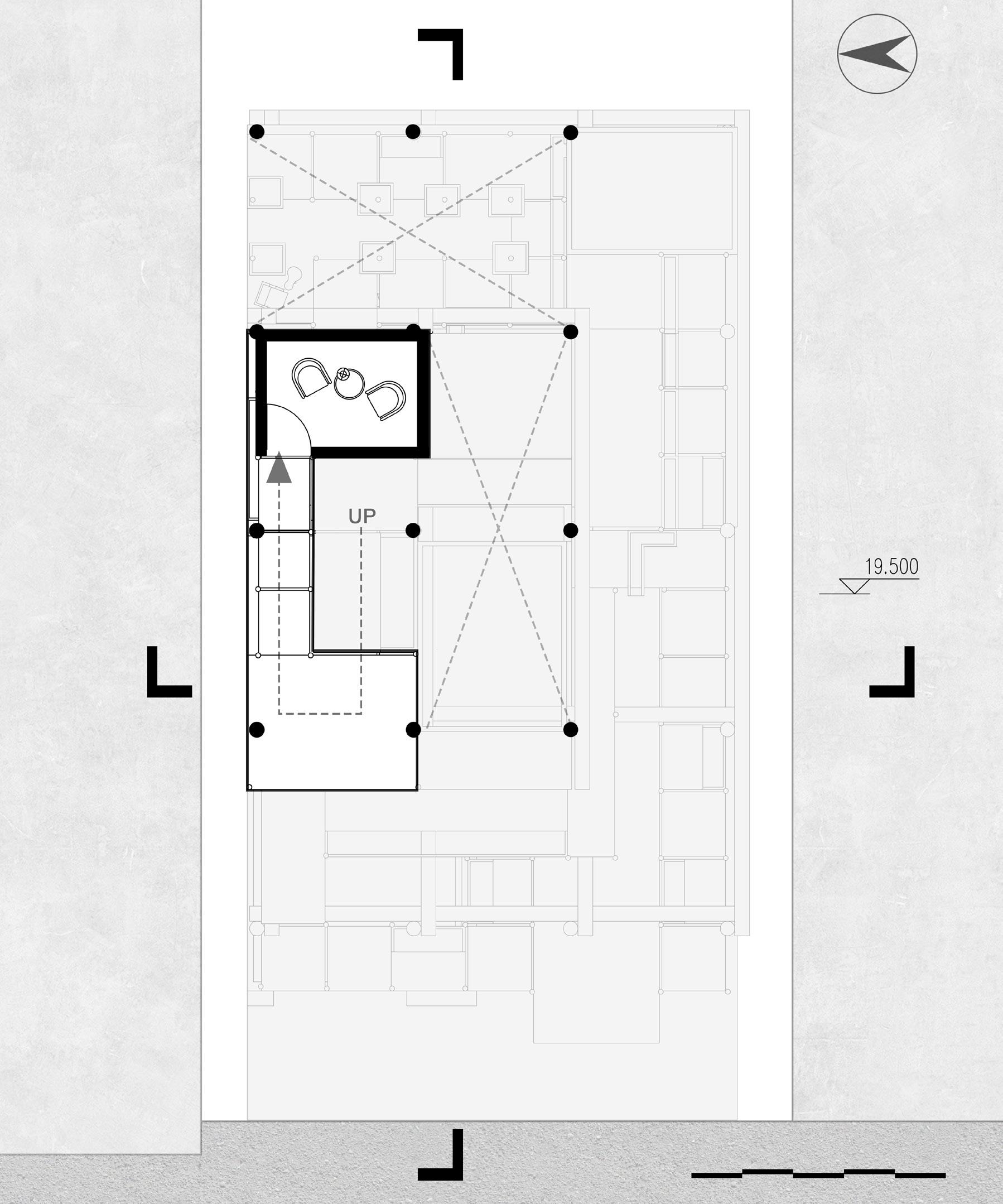

0 1 2 3 4 5 DESIGN-THIRD FLOOR PLAN
LONG SECTION 18
LONG SECTION DESIGN-FOURTH FLOOR PLAN 0 1 2 3 4 5 19
CROSS SECTION
DESIGN-LONG SECTION
FLOOR THIRD FLOOR SECOND FLOOR FIRST FLOOR GROUND FLOOR 0 1 2 3 4 5 20
FOURTH

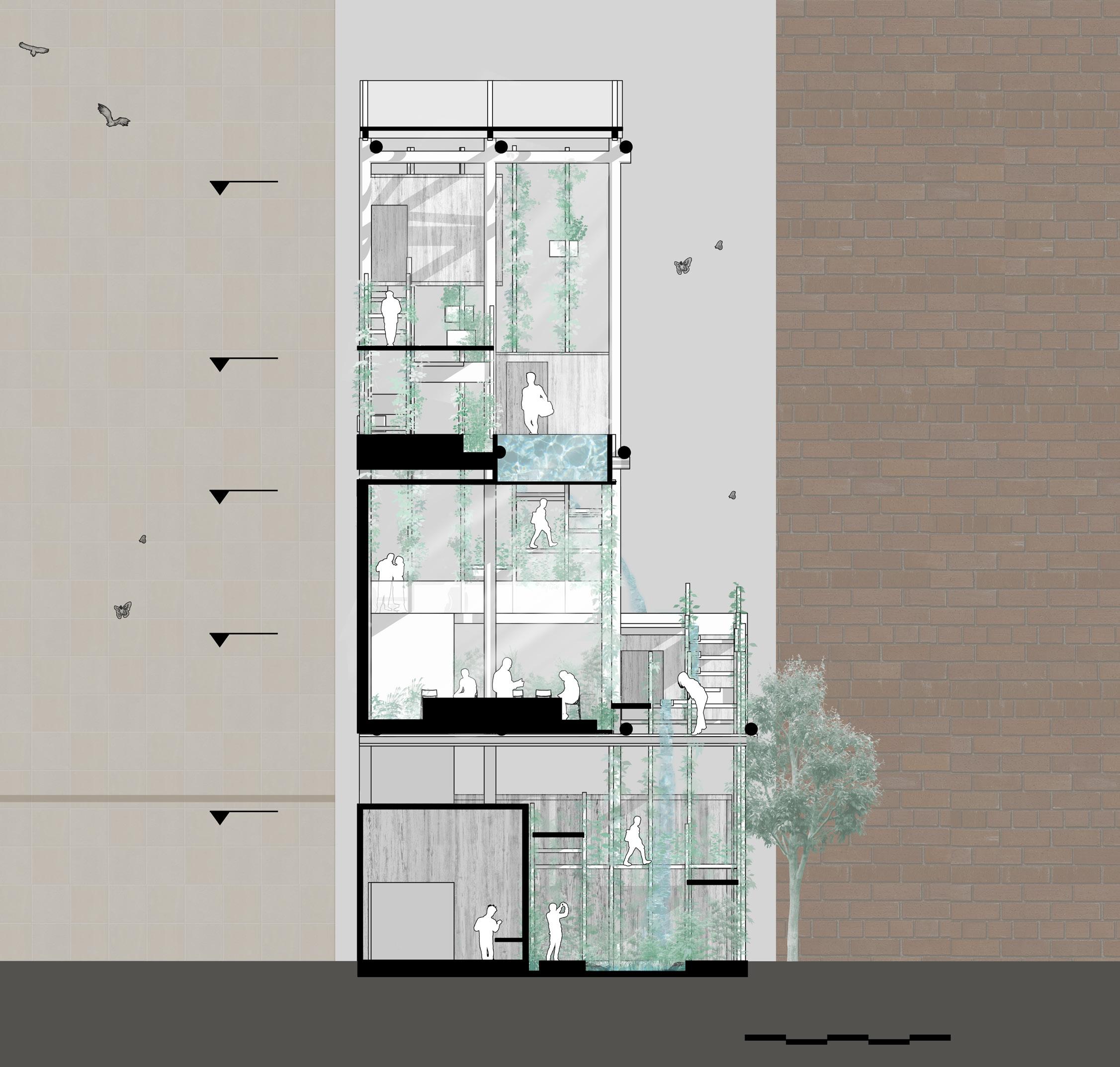

DESIGN-CROSS SECTION
FLOOR THIRD FLOOR SECOND FLOOR FIRST FLOOR GROUND FLOOR 0 1 2 3 4 5 21
FOURTH

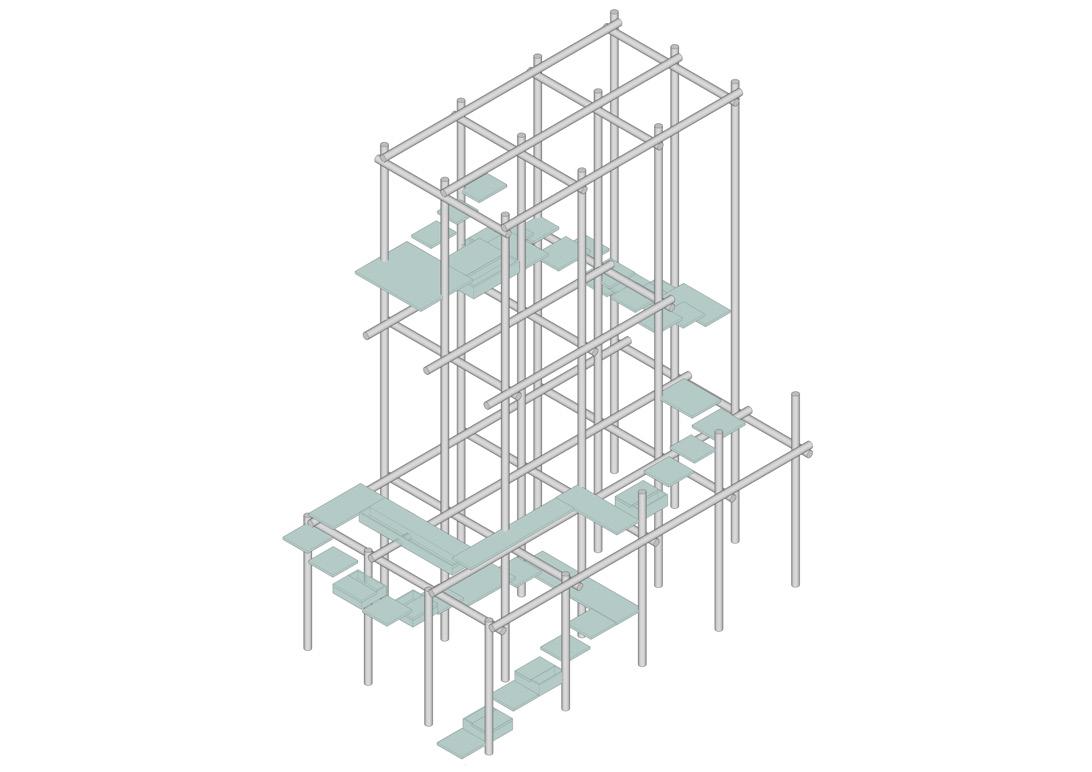

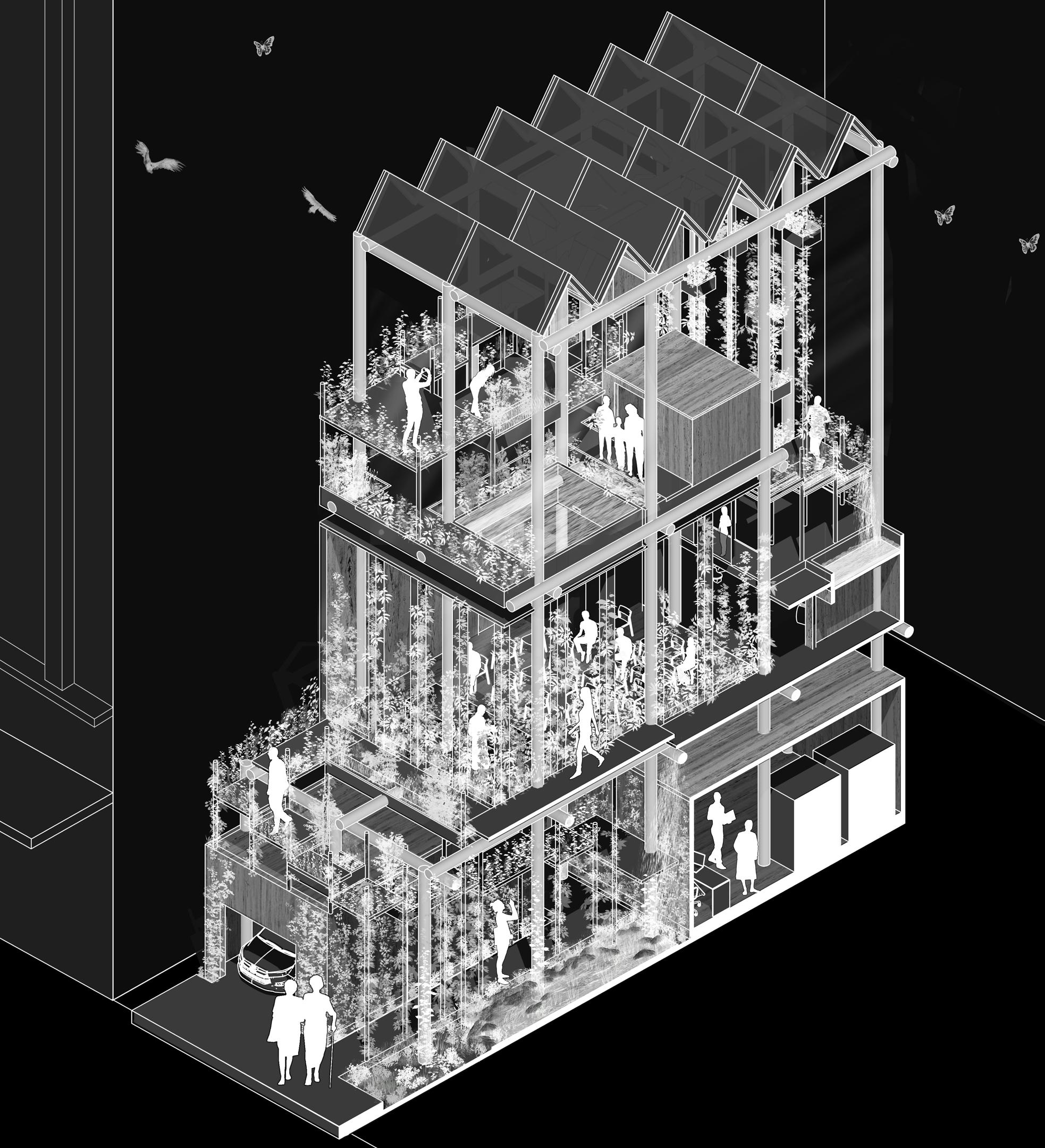

DESIGN-PARALINE DRAWING 22

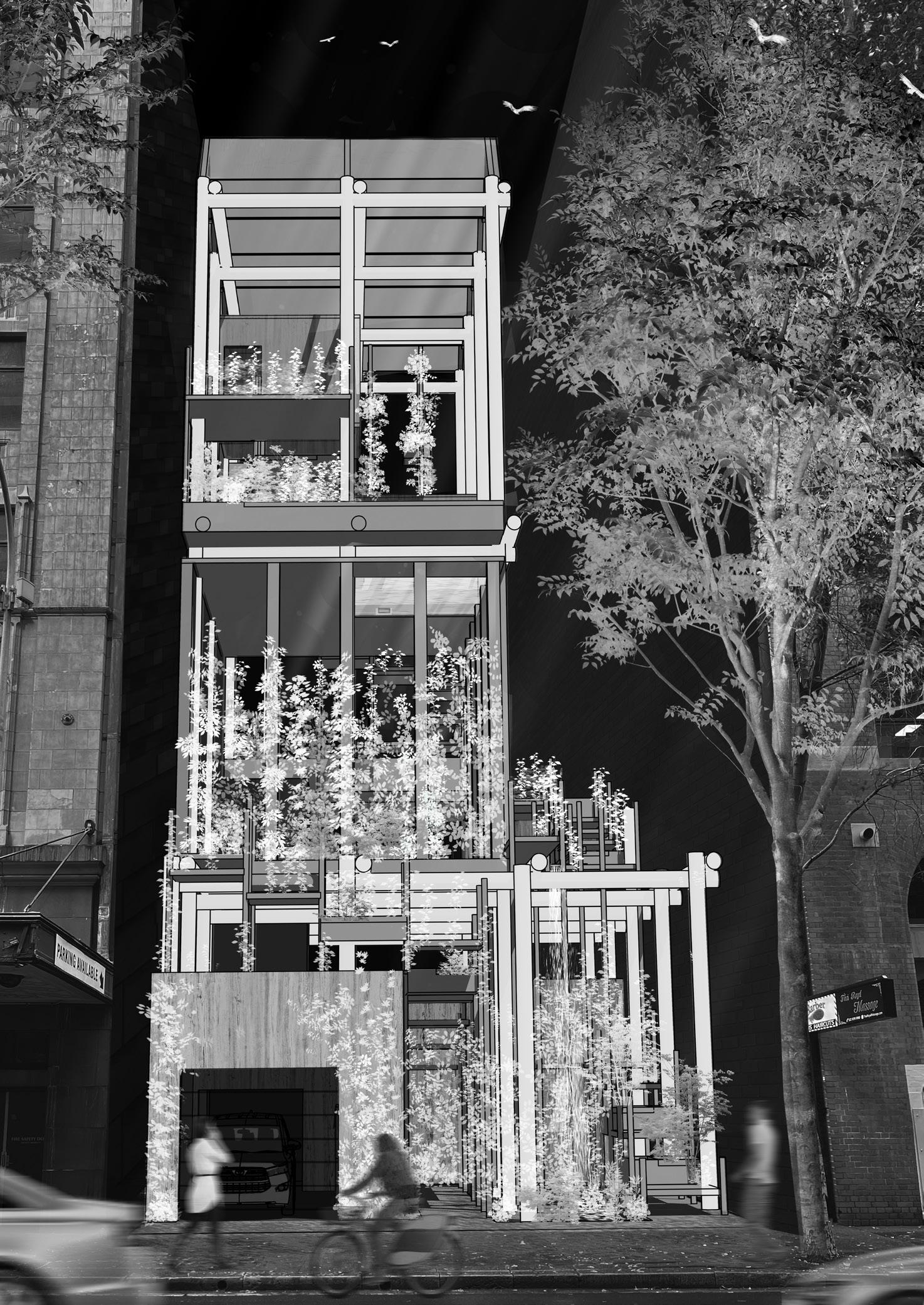

ENTERENCE- FEEL LIKE WALKING IN THE REAL NATURE
DESIGN-DETAIL SCENE
23

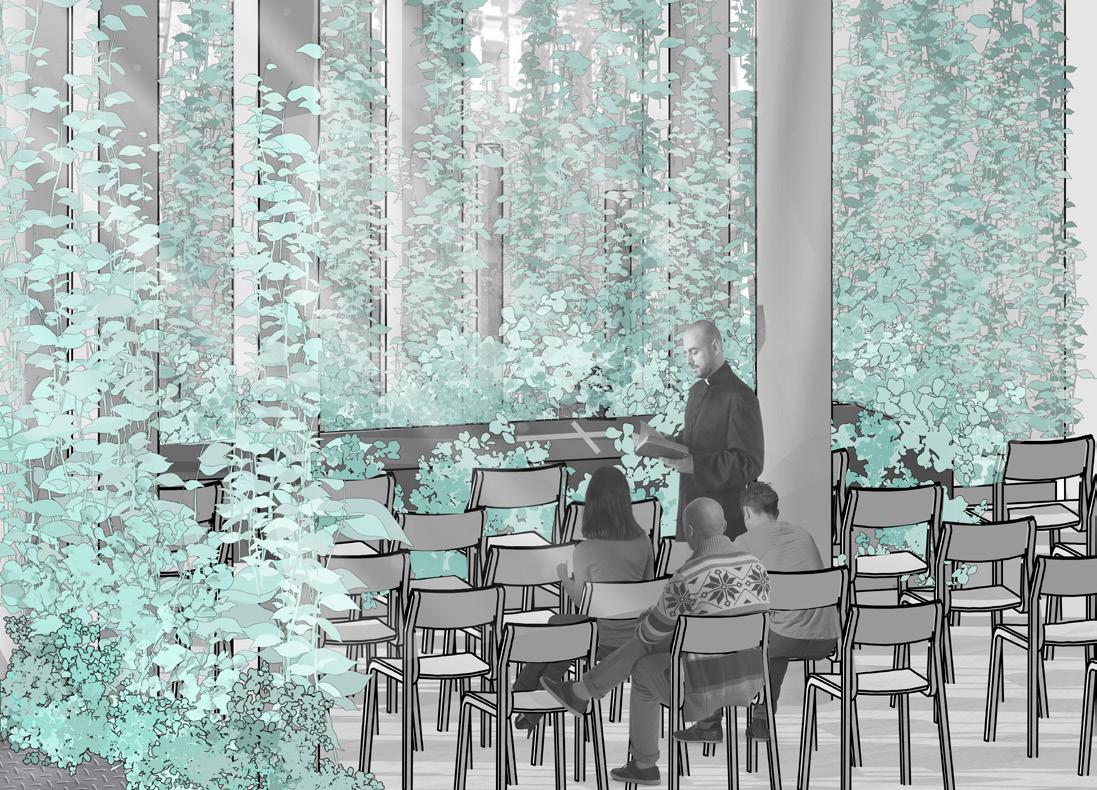

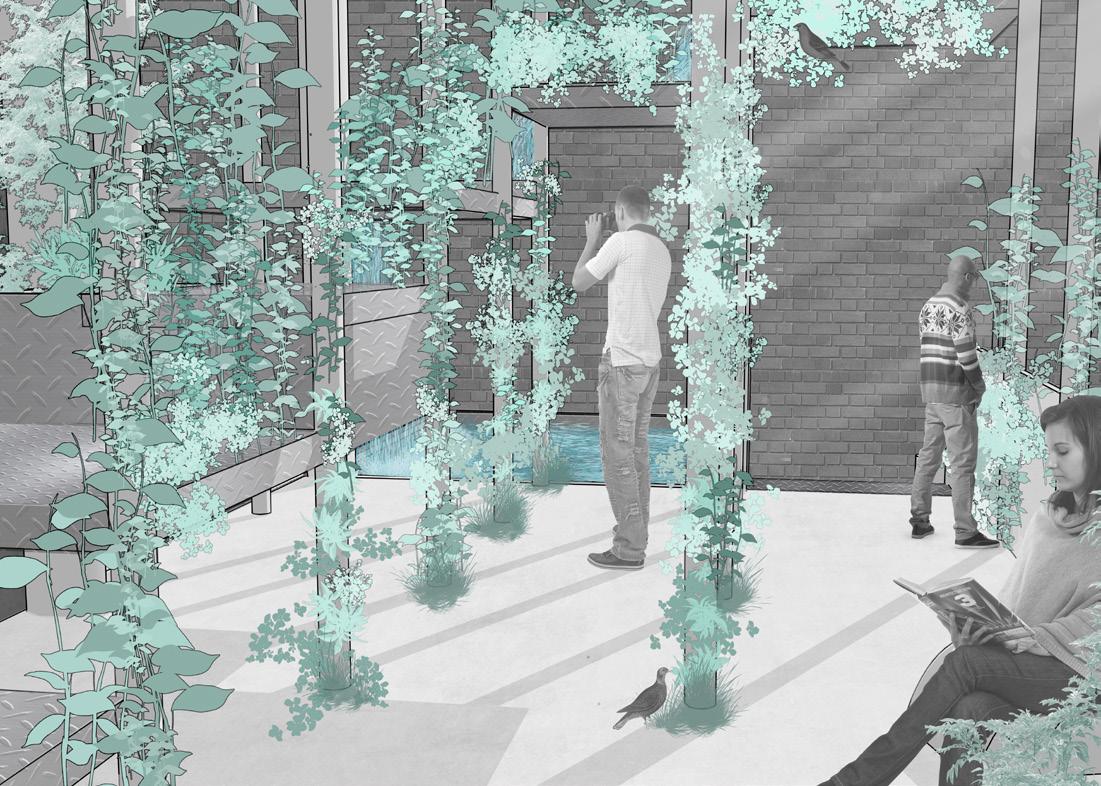

1F MEMORIAL HALL- PLANTS AND ILLUMINATED POOL PROVIDE VARIABLE LIGHT TO CREATE A SACRED ATMOSPHERE.
2F PLATFORM- PROVIDE A RESTING PLACE WITH SMALL WATERFALL.
DESIGN-DETAIL SCENE
24

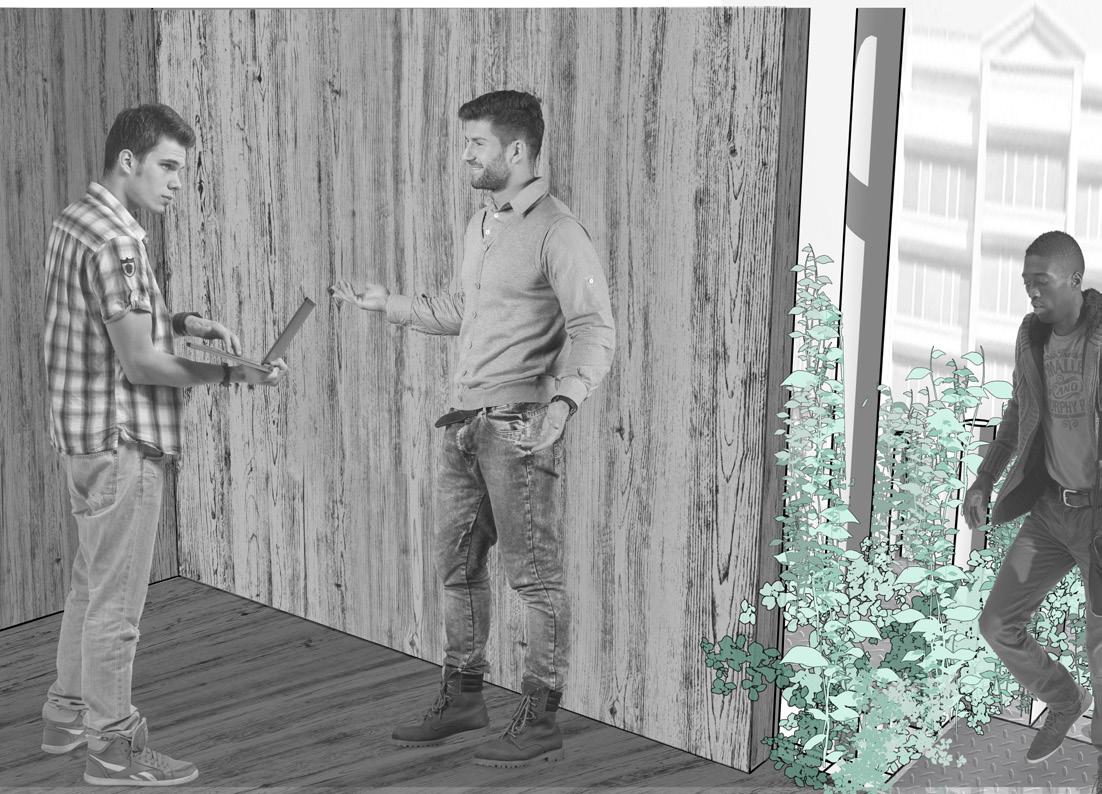

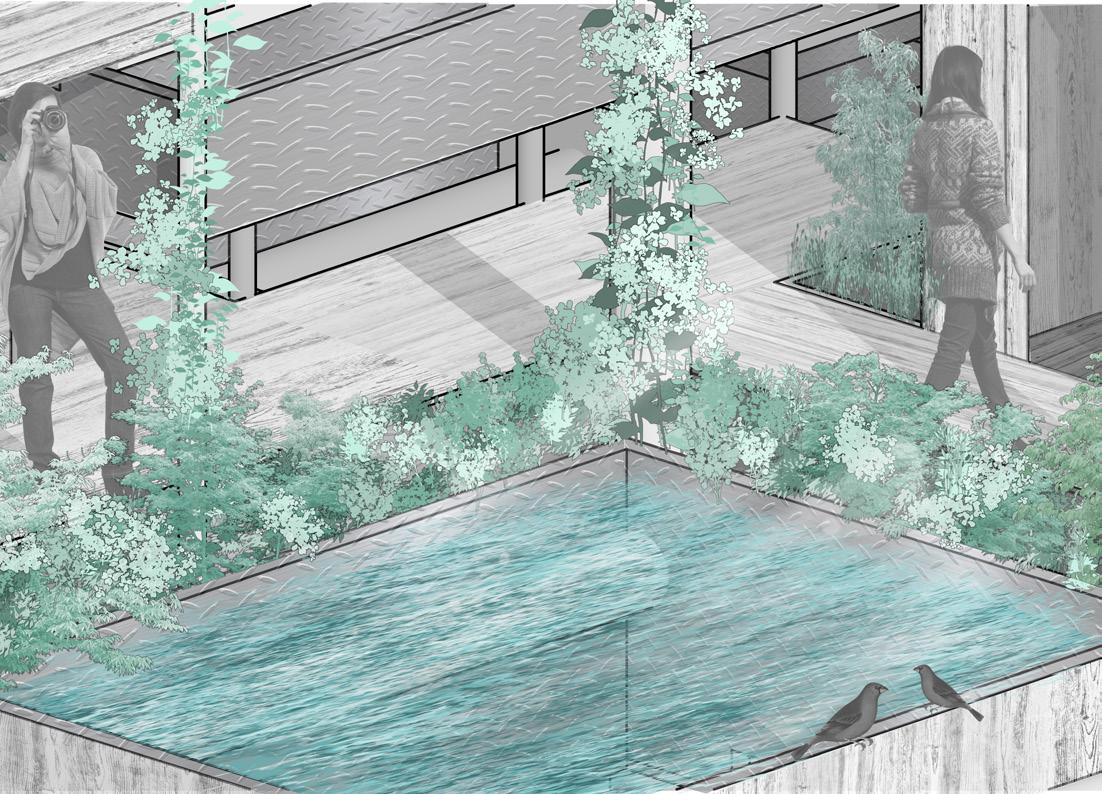

DESIGN-DETAIL SCENE 3F ILLUMINATED POOL-REFLECTING SUNLIGHT, FOR ADEQUATE LIGHTING AND PROVIDE A SACRED ATMOSPHERE.PROVIDING WATER FOR THE FALLS.4F MODULAR ROOM-PROVIDE PRIVTAE SPACE FOR COMMUNICATE/ WORK/ SOLITUDE/ SIGHTSEEING. 25
MAT RUSH UMBRELLA FERN
SYDNEY BORONIA
FLANNEL FLOWER
NATIVE IRIS SMALL LEAF GLYCINE SPINY BOSSIAEA
PINNATE BORONIA FERN-LEAF BANKSIA

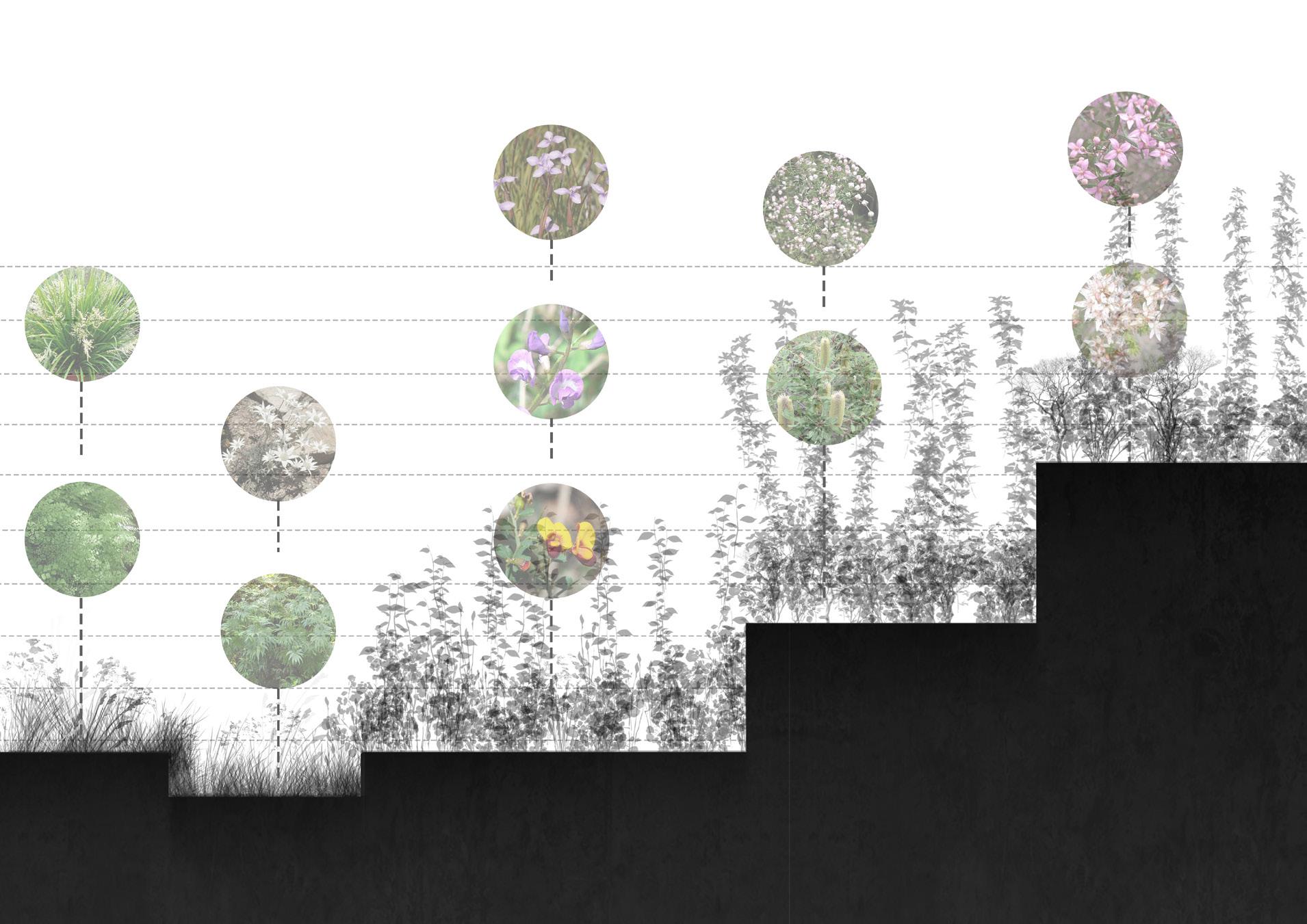

HERBS FERN SHURBS CLIMBERS DESIGN-WILDFLOWER ANALYSIS
MAIDEN HAIR FERN
FRINGED MYRTLE 26

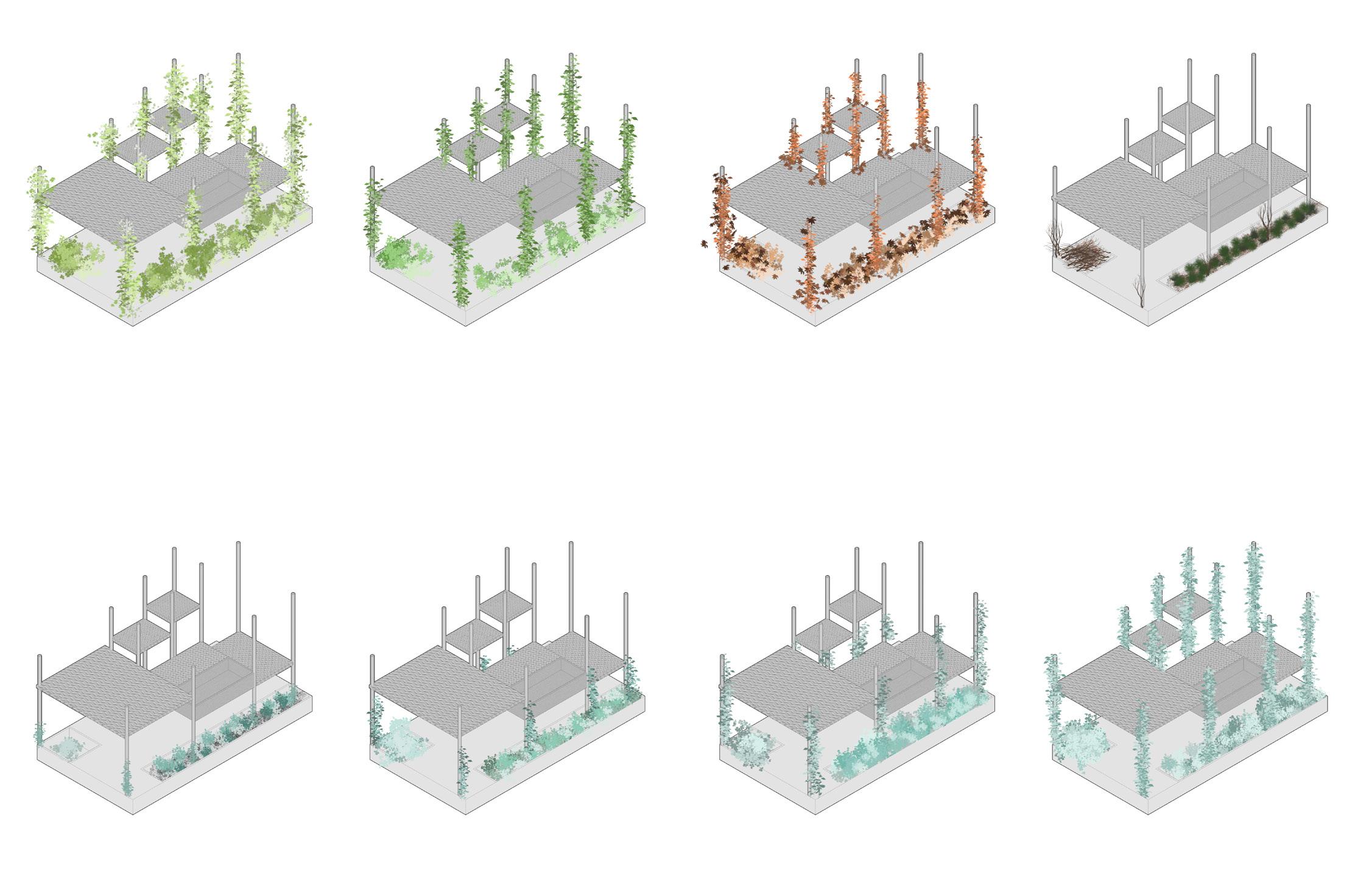

PLANTS IN DIFFERENT SEASONS
PLANTS GROW OVER TIME DESIGN-RESPONSE TO TIME
27

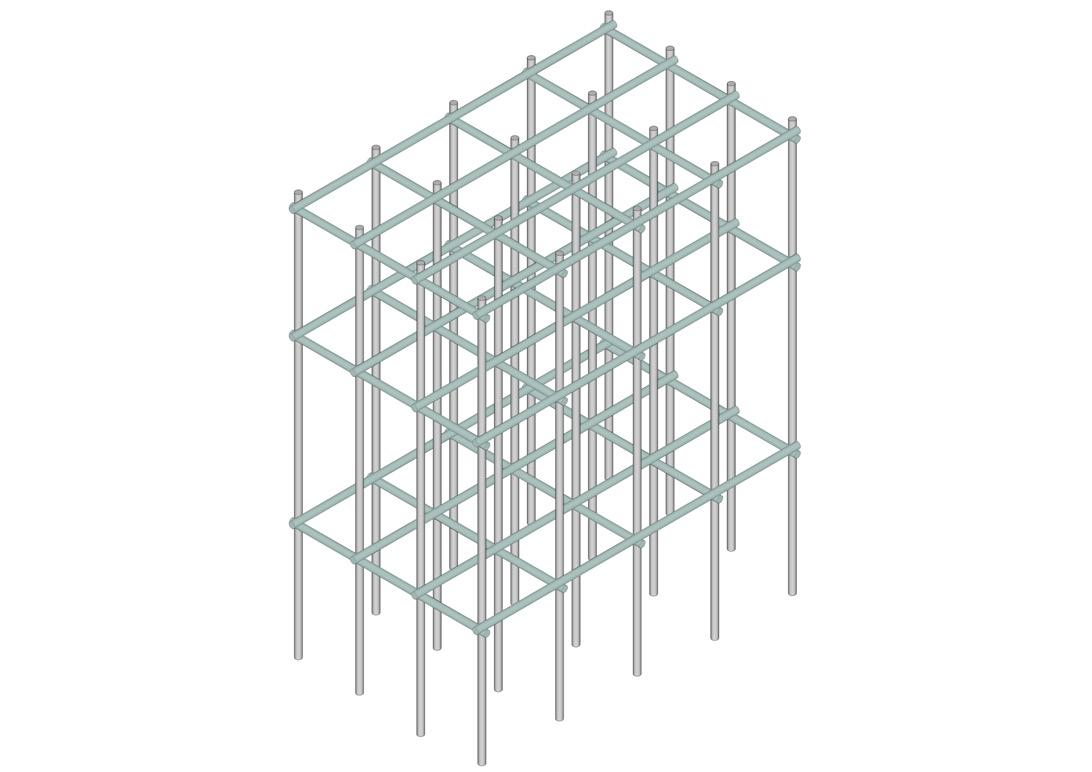

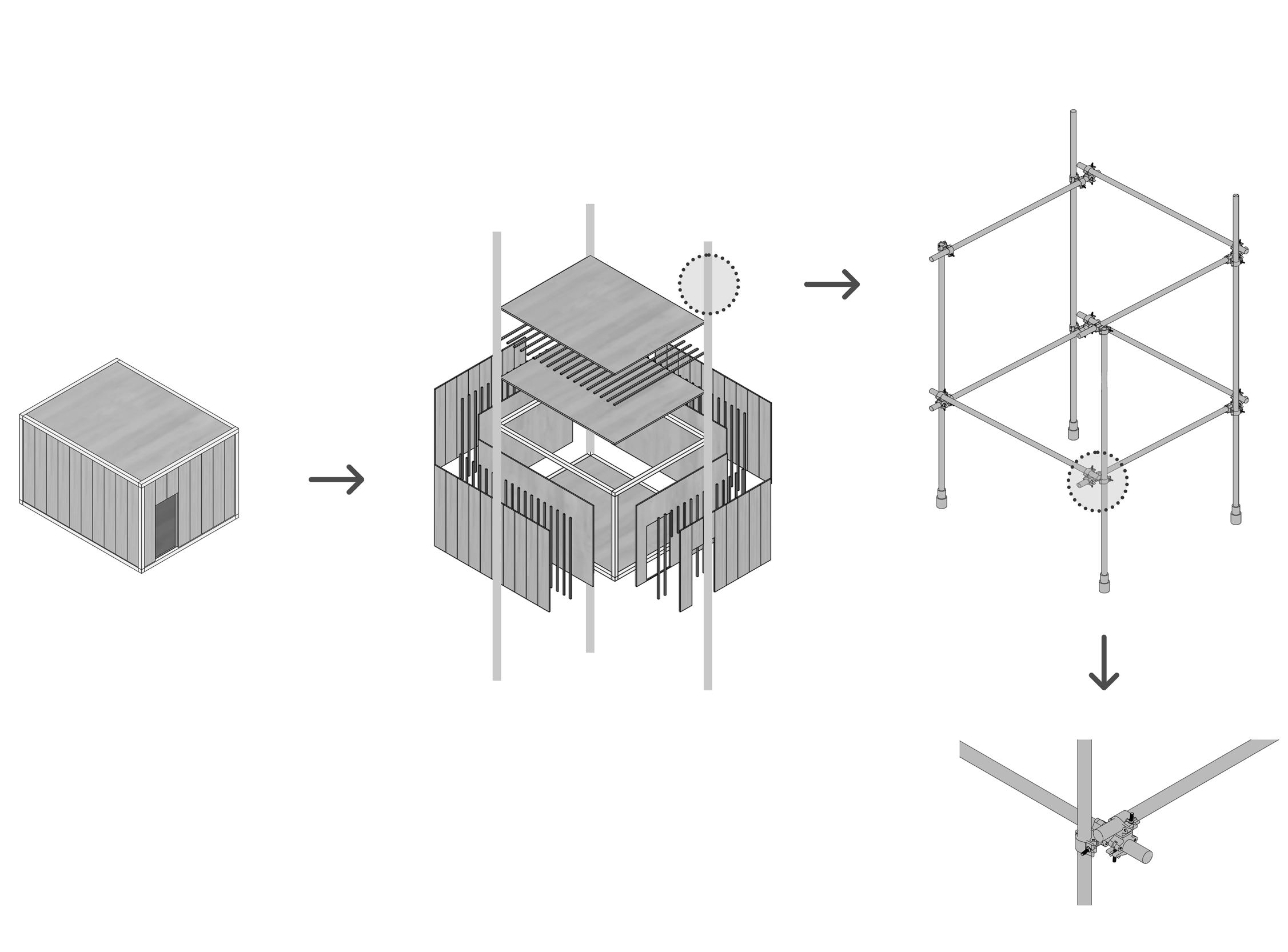

MODULE EXPLODE
MODULAR DESIGN: IN ORDER TO CREATE A SUSTAINABLE ECOLOGICAL HIGH-RISE BUILDING, THIS CASE ADOPTS A MODULAR DESIGN METHOD. THE BUILDING CAN GROW BY INSERTING PREFABRICATED MODULES TO CONTINUOUSLY ADAPT TO THE NEEDS OF THE CEMETERY.
DESIGN-MODULE COMPONENTS ANALYSIS
DETAILS 1
DETAILS 2
28

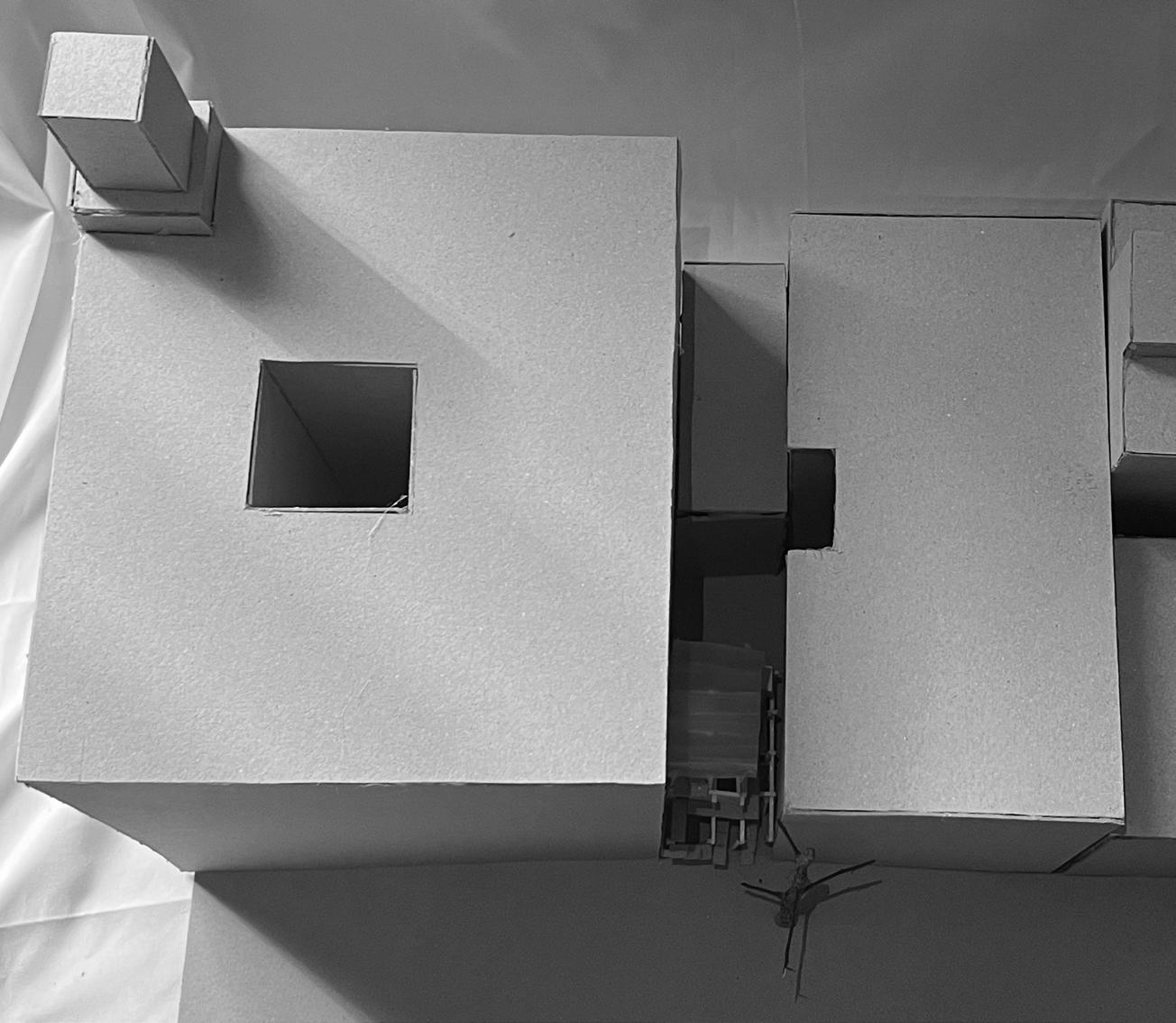

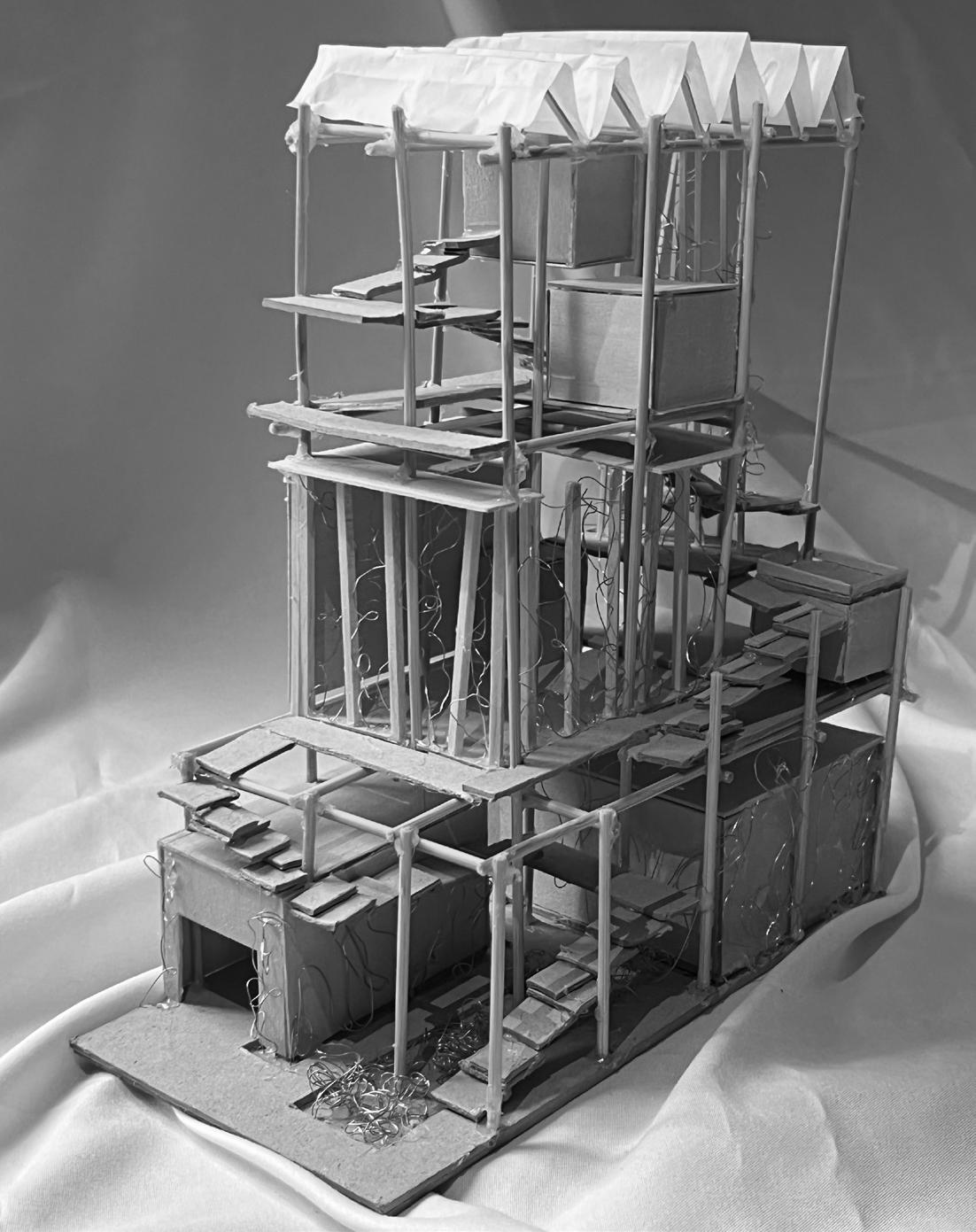

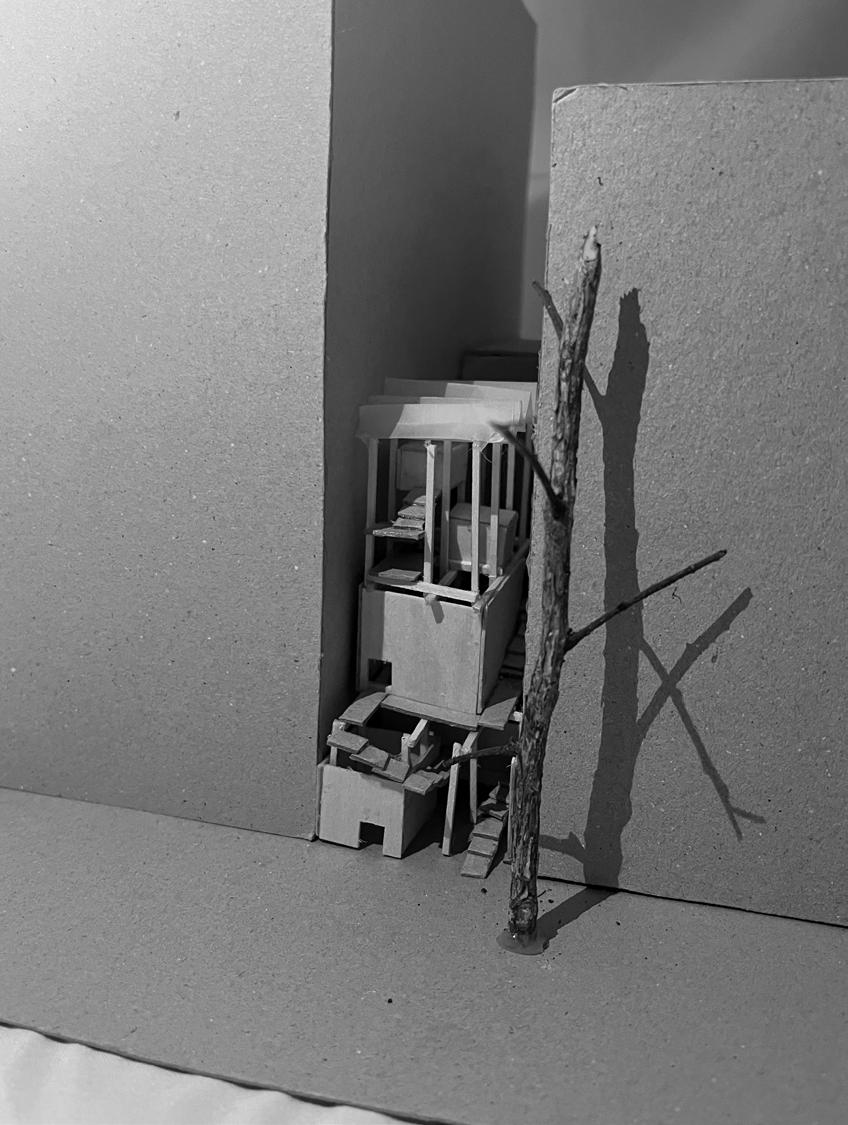

DESIGN-MODEL PHOTOS 1：200 MODEL WITH SITE CONTEXT 1：200 MODEL 29
DESIGN-MODEL PHOTOS 1：200 MODEL WITH SITE CONTEXT GROUND FLOOR ENTRANCE 30
VIEW OF MEMORIAL HALL ON FIRST FLOOR 1:100 MODEL
VIEW OF STAIR TO FOURTH FLOOR 1:100 MODEL
DESIGN-MODEL PHOTOS
31
DESIGN-MODEL PHOTOS 1:25 DETAIL MODEL 1:25 DETAIL MODEL 32

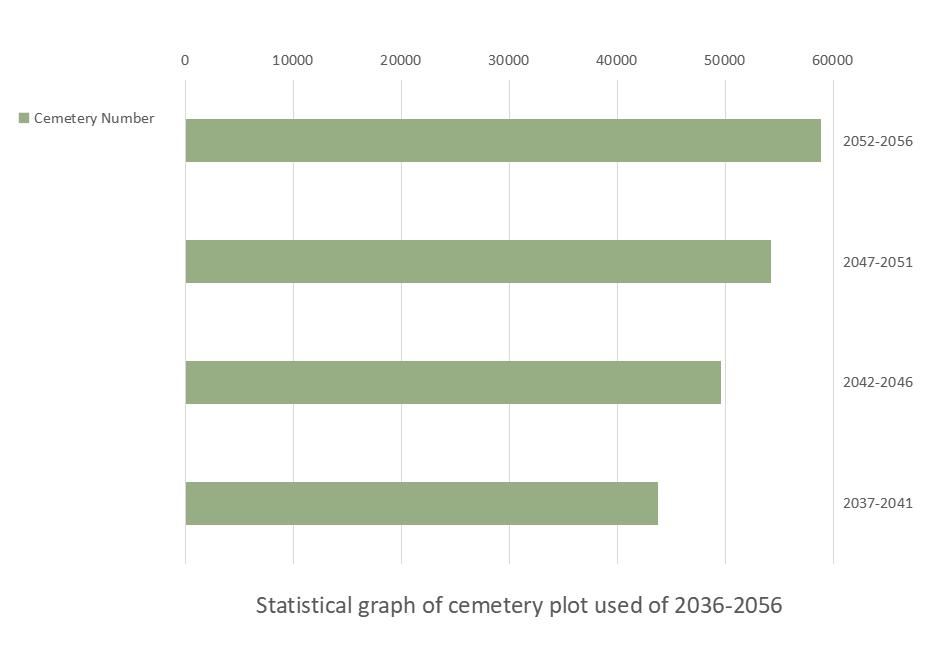

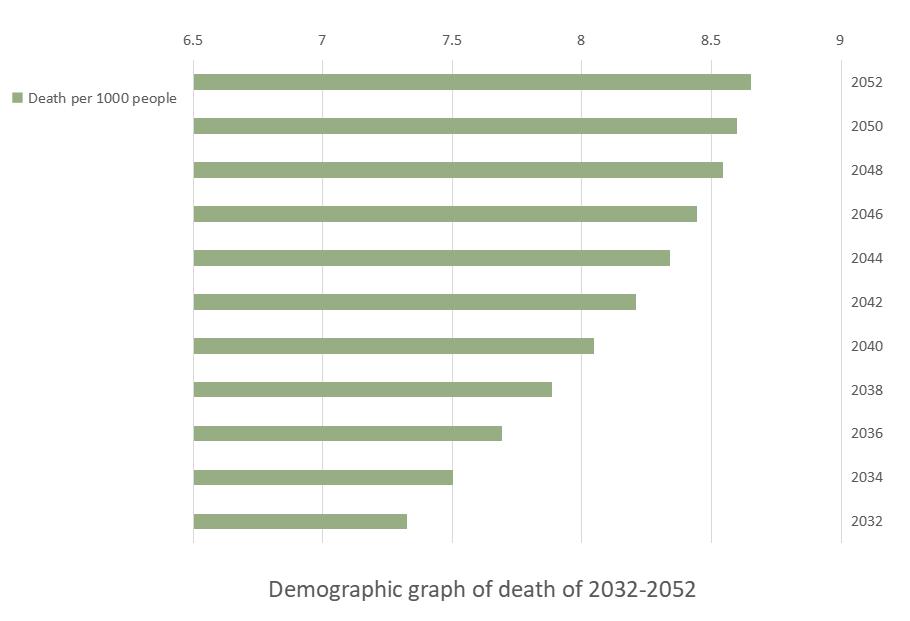

WITH THE ANNUAL NUMBER OF DEATHS ON THE RISE IN THE NEXT FEW DECADES, AND THE INCREASING DEMAND FOR CEMETERIES IN THE FUTURE, URBAN PLANNERS NEED TO FIND WAYS TO SOLVE THE PROBLEM OF CEMETERIES THAT ARE ENVIRONMENTALLY FRIENDLY, ENERGY-SAVING AND LAND-SAVING

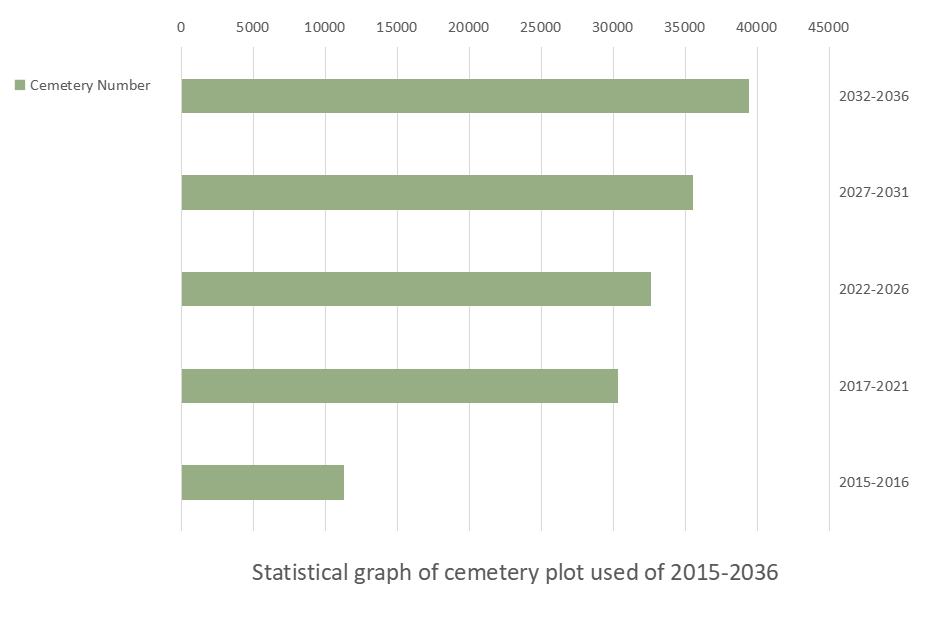

FUTURE-STATISTICAL GRAPHIC
33

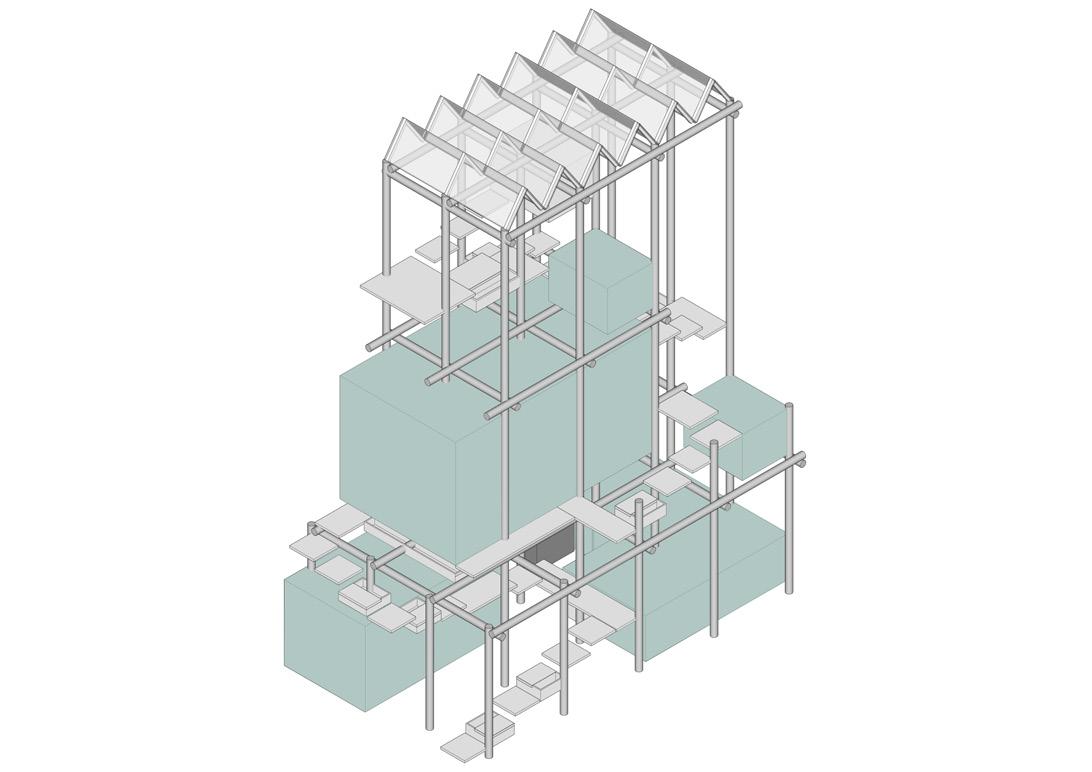

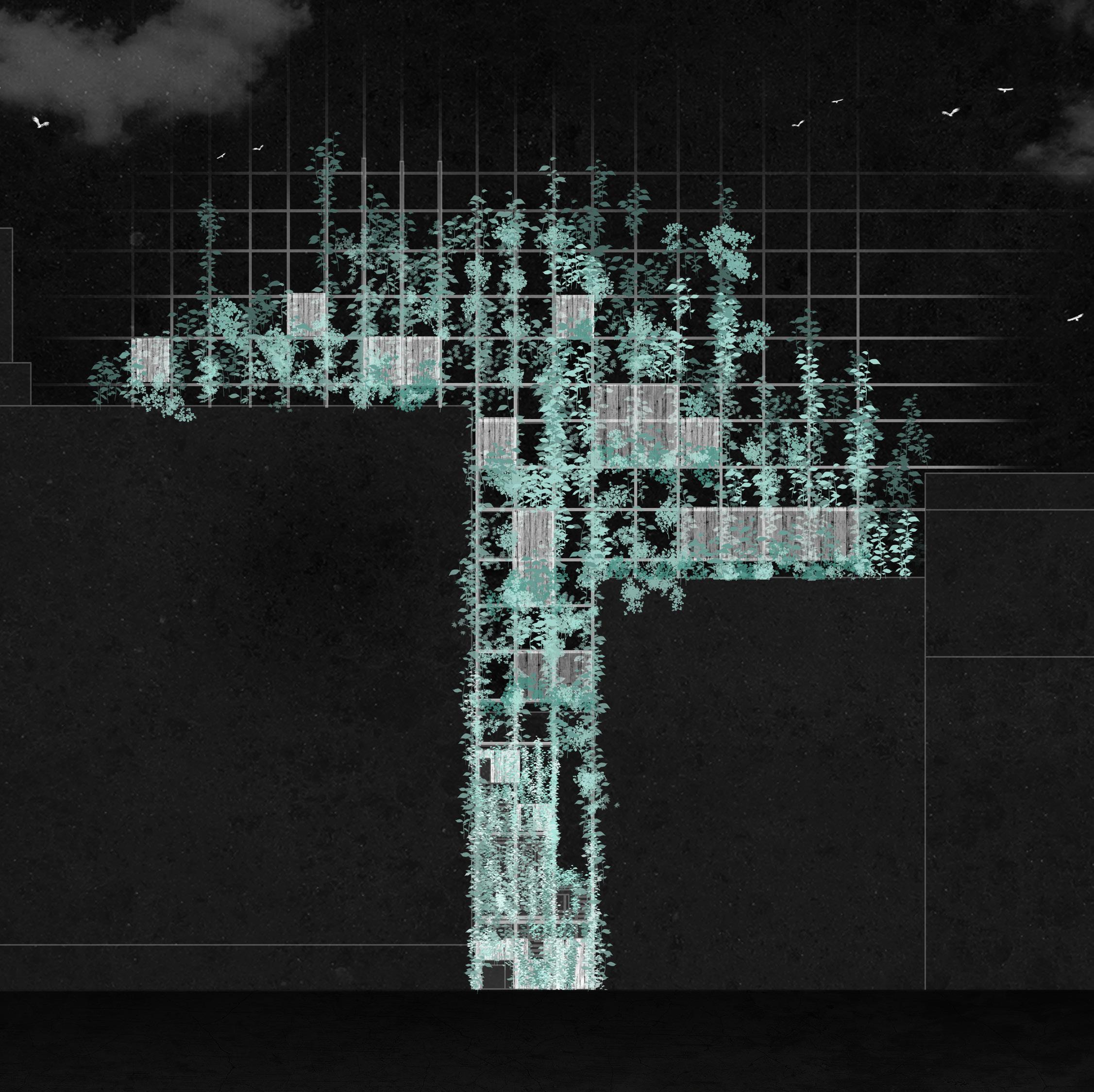

FUTURE-BUILDING IN THE NEXT DECADE-EXPAND
34
