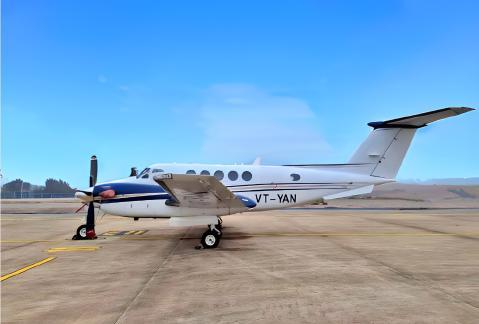

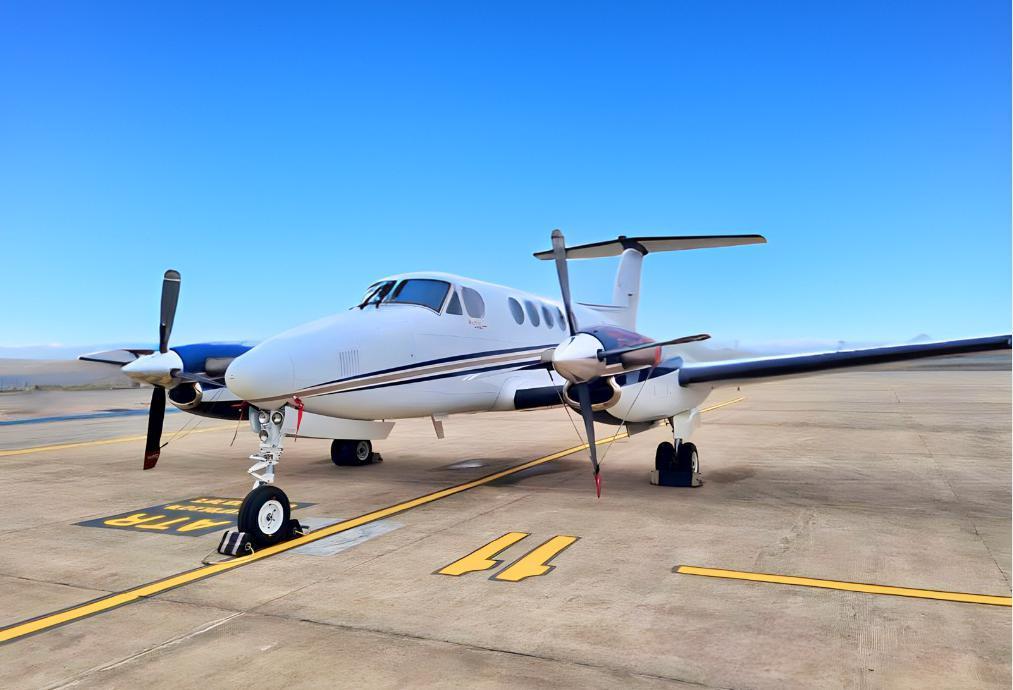

2009 BEECHCRAFT KING AIR B200GT
HIGHLIGHTS
Ø Fresh Engine Hot Section Inspections
ENGINES
Ø Fresh Phase III & Recent Phase II Inspections
Ø Landing Gear Overhaul in 2022
Ø Raisbeck Dual Aft Body Strakes & Wing Lockers
Ø Raisbeck RAM Air Recovery System
Ø ADS-B Out Compliant
Ø No Damage History
AIRFRAME
Serial Number BY-94
Base Location India
Entry Into Service 2009
Total Hours* 1,773
Total Landings* 1,451
PROPELLERS
PROGRAMS
*All information is subject to verification PAGE 2
AIRCRAFT OVERVIEW 2009 BEECHCRAFT KING AIR B200GT

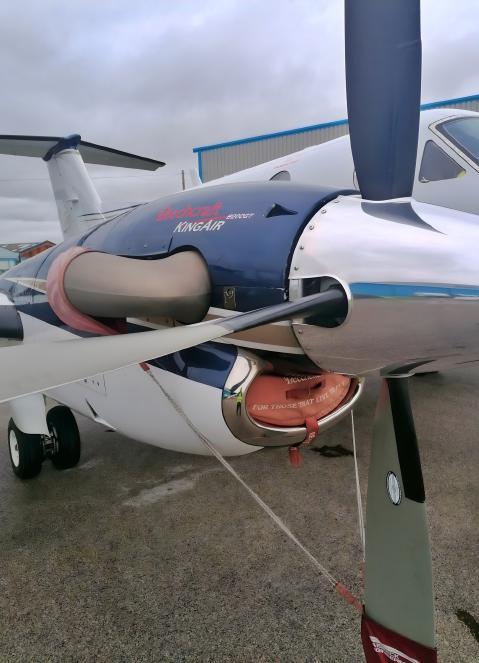

Pratt & Whitney PT6A-52 Engine 1 Engine 2 Serial Number PCE-RX0245 PCE-RX0244 Total Hours* 1,773 1,773 Total Cycles* 1,420 1,420 Time Between Overhaul* 3,400 3,400
Maintenance CAMP
Location Make Model Serial Number Total Hours* Left Hartzell 4-Blade HC-D4N-3A FY3366 1,762 Right Hartzell 4-Blade HC-D4N-3A FY3368 1,762 *All Hours & Cycles as of 5 Oct 2023
AVIONICS
Ø ADC: Dual Collins ADC-3000
Ø FMS: Single Collins FMS-3000
Ø ADF: Single Collins NAV-4000
Ø AHRS: Dual Collins AHC-3000
Ø AP/FD: Dual Collins FGC-3000
Ø COMMS: Dual Collins VHF-4000
Ø CVR: Single L3 FA2100
Ø DME: Single Collins DME-4000
Ø EFIS: 4-Tube Collins Pro Line 21
Ø GPS: Single Collins GPS-4000S
Ø NAV: Dual Collins NAV-4000 / NAV-4500
Ø RAD ALT: Single Collins ALT-4000
Ø TAWS: Single Honeywell Mark VIII EGPWS
Ø TCAS: Single L3 Skywatch TCAS-I
Ø WX RAD: Single Collins TWR-850
Ø XPDR: Dual Collins TDR-94D Mode S (Enhanced)
Ø ELT: Single Artex C406-2
2009 BEECHCRAFT KING AIR B200GT
AIRCRAFT DETAILS
ADDITIONAL FEATURES
ADS-B Out Compliant (July 2020)
Dual Avfab Extra (Removable) Fold Out Seats
Factory Installed High Floatation Landing Gear
Raisbeck RAM Air Recovery System
Raisbeck Performance Propellers
Raisbeck Enhanced Performance Leading Edges
MAINTENANCE
Raisbeck Dual Aft Body Strakes
Raisbeck Crown Wing Lockers
Raisbeck High Floatation Gear Doors
L3 GH-3100 ESIS
115V 60Hz Power Outlets
*All information is subject to verification
AIRCRAFT DETAILS 2009 BEECHCRAFT KING AIR B200GT
Complied With Next Due Ø Engine 1 HSI (1,800 Hrs.) Oct 23 (1,773 Hrs.) 3,573 Hrs. Ø Engine 2 HSI (1,800 Hrs.) Oct 23 (1,773 Hrs.) 3,573 Hrs. Ø Phase 1: 21 Dec 22 (1,412 Hrs.)Ø Phase 2: 04 May 23 (1,580 Hrs.)Ø Phase 3 (200 Hrs./18 M): Oct 23 (1,773 Hrs.) Apr 24 / 1,973 Hrs. Ø Landing Gear Overhaul: 29 Mar 22 -
Inspection
INTERIOR
Configuration / PAX:
Six (6) Passenger Executive Cabin Seating + One (1) Belted Lav Seat
Seven (7) Pax Total
Optional Jump Seat Configuration: Two (2) Additional Removable Seats
Nine (9) Pax Total
Seating:
Forward Dual (2) Aft-Facing Seats
Aft Four (4)-Place Club w/ Dual Fold-Out Tables
Optional Dual (2) Removable Aft Jump Seats
Refreshment Center: Forward Lavatory:
Aft Private Lavatory w/ Belted Seat
Externally Serviceable
Condition: Original
Displayed color swatches are an approximation
*All information is subject to verification PAGE 5
2009 BEECHCRAFT KING AIR B200GT
AIRCRAFT DETAILS

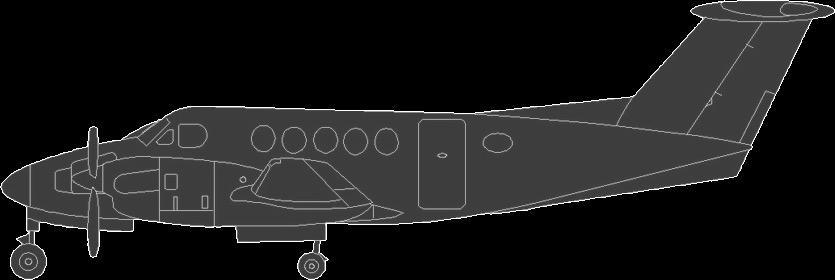

*All information is subject to verification PAGE 6 LAYOUT AIRCRAFT DETAILS 2009 BEECHCRAFT KING AIR B200GT
AIRCRAFT DETAILS
EXTERIOR
Base Paint: White
Accent Colors: Dark Blue & Gold
Condition: Original
Displayed color swatches are an approximation
*All information is subject to verification PAGE 7
2009 BEECHCRAFT KING AIR
B200GT

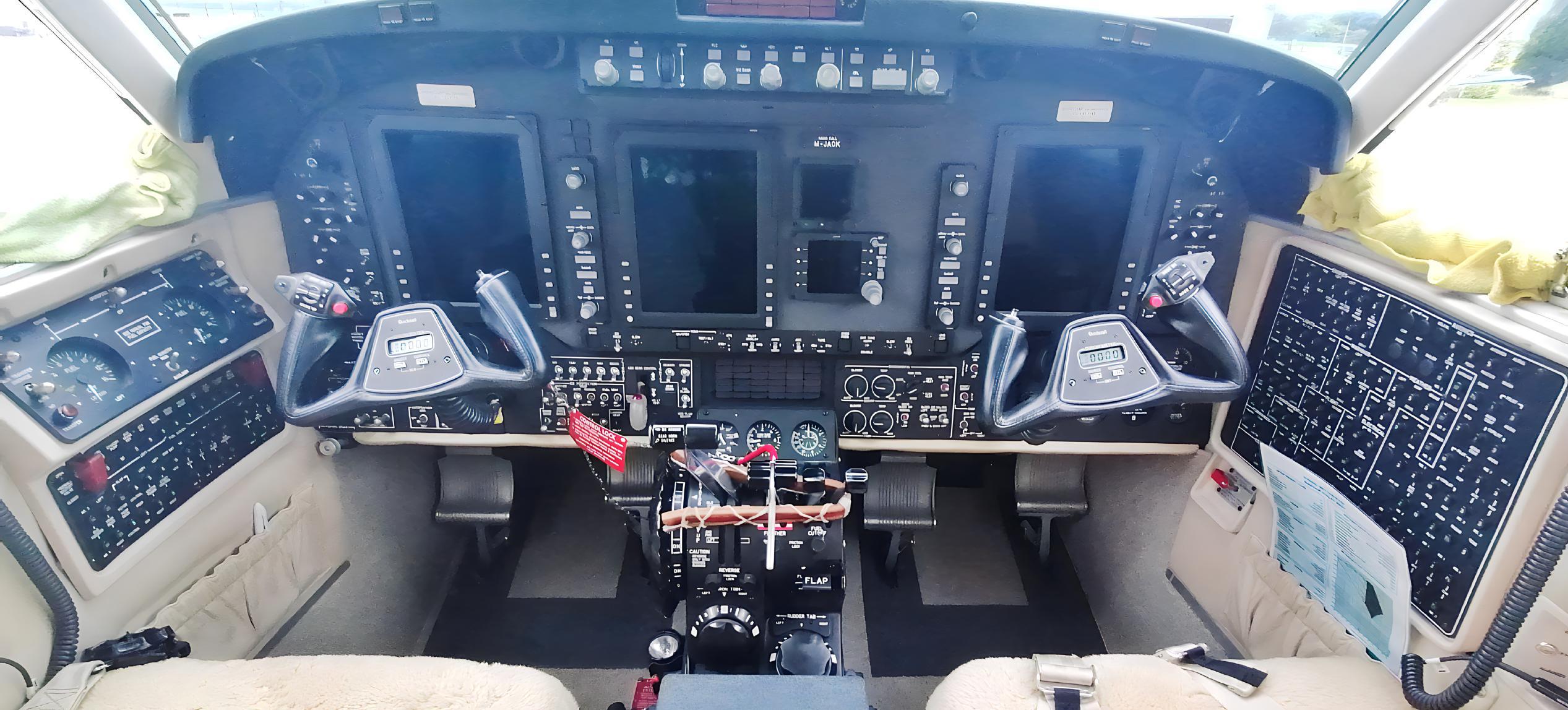

*All information is subject to verification PAGE 8 FLIGHT DECK 2009 BEECHCRAFT KING AIR B200GT
2009 BEECHCRAFT KING AIR B200GT
*All information is subject to verification PAGE 9
Removable AvFab Aft Jump Seats

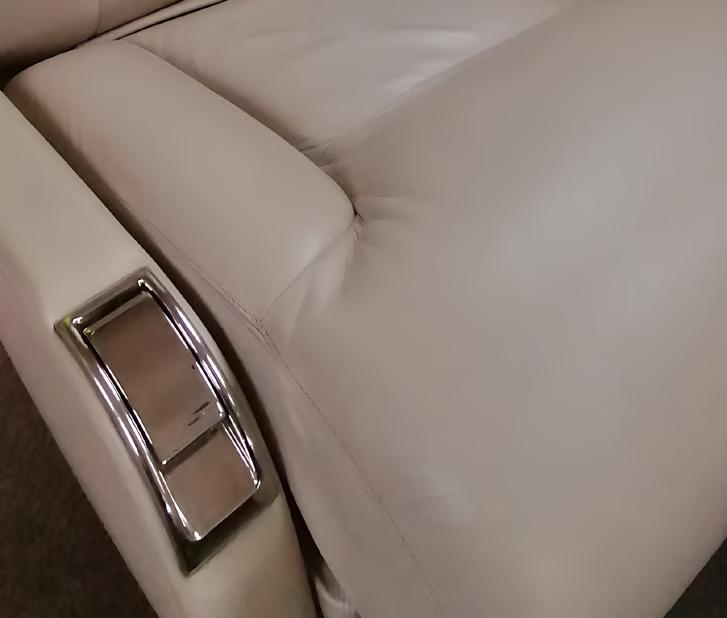

Leather & Metal Detail
INTERIOR

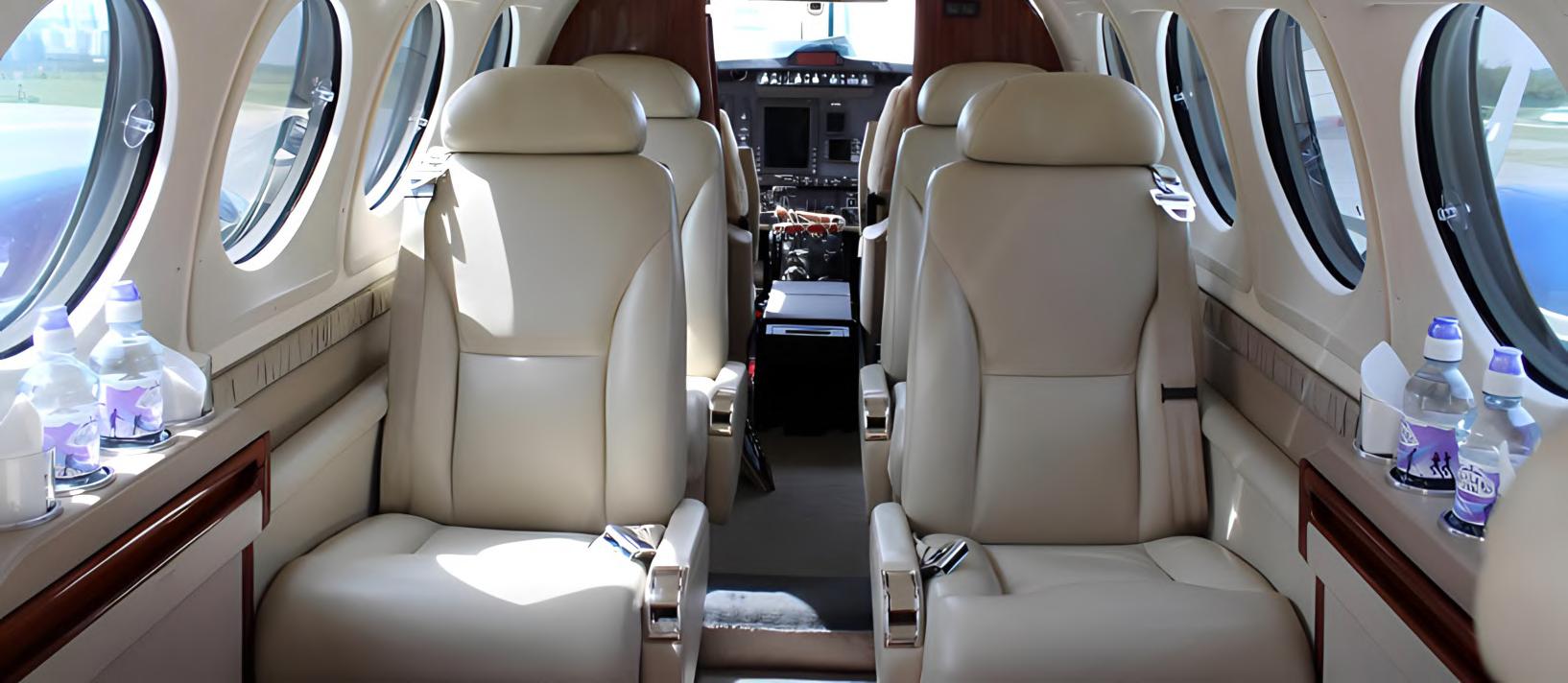

*All information is subject to verification PAGE 10 Aft Club Seats Looking Forward
2009 BEECHCRAFT KING AIR B200GT
INTERIOR
*All information is subject to verification PAGE 11

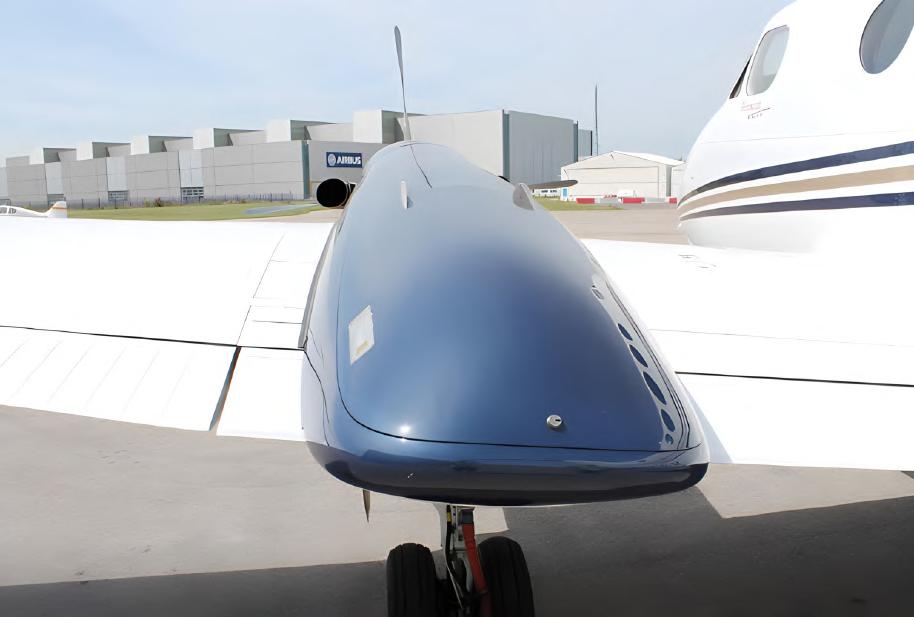

Closed Wing Locker

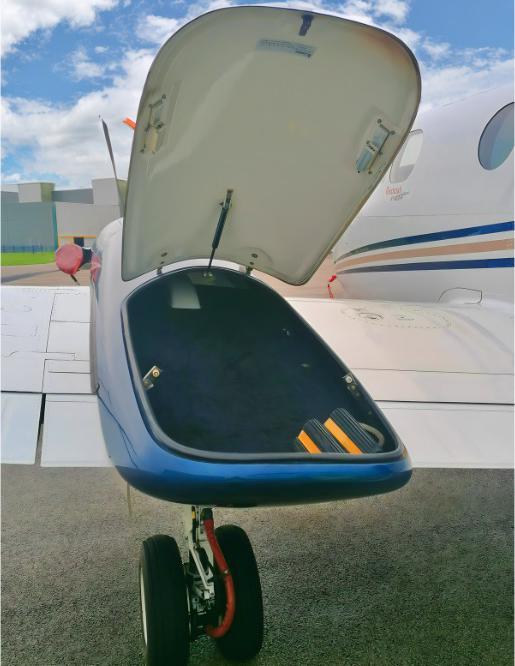

Open Wing Locker

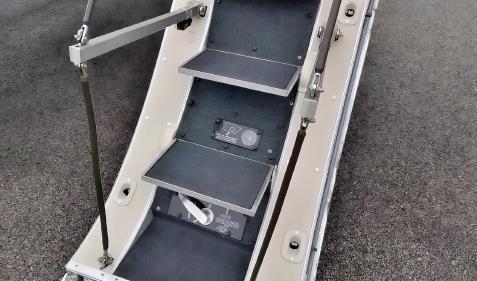

Air Stair
2009 BEECHCRAFT KING AIR B200GT

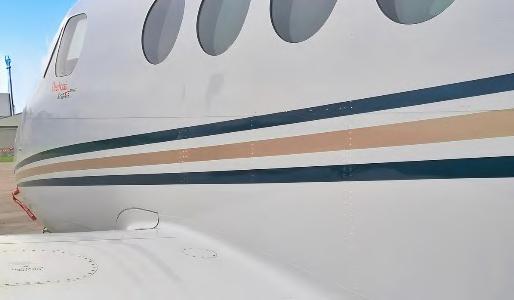

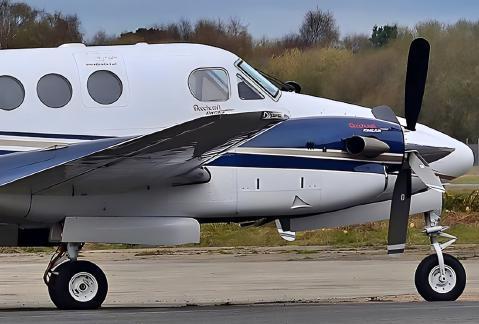

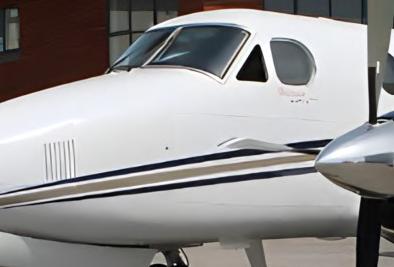

Stripe Detail EXTERIOR
*All information is subject to verification PAGE 12

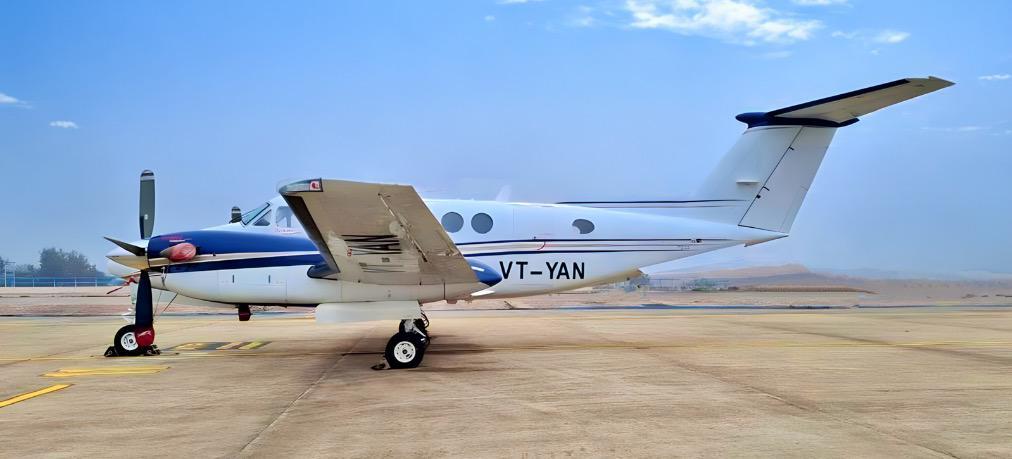

EXTERIOR 2009 BEECHCRAFT KING AIR B200GT
*All information is subject to verification PAGE 13

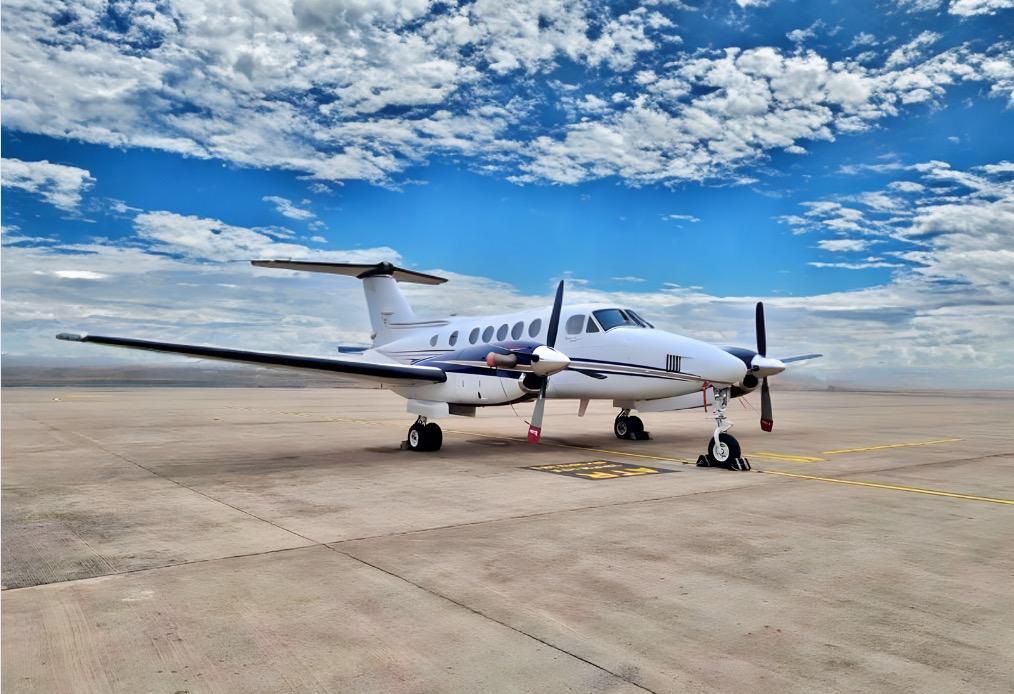

EXTERIOR 2009 BEECHCRAFT KING AIR B200GT
