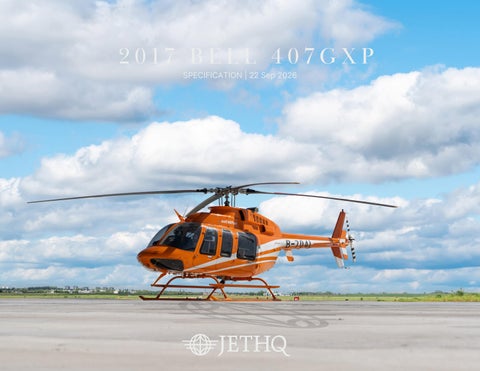

2017 BELL 407GXP SPECIFICATION | 22 Sep 2026
AIRCRAFT OVERVIEW 2017 BELL 407 GXP SN 54740 HIGHLIGHTS:
Wire Strike Kit | ADS-B Out | Rotor Brake Inlet Barrier Filter | Locking Fuel Cap Cabin Heater | Chin Bubble Defog Engine Compartment Bleed Air System Aux Fuel Tank & Cargo Hook Provisions 2017 Interior | 2017 Exterior | 5 Pax
The content wherein is intended for informational purposes and does not constitute representations or warranties. Interested buyers are responsible for confirming the accuracy of all details. Images shown may have been edited, including removing identifying information to respect the privacy of the current owner. This aircraft may be removed from the market without notice.
AIRCRAFT SPECIFICATIONS 2017 BELL 407 GXP SN 54740 EXTERIOR DIMENSIONS:
WEIGHTS:
LENGTH
34.2 ft / 10.4 m
MAX FUEL CAPACITY
128 gal / 483 lit
WIDTH
7.5 ft / 2.3 m
MAX PAYLOAD
1,142 lb / 518 kg
HEIGHT
11.8 ft / 3.6 m
MAX TAKEOFF
5,250 lb / 2,381 kg
BASIC OPERATING
3,000 lb / 1,360 kg
MAX LANDING
5,250 lb / 2,381 kg
CABIN: LENGTH
5 ft / 1.52 m
WIDTH
3 ft 9 in / 1.28 m
HEIGHT
3 ft 9 in / 1.28 m
CABIN VOLUME
85 cu ft / 2.4 cu m
NORMAL
121 kts
BAGGAGE VOLUME
16 cu ft / 0.5 cu m
LONG-RANGE CRUISE
138 kts
MAXIMUM CRUISE
153 kts
OCCUPANCY:
SPEEDS:
CREW
1 or 2
SERVICE CEILING:
16,050 ft
PASSENGERS
5
CLIMB PERFORMANCE:
1,895 fpm
RANGE: LONG-RANGE CRUISE (4 Pax)
300 nm
FERRY (2 Crew + Full Tanks)
337 nm
SEATS FULL
288 nm
AIRCRAFT SPECIFICATIONS 2017 BELL 407 GXP SN 54740 AIRFRAME:
MAINTENANCE:
Base Location: China, Nanjing Year of Manufacture: Nov. 2017 Entry Into Service: Dec. 2018 Total Hours*: 950.6 Total Landings*: 1,259
INSPECTION
ENGINES:
COMPLIED WITH
NEXT DUE
600HR
@599HR
@1199HR
1200HR
-
@1200HR
2500HR
-
@2500HR
12M
Apr-2026
Apr-2027
24M
Aug-2026
Aug02928
CAE-848923
60M
Dec-2022
Dec-2027
Total Hours*
950.6
72M
Dec-2022
Dec-2028
Total Cycles*
1036
300HR / 12M
Aug-2026
Aug-2027
TBO*
2,000
600HR / 12M
Aug-2026
Aug-2027
1200H / 24M
Aug-2026
Aug-2027
Eng. 150H / 12M
Aug-2026
Aug-2027
Eng. 300H / 12M
Aug-2026
Aug-2027
Engine Overhaul
-
2,000 HR
Rolls-Royce RR250-C47B/8

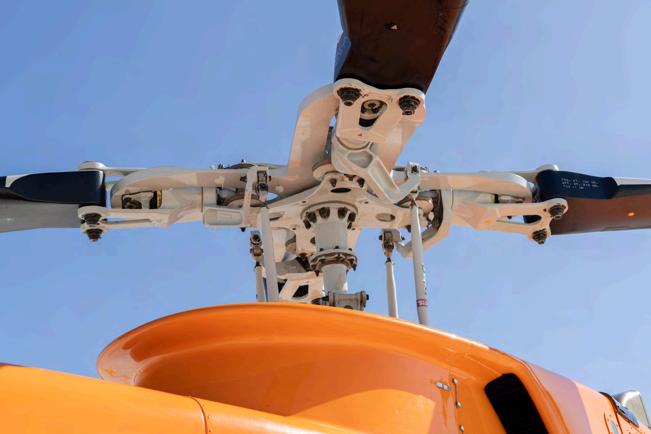

Main Rotor
Tail Rotor
407-015-001-137
406-016-100-119
Total Hours*
950.6
950.6
GEARBOXES:
1
2
407-040-007-103
406-040-400-121
950.6
950.6
ROTOR BLADES: Type:
Type: Total Hours*
*Hours and Cycles are as of 18 September 2026.
AIRCRAFT SPECIFICATIONS 2017 BELL 407 GXP SN 54740 AVIONICS: GARMIN G1000H ALTIMETER:
Dual
Garmin GIA-63H, 206-070-263-105
COMMS (VHF):
Dual
Garmin GIA-63H
COMPASS:
Dual
Garmin GRS-77H, C-2300-L4-24B-LED
AP/FD:
Single
Garmin GIA-63H
GPS:
Single
Garmin GIA-63H
NAV:
Dual
Garmin GIA-63H
RAD ALT:
Single
FreeFlight TRA-4500
TAWS:
Single
Garmin GIA-63H EGPWS
XPDR:
Single
Garmin GTX-33H
AIRCRAFT SPECIFICATIONS 2017 BELL 407 GXP SN 54740 ADDITIONAL EQUIPMENT: Aux Fuel Tank Provisions
Locking Fuel Cap

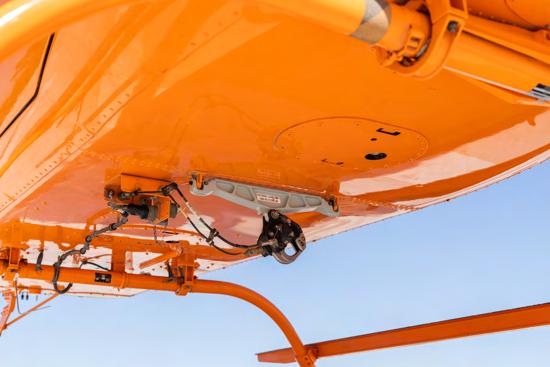

Cargo Hook Provisions
Rotor Brake
High Skid

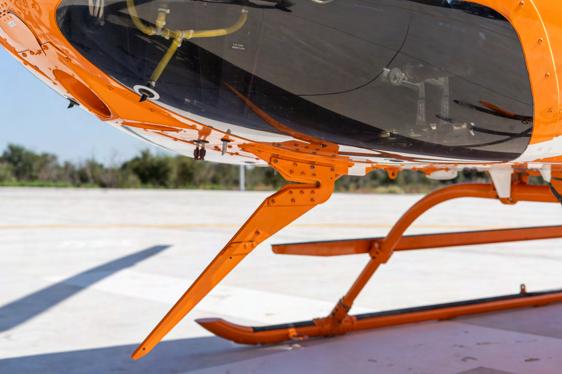

Wire Strike Kit (WSPS)
INSTALLED STC’s: SR09368RC
Inlet Barrier Filter System w/ Bell 407 Inducer Vent Filter Kit
SH1990SO

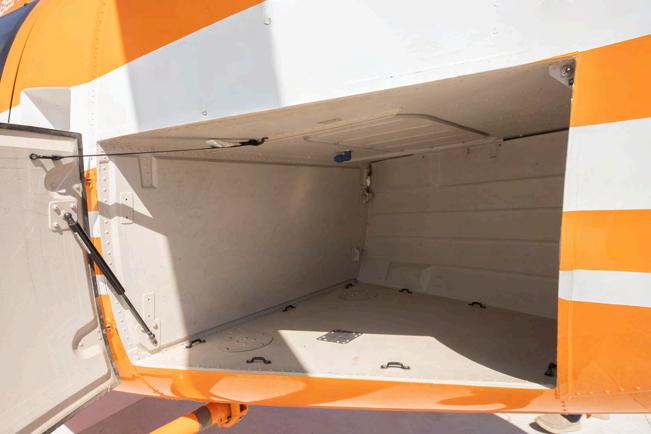

Baggage Door Opener / Door Opener Kit
SR02162LA
Tailboom Antenna Mount
SH1322SO
Flitesteps
N/A
Pre-Flight Step / Handle Kit
SH2243SO
Baggage Door Retention Strap
SH1366SO
Step Handle
SH2243SO
Folding Maintenance Step
SR00221DE
Cabin Heater, Chin Bubble Defog
SR00220DE
Engine Compartment Bleed Air System
SR01051AT
Windows

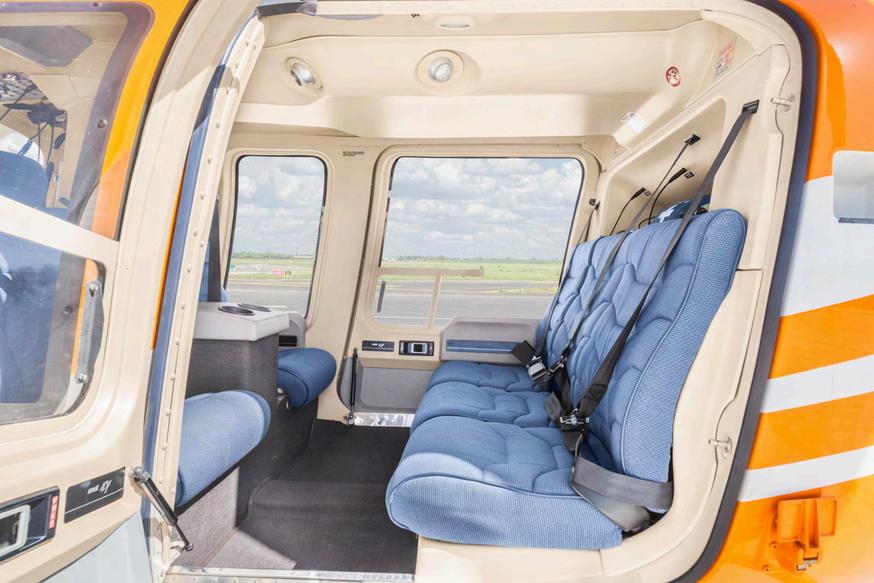

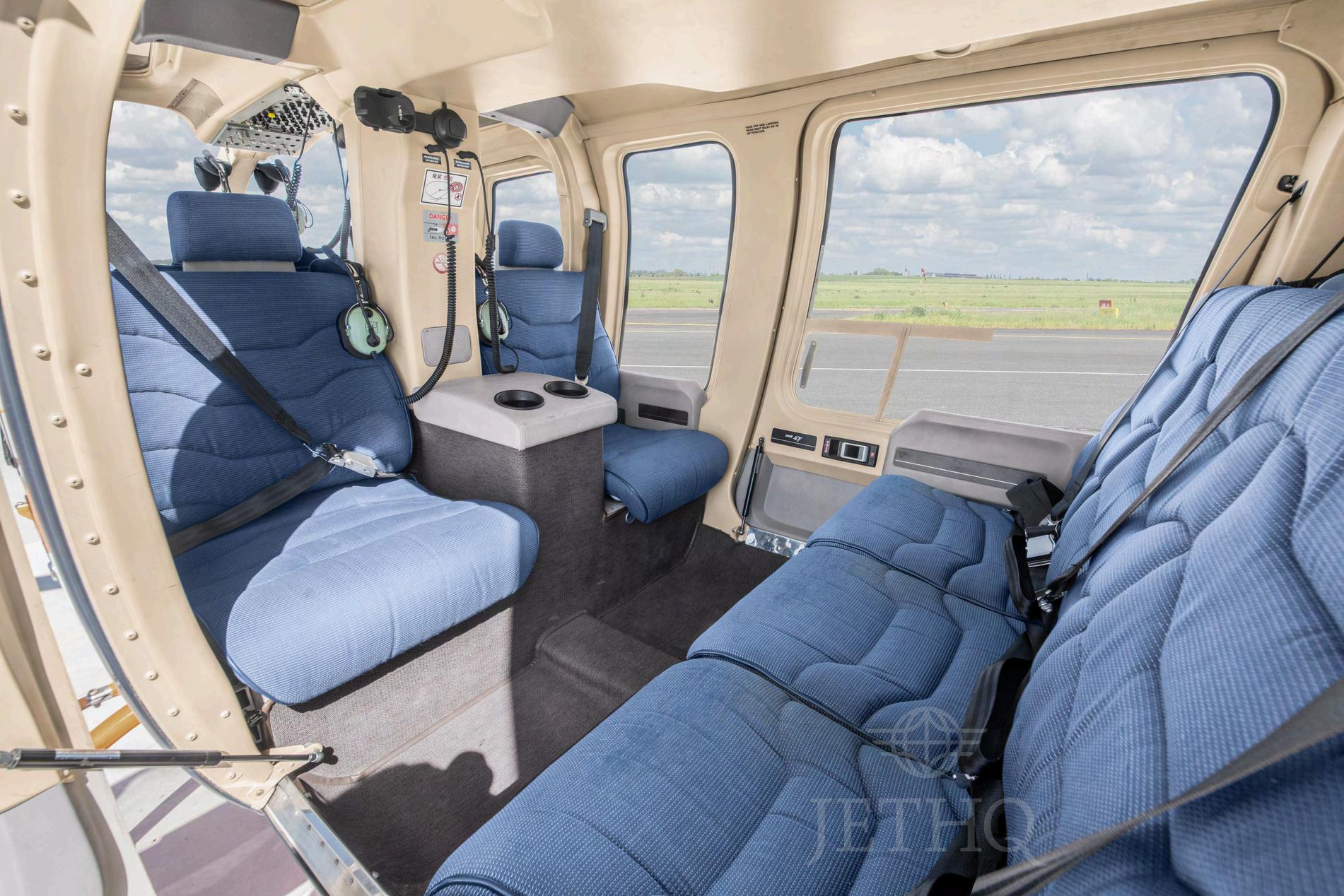

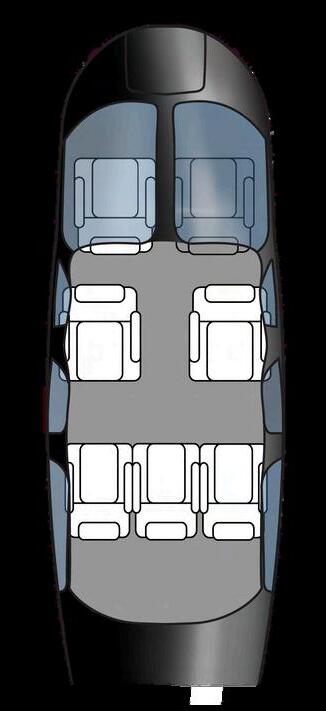

AIRCRAFT INTERIOR 2017 BELL 407 GXP SN 54740 LAYOUT: Configuration: Five (5) Passengers Seating: Three (3) Forward-Facing Seats Two (2) Aft-Facing Seats
AIR CONDITION / HEATING: Cabin Heat System
AIRCRAFT INTERIOR 2017 BELL 407 GXP SN 54740
AESTHETICS: Colors: Blue, Grey & Beige Condition: Original 2017

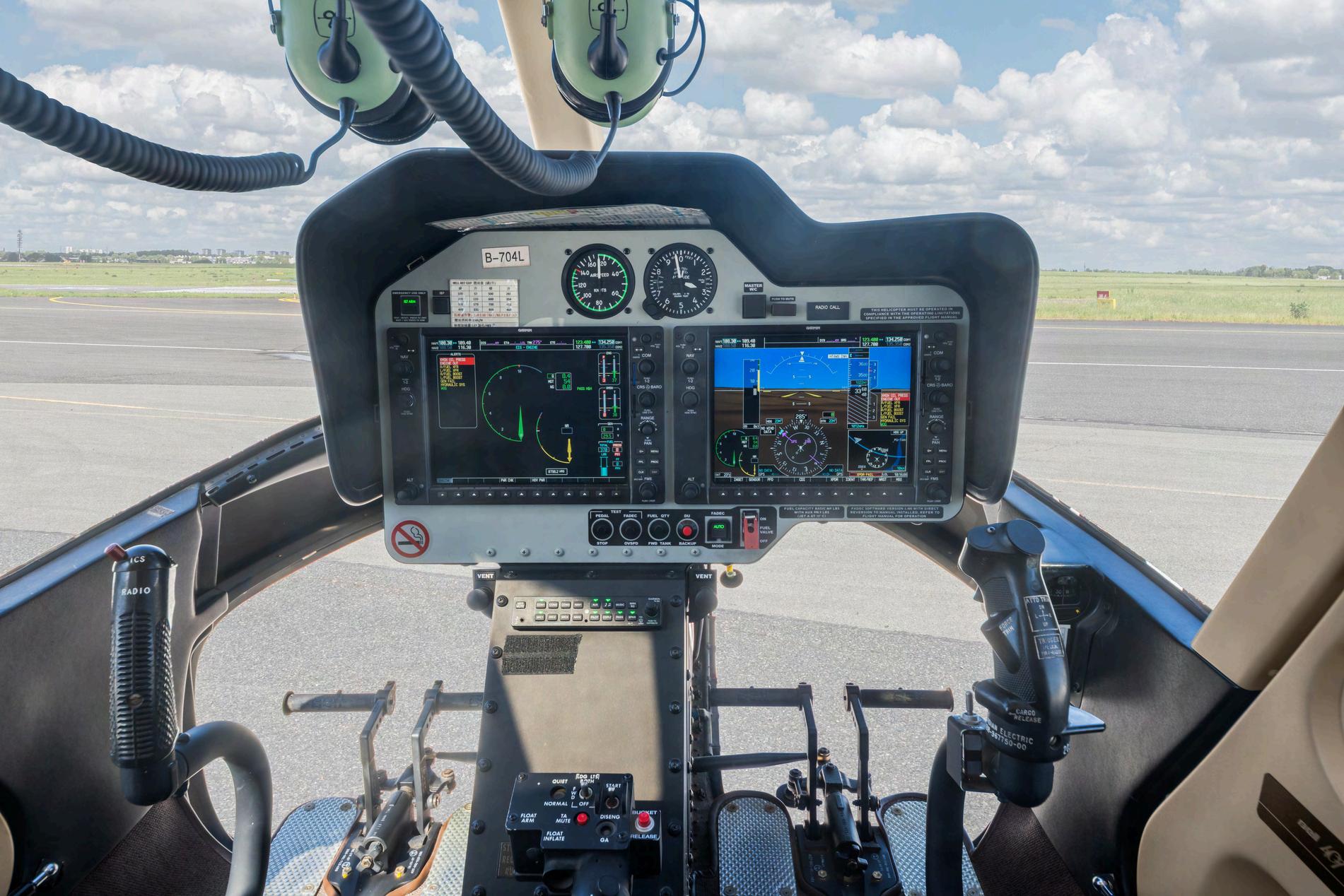

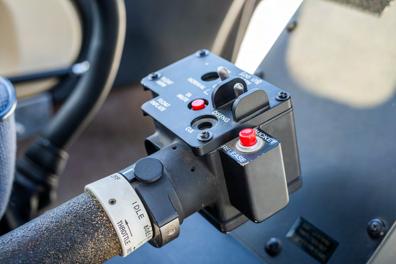

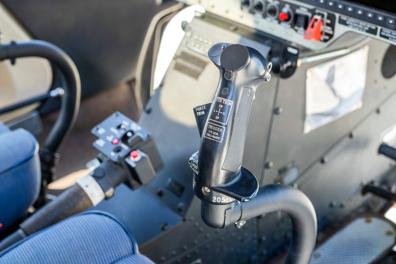

FLIGHT DECK 2017 BELL 407 GXP SN 54740

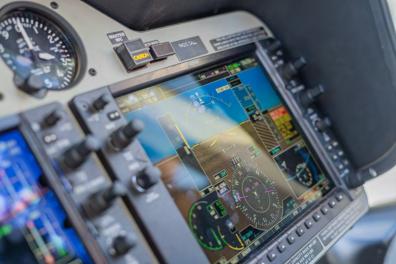

GARMIN G1000H AVIONICS SUITE

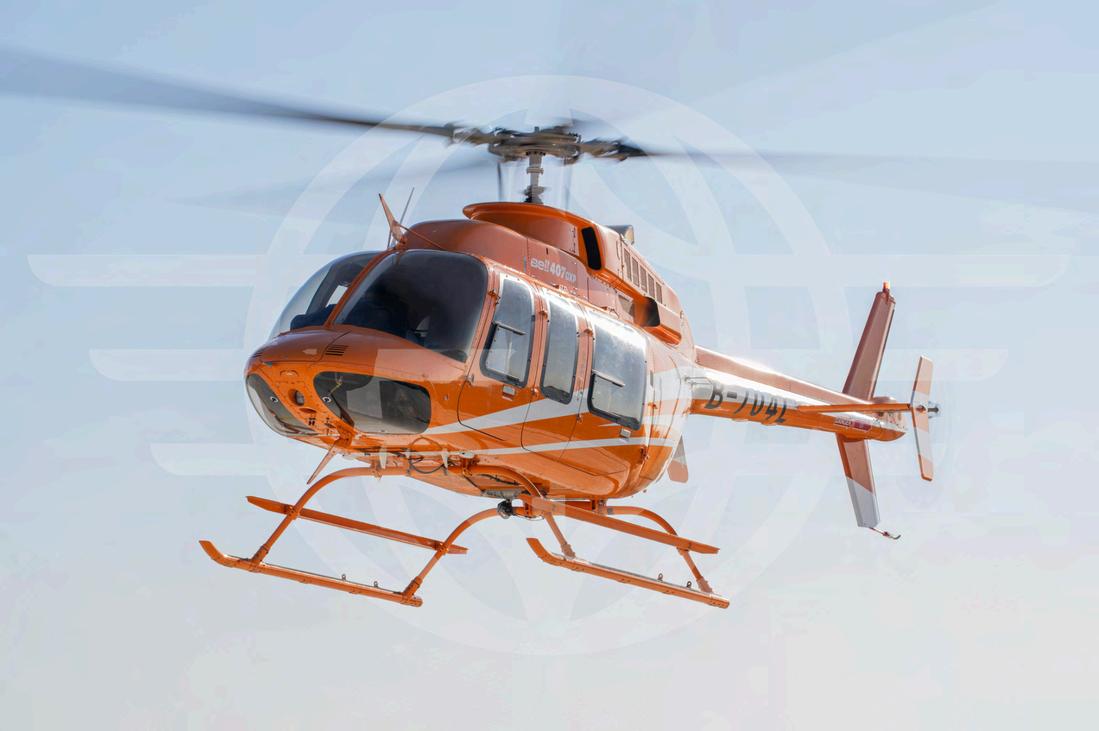

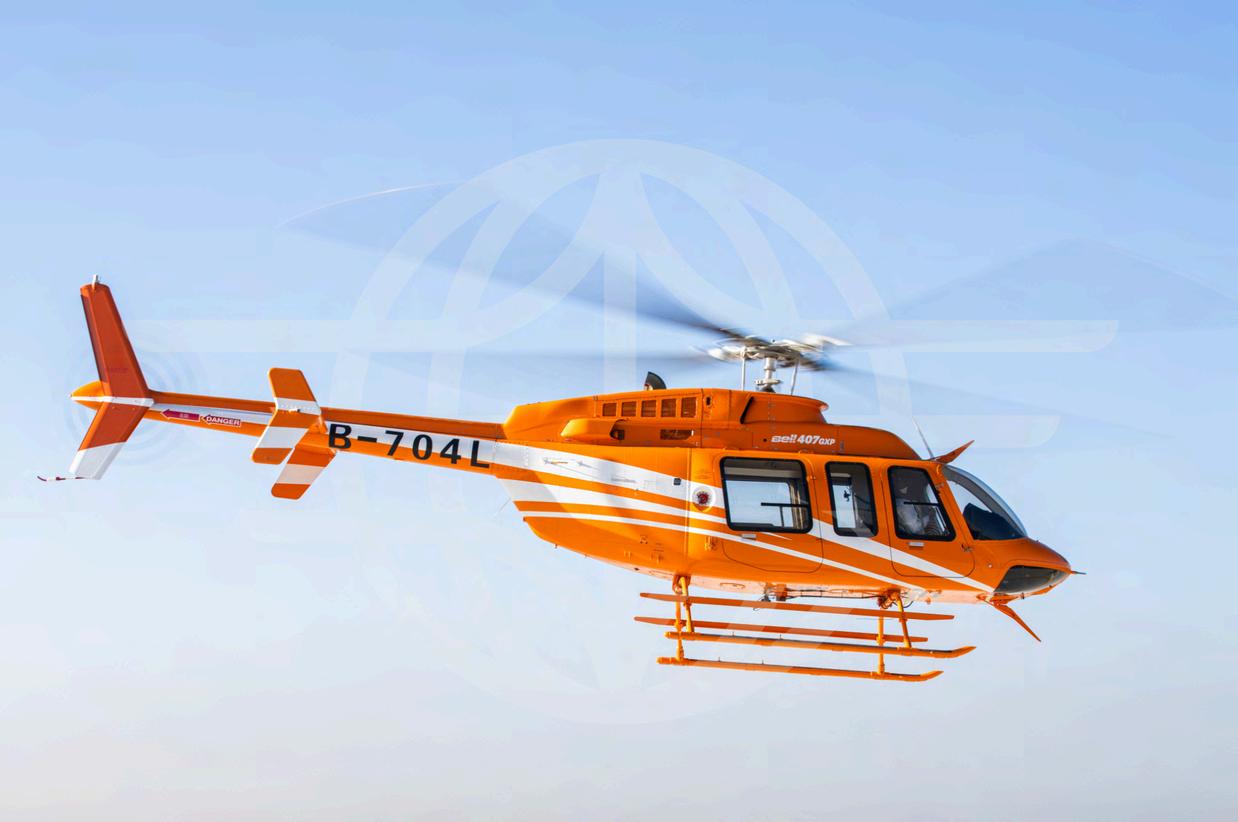

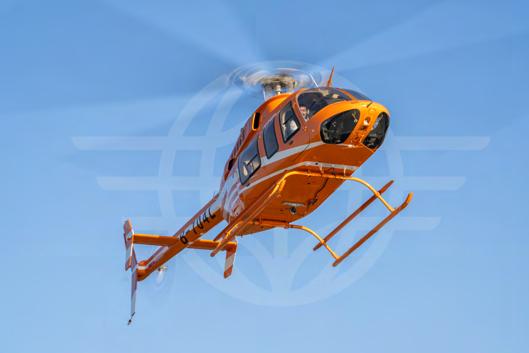

AIRCRAFT EXTERIOR 2017 BELL 407 GXP SN 54740
AESTHETICS: Base Paint: Orange Accent Color: White Condition: Original 2017

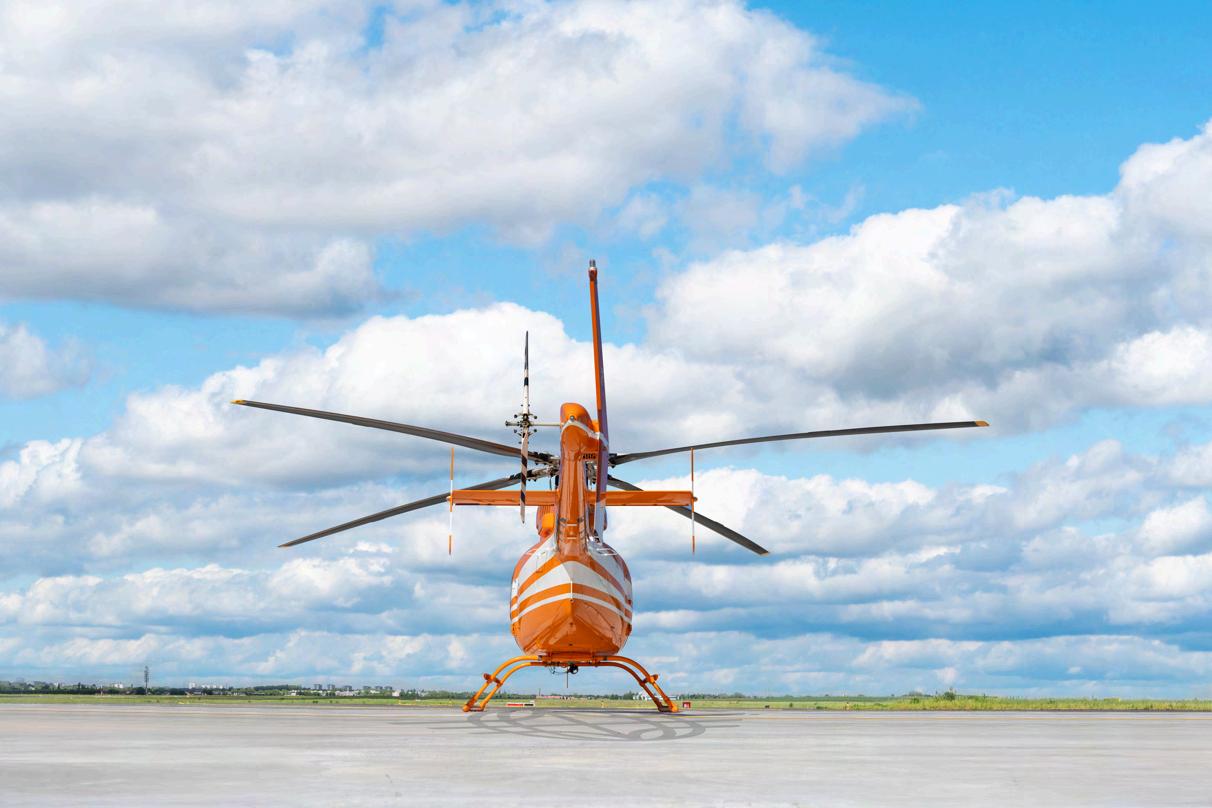

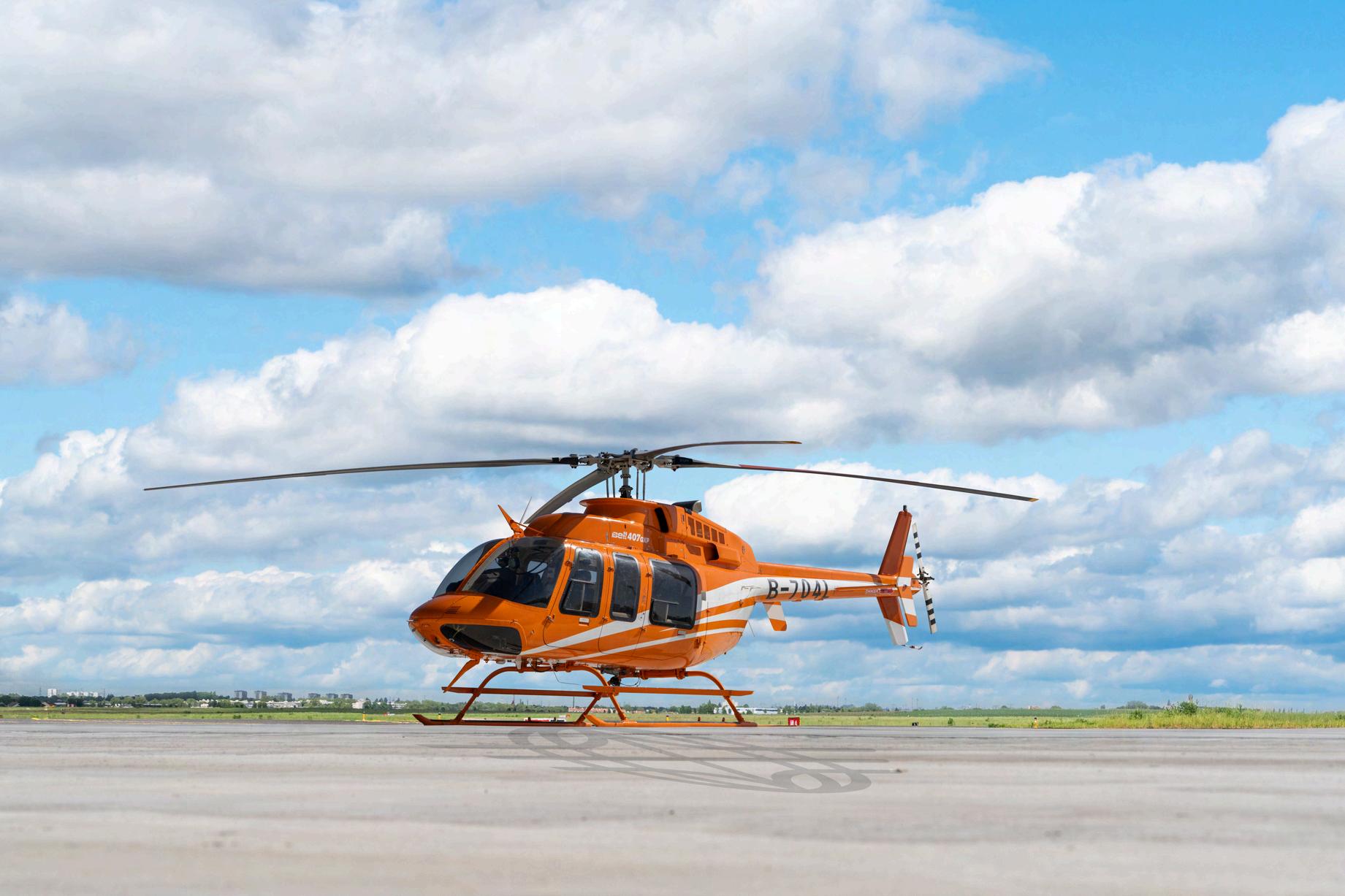

AIRCRAFT EXTERIOR 2017 BELL 407 GXP SN 54740

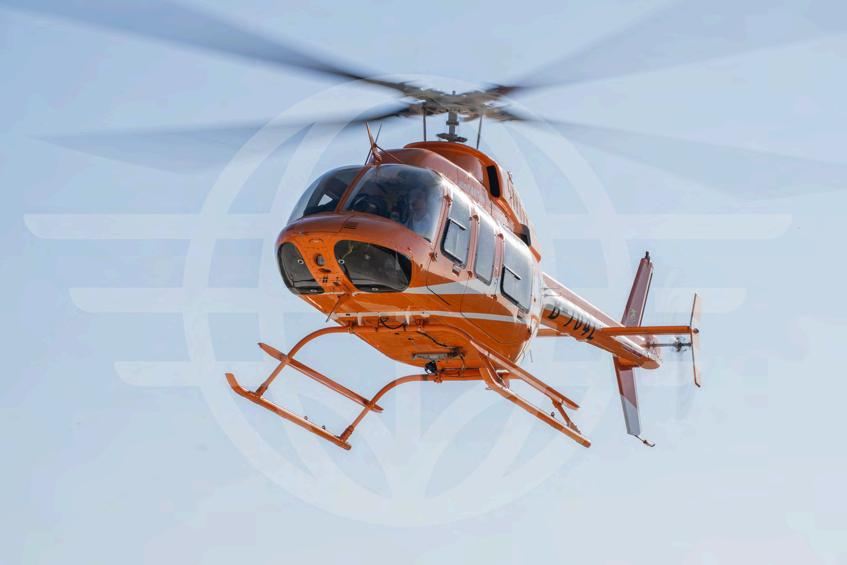

AIRCRAFT EXTERIOR 2017 BELL 407 GXP SN 54740
