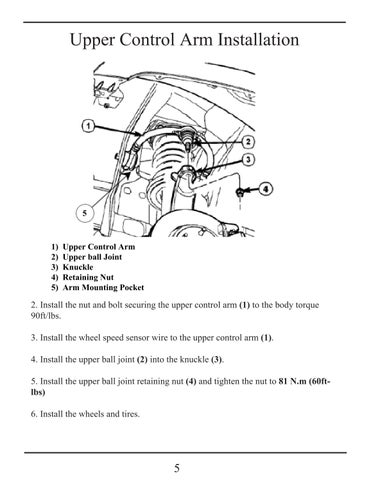

Upper Control Arm Installation
5
1) Upper Control Arm 2) Upper ball Joint 3) Knuckle 4) Retaining Nut 5) Arm Mounting Pocket
2. Install the nut and bolt securing the upper control arm (1) to the body torque 90ft/lbs. 3. Install the wheel speed sensor wire to the upper control arm (1). 4. Install the upper ball joint (2) into the knuckle (3). 5. Install the upper ball joint retaining nut (4) and tighten the nut to 81 N.m (60ftlbs) 6. Install the wheels and tires.
