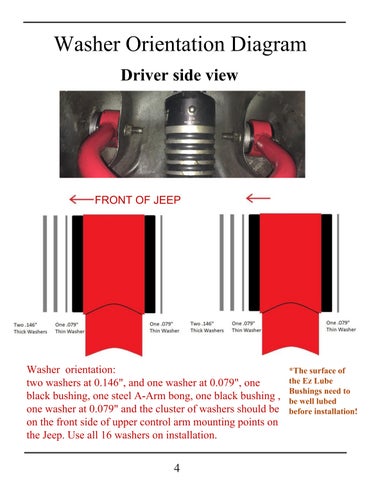

Washer Orientation Diagram Driver side view
FRONT OF JEEP
Washer orientation: two washers at 0.146", and one washer at 0.079", one black bushing, one steel A-Arm bong, one black bushing , one washer at 0.079" and the cluster of washers should be on the front side of upper control arm mounting points on the Jeep. Use all 16 washers on installation.
4
*The surface of the Ez Lube Bushings need to be well lubed before installation!
