愿. Yuan.

愿

YUAN

BY JATE CHONG CAI YUN

“Yuan” ,is a architecture design inspired by the wishing tree near redang beach, Sekinchan. From the wishing tree as a inspiration, a process of making a wish is the break-down ideation that relating the architectural design with the Sekinchan local chinese culture.

ccyun031005@gmail.com 6017 478 1005 77777_cc

JATE’ CHONG CAI YUN 03’ Diploma Architecture Student.

Design Studio III. Someone who love architecture and eat.

愿 Key Plan location Plan Site Plan Section X X Section Y Y Elevations Neighbourhood Context Circulation Climate and Sensory

1

Project 1

Collage + description Abstract Model

2

Project 2

Site Plan Ground Floor Plan First Floor Plan Section X X Section Y Y Elevations Perspectives Final Model

3

Project 3

Reflected Ceiling Plan Ligting Plan HVAC Plan M&E Plan Water Supply Sewerage

Site Plan Ground Floor Plan First Floor Plan Section X X Section Y Y Elevations Roof to Foundation

Sketches

4

Working Drawing

5

Services

6

project 01

The Essence of Sekinchan

:RECEIVING THE WISHING TREE

The story of the Sekinchan Wishing Tree is a popular legend associated with a small town called Sekinchan in Selangor, Malaysia. It revolves around a solitary tree that became a symbol of hope and a place for people to make their wishes. According to the legend, the tree was originally an ordinary tree near Redang Beach.Over time, word spread about the tree's mysterious powers, and people started to believe that it had the ability to grant wishes. They began visiting the tree and tying red and yellow ribbons, along with written wishes, onto its branches. The red ribbons symbolized good luck, while the yellow ribbons represented wealth and prosperity.

:TRANSFERING THE WISHING TREE

As more and more people made their wishes and tied ribbons to the tree, it gradually transformed into a vibrant and colorful spectacle. The branches became adorned with countless ribbons fluttering in the wind, creating a mesmerizing sight.Visitors from all over Malaysia and even from other countries began flocking to Sekinchan to experience the magic of the Wishing Tree. The tree became a tourist attraction, and many believed that their wishes came true after visiting and making their wishes there.

:FORMING THE WISHING TREE

Apart from its wish-granting reputation, the tree also came to be associated with love and romance. Couples would visit the tree and tie ribbons together, symbolizing their bond and their hopes for a happy future together.

The Sekinchan Wishing Tree continues to be a popular destination for locals and tourists alike, attracting visitors who want to make their wishes, experience the enchanting atmosphere, and be a part of the legend. It serves as a reminder of the power of hope and the beauty of human aspirations.

: Receiving

The part represented the "receiving" moment which collect the wishes from different ethnic, different countries by using the the material hohofilm sheet in form of transparent pieces. The red strings tied within the structure then symbolized the formation in connecting the wishes from the one point to another point that expressing how light of the wish from visitors at the first.

: Transfering

The bridge where sending the wishes from "Receiving" to the "Forming". It symblized the wishes from people is undergoing a "reinforcement" process as the transparent pieces becominng solid harder, red transparent, red and white.

: Forming

The part where makes the desires come true. The white pieces in more solid represents the wish that has and have more stable connection with the other pieces in red and red transparent. The red strings tied within the structure and lastly became the long strings as they symbolized the culture and tradition of this wishing tree has handed down to this days and spreaded to the other states or even other countries.

project 02

Site Analysis

01 | Design Studio III Site Analysis

LOCATION

SEKINCHAN, SABAK BERNAM, SELANGOR, MALAYSIA According to history, the town was given its name by a teacher who managed to escape the Japanese Imperial Army during the Second World War. The name Sekinchan was originated from "Teow Chew" word Shì Gēng Zhuāng ( ) with the meaning of " a land of plenty".

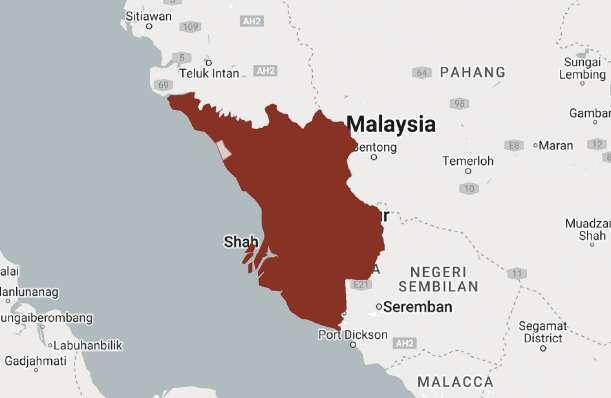

KEY PLAN N. T. S.

Sekinchan

LOCATION PLAN N. T. S.

03 | Design Studio III Site Analysis

SITE A PLAN N. T. S.

05 | Design Studio III Site Analysis

SITE A

REDANG BEACH, SEKINCHAN, SABAK BERNAM, SELANGOR, MALAYSIA

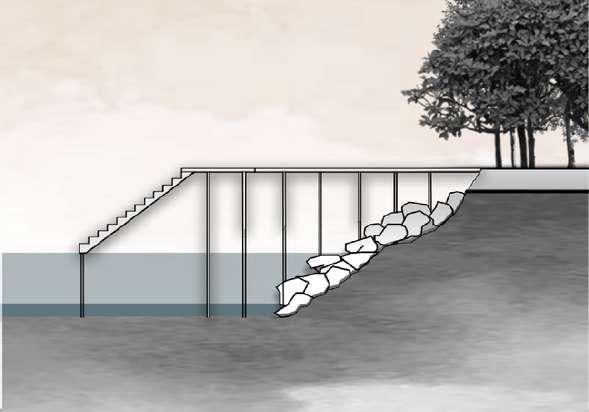

SITE A SECTION X-X

N. T. S.

SITE A LOCATION PLAN N. T. S.

This site is located at Pantai Redang, which is one of the tourism hotspot in Sekinchan. It is also next to the beach and bagan, where fisherman "comes and goes" everyday.

SITE A SECTION Y-Y N. T. S.

Design Studio III Site Analysis | 06

SITE A NORTH ELEVATION

SITE A EAST ELEVATION

SITE A SOUTH ELEVATION

SITE A WEST ELEVATION

N. T. S.

N. T. S.

N. T. S.

N. T. S.

Design Studio III Site Analysis | 14

SITE ZONING

LEGEND Sites

Residential

Commercial

Residential

Industrial

Education

Religious

Mix-used

15 | Design Studio III Site Analysis

Solid & Void Relationship The solid-void relationship in architecture is engaged through the manipulation and arrangement of surfaces in a fourdimensional environment. Both solid and void are ways to define a volume of space but conceptually we understand solids as a volume which is “full” and void as a volume that is “empty”. An environment where a solid is perceived to have been added to a void, the solid is the active element and the void is perceived as neutral space.

Spatial Relationship between Building & Street Private space might be described as a space that is owned and maintained by a single individual, family, or institution. Public space is space that is not only in the public domain but in public ownership.

Design Studio III Site Analysis | 16

Building Heights in Sekinchan The height of a building in relation to its overall configuration or massing is one of the more significant factors in determining the impact a building will have on its surrounding environment.

Building Condition in Sekinchan A building condition assessment is an assessment needed to determine whether all the building's structural elements are in rational or irrational condition. This provides valuable and relevant data on the quality of construction materials and future maintenance job scheduling.

17 | Design Studio III Site Analysis

SITE A | FISHING VILLAGE

SOUVENIR STORE (DOWNSTAIRS) Operation Hours | 8:00am - 6:00pm (everyday) Function | To sell souvenir Density of Visitor Flow | High in weekends and holidays Building Typology | Commercial Building Condition | New Architecture Style | Container

SEKINCHAN FISHERMEN & FISH TRADERS WELFARE ASSOCIATION (UPSTAIRS) Operation Hours | 9:00am - 12:00pm (Persatuan Kebajikan Nelayan) Function | To promote the growth and development of the aquaculture industry in Sekinchan Density of Visitor Flow | High in office hours Building Typology | Institutional Architecture Style | Container

CHAO SHUN FISH MARKET

HAWKER STALL

Operation Hours | 9:00am - 5:30pm Function | To handle fish after fishing Density of Visitor Flow | High during morning and evening History Background | About 200 years Building Typology | Commercial Architecture Style | Mordenist architecture

Operation Hours | 8:00am - 7:30pm Function | To sell drinks and ren Density of Visitor Flow | High in weekends and holidays History Background | About 20 years Building Typology | Commercial Architecture Style | Stall

Design Studio III Site Analysis | 18

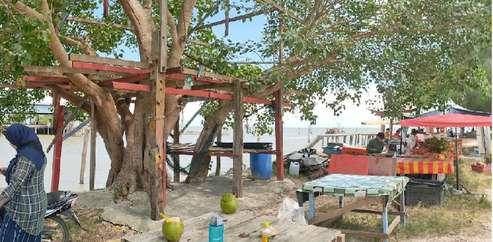

WISHING TREE

SEKINCHAN HONG WEI FOOD CORNER

Operation Hours | 24 hours Function | Dedicated to "Guan Yin Niang Niang" Density of Visitor Flow | High during weekends and holidays Building Typology | Religious Architecture Style | Traditional Chinese architecture

Operation Hours | 10:00am - 6:30pm (rest on Thursday) Function | Restaurant Density of Visitor Flow | High during weekends and holidays Building Typology | Commercial Architecture Style | Modernist architecture

M'SEKIN WONDERLAND

RESTORAN JIANN CHYI

Operation Hours | 9:00am - 6:00pm Function | Water theme park Density of Visitor Flow | High during weekends and holidays Building Typology | Entertainment Architecture Style | Mordernist architecture

Operation Hours | 7:30am - 3:00pm Function | Restaurant Density of Visitor Flow | High during morning Building Typology | Commercial Architecture Style | Mordenist architecture

27 | Design Studio III Site Analysis

SITE A LAND & SEA MOVEMENT PATTERN LEGEND

Lorry

Motorcycle

Bicycle

Boat

Design Studio III Site Analysis | 22

TYPES OF TRANSPORTATION TRANSPORTATION IN SITE A

Fishing Boat

Bicycle 5%

Lorry 30%

Motorcycle 40%

Car 22% Pedestrian 3%

SITE A EAST ELEVATION

N. T. S.

TRANSPORTATION IN SITE B

Car 43% Bicycle 2%

Lorry 3%

Motorcycle 45% Paddy Truck 2%

Pedestrian 5%

SITE B EAST ELEVATION N. T. S.

25 | Design Studio III Site Analysis

SITE A LANDMARKS LEGEND Route to Site A

Two-way road

One-way road Msekin Wonderland

Distances to Site A: 550m Estimated time to Site A: 2 mins

Temple & Wishing Tree

Distances to Site A: 70m Estimated time to Site A: 1 min

Pantai Redang

Distance to Site A: 90m Estimated time to Site A: 1 min

Fishing Village

Distances to Site A: 2.6km Estimated time to Site A: 7 mins

29 | Design Studio III Site Analysis

SITE A PEDESTRIAN & SERVICE LEGEND

Car

Pedestrian

Police

Distances to Site A: 2.1km Estimated time to Site A: 6mins

Fire Truck

Police Station

Distances to Site A: 2km Estimated time to Site A: 6mins

31 | Design Studio III Site Analysis

SITE A TRAFFIC PEAK TIME

WEEKDAY

Light

Medium

Seafood Restaurant &Fishing Village

Peak time: 5:00PM - 7:00PM Activities: Dining, Transport Fish

WEEKEND

Heavy Temple & Pantai Redang

Peak time: 4:00PM - 7:00PM Activities: Walking, Riding bicyle, Take picture & Worship

Car

35%

Car

45%

Motorcycle

40%

Motorcycle

35%

Lorry

20%

Tourist bus

15%

Design Studio III Site Analysis | 36 0m

TOPOGRAPHY

1m 2m 3m 4m 5m 6m

Site A

Site B

LOCATION PLAN

The topography of Sekinchan is mainly flat lands with some slightly higher contours at the city area and some lower contours at the fishing village and paddy field area due to the appearance of the river as well as the sea for the fishing village area and lower land with the plantation of paddies for the paddy field area. In comparison between the topography around the two proposed sites, the contour of the land around Site A is lower than Site B with the river and sea nearby.

N. T. S. 0m

0m

1m

1m

2m

2m

3m

3m

4m 5m 6m

SITE A TOPOGRAPHY N. T. S.

SITE B TOPOGRAPHY N. T. S.

39 | Design Studio III Site Analysis

VEGETATION IN SITE A Max Tree Height (m) 30 20 10

Sacred Fig Earleaf Acacia Height: 11m - 12m Height: 15m - 25m Spread: 10m Spread: 8m - 11m

Coconut Palm Height: 15m - 30m Spread: 7m

Beach Pine Height: 30m Spread: 6m - 12m

Weeping Fig Height: 7m - 30m Spread: 1.5m

Banyan Fig Height: 20m - 30m Spread: 35m

Tree Types

VEGETATION IN SITE B Max Tree Height (m)

According to our observation at both sites, we figured that Site A contains more types of vegetation and are mostly tall trees, while Site B only contains 3 types of vegetation, which are mostly short plants.

30 20 10 Rice Paddy Height: 75cm Spread: 30cm

Pong-Pong Tree Height: 6m - 9m Spread: 6m - 9m

Coconut Palm Height: 15m - 30m Spread: 7m

Tree Types

Based on the law, existing trees that are taller than 10m can't be demolished and should be remained on site as an appreciation of its many years of growth.

Design Studio III Site Analysis | 40

TYPES OF SOIL IN SITE A

Sandy Soil

SITE A PLAN

Shifting characteristics that is not suitable for construction. Field compaction needs to be carried out. The sandy soil could be recycled as excellent aggregate for foundation.

N. T. S.

TYPES OF SOIL IN SITE B

Silt Soil

SITE B PLAN N. T. S.

Sandy Soil Grown with Weeds

Loamy Soil

Silt soil is fertile, easily compactible and retains moisture while promoting air circulation. Loamy soil is a mixture of sand, silt and clay, which is suitable for rice cultivation since it has a high water retention capacity.

41 | Design Studio III Site Analysis

SITE A EXISTING MANMADE

Cottage Industry

Spot Light

Light Pole

Power Pole

Jetty

Public Toilet

SITE A PLAN N. T. S.

Drainage

43 | Design Studio III Site Analysis

DRAINAGE SYSTEM IN SITE A

Site A

Site A Drain

680m

SITE A SECTION X-X N. T. S.

m

0 68

mm

1 | Drain water from Site A will be drawn to the underground drain at Fishermen Community Centre, which will be directed towards the river.

2 | Drain water from Wishing Tree area will be drawn to the drain at public pay toilet. The sewer water from this toilet will be facilitated through PVC pipes. The water will be directed towards the river.

47 | Design Studio III Site Analysis

SITE A SENSORY WEST

WIHSHING TREE

REDANG BEACH

Wind Direction

EAST

Noise Source

Positive View

Negative View

TIMBER JETTY CONCRETE JETTY

T

ES

W

BAGAN FISHING VILLAGE

EA

Sun Path

SITE A PLAN N. T. S.

ST

SEA LEVEL

Low tide in the morning

The sea level of Redang River can be very low during low tide seasons, usually in the morning.

However, the sea level will rise during monsoon season, which will happen twice a month.

Thus, the fishing schedule is inconsistent in Sekinchan.

Low tide in the morning

Wind Rose Chart

Rising tide in the afternoon Rising tide in the afternoon

CLIMATE DATA

Wind Speed

The amounts and direction of the wind received for both sites are different from the wind rose chart due to the blockage of vegetation and buildings around the sites. The temperature on the other hand is accurate to the forecast, but with slightly higher temperature during the middays Average Temperature & Precipitation

Precipitation Amounts

Cloudy, Sunny & Precipitation Days

Maximum Temperature

Design Studio III Site Analysis | 50

Shadow Path

Shadows in Site A at 9am

Shadows in Site B at 9am

Sun Path Diagram Shadows in Site A at 12pm

Shadows in Site B at 12pm

Shadows in Site A at 5pm

Shadows in Site B at 5pm

The large amount of trees appearing around site A helps to block direct sunlight into the site during the afternoon, however the main building that can block direct sunlight in the morning will be demolished to use as our proposed site, Thus, the sunlight coming from the east side every morning will be stronger.

For Site B, the short vegetation surrounding the site will allow a large amount of sunlight into the site without blockage, thus, the temperature at Site B will be slightly higher than Site A.

51 | Design Studio III Site Analysis

VIEWS FROM SITE A

VIEWS OF SITE A FROM CAR PARK

Wishing Tree

VIEWS OF SITE A FROM CAR PARK

Coconut Stall

VIEWS TO POINTS OF INTEREST

Add a little bit of body text Wishing Tree

Fishing Village

Old Jetty

Redang Beach

愿

Project 03 | Heart of Sekinchan

Site Plan N.t.s

1 Storage

10 Reception Desk

2 Kitchen Area

11 Sekinchan

3 Cafe

12 Meeting Room

4 Disabled 5 Female Toilet

13 Ultilities Room

6 Male Toilet 7 Outdoor Dining Area 8 Public Area

15 Male Washroom attached with disabled toilet 16 Drop Off Area

9 Lobby

18 Parking Lot attached with OKU parking

14 Female Washroom attached with disabled toilet

17 Loading Bay Area

16

17

8 2 1 5

4 18

6

3 7

8

15 9 10

14 13

11

12

7

Ground Floor Plan N.t.s

19 Indoor Workshop

22 Male Surau

Ablution Area

23

AC Ledge

21 Female Surau

24

Laboratory

20

24

19

20

21

23

22

20

First Floor Plan

N.t.s

roof level

2nd level

ground floor level

Drop Off Area

Cafe

Public Area

Decking

ground level

SECTION Y-Y n.t.s

roof level

Indoor Workshop

2nd level

Public Area ground floor level

Kitchen Area

ground level

SECTION x-x N.t.s

Cafe

Lobby

Female Washroom

Parking Lot

Front Elevation N.t.s

Back Elevation N.t.s

left Elevation N.t.s

Right elevation N.t.s

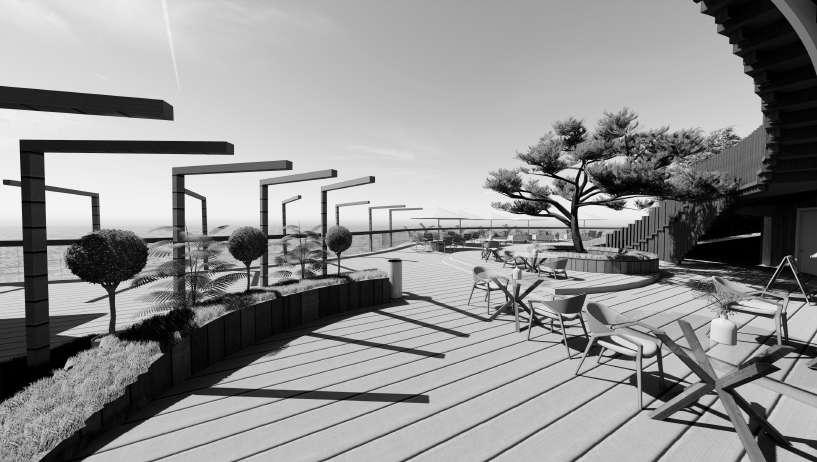

Public area (decking) Lobby & reception Area

Outdoor Dining Area (Decking)

Office & meeting Room

Yuan

Final Model

Presentation Board
