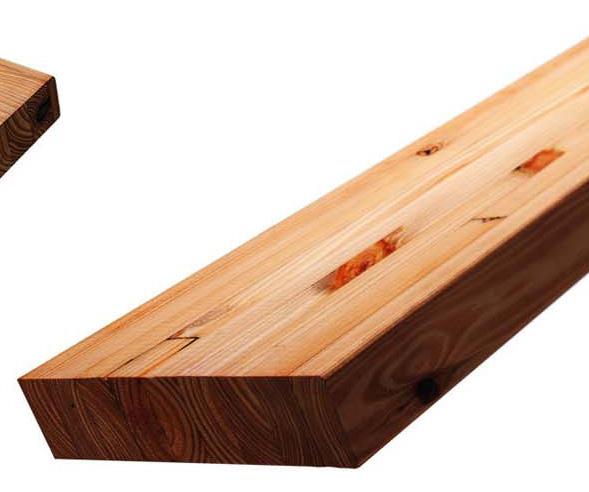

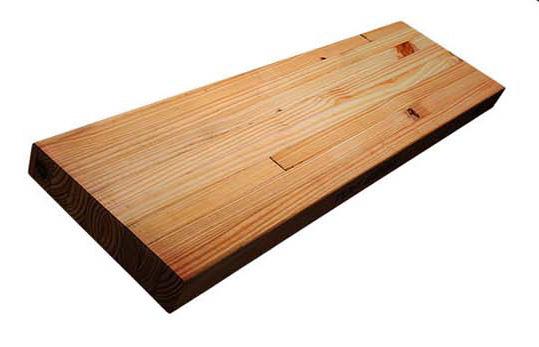

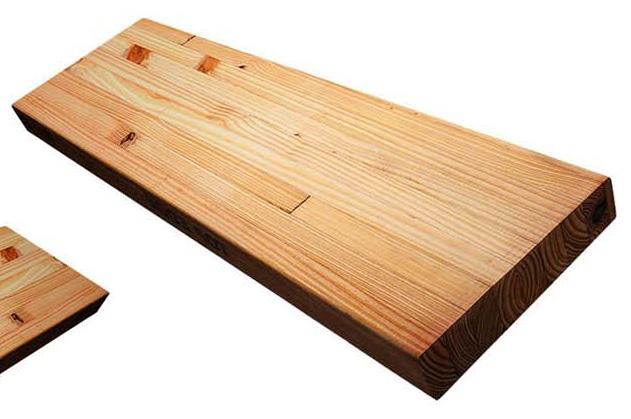

Hyne Timber’s Beam 13 stands unrivalled as the preferred choice for GL13 beams in South Australia. With its distinctive pencil-round corners and unmistakable branding, Beam 13 not only boasts a visually appealing design but also reflects the unparalleled structural integrity that sets it apart in the construction industry.
Available from ITI’s Distribution Centre in Port Adelaide, our Australian grown pine H2 LOSP Treated stock is ready to be delivered to South Australia’s foremost timber and building suppliers. It caters specifically to the state’s builders who demand nothing but the finest quality in their choice of construction materials.
Product Specifications:
Sections: 252x65 294x65 336x65 294x85 336x85 378x85
Lengths: 3.6 through to 8.4m in 0.6m increments 12.0m lengths
Beam Structure: 600m radius camber or Straight
Appearance: Grade B - As defined in AS1328.1: This grade is intended for use in applications where surface appearance is important but a machine planed finish is acceptable. Occasional skips in the surface are permissible and blemishes, voids and manufacturing want remain un-repaired. The outermost laminations are free of loose knots and open knot holes.
Treatment: LOSP H2 treatment for protection against termites and insects found across all regions of Australia.
Beam 13 is available with a 600 metre radius providing greater resistance to dead load deflection. This typically results in designers being able to specify a more efficient beam. There are a few key points to consider when using a cambered beam.
When designing a Hyne Beam 13 across a continuous span consider the beam as having no camber i.e., a straight beam.
A cambered beam can typically be used where a straight beam has been specified except when the beam is in a cantilevered application.
Always install with the TOP EDGE marking on the top edge of the beam.
When installing a cambered beam across multiple spans, initially fix the beam to the end supports only. Once the beam is loaded, and the camber is no longer visible, complete the fixing at any intermediate supports.
Hyne Design is a free to register structural design platform for timber designers of all experience levels a tool to specify ITI and Hyne Timber’s broad range of structural timber products, including Hyne Beam 13.
To request access please email ewpsa@iti.net.au
Note: Users are required to meet the requirements of the ABCB Structural Software Protocol to obtain access.
For technical assistance and information on where to buy please call 08 8447 0400 or ewpsa@iti.net.au
