About Us After nearly 30 years of gas detection solution expertise, CO2Meter has developed a reputation of excellence and service to our customers.

CO2Meter utilizes innovative technologies to design and manufacture more than 250 different devices to meet our customers’ needs. We take the time to test and validate each device to ensure it meets the standards of the industry and our customers’ rigorous standards.

Additionally, we are committed to educating and supporting our customers, which is why you’ll never get a robot answering our phones.

2

PRODUCT CATALOG

CORPORATE VALUES “At CO2Meter, our mission is to provide best-inclass gas detection, monitoring, and analytical solutions, while ensuring the safety, education and long-term business of our partners and customers worldwide.”

– Travis Lenander, CEO

3

Quality Sensing Technology

USA Pioneers of Gas Detection Solutions

Subject Matter Experts

Dedication to Safety, Education, and Training

PRECISION IS MEASURED NOT ASSUMED

PRODUCT CATALOG

4

GAS SAFETY A gas safety monitor is a device that is used to detect and alert personel of potential safety hazards in their environment. This could be anything from high levels of CO2 to low O2. These safety monitors are designed to monitor the environment continuously and to provide real-time feedback so staff are aware of any potential hazards that may arise.

Applications that would require a gas safety monitor would be industries such as: • • • • •

Restaurants Breweries & Wineries Welding Gas Distributors Laboratories

• • • •

Indoor Agriculture Arenas & Stadiums Food Production Cryogenics

PRODUCT CATALOG

There are many different gas detection safety monitors out there that can monitor one standard gas or monitor many gases simultaneously.

These gas detectors use state of the art sensors to detect the actual concentrations of the gases and offer safety features like audible and visual alarms that notify personnel should a leak occur. While these safety monitors typically come in two variations: fixed or portable gas detection – both keep employees safe during industrial processes and in hazardous workplace environments.

In summary, gas detectors are a critical tool for anyone needing to measure the concentration of gases in their application, for accuracy, precision, and quality assurance. A gas safety monitor can also be used to detect potential safety hazards in the field. Both are critical tools for ensuring efficiency.

RECOMMENDED OXYGEN SAFETY DEVICE: Oxygen Deficiency Safety Alarm R AD-0002-ZR The RAD-0002-ZR Oxygen Deficiency Safety Alarm protects staff in enclosed areas near storage cylinders of nitrogen, argon, helium, or other inert gases.

CO2METER.CLUB/ZR

5

PRODUCT CATALOG

6

GAS ANALYSIS Some applications require the precise measurement and analysis of gas concentrations in order to meet certain rigorous standards and criteria.

Measuring single or multiple gases precisely requires a device that is designed and calibrated to specific tolerences to meet those specific criteria.

In laboratories that utilize incubators, technicians want to ensure the CO2 levels in the incubator are maintained between 5-7% CO2. Controlling the CO2 precisely ensures that the CO2 concentration is precise. These precise levels guarantee that the pH balance in the grow medium is perfect for sample.

For welders, they need to ensure the efficacy of their welds and be able to analyze the concentrations of gases in their mix. The American Welding Society (AWS) has developed very tight tolerances for all welding mixes to ensure correct welds - typically +/- 10% of the minor component. Our CM1650 and CM-1652 Portable Gas Analyzers meet the AWS standards and provide quality assurance that the gas blends are in spec.

PRODUCT CATALOG

CO2 fire suppression testing also requires tight tolerances be met and maintained to meet the NFPA 12 standard. Discharge tests involve completely flooding a space with CO2 to drive out all oxygen. Measuring and analyzing the CO2 concentrations is critical to passing a discharge test to meet the standards.

7

RECOMMENDED GAS ANALYZER DEVICE: CO2+ O2 WELDING GAS ANALYZER CM-1652 CO2Meter is providing customers with advanced analysis of active welding gas blends that contain 0-50% carbon dioxide and 0-25% oxygen. This device verifies the most common gas mixtures in the industry and will set the main target for verification.

This device meets accuracy standards set by the American Welding Society (AWS) at a flow rate of 0.5-1.5mL. CO2METER.CLUB/CM1652

PRODUCT CATALOG

GAS SAFET Y CHECKLIST Ensure your team has the education and guided resources to act properly and safely should a gas leak or hazard occur with this gas detection safety checklist: Have all staff been trained on the equipment’s functions and features?

Is the proper safety signage in place in the proper locations for reference?

Are all staff familiar with troubleshooting and manual documentation?

Are all staff educated on the SOPs should an incident occur?

8

Does your team know how to calibrate the equipment or follow manufacturer instructions for calibration?

Are all staff familiar with how to operate the gas detection equipment?

Are all staff aware of environmental hazards or confined spaces?

Do staff know who to call if a hazard occurs?

PRODUCT CATALOG

YOUR SAFETY COMES FIRST For anyone working near hazardous gases, it is important to follow safety requirements to mitigate employee injuries. Some of the safety requirements and best practices when working near hazardous gas include: Hazard Assessments: conducting a hazard assessment of the work area to identify potential hazards and assess the risks associated with working with hazardous gases.

Ventilation: ensure that the work area is properly ventilated to prevent the buildup of hazardous gases. This can be achieved using ventilation systems, exhaust fans, and natural ventilation.

Personal Protective Equipment (PPE): Use appropriate PPE, including respiratory protection, eye protection, and protective clothing. The type of PPE required will depend on the specific hazardous gas being used.

Training: ensure that workers are properly trained in the safe handling of hazardous gases and the use of PPE. Emergency Response Plan: Develop an emergency response plan in case of a potential gas leak or other emergency. This plan should include evacuation procedures, communication protocols, and emergency contacts.

Warning Signs: post warning signs in the work area to alert workers and visitors to the presence of hazardous gases.

Monitoring: monitor the work area for hazardous gas levels using gas detection equipment. Regular testing should be conducted to ensure that gas levels remain within safe limits.

9

PRODUCT CATALOG

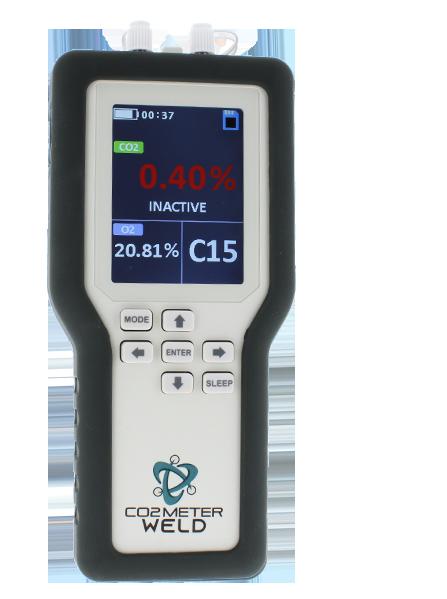

Carbon Dioxide and Oxygen Welding Gas Analyzer Built for on the go, this quick, durable device will have you analyzing your welding gas mixtures in no time. Measuring 0-50% CO2 and 0-25% O2 , with presets at the most common gas mixtures, and the capability to customize CO2 setpoints in increments of 5%.

CM-1652 Go to Page 26 to Learn More!

10

Industrial Gas Detectors Whether you need carbon dioxide or oxygen deficiency monitoring, these devices are an ideal solution for keeping establishments and employees continuously protected while maintaining compliance with CO2 or O2 safety standards.

CM-900 - CO2 CM-902 - O2 Go to Page 14 to Learn More!

PRODUCT CATALOG

Remote CO2 Storage Safety 3 Alarm The Monitor has both audible and visual alarms. 3 built-in relays can control an exhaust fan or send an alarm to the fire department or monitoring company. This meets state and local municipality inspection code requirements around stored CO2.

RAD-0102-6 Go to Page 18 to Learn More!

11

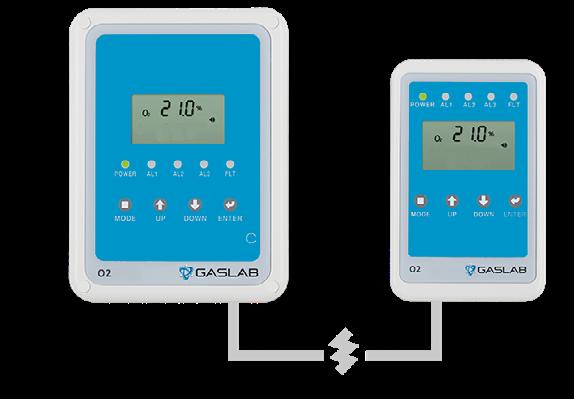

Oxygen Deficiency Safety Alarm RAD-0002-ZR Oxygen Deficiency Safety Alarm protects staff in enclosed areas near storage cylinders of nitrogen, argon, helium, or other inert gases by measuring concentrations between 0-23%.

RAD-0002-ZR

Go to Page 22 to Learn More!

PRODUCT CATALOG

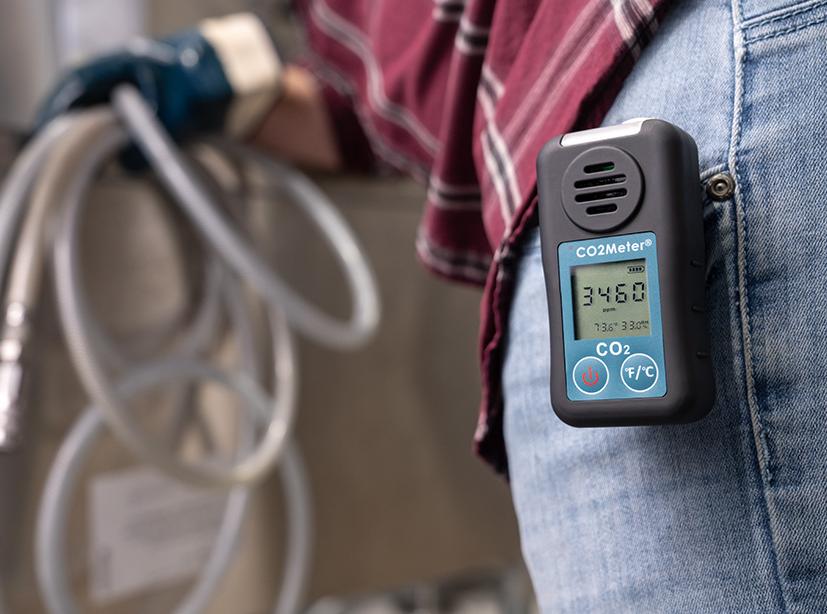

Personal Safety Monitor and Data Logger Designed for employees who work in enclosed areas where carbon dioxide or other hazardous gases may buildup and cause personal harm.

Triggering a man-down alarm when an employee fall occurs, as well as a high-impact strobe, powerful alarm, and vigorous vibration.

SAN-10 - CO2 SAN-20 - O2 Go to Page 20 to Learn More!

12

TecWeld Oxygen Analyzer The TecWeld 0-2000ppm O2 Analyzer is designed to provide distinct accurate measurements of oxygen content in welding and industrial applications.

Featuring an extremely effective O2 optochemical sensing, which can take measurements in just 3 seconds!

TS-300

Go to Page 24 to Learn More!

PRODUCT CATALOG

Multi Gas Safety System The Multi Gas Safety System monitors carbon dioxide and oxygen deficient environments.

Because these gases are colorless and odorless, they can be dangerous to employees and customers when it is present in high concentrations.

CM-7000 Series

Go to Page 28 to Learn More!

13

PRODUCT CATALOG

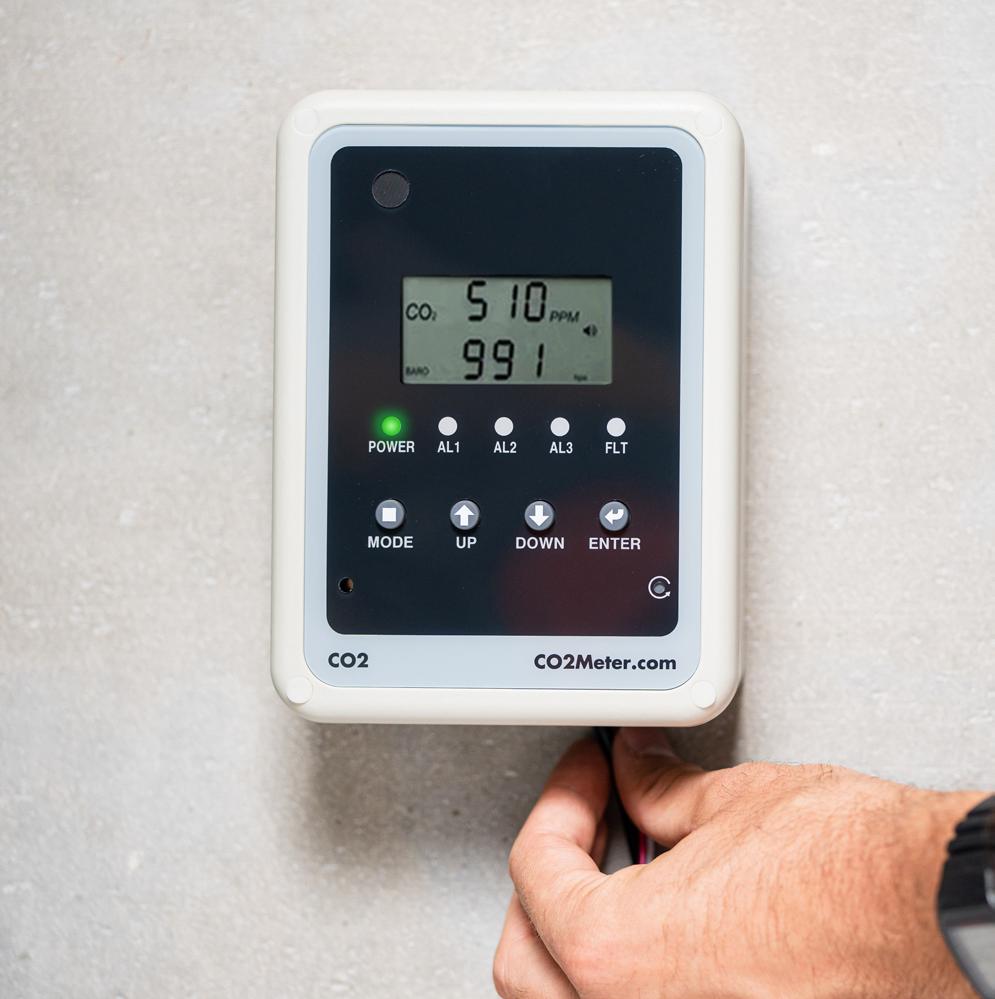

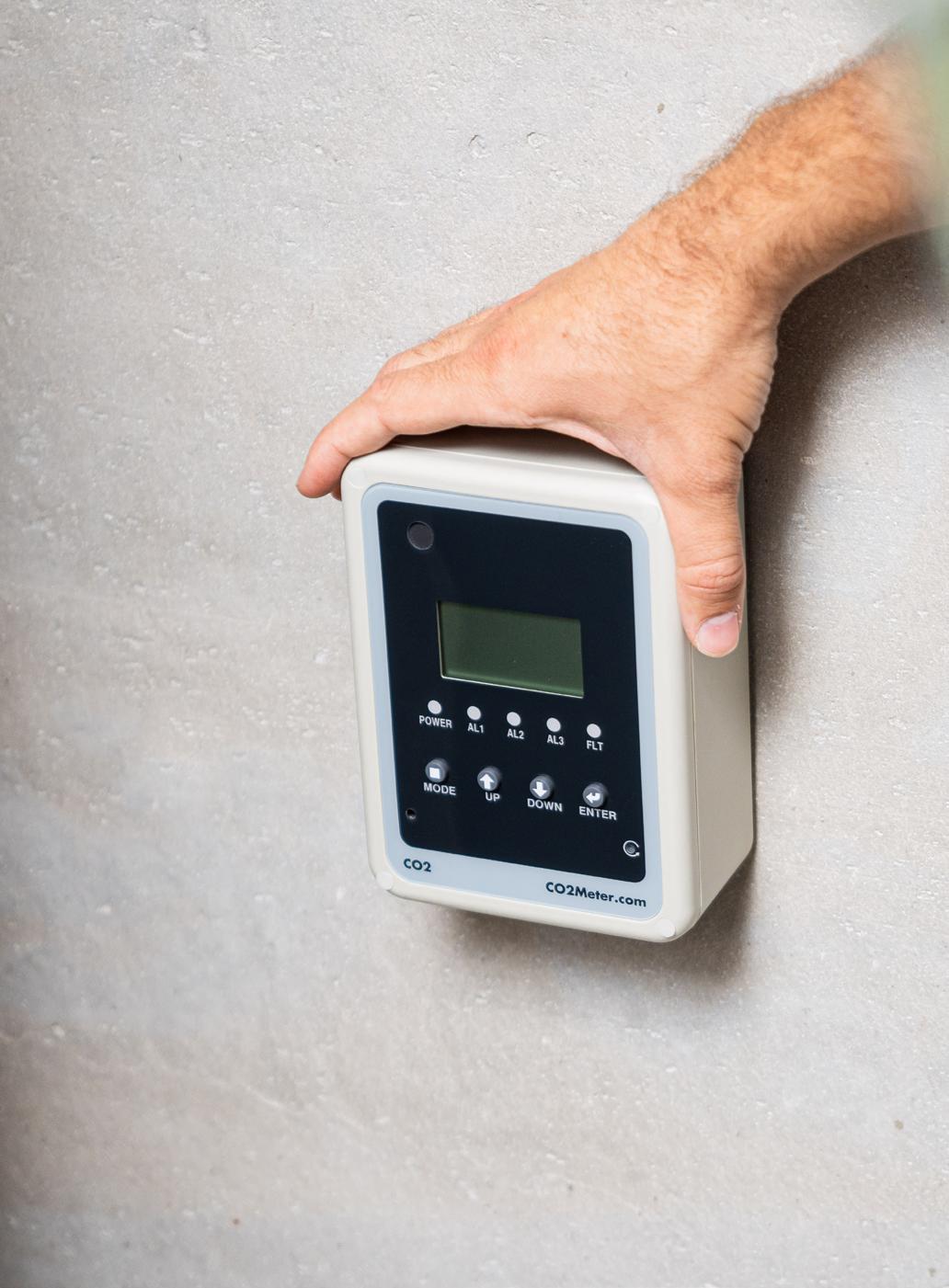

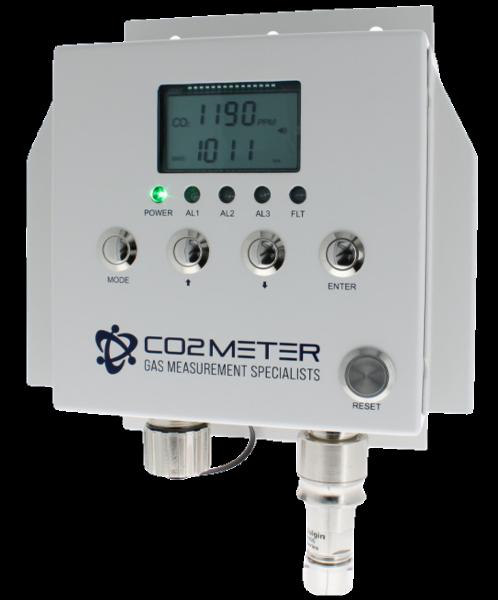

CM-900 CO2 Industrial Gas Detector The CM-900 CO2 Industrial Gas Detector measures carbon dioxide levels in harsh environments or where washdown is required.

The CM-900 is an ideal solution for keeping establishments and employees continuously protected while maintaining compliance with CO2 safety standards. This device meets all NFPA, IFC, and NBIC standards for CO2 gas safety requirements.

14

SPECIFICATIONS CO2 Measurement Range: 0-50,000PPM (5%) CO2 Measurement: NDIR 5% CO2 Accuracy: +/-200ppm or +/-10% reading Operating Temperature: 32°F to 122°F (0°C to 50°C) Calibration: 100% pure nitrogen zero calibration Alarm Relays: 3 Resolution: 10ppm at 0~0,000ppm; 100ppm at 10,001~50,000ppm

Dimensions: 8.25-inch x 7.8-inch x 3-inch Weight: 1.5lbs (Monitor only) .

CO2 AL1 (TWA): 5000TWA CO2 AL2: 5000ppm Default (5000ppm, 1.0%, 1.5%, 2.0%, 2.5%, 3.0%.)

CO2 AL3: 3.0% Default (2.0%, 2.5%, 3.0%, 3.5%, 4.0%) Sound Alarm: 80db @ 10cm Warm-Up Time: <60 seconds at 22°C

PRODUCT CATALOG

Features DURABLE

Designed for the industry, rugged industrial IP64 enclosure

ACCURATE NDIR Sensor

FAST

Measurements in 5 seconds

3 RELAYS

15

3 relays can automatically control ventilation, valves, and fire panels

VISUAL INDICATORS

Relays can activate visual strobes

AUDIO INDICATORS 80 dB audible alarm

TRUSTED

1-year limited warranty

CO2METER.CLUB/CM900

PRODUCT CATALOG

CM-902 O2 Industrial Gas Detector The CM-902 O2 Industrial Gas Detector measures oxygen levels in harsh environments or where wash-down is required.

The CM-902 is an ideal solution for keeping establishments and employees continuously protected when working near hazardous gases like nitrogen, argon, or helium, all while maintaining compliance with O2 safety standards. This device also meets all CGA, OSHA, and NIOSH standards as they pertain to gas safety requirements.

16

SPECIFICATIONS O2 Measurement Range: 0-23% O2 Measurement: Zirconia sensor with extended lifespan Accuracy: Better than 2% FS Operating Temperature: -58°F to 122°F (-50°C to 50°C) Calibration: Span Calibration 21% oxygen Alarm Relays: 3 Resolution: 0.1% Dimensions: 8.25-inch x 7.8-inch x 3-inch

Weight: 1.5lbs (Monitor only) .

O2 AL1: 19.5% Default (15.5%, 16%, 16.5%, 17%, 17.5%, 18%, 18.5%, 19%, 19.5%, 20%) O2 AL2: 16.5% Default (12.5%, 13%, 13.5%, 14%, 14.5%, 15%, 15.5%, 16%, 16.5%) O2 AL3: Default 12.0% (Fixed) Sound Alarm: 80db @ 10cm Warm-Up Time: 600 seconds (10 minutes) for full operating temperature range

PRODUCT CATALOG

Features DURABLE

Designed for the industry, rugged industrial IP64 enclosure

ACCURATE Zirconia Sensor

FAST

Measurements in 5 seconds

3 RELAYS

17

3 relays can automatically control ventilation, valves, and fire panels

VISUAL INDICATORS

Relays can activate visual strobes

AUDIO INDICATORS 80 dB audible alarm

TRUSTED

1-year limited warranty

CO2METER.CLUB/CM902

PRODUCT CATALOG

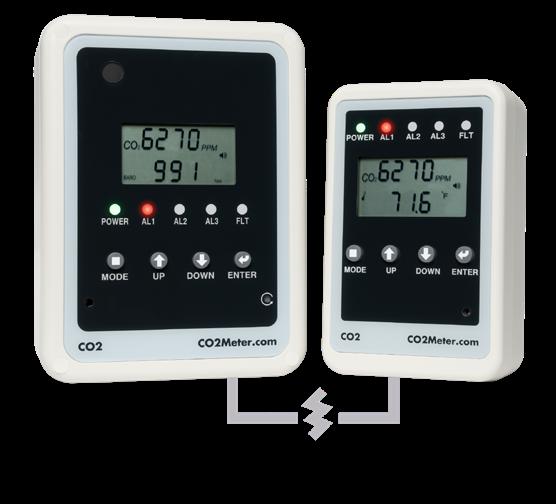

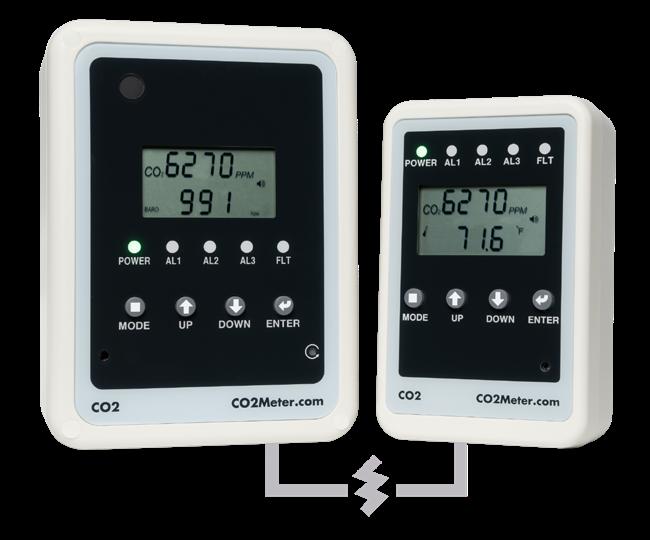

RAD-0102-6 Remote CO2 Storage Safety 3 Alarm

18

The Remote CO2 Storage Safety Alarm is designed to protect customers and workers near stored carbon dioxide (CO2).

CO2 alarms are critical in restaurants, breweries, wineries, beverage dispensing areas, dry ice storage, laboratories, cultivation facilities, or anywhere more than 100 lbs. of compressed CO2 is stored or produced.

SPECIFICATIONS Measurement range: 0-5% (50,000ppm) CO2 Sensor Alarms: 5,000 ppm TWA, 5,000 PPM CO2, 3% CO2 (USER configurable) CO2 Measurement Interval: 2 seconds Operating Temperature: 0-50°C (32-122°F) Calibration: 100% pure nitrogen zero calibration Sensor Life Expectancy: >10 years Power supply: 110-220VAC 50/60 Hz to 12VDC Power Adapter Power Consumption: 3 Watts Relays: Peak Current < 2A @ 30VDC or 250VAC, SPDT Relay Color Coding: Red & White = Normally Open Blue & White = Normally Closed

PRODUCT CATALOG

Features CLARITY

Large displays for clear visual indication of gas concentrations

VISUAL INDICATORS visual alarms on both units

AUDIO INDICATORS

88 dB audible alarms on both units

3 RELAYS

3 relays can automatically control ventilation, valves, and fire panels

DURABLE

IP54 Enclosure - prevents water damage during spray-down

TRUSTED 1-year limited warranty

CO2METER.CLUB/RAD-0102-6

19

PRODUCT CATALOG

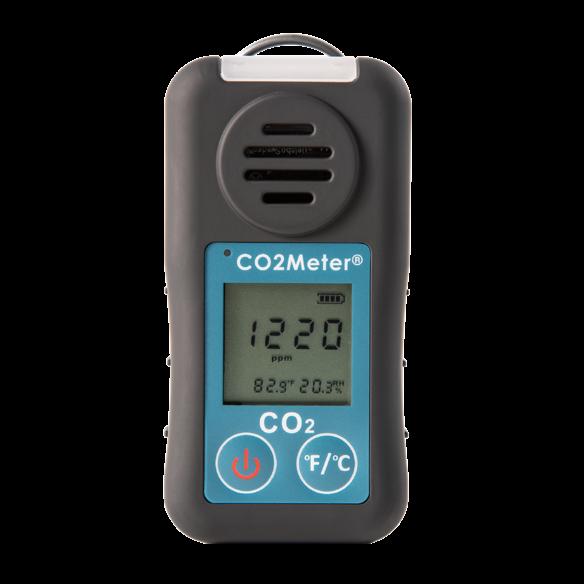

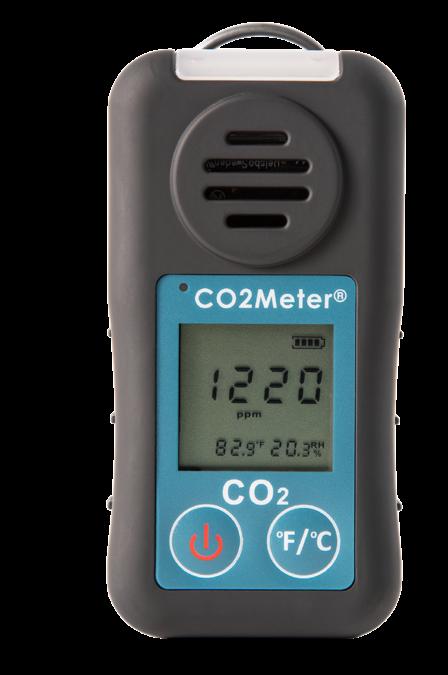

SAN-10 Personal Safety Monitor and Data Logger The SAN-10 Personal 5% CO2 Safety Monitor and Data Logger is designed for employees who work in enclosed areas where carbon dioxide buildup may cause personal harm.

This device features exclusive data logging capabilities and the data log files can be downloaded as csv./xls. files.

The SAN-10 is designed to alert people in an area that contains an excessive amount of carbon dioxide gas.

This personal safety monitor features a man-down alarm that is triggered when an employee fall occurs. It also includes a highimpact strobe, powerful alarm, and vigorous vibration.

20

Low Oxygen Model Available Here.

SPECIFICATIONS CO2 Measurement range: 0-5% (0-50,000ppm) CO2 O2 Measurement range: 0-25% O2 CO2 Sensor Accuracy: ±70ppm ±5% reading value O2 Sensor Accuracy: Better than 2%FS CO2 Measurement Interval: 2 seconds O2 Measurement Interval: 1 second Audible Alarm: 90 db @ 10 cm Operational Temperature Range: 32°F to 122°F Operational Humidity Range: 0-95% RH, non-condensing Size: 2.0 x 4.0 x 4.0 in. (50.8 x 101.6 x 101.6mm.)

Weight: 0.25 lb (4 oz.)

PRODUCT CATALOG

Features CLARITY

Large LCD display for clear visual indication of CO2

VISUAL INDICATOR visual strobe

AUDIO INDICATORS 90 dB audible alarm

PHYSICAL INDICATOR

21

Vibrating Alarm

EASY CALIBRATION

Calibrate using nitrogen or ambient air

DURABLE

Rugged design with metal clip, protective rubber enclosure.

IP54 housing protects against dust and rain

TRUSTED

1-year limited warranty

CO2METER.CLUB/SAN10

PRODUCT CATALOG

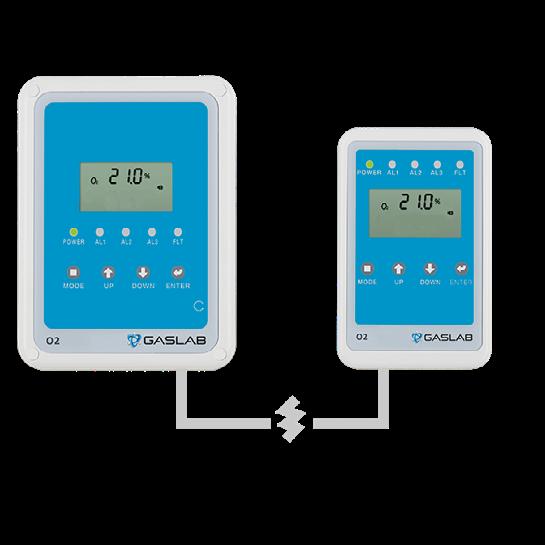

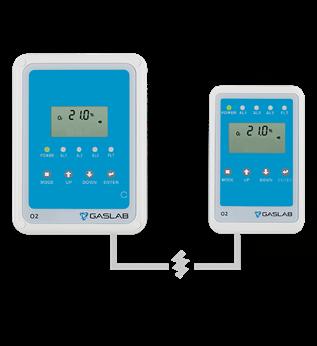

RAD-0002-ZR Oxygen Deficiency Depletion Safety Alarm RAD-0002-ZR Oxygen Deficiency Depletion Safety Alarm, protects staff in enclosed areas near storage nitrogen, argon, helium, or other inert gases.

Per both the Occupational Safety and Health Administration (OSHA) and National Institute for Occupational Safety and Health (NIOSH) hazardous conditions may include areas where the oxygen concentrations fall below 19.5% and requires oxygen deficiency monitors.

22

Our oxygen deficiency alarm is commonly used in hospitals, laboratories, food production, cryogenics, process cooling, freezers, manufacturing, food + beverage, and research facilities.

The oxygen deficiency safety monitor will stay accurate at temperatures as low as -50°C, without needing maintenance and does not require zero calibration.

SPECIFICATIONS Measurement range: 0-23% MeasurementInterval: 1 second Sensor Life Expectancy: 10 years O2 Deficiency Alarms: AL1 19.5%, AL2 16.5%, and AL3 12% Operating Temperature: -58°F to 122°F (-50°C to 50°C) Power supply: 12VDC, 2000mA

Power Input: 100-240 VAC, 50/60Hz, 0.6A Relays: Peak Current < 2A @ 30VDC or 250VAC, SPDT - Relay 3 fault indicator Power Consumption: 3 Watts

PRODUCT CATALOG

Features CLARITY

Large Display for clear visual indication of gas concentrations

VISUAL INDICATORS visual alarms on both units

AUDIO INDICATORS 80 db audible on both units

3 RELAYS

3 relays can automatically control ventilation, valves, and fire panels

DURABLE

IP54 Enclosure - prevents water damage during spraydown

COLD

Will stay accurate at temperatures as low as -50°C

TRUSTED

1-year limited warranty

CO2METER.CLUB/ZR

23

PRODUCT CATALOG

TS-300 TecWeld Oxygen Analyzer

The TecWeld 0-2000ppm O2 Analyzer is designed to provide distinct accurate measurements of oxygen content in welding and industrial applications utlizing state of the art, extremely effective O2 optochemical sensing technology. This device boasts a modern, clean design with bluetooth and USB connectivity.

SPECIFICATIONS 24

Measurement Range: 0-2,000ppm Accuracy @ 0-500 ppm: 2% Mv* ± 10 ppm Accuracy @ 500-1000ppm: 3% Mv*± 30 ppm Accuracy @ 1,000-2,000ppm: 4% MV* Resolution: 0.05% Response time at 25°C: < 15 seconds Pump flow: 400mL/min.

Temp. range Min./Max: 14°F-140F° (-10°C-60°C) Power supply: 5V USB and LiPo Battery Storage Capacity: 4GB Rechargeable battery life: > 3 hours per charge

Temperature compensation: 50 86°F (10 - 30°C) Display: OLED Cleaning: No organic solvents, 40% EtOH Case: Anodized aluminum Protection: IP65 A lifetime of sensor cap: 2 years @ normal welding conditions and atmosphere, 60°C with proper filtering Device Weight: 0.50 lbs.

Device Dimensions: 7 x 2 x 1 inch Sensor cap replacement interval: 2 years Recommended customer Calibration Interval: 6 months

PRODUCT CATALOG

Features COMPACT

Easy to Use, On-the-Go analysis

CALIBRATED Prior to Shipment

DATA LOGGING Data Logging capabilities

FAST

25

Measurements in 3 seconds

ACCURATE

Extremely effective O2 optochemical sensing

CO2METER.CLUB/TS300

PRODUCT CATALOG

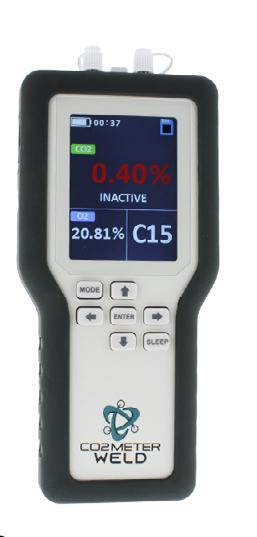

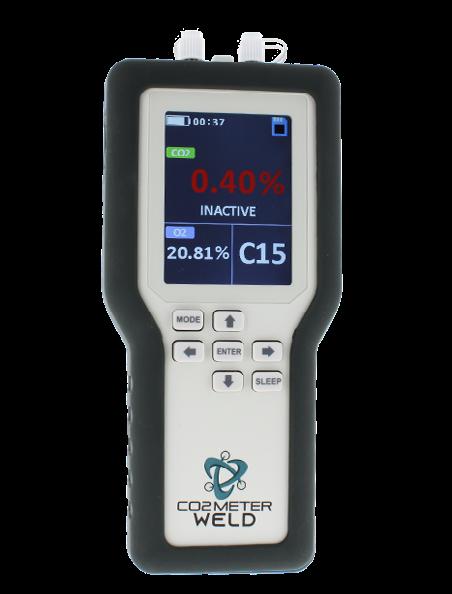

CM-1652 Carbon Dioxide and Oxygen Welding Gas Analyzer With the CM-1652 Carbon Dioxide and Oxygen Welding Gas Analyzer, CO2Meter is providing customers with advanced analysis of active welding gas blends that contain 0-50% carbon dioxide and 0-25% oxygen. This device verifies the most common gas mixtures in the industry and will set the main target for verification.

The Carbon Dioxide and Oxygen Welding Gas Analyzer is an ideal solution for welders because it is uniquely structured, industrially designed, and conveniently operable for “onthe-go” analysis.

26

This device is unique in that it is the only device on the market that meets accuracy standards set by the American Welding Society (AWS) at a flow rate of 0.5-1.5mL.

SPECIFICATIONS CO2 Measurement Range: 0-50% O2 Measurement Range: 0-25% Measurement Targets: C2, C10, C15, C25 and C50 (custom options available) CO2 Accuracy: ± 300 ppm +/- 5% reading O2 Accuracy: Better than 2% of measured value Sample Method: Flow through Operating Temperature:

0°C-50°C (32°F-122F°) 0~95% RH, non-condensing Battery: (QTY-3) Li-ion rechargeable batteries, 30+ hours per charge Dimensions: 8.9-inch x 3.9-inch x 2.2-inch (226mm x 100mm x 55mm) Sensor Life Expectancy: > 15 years

PRODUCT CATALOG

Features ACCURATE

Fast and Precise Reading in just 10 seconds

COMPACT

Easy to Use, On-the-Go analysis

CUSTOM

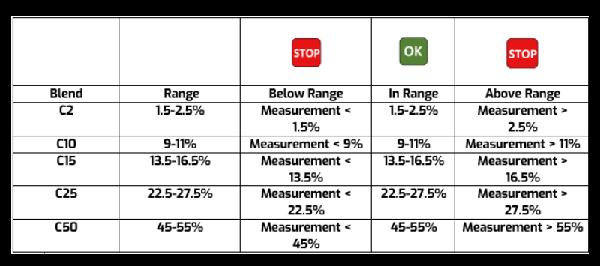

Create custom CO2 selections for individual concentration range in increments of 5%

DATA LOGGING

Gain UNLIMITED data logging to a Micro SD Card

RANGE

Ability to monitor across concentrations: 0-50% CO2 , and 0-25% O2

DURABLE

Designed for the industry, rugged industrial enclosure

TRUSTED

1-year limited warranty. Arrives with calibration certificate

B2C

Avaliable for resell to Customers

CO2METER.CLUB/CM1652

27

PRODUCT CATALOG

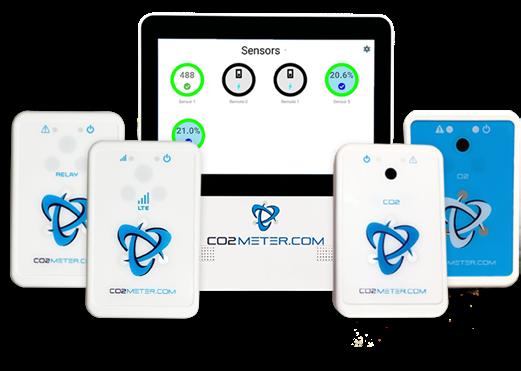

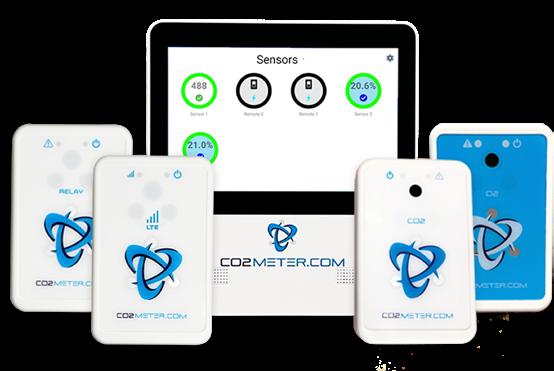

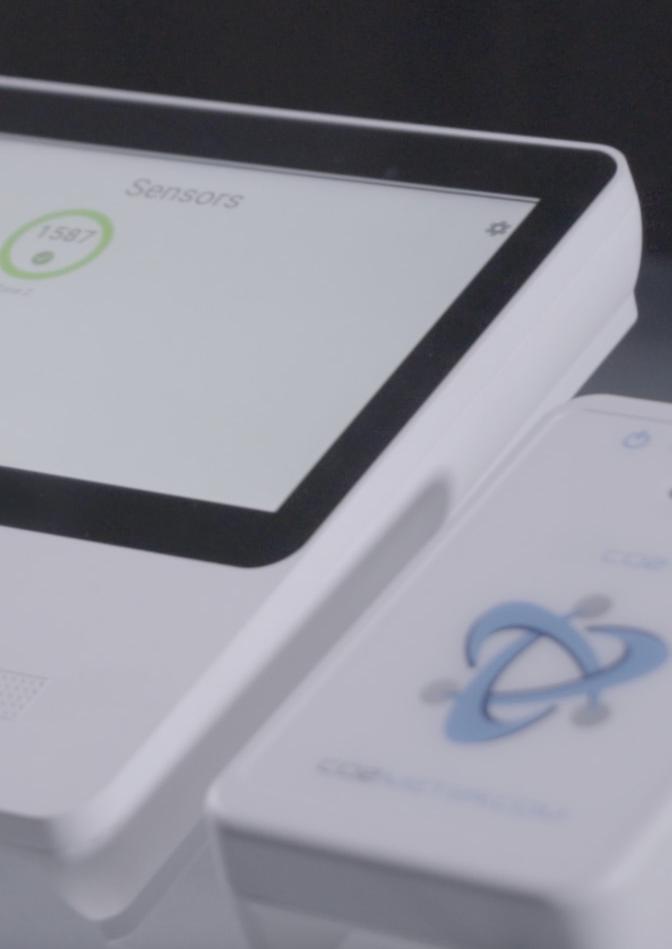

CM-7000 Series Multi Gas Safety System The Multi-Sensor Safety System is designed to monitor carbon dioxide and oxygen levels and detect leaks across multiple locations from a single central display unit. It can also control multiple emergency horns, strobe lights, ventilation fans, gas shut-off valves or can be configured to automatically alert off-site emergency first responders.

28

The Multi Gas Safety System is designed to be “plug and play” and easily installed by a building’s maintenance department. You can select individual system components by contacting a sales specialist who can help you design a custom system for your application. *Additional drawing and layout support/service is available.

SPECIFICATIONS CO2 Measurement Range: 0-5% CO2 O2 Measurement Range: 0-23% O2 CO2 Measurement: NDIR O2 Measurement: Zirconium Oxide CO2 Alarms: 5000ppm TWA, 5000ppm, 1%, 1.5%, 2%, 2.5%, 3%, 3.5%, 4% (configurable) O2 Alarms: 20%, 19.5%, 19%, 18.5%, 18%, 17.5%, 17%, 16.5%, 16%, 15.5%, and 15% (configurable) CO2 Sensor Life Expectancy: > 15 Years O2 Sensor Life Expectancy: 10 Years

DIMENSIONS: CM-7005 (Main Tablet): 8.0” w x 8.75” l x 1.5” h (Screen is 8” LCD touchscreen) CM-7002 (Remote Unit): 3.5” w x 5.5” l x 1.75” h CM-7003 (Sensor): 3.5” w x 5.5” l x 1.75” h CM-7004 (Horn Strobe): 5.5” w x 4.5” l x 2.75” h CM-7006 (Mini Display Tablet): 5” w x 8.3” l x 2.75 “ h

PRODUCT CATALOG

Features CLARITY

Large LCD Display for Clear Visual Indication of gas concentrations

CALIBRATED Prior to Shipment

3 RELAYS

3 relays can automatically control ventilation, valves, and fire panels

ACCURATE

29

NDIR and Zirconium Oxide sensors

VISUAL INDICATORS Visual alarms on horn strobe Outdoor indication available

AUDIO INDICATORS

90-120 db audible on horn strobe

CO2METER.CLUB/CM700SERIES

PRODUCT CATALOG

System Units

CM-7005 Multi Gas Safety System Tablet

CM-7003 Multi Gas Safety System CO2 Sensor

CM-7103 Multi Gas Safety System O2 Sensor

30

CM-7004 Multi Gas Safety System Horn Strobe

CM-7007 Multi Gas Safety System Wireless Data Connector

CM-7004-OUT CM-7002 Multi Gas Safety System Multi Gas Safety Exterior Horn Strobe System Relay

CM-7006 Multi Gas Safety System Mini Display Tablet CO2METER.CLUB/CM700SERIES

PRODUCT CATALOG

31

PRODUCT CATALOG

THANK YOU Thank you for taking the time to look at our catalog.
