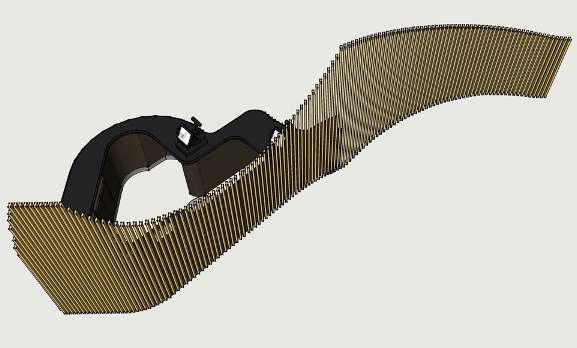

EXAMPLE OF A MILLWORK FLOOR PLAN :

The Balfour

Note:

Quanitity- Total of 1. For any concrete Millwork in the space shop drawings to be submitted for ADG review and approval.

MILLWORK PIECE TO BE ATTACHED TO TABLE

TWO SCREW BOLTED TO THE FLOOR AND TO THE TOP. LOCATION TO MACH.

INTERIOR RENDERING: VIEW OF SITTING AREAS LOOKING FROM THE MAIN ENTRANCE.

CHIRCHILL Deparment store, 2018

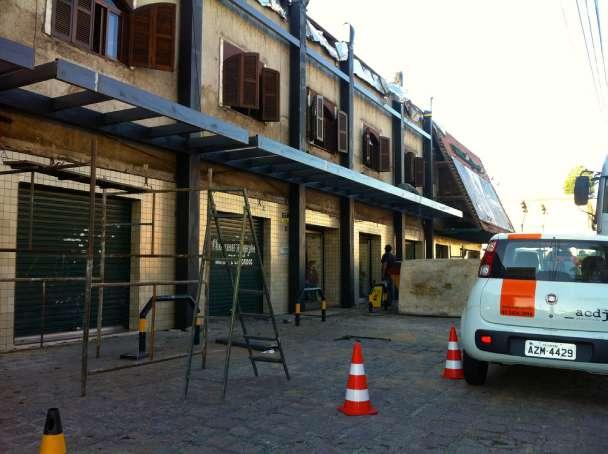

This two-story department store underwent a completely renovation and expansion into an adjacent space. The two-story department store housed different departments, such as: men and women’s section, kid’s area, shoes and accessories section. The new project featured a staircase to the mezzanine and a two-story facade as main objects to be developed. The store remained fully operational during its construction. As a result to this obstacle an intricate schedule was designed in order to orchestrate each project’s phase, minimizing the inconvenience to shoppers and supporting the company profit’s goals. This project was produced while I was working as an Junior Architect for ACDJR Architecture.

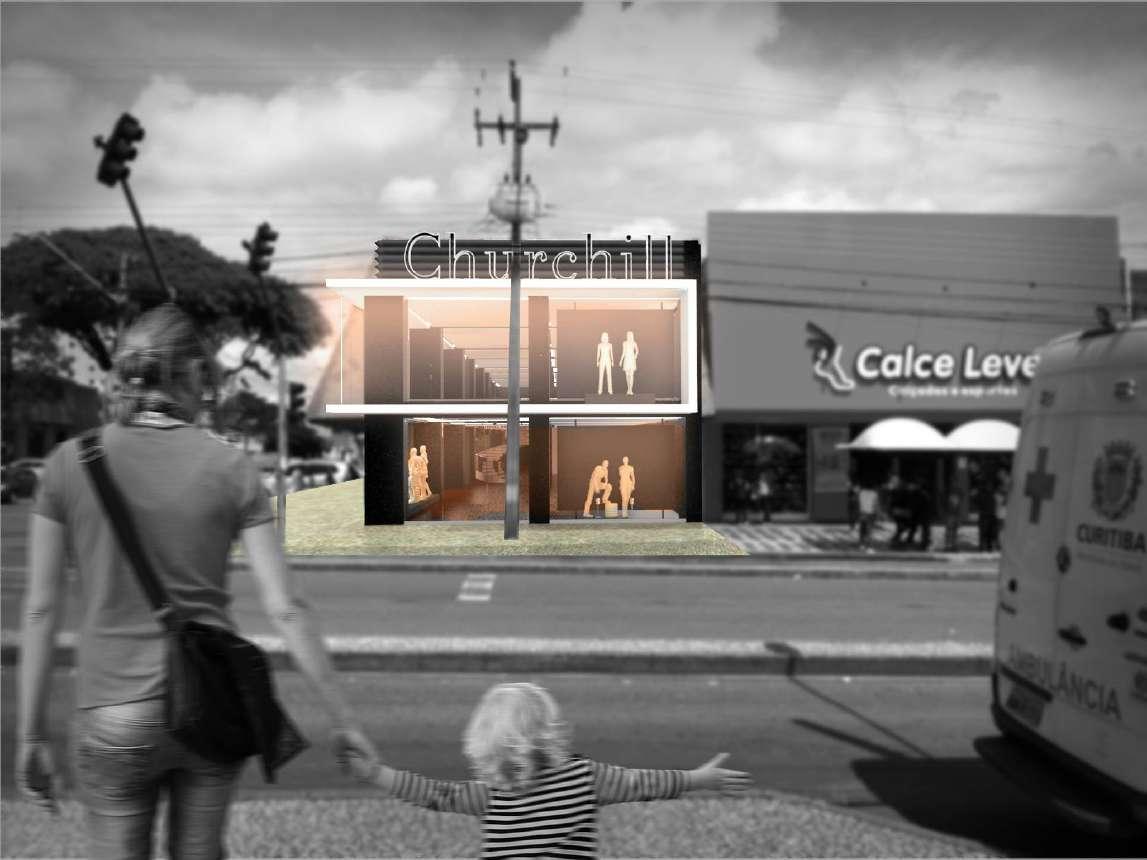

OUTDOOR RENDERINGS: SHOWCASE AT THE MAIN FACADE

Project Details

type: Deparment Store size: 3,767.37sqft / 350m2 location: CURITIBA-PR, BRAZIL company and year: ACDJR ACHITECTURE, 2017 my role: Programming and Planing - Schematic and Design Developement - Furniture and Finishes

FIXTURES RENDERINGS: CLOTHING DISPLAY

FIXTURES RENDERINGS: INDDOR SLIDE FOR KIDS SECTION

FIXTURES RENDERINGS: KIDS CLOTHING DISPLAY

KADRI ODONTOLOGIA Dental Clinic, 2017

The concept of this project was to create a unique, comfortable and sophisticated identity for the clinic, where patients could have a pleasant experience when visiting the dentist. With a limited area of 484 sqft, it was a challenge to fit in the layout all the necessary rooms following specifics local rules to be an approved and legalized space as an authorized dental clinic. In this project I could participate trough all phases, from the test fit untill post ocupancy evaluation. This project was produced while I was working as Junior Architect for ACDJR Architecture.

Project Details

type: DENTAL CLINIC size: 484,37sqft./ 45m2 location: CURITIBA-PR, BRAZIL company and year: ACDJR ACHITECTURE, 2018 my role: Planning design, schematic design, design development, construction documents .

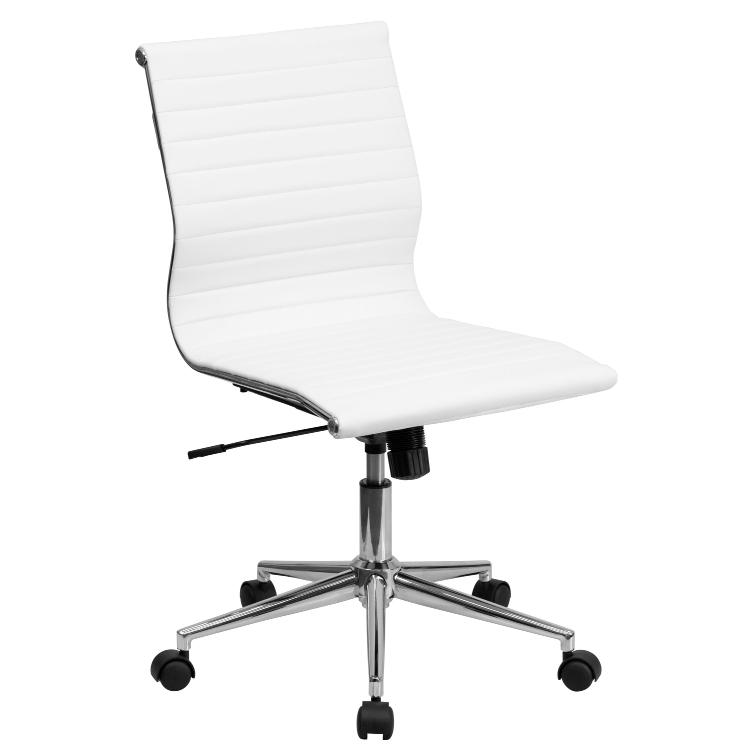

Study Of Finishes And Furniture

Ilustraded Floor Plan Layout

Ilustraded Section

EATTASTY go fresh

Fast casual restaurant, 2017

This project was developed while interning for ACDJR Architecture, it was a restaurant unit located in a downtown area and the existing space was composed of a very compact area with a long floorplan format. The proposed layout should include seating areas, self-service circuit, cashiers, staff and it should successfully support the rush hours. My part in this project would be to check the existing complex area to develop the base floorplan and collaborating with a team to work on a pre-design layout to better suit all the needs of the project. Additionally, I assisted with creating the project identity, choosing finishes, color palette, developed 3D model and images for presentations.

Project Details

type: RESTAURANT size: 1937,5sqft. / 180m2 location: CURITIBA-PR BRAZIL company and year: ACDJR ARCHITECTURE, 2017 my role: Test Fit, Schematic design, Design Development
