Thenominal compositionsoftheMMCs fabricated inthe present investigation were Al 4wt.%Cu matrix reinforced with5,10,and15wt.%insitureactantsofTiB2particlesthroughthefollowingreaction:
© 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 09 Issue: 03 | Mar 2022 www.irjet.net p-ISSN: 2395-0072
1. Introduction
| Page207
Abstract:
1Scholar, Damisetty Bala Srinivasa Naidu Institute of Technology, A.P, India, 524201.
Ceramic molecule built up aluminum metal lattice composites (MMCs) created by in situ processes have been widely concentrated because of their possibly low fabrication cost [1 6]. In situ manufacture, a compound response prompts the development of thermodynamically stable building up clay phase(s) during the cycle. A portion of these strategiesincorporatesDIMOXTM,XDTM,receptive gaspenetration,andhigh temperatureself spreadingblend(SHS).In situMMCscanbemorefinancially savvy and have higher mechanical strength, especially at moderately higher working gum. Saving in costmightcomefromthedecreaseorendofhandlingstepsandtheneedtoaddbuilding upparts.Stage changes, recrystallization, or nucleation happening in the in situ compound interaction produce more uniform conveyanceofthesupportingstagesin thesub micrometer or evennanometer range bringing about better mechanical propertiesofthelastMMCs.
ThepaperexploresthearrangementofinsituTiB2 throughasubstanceresponseamongAl,TiO2,andB2O3.The thermodynamicevaluationshowsthearrangementofTiB2 throughtwophases,inparticular,adecreaseofTiandBfrom theiroxidesfollowedbythedevelopmentofTiB2.53%and44%expansionsintheyieldandextremeelasticburdensofthe compositesupportedwith15%TiB2contrastedwithitsunreinforcedpartnerhavebeennoticed.
Al and its combinations have been picked as the framework materials chiefly because of their low liquefying point, low thickness, wide fluid temperature range, sensibly high warm conductivity, heat treatment ability, handling adaptability, accessibility, and finally their minimal expense [2,5,10]. Concerning the support, TiB2 is picked since it is especiallyreasonableassupportforAl basedreceptivesinteredcompositesbecauseofitshighexothermicdevelopment andthermodynamicstrengthinAl[2,5].
Investigation of Mechanical Properties of Al Alloy Composites through in Situ TiB2 Reinforced K.Venkata Sreekanth1 , Dr. T Venkateswara Rao2
Utilizingtheinsituprocess, Al MMCs have been created utilizing different beginning material frameworks. For instance, in situ Al2O3 molecule built up Al composite has been ready by the vortex strategy where the necessary measureofTiO2wasaddedintothevortexframedinliquidAlat1023K. The decreased Ti from TiO2 is relied upon to breakdownintotheAlsoftendeliveringanextrareinforcingoutcome[7].TiO2hairshavebeenutilizedtorespondwith Al by response press projecting to create composite materials with the development of supporting Al2O3 stages and fragileTiAl3[8].Receptive
sintering has additionally been utilized to create little size TiB2 based particulate MMCs from a compactedcombinationofreactantpowders[4].Theprocedureisaffordablebecauseofmodestbeginningpowdersand somewhat low sintering temperature. Likewise, it might prompt the chance ofdensifying thematerials withless added substancesorevenwithoutaddedsubstancesbyanystretchoftheimagination.
Keywords: Composite;Powdermetallurgy;X raydiffraction;Thermodynamics.
2. Experimental procedures
2Professor, Damisetty Bala Srinivasa Naidu Institute of Technology, A.P, India, 524201. ***
Inthecurrentreview,aminimalexpensebeginningmaterialarrangementofAl 4wt.%Cu/TiO2 B2O3isutilized to manufacture in situ shaped TiB2 and Al2O3 supported Al 4wt.%Cu composites by abstaining from utilizing costly beginningpowderslikeBorTiorTiB2.TheplausibilityofobtainingTiB2supportparticlesintheAl/Cugridusinginsitu responsive sintering is explored utilizing XRD, SEM, and EDAX. The impacts of TiB2 support with various weight proportionsonthemechanicalpropertiesandmicrostructuresoftheresultantcompositesareadditionallycontemplated.
NaturalAlandCupowderswerefirstmixedfor2hwithTiO2andB2O3powdersinatwinshelltumbleblender atarotationalspeedof45rpm.BallprocessingwasthendoneutilizingaFrischPM/5planetaryballprocessingmachine workingat150 rpm for 4h. The weightproportionofball topowder wascontrolledat10:1forallmillings.Toforestall oxidation of the powders during processing, the ball processing vials were vacuumed and afterward loaded up with 99.9%unadulteratedargongas. 2.5 wt.%steariccorrosivewasaddedasaninteractioncontrolspecialisttokeepawayfromexorbitantvirus weldingof thepowdersduringprocessing[11].

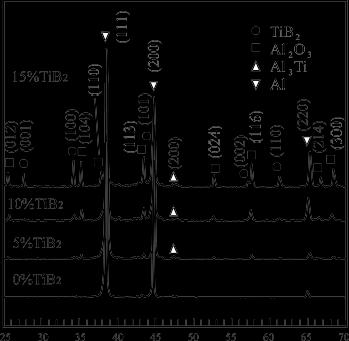

Fig.1.XRDpatternsofthespecimenswithdifferentamountsofTiB2reinforcements.
3. Results and discussion
©
hardness.Malleable
Structural evolution X ray diffraction (XRD) patterns of the matrix specimen and the specimens reinforced with different amounts of TiB2 are shown in Fig. 1. It is evident that reaction (1)takes place in all the composite specimensasindicated bythe formationofTiB2 andAl2O3 diffraction peaks. Theintensity of both diffraction peaks increases with increasing TiO2 and B2O3. In addition to the presence of TiB2 andAl2O3 inthecomposites,Al3Tiintermetalliccompoundwasalso detectedalthoughtheamountwasverylow.Theintermetalliccompoundisaby productofthereactionbetweenAland Ti. intensity
Certified Journal | Page
10Al+3TiO2+3B2O3 →5Al2O3+3TiB2 (1)
Volume: 09 Issue: 03 | Mar 2022 www.irjet.net p-ISSN: 2395-0072 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 208
Superficial
DIFFARATIONANGLE(2ᶿ)
examples of 5 mm width and 30 mm check length were machined as per the ASTM E8M 96 norm. A tractabletestwasdoneutilizinganInstron8516machinewiththepaceofstackingbeingcontrolledat1.2%/min.ALab XRD 6000 Shimadzu X beam diffractometer was utilized to recognize the different stages present in the examples. Microstructures and cracked surfaces of the ductile examples were analyzed utilizing a JEOL JSM 5800LV checking electronmicroscope(SEM).
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056
Aftertheprocessingsystem,thepowderswerecoldcompactedintogreencompactsasacircleof 35mmwidth and 40mmthick. Thegreen compacts were sintered at various temperatures from 873 to1023Kfor2hinaCarbolite heater(773Kfortheframework compacts).Expulsion ofthepreheated compacts into a 10 mm measurement bar was thendoneat823K(723Kforthelatticecompacts).
The bars were solutionized at 790 K for 4 h followed by water extinguishing to guarantee the presence of a supersaturatedstage.Hardnesstestexamplesof5mmthicknesswerethencutfromthesolutionizedbarsandmatured at180°C for determinedtime framesh. The matured specimens werethen water extinguishedandhardness triedwith Rockwell to concentrate on the maturing conduct of the examples as well as to decide the maturing time to top
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 09 Issue: 03 | Mar 2022 www.irjet.net p-ISSN: 2395-0072 © 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page209 Table 1 Gibbsfreeenergyofdifferentphasesat1023K Phase TiO2 B2O3 Al2B TiB2 Al2O3 iAl3T Al Ti B Gibbsfreeenergy(kJ) 1031 1304 217 384 1773 298 43 46 15
[5,6,9].SomeveryweakAl2O3diffractionpeakshavealsobeendetectedfromthematrix
From the thermodynamic information, it very well may be seen that TiB2 can't be straightforwardly shaped fromthe decreaseofTiO2andB2O3sincebothTiO2andB2O3havealotoflowerGibbsfreeenergythanthatofTiB2.Accordingly, itisrecommendedthatthedevelopmentofinsituTiB2beachievedthroughtwostages.Intheinitialstep,sincetheGibbs freeenergy ofAl2O3isa lotlowerthanofbothTiO2andB2O3,theoxygeniotasmightbedecreasedbytheremovalof oxygenmoleculesfromTiO2andB2O3sotheTiandBparticlescanbeliberatedbythearrangementofAl2O3.Thefree TiandBmoleculeshaveahigherlikelihoodtorespondwiththeAlframeworkaswellasrespondwithoneanother.
Accordingly,inthesubsequentadvance,Al2B,Al3Ti,andTiB2mixturescouldbeshaped.WhenTiB2isframed,itcan'tbe disintegrated even though TiO2 and B2O3 have lower Gibbs free energies.ThisisbecauseAl2O3hasthemostminimal Gibbsfreeenergyandcan'tbedecreasedbyoneortheotherTiorBparticles.Fromthethermodynamicexamination,the accompanyingresponseinstrumentsaresuggested.
specimen.TheformationofAl2O3 inthematrixAlmaybeassociatedwithoxidationofthegreencompactduringthesinteringprocess.No TiB2couldbe discernedinthespecimensthatweresinteredbelow1023 K.
FromEDAXscans,thisintermetalliccompoundwasfoundtoconsistofAlandTi.Fromearlierresearchworksconducted [2,3,5 8],thisintermetalliccompoundcouldbeAl3TihasbeenconfirmedusingXRDdiffraction spectrum.
Duringthesinteringsystem,afewstages,forexample,TiO2,B2O3,Al2B,TiB2,Al3Ti,andAl2O3couldcoincidetogether because of uncompleted response. Thermodynamic investigation shows that this multitude of stages is thermodynamicallygreat.Table1recordstheGibbsfreeenergiesofthemultitudeofstagesat1023K.
In the first step, the reaction takes place as follows: 3TiO2+B2O3+6Al→3Al2O3+3Ti+2B withΔG= 832kJ. (2) After the first reaction, TiO2 and B2O3 are fully reduced. Al2O3 remains as the inner compound that will not participate in the further chemical reaction due to its low Gibbs free energy. In this system, only Al, Ti, and B are availabletotakepartin furtherreactions.Inthesecond stepofthereaction,Ti reactswithBintheAl matrix forming TiB2andAl3Tiasfollows: 2Ti+2B+3Al→TiB2+Al3TiwithΔG= 431kJ(3) Fig.2(a)providesageneralviewofthemicrostructureofthesamplereinforcedwith15%ofTiB2 Themoredetailed viewisshowninFig.2(b).Twotypesofstructurescanbeidentified.Thefirsttypeistherectangularlyshapedparticles.
© 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified 210
It tends to be seen that the maturing time to top hardness diminishes as the level of support in the example increments.Theexamplewithoutsupportinvestedinsomeopportunitytoarriveattophardnesswhencontrastedwith thebuilt upexamples,whiletheexamplewith15%TiB2supporttookthebriefest.Theimpactofspedupmaturingisin thiswayobservedinthesupportingexampleswhencontrastedwiththeunreinforcedpartner.Thepeculiarityshowsan increment in disengagement thickness nearby the reinforcement, rushing the heterogeneous nucleation or potential developmentoftheage hardeningaccelerates.
Thetypical TiB2withtheuniquehexagonal shape[9]cansecondlybeseeninFig.2(b).PartsoftheTiB2particleshave been obscured or incorporated by the Al matrix material. A similar phenomenon has also beenobserved byFengand Froyen[9].Some parts of the TiB2 particles at thevicinity of the Al3Ti particles were obscured as well, indicating the possibleeffectofAl3TiengulfmentwithinthevicinityoftheAl3Tilayeraswell as theeffect of matrixincorporating into thelatticeofTiB2 Fromthe perceptionthattheTiB2support particleshave been mostlyobscured by the grid,an end maybedrawnthat holdingbetweenthe reinforcementparticlesandtheAl latticeisgreat.Thejustificationforthegreatinterfacialholding maybebecauseofthewaythatinsituarrangementofparticlesinsidetheframeworkforestallsoxidationofthesurfaces of the particles and further develops wetting conditions. As burdens can be moved from the grid to the support all the more real, load bearing capacities of the material are expanded. Hence, the general mechanical properties of the compositesaregottentothenextlevel.ThesizeoftheTiB2particleswasviewedasaround1µmormoremodestwhich is as per past discoveries that support particles shaped utilizing in situ handling were little, normally kept up with at a sizeof1µmormoremodest[1].
Fig.2.Microstructuresofthespecimenreinforcedwith15%TiB2
The pressure strain practices of the built up and unreinforced examples under consistent strain rate are portrayed in Fig.4.Thefigureshowsthattheunreinforcedandthatbuiltupwith5%TiB2examplesdisplaymalleableconductwhile thosesupportedwith10% and15% TiB2 displaythe component offragileconduct yetat a lothigherstrength. Normal mathematicalupsidesofthemechanicalproperties aregiveninTable2.Adefinitiverigidity(UTS),Young'smodulus(E) andoffsetyieldstrength(σ0.2)incrementessentiallyasthelevelofTiB2supportincrements.Forex adequate,upsidesof UTS and E of the example supported with 15% TiB2 increment by 44% what's more 66% separately contrasted with
Journal | Page
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 09 Issue: 03 | Mar 2022 www.irjet.net p-ISSN: 2395-0072
4. Mechanical properties
Fig.3.Stress straincurvesforcompositeswithdifferentTiB2compositions.
References [1] Jacobs,J.A.,&Kilduff,T.F.(1997).EngMaterTechPrentice Hall.
[6] Feng,C.F.,&Froyen,L.(1998).ScriptaMater39, 109.
Impenetrableobstaclesthroughwhichdislocationscanonlymovebysharpchangesin curvatureinthe dislocation line. Dislocations can only pass at stress levels much higher than those required to move dislocations through the matrix phase. Hence, an increase in reinforcement particles in the matrix manifests an improvement in the mechanical propertiesofthespecimensasshownfromtheresultsofthepresentstudy.
[7] Maity,P.C.,Panigrahi,S.C.,&Chakraborty,P.N.(1993).ScriptaMetalletMater28, 549.
Fromtheresultsofthisstudy,thefollowingconclusionscanbedrawn:
3. ThethermodynamicassessmentsuggeststhattheformationofTiB2undergoestwosteps,namely,theformation of Al2O3, and the formation of Al2B, Al3Ti, and TiB2
Table 2: Mechanical properties of the matrix and the composites 0%TiB2 5% 10% 15% σ02(MPa) 178.2 187.5 248.7 274.4 UTS(MPa) 270.0 284.1 326.3 389.5 E(GPa) 64.86 69.33 83.56 107.7 Elongation(%) 3.81 3.50 1.92 1.99
4. Mechanical properties obtained showed an increase in strength as the amount of TiB2 in the specimens was increased.
5. TheformationofAl2O3 playsanimportantroleinthereductionofTiO2 andB2O3 Inaddition, the presence of Al2O3actsasanadditionalreinforcementinthecomposite.
5. Conclusions
[2] Gotman,I.,Koczak,M.J.,&Shtessel,E.(1994).MaterSciEngA187,189.
[4] Zhao,H.,&Cheng,Y. B.(1999).CeraIntern25,353.
[5] Brinkman,H.J.,Duszczyk,J.,&Katgerman,L.(1997).ScriptaMater37,293.
thoseoftheunreinforcedgridamalgam.Theadjustmentofsolidarityisacceptedtobehalfwaybecauseoftheproductive exchangeofburdenfromthegridtothesupportandthegreatholdingbetweenthem.Inthisway,moresupportparticlesin theexamplesmightachievemorenoteworthyexpansioninstrengthcorrespondingly.Anotherexplanationmightbethat thesupportparticlescangoaboutasobstructionstothedevelopmentofthedisengagements.
[3] Nukami,T.,&Flemings,M.C.(1995).MetallMaterTransA26A,1877.
1. AlMMCreinforcedwithTiB2particlescanbefabricatedviaaninsitureactionprocessusingAl,TiO2,and B2O3.
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 09 Issue: 03 | Mar 2022 www.irjet.net p-ISSN: 2395-0072
© 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page211
2. The formation of TiB2 reinforcement particles was confirmed by XRD analysis and thepresence of the typical hexagonal shapedparticlesofTiB2 withthesizeof1µmorless.
FromTable2,theextensionoftheexamplesdiminishesasthepercentageofsupportincrements.Thisreductionrelates to the decline in stack up dividing because of the expansion in the level of support. The unreinforced lattice has a lot highermalleabilityincontrastwitheveryoneofthebuilt upexamples.Thisisattributedtothelatticehavingtheoption togothroughbiggerplasticdeformitieswithoutevenatraceofweaksupportparticles.
[8] Pan,J.,Li,J.H.,Fukunaga,H.,Ning,X.G.,Ye,H.Q.,Yao,Z.K.,&Yang,D.M.(1997).CompSciTech57,319. [9] Feng,C.F.,&Froyen,L.(1997).ScriptaMater36,467. [10] Lloyd,D.J.(1994).IntMaterRev39, 1. [11] Lu,L.,&Lai,M.O.(1998).MechanicalAlloying.KluwerAcademic Publishers. [12] Janowski,G.M.,&Pletka,B.J.(1995).MetallMaterTransA26A,3027.
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 09 Issue: 03 | Mar 2022 www.irjet.net p-ISSN: 2395-0072 © 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | 212
Page
