A guide to external paving

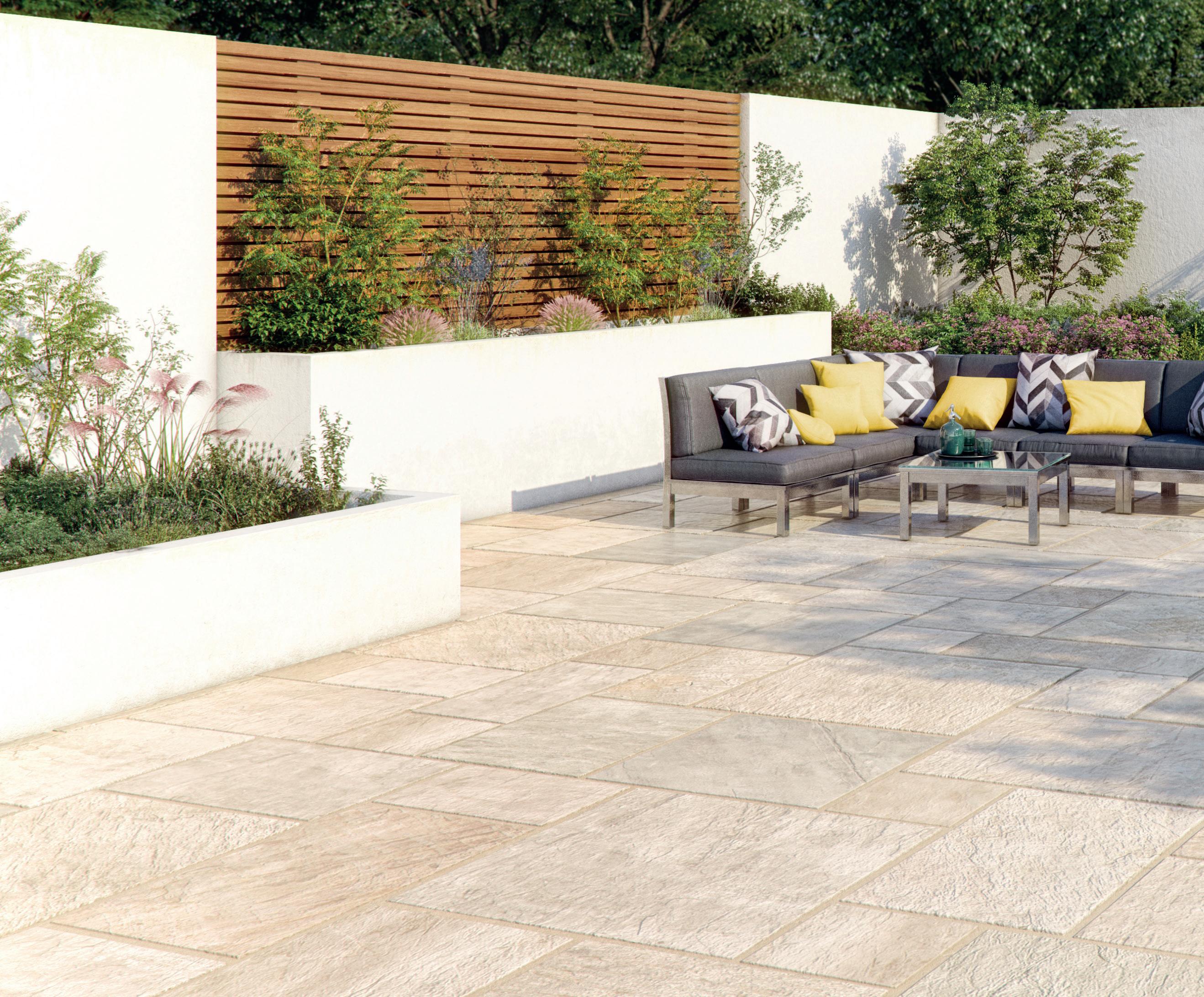

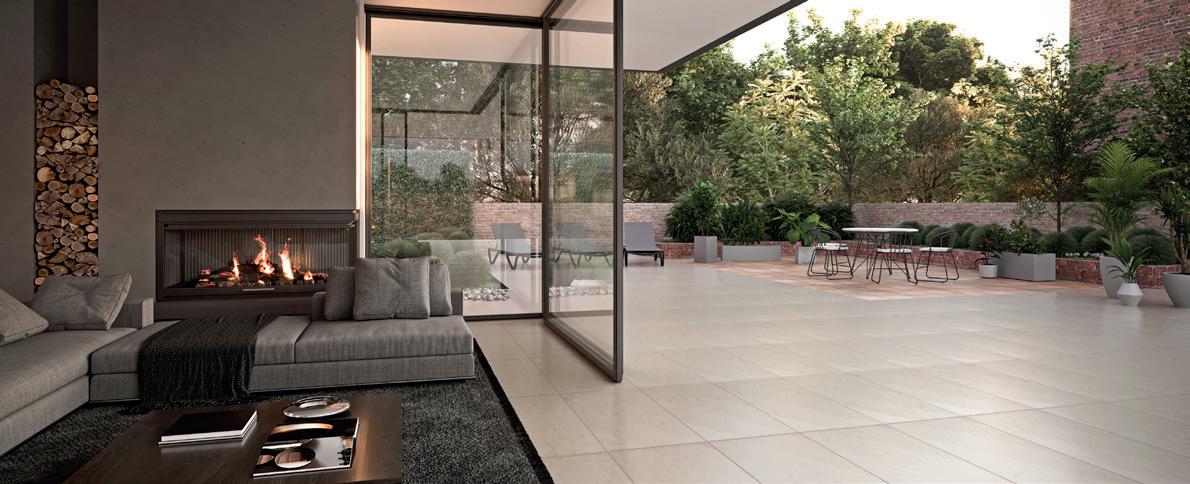

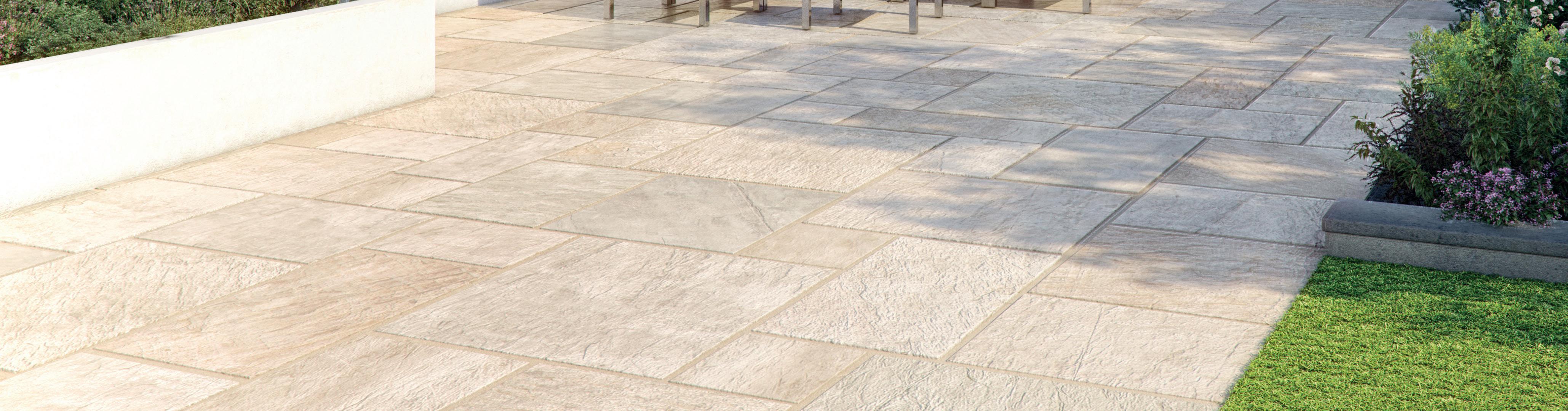

Over recent years, homeowners have become inspired by seamless indoor to outdoor living spaces, achievable using using a comprehensive range of paving installation materials that work perfectly with natural stone including porcelain and granite.
Before using any of the below products, please refer to the corresponding datasheets, which can be found by visiting instarmac.co.uk.

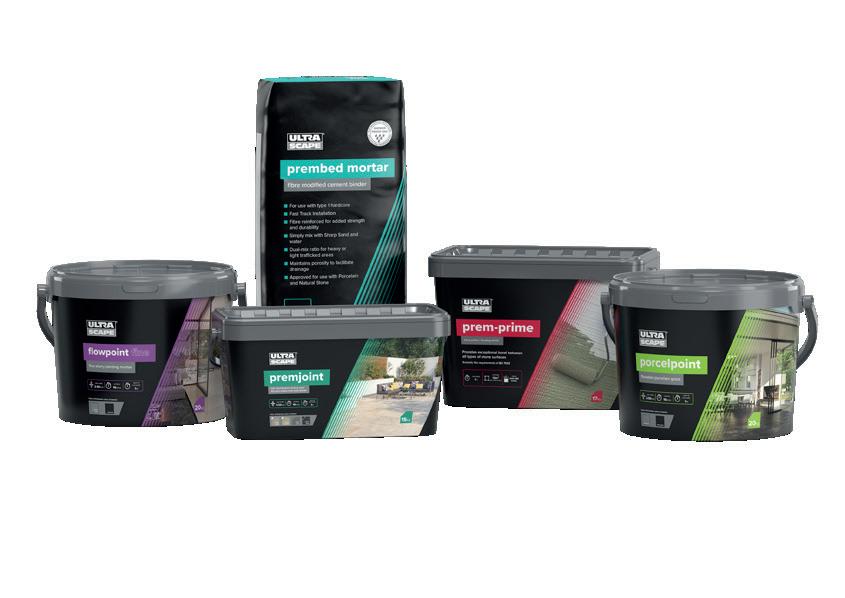

Bedding Mortar

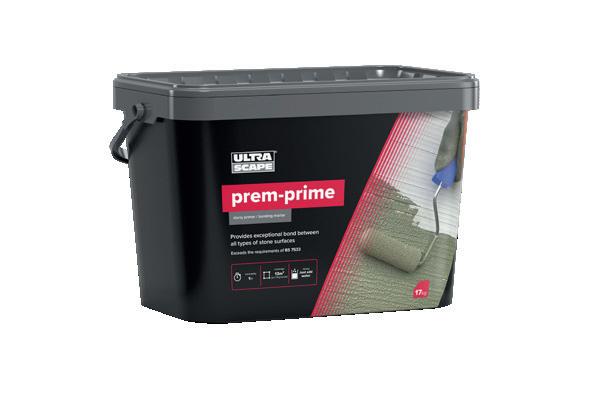

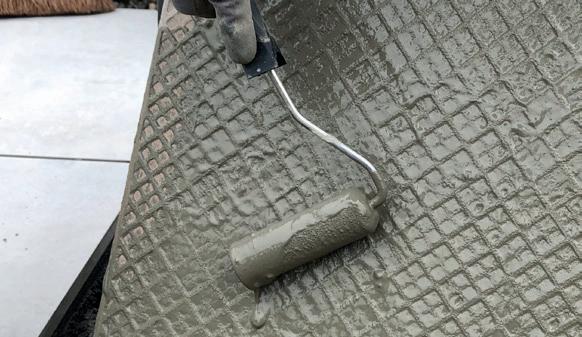

PREM-PRIME EXTERNAL SLURRY PRIMER
1. Provides exceptional bond and durability
2. Ideal for use with 20mm porcelain tiles
3. Just add water
4. Quick and easy application
Grout

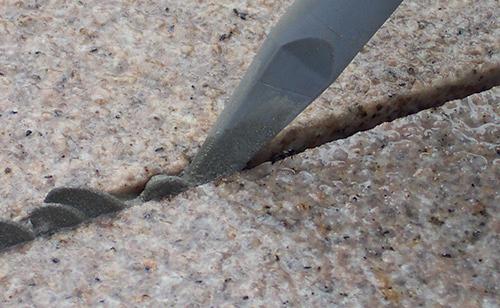

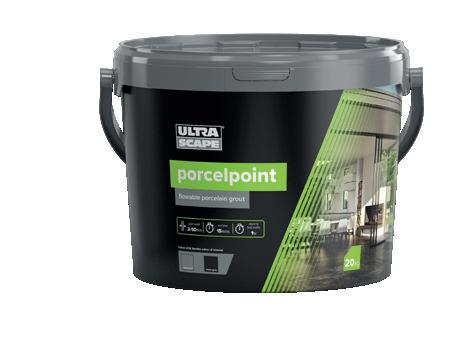

PORCELPOINT FLOWABLE PORCELAIN GROUT FOR POINTING PERFECTION
1. For joints 2-50mm wide
2. Open to foot traffic: 1 hour
3. Available in 2 colours
4. Designed for use with Porcelain

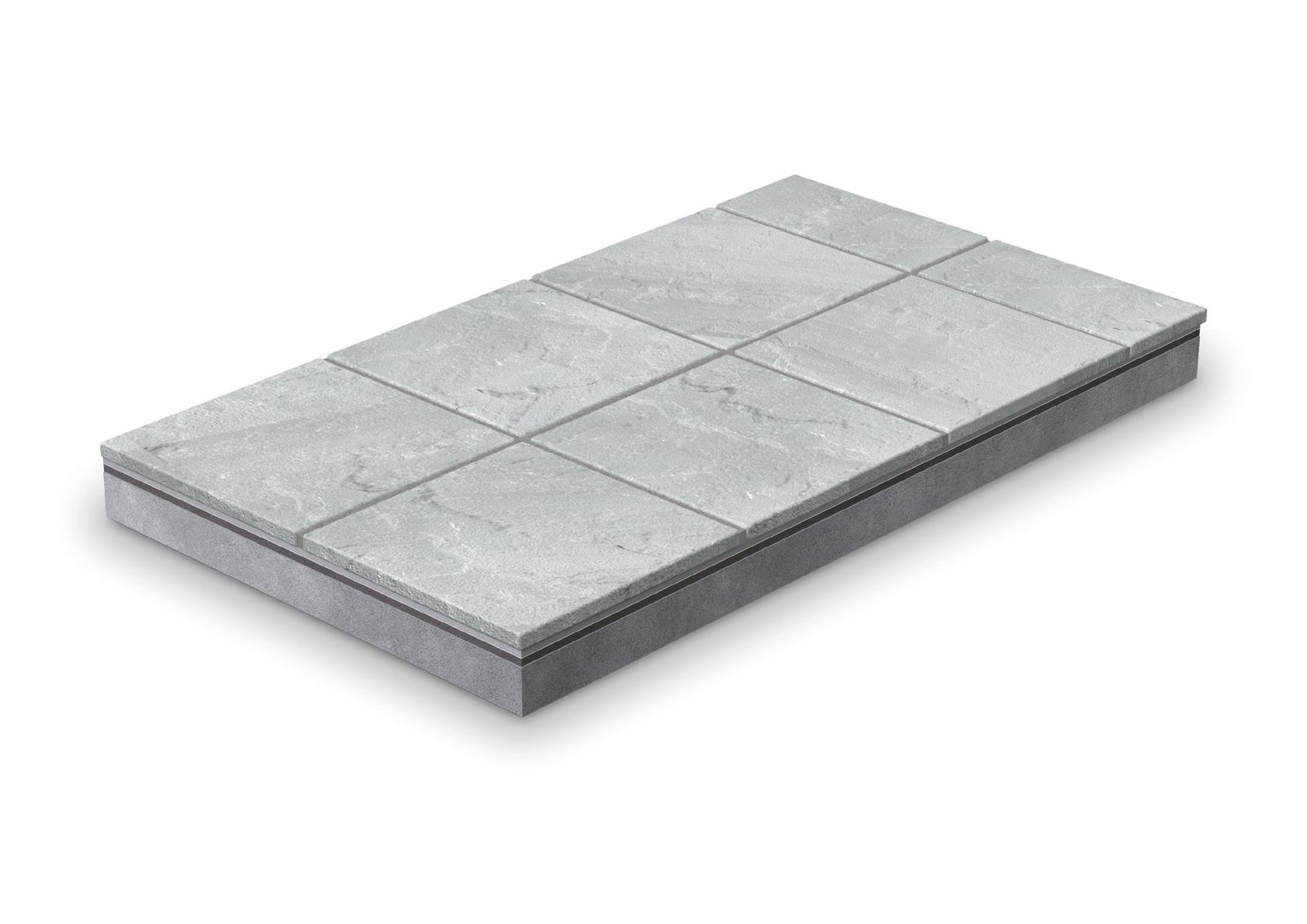

TYPES OF SUITABLE BASES FOR PAVING

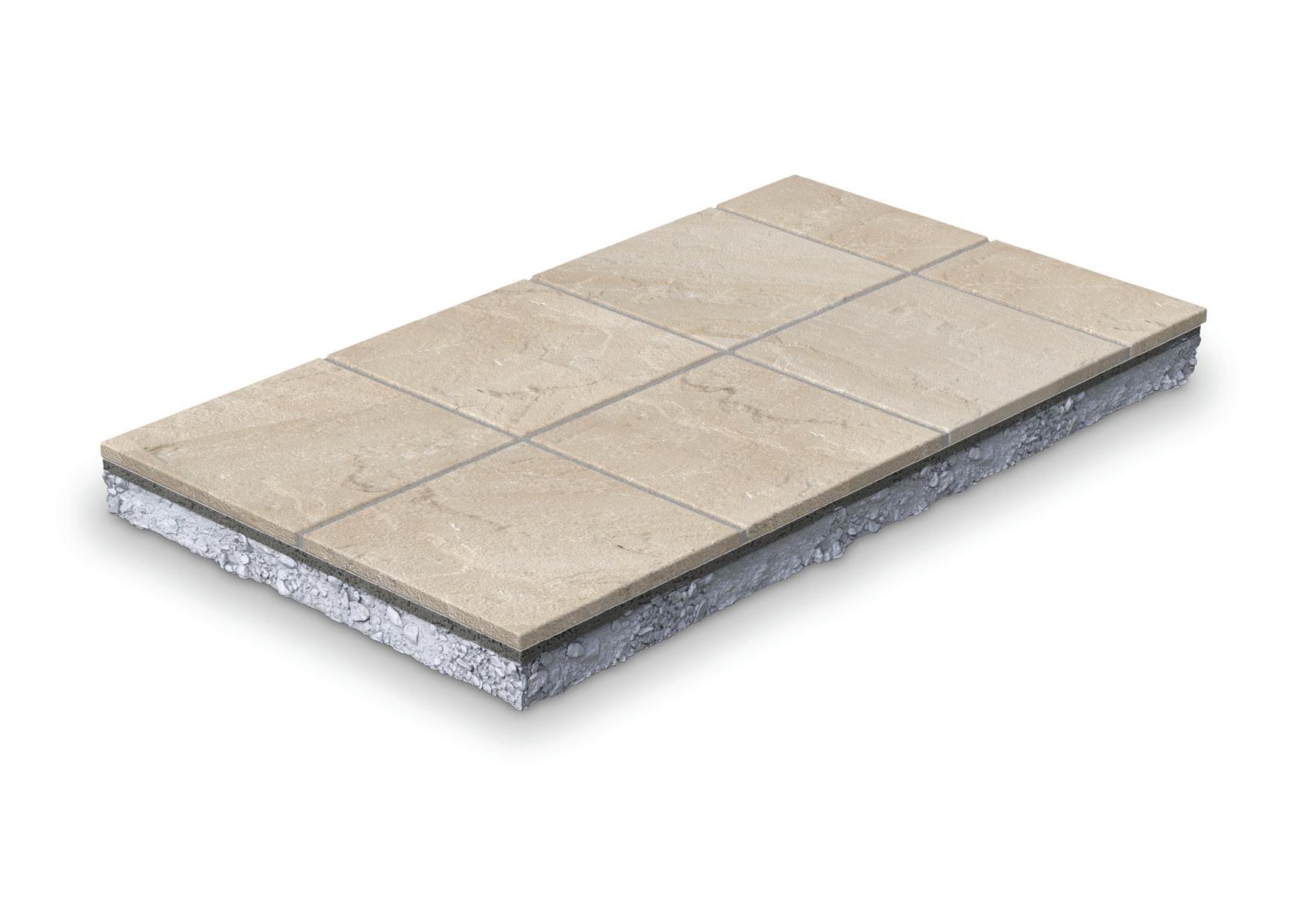

Traditionally, when paving externally, a concrete base is required. A typical concrete base is made up of 100mm of type one compacted stone. Once the stone has been compacted, a 200mm concrete screed should be poured over the base.
It is really important that the screed is left to fully cure - we recommend leaving a concrete screed to cure for at least 6 weeks in dry conditions, prior to applying an adhesive bed.
A fully cured screed will not only provide a solid base, but it will also provide a foundation to create ‘falls’ - a slight gradient in the bedding mortar bed that will allow water to run off.

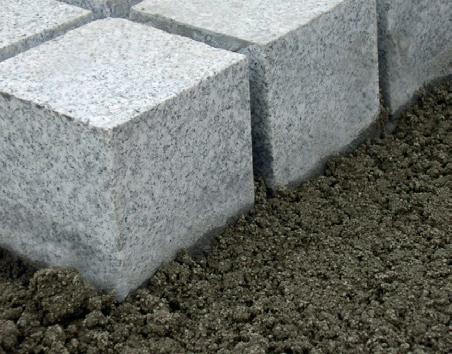

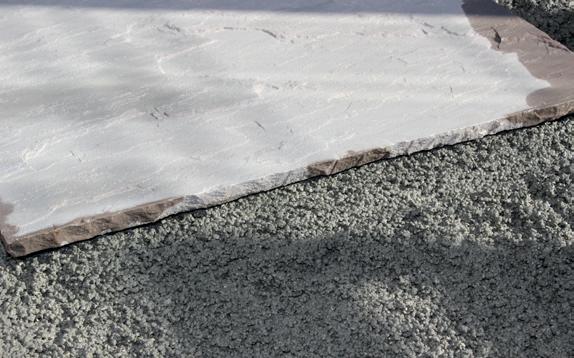

An alternative method for external paving would be a sub-base of 100mm of type one compacted stone. This is made up of one 50mm layer of compacted stone, followed by a second 50mm layer. Once this has been achieved, the pavers can be applied onto a bedding mortar such as UltraScape eco-bed.
For a fully permeable system, use UltraScape prembed mortar and premjoint jointing compound. This method allows the passage of water back through to the ground, eliminates surface flooding and ponding and allows foot traffic within 12 hours.

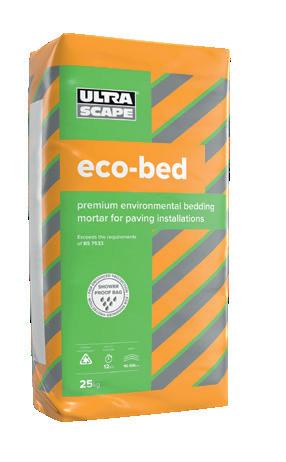

ECO-BED ENVIRONMENTALLY FRIENDLY BEDDING MORTAR

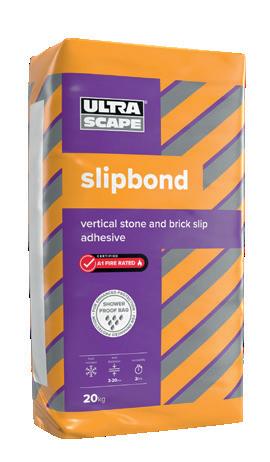

SLIPBOND FLEXIBLE BRICK SLIP ADHESIVE FOR EXTERNAL AND INTERNAL WALL & FLOOR INSTALLATIONS PRODUCT RANGE
1. Contains 20% recycled material

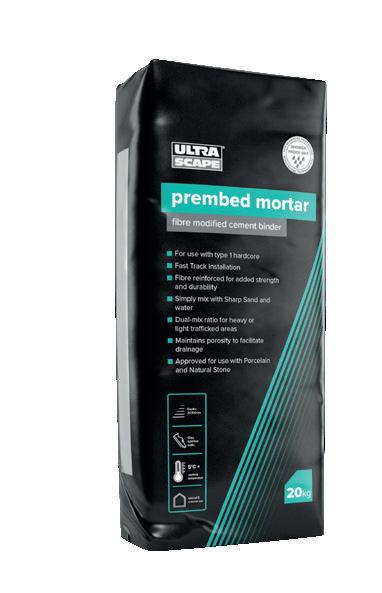

2. Depth: 10-100mm 3. Open to foot traffic: 12 hours 4. Open to vehicular traffic: 24 hours 5. Easy mix, just add water PREMBED BEDDING MORTAR 1. Depths 30-100mm 2. Light foot traffic: 12 hours
3. Simply mix with sharp sand and water
4. Approved for use with Porcelain and Natural Stone

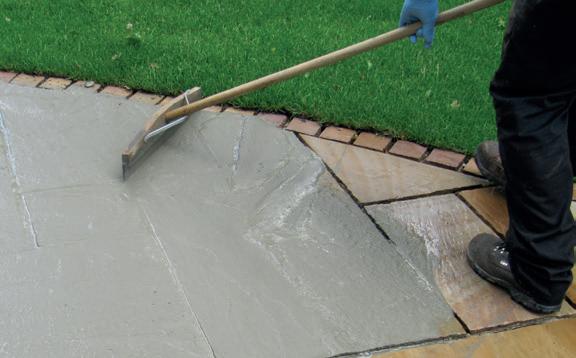

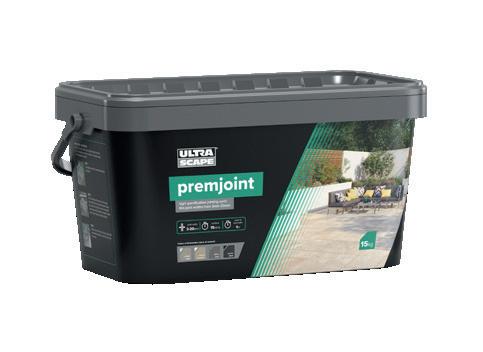

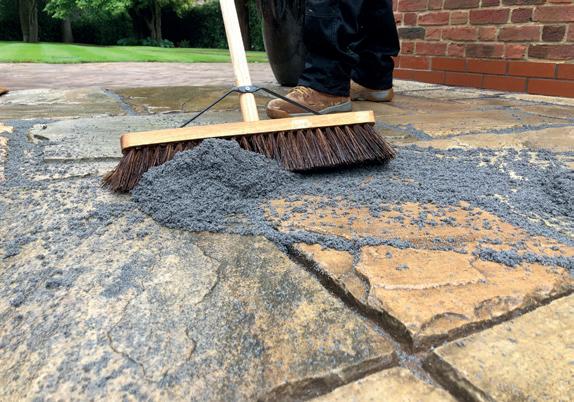

PREMJOINT ALL WEATHER BRUSH-IN EXTERNAL PAVING GROUT
1. Superior colour range to match popular stone options 2. Walk on: 24-48 hours 3. Enhanced workability

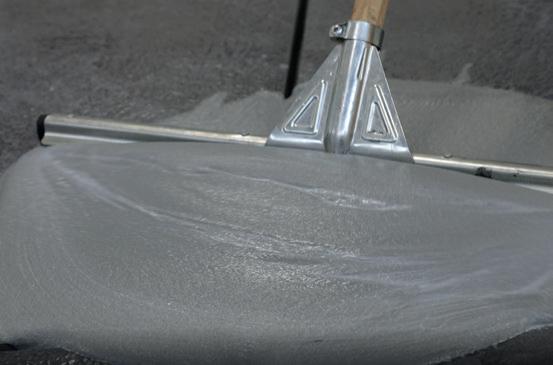

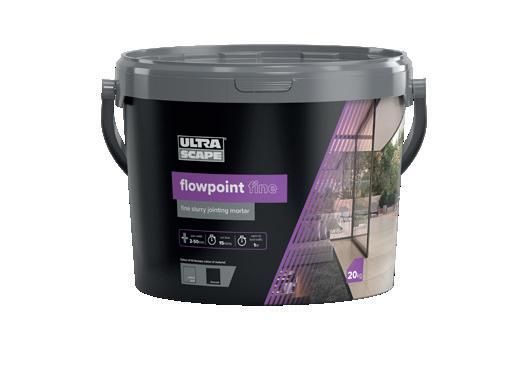

FLOWPOINT FINE RAPID SETTING FLOWABLE GROUT
1. For joints 2-50mm wide
2. Open to foot traffic: 1 hour
3. Available in 2 colours
4. For use on all paving types

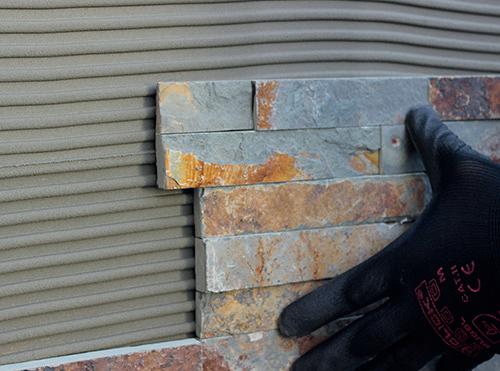

1. Bed thickness 3-20mm, up to 1m2
2. Set time: 16 hours
3. Extended workability
4. Vertical and horizontal applications
Pointing

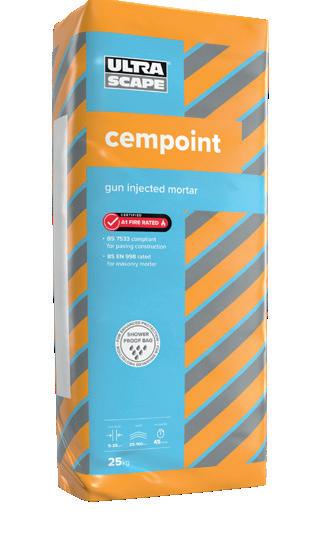

CEMPOINT
GUN INJECTED MORTAR FOR VERTICAL APPLICATIONS
1. Ideal for pointing and repointing many types of brickwork
2. Set time: 2.5 hours
3. Minimum joint width: 5mm
4. Just add water
Adhesive
