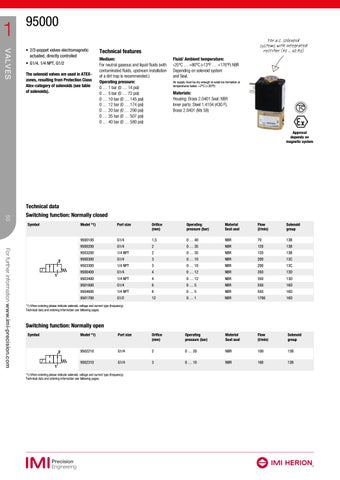

95000
VALVES
• 2/2-poppet valves electromagnetic actuated, directly controlled • G1/4, 1/4 NPT, G1/2 The solenoid valves are used in ATEXzones, resulting from Protection Class Atex-category of solenoids (see table of solenoids).
For a.c. solenoid systems with integrated rectifier (40 … 60 Hz)
Technical features Medium: For neutral gaseous and liquid fluids (with contaminated fluids, upstream installation of a dirt trap is recommended.) Operating pressure: 0 … 1 bar (0 … 14 psi) 0 … 5 bar (0 … 72 psi) 0 … 10 bar (0 … 145 psi) 0 … 12 bar (0 … 174 psi) 0 … 20 bar (0 … 290 psi) 0 … 35 bar (0 … 507 psi) 0 … 40 bar (0 … 580 psi)
Fluid/ Ambient temperature: -25°C … +80°C (-13°F … +176°F) NBR Depending on solenoid system and Seal. Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F)
Materials: Housing: Brass 2.0401 Seal: NBR Inner parts: Steel 1.4104 (430 F), Brass 2.0401 (Ms 58)
Approval depends on magnetic system
Technical data 50
Switching function: Normally closed Symbol
Model *1)
For further information www.imi-precision.com
2 1 2 1
Port size
Orifice (mm)
Operating pressure (bar)
Material Seat seal
Flow (l/min)
Solenoid group
9500100
G1/4
1,5
0 … 40
NBR
70
13B
9500200
G1/4
2
0 … 35
NBR
120
13B
9503200
1/4 NPT
2
0 … 35
NBR
120
13B
9500300
G1/4
3
0 … 10
NBR
200
13C
9503300
1/4 NPT
3
0 … 10
NBR
200
13C
9500400
G1/4
4
0 … 12
NBR
350
13D
9503400
1/4 NPT
4
0 … 12
NBR
350
13D
9501600
G1/4
6
0…5
NBR
550
16D
9504600
1/4 NPT
6
0…5
NBR
550
16D
9501700
G1/2
12
0…1
NBR
1700
16D
*1) When ordering please indicate solenoid, voltage and current type (frequency). Technical data and ordering2information see following pages.
1 Switching function: Normally open Symbol
2
Model *1)
Port size
Orifice (mm)
Operating pressure (bar)
Material Seat seal
Flow (l/min)
Solenoid group
9502210
G1/4
2
0 … 20
NBR
100
13B
G1/4
3
0 … 10
NBR
160
13B
V-22O-E-F 9502310
1
*1) When ordering please indicate solenoid, voltage and current type (frequency). 2 Technical data and ordering information see following pages.
V-22O-EH-F
1 2
V-22O-ER-F 1
