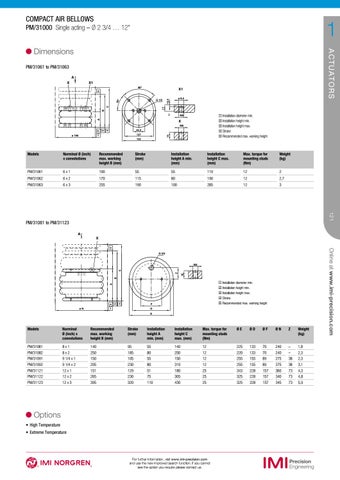

COMPACT AIR BELLOWS
1
PM/31000 Single acting – Ø 2 3/4 … 12"
A C T U A TOR S
Dimensions PM/31061 to PM/31063 A X
X1 90° 4
X1 10,5
ø 8,5
B
17
C
45°
G 1/2
1 Installation diameter min. 2 Installation height min. 3 Installation height max. 4 Stroke 5 Recommended max. working height
A
M8
X 3
5
2
M8 44,5 14
127
1
ø 190
153
Models
Norminal Ø (inch) x convolutions
Recommended max. working height B (mm)
Stroke (mm)
Installation height A min. (mm)
Installation height C max. (mm)
Max. torque for mounting studs (Nm)
Weight (kg)
PM/31061
6x1
100
55
55
110
12
2
PM/31062
6x2
170
115
80
190
12
2,7
PM/31063
6x3
255
190
100
285
12
3
121
PM/31081 to PM/31123 X
G 3/4
Z B
16
C
M8
F
3
5
2
A
1 Installation diameter min. 2 Installation height min. 3 Installation height max. 4 Stroke 5 Recommended max. working height
1
øN
D E
Models
Norminal Ø (inch) x convolutions
Recommended max. working height B (mm)
Stroke (mm)
Installation height A min. (mm)
Installation height C max. (mm)
Max. torque for mounting studs (Nm)
ØE
ØD
ØF
ØN
Z
Weight (kg)
PM/31081 PM/31082 PM/31091 PM/31092 PM/31121 PM/31122 PM/31123
8x1 8x2 9 1/4 x 1 9 1/4 x 2 12 x 1 12 x 2 12 x 3
140 250 150 295 151 265 395
95 185 105 230 129 230 320
55 80 55 80 51 75 110
140 250 150 310 180 305 430
12 12 12 12 25 25 25
225 220 255 255 343 325 325
133 133 155 155 228 228 228
70 70 89 89 157 157 157
240 240 275 275 360 340 345
– – 38 38 73 73 73
1,8 2,3 2,3 3,1 4,3 4,8 5,9
Options • High Temperature • Extreme Temperature
For further information, visit www.imi-precision.com and use the new improved search function. If you cannot see the option you require please contact us.
