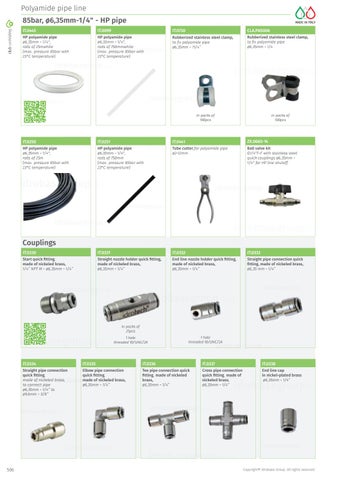

Polyamide pipe line Misting accessories 85bar, ø6,35mm-1/4" - HP pipe
MADE IN ITALY
IT.0445
IT.0099
IT.0730
HP polyamide pipe ø6,35mm - 1/4", rolls of 25mwhite (max. pressure 85bar with 23°C temperature)
HP polyamide pipe ø6,35mm - 1/4", rods of 750mmwhite (max. pressure 85bar with 23°C temperature)
Rubberized stainless steel clamp, to fix polyamide pipe ø6,35mm - 11/4”
CLA.PAS006
Rubberized stainless steel clamp, to fix polyamide pipe ø6,35mm - 1/4
in packs of 100pcs
in packs of 100pcs
IT.0250
IT.0251
IT.0441
ZX.0660-14
HP polyamide pipe ø6,35mm - 1/4", rolls of 25m (max. pressure 85bar with 23°C temperature)
HP polyamide pipe ø6,35mm - 1/4", rods of 750mm (max. pressure 85bar with 23°C temperature)
Tube cutter,for polyamide pipe ø2-12mm
Ball valve kit G1/4"F-F with stainless steel quick couplings ø6,35mm 1/4" for HP line shutoff
Couplings IT.0330
IT.0331
IT.0332
IT.0333
Start quick fitting, made of nickeled brass, 1/4” NPT M - ø6,35mm - 1/4”
Straight nozzle holder quick fitting, made of nickeled brass, ø6,35mm - 1/4”
End line nozzle holder quick fitting, made of nickeled brass, ø6,35mm - 1/4”
Straight pipe connection quick fitting, made of nickeled brass, ø6,35 mm - 1/4”
in packs of 25pcs 1 hole threaded 10/UNC/2A
506
1 hole threaded 10/UNC/2A
IT.0334
IT.0335
IT.0336
IT.0337
IT.0338
Straight pipe connection quick fitting, made of nickeled brass, to connect pipe ø6,35mm - 1/4” to ø9,6mm - 3/8”
Elbow pipe connection quick fitting, made of nickeled brass, ø6,35mm - 1/4”
Tee pipe connection quick fitting, made of nickeled brass, ø6,35mm - 1/4”
Cross pipe connection quick fitting, made of nickeled brass, ø6,35mm - 1/4”
End line cap in nickel-plated brass ø6,35mm - 1/4”
