FOG MAKER: ALL SOLUTIONS

Di sinfett ante

Fog Maker Lince is ideal for:

• odour and pollution (PM2.5 and PM10) suppression of small to medium areas

on the purchase of 3 pcs

Lince is available in 3 models:

• Lince 1 and Lince 4

• Lince Disinfettante

Capacity of 1 and 4l/min.

LINCE 1

LINCE DISINFETTANTE

LINCE 4

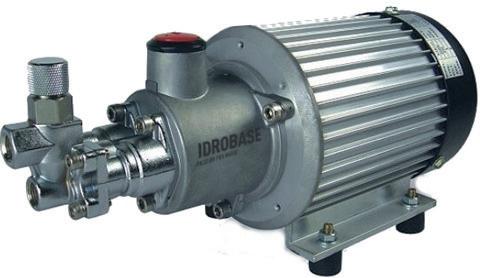

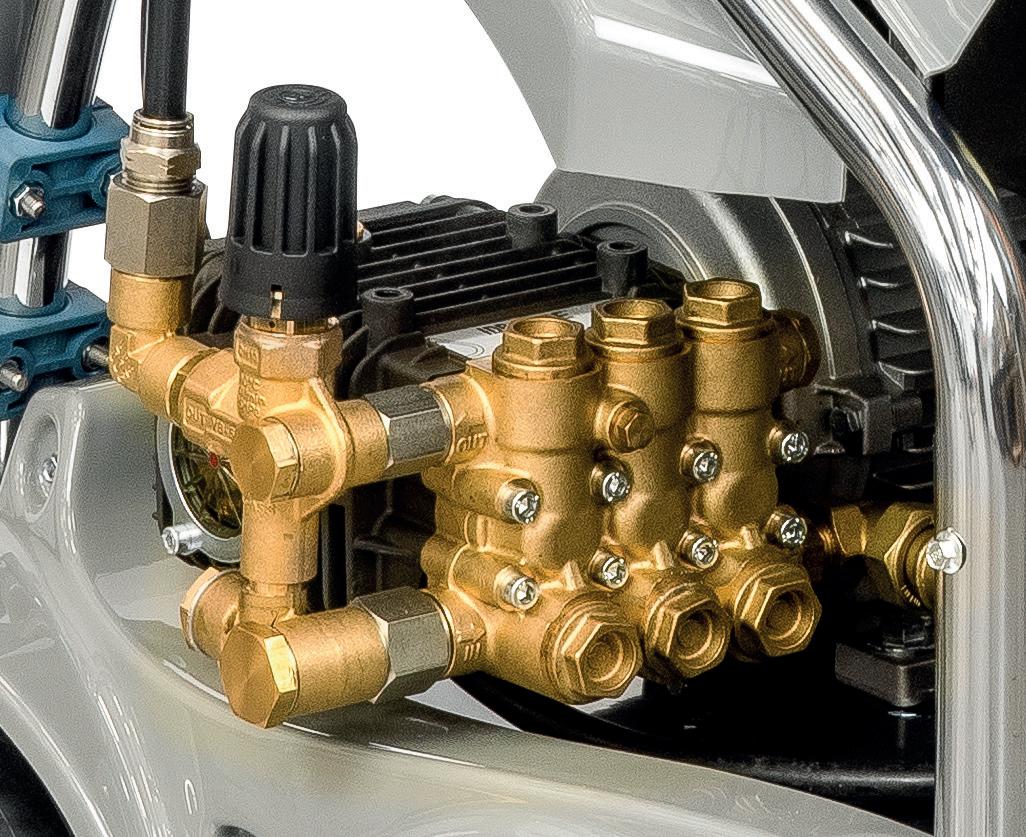

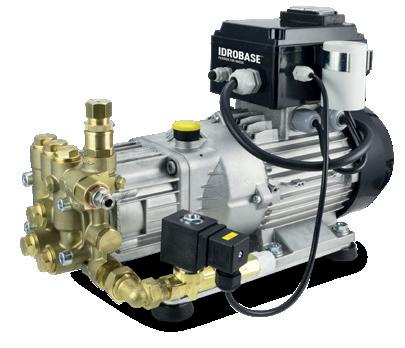

Old pump VS new pump

New pump

Old pump

Chrome-plated steel frame with a transparent finish

Lince 1: 1 ring AISI 304 stainless steel with 13 nozzles

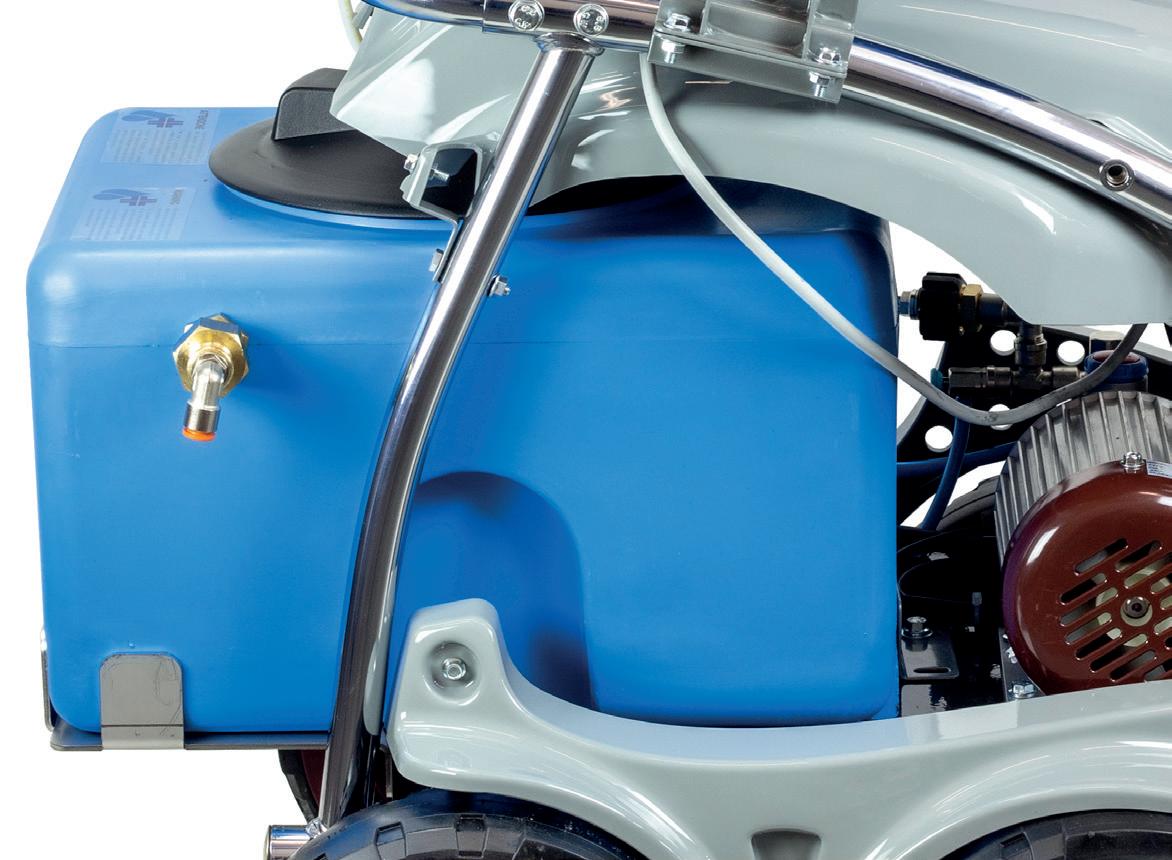

30L tank

Lince 4: 1 ring AISI 304 stainless steel with 30 nozzles

Pressure 60bar

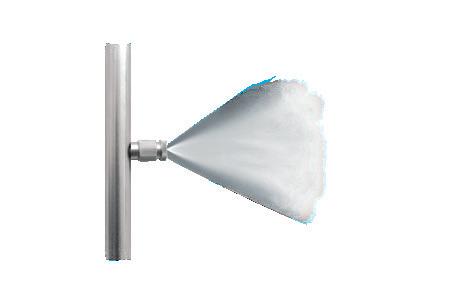

Fan jet 7m 13/30 nozzles

on the purchase of 3 pcs

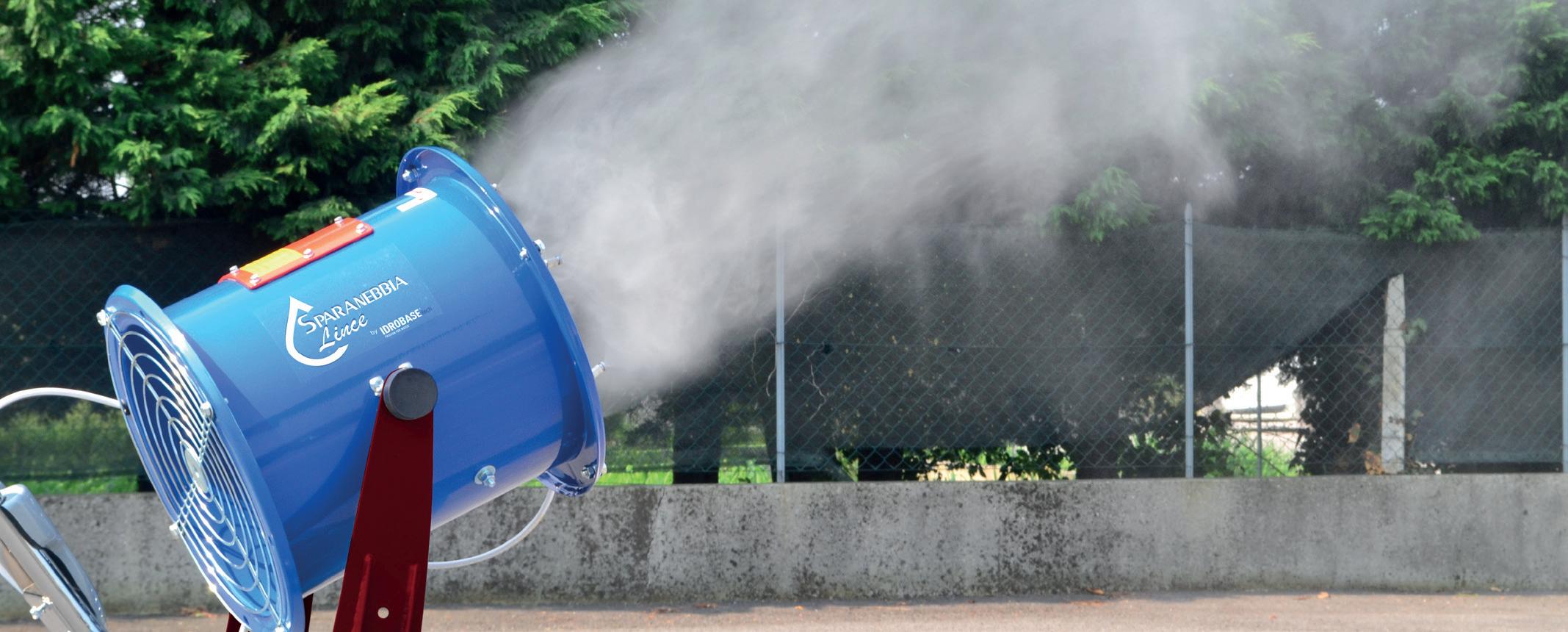

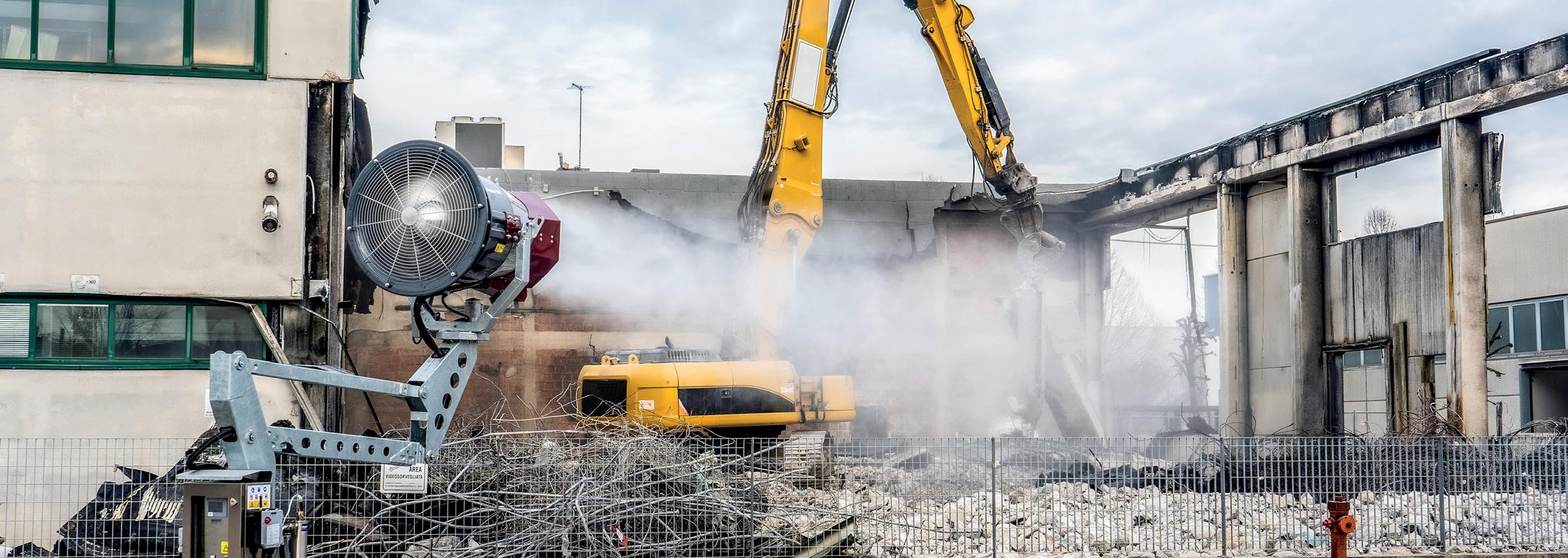

Lince Fog maker ideal for suppression of fine dust

for disinfection outdoor

Lince for disinfection indoor

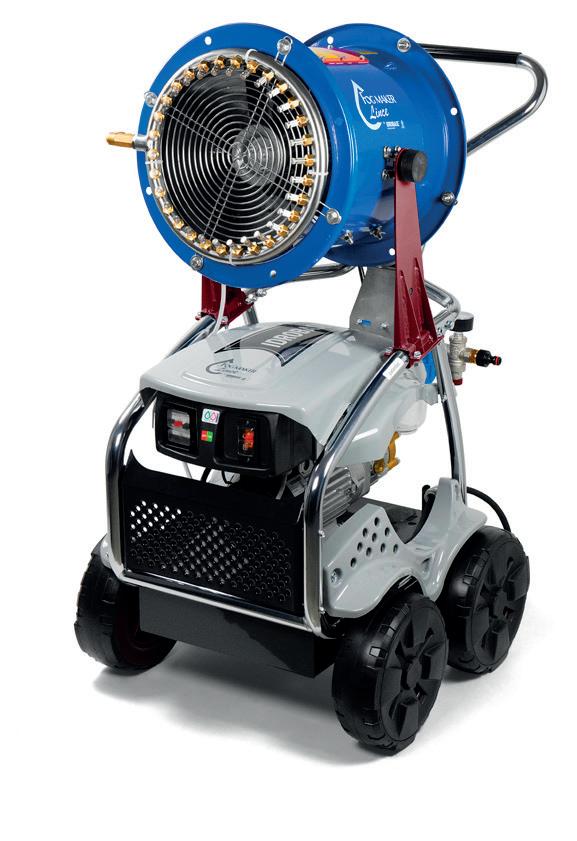

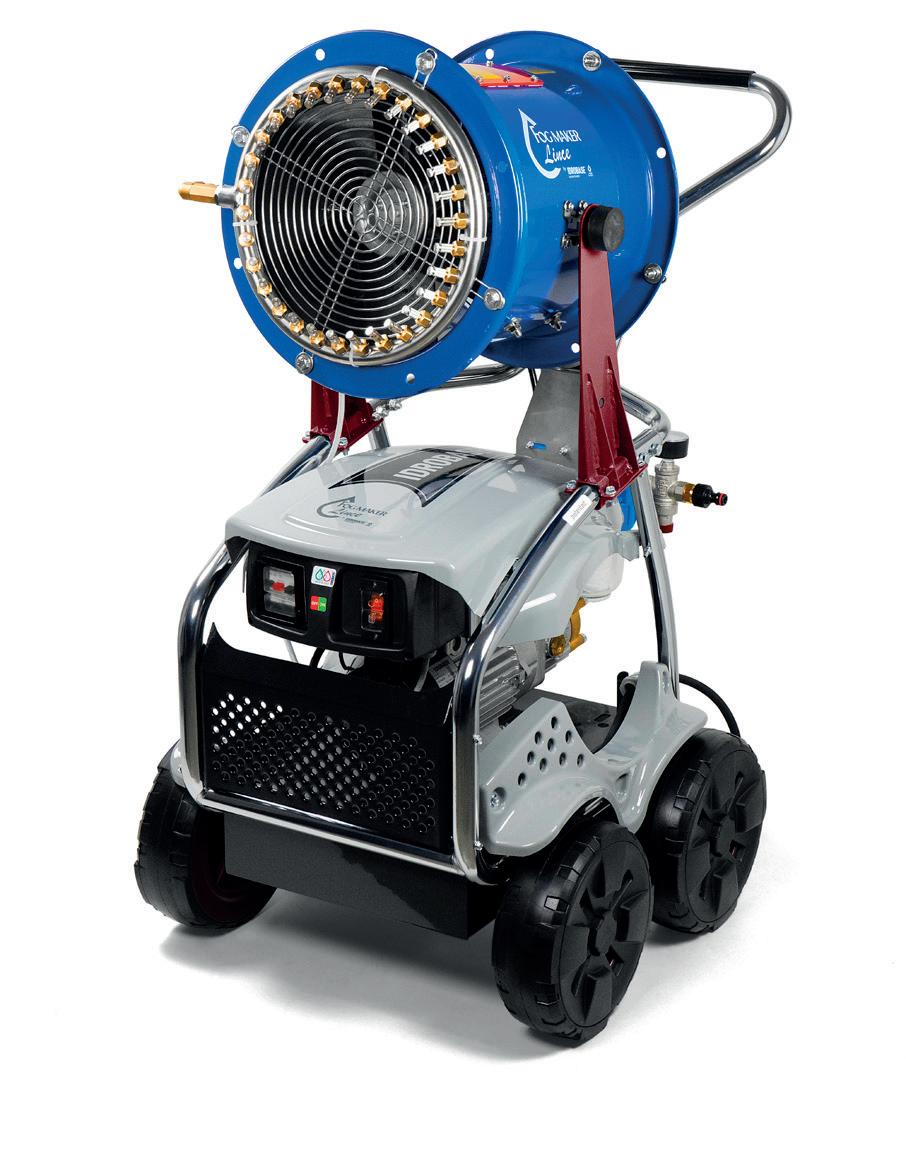

Fog Maker Lince

Mobile high pressure fog maker complete with fan and ring of nozzles, 60bar 1 and 4 l/min pump module, 30L tank (Lince 1), ON-OFF electric panel. Fan jet: 7m.

• Practical and handy, with 30 minutes autonomy (Lince 1)

• Ideal for sanitization of small to medium areas (Lince Disinfettante)

Technical features

Lince

LINCE 1/DISINFETTANTE LINCE 4

Di sinfett ante

Technical features Code Model

ZX.8201

ZX.8201-L

Axial pump with 2 pistons Code Model

Axial pump with 3 pistons

ZX.8204

Price

WARNING

Accessories page 42

Maintenance set page 46

Pump maintenance set 500 hours INCLUDED

• All the technical and safety information of the product can be consulted in the technical documentation of Idrobase Group S.r.l.

For all specific precautions and methods of use of the disinfectant/sanitizing, always consult the technical and safety data sheet of the employed product.

The use of the Lince Disinfettante with any disinfectant/sanitizing solution requires the user to rinse it after use, following the operations indicated in the instruction manual.

Technical features

• Frame in painted steel sheet

• Air flow rate: 3510m3/h

Coverage: 10m2

Power absorption: 0.55Kw 2800Rpm

• Fan jet: 7m 21°C (without wind)

• Elevation: 0°+30° manual

• Fan diameter: 410mm

Noise: <80LwA

• Protection rating: IP54

• Dimensions WxLxH: 800x650x1200mm

Lince 1

• No. of nozzles: 1 ring AISI 304 stainless steel with 13 nozzles

• Professional motorpump 1450Rpm, 200W, axial movement, 2 ceramic pistons

• Tank: 30L

Lince 4

• No. of nozzles: 1 ring AISI 304 stainless steel with 30 nozzles

• Professional motorpump 1450Rpm, 950W, axial movement, 3 ceramic pistons in ceramic steel

• Solenoid valve inlet water 230V 5” water inlet kit with pressure stabilizer

Frame: chrome-plated steel and transparent painted

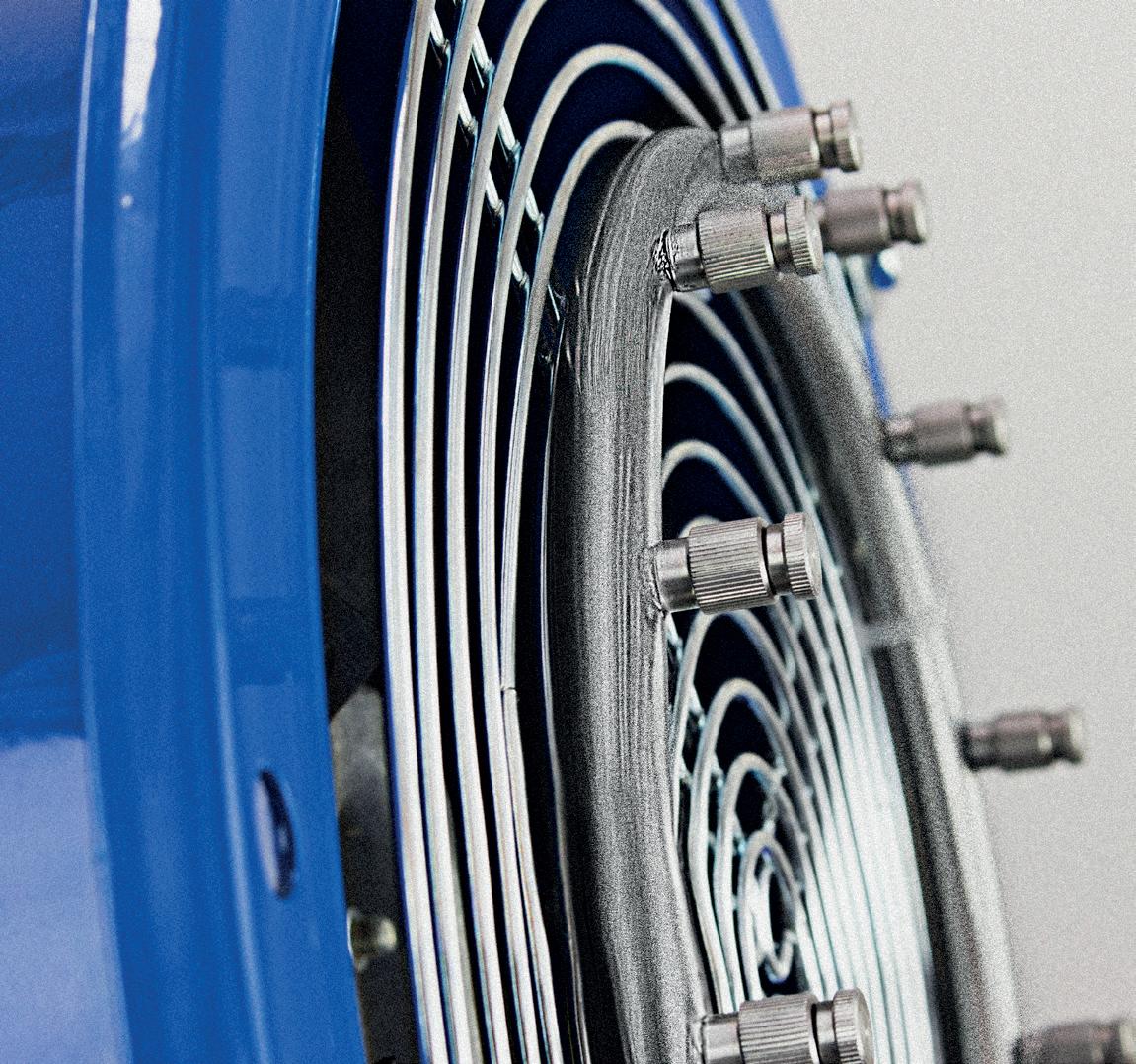

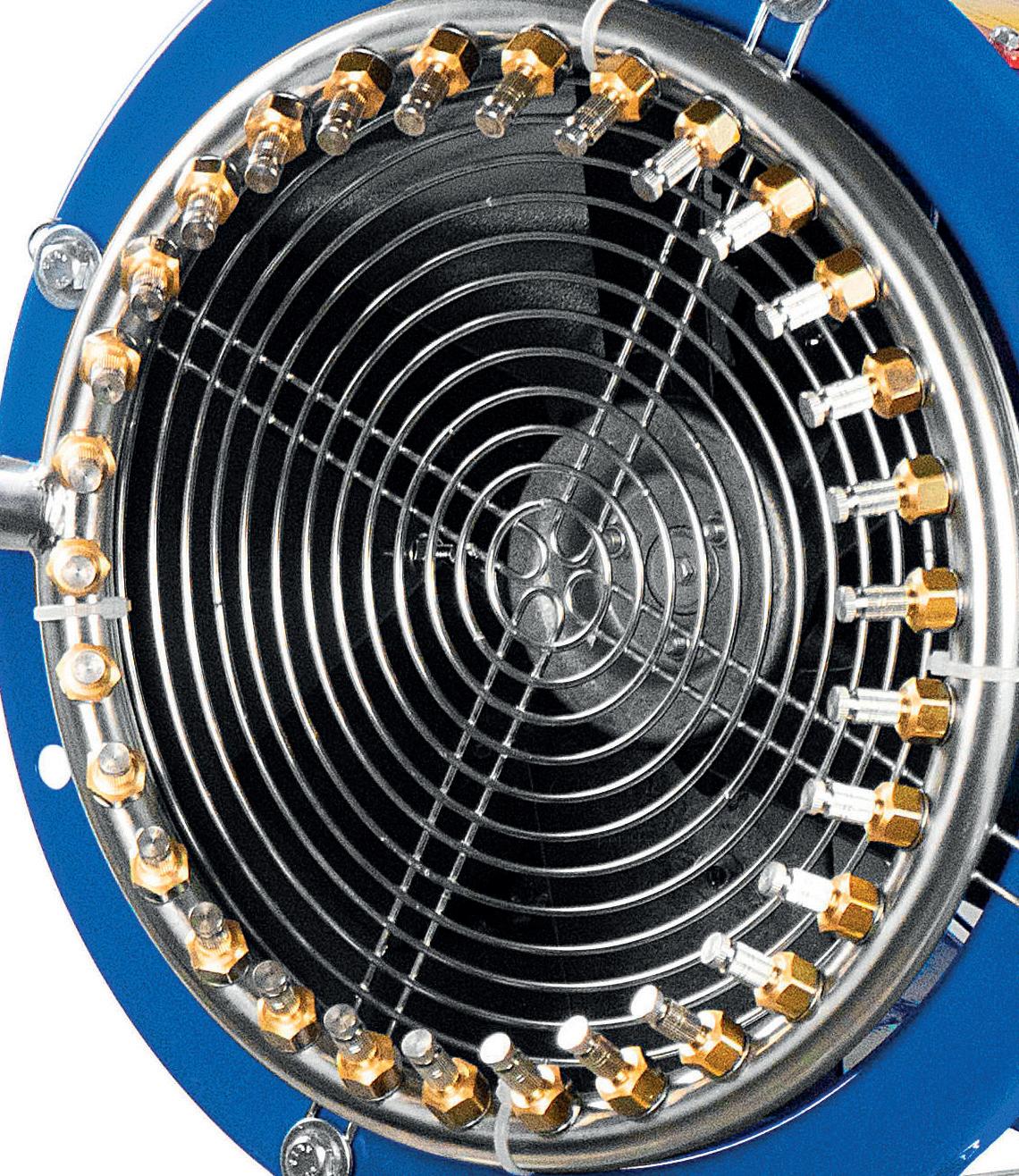

Ring AISI 304 stainless steel with 30 nozzles Professional pump 1450Rpm

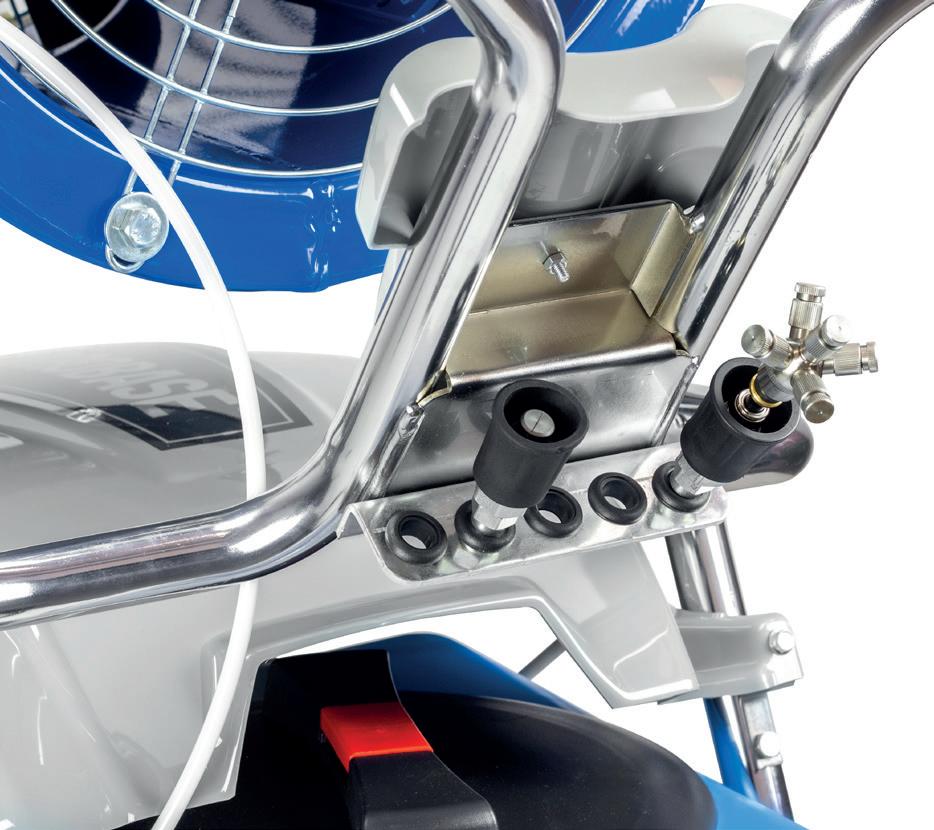

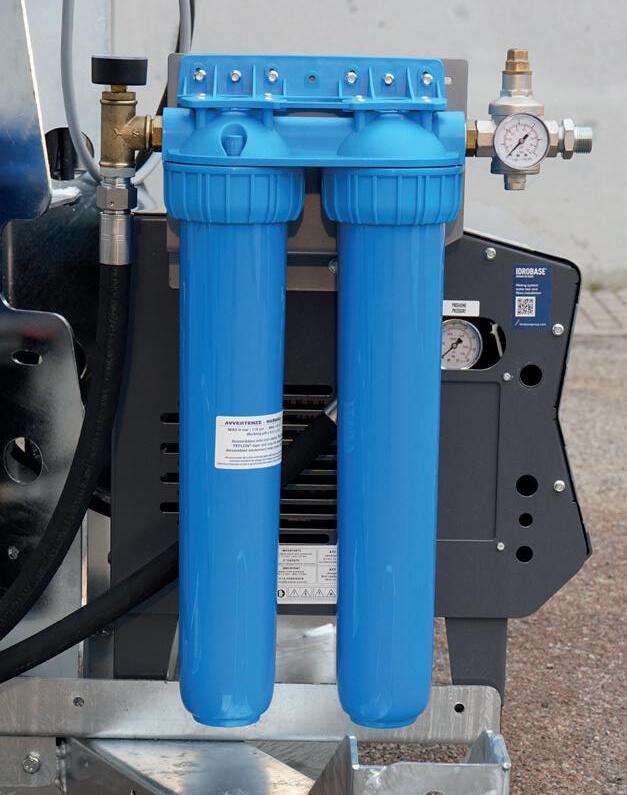

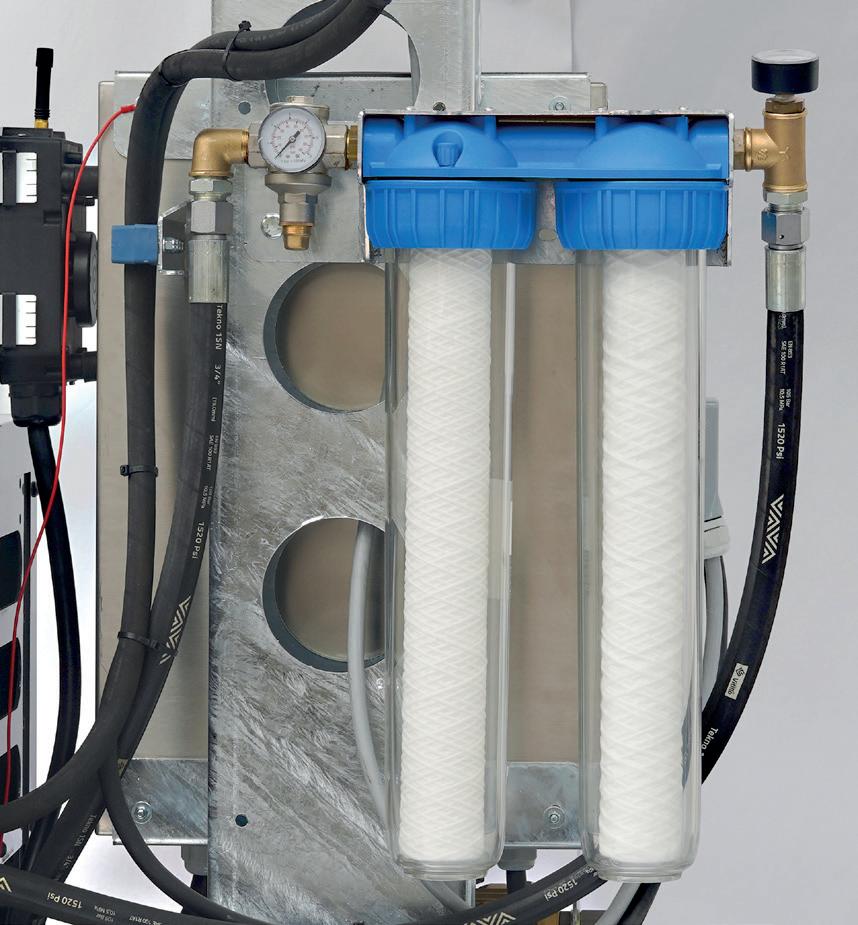

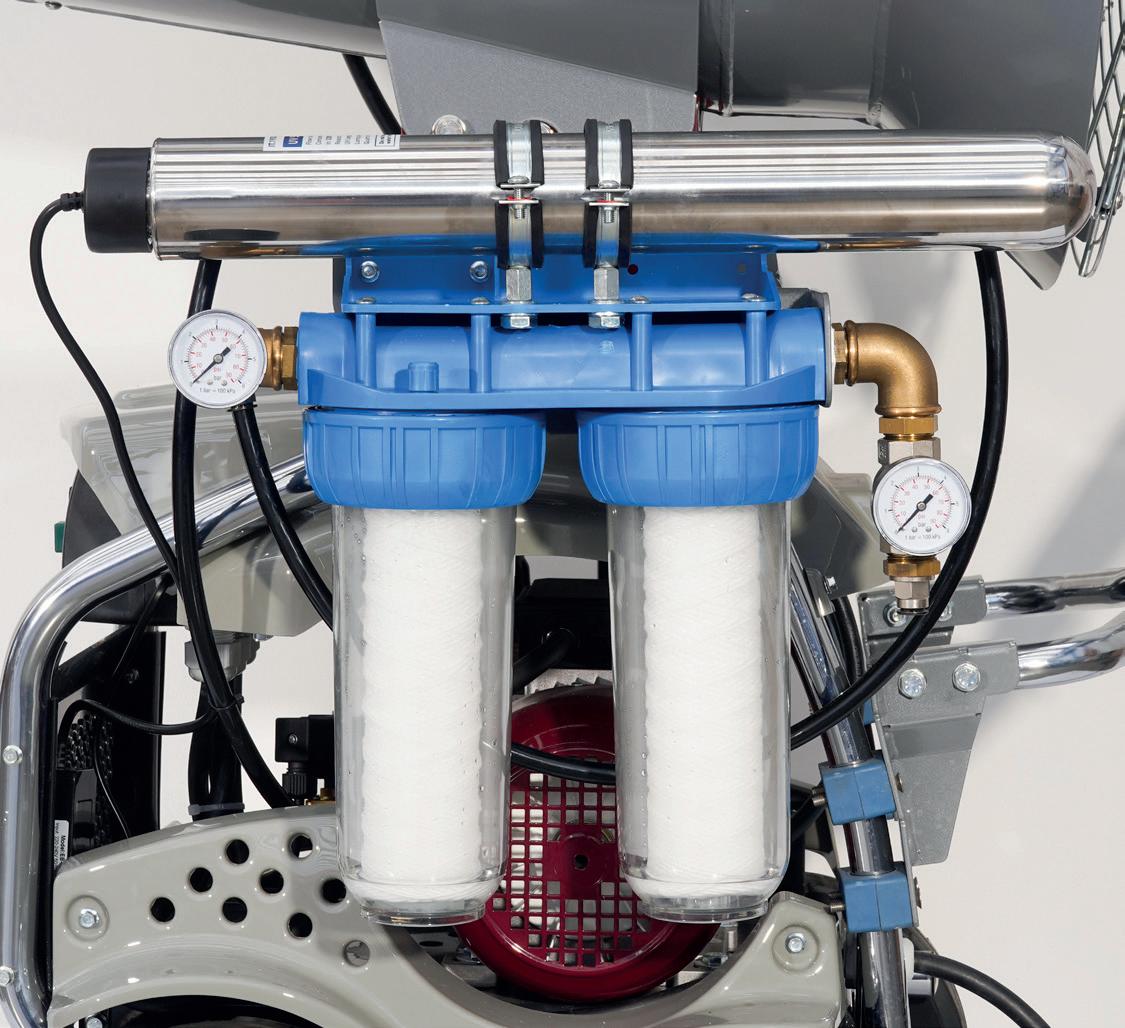

Water inlet kit

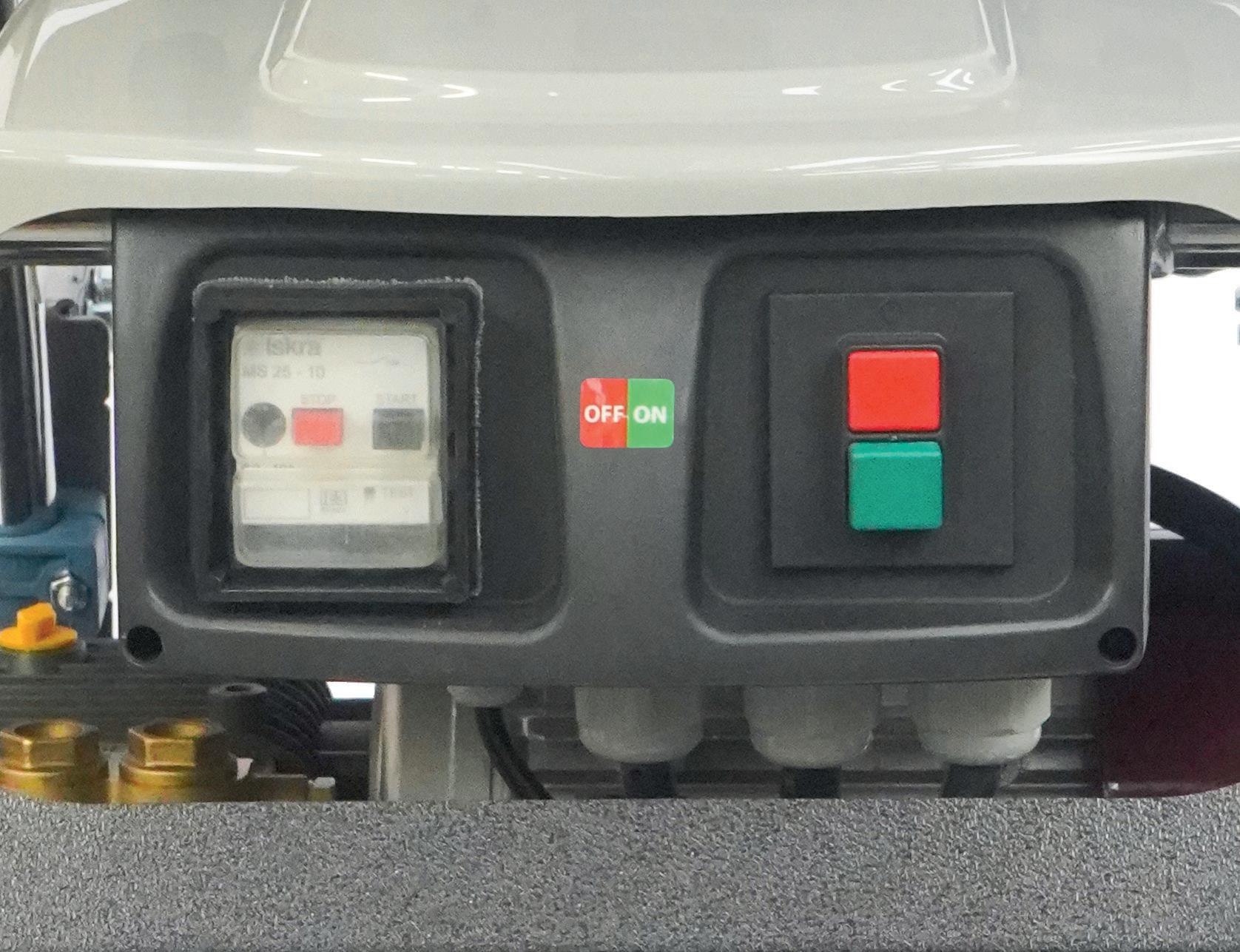

Control panel

on the purchase of 2 pcs, compared to the list price of the previous model

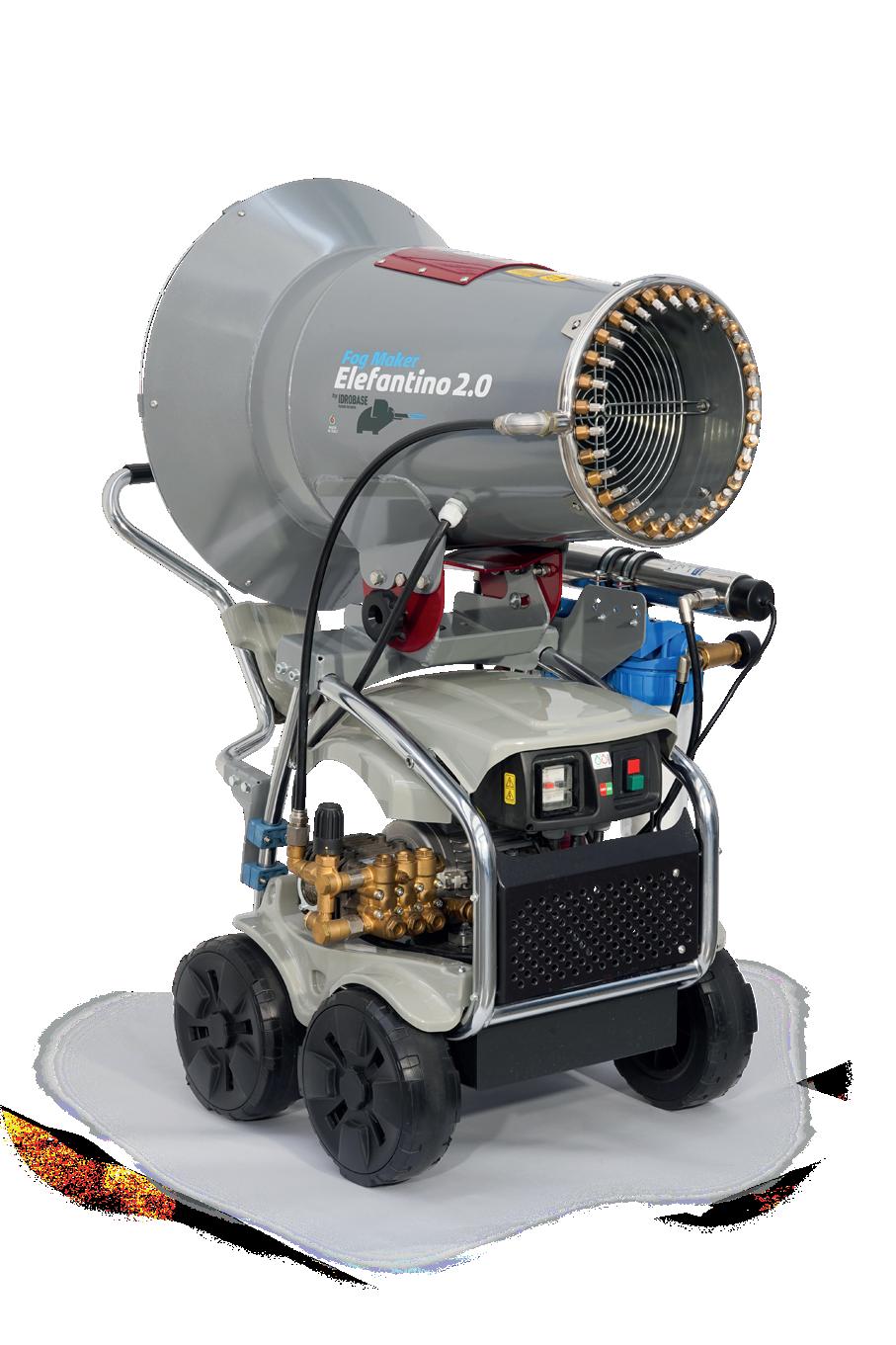

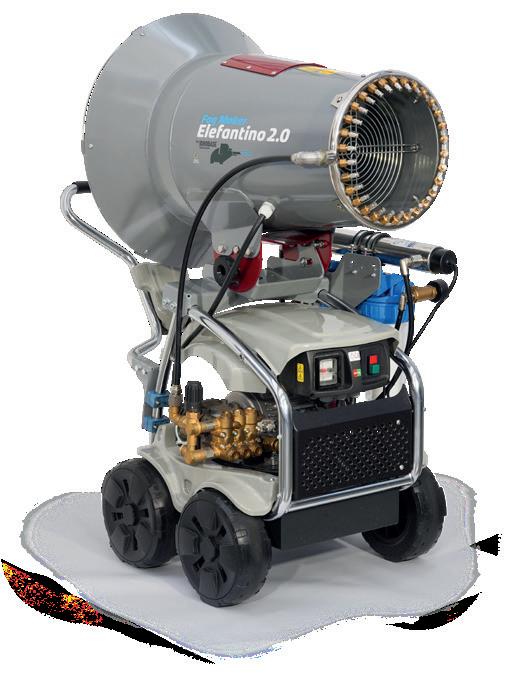

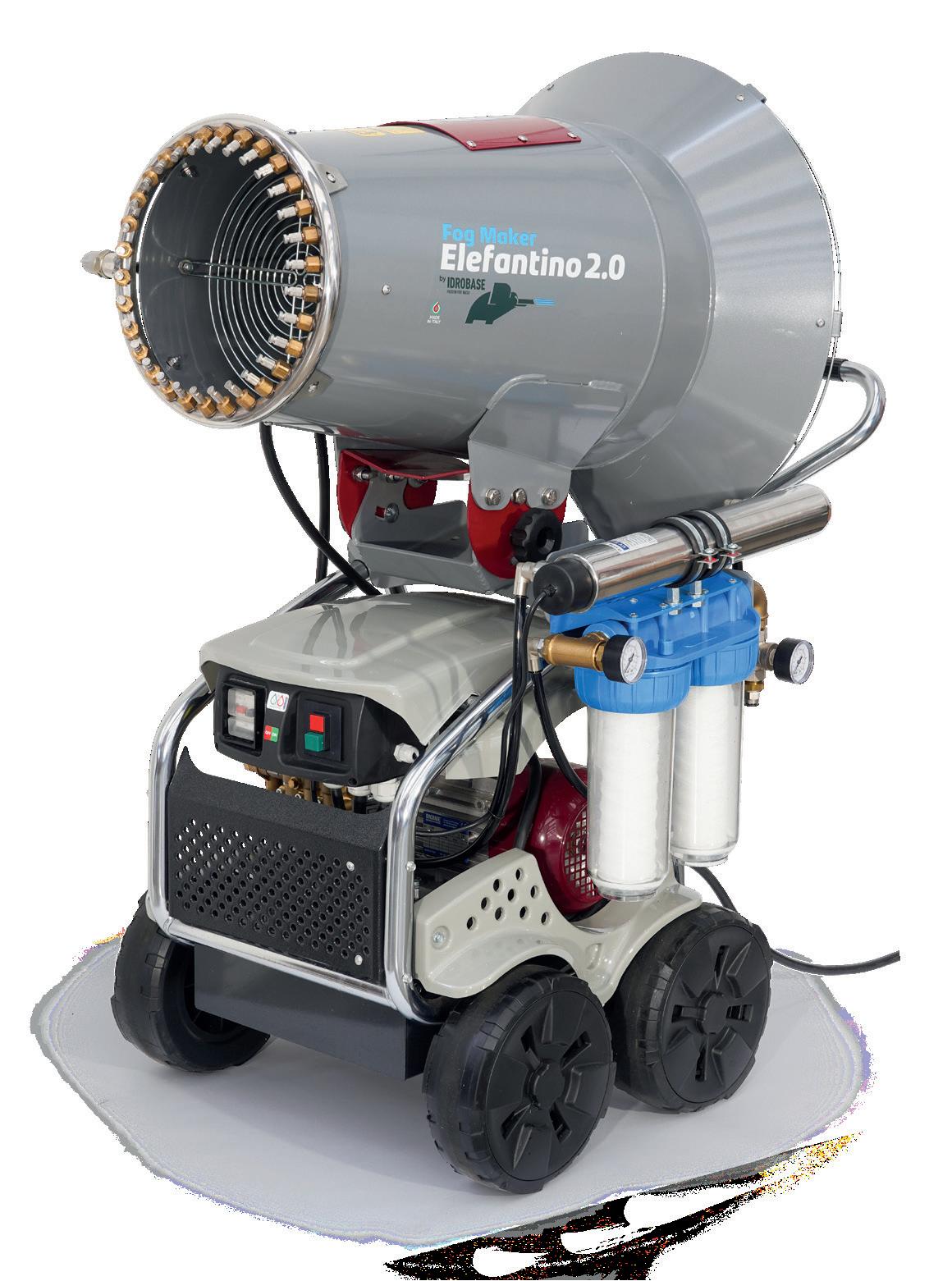

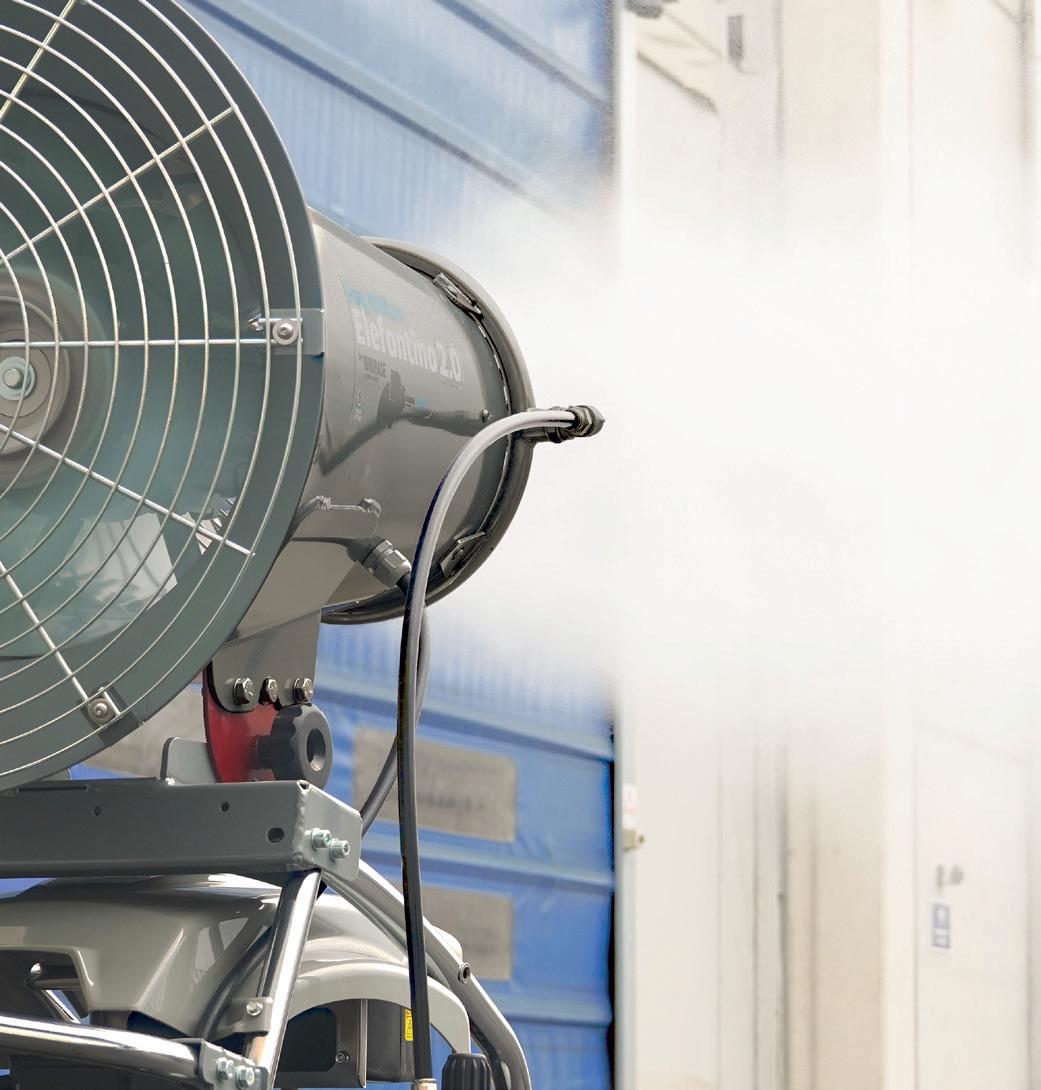

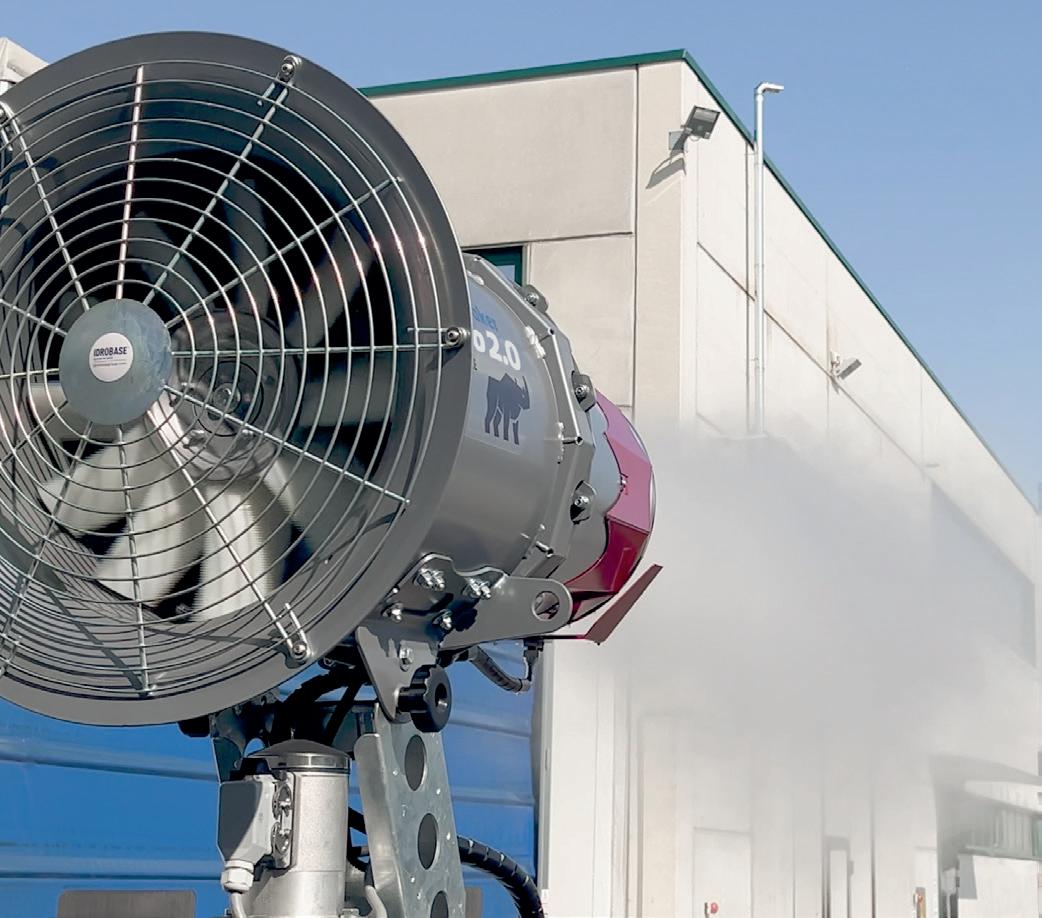

Fog Maker Elefantino 2.0

30 nozzles Pressure 80bar Fan jet 28m

Trolley-mounted high pressure fog maker with 30 misting nozzles, ON-OFF control panel for pump and fan controls. Fan range: 28 metres.

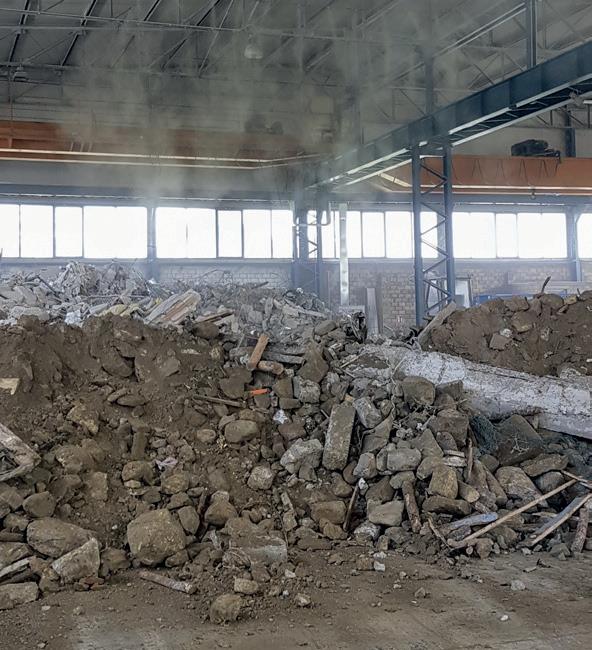

Ideal for suppression of fine dust (PM10), in small to medium sized areas such as in renovation of buildings and when handling dusty materials.

Technical features

ZX.8406

ZX.8407

ZX.8408

ZX.8409

2.0 - 6,5

2.0 - 11

Accessories

- 21

Maintenance set

Elefantino VS Elefantino 2.0 comparison

Elefantino Elefantino 2.0 Delta

Fan jet 21m 28m +33%

Pressure 70bar 80bar +14%

Mobility 2 wheels 4 wheels

Frame Iron

Chrome-plated steel and trasparent painted

Price -15%

Technical features

general

• Frame made of S235JR chrome-plated steel and transparent painted

• Solid wheels

• Power absorption: 3kW 2800Rpm

Coverage: 150m2

Fan jet: 28m with 21°C (without wind)

• Elevation: 0°+30° manual

• Fan diameter: 397mm

• Noise: <90LwA

No. of nozzles: 1 ring AISI 304

Pump maintenance set 750 hours INCLUDED

stainless steel with 30 nozzles

• Water inlet kit complete with pressure stabiliser

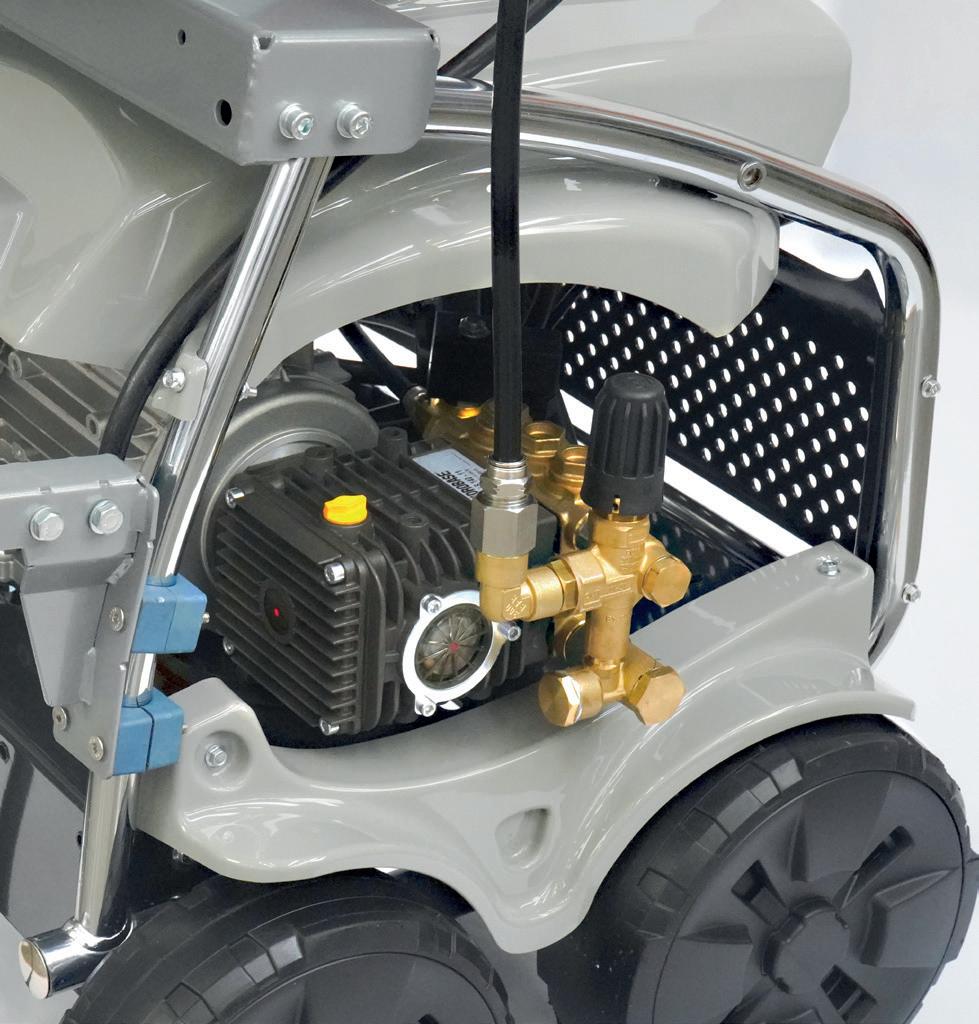

Pressure: 80bar for 6,5 and 15l/min version, 70bar for 11 and 21l/min version Pump module 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Electric motor 1450Rpm, 1.5kW for 6,5 and 11l/min, 2.2kW for 15l/min, 3kW for 21 l/min

• Integrated by-pass valve

Protection rating: IP54

Fog Maker Gru is versatile:

• PM2.5 and PM10 abatment

• odor neutralization

version VS New version comparison

Rotation Manual Automatic

Covered

Programmable touch screen display*

*Pause/work time slots

Capacity of 6,5, 11, 15 e 21l/min.

Technical features

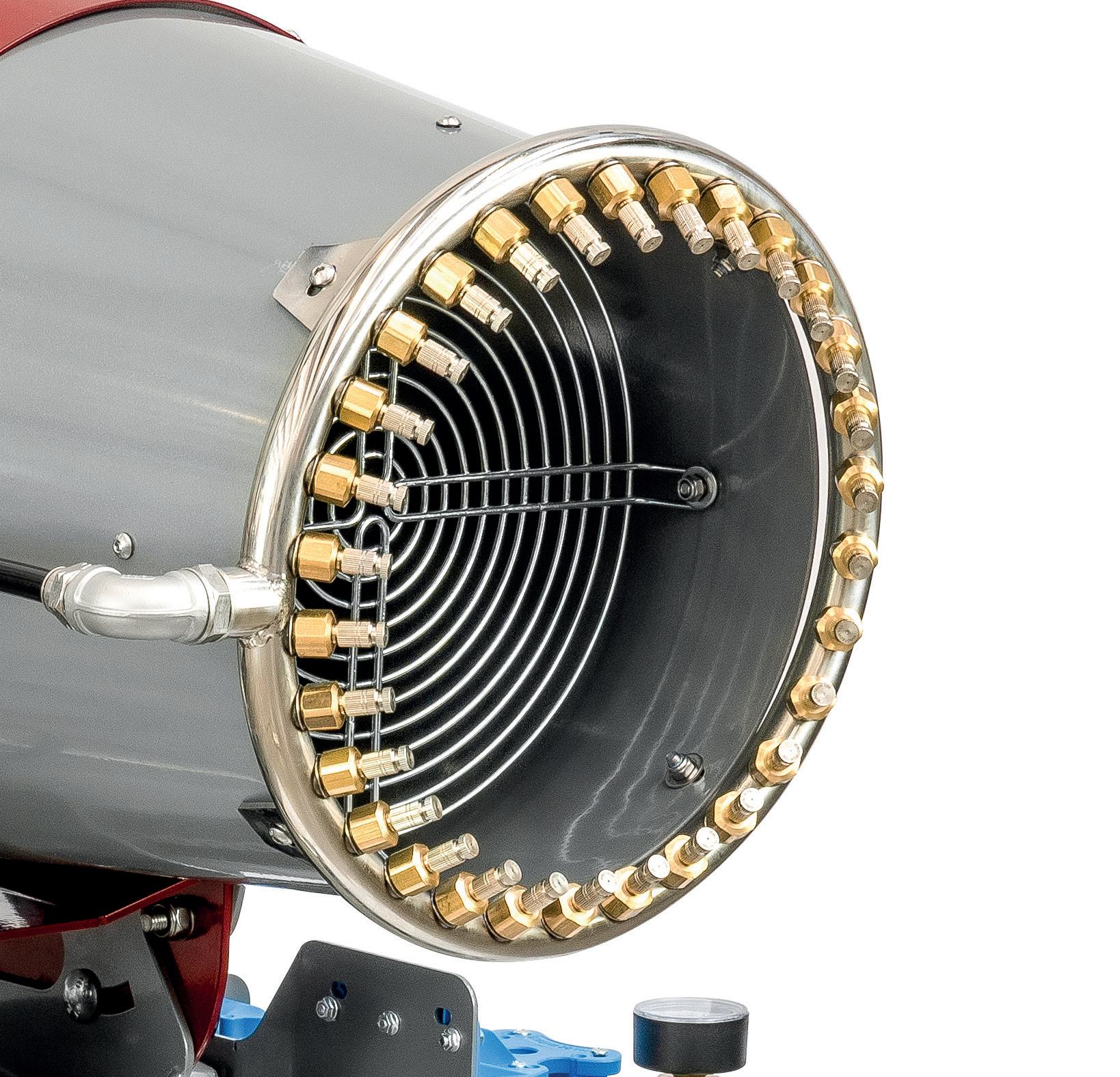

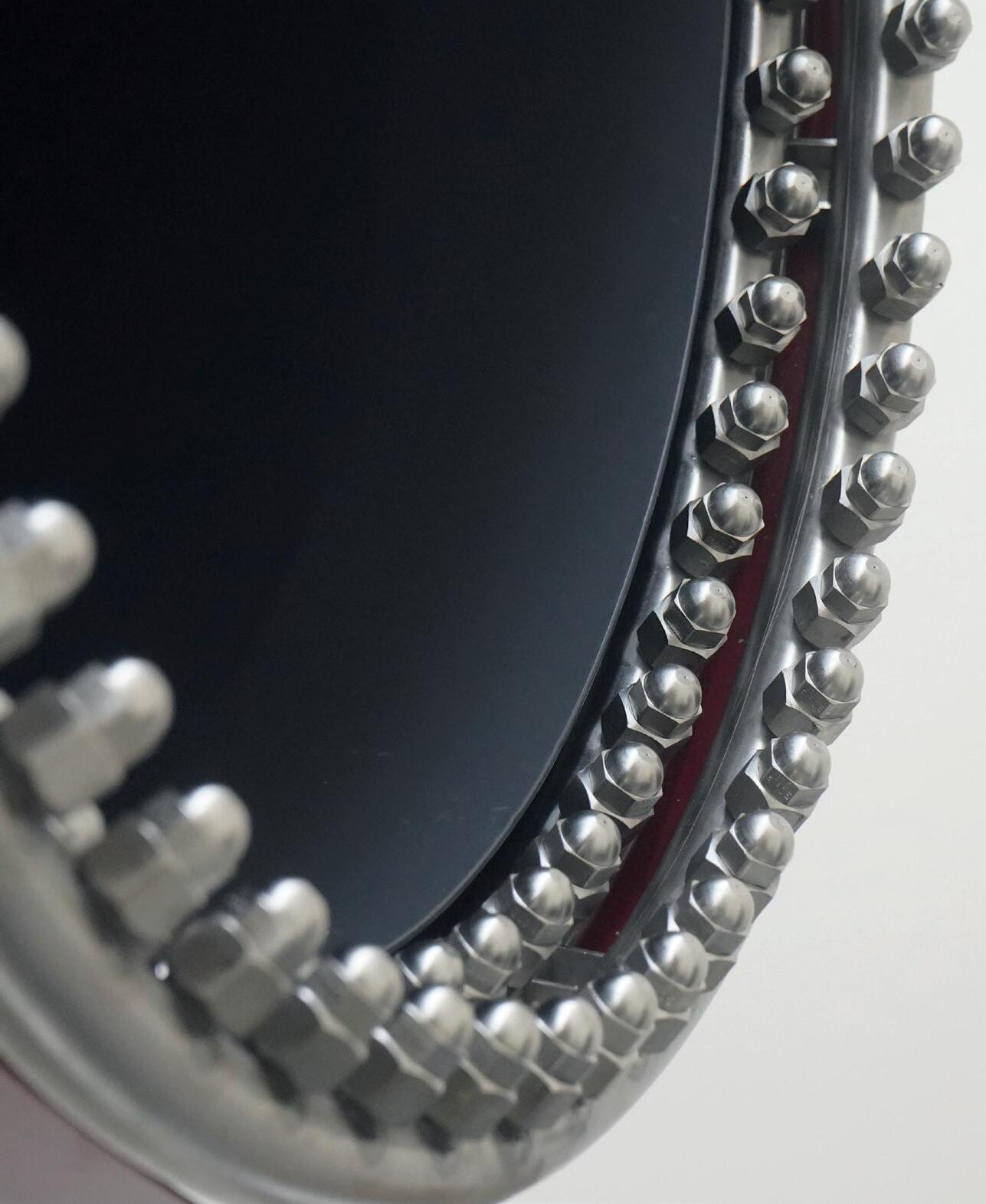

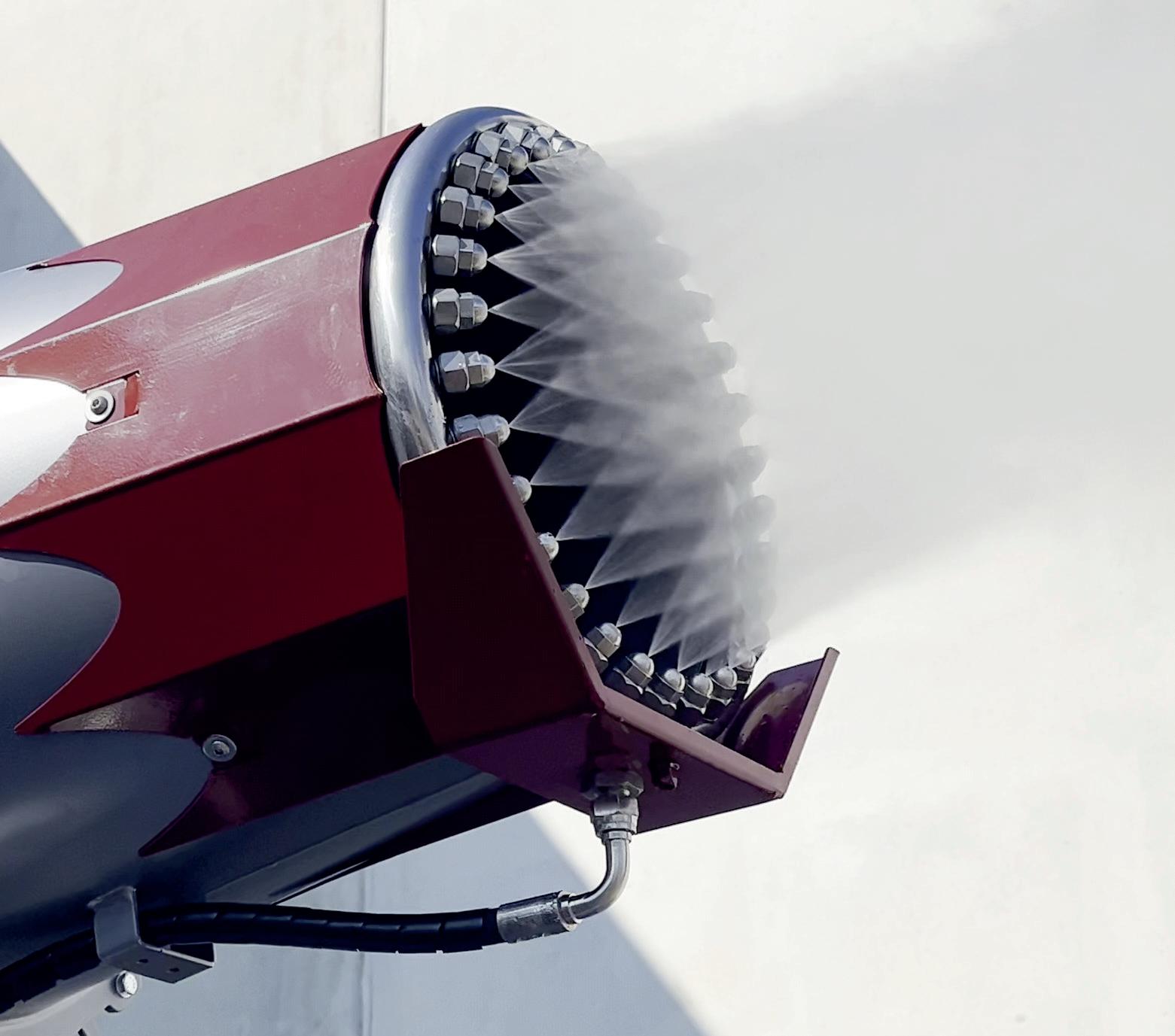

Ring AISI 304 stainless steel with 30 nozzles

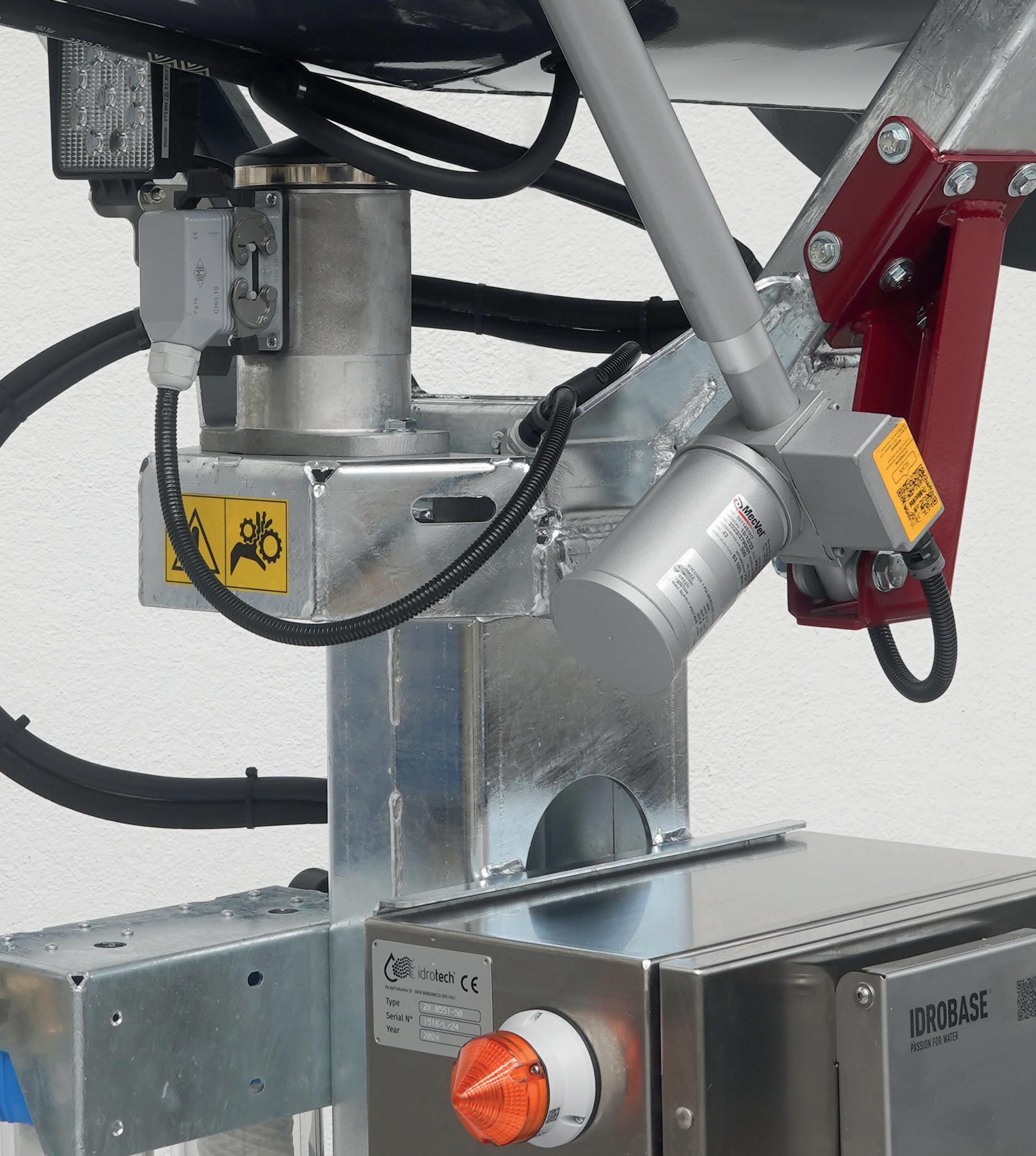

system detail

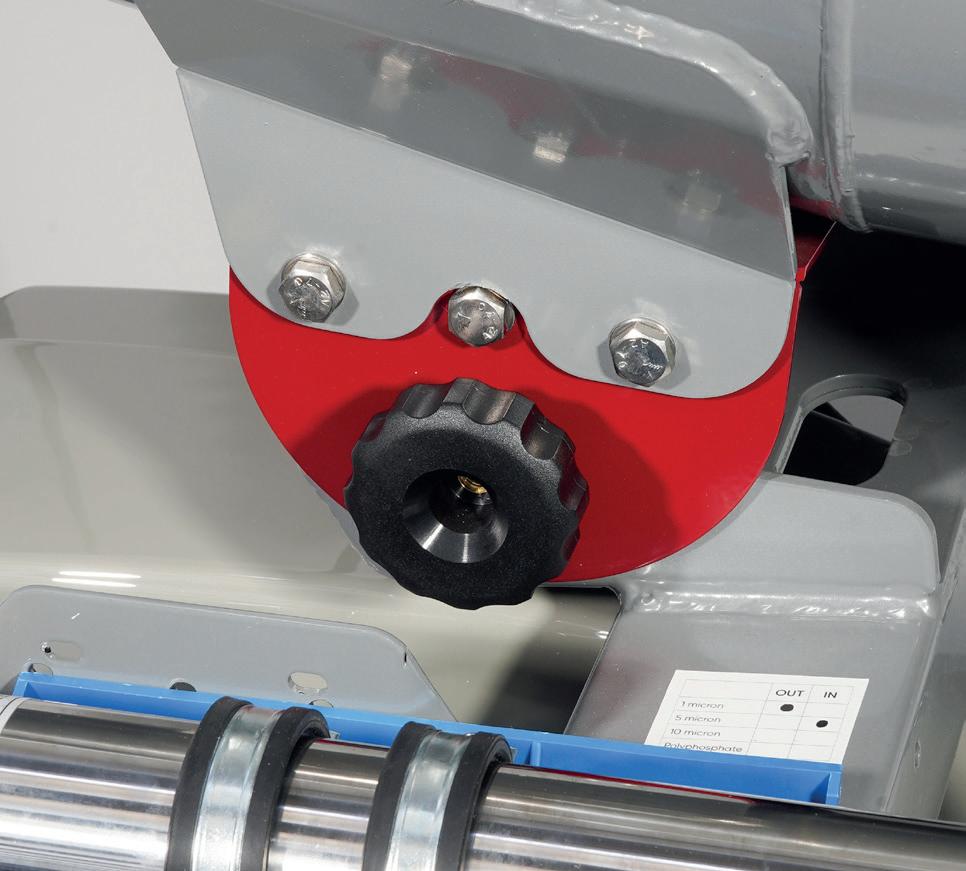

Manual elevation -20° +25°

Automatic rotating range 300°

kit optional

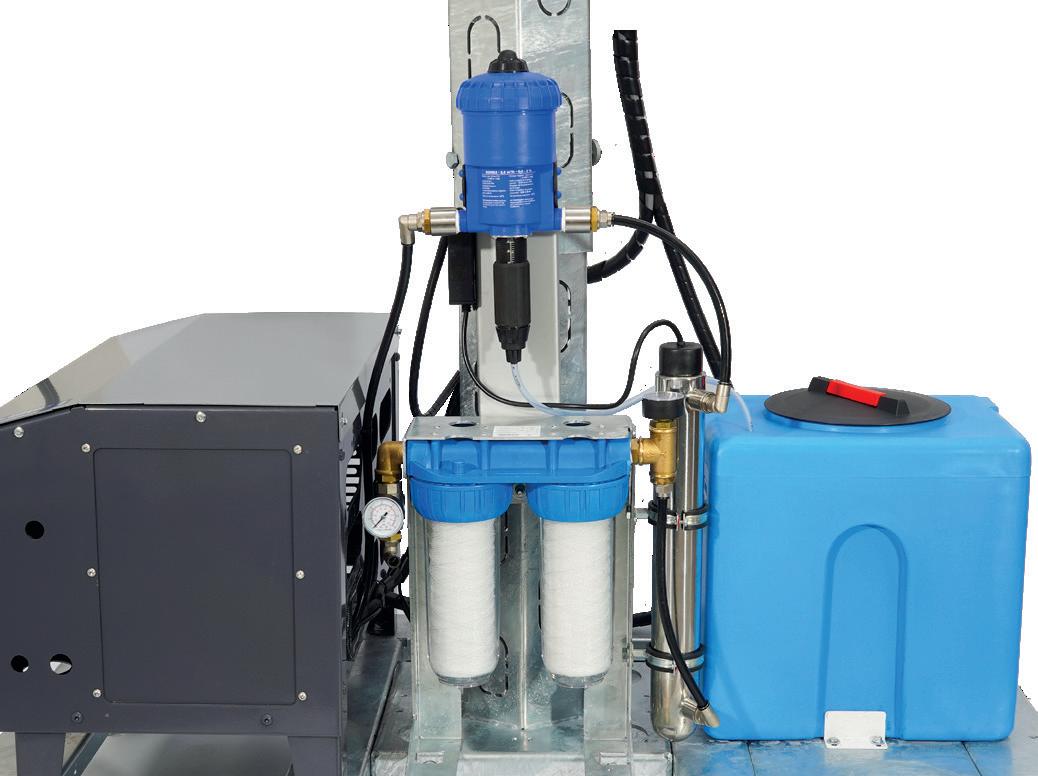

Dosing

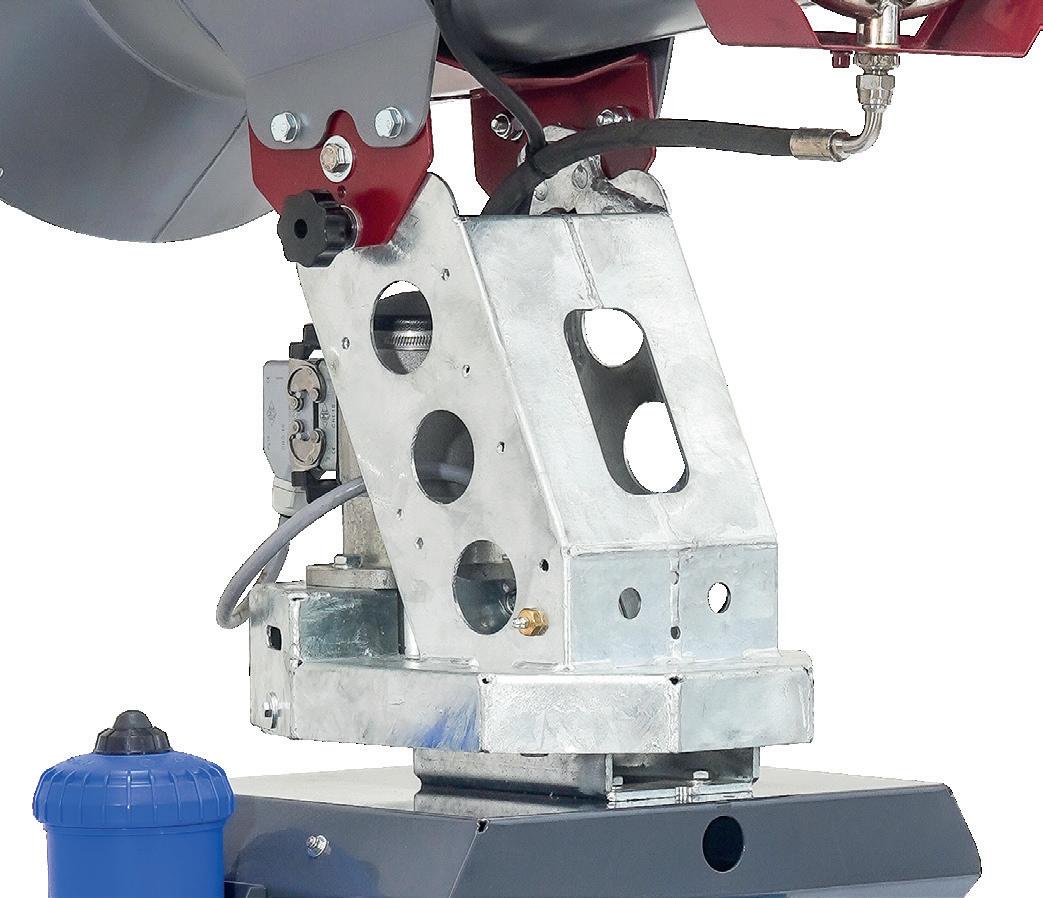

Rotating

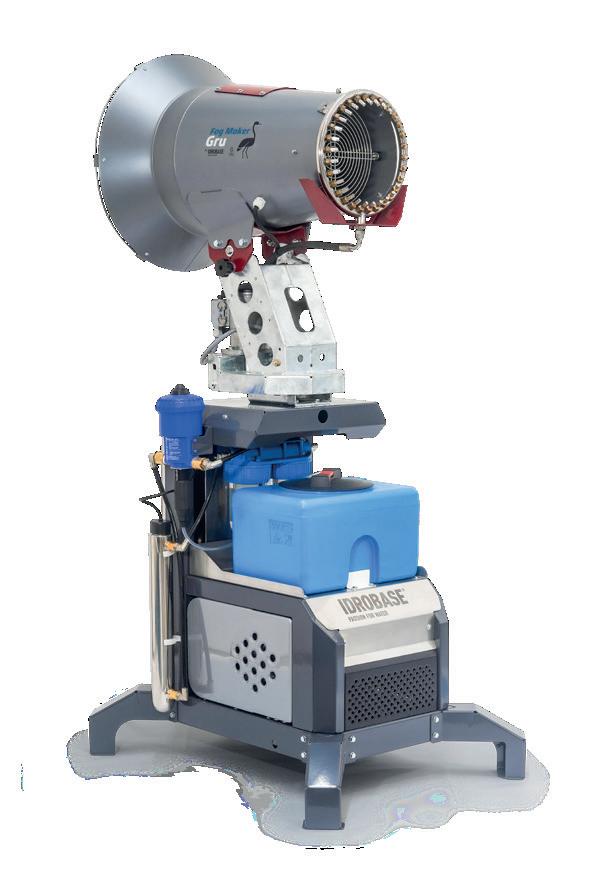

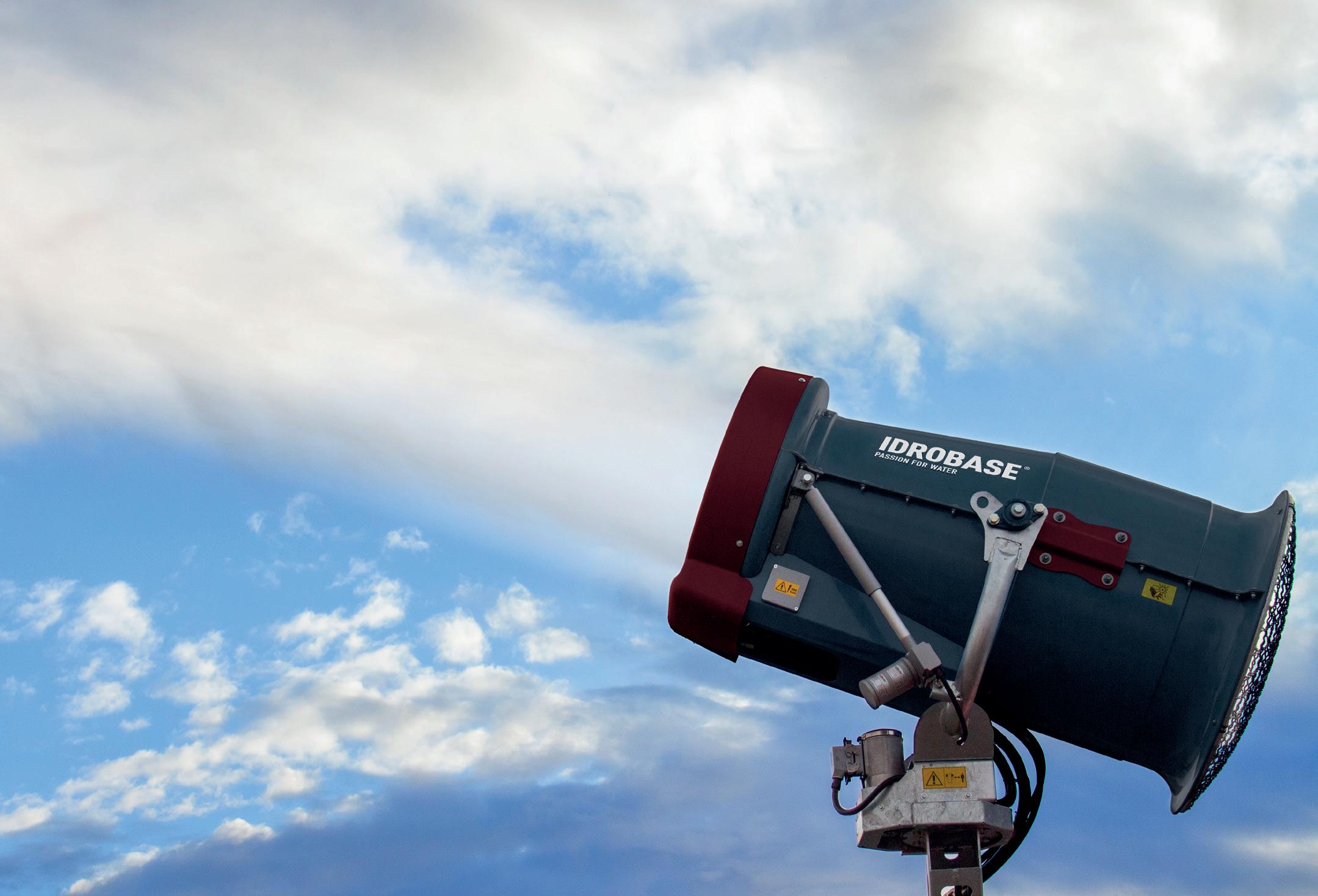

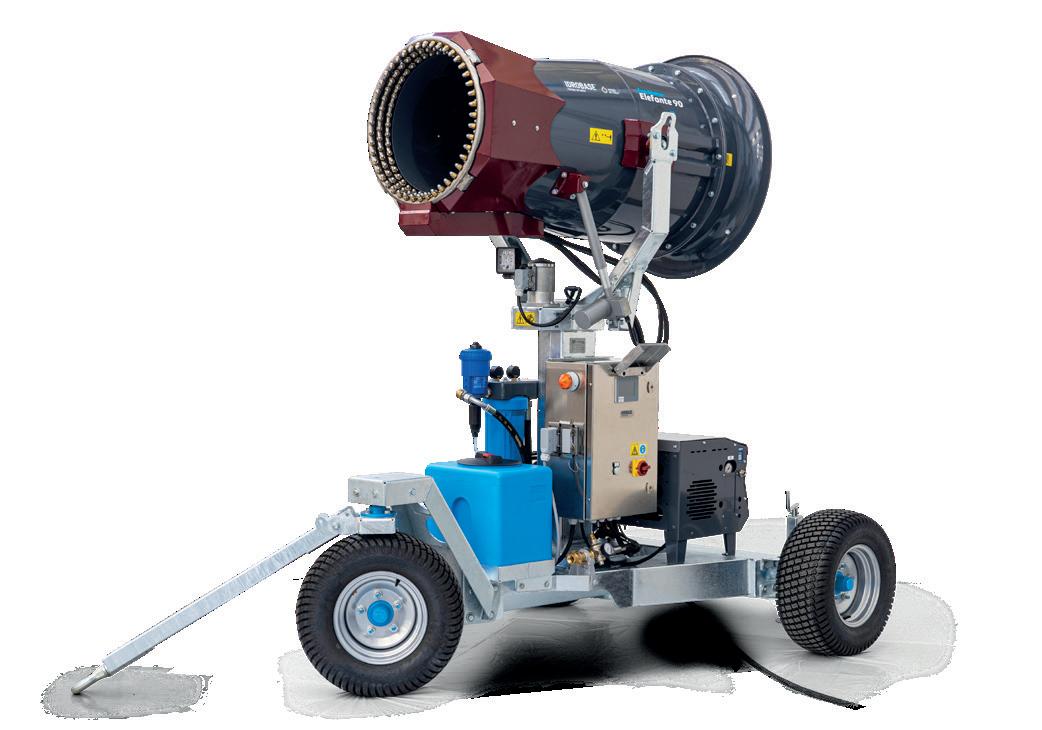

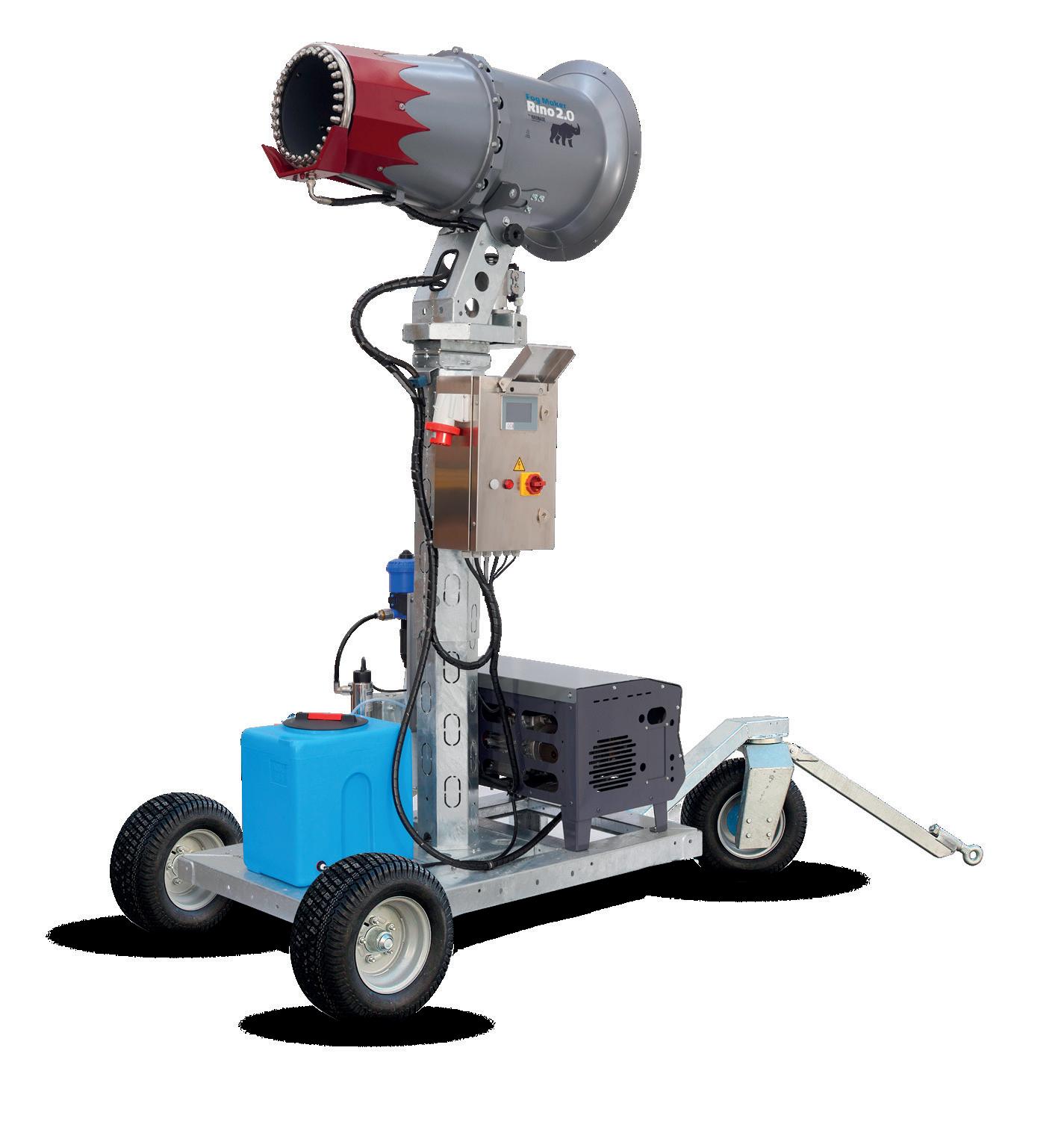

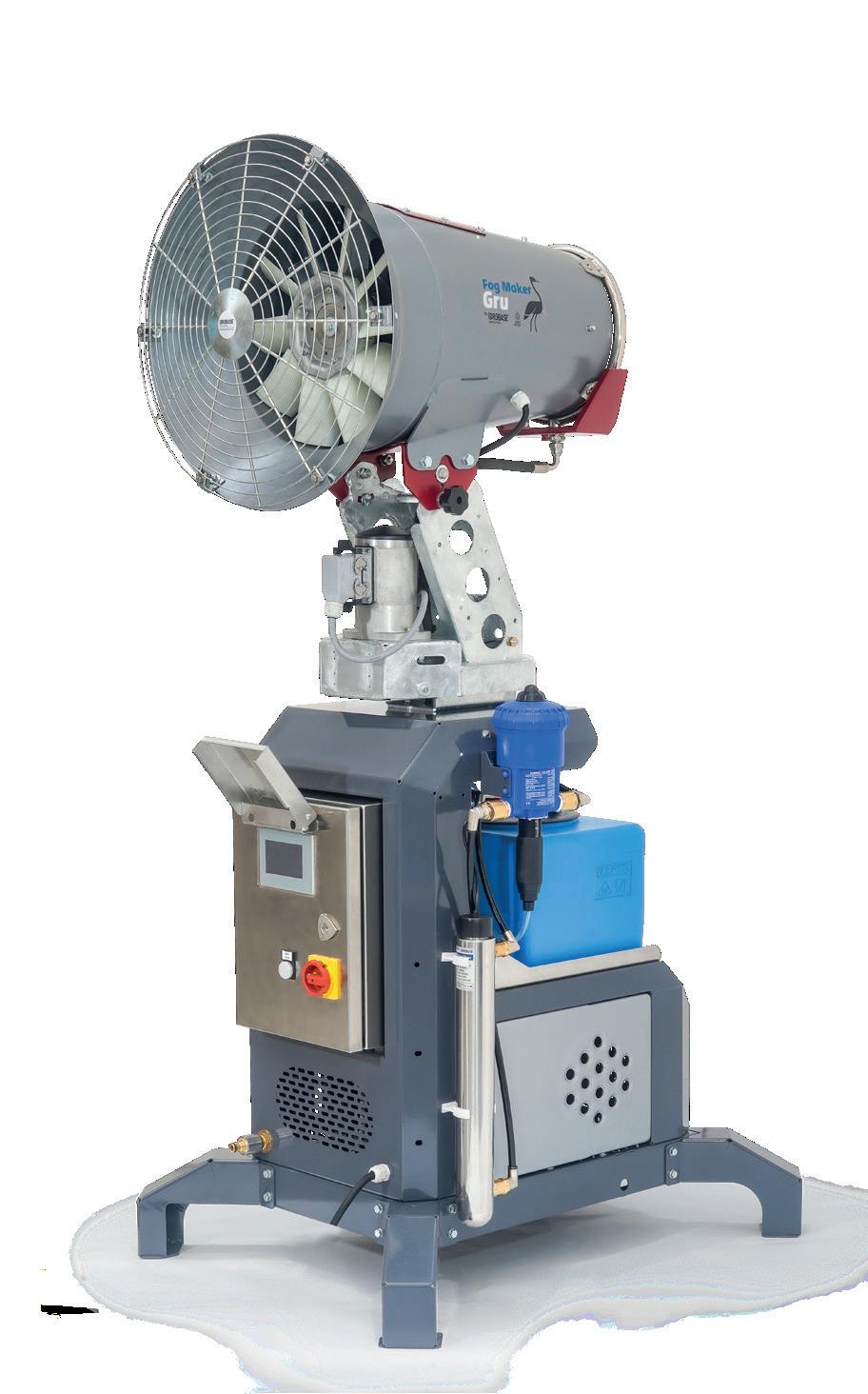

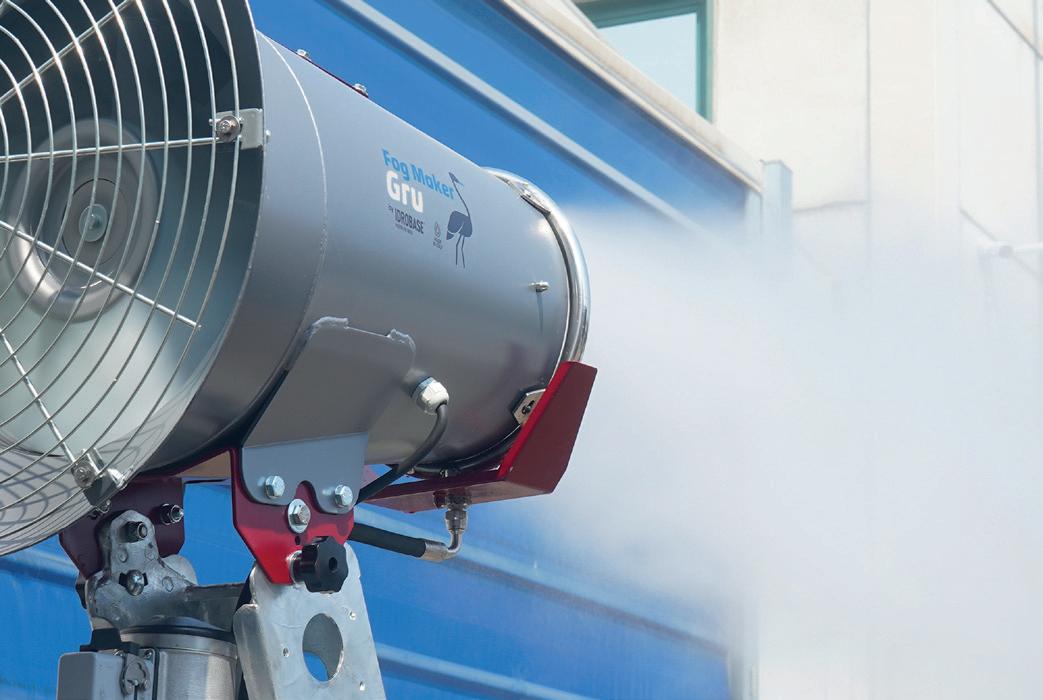

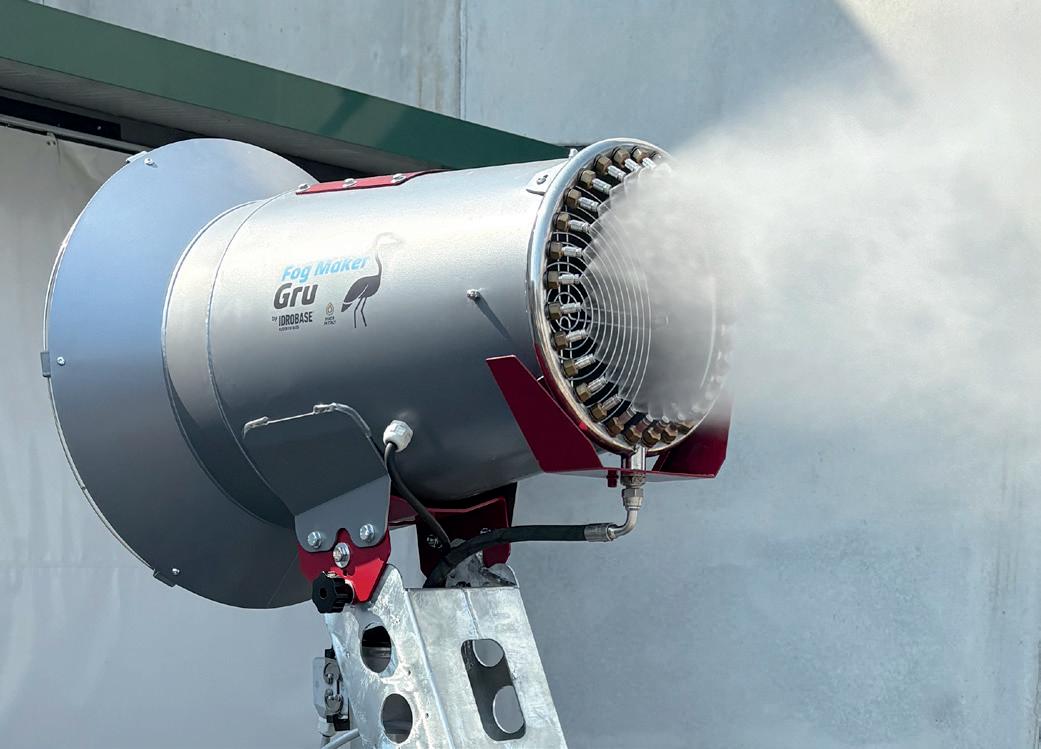

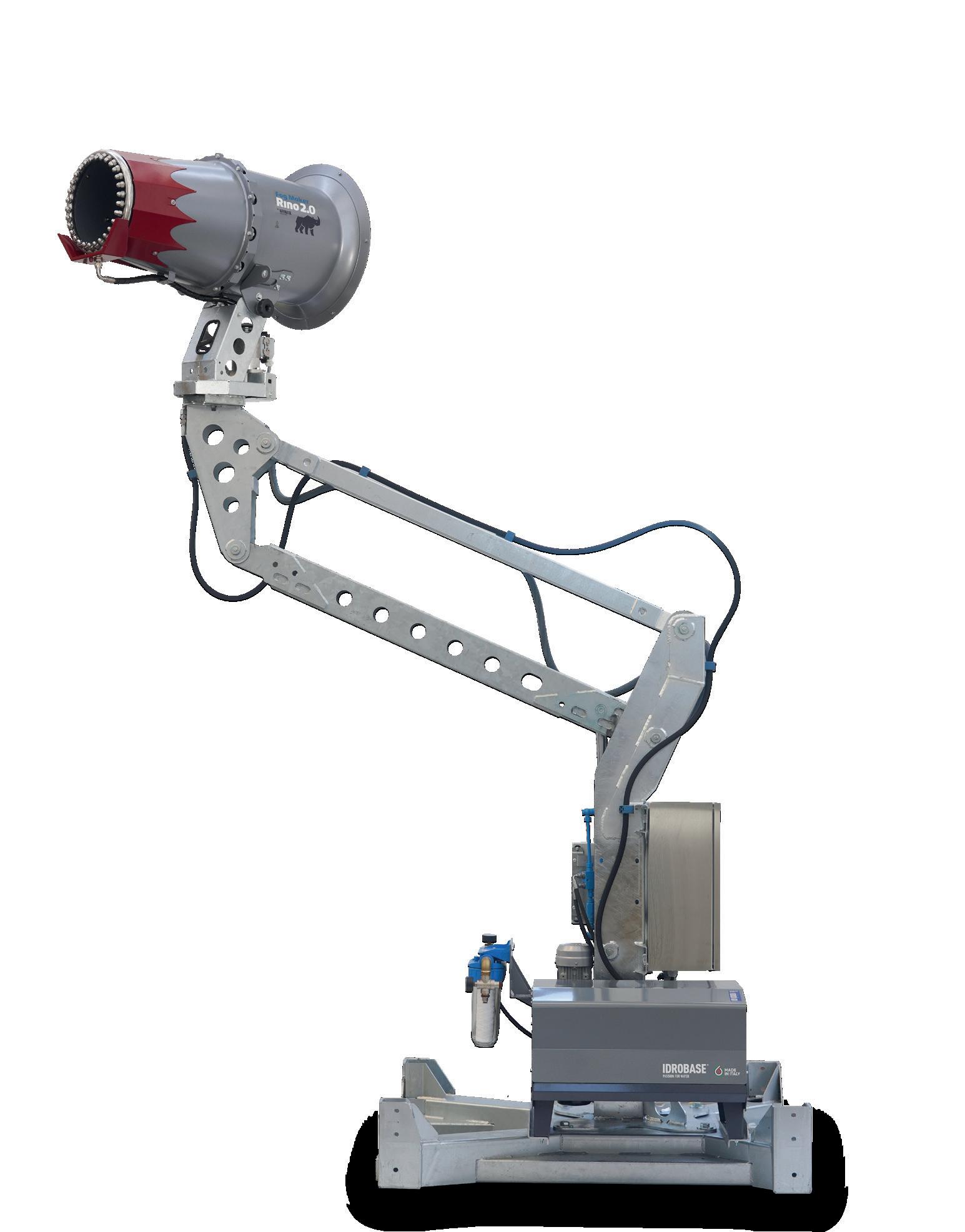

Fog Maker Gru

Rotating range (automatic)

Covered area

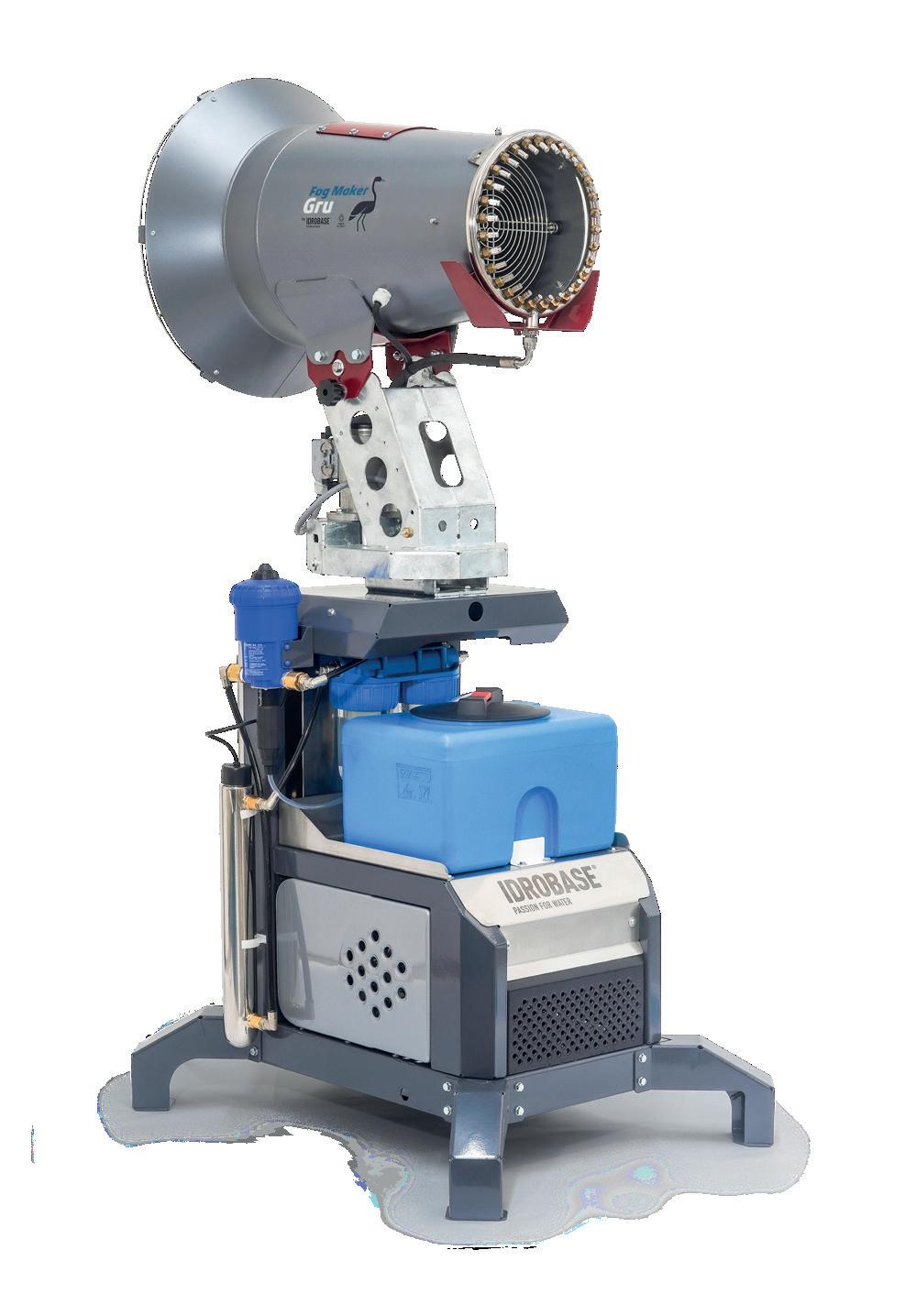

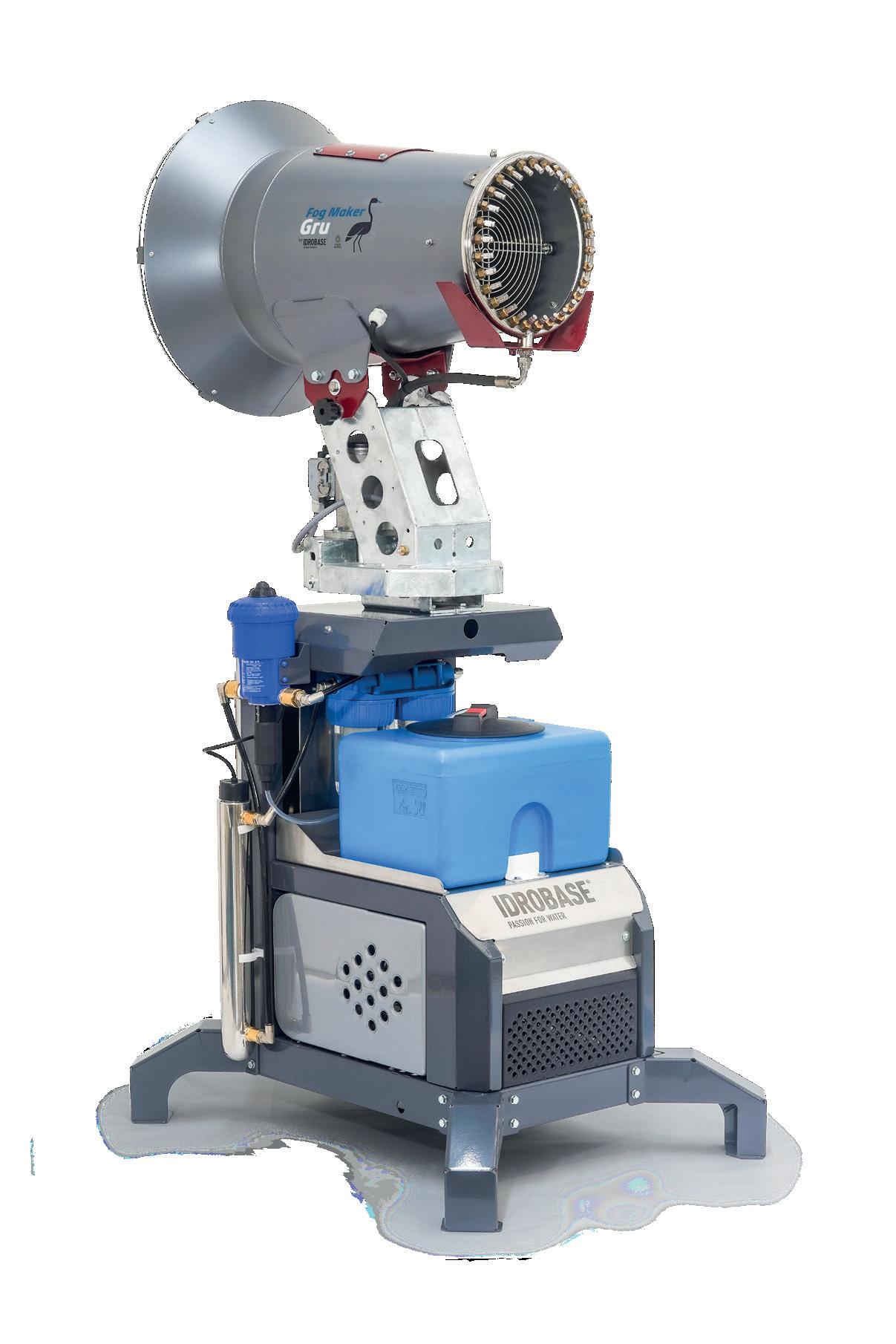

Fog Maker Gru

• Ideal for odour and dust suppression (PM2.5 and PM10) of medium areas

• Practical and handy with heavy-duty structure

Fan jet 30m Pressure 70bar 30 nozzles

• Industrial performance with excellent value for money

Technical features

ZX.8611

ZX.8612

ZX.8613

ZX.8614

ZX.8611-DOS

ZX.8612-DOS

ZX.8613-DOS

ZX.8614-DOS

Old version New version Delta Fan jet

Programmable touch screen display*

Technical features

general

• Galvanized steel frame

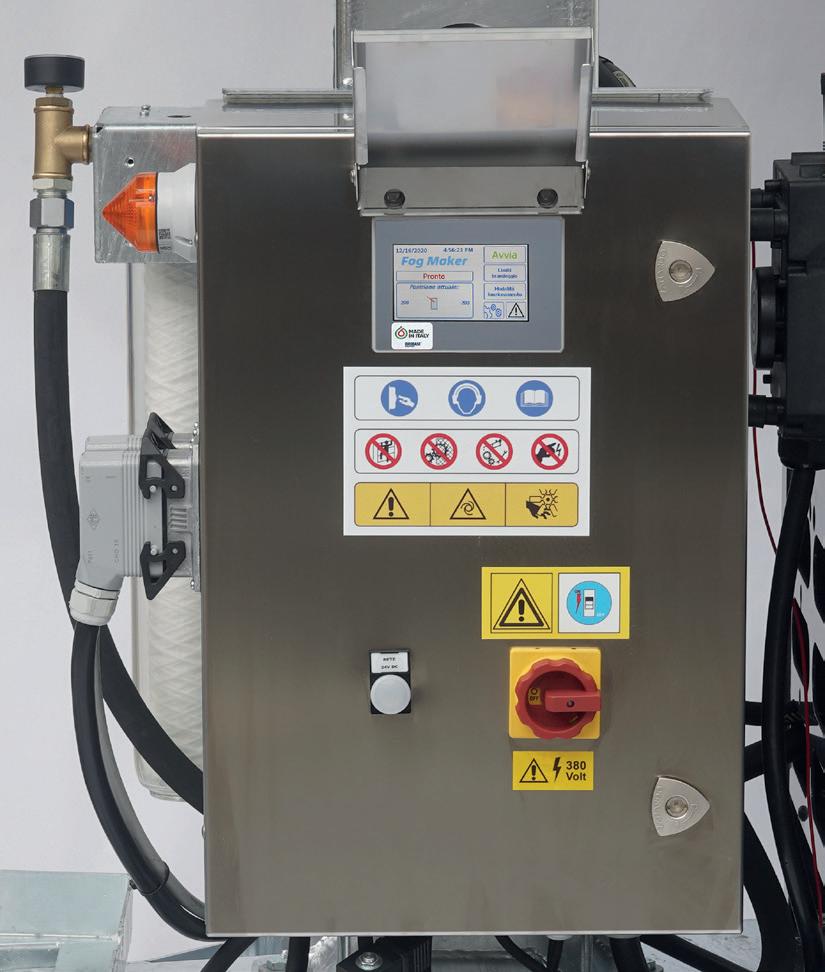

Electric control panel complete with 7” touch screen and PLC for managing the fan pump, rotating range and work cycles

• Protection rating IP54

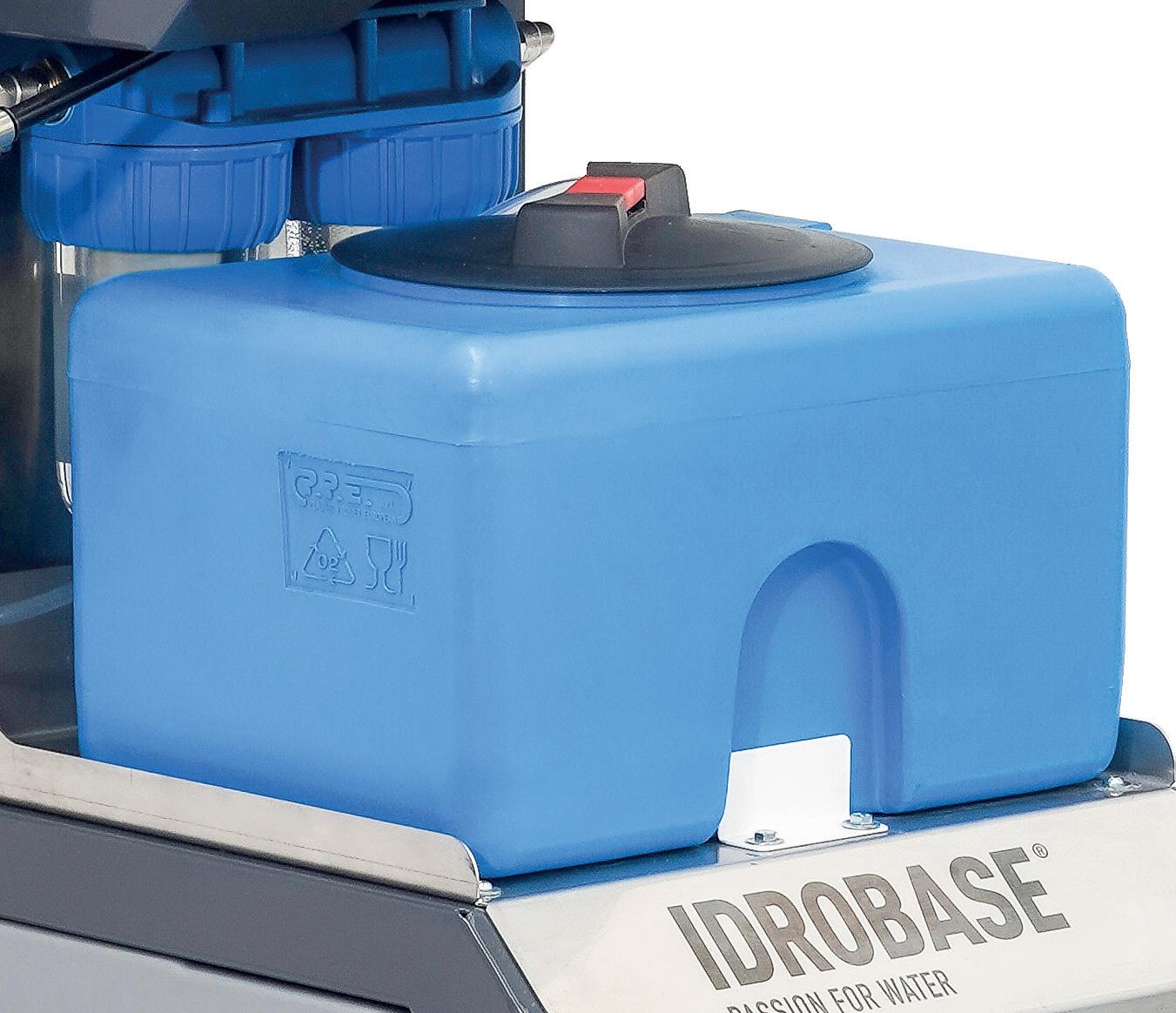

• Tank: 30L

Dimensions WxLxH: 1200x800x1700mm

Fan technical specifications

• No. of nozzles 1 ring AISI 304 stainless with 30 nozzles Coverage 1.500m2

• Power supply: 3kW–2800g/min

• Fan jet: 30m a 21°C (without wind)

• Power supply: 3x400V–50Hz Rotating: 300° automatic

• Elevation: -20° + 25° manual

• Fan diameter: 397mm

• Noise: <87LwA

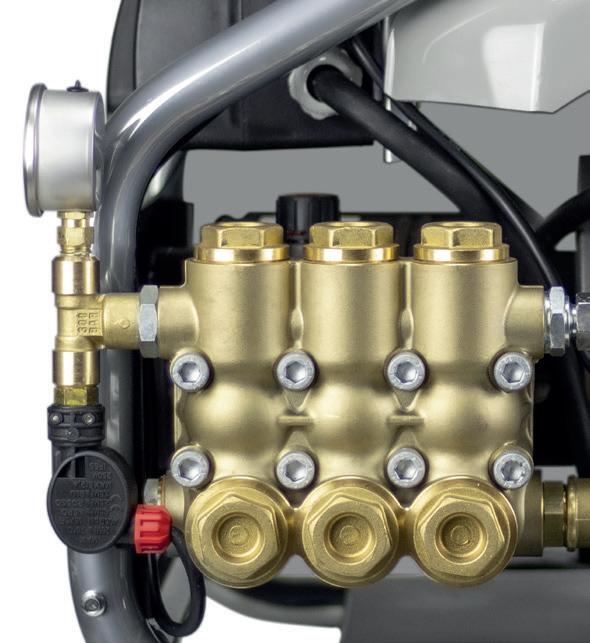

Pump module technical specifications

• Pressure: 70bar for 6,5, 11, 15 e 21l/min version. Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons Electric motor 1450g/min 1,9kW for 6,5 and 11l/min, 2,6kW for 15l/min and 3,4kW for 21l/min

• Integrated di by-pass valve

Fog Maker Gufo is versatile:

• odor neutralization

• dust suppression (PM2.5 e PM10)

• cooling

Gufo is available in 2 models:

• Gufo

• Gufo DOS

Capacity of 6,5, 11 and 15l/min.

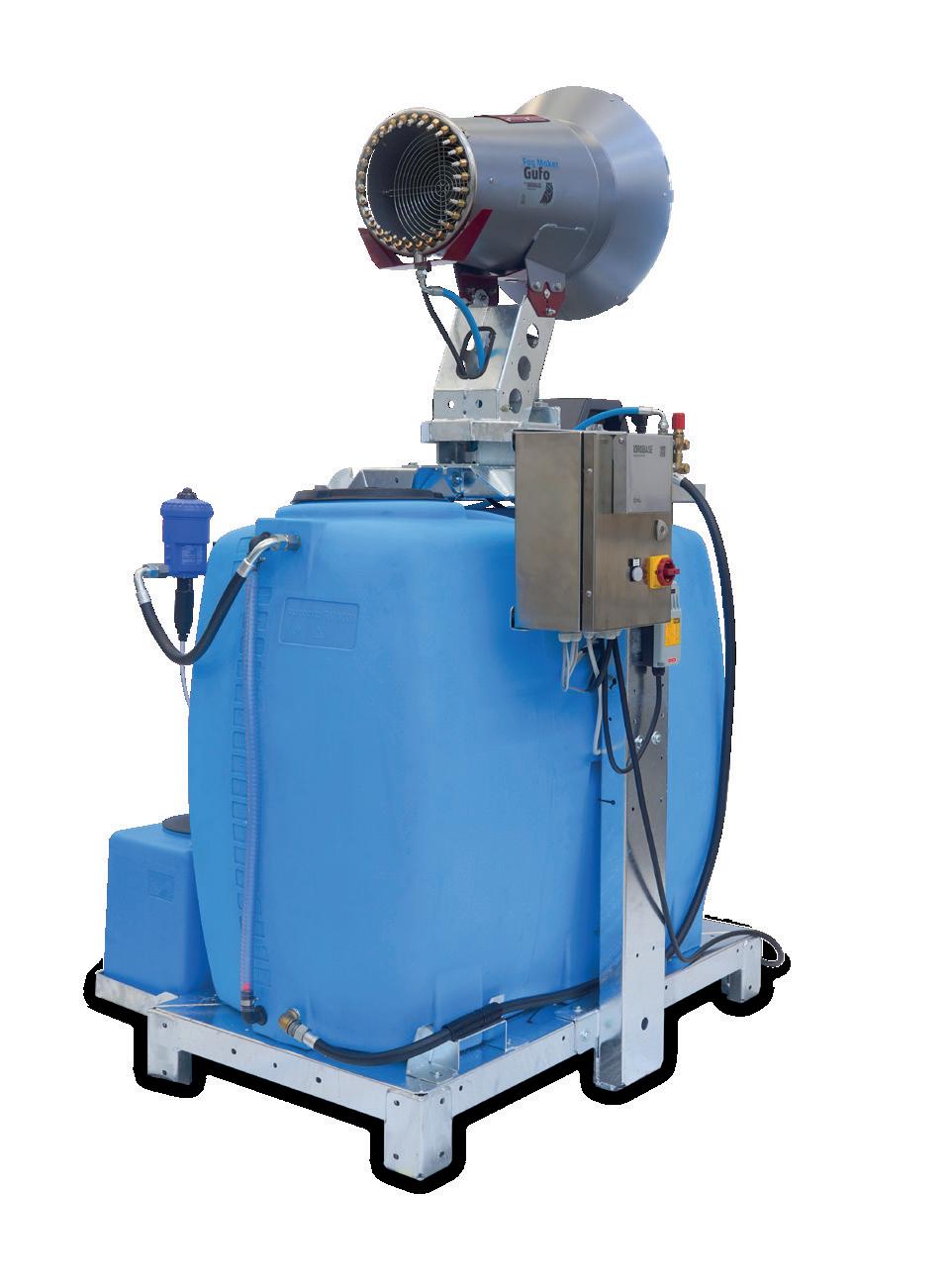

GUFO

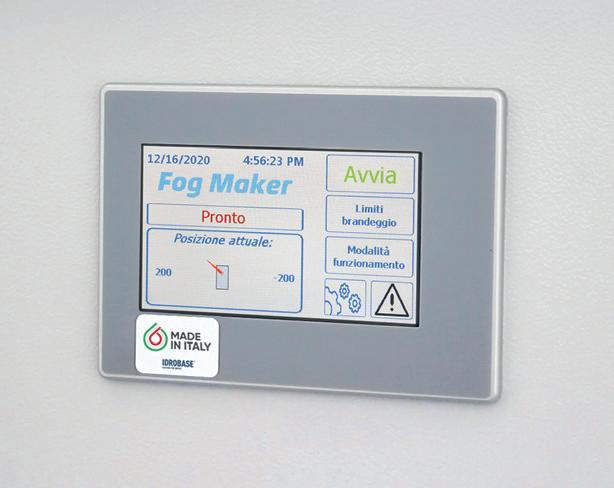

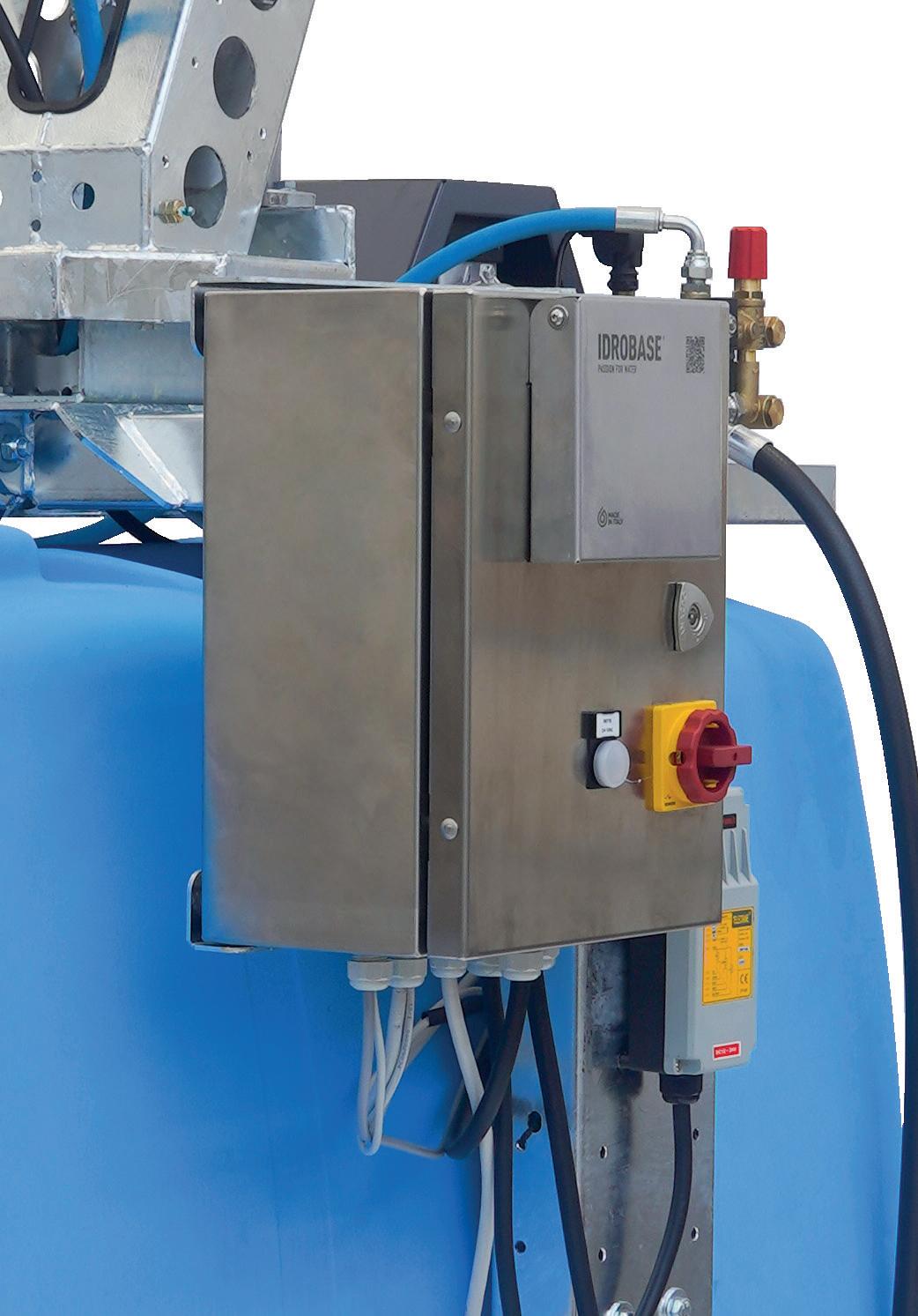

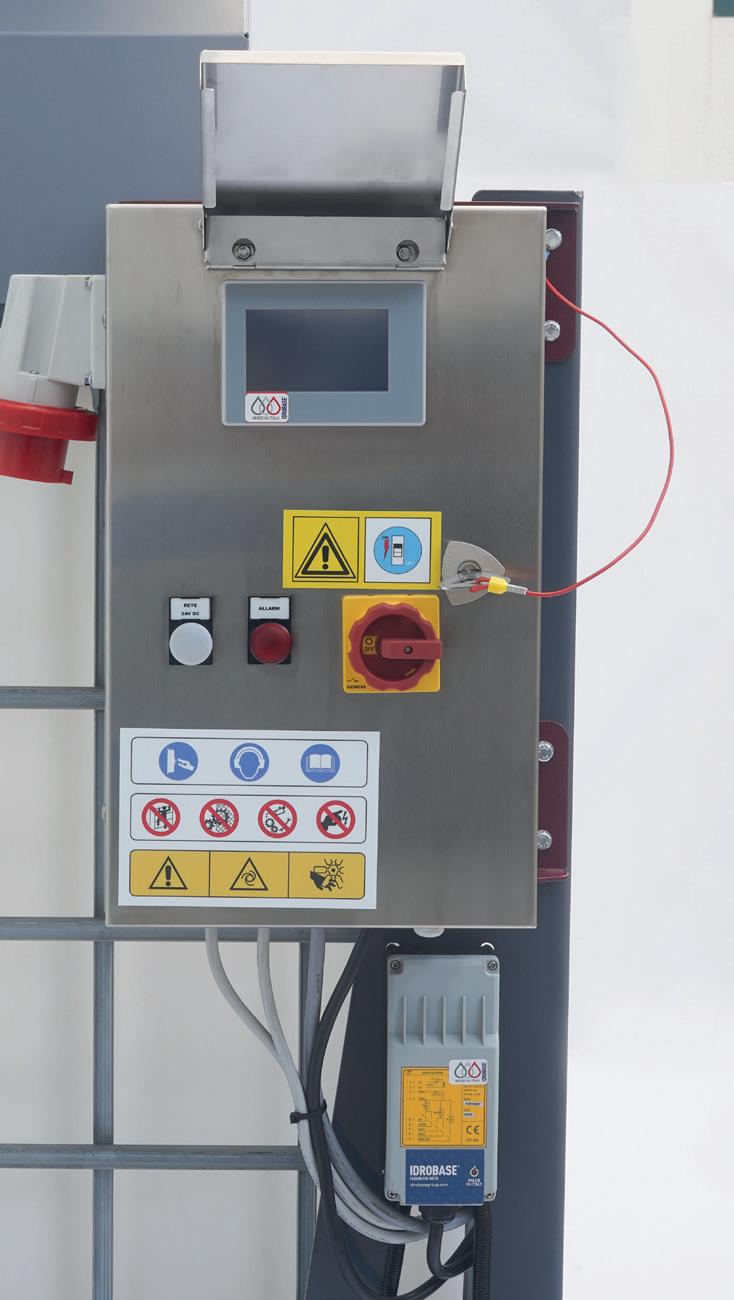

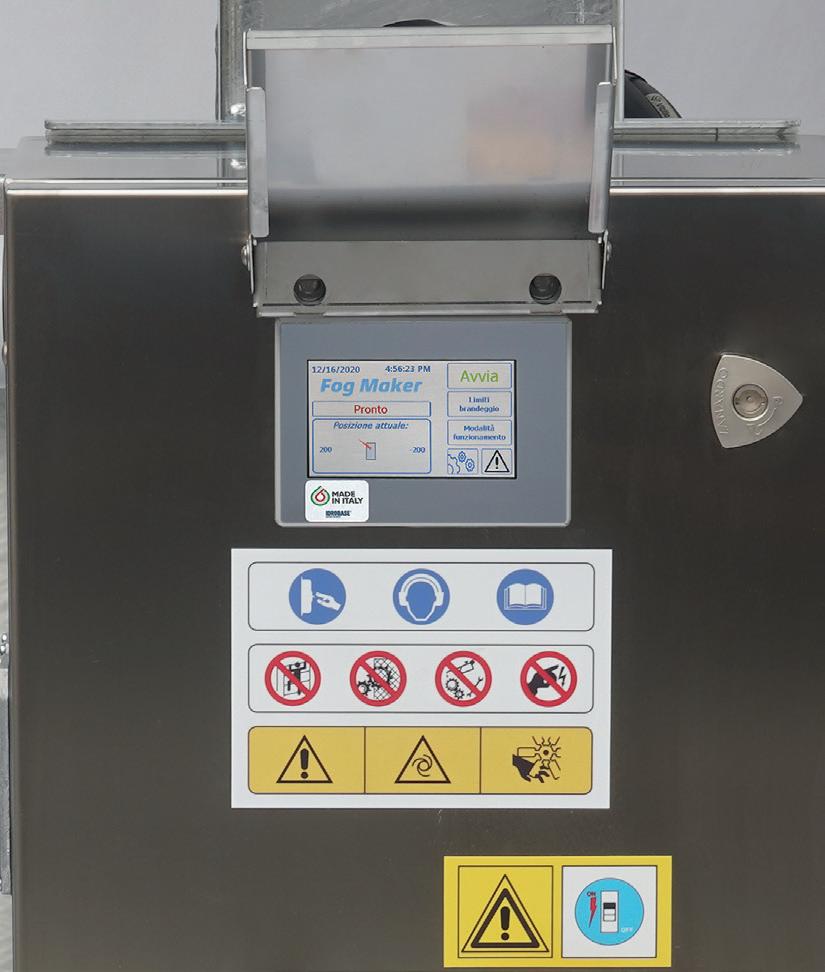

Electronic control panel

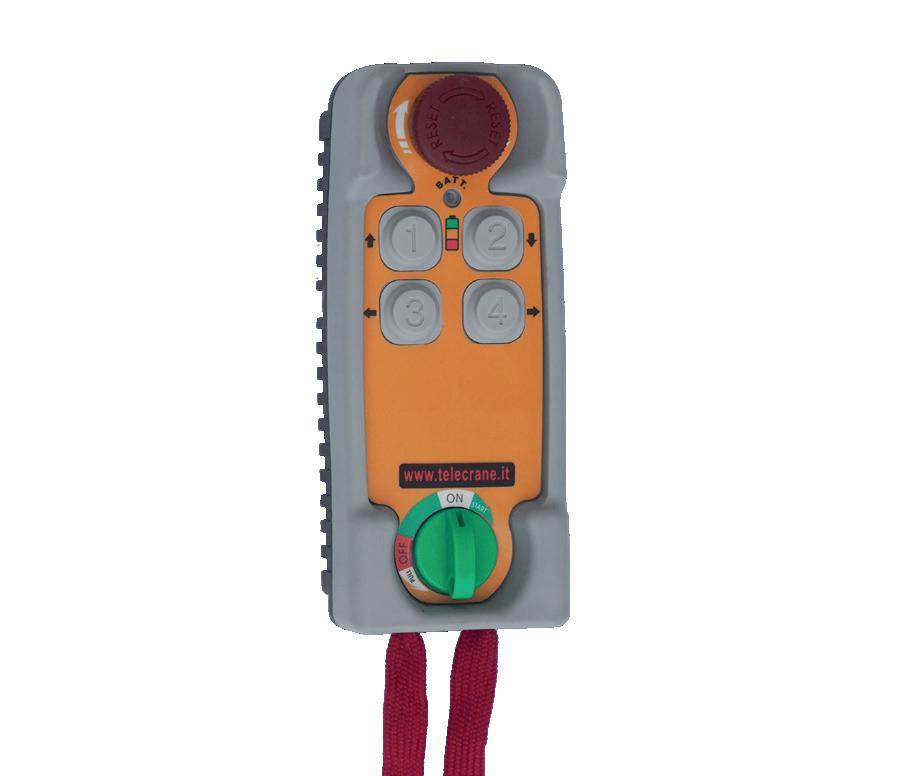

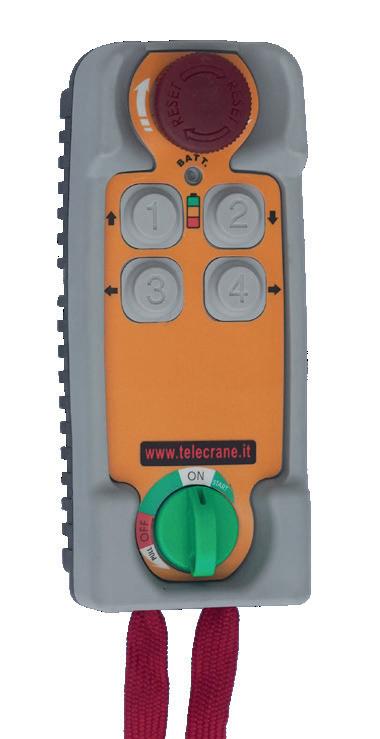

OPTIONAL - ZX.1854 Radiocomando

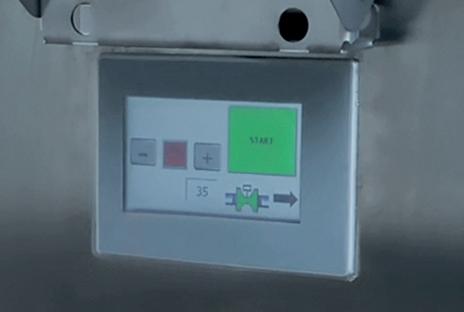

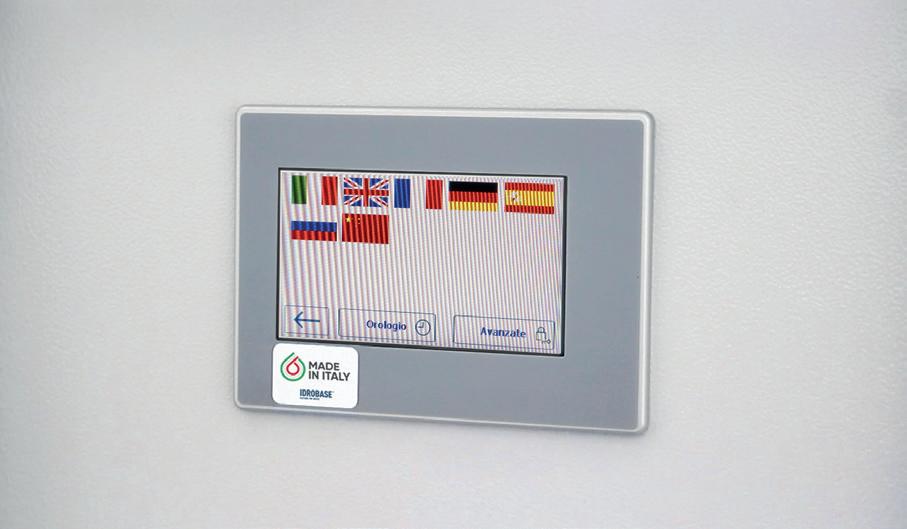

4,3” touch screen with multi language software

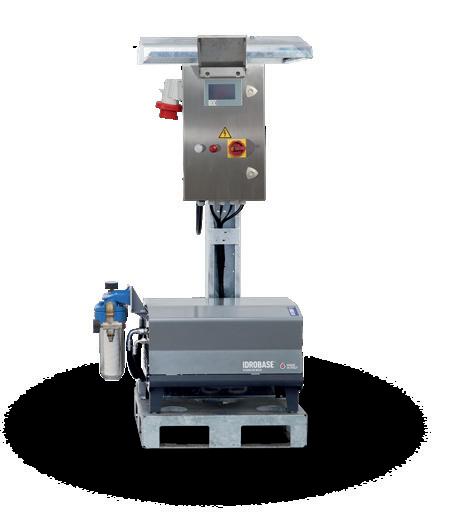

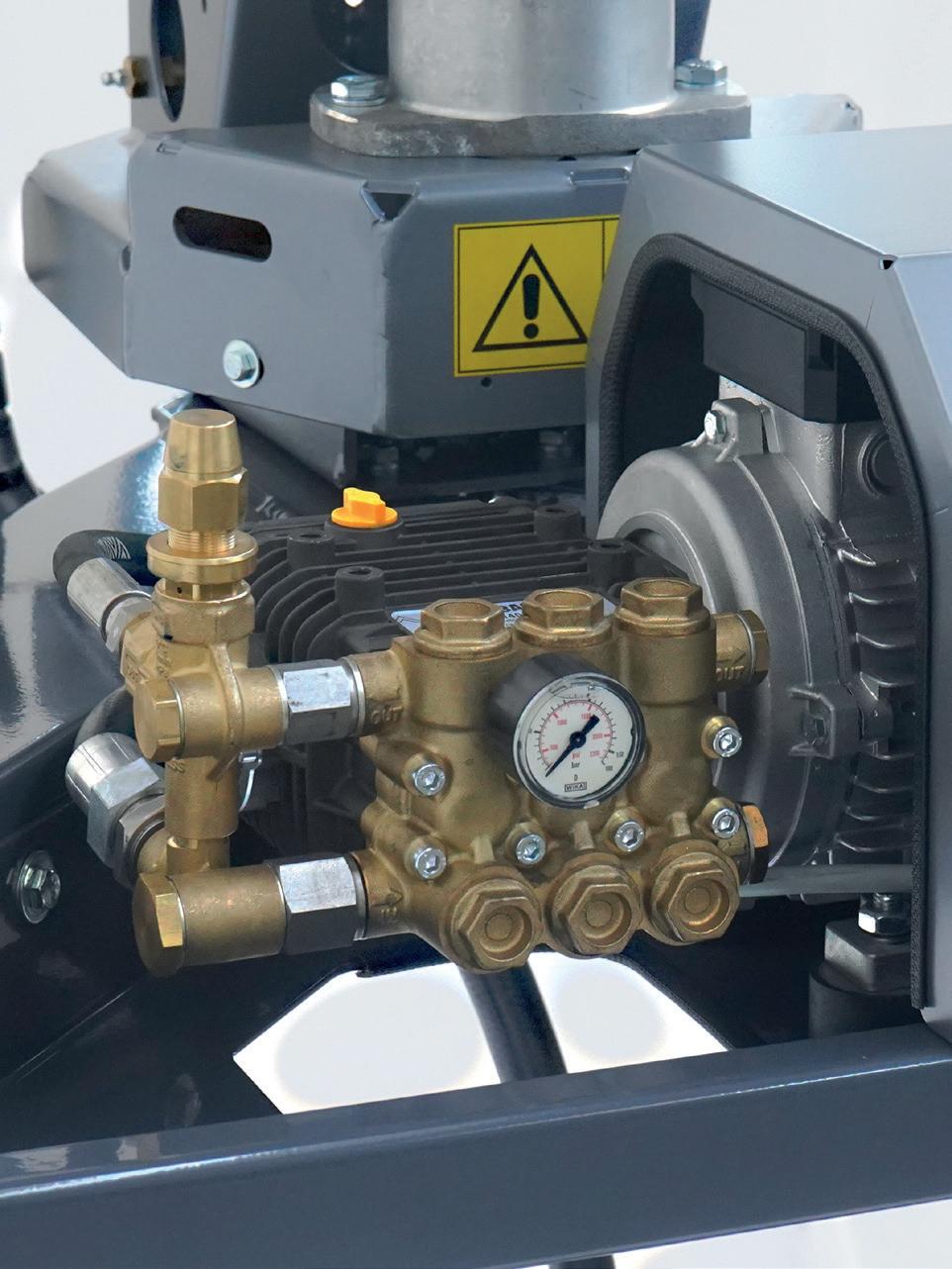

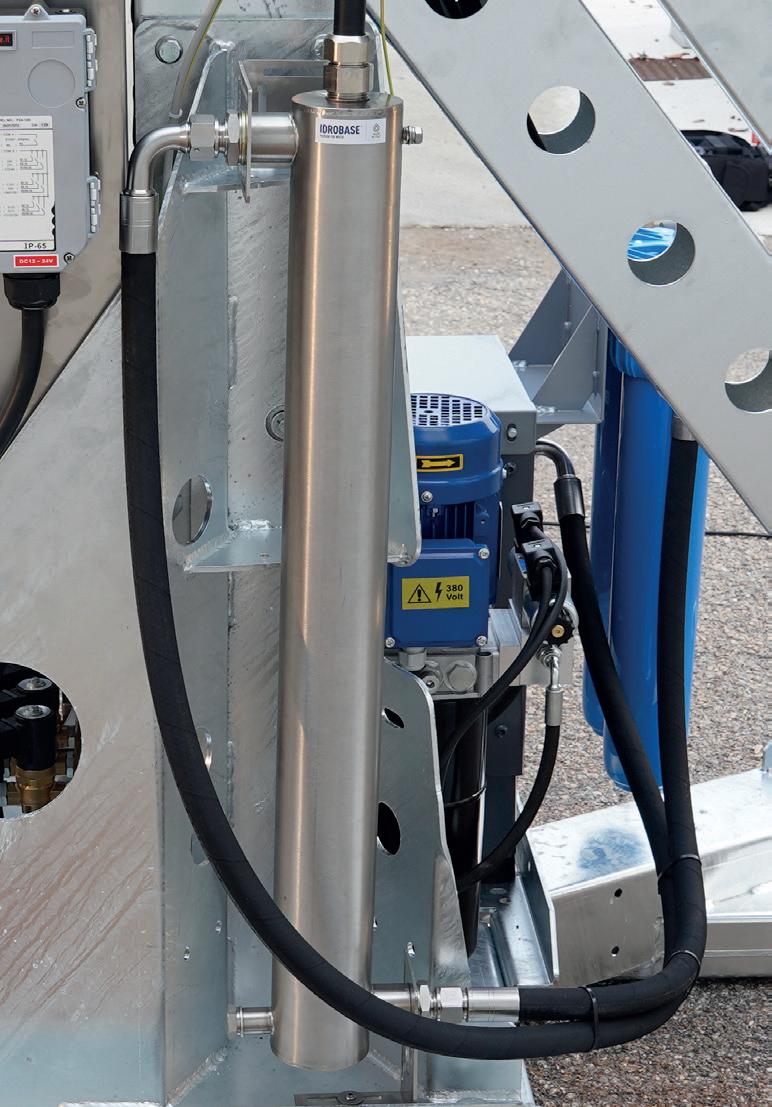

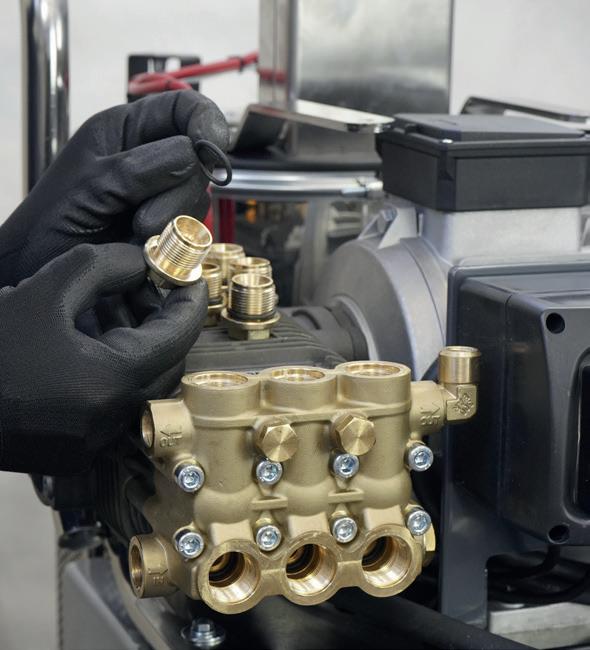

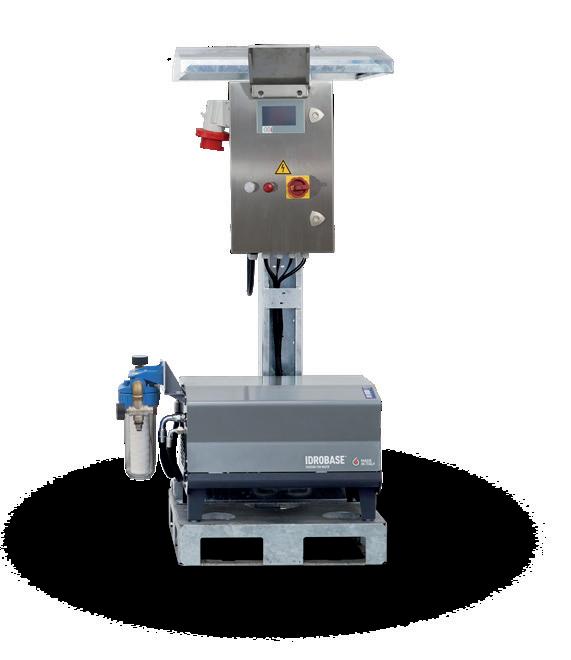

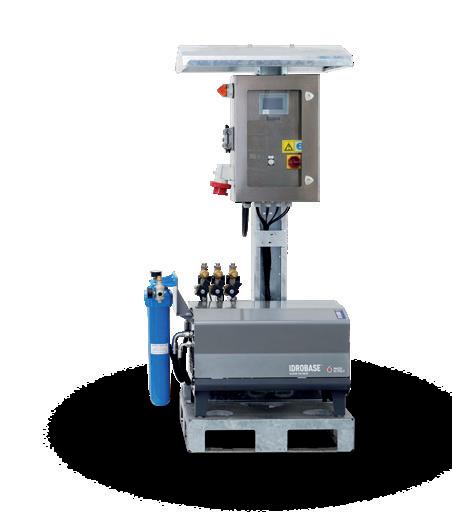

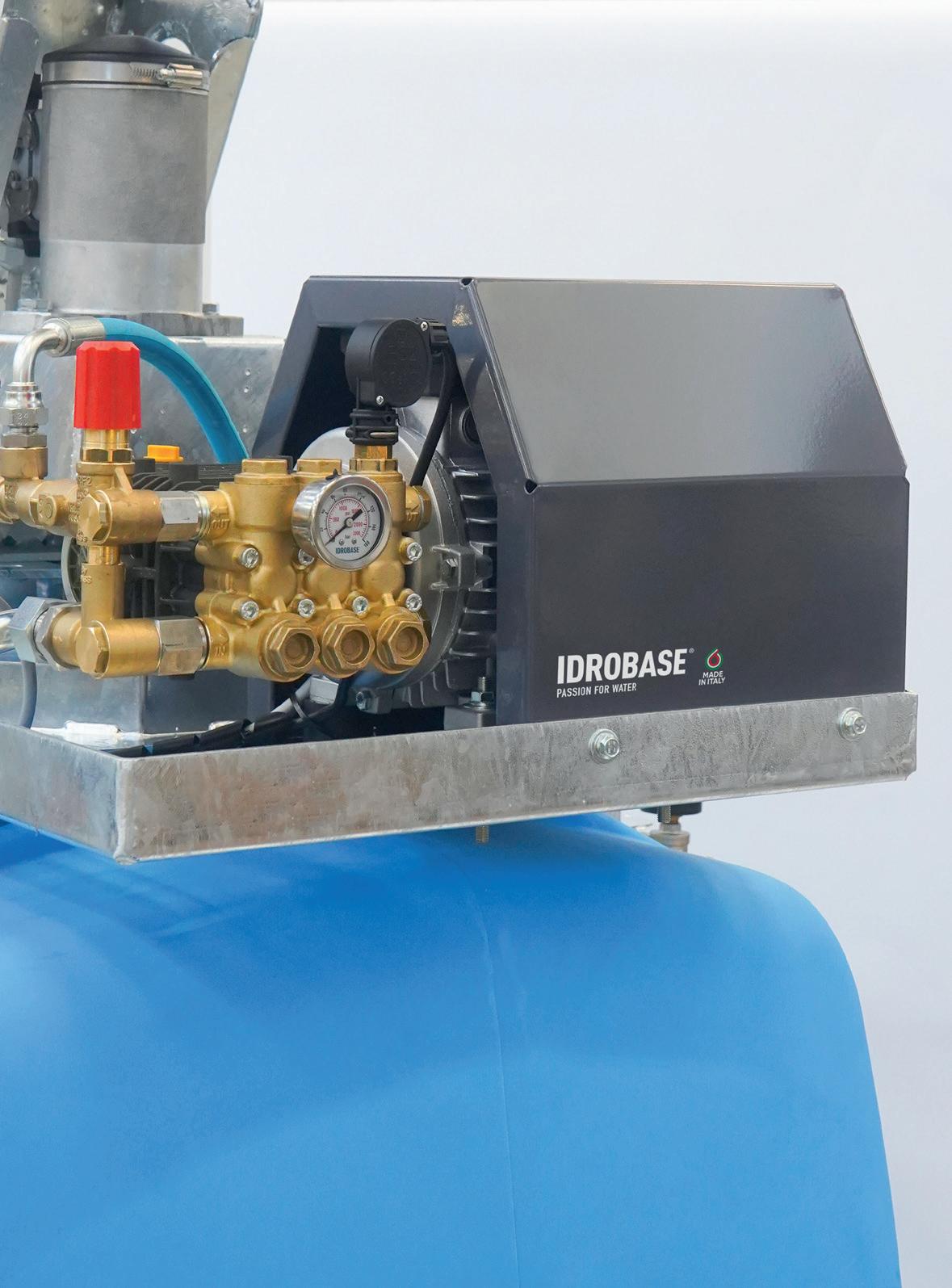

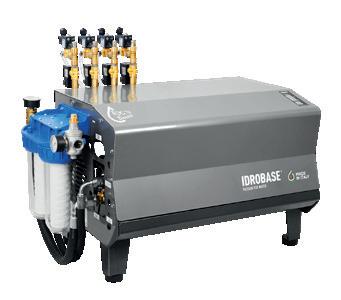

Module detail with pump

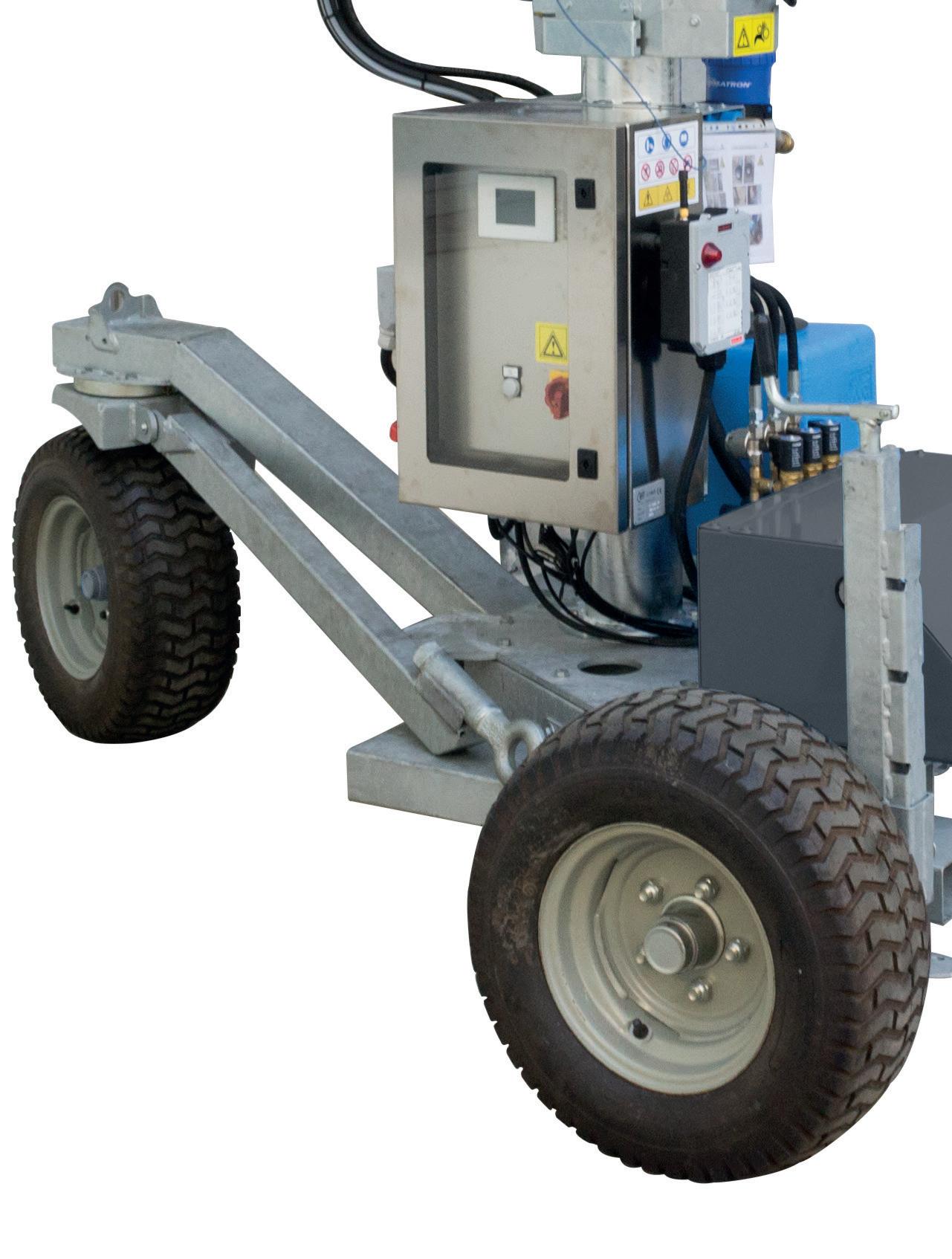

IT.2047 - Wheel kit (optional)

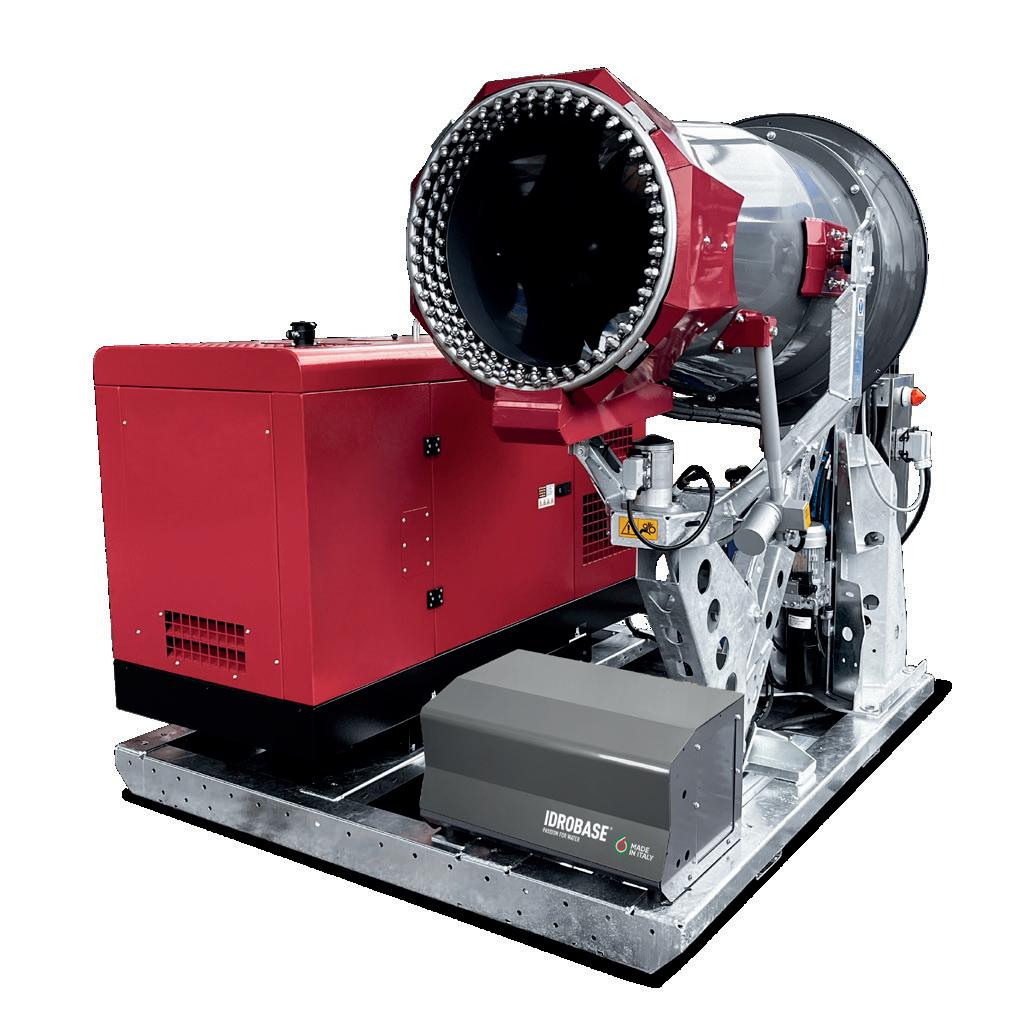

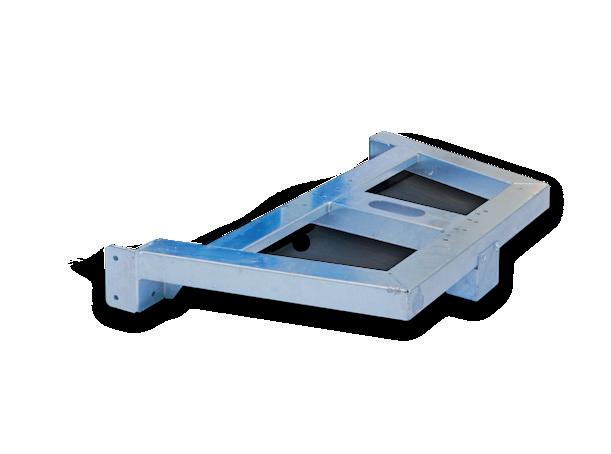

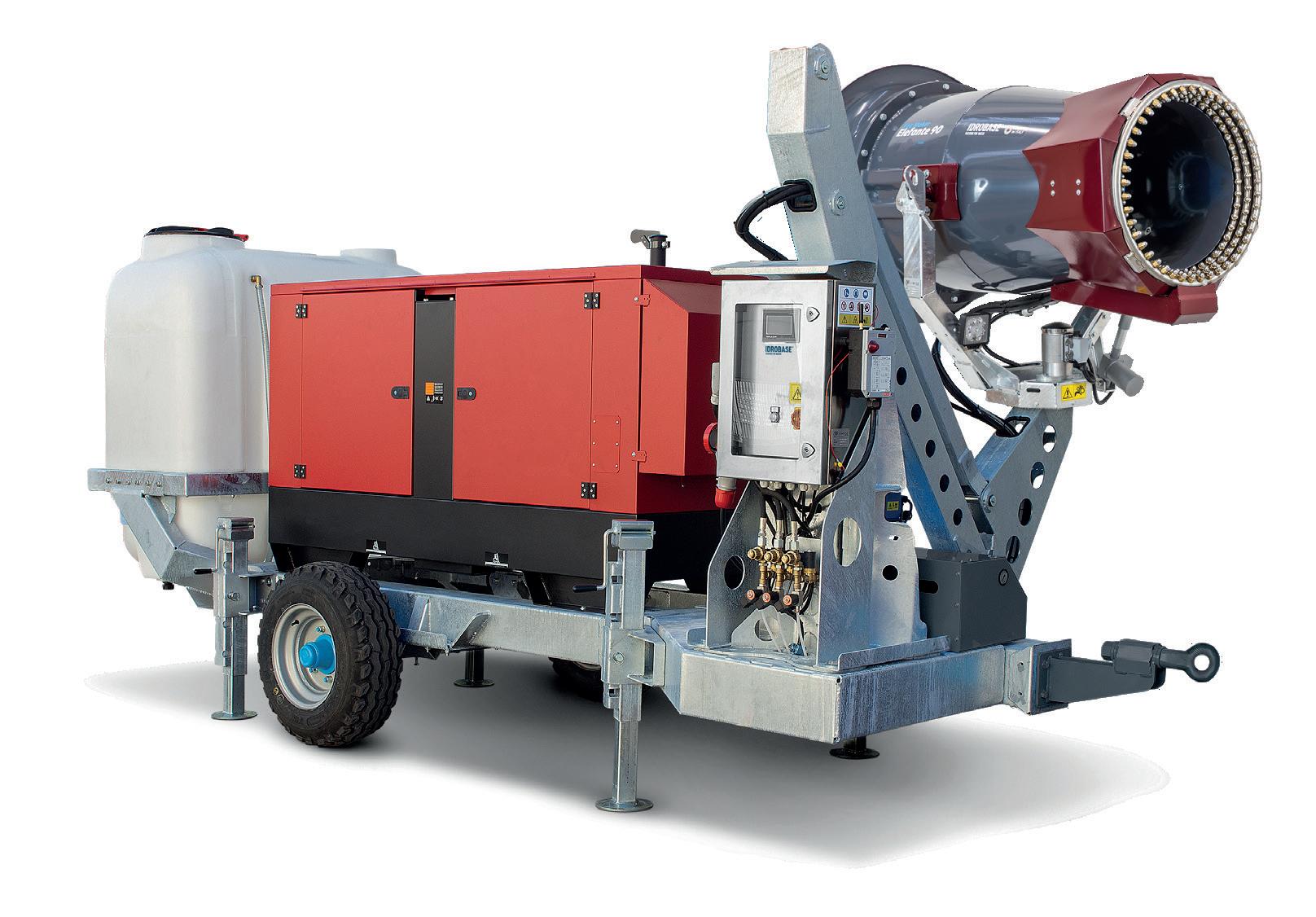

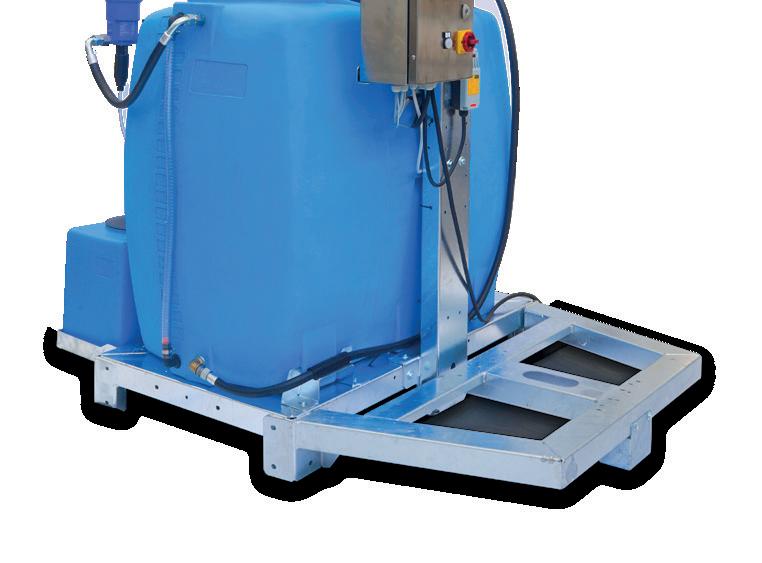

IT.9220 - Generator base kit (optional)

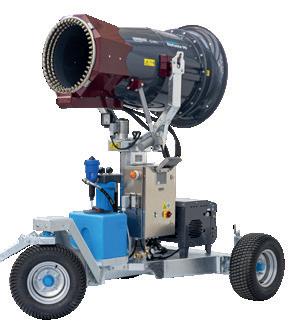

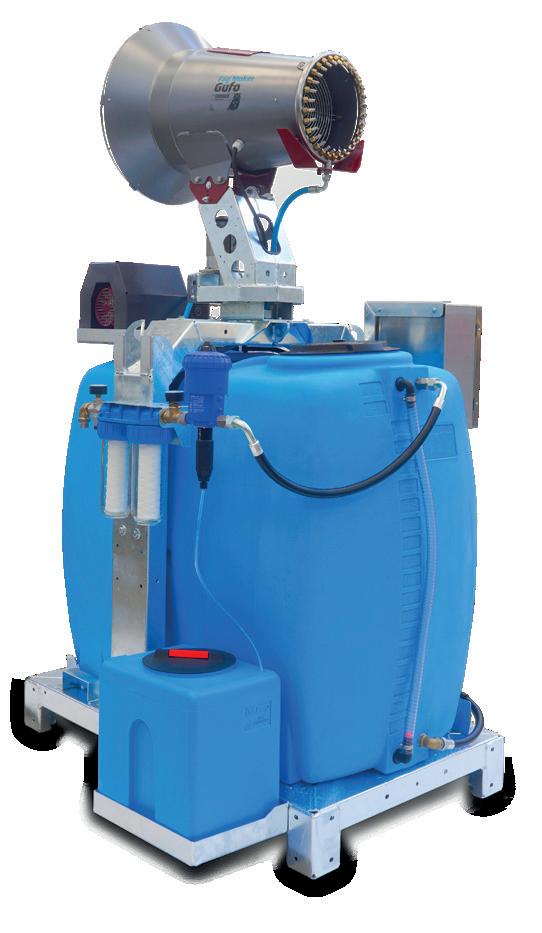

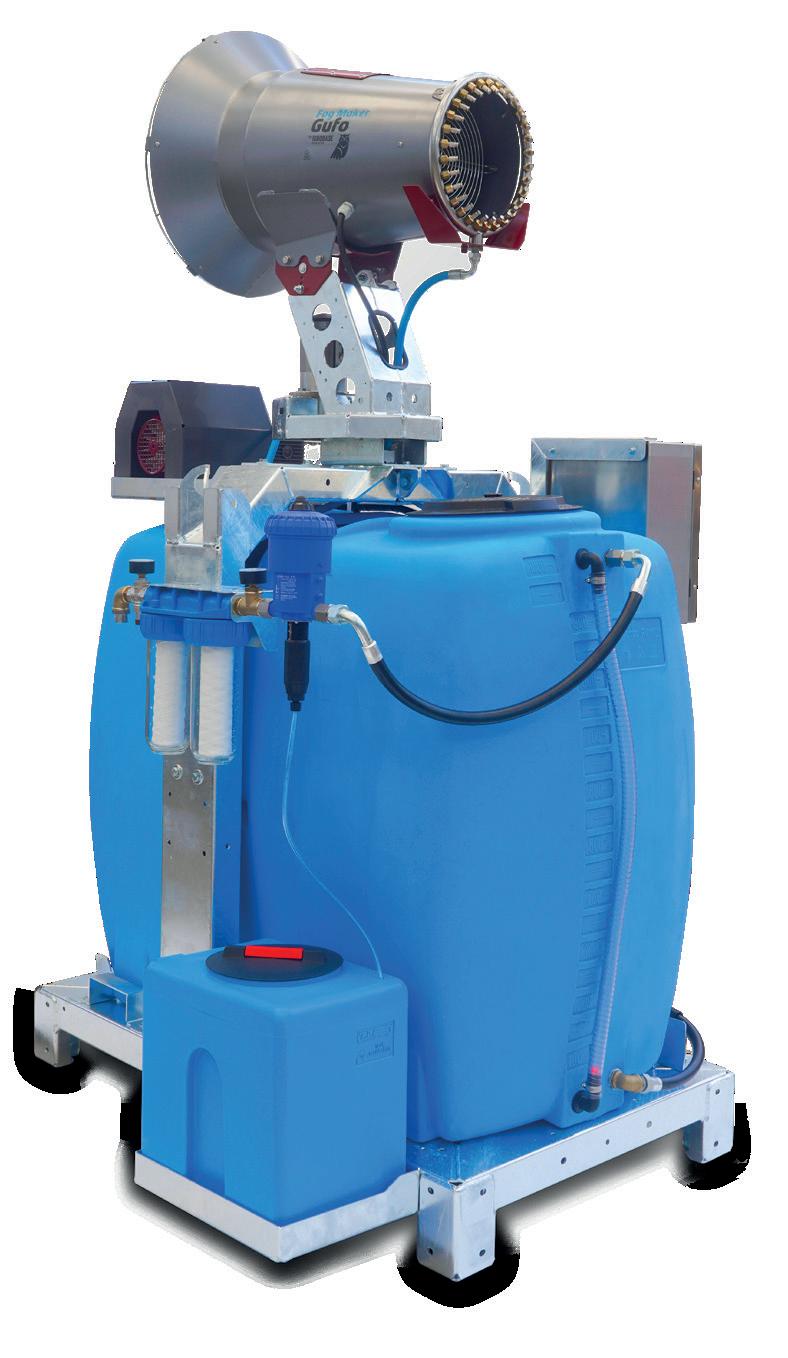

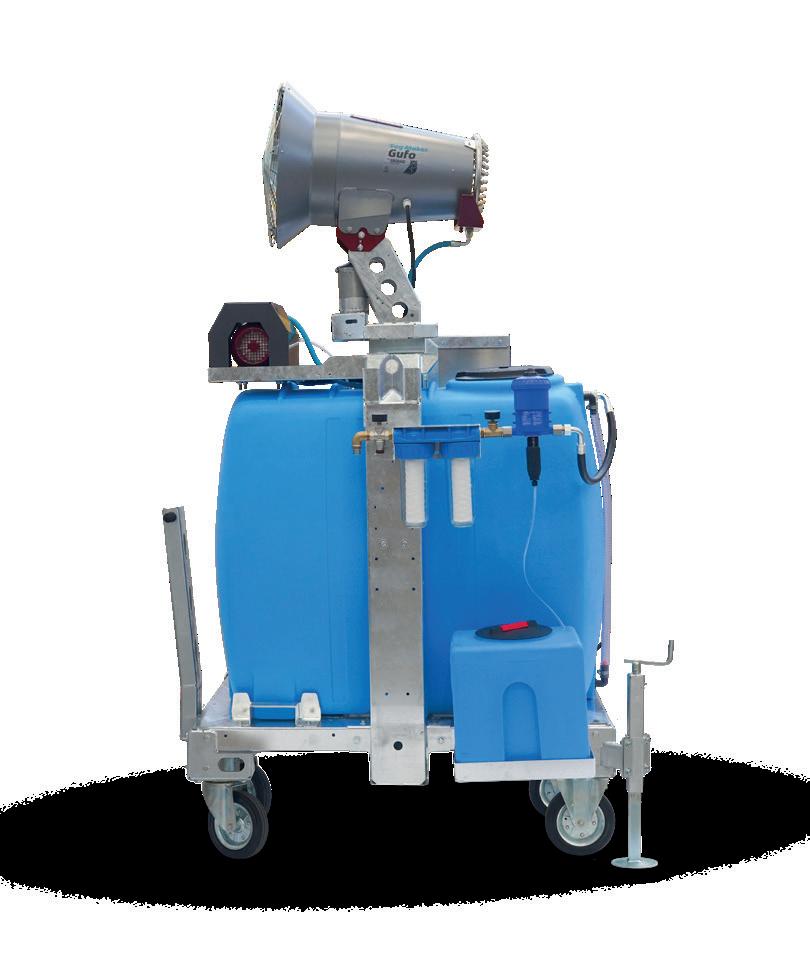

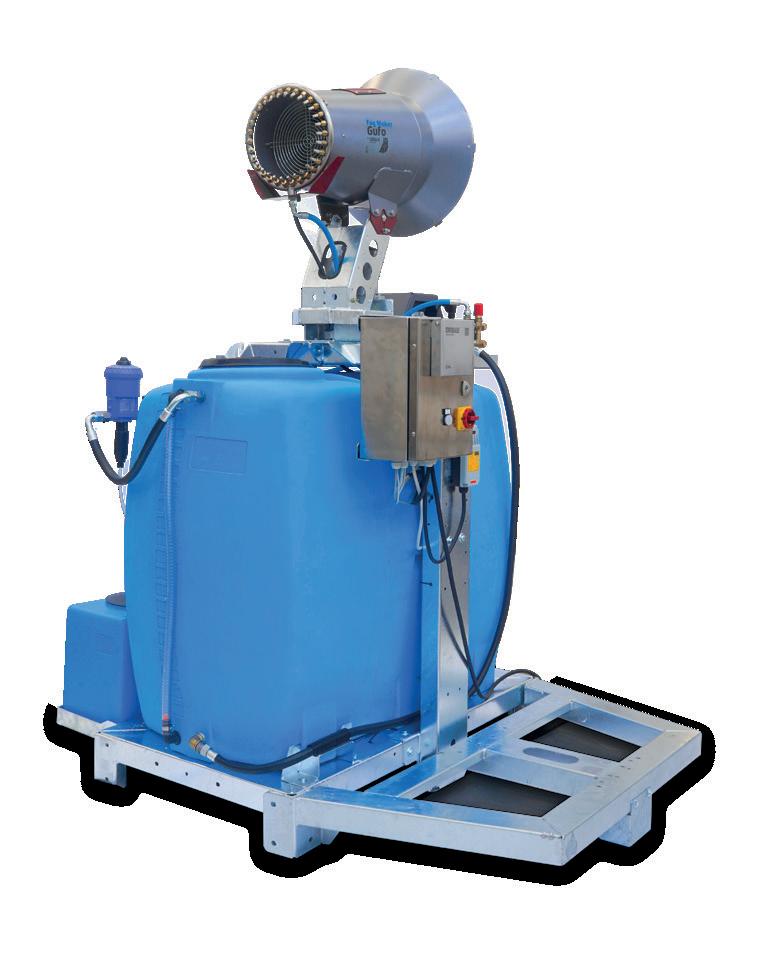

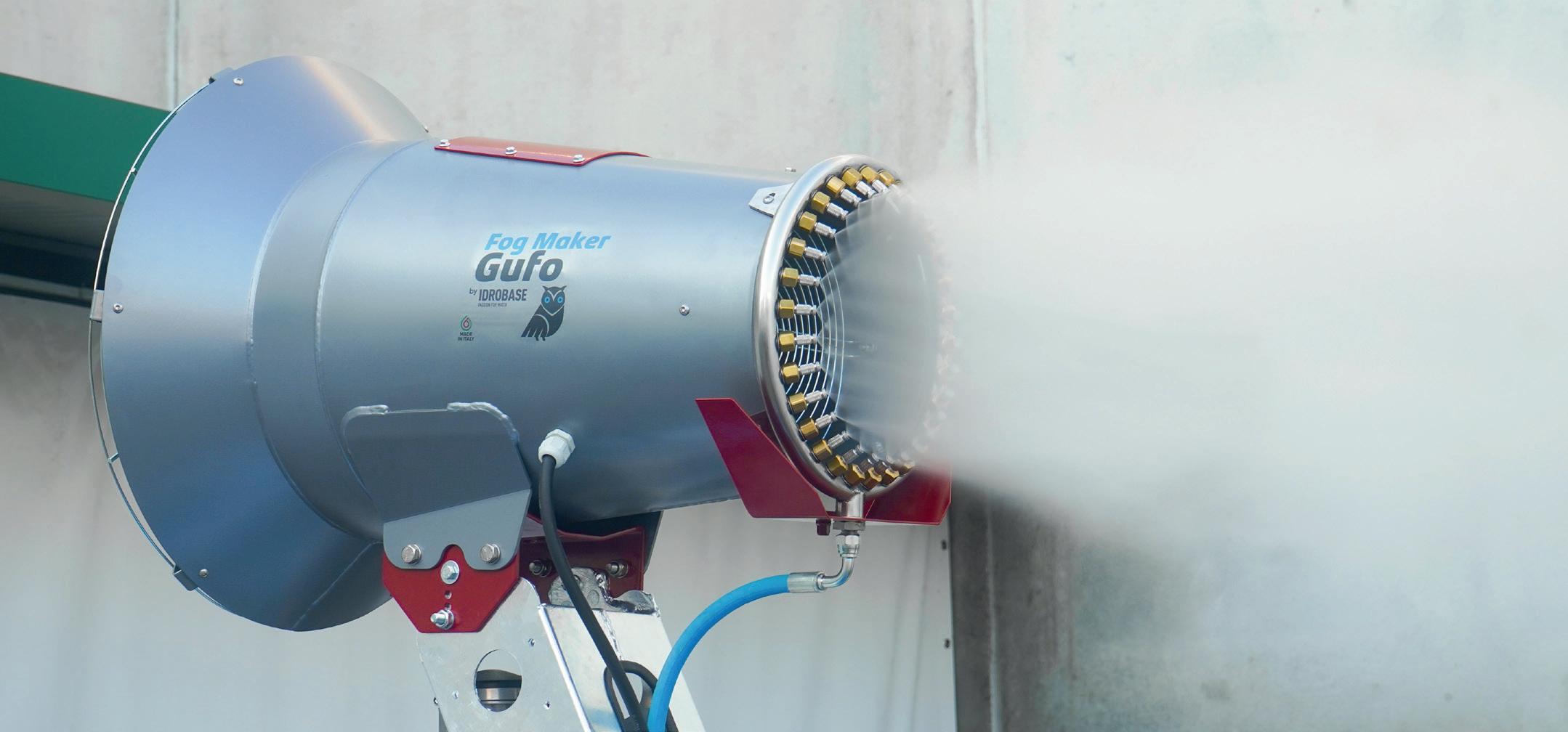

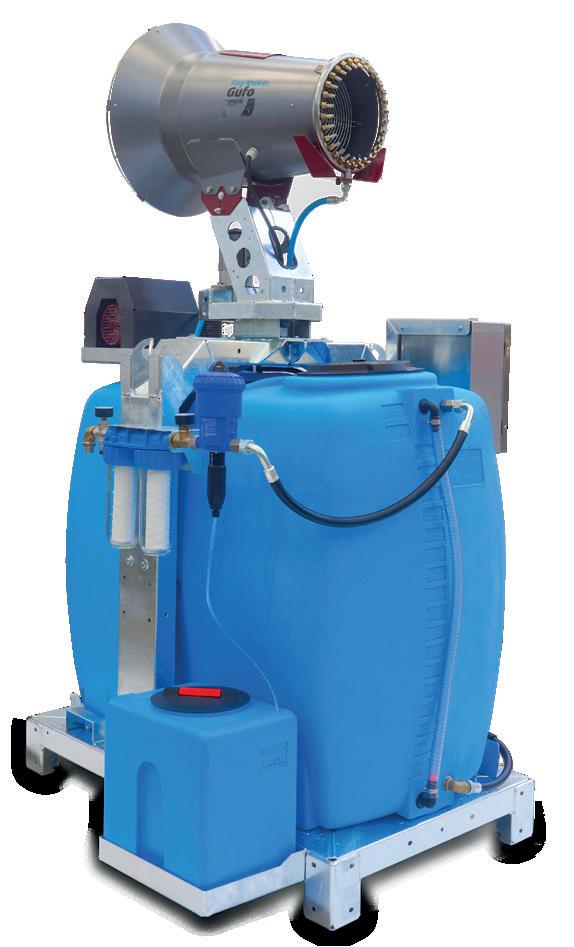

Fog Maker Gufo

• Ideal for PM2.5 dust suppression (The fog maker is also suitable for distributing surfactants*, particularly for use in chimneys and cement factories)

• Odour neutralization

• Cooling

• Available in Mobile (with optional IT.2047) and Autonomous (with optional IT.9220) versions

Technical features

ZX.8802

ZX.8801

ZX.8800

ZX.8802-DOS

ZX.8801-DOS

ZX.8800-DOS

INCLUDED

Pump maintenance set 750 hours

Technical features

Galvanized steel frame

• Electric control panel complete with 4.3” touch screen and PLC for managing the fan pump, rotating range, work cycles and preventive maintenance program

• Protection rating: IP54

• Dimensions WxLxH: 1470x1350x2600mm

Fan technical specifications

No. of nozzles 1 ring AISI 304 stainless with 30 nozzles

Coverage 1.500m2

Power absorption 2,2kW–2800g/min

• Fan jet: 30m (analysis data collected in a controlled environment)

• Power supply: 3x400V–50Hz

• Rotating 320° automatic

• Elevation: -20° + 30° manual Fan diameter 397mm

Noise <87LwA

Pump module technical specifications

Pressure: 70bar for 6,5, 11 e 15l/min version

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons Electric motor 1450Rpm 1,5kW for 6,5 and 11l/min, 2,2kW for 15l/min

Integrated di by-pass valve

Low pressure water switch

• Level sensors for 1000L tank

Fog Maker Pipistrello is versatile:

• odor neutralization

• dust suppression (PM2.5 e PM10)

• cooling

Gufo VS Pipistrello comparison

Gufo Pipistrello Delta

Transport -45%

Assembly 3 hrs Ready to use

Price

Same price

Pipistrello is available in 2 models:

• Pipistrello

• Pipistrello DOS

Capacity of 6,5, 11 and 15l/min.

Technical features

70 IP 54

Electrical control panel

Visible pump (for easy maintenance)

Remote control

Optimised for transport

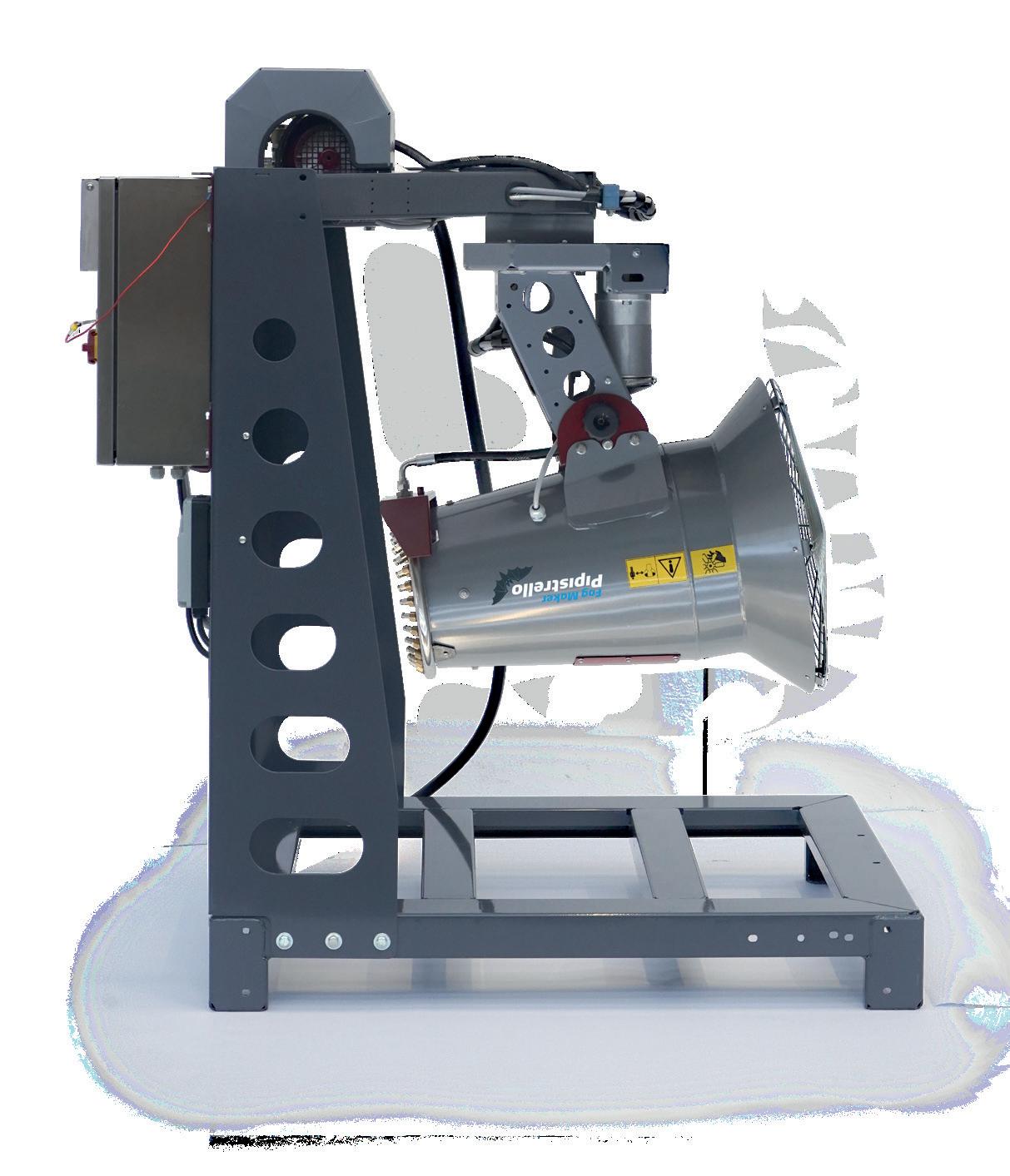

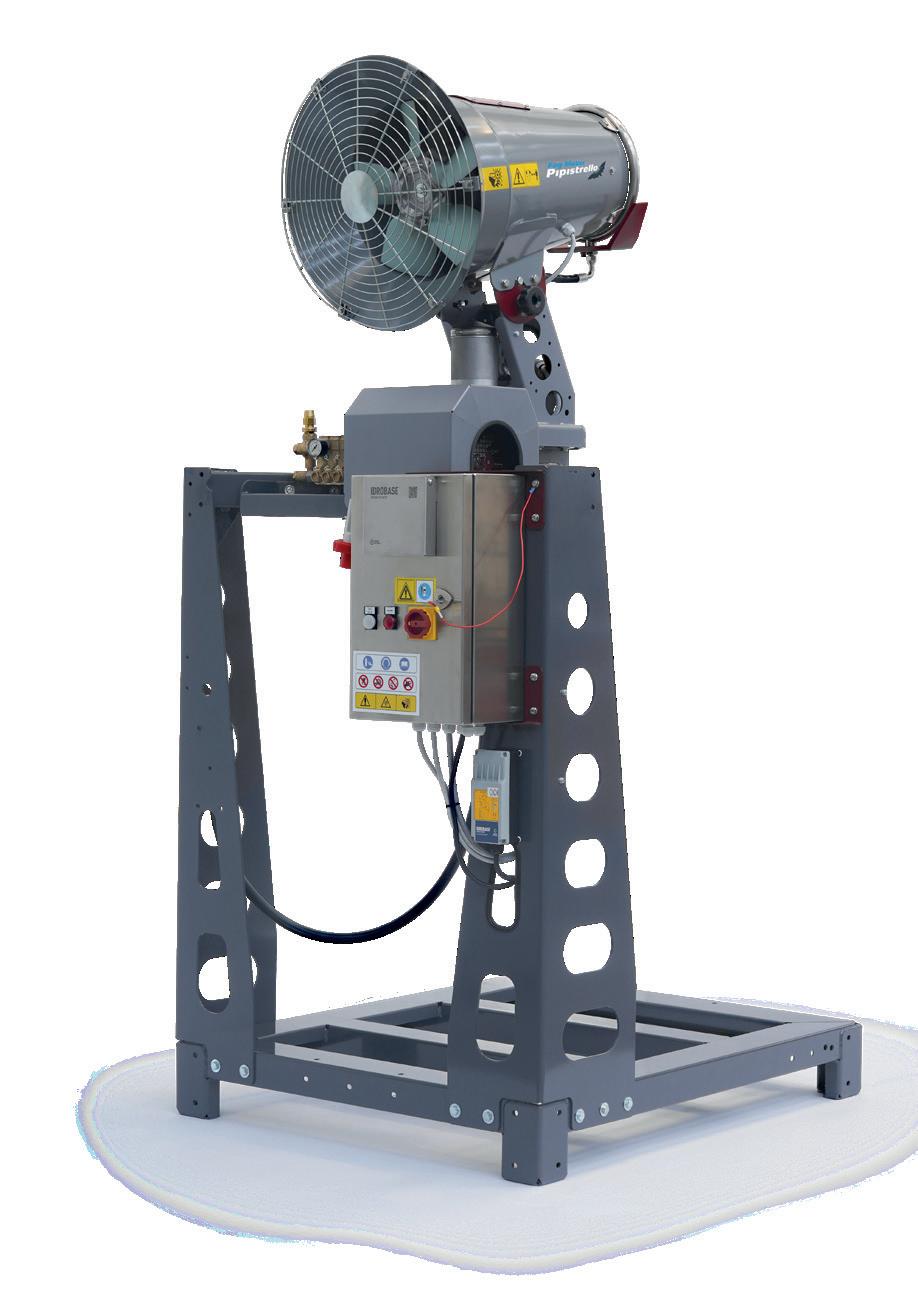

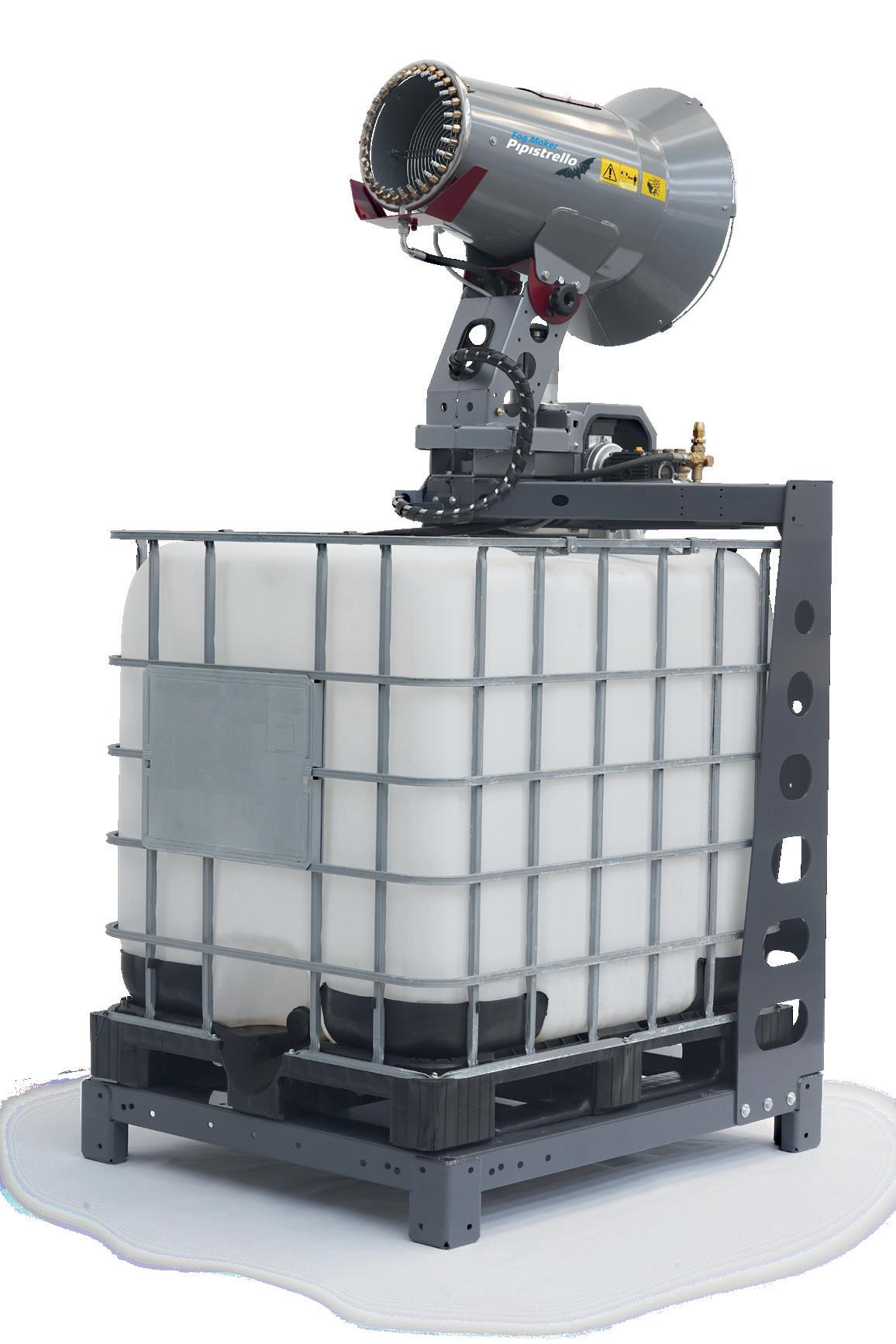

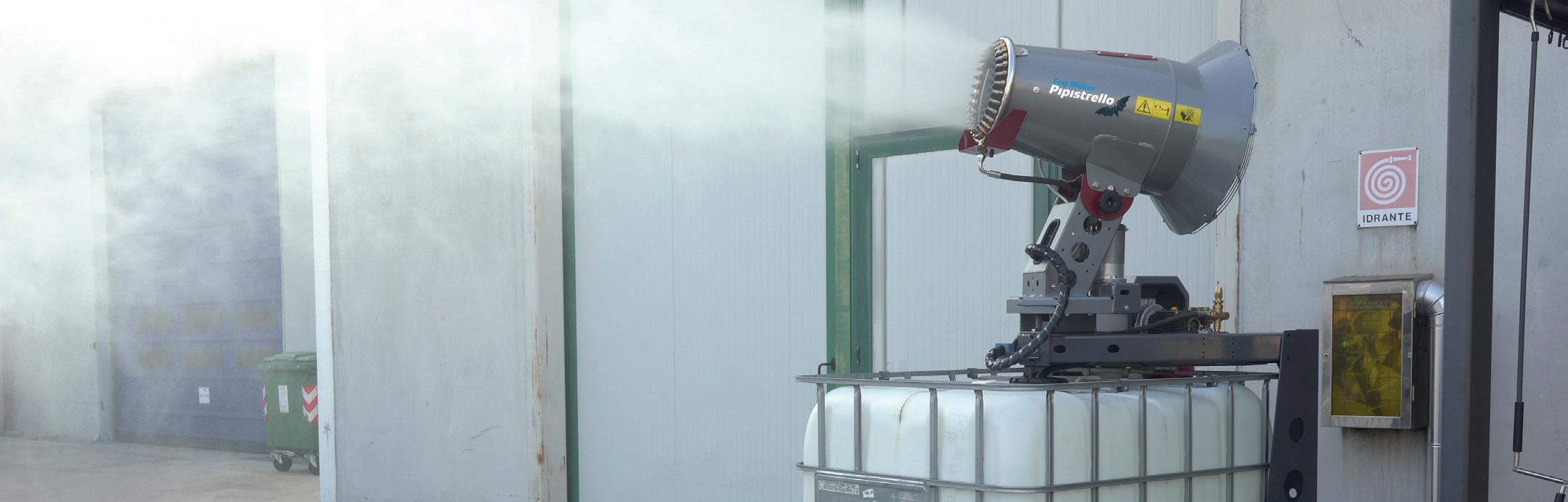

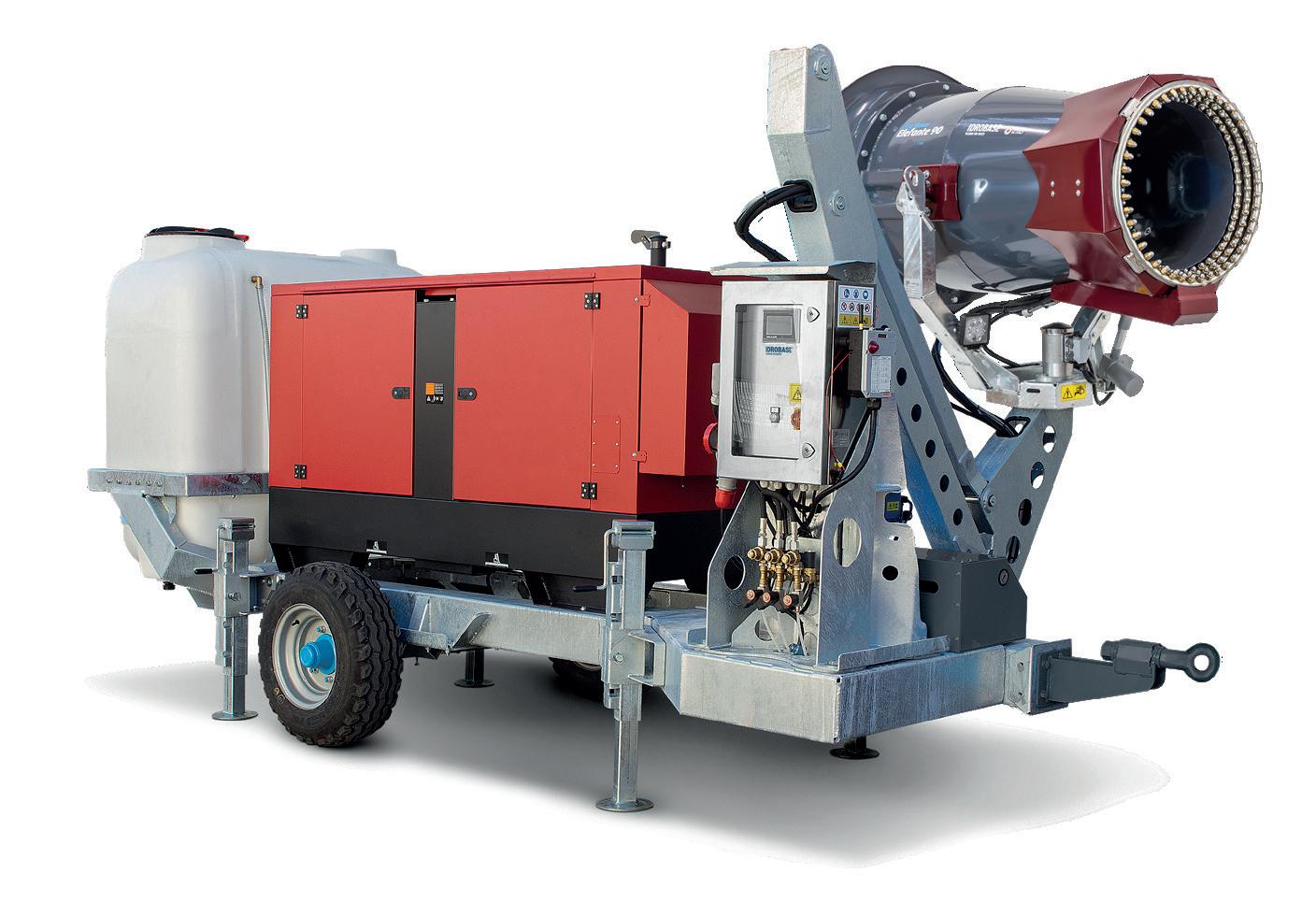

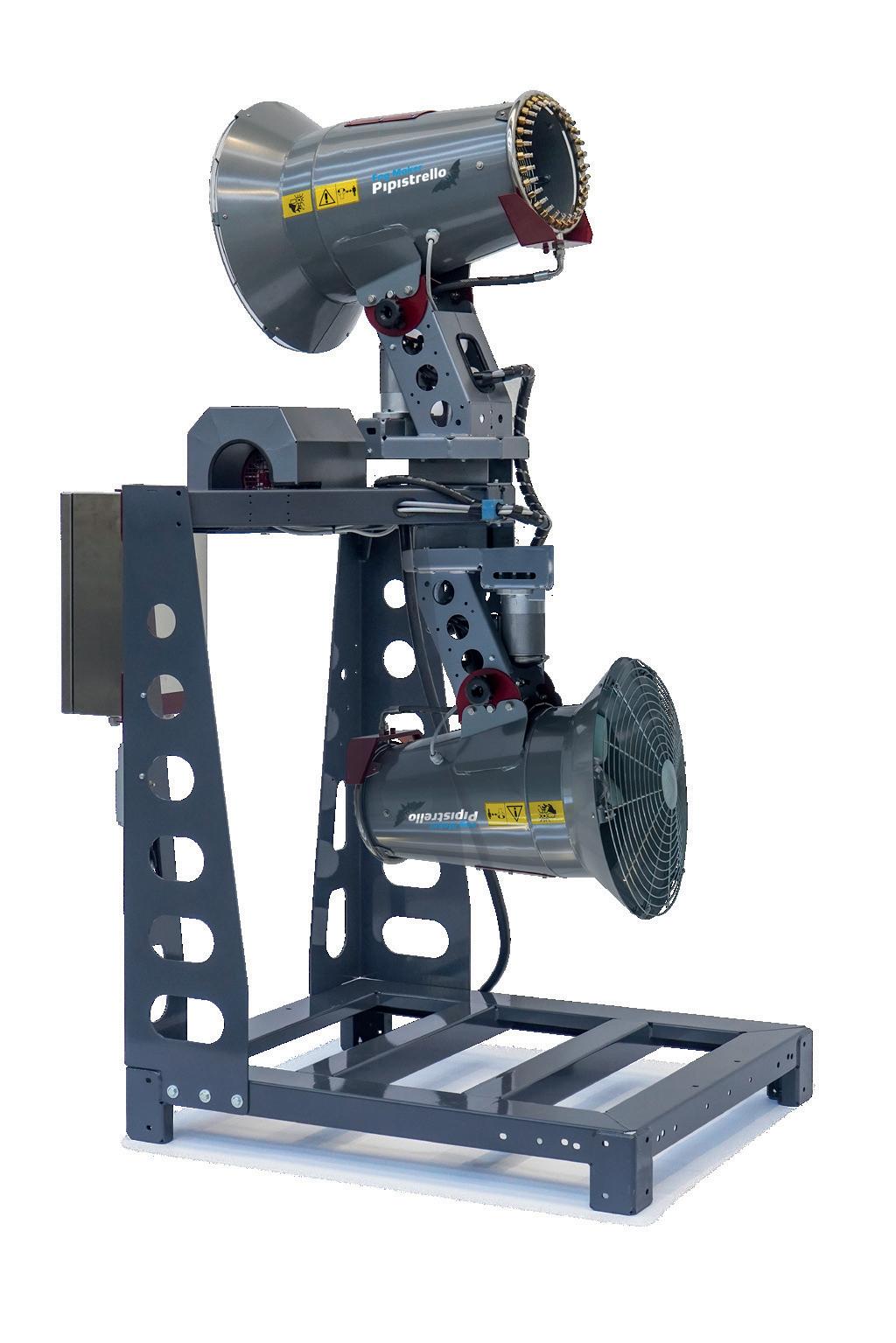

Fog maker Pipistrello

Fog maker Pipistrello is ideal for PM2.5 dust suppression, odour neutralisation, cooling and disinfection.

Thanks to its innovative closure system, fog maker Pipistrello is optimised for transport: -45% costs.

Technical features

Pump maintenance set 750 hours

Gufo VS Pipistrello comparison

Gufo Pipistrello Delta

Transport -45%

Assembly 3 hrs Ready to use

Price Same price
