Fog Maker Elefante 90 Dust suppression

FOG MAKER: ALL SOLUTIONS -15% PRICE

-15% PRICE

page 10

page 14 -15% PRICE

page 36 8

page 40

page 18 -15% PRICE

-15%

-15% PRICE

page 26

page 30

page 52 9

IDROTECH

an Dis in fett

-15%

on the purchase of 3 pcs

Fog Maker Lince is ideal for: • odour and pollution (PM2.5 and PM10) suppression of small to medium areas

Lince is available in 3 models: • Lince 1 and Lince 4 • Lince Disinfettante Capacity of 1 and 4l/min.

Old pump VS new pump Old pump

New pump

Delta

Rpm

1450

710

-51%

Power

720W

370W

-48%

Noise

-15%

Price

Same price

LINCE 1 New pump

Old pump

Lince disinfectant lance kit code ZX.8201-KD (incluso)

LINCE 4

LINCE DISINFETTANTE

Fog maker

Lince 1: 1 ring AISI 304 stainless steel with 13 nozzles

Lince 4: 1 ring AISI 304 stainless steel with 30 nozzles

30L tank

Chrome-plated steel frame with a transparent finish

IDROTECH

Dis in fett

Pressure 60bar Fan jet 7m 13/30 nozzles

a n te

Lince Fog maker ideal for suppression of fine dust

-15%

Lince for disinfection outdoor

on the purchase of 3 pcs Lince for disinfection indoor

LINCE 1/DISINFETTANTE

LINCE 4

Fog Maker Lince Mobile high pressure fog maker complete with fan and ring of nozzles, 60bar 1 and 4 l/min pump module, 30L tank (Lince 1), ON-OFF electric panel. Fan jet: 7m. • Practical and handy, with 30 minutes autonomy (Lince 1) • Ideal for sanitization of small to medium areas (Lince Disinfettante)

Technical features

Fog maker Technical features Axial pump with 2 pistons Code

Model

Pressure

Flow rate

N. nozzles

Drop size

Power (1x230V-50Hz)

Peso

ZX.8201

LINCE 1

60bar

1l/min

12mcr

0,75kW

60kg

Code

Model

Pressure

Flow rate

N. nozzles

Drop size

Power (1x230V-50Hz)

Weight

ZX.8201-L

LINCE DISINFETTANTE

60bar

1l/min

12mcr

0,75kW

60kg

Axial pump with 3 pistons Code

Model

Pressure

Flow rate

N. nozzles

Drop size

Power (1x230V-50Hz)

Peso

ZX.8204

LINCE 4

60bar

4l/min

12mcr

1,5kW

70kg

Old pump VS new pump Old pump

New pump

Delta

Rpm

1450

710

-51%

Power

720W

370W

-48%

Noise

Accessories page 42 Maintenance set page 46

-15%

Price

Same price

INCLUDED Pump maintenance set 500 hours

WARNING • All the technical and safety information of the product can be consulted in the technical documentation of Idrobase Group S.r.l. • For all specific precautions and methods of use of the disinfectant/sanitizing, always consult the technical and safety data sheet of the employed product. • The use of the Lince Disinfettante with any disinfectant/sanitizing solution requires the user to rinse it after use, following the operations indicated in the instruction manual.

Technical features

Lince 1

Lince 4

• Frame in painted steel sheet

• No. of nozzles: 1 ring AISI 304 stainless steel with 13 nozzles

• No. of nozzles: 1 ring AISI 304 stainless steel with 30 nozzles

• Professional motorpump 1450Rpm, 200W, axial movement, 2 ceramic pistons

• Professional motorpump 1450Rpm, 950W, axial movement, 3 ceramic pistons in ceramic steel

• Tank: 30L

• Solenoid valve inlet water 230V

• Air flow rate: 3510m3/h • Coverage: 10m2 • Power absorption: 0.55Kw 2800Rpm • Fan jet: 7m 21°C (without wind) • Elevation: 0°+30° manual • Fan diameter: 410mm

• 5” water inlet kit with pressure stabilizer

IDROTECH

on the purchase of 2 pcs, compared to the list price of the previous model

Fog Maker Elefantino 2.0 is versatile: • PM2.5 and PM10 abatment • odor neutralization • disinfection • dust suppression

-15%

Capacity of 6,5, 11, 15 e 21l/min.

Elefantino 2.0

Delta

Fan jet

21m

28m

+33%

Pressure

70bar

80bar

+14%

Mobility

2 wheels

4 wheels

Frame

Iron

Chrome-plated steel and trasparent painted

Price

-15%

28 m

Elefantino

30 cm

Elefantino VS Elefantino 2.0 comparison

Fan jet 28m

ELEFANTINO 2.0

Fog maker

Ring AISI 304 stainless steel with 30 nozzles

Professional pump 1450Rpm

Frame: chrome-plated steel and transparent painted

Water inlet kit

Elevation system

Control panel

IDROTECH

Pressure 80bar Fan jet 28m 30 nozzles

0° +30°

-15% on the purchase of 2 pcs, compared to the list price of the previous model

Fog Maker Elefantino 2.0 Trolley-mounted high pressure fog maker with 30 misting nozzles, ON-OFF control panel for pump and fan controls. Fan range: 28 metres. Ideal for suppression of fine dust (PM10), in small to medium sized areas such as in renovation of buildings and when handling dusty materials.

Technical features

Fog maker Technical features Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V-50Hz)

Weight

ZX.8406

ELEFANTINO 2.0 - 6,5

80bar

6,5l/min

18mcr

3,7kW

120Kg

ZX.8407

ELEFANTINO 2.0 - 11

70bar

11l/min

20mcr

3,7kW

120Kg

ZX.8408

ELEFANTINO 2.0 - 15

80bar

15l/min

24mcr

4,4kW

120Kg

ZX.8409

ELEFANTINO 2.0 - 21

70bar

21l/min

24mcr

5,2kW

120Kg

Accessories

Maintenance set

INCLUDED Pump maintenance set 750 hours

Elefantino VS Elefantino 2.0 comparison Elefantino

Elefantino 2.0

Delta

Fan jet

21m

28m

+33%

Pressure

70bar

80bar

+14%

Mobility

2 wheels

4 wheels

Frame

Iron

Chrome-plated steel and trasparent painted

Price

-15%

Technical features general • Frame made of S235JR chrome-plated steel and transparent painted • Solid wheels • Power absorption: 3kW 2800Rpm • Coverage: 150m2 • Fan jet: 28m with 21°C (without wind) • Elevation: 0°+30° manual • Fan diameter: 397mm • Noise: <90LwA • No. of nozzles: 1 ring AISI 304 Copyright© Idrobase Group. All rights reserved.

stainless steel with 30 nozzles

• Protection rating: IP54

• Water inlet kit complete with pressure stabiliser • Pressure: 80bar for 6,5 and 15l/min version, 70bar for 11 and 21l/min version • Pump module 1450Rpm, rod movement, brass head, 3 ceramic pistons • Electric motor 1450Rpm, 1.5kW for 6,5 and 11l/min, 2.2kW for 15l/min, 3kW for 21 l/min • Integrated by-pass valve

IDROTECH

Fog Maker Gru is versatile: • PM2.5 and PM10 abatment • odor neutralization

Capacity of 6,5, 11, 15 e 21l/min.

Technical features

Old version VS New version comparison Old version

New version

Delta

Fan jet

25m

30m

+20%

Rotating range

160°

300°

+85%

Rotation

Manual

Automatic

Covered area

700m

1.500m2

+115%

Programmable touch screen display*

21 l/min

IP 54

*Pause/work time slots

45° 300°

GRU

Fog maker

45°

Manual elevation -20° +25°

300°

Ring AISI 304 stainless steel with 30 nozzles

Automatic rotating range 300°

300°

Rotating system detail

Dosing kit optional

4,3” touch screen with multi language software

Fog Maker Gru application

IDROTECH

Pressure 70bar Fan jet 30m 30 nozzles

300°

45°

+85% Rotating range (automatic)

+115% Covered area

Fog Maker Gru • Ideal for odour and dust suppression (PM2.5 and PM10) of medium areas • Practical and handy with heavy-duty structure • Industrial performance with excellent value for money

45°

300°

Technical features

300°

45°

7”

Technical features Code

Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Weight

ZX.8611

GRU 6,5L

70bar

6,5 l/min

12mcr

4,9kW

170Kg

ZX.8612

GRU 11L

70bar

11 l/min

18mcr

4,9kW

170Kg

ZX.8613

GRU 15L

70bar

15 l/min

24mcr

5,6kW

170Kg

ZX.8614

GRU 21L

70bar

21 l/min

24mcr

6,4kW

170Kg

Code

Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Weight

ZX.8611-DOS

GRU DOS 6,5L

70bar

6,5 l/min

12mcr

4,9kW

170Kg

ZX.8612-DOS

GRU DOS 11L

70bar

11 l/min

18mcr

4,9kW

170Kg

ZX.8613-DOS

GRU DOS 15L

70bar

15 l/min

24mcr

5,6kW

170Kg

ZX.8614-DOS

GRU DOS 21L

70bar

21 l/min

24mcr

6,4kW

170Kg

Accessories

Maintenance set

INCLUDED Pump maintenance set 750 hours

Old version VS new version comparison Old version

New version

Delta

Fan jet

25m

30m

+20%

Rotating range

160°

300°

+85%

Rotation

Manual

Automatic

Covered area

700m2

1.500m2

+115%

Programmable touch screen display*

*Pause/work time slots

Technical features general

Fan technical specifications

Pump module technical specifications

• Galvanized steel frame

• No. of nozzles 1 ring AISI 304 stainless with 30 Smart nozzles

• Pressure: 70bar for 6,5, 11, 15 e 21l/min version.

• Coverage 1.500m2

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Electric control panel complete with 7” touch screen and PLC for managing the fan pump, rotating range and work cycles. • Protection rating IP54 • Tank: 30L • Dimensions WxLxH: 1200x800x1700mm

• Power supply: 3kW–2800g/min • Fan jet: 30m a 21°C (without wind) • Power supply: 3x400V–50Hz • Rotating: 300° automatic • Elevation: -20° + 25° manual

• Electric motor 1450g/min 1,9kW for 6,5 and 11l/min, 2,6kW for 15l/min and 3,4kW for 21l/min • Integrated di by-pass valve

IDROTECH

Fog Maker Pipistrello is versatile: • odor neutralization • dust suppression (PM2.5 e PM10) • cooling

Pipistrello is available in 2 models: • Pipistrello • Pipistrello DOS Capacity of 6,5, 11 and 15l/min. Technical features

Gufo VS Pipistrello comparison Gufo Transport Assembly Price

Pipistrello

Delta

-45% 3 hrs

Ready to use -15% compared Fog Maker Gufo

IP 54

Patented solution

Fog maker

Optimised for transport

Remote control

Visible pump (for easy maintenance) 23

IDROTECH

Pressure 70bar Fan jet 32,5m 30 nozzles

Fog Maker Pipistrello Fog Maker Pipistrello is ideal for PM2.5 dust suppression, odour neutralisation, cooling and disinfection. Thanks to its innovative closure system, Fog Maker Pipistrello is optimised for transport: -45% costs. Technical features

32,5

330°

IP 54

Fog maker Technical features Code

Model

Pressure

Flow rate

Drop size

Total Power (3x400V-50Hz)

Weight

Code version with dispenser

ZX.8810

PIPISTRELLO - 6,5L

70bar

6,5 l/min

12mcr

4,5kW

280Kg

ZX.8810-DOS

ZX.8811

PIPISTRELLO - 11L

70bar

11 l/min

18mcr

4,5kW

280Kg

ZX.8811-DOS

ZX.8812

PIPISTRELLO - 15L

70bar

15 l/min

24mcr

5,2kW

280Kg

ZX.8812-DOS

Pump maintenance set 750 hours

Gufo VS Pipistrello comparison Gufo Transport Assembly

Pipistrello

Delta

-45% 3 hrs

Price

Ready to use -15% compared Fog Maker Gufo

Technical features

Fan technical specifications

• Frame hot-dip galvanised S235JR steel, sensitive components have epoxy powder coating.

• No. of nozzles: 1 ring AISI 304 stainless with 30 nozzles

• Electric control panel complete with 4.3” touch screen and PLC for managing the fan pump, rotating range, work cycles and preventive maintenance program

• Power absorption: 3kW–2800g/min • Power supply: 3x400V–50Hz

• Electric motor 1450Rpm 1,5kW for 6,5 and 11l/min, 2,2kW for 15l/min

• Protection rating IP54

• Rotating: 330° automatic

• Integrated di by-pass valve

• Dimensions WxLxH: 1600x1500x2400mm

• Elevation: -20° + 30° manual

• Tank: 1000L polyethylene (optional)

• Fan diameter: 397mm

• Unload solenoid valve • Low pressure water switch

• Coverage: 1.500m2 • Fan jet: 32,5m with 21°C (without wind)

Pump module technical specifications • Pressure: 70bar for 6,5, 11 e 15l/min version • Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Noise: <87Lwa

IDROTECH

Ready to use: 3 hours less assembly time compared to the previous model.

-3

hours

Rino VS Rino 2.0 comparison

Fog Maker Rino is versatile: • PM2.5 and PM10 abatment • odor neutralization • disinfection • dust suppression

Rino

Rino 2.0

Delta

Rotation

Pulse

Slew bearing

+50% affidability

Pressure

70bar

80bar

+14%

Transport

2 boxes

1 box

-30% costs

Assembly

3 ore

Ready to use

Price

RINO 2.0

RINO 2.0 ON SHELF

RINO 2.0 ON HYDRAULIC ARM

RINO 2.0 MOBILE

-5% compared to Fog Maker Rino

Fog maker

New control paner touch screen 4.3” Optimised for transport with column that raises and lowers 35 cm. Height (in use): 265cm Height (during the transport): 220cm Fog Maker Rino 2.0 is designed to be shipped assembled, avoiding assembly operations on site: transport costs -30%.

IDROTECH

Pressure 80bar Fan jet 33m 30 nozzles

-3

hours Ready to use: 3 hours less assembly time compared to the previous model.

RINO 2.0 ON BASE

RINO 2.0 MOBILE

Fog Maker Rino 2.0 • Magnetic gear motor, it does not require maintenance • Simple and user-friendly touchscreen • Ventilation unit independent from pump unit • Possibility of remote management

Technical features

Fog maker Technical features Code

Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Code version with dispenser

ZX.8336-B

RINO 2.0 ON BASE - 6,5L

80bar

6,5l/min

12mcr

3,7kW

ZX.8336-B-DOS

ZX.8337-B

RINO 2.0 ON BASE - 11L

80bar

11l/min

18mcr

4,5kW

ZX.8337-B-DOS

ZX.8338-B

RINO 2.0 ON BASE - 15L

80bar

15l/min

24mcr

5,2kW

ZX.8339-B

RINO 2.0 ON BASE - 21L

80bar

21l/min

24mcr

6kW

ZX.8336-C

RINO 2.0 MOBILE - 6L

80bar

6l/min

12mcr

3,7kW

ZX.8336-C-DOS

ZX.8337-C

RINO 2.0 MOBILE - 11L

80bar

11l/min

18mcr

4,5kW

ZX.8337-C-DOS

ZX.8338-C

RINO 2.0 MOBILE - 15L

80bar

15l/min

24mcr

5,2kW

ZX.8339-C

RINO 2.0 MOBILE - 21L

80bar

21l/min

24mcr

6kW

Accessories

INCLUDED

Maintenance set

Pump maintenance set 750 hourse

Rino VS Rino 2.0 comparison Rino

Rino 2.0

Delta

Rotation

Pulse

Slew bearing

+50% affidability

Pressure

70bar

80bar

+14%

Transport

2 boxes

1 box

-30% costs

Assembly

3 ore

Ready to use

Price

-5% compared to Fog Maker Rino

Technical features

Fan technical specifications

Pump module technical specifications

• Fan head frame powder-coated

• No. of nozzles : 1 ring AISI 304 stainless steel with 30 nozzles

• Pressure: 80bar for all versions • Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons • Electric motor 1450Rpm 1.5kW for 11l/ min, 2.2kW for 15l/min, 3kW for 21 l/min

• Machine body frame hot-dip galvanized • Electrical panel complete with 4.3” touch screen for managing pump, fan, rotating range, work cycles and preventive maintenance program • Protection rating: IP55 • Dimensioni WxLxH Length and depth: 1500x800mm Extended height: 2400mm Compact height: 2100mm

• Coverage: 1.900m2 • Air flow rate: 9.200mc/h • Power absorption: 3kW–2800Rpm • Fan jet: 33m with 21°C without wind • Power supply: 3x400V–50Hz

• Integrated by-pass valve • Low pressure water switch

• Rotating range: 330° automatic • Elevation: -25°+35° manual • Fan diameter: 450mm • Noise: <89Lwa

IDROTECH

Pressure 80bar Fan jet 33m 30 nozzles

-3

hours Ready to use: 3 hours less assembly time compared to the previous model.

RINO 2.0 ON SHELF

RINO 2.0 ON HYDRAULIC ARM

Fog maker Technical features Code

Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Code version with dispenser

ZX.8336-H

RINO 2.0 ON HYDRAULIC ARM - 6L

80bar

6l/min

12mcr

3,7kW

ZX.8336-H-DOS

ZX.8337-H

RINO 2.0 ON HYDRAULIC ARM - 11L

80bar

11l/min

18mcr

4,5kW

ZX.8337-H-DOS

ZX.8338-H

RINO 2.0 ON HYDRAULIC ARM - 15L

80bar

15l/min

24mcr

5,2kW

ZX.8339-H

RINO 2.0 ON HYDRAULIC ARM - 21L

80bar

21l/min

24mcr

6kW

ZX.8336-M

RINO 2.0 ON SHELF - 6L

80bar

6l/min

12mcr

3,7kW

ZX.8336-M-DOS

ZX.8337-M

RINO 2.0 ON SHELF - 11L

80bar

11l/min

18mcr

4,5kW

ZX.8337-M-DOS

ZX.8338-M

RINO 2.0 ON SHELF - 15L

80bar

15l/min

24mcr

5,2kW

ZX.8339-M

RINO 2.0 ON SHELF - 21L

80bar

21l/min

24mcr

6kW

Accessories

INCLUDED

Maintenance set

Pump maintenance set 750 hourse

Rino VS Rino 2.0 comparison Rino

Rino 2.0

Delta

Rotation

Pulse

Slew bearing

+50% affidability

Pressure

70bar

80bar

+14%

Transport

2 boxes

1 box

-30% costs

Assembly

3 ore

Ready to use

Price

-5% compared to Fog Maker Rino

Technical features

Fan technical specifications

Pump module technical specifications

• Fan head frame powder-coated

• No. of nozzles : 1 ring AISI 304 stainless steel with 30 nozzles

• Pressure: 80bar for all versions • Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons • Electric motor 1450Rpm 1.5kW for 11l/ min, 2.2kW for 15l/min, 3kW for 21 l/min

• Coverage: 1.900m2 • Air flow rate: 9.200mc/h • Power absorption: 3kW–2800Rpm • Fan jet: 33m with 21°C without wind • Power supply: 3x400V–50Hz

• Integrated by-pass valve • Low pressure water switch

• Rotating range: 330° automatic • Elevation: -25°+35° manual • Fan diameter: 450mm • Noise: <89Lwa

FOG MAKER ELEFANTE A.P.

IDROTECH

Pressure 60bar Fan jet 75m 156 nozzles What is a Fog Maker? Your industrial fogging system Roads disinfection with fog maker Elefante

from 2,2m to 5m

Fog Maker Elefante 60 • Misting ring equipped with heating to operate at low temperature • Simple and user-friendly touchscreen • Ventilation unit independent from pump unit • Automatic hydraulic telescopic arm

Technical features

Fog maker Technical features Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Weight

a ZX.8514

ELEFANTE 60 ON SHELF

60bar

33 l/min

17mcr

21,5Kw

350Kg

b ZX.8513

ELEFANTE 60 ON HYDRAULIC COLUMN

60bar

33 l/min

17mcr

21,5Kw

700Kg

Code

Accessories page 446

Ring with 156 nozzles with heating element

Hydraulic telescopic arm, maximum height of 5 meters

Technical features

Fan technical specifications

• Galvanized steel frame

• 156 nozzles 3 rings with 52 nozzles each

Pump module technical specifications

• Electrical panel complete with PLC cyclical timer, weekly programmer, tilt pulse counter, fan start and flashing light

• Electric heater 1Kw for preheating rings

• Pressure: 60bar

• Coverage: 10.700m2 • Air flow rate: 28.500m3/h

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Power absorption: 15Kw

• Electric motor 1450Rpm 4Kw

• Power supply: 3x400V – 50Hz

• Integrated by-pass valve

• Fan jet: 75m (with 21°C without wind)

• High pressure switch

• Rotating range: 340° Automatic

• Unload solenoid valve

• Protection rating: IP55

IDROTECH

Pressure 60bar Fan jet 75m 156 nozzles How do fog makers for dust suppression work?

Buildings disinfection with fog maker Elefante.

1,8m

2,5m

Fog Maker Elefante 60 • Misting ring equipped with heating to operate at low temperature • Simple and user-friendly touchscreen • Ventilation unit independent from pump unit • Trolley with pneumatic wheels for easy handling on uneven ground

Technical features

Fog maker Technical features Code

Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Weight

ZX.8520

ELEFANTE 60 MOBILE

60bar

42 l/min

18mcr

22,3Kw

700Kg

d ZX.8523

ELEFANTE 60 ON BASE

60bar

33 l/min

17mcr

21,5Kw

700Kg

Accessories page 446

Sturdy frame complete with tiller and pneumatic wheels (only for mobile version “C”)

The jet can reach 30 meters

Technical features

Fan technical specifications

• Galvanized steel frame

• 156 nozzles: 3 rings with 52 nozzles each

Pump module technical specifications

• Electrical panel complete with PLC cyclical timer, weekly programmer, tilt pulse counter, fan start and flashing light

• Electric heater: 1kW for preheating rings

• Pressure: 60bar

• Maximun coverage:10.700m2

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Protection rating: IP55

• Air flow rate: 28.500m3/h • Power absorption: 15kW • Power supply: 3x400V – 50Hz • Fan jet: 75m with 21°C (without wind) • Rotating range: 340° Automatico • Elevation: -20° +45° Automatico

• Electric motor 1450 Rpm 4kW for 33 Rpm, 6,3Kw for 42 Rpm • Integrated by-pass valve • High pressure switch • Unload solenoid valve

IDROTECH

compared to the price of the ‘24’ model

Elefante 90 is versatile: • PM2.5 and PM10 abatment • odor neutralization • environment cooling • disinfection • dust suppression

-15%

It anticipates the many needs of the customer, and is available in 4 models: • on hydraulic arm • on shelf • on base • mobile Capacity of 33l/min, 42l/min or 50l/min.

ON HYDRAULIC ARM

ON SHELF

ON BASE

MOBILE

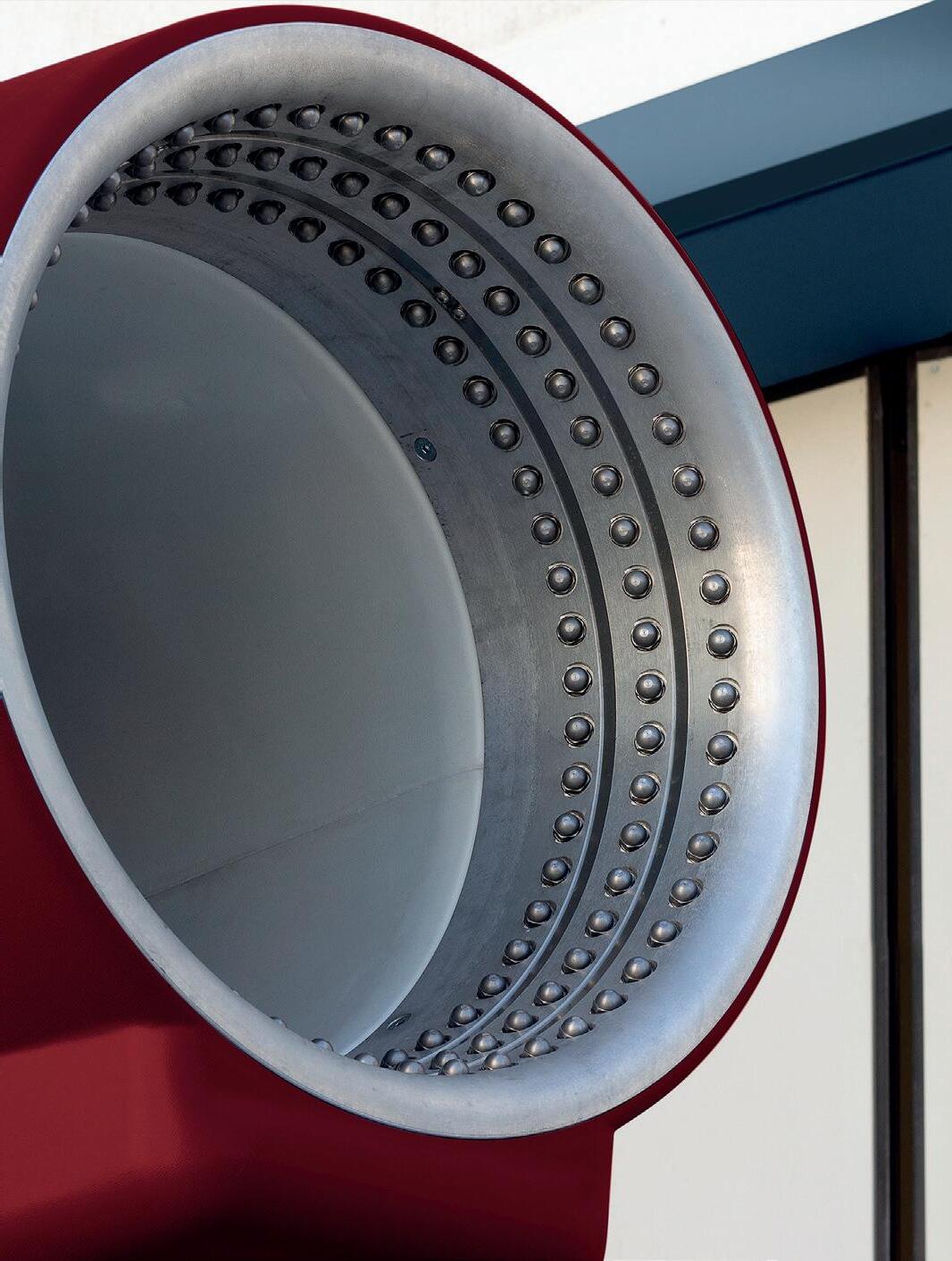

Ring AISI 304 stainless steel 135 nozzles to obtain droplets with diameters from 18 to 20 microns.

Water sterilizer to eliminate viruses and bacteria (optional).

Touch screen 4,3”

Fan motor and propeller configuration to operate at 90 meters.

IDROTECH

Pressure 80bar Fan jet 90m 135 nozzles

Fog maker Elefante 90

from 2,2m to 4,8m

-15% compared to the price of the ‘24’ model

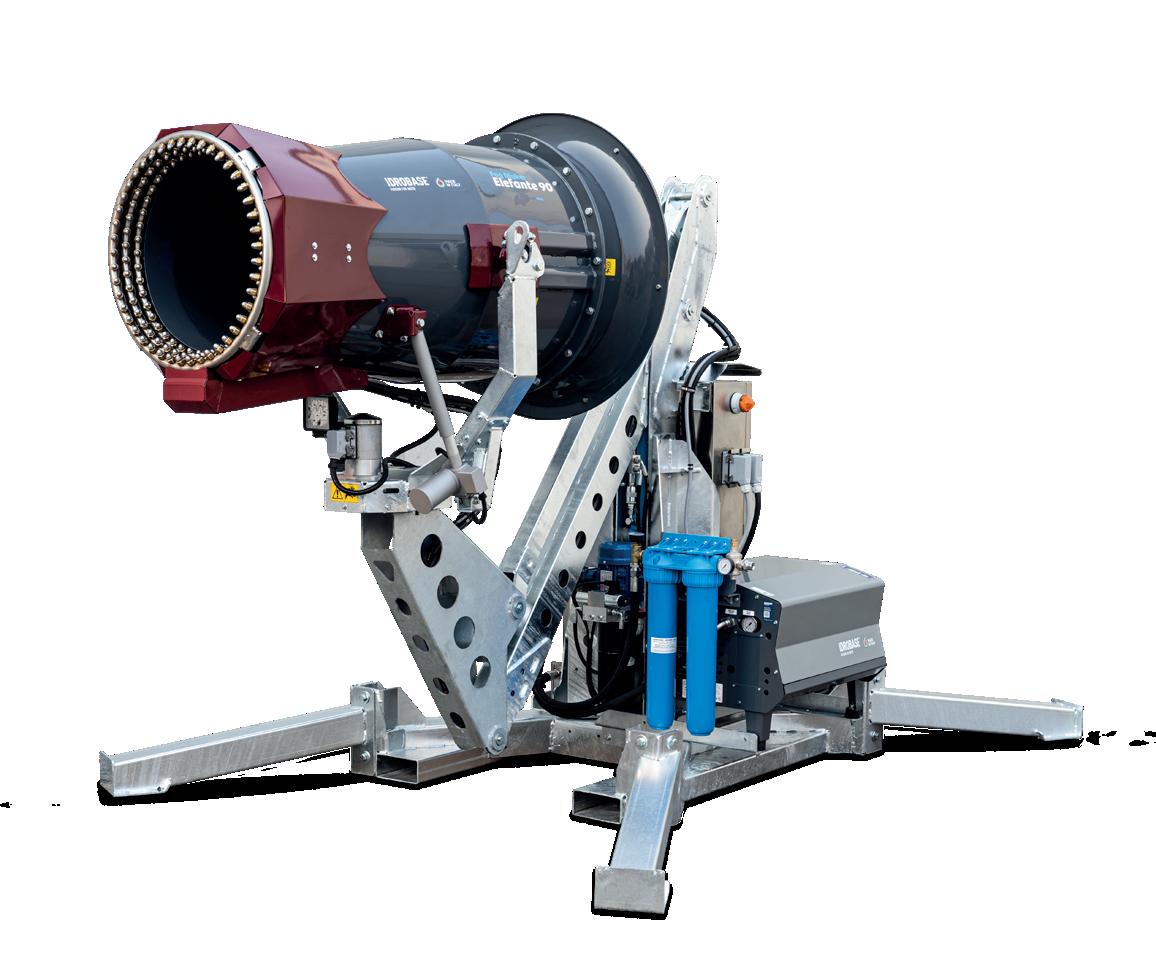

ELEFANTE 90 ON HYDRAULIC ARM

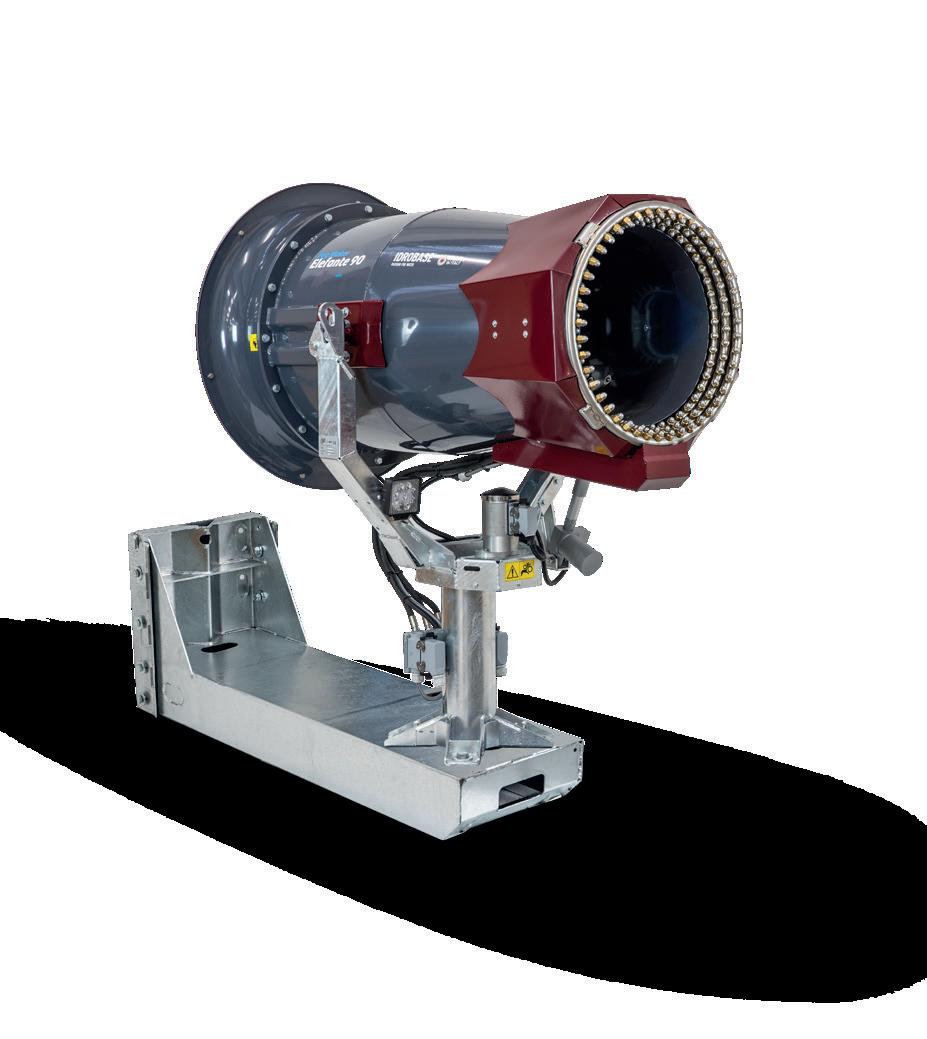

ELEFANTE 90 ON SHELF

Fog Maker Elefante 90 • Hydraulic arm: up to 4.8m high • Can be positioned at any height (Elephant 90 on shelf) • Easy and intuitive touch screen • Available version with mechanical proportional dispenser 0.2-2% • Also suitable for indoor areas

Technical features

Fog maker Technical features Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V 50Hz)

Weight

Code version with dispenser

ZX.8593

ELEFANTE 90 ON HYDRAULIC ARM

80bar

33l/min

18mcr

25kW

932Kg

ZX.8593-DOS

ZX.8591

ELEFANTE 90 ON HYDRAULIC ARM

80bar

42l/min

20mcr

27kW

932Kg

ZX.8591-DOS

ZX.8587

ELEFANTE 90 ON HYDRAULIC ARM

75bar

50l/min

20mcr

28kW

932Kg

ZX.8587-DOS

ZX.8595

ELEFANTE 90 ON SHELF

80bar

33l/min

18mcr

25kW

540Kg

ZX.8595-DOS

ZX.8594

ELEFANTE 90 ON SHELF

80bar

42l/min

20mcr

27kW

540Kg

ZX.8594-DOS

ZX.8588

ELEFANTE 90 ON SHELF

75bar

50l/min

20mcr

28kW

540Kg

ZX.8588-DOS

Accessories page 42

Maintenance set page 46

INCLUDED Pump maintenance set 750hours

Technical features

Fan technical specifications

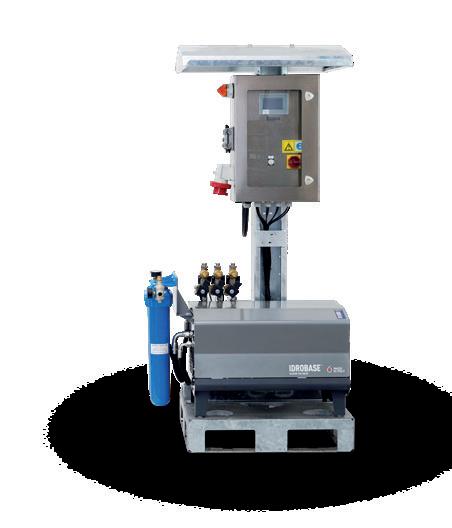

Pump module technical specifications

• Frame: hot-dip galvanized steel. Sensitive components with epoxy powder coating

• Nozzles: 135 in 3 rings (45 each) • Air flow rate: 33,500m3/h

• Maximum working pressure: 80bar

• Electrical panel: complete with PLC with cyclic timer, weekly programmer, swing pulse counter, fan start and flashing light with buzzer • Protection rating: IP54

• Covered area: 24,000m2 (with 340° max. rotating range) • Fan power absorption: 18.5kW

• Hydraulic connection kit: 20m ZX.8595, ZX.8594 and ZX.8588 • Electric cable kit: 20m ZX.8595, ZX.8594 and ZX.8588 • Remote control (optional): range up to 90m free field • Dimension WxLxH: 3000 x 3550 x 2200-4800mm (on hydraulic arm) Copyright© Idrobase Group. All rights reserved.

• Fan jet: 90m (laboratory measurements under static environmental conditions of maximum efficiency) • Power supply: 3x400V-50Hz • Rotating range: 340° Automatic • Elevation: -15° + 45° Automatic • Fan diameter: 710mm • Noise: <115LwA

• Professional pump: 1450Rpm, connecting rod movement, brass head, 3 ceramic pistons • Electric motor: 1450Rpm 6,3kW • Integrated by-pass valve • High pressure switch • Shut-off solenoid valves • Sterilizing lamp • Maintenance kits available • Models available with mechanical proportional dispenser 0.2 2% (see specific code) • Filtering: 50µm • Water inlet pressure regulator • High pressure filtering at 10µm 39

IDROTECH

Pressure 80bar Fan jet 90m 135 nozzles

Fog maker Elefante 90

-15% compared to the price of the ‘24’ model

ELEFANTE 90 ON BASE

ELEFANTE 90 MOBILE

Fog Maker Elefante 90 • • • • •

Solid frame and pneumatic wheels for easy movement on any surface (Elefante 90 mobile) Extremely compact and space-saving (Elefante 90 on base) Easy and intuitive touch screen Available version with mechanical proportional dispenser 0.2-2% Also suitable for indoor areas

Technical features

Fog maker Technical features Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V50Hz)

Weight

Code version with dispenser

ZX.8597

ELEFANTE 90 ON BASE

80bar

33l/min

18mcr

25kW

540Kg

ZX.8597-DOS

ZX.8596

ELEFANTE 90 ON BASE

80bar

42l/min

20mcr

27kW

540Kg

ZX.8596-DOS

ZX.8589

ELEFANTE 90 ON BASE

75bar

50l/min

20mcr

28kW

540Kg

ZX.8589-DOS

ZX.8599

ELEFANTE 90 MOBILE

80bar

33l/min

18mcr

25kW

660Kg

ZX.8599-DOS

ZX.8598

ELEFANTE 90 MOBILE

80bar

42l/min

20mcr

27kW

660Kg

ZX.8598-DOS

ZX.8586

ELEFANTE 90 MOBILE

75bar

50l/min

20mcr

28kW

660Kg

ZX.8586-DOS

Accessories page 42

Maintenance set page 46

INCLUDED Pump maintenance set 750hours

Technical features

Fan technical specifications

Pump technical features

• Hot galvanised steel frame. Sensitive components with epoxy powder coating

• Nozzles: 135 in 3 rings (45 each)

• Maximum working pressure: 80bar

• Coverage: 24,000m2

• Electrical panel: complete with PLC with cyclic timer, weekly programmer, tilt pulse counter, fan start and flashing lights

• Air flow rate: 33,500m3/h

• Professional pump: 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Fan power absorption: 18.5kW

• Electric motor: 1450Rpm 6,3kW

• Fan jet: 90m (laboratory measurements under static environmental conditions of maximum efficiency)

• Integrated by-pass valve

• Power supply: 3x400V-50Hz

• Sterilising lamp

• Rotating range: 340° Automatic

• Preventive maintenance kits available

• Elevation: -15° + 45° Automatic

• Models available with mechanical proportional dispenser 0.22% (see specific code)

• Protection rating: IP54 • Remote control: with range up to 90m in free field (optional) • Dimension WxLxH: 2000x1550x2530mm (On Base) 1850x2450x2550mm (Mobile)

• Fan diameter: 710mm • Noise: <115LwA

• High pressure switch • Shut-off solenoid valves

IDROTECH

Pressure 120bar Fan jet 80m 135 nozzles

-15% compared to the price of the ‘24’ model

Optimal for PM2.5 fine dust suppression

Average drop size

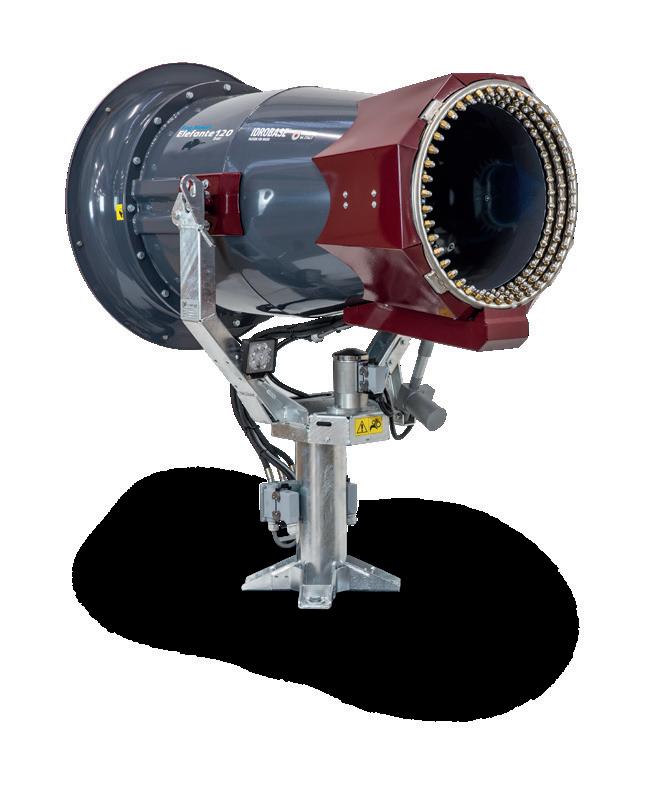

ELEFANTE 120bar

Fog Maker Elefante 120bar • Ventilation unit independent from pump unit • Double flange electric motor and flexible coupling

Technical features

Fog maker Technical features Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V50Hz)

Weight

Code version with dispenser

ZX.8580

ELEFANTE 120bar

120bar

48l/min

11mcr

29,5kW

700Kg

ZX.8580-DOS

Accessories page 42

INCLUDED Pump maintenance set 750hours

Technical features

Fan technical specifications

• Galvanized steel frame • Protection rating: IP55

• Nozzles: 135 in 3 rings (45 each) • Coverage: 20,000m2 • Air flow rate: 33,500m3/h • Power absorption: 18.5kW • Power supply: 3x400V–50Hz • Fan jet: 75m (positioned at height of 15m, without wind) • Rotating range: 340° Automatic • Elevation: -15° +45° Automatic • Fan diameter: 710mm • Noise: <115LwA

Pump module technical specifications • Pressure: 120bar • Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons • Electric motor 1450Rpm, 11kW • Integrated by-pass valve • High pressure switch • Unload solenoid valve

IDROTECH

-20% noise compared to Elefante 90

Elefante Silenzioso is versatile: • PM2.5 and PM10 abatment • odor neutralization • environment cooling • disinfection • dust suppression

It anticipates the many needs of the customer, and is available in 2 models: • on base • mobile Flow rate: 33l/min, 42l/min or 50l/min.

Elefante 90 VS Elefante Silenzioso comparison Elefante 90

Elefante Silenzioso

Delta

Noise

115dB

94dB

-20%

Rpm

2800Rpm

1500Rpm

-46%

Ring

x3 indipendent

x2 in series

ON BASE

MOBILE

Fog maker

Crown 110 nozzles to obtain droplets with a diameter of 18 to 20 microns

Touch screen 4.3”

Water inlet kit

IDROTECH

Pressure 120bar Fan jet 90m 110 nozzles

-20% noise compared to Elefante 90

ON BASE

MOBILE

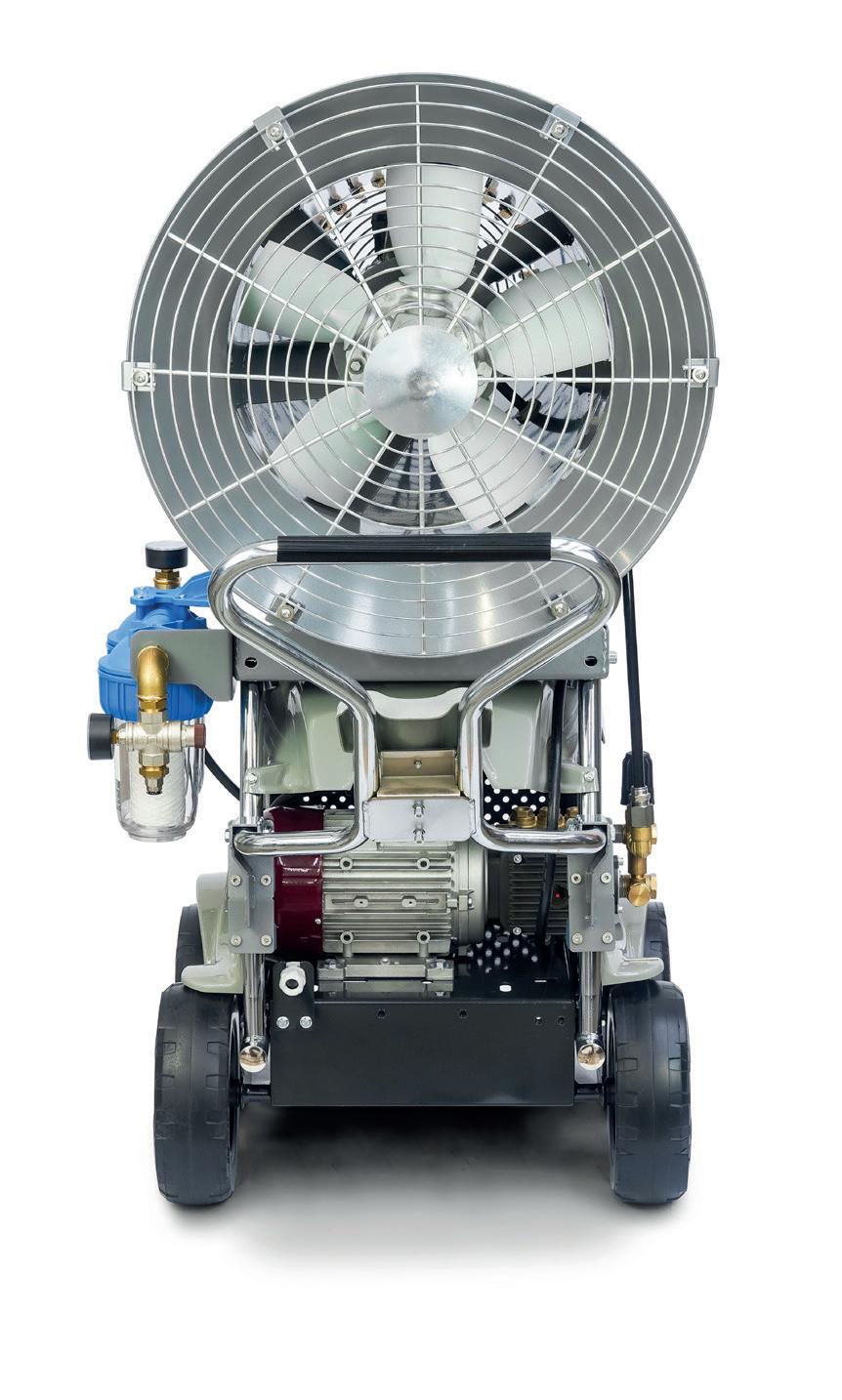

Fog Maker Elefante Silenzioso • Solid frame and pneumatic wheels for easy movement on any surface (Elefante Silenzioso mobile) • Extremely compact and space-saving (Elefante Silenzioso on base) • Easy and intuitive touch screen • Available version with mechanical proportional dispenser 0.2-2% • Also suitable for indoor areas Technical features

120

Fog maker Technical features Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V50Hz)

Weight

Code version with dispenser

ELEFANTE SILENZIOSO ON BASE

80bar

33l/min

18mcr

25kW

540Kg

ELEFANTE SILENZIOSO ON BASE

80bar

42l/min

20mcr

25kW

540Kg

ZX.8550

ELEFANTE SILENZIOSO ON BASE

65bar

50l/min

20mcr

25kW

540Kg

ELEFANTE SILENZIOSO ON BASE

120bar

33l/min

18mcr

25kW

540Kg

Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V50Hz)

Weight

Code version with dispenser

ELEFANTE SILENZIOSO MOBILE

80bar

33l/min

18mcr

25kW

660Kg

ELEFANTE SILENZIOSO MOBILE

80bar

42l/min

20mcr

25kW

660Kg

ZX.8551

ELEFANTE SILENZIOSO MOBILE

65bar

50l/min

20mcr

25kW

660Kg

ELEFANTE SILENZIOSO MOBILE

120bar

33l/min

18mcr

25kW

540Kg

INCLUDED

Elefante 90 VS Elefante Silenzioso comparison

Pump maintenance set 750hours

Elefante 90

Elefante Silenzioso

Delta

Noise

115dB

94dB

-20%

Rpm

2800Rpm

1500Rpm

-46%

Ring

x3 indipendent

x2 in series

Technical features

Fan technical specifications

Pump technical features

• Frame in hot galvanised S235JR steel, sensitive components have epoxy powder coating. • Electrical panel complete with PLC with cyclic timer, weekly programmer, tilt pulse counter, fan start and flashing lights • Protection rating: IP54 • Remote control with range up to 50m in free field (optional) • Dimension WxLxH: 2000x1550x2530mm (on base) 2400x1720x2500mm (mobile)

• Nozzles: 110 in 2 rings • Coverage: 24,000m2 • Air flow rate: 39,500m3/h • Fan power absorption: 18.5kW • Fan jet: 90m (laboratory measurements under static environmental conditions of maximum efficiency) • Power supply: 3x400V-50Hz • Rotating range: 340° Automatic • Elevation: -15° + 45° Automatic • Fan diameter: 820mm • Noise: <94LwA

• Maximum working pressure: 120bar • Professional pump: 1450Rpm, rod movement, brass head, 3 ceramic pistons • Electric motor: 1450Rpm 6,3kW • Integrated by-pass valve • High pressure switch • Preventive maintenance kits available • Models available with mechanical proportional dispenser 0.22% (see specific code) • Filtering: 50µm • Water inlet pressure regulator

FOG MAKER ELEFANTE A.P.

IDROTECH

Pressure 60bar Fan jet 75m 156 nozzles Elefante 60 Autonomous

Fog Maker Elefante Autonomo • Misting ring equipped with heating to operate at low temperature • Simple and user-friendly touchscreen • Ventilation unit independent from pump unit • Trolley with pneumatic wheels for easy handling on uneven ground

Technical features

Fog maker Technical features Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Weight

a ZX.8519-AP

ELEFANTE AUTONOMO ON BASE

60bar

42l/min

18mcr

22,3kW

1100Kg

b ZX.8510

ELEFANTE AUTONOMO MOBILE

60bar

33l/min

17mcr

20kW

2300Kg

Code

Accessories page 42

Maintenance set page 46

INCLUDED Pump maintenance set 750 hours

Technical features

Fan technical specifications

• Galvanized steel frame

• Nozzles: 156 in 3 rings (52 each)

Pump module technical specifications

• Electrical panel complete with PLC cyclical timer, weekly programmer, tilt pulse counter, fan start and flashing light

• Electric heater: 1kW for preheating rings

• Pressure: 60bar

• Coverage: 10,700m2

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Tank 1000L (mobile version) • Generator: 18kW • Protection rating: IP55

• Air flow rate: 28,500m3/h • Power absorption: 15kW • Fan jet: 75m with 21°C (without wind) • Power supply: 3x400V–50Hz • Rotating range: 340° Automatic • Elevation: -20°+45° Automatic

• Electric motor 1450 Rpm 4kW for 33l/min, 6,3kW for 42l/min • Integrated by-pass valve • High pressure switch • Unload solenoid valve

ENGLISH Copyrights© to this catalogue belong to IDROBASE GROUP® Srl. Reading, reference and dissemination in paper or electronic formats for personal use are permitted. Use for commercial purposes is not permitted, nor is any type of alteration except with the written consent of IDROBASE GROUP® Srl. This catalogue cancels and supersedes the earlier version. This catalogue provides general information on the products supplied by IDROBASE GROUP® Srl. It is intended for retailers, system engineers, designers and more generally, all those who are already adequately familiar with said products, the materials from which they are made, their characteristics, efficiency and operation; it is therefore not intended for consumers who, in order to handle, install or perform any operation with the goods described here, must necessarily contact qualified and skilled personnel. Also, with regard to skilled personnel, this catalogue should be considered a mere commercial tool, not containing the necessary technical specifications - which may be obtained free of charge from Idrobase, and as such, not suitable for use as a single go-to reference tool for the design, construction or installation of any kind of system. The illustrations, technical characteristics, functions and other information given here about individual products, systems, installations and the like are based on the current state of the art: however, only the most immediately applicable information can be reproduced here, without any consideration for the global data necessary to design, implement and install any system, which must therefore be carefully assessed by designers, system engineers and installers. Therefore, for specific indications on all products in the catalogue, please contact our main office, where competent staff are always on hand to answer any additional queries. All the illustrations reproduced here may be slightly different from actual products and therefore, they should simply be intended as closely representing real items. We reserve the right to introduce changes in all the products. For this reason, too, it is advisable to directly contact our main office. In case of doubts regarding interpretation, the original Italian text will prevail. When a new reprint is published, the present edition will no longer be valid.

A day in Idrobase Group

Idrobase Group Srl Via dell’Industria, N. 25 35010 Borgoricco (PD) Italia T: +39 049 9335903 r.a.

Recognition of maximum commercial reliability

Rev.03_2025-11
