FOG MAKER: ALL SOLUTIONS

Di sinfett ante

Fog Maker Lince is ideal for:

• odour and pollution (PM2.5 and PM10) suppression of small to medium areas

on the purchase of 3 pcs

Lince is available in 3 models:

• Lince 1 and Lince 4

• Lince Disinfettante

Capacity of 1 and 4l/min.

LINCE 1

LINCE DISINFETTANTE

LINCE 4

Lince disinfectant lance kit cod ZX.8201-KD (included)

Lince 1: 1 ring AISI 304 stainless steel with 30 nozzles

30L tank

Lince 4: 1 ring AISI 304 stainless steel with 30 nozzles

Pressure 60bar

Fan jet 7m 13/30 nozzles

on the purchase of 3 pcs

Lince Fog maker ideal for suppression of ﬁne dust

for disinfection outdoor

Lince for disinfection indoor

Fog Maker Lince

Mobile high pressure fog maker complete with fan and ring of nozzles, 60bar 1 and 4 l/min pump module, 30L tank (Lince 1), ON-OFF electric panel. Fan jet: 7m.

• Practical and handy, with 30 minutes autonomy (Lince 1)

• Ideal for sanitization of small to medium areas (Lince Disinfettante)

Technical features

Lince

LINCE 1/DISINFETTANTE LINCE 4

Di sinfett ante

Technical features

Code Model

ZX.8201

Axial pump with 2 pistons Code Model

LINCE 1 60bar 1l/min 13 12mcr 0,75kW 60kg

Code Model

ZX.8201-L

LINCE DISINFETTANTE 60bar 1l/min 13 12mcr 0,75kW 60kg

Axial pump with 3 pistons

ZX.8204

LINCE 4 60bar 4l/min 30 12mcr 1,5kW 70kg

Accessories page 42

WARNING

Maintenance set page 46

INCLUDED

Pump maintenance set 500 hours

All the technical and safety information of the product can be consulted in the technical documentation of Idrobase Group S.r.l.

• For all specific precautions and methods of use of the disinfectant/sanitizing, always consult the technical and safety data sheet of the employed product.

• The use of the Lince Disinfettante with any disinfectant/sanitizing solution requires the user to rinse it after use, following the operations indicated in the instruction manual.

Technical features

• Frame in painted steel sheet

• Air flow rate: 3510m3/h

Coverage: 10m2

Power absorption: 0.55Kw 2800Rpm

• Fan jet: 7m 21°C (without wind)

• Elevation: 0°+30° manual

• Fan diameter: 410mm

Noise: <80LwA

• Protection rating: IP54

• Dimensions WxLxH: 800x650x1200mm

Lince 1

• No. of nozzles : 1 ring AISI 304 stainless steel with 13 nozzles

• Professional motorpump 1450Rpm, 200W, axial movement, 2 ceramic pistons

• Tank 30L

Lince 4

• No. of nozzles : 1 ring AISI 304 stainless steel with 30 nozzles

• Professional motorpump 1450Rpm, 950W, axial movement, 3 ceramic pistons in ceramic steel

• Solenoid valve inlet water 230V 5” water inlet kit with pressure stabilizer

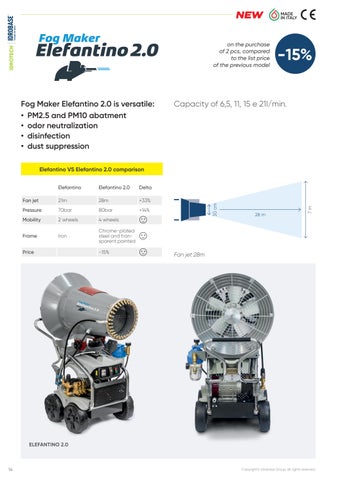

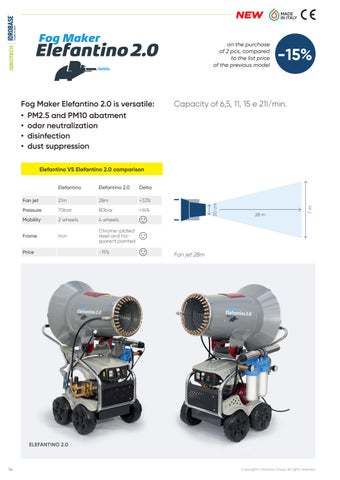

Fog Maker Elefantino 2.0 is versatile:

• PM2.5 and PM10 abatment

• odor neutralization

• disinfection

• dust suppression

Elefantino VS Elefantino 2.0 comparison

Elefantino Elefantino 2.0 Delta

Fan jet 21m 28m +33%

Pressure 70bar 80bar +14%

Mobility 2 wheels 4 wheels

Frame Iron

Chrome-plated steel and transparent painted

Price -15%

on the purchase of 2 pcs, compared to the list price of the previous model

Capacity of 6,5, 11, 15 e 21l/min.

Fan jet 28m

ELEFANTINO 2.0

Frame: chrome-plated steel and transparent painted

Ring AISI 304 stainless steel with 30 nozzles Professional pump 1450Rpm

Water inlet kit

Control panel

30 nozzles Pressure 80bar Fan jet 28m

on the purchase of 2 pcs, compared to the list price of the previous model

Fog Maker Elefantino 2.0

Trolley-mounted high pressure fog maker with 30 misting nozzles, ON-OFF control panel for pump and fan controls. Fan range: 28 metres.

Ideal for suppression of fine dust (PM10), in small to medium sized areas such as in renovation of buildings and when handling dusty materials.

Technical features

2.0 - 6,5

2.0 - 11

ELEFANTINO 2.0 - 15

Accessories

Maintenance

Elefantino VS Elefantino 2.0 comparison

Mobility 2 wheels 4 wheels

Frame Iron Chrome-plated steel and transparent painted

Price -15%

Technical features general

• Frame made of S235JR chrome-plated steel and transparent painted

• Solid wheels

• Power absorption: 3kW 2800Rpm

• Coverage: 150m2

• Fan jet: 28m with 21°C (without wind)

• Elevation: 0°+30° manual

• Fan diameter: 397mm

• Noise: <90LwA

• No. of nozzles : 1 ring AISI 304

stainless steel with 30 nozzles

• Water inlet kit complete with pressure stabiliser

• Pressure: 80bar for 6,5 and 15l/min version, 70bar for 11 and 21l/min version

• Pump module 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Electric motor 1450Rpm, 1.5kW for 6,5 and 11l/min, 2.2kW for 15l/min, 3kW for 21 l/min

• Integrated by-pass valve

• Protection rating: IP54

Fog Maker Gru is versatile:

• PM2.5 and PM10 abatment

• odor neutralization

version VS New version comparison

Rotation Manual Automatic

Covered

Programmable touch screen display*

*Pause/work time slots

Capacity of 6,5, 11, 15 e 21l/min.

Technical features

Ring AISI 304 stainless steel with 30 nozzles

system detail

Manual elevation -20° +25°

Automatic rotating range 300°

kit optional

Dosing

Rotating

Fog Maker Gru

Rotating range (automatic)

Covered area

Fan jet 30m Pressure 70bar 30 nozzles

Fog Maker Gru

• Ideal for odour and dust suppression (PM2.5 and PM10) of medium areas

• Practical and handy with heavy-duty structure

• Industrial performance with excellent value for money

Technical features

ZX.8611

ZX.8612

ZX.8613

ZX.8614

ZX.8611-DOS

ZX.8612-DOS

ZX.8613-DOS

ZX.8614-DOS

Old version New version Delta Fan jet

Programmable touch screen display*

Technical features

general

• Galvanized steel frame

Electric control panel complete with 7” touch screen and PLC for managing the fan pump, rotating range and work cycles

• Protection rating IP54

• Tank: 30L

Dimensions WxLxH: 1200x800x1700mm

Fan technical specifications

• No. of nozzles 1 ring AISI 304 stainless with 30 nozzles Coverage 1.500m2

• Power supply: 3kW–2800g/min

• Fan jet: 30m a 21°C (without wind)

• Power supply: 3x400V–50Hz Rotating: 300° automatic

• Elevation: -20° + 25° manual

• Fan diameter: 397mm

• Noise: <87LwA

Pump module technical specifications

• Pressure: 70bar for 6,5, 11, 15 e 21l/min version. Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons Electric motor 1450g/min 1,9kW for 6,5 and 11l/min, 2,6kW for 15l/min and 3,4kW for 21l/min

• Integrated di by-pass valve

Fog Maker Gufo is versatile:

• odor neutralization and dust suppression (PM2.5 e PM10)

• cooling

Gufo is available in 2 models:

• Gufo

• Gufo DOS

Capacity of 6,5, 11 and 15l/min.

Module detail with pump

Electronic control panel

OPTIONAL - ZX.1854 Radiocomando

4,3” touch screen with multi language software

Fog Maker Gufo

• Ideal for PM2.5 dust suppression

(The fog maker is also suitable for distributing surfactants, particularly for use in chimneys and cement factories)

• Odour neutralization

• Cooling

Technical features

ZX.8802

ZX.8801

ZX.8800

ZX.8802-DOS

ZX.8801-DOS

ZX.8800-DOS

INCLUDED

Pump maintenance set 750 hours

Technical features

Galvanized steel frame

• Electric control panel complete with 4.3” touch screen and PLC for managing the fan pump, rotating range, work cycles and preventive maintenance program

• Protection rating IP54

• Dimensions WxLxH: 1600x1500x2400mm

Fan technical specifications

No. of nozzles 1 ring AISI 304 stainless with 30 nozzles

• Coverage 1.500m2

• Power absorption 2,2kW–2800g/min

Fan jet 25m with 21°C (without wind)

Power supply 3x400V–50Hz

• Rotating 330° automatic

• Elevation: -20° + 30° manual

• Fan diameter 397mm

Noise <87LwA

Pump module technical specifications

Pressure 70bar for 6,5, 11 e 15l/min version

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons Electric motor 1450Rpm 1,5kW for 6,5 and 11l/min, 2,2kW for 15l/min

Integrated di by-pass valve

Low pressure water switch

• Level sensors for 1000L tank

Fog Maker Rino is versatile:

• PM2.5 and PM10 abatment

• odor neutralization

• disinfection

• dust suppression Rino Rino 2.0 Delta

Rino VS Rino 2.0 comparison

Rotating system Impulse Industrial turntable +50% reliability

Pressure 70bar 80bar +14%

Transport 2 boxes 1 box -30% costs

Assembly 3 hrs Ready to use

Price -15% compared to Fog Maker Rino

compared to the list price of the previous model

Capacity of 11, 15 e 21l/min.

Technical features

Optimised for transport with column that raises and lowers 35 cm.

Height (in use): 265cm Height (during the transport): 220cm

Fog Maker Rino 2.0 is designed to be shipped assembled, avoiding assembly operations on site: transport costs -30%.

Touch screen 4.3”

Fog Maker Elefante 60

• Misting ring equipped with heating to operate at low temperature

• Simple and user-friendly touchscreen

• Ventilation unit independent from pump unit

• Automatic hydraulic telescopic arm

Technical features

Fan jet 75m

Pressure 60bar 156 nozzles

What is a Fog Maker? Your industrial fogging system

Roads disinfection with fog maker Elefante

from 2,2m to 5m

Technical features

60 ON SHELF

60 ON HYDRAULIC COLUMN

Accessories page 446

Technical features

• Galvanized steel frame

• Electrical panel complete with PLC cyclical timer, weekly programmer, tilt pulse counter, fan start and flashing light

• Protection rating: IP55

Fan technical specifications

• 156 nozzles : 3 rings with 52 nozzles each

• Electric heater: 1Kw for preheating rings

• Coverage:10.700m2

• Air flow rate: 28.500m3/h

• Power absorption: 15Kw

• Power supply: 3x400V – 50Hz

• Fan jet: 75m with 21°C (without wind)

• Rotating range: 340° Automatic

• Elevation: -20° +45° Automatic

• Fan diameter: 600mm

• Noise: <93LwA

Pump module technical

specifications

• Pressure: 60bar

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Electric motor 1450Rpm 4Kw

• Integrated by-pass valve

• High pressure switch

• Unload solenoid valve

ZX.8513

Ring with 156 nozzles with heating element

Hydraulic telescopic arm, maximum height of 5 meters

Fog Maker Elefante 60

• Simple and user-friendly touchscreen

• Ventilation unit independent from pump unit

Fan jet 75m

Pressure 60bar 156 nozzles

How do fog makers for dust suppression work?

Buildings disinfection with fog maker Elefante.

• Misting ring equipped with heating to operate at low temperature

• Trolley with pneumatic wheels for easy handling on uneven ground

Technical features

Accessories page 446

The jet can reach 30 meters

Technical features

• Galvanized steel frame

• Electrical panel complete with PLC cyclical timer, weekly programmer, tilt pulse counter, fan start and flashing light

• Protection rating: IP55

Fan technical specifications

• 156 nozzles : 3 rings with 52 nozzles each

• Electric heater: 1Kw for preheating rings

• Maximun coverage:10.700m2

• Air flow rate: 28.500m3/h

• Power absorption: 15Kw

• Power supply: 3x400V – 50Hz

• Fan jet: 75m with 21°C (without wind)

• Rotating range: 340° Automatico

• Elevation: -20° +45° Automatico

• Fan diameter: 600mm

• Noise: <93LwA

Pump module technical specifications

• Pressure: 60bar

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Electric motor 1450 Rpm 4Kw for 33 Rpm, 6,3Kw for 42 Rpm

• Integrated by-pass valve

• High pressure switch

• Unload solenoid valve

Sturdy frame complete with tiller and pneumatic wheels (only for mobile version “C”)

Elefante 90 is versatile:

• PM2.5 and PM10 abatment

• odor neutralization

• environment cooling

• disinfection

• dust suppression

compared to the price of the ‘24’ model

-15% ON HYDRAULIC ARM

It anticipates the many needs of the customer, and is available in 4 models:

• on hydraulic arm

• on shelf

• on base

• mobile Capacity of 33l/min, 42l/min or 50l/min.

SHELF

BASE MOBILE

Ring AISI 304 stainless steel 135 nozzles to obtain droplets with diameters from 18 to 20 microns.

Water sterilizer to eliminate viruses and bacteria (optional).

Fan motor and propeller conﬁ guration to operate at 90 meters.

Touch screen 4,3”

-15%

compared to the price of the ‘24’ model

ELEFANTE 90 ON HYDRAULIC ARM

Fog Maker Elefante 90

• Hydraulic arm: up to 4.8m high

from 2,2m to 4,8m

• Can be positioned at any height (Elephant 90 on shelf)

• Easy and intuitive touch screen

• Also suitable for indoor areas

Pressure 80bar 135 nozzles

Fan jet 90m

ELEFANTE 90 ON SHELF

• Available version with mechanical proportional dispenser 0.2-2%

Technical features

Fog maker

Elefante 90

50Hz)

ELEFANTE 90 ON HYDRAULIC ARM

ELEFANTE 90 ON SHELF

Maintenance set page 46

Pump maintenance set 750hours INCLUDED Accessories page 42

Technical features

• Frame: hot-dip galvanized steel. Sensitive components with epoxy powder coating

• Electrical panel: complete with PLC with cyclic timer, weekly programmer, swing pulse counter, fan start and flashing light with buzzer

• Protection rating: IP54

• Hydraulic connection kit: 20m

ZX.8595, ZX.8594 and ZX.8588

• Electric cable kit: 20m

ZX.8595, ZX.8594 and ZX.8588

• Remote control (optional): range up to 90m free field

• Dimension WxLxH: 3000 x 3550 x 2200-4800mm (on hydraulic arm)

Fan technical specifications

• Nozzles: 135 in 3 rings (45 each)

• Air flow rate: 33,500m3/h

• Covered area: 24,000m2 (with 340° max. rotating range)

• Fan power absorption: 18.5kW

• Fan jet: 90m (laboratory measurements under static environmental conditions of maximum efficiency)

• Power supply: 3x400V-50Hz

• Rotating range: 340° Automatic

• Elevation: -15° + 45° Automatic

• Fan diameter: 710mm

• Noise: <115LwA

Pump module technical specifications

• Maximum working pressure: 80bar

• Professional pump: 1450Rpm, connecting rod movement, brass head, 3 ceramic pistons

• Electric motor: 1450Rpm 6,3kW

• Integrated by-pass valve

• High pressure switch

• Shut-off solenoid valves

• Sterilizing lamp

• Maintenance kits available

• Models available with mechanical proportional dispenser 0.22% (see speciﬁc code)

• Filtering: 50µm

• Water inlet pressure regulator

• High pressure ﬁltering at 10µm

Fan jet 90m Pressure 80bar 135 nozzles

-15%

compared to the price of the ‘24’ model

ELEFANTE 90 ON BASE

Fog Maker Elefante 90

Fog maker

Elefante 90

ELEFANTE 90 MOBILE

• Solid frame and pneumatic wheels for easy movement on any surface (Elefante 90 mobile)

• Extremely compact and space-saving (Elefante 90 on base)

• Easy and intuitive touch screen

• Available version with mechanical proportional dispenser 0.2-2%

• Also suitable for indoor areas

Technical features

ELEFANTE 90 ON BASE

ELEFANTE 90 MOBILE

Accessories page 42

Maintenance set page 46

Pump maintenance set 750hours INCLUDED

Technical features

• Hot galvanised steel frame. Sensitive components with epoxy powder coating.

• Electrical panel: complete with PLC with cyclic timer, weekly programmer, tilt pulse counter, fan start and flashing lights

• Protection rating: IP54

• Remote control optional): with range up to 90m in free field

• Dimension WxLxH: 2000x1550x2530mm (On Base) 1850x2450x2550mm (Mobile)

Fan technical specifications

• Nozzles: 135 in 3 rings (45 each)

• Coverage: 24,000m2

• Air flow rate: 33,500m3/h

• Fan power absorption: 18.5kW

• Fan jet: 90m (laboratory measurements under static environmental conditions of maximum efficiency)

• Power supply: 3x400V-50Hz

• Rotating range: 340° Automatic

• Elevation: -15° + 45° Automatic

• Fan diameter: 710mm

• Noise: <115LwA

Pump technical features

• Maximum working pressure: 80bar

• Professional pump: 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Electric motor: 1450Rpm 6,3kW

• Integrated by-pass valve

• High pressure switch

• Shut-off solenoid valves

• Sterilising lamp

• Preventive maintenance kits available

• Models available with mechanical proportional dispenser 0.22% (see specific code)

• Filtering: 50µm

• Water inlet pressure regulator

• High pressure filtration at 10µm

Fan jet 80m Pressure 120bar 135 nozzles

Optimal for PM2.5 ﬁne dust suppression

compared to the price of the ‘24’ model

Average drop size

Fog Maker Elefante 120bar

• Ventilation unit independent from pump unit

• Double flange electric motor and flexible coupling

Technical features

Accessories page 42

Pump maintenance set 750hours INCLUDED

Technical features

• Galvanized steel frame

• Protection rating: IP55

Fan technical specifications

• Nozzles: 135 in 3 rings (45 each)

• Coverage: 20,000m2

• Air flow rate: 33,500m3/h

Power absorption: 18.5kW

Power supply: 3x400V–50Hz

Fan jet: 75m (positioned at height of 15m, without wind)

• Rotating range: 340° Automatic

• Elevation: -15° +45° Automatic

Fan diameter: 710mm

Noise: <115LwA

Pump module technical specifications

• Pressure: 120bar

Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Electric motor 1450Rpm, 11kW

• Integrated by-pass valve

• High pressure switch

• Unload solenoid valve

ZX.8580

ZX.8580-DOS

Elefante Silenzioso is versatile:

• PM2.5 and PM10 abatment

• odor neutralization

• environment cooling

• disinfection

• dust suppression

-20% noise compared to Elefante 90

It anticipates the many needs of the customer, and is available in 2 models:

• on base

• mobile

Flow rate: 33l/min, 42l/min or 50l/min.

Elefante 90 VS Elefante Silenzioso comparison

Ring x3 indipendent x2 in series

110

to obtain droplets with a diameter of 18 to 20 microns.

Water inlet kit Elevation

Crown

nozzles

Touch screen 4.3”

Fan jet 90m Pressure 120bar 110 nozzles

-20% noise compared to Elefante 90

Fog Maker Elefante Silenzioso

• Solid frame and pneumatic wheels for easy movement on any surface (Elefante Silenzioso mobile)

• Extremely compact and space-saving (Elefante Silenzioso on base)

• Easy and intuitive touch screen

• Available version with mechanical proportional dispenser 0.2-2%

• Also suitable for indoor areas

Technical features

MOBILE

Technical features

INCLUDED

Pump maintenance set 750hours

Technical features

• Frame: hot galvanised S235JR steel, sensitive components have epoxy powder coating.

• Electrical panel: complete with PLC with cyclic timer, weekly programmer, tilt pulse counter, fan start and flashing lights

• Protection rating: IP54

• Remote control (optional): with range up to 50m in free field

• Dimension WxLxH: 2000x1550x2530mm (on base) 2400x1720x2500mm (mobile)

Elefante 90 VS Elefante Silenzioso comparison

Elefante 90 Elefante Silenzioso Delta

Noise 115dB 94dB -20% Rpm 2800Rpm 1500Rpm -46%

Ring x3 indipendent x2 in series

Fan technical specifications

• Nozzles: 110 in 2 rings

• Coverage: 24,000m2

• Air flow rate: 39,500m3/h

• Fan power absorption: 18.5kW

• Fan jet: 90m (laboratory measurements under static environmental conditions of maximum efficiency)

• Power supply: 3x400V-50Hz

• Rotating range: 340° Automatic

• Elevation: -15° + 45° Automatic

• Fan diameter: 820mm

• Noise: <94LwA

Pump technical features

• Maximum working pressure: 120bar

• Professional pump: 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Electric motor: 1450Rpm 6,3kW

• Integrated by-pass valve

• High pressure switch

• Preventive maintenance kits available

• Models available with mechanical proportional dispenser 0.22% (see specific code)

• Filtering: 50µm

• Water inlet pressure regulator

from 2,2m to 5m

Fog Maker Elefante Autonomo

• Simple and user-friendly touchscreen

• Ventilation unit independent from pump unit

Fan jet 75m

Pressure 60bar 156 nozzles

Elefante 60 Autonomous

from 2,2m to 5m

• Misting ring equipped with heating to operate at low temperature

• Trolley with pneumatic wheels for easy handling on uneven ground

Technical features

ZX.8510

Accessories page 42

Maintenance set page 46

INCLUDED

Pump maintenance set 750 hours

Technical features

• Galvanized steel frame

• Electrical panel complete with PLC cyclical timer, weekly programmer, tilt pulse counter, fan start and flashing light Tank 1000L (mobile version)

• Generator: 18kW

• Protection rating: IP55

Fan technical specifications

• 156 nozzles : 3 rings with 52 nozzles each

• Electric heater: 1kW for preheating rings

Coverage:10,700m2

Air flow rate: 28,500m3/h

• Power absorption: 15kW

• Fan jet: 75m with 21°C (without wind)

• Power supply: 3x400V–50Hz

Rotating range: 340° Automatic

• Elevation: -20°+45° Automatic

• Fan diameter: 600mm

• Noise: <93LwA

Pump module technical specifications

• Pressure: 60bar

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Electric motor 1450 Rpm 4kW for 33l/min, 6,3kW for 42l/min

• Integrated by-pass valve

• High pressure switch

• Unload solenoid valve

Copyrights© to this catalogue belong to IDROBASE GROUP® Srl. Reading, reference and dissemination in paper or electronic formats for personal use are permitted. Use for commercial purposes is not permitted, nor is any type of alteration except with the written consent of IDROBASE GROUP® Srl.

This catalogue cancels and supersedes the earlier version.

This catalogue provides general information on the products supplied by IDROBASE GROUP® Srl.

It is intended for retailers, system engineers, designers and more generally, all those who are already adequately familiar with said products, the materials from which they are made, their characteristics, e ciency and operation; it is therefore not intended for consumers who, in order to handle, install or perform any operation with the goods described here, must necessarily contact qualiﬁed and skilled personnel.

Also, with regard to skilled personnel, this catalogue should be considered a mere commercial tool, not containing the necessary technical speciﬁcations - which may be obtained free of charge from Idrobase, and as such, not suitable for use as a single go-to reference tool for the design, construction or installation of any kind of system.

The illustrations, technical characteristics, functions and other information given here about individual products, systems, installations and the like are based on the current state of the art: however, only the most immediately applicable information can be reproduced here, without any consideration for the global data necessary to design, implement and install any system, which must therefore be carefully assessed by designers, system engineers and installers.

Therefore, for speciﬁc indications on all products in the catalogue, please contact our main o ce, where competent sta are always on hand to answer any additional queries.

All the illustrations reproduced here may be slightly di erent from actual products and therefore, they should simply be intended as closely representing real items.

In case of doubts regarding interpretation, the original Italian text will prevail. When a new reprint is published, the present edition will no longer be valid. ENGLISH
