IN THIS ISSUE

NOVEMBER 2022

VOLUME 29 • ISSUE 11

6

Features 6 Cover Story Carry On: Fluid Power Keeps Pace with Material Handling Fluid power systems in advanced material handling applications with complex motion control. 10 Test Your Skills Sizing and Selecting Vacuum Pads

20

18 All Around the World: Circular Sustainability for Fluid Power Seeing manufacturing not as a linear process that ends in a landfill, but as a continuous cycle. 24 Checked: Avoiding Hydraulic Hose Disasters Some best practices to care for a crucial component to most systems. 28 Without Skilled Tradespeople, Who Builds It? Can fluid power lure young people to careers offering financial stability and job satisfaction?

18

Departments

Publisher’s Note: The information provided in this publication is for informational purposes only. While all efforts have been taken to ensure the technical accuracy of the material enclosed, Fluid Power Journal is not responsible for the availability, accuracy, currency, or reliability of any information, statement, opinion, or advice contained in a third party’s material. Fluid Power Journal will not be liable for any loss or damage caused by reliance on information obtained in this publication.

Certification Empowers Opportunity.

4

Notable Words

5

Figure It Out

12

NFPA Update

13

IFPS Update

20

Product Spotlight

22

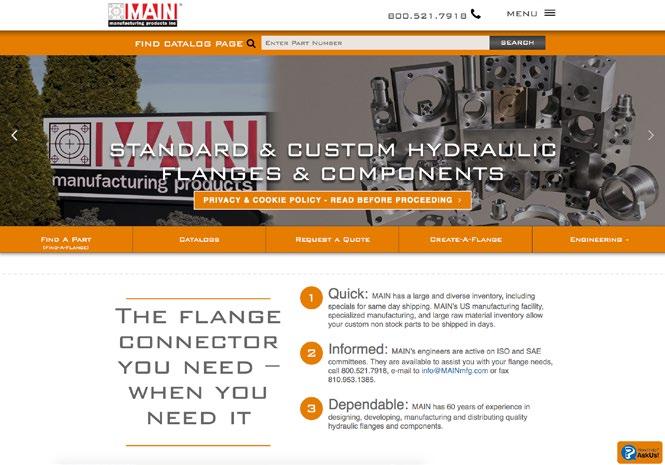

Web Marketplace

23

Component Showcase

26

All About Vacuum

31

Classifieds


HYDRAULIC FLUIDS WITH

THE POWER

TO PROTECT Lubriplate’s complete line of ultra high-performance, hydraulic fluids has been designed to provide a wide range of benefits including: extended fluid change intervals, cooler operating temperatures, reduced friction and reduced downtime. Products include...

SYN LUBE SERIES 32-68

PAO-BASED 100% SYNTHETIC

• High-Performance, 100% Synthetic, Polyalphaolefin (PAO)-Based Fluids. • Provides extended drain intervals and excellent compatibility with seals. • Available in ISO Viscosity Grades 32, 46 and 68.

HO SERIES HYDRAULIC OILS PETROLEUM OILBASED • Premium-Quality, Petroleum-Based Hydraulic Oils (ISO Grades 32-100). • Anti-wear fortified to protect hydraulic system components. • High aniline points ensure long seal life with fewer leaks.

SFGO ULTRA SERIES 7- 68

FOOD GRADE NSF H1 REGISTERED

• NSF H1 Registered and NSF ISO 21469 Certified - Food Machinery Grade. • High Performance, 100% Synthetic Food Machinery Grade Fluids. • Available in ISO Viscosity Grades 7, 15, 22, 32, 46 and 68. • Fortified with Lubriplate’s proprietary anti-wear additive .

SYNXTREME FRH1-46

FM APPROVED FIRE RESISTANT NSF H1 REGISTERED FOOD GRADE

• High-Performance, FM Approved, Fire Resistant Hydraulic Fluid. • NSF H1 Registered and NSF ISO 21469 Certified - Food Machinery Grade. • ECO-Friendly, Readily Biodegradable (OECD 301F). • Fortified with Lubriplate’s proprietary anti-wear additive .

ZF SERIES HYDRAULIC FLUIDS

ECO

FRIENDLY ZINC-FREE

• Heavy-Duty, High-Performance, Extended Life, Hydraulic Fluids. • ECO-Friendly - Free of zinc or silicone compounds. • Provides long service life and extended fluid change intervals.

BIO-BASED GREEN SERIES

ECO FRIENDLY BIO-BASED

• Vegetable-Based Oils for use in environmentally sensitive applications. • ECO-Friendly - Ultimately Biodegradable (Pw1). • Zinc-free additives provide exceptional anti-wear and anti-rust protection.

MARINE SAFE SERIES

NON-TOXIC ECO FRIENDLY, TO AQUATIC LIFE (LC-50)

• For equipment operating in environmentally sensitive locations. • Zinc-free and non-toxic to aquatic life. • Exceeds U.S. EPA LC50 and US Fish and Wildlife requirements. • Meets or exceeds the requirements of most hydraulic equipment. - MEETS BIO-SYNXTREME HF SERIES ECO FRIENDLY VGP REQUIREMENTS

• Advanced Synthetic Polyalkylene Glycol (PAG)-based hydraulic fluids. • Designed for environmentally sensitive industrial and marine applications. • Meets U.S. EPA Vessel General Permit (VGP) Requirements. Readily biodegradable. • Does not leave a sheen on the water. VGP COMPLIANCE STATEMENT - LUBRIPLATE BIO-SYNXTREME HF Series Hydraulic Fluids are Environmentally Acceptable Lubricants (EALs) according to the definitions and requirements of the US EPA 2013 Vessel General Permit, as described in VGP Section 2.2.9

INCLUDED AT NO ADDITIONAL CHARGE

Lubriplate’s

LUBRICANTS Newark, NJ 07105 / Toledo, OH 43605 / 800-733-4755 To learn more visit us at: www.lubriplate.com

ESP

Complimentary Extra Services Package

COLOR CODED LUBE CHARTS & MACHINERY TAGS PLANT SURVEYS / TECH SUPPORT / TRAINING LUBRICATION SOFTWARE / FOLLOW-UP OIL ANALYSIS


N O TA B L E W O R D S

Fluid Power Rides a Wave of Change By Kevin P. Vanderslice, Director of Mobile Sales, ifm efector

»

THE LAST 18 MONTHS have been a challenge for everyone, as we deal with supply chain issues, the lingering effects of the COVID shutdown, and the inflationary prices of core commodities. In an ideal world, there are checks and balances to prepare, but these are unprecedented times we are dealing with. The world in fluid power started changing before 2020. Each of us is on a journey to digital transformation, and each of us is in a different phase in that journey.

The term “digital transformation” is certainly buzzy these days. But how should fluid power companies manage this transformation? The manufacturing industry generates more data than any other sector of the economy, and because all this data is generated, companies are making data and analytics a priority. In a recent General Electric survey, 42% of manufacturers have said “big data” is a top priority. In the same survey, another 45% said that it is one of their three highest priorities. Today we talk a lot about the what and the how. What are big data, IIoT, and Industry 4.0? How are smart sensors, software, machine learning, and artificial intelligence connected?

4

NOVEMBER 2022

In most of these conversations we do not discuss the why: Why is data important? Why are we using smart sensors? As an example, let us look at telematics. Today we address a lot of the how and what commodities. Metrics, such as vehicle tracking, are used by 85% of fleet owners. This tells you where the vehicle is always located. However, it does not tell you how efficient the driver may be at planning the route. The car broadcasts data such as machine speed, fuel consumption, and temperature from the engine. It may also record additional inputs such as hydraulic oil, level, pressure, and humidity. This broadcast data is useful, but it does not tell you about impending maintenance issues. Finally, if we look at driver-performance monitoring, it is normally represented in data tracking accelerating or braking styles and how efficiently the driver followed the planned route. It does not explore the possibility of the driver looking down at his or her cell phone. There is a shift in business models with this digital transformation, and each of us are in a different stage. For the past number of decades, most of us have navigated the waters of Wave 1. This is the classic ownership model, in which you pay a one-time price for a machine or after-sales service. An OEM provides a warranty for a limited time, and any service work beyond that follows the classic model of sending a technician or bringing the machine in for repairs. Wave 2 is the usage-based model, in which a customer pays for the actual usage of the machine but does not own it. In Wave 2, uptime becomes critical. If your machine is not performing at 100%, you may not get paid. Now you need more insights into the machine operation to detect wear and tear. With this information, you can schedule downtime for maintenance and repairs. Lastly is the final stage, Wave 3, the outcome-based model. The customer only pays for the finished product and does not care which machine achieves it. However, you are responsible for the final product, and having a full understanding of the machine health and product quality is critical. The classic consumer example of Wave 3 is Uber. As we mitigate these in the times in which we live, the digital transformation movement is ongoing. We need to determine which wave we are in and which one our clients expect from us in the future. This could take a few months or many years. The main point is – we need to prepare ourselves for this change. •

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


New Problem PUBLISHER Innovative Designs & Publishing, Inc. 3245 Freemansburg Avenue, Palmer, PA 18045-7118 Tel: 800-730-5904 or 610-923-0380 Fax: 610-923-0390 • Email: Art@FluidPowerJournal.com www.FluidPowerJournal.com Founders: Paul and Lisa Prass Associate Publisher: Bob McKinney Editor: Michael Degan Technical Editor: Dan Helgerson, CFPAI/AJPP, CFPS, CFPECS, CFPSD, CFPMT, CFPCC Director of Creative Services: Erica Montes Graphic Designer: Nicholas Reeder Account Executive: Kristy O'Brien Accounting: Donna Bachman, Sarah Varano Circulation Manager: Andrea Karges

FIGURE IT OUT

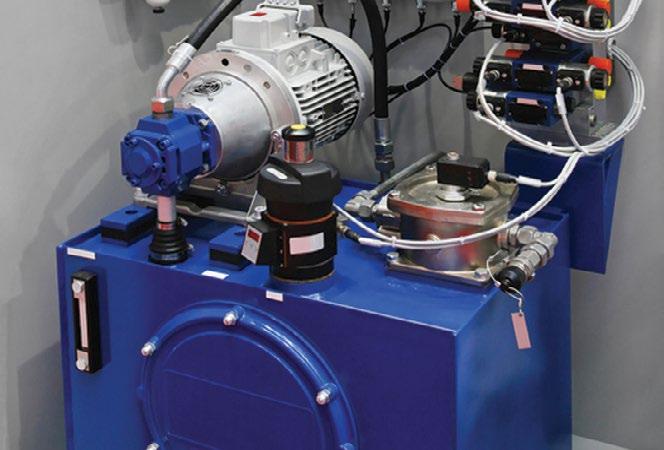

Relocating HPU Causes Start-up Problem By Robert Sheaf, CFPAI/AJPP, CFPE, CFPS, CFPECS, CFPMT, CFPMIP, CFPMMH, CFPMIH, CFPMM, CFC Industrial Training 5" B x 3.5" ROD x 36" LONG

INTERNATIONAL FLUID POWER SOCIETY 1930 East Marlton Pike, Suite A-2, Cherry Hill, NJ 08003-2141 Tel: 856-489-8983 • Fax: 856-424-9248 Email: AskUs@ifps.org • Web: www.ifps.org 2020 BOARD OF DIRECTORS President: Denis Poirier Jr., CFPAI/AJPP, CFPHS, CFPIHM, CFPCC Danfoss Power Solutions Immediate Past President: Rocky Phoenix, CFPMMH Open Loop Energy First Vice President: Scott Sardina, PE, CFPAI, CFPHS, CFPECS - Waterclock Engineering Treasurer: Jeff Hodges, CFPAI/AJPP, CFPMHM - Altec Industries Vice President Certification: James O’Halek, CFPAI/AJPP, CFPMIP, CMPMM - The Boeing Company Vice President Marketing: Chauntelle Baughman, CFPHSOneHydraulics Vice President Education: Randy Bobbitt, CFPAI, CFPHS Danfoss Power Solutions Vice President Membership: Garrett Hoisington, CFPAI/AJPP, CFPS, CFPMHM - Open Loop Energy DIRECTORS-AT-LARGE Stephen Blazer, CFPE, CFPS, CFPMHM, CFPIHT, CFPMHT - Altec Industries Steve Bogush, CFPAI/AJPP, CFPHS, CFPIHM - Poclain Hydraulics Cary Boozer, PE, CFPE - Motion Industries Lisa DeBenedetto, CFPS - GS Global Resources Daniel Fernandes, CFPECS, CFPS - Sun Hydraulics Brian Kenoyer, CFPHS - CemenTech Jon Rhodes, CFPAI, CFPS, CFPECS - CFC Industrial Training Mohaned Shahin, CFPS - Parker Hannifin Randy Smith, CFPHS - Northrop Grumman Ethan Stuart, CFPS, CFPECS - Wainbee Limited Brian Wheeler, CFPAI/AJPP, CFPMM, CFPMIP The Boeing Company HONORARY DIRECTORS-AT-LARGE AND EX OFFICIO Donna Pollander, ACA Paul Prass, Fluid Power Journal Liz Rehfus, CFPE, CFPS Robert Sheaf, CFPAI/AJPP - CFC Industrial Training IFPS STAFF Chief Executive Officer: Donna Pollander, ACA Technical Director: Thomas Blansett, CFPS, CFPAI Certification Logistics Manager: Kyle Pollander Communications Coordinator: Victoria Piro Layout/Graphics Designer: Chalie Clair Assistant Director: Jenna Mort Bookkeeper: Diane McMahon Administrative Assistant: Beth Borodziuk Fluid Power Journal (ISSN# 1073-7898) is the official publication of the International Fluid Power Society published monthly with four supplemental issues, including a Systems Integrator Directory, Off-Highway Suppliers Directory, Tech Directory, and Manufacturers Directory, by Innovative Designs & Publishing, Inc., 3245 Freemansburg Avenue, Palmer, PA 18045-7118. All Rights Reserved. Reproduction in whole or in part of any material in this publication is acceptable with credit. Publishers assume no liability for any information published. We reserve the right to accept or reject all advertising material and will not guarantee the return or safety of unsolicited art, photographs, or manuscripts.

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

15

3 MICRON 50 PSI BY-PASS CHECK

SET @ 3500 PSI

65 PSI CHECK

H2O

»

A CUSTOMER WAS rearranging his shop floor to accommodate a new assembly line. They moved a clamp and grind machine to a location where there was too little room to place the HPU close to the machine. The existing hoses connecting the two were 30 feet long and routed through a hole in a wall to the unit. The company realized that the longer hoses needed their size increased to account for the pressure drop caused by their new length. But they encountered a problem during start-up. The cylinder wasn’t responding as in the past. It could not reach max speed extending, and there seemed to be little control of the retract speed. The counterbalance valve was mounted close to the cylinder. They installed a new counterbalance valve, but there was no change. Even a new proportional valve didn’t help. What could be the problem?

Solution to the October 2022 problem:

Compactor Loses Pressure to All Circuits

After checking most of the normal causes for lack of pressure, I thought that the pilot orifice in the main pilot operated directional valve was plugged. When I removed the main stage of the directional valve, I found it had a check valve insert in the pressure port. This creates enough pilot pressure to shift the main spool and requires about 75 psi minimum. A piece of plastic was holding the check valve fully open. Removing the obstacle solved the lack of main system pressure. Further inspection then found that the bypass check in the pressure filter had failed and generated the plastic piece. We installed a new filter housing.

NOVEMBER 2022

5


COVER STORY

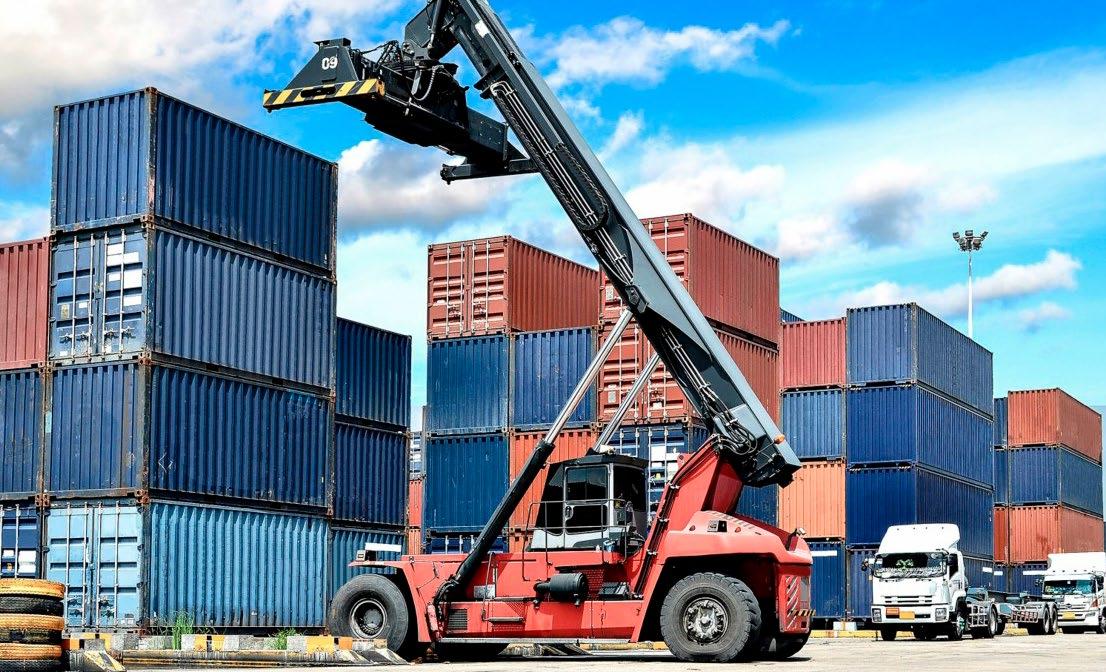

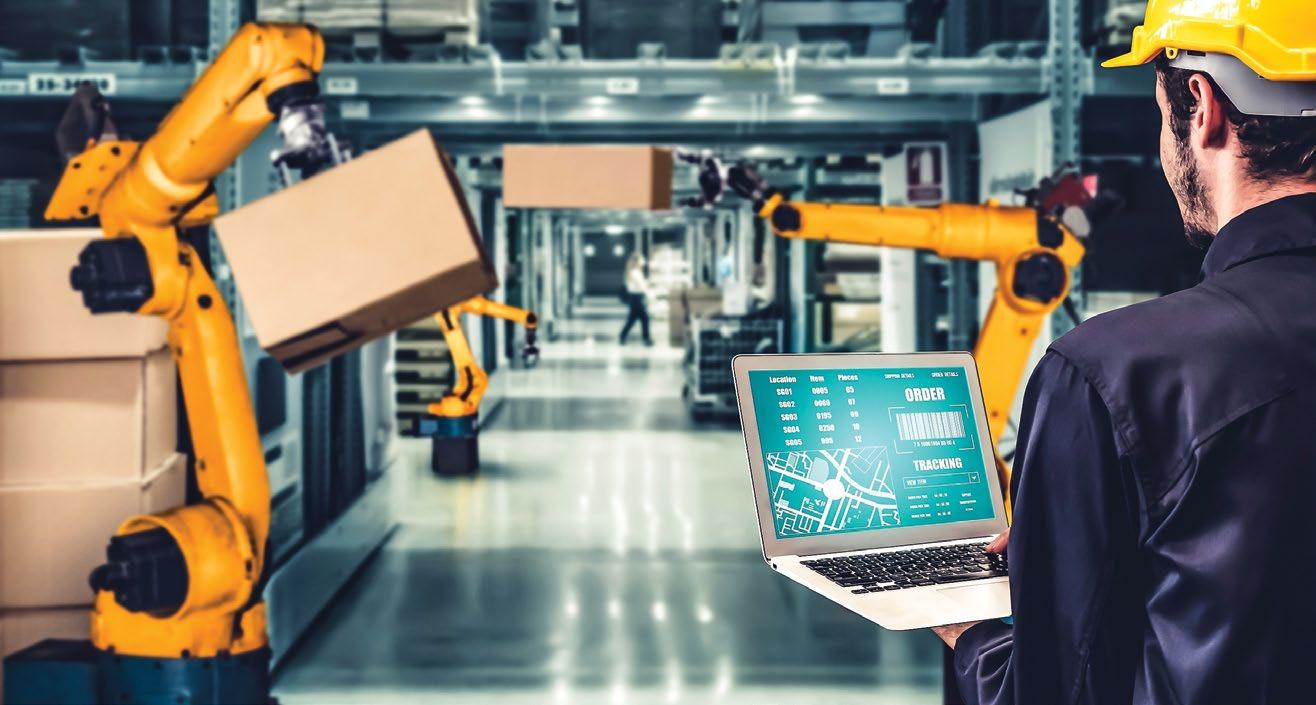

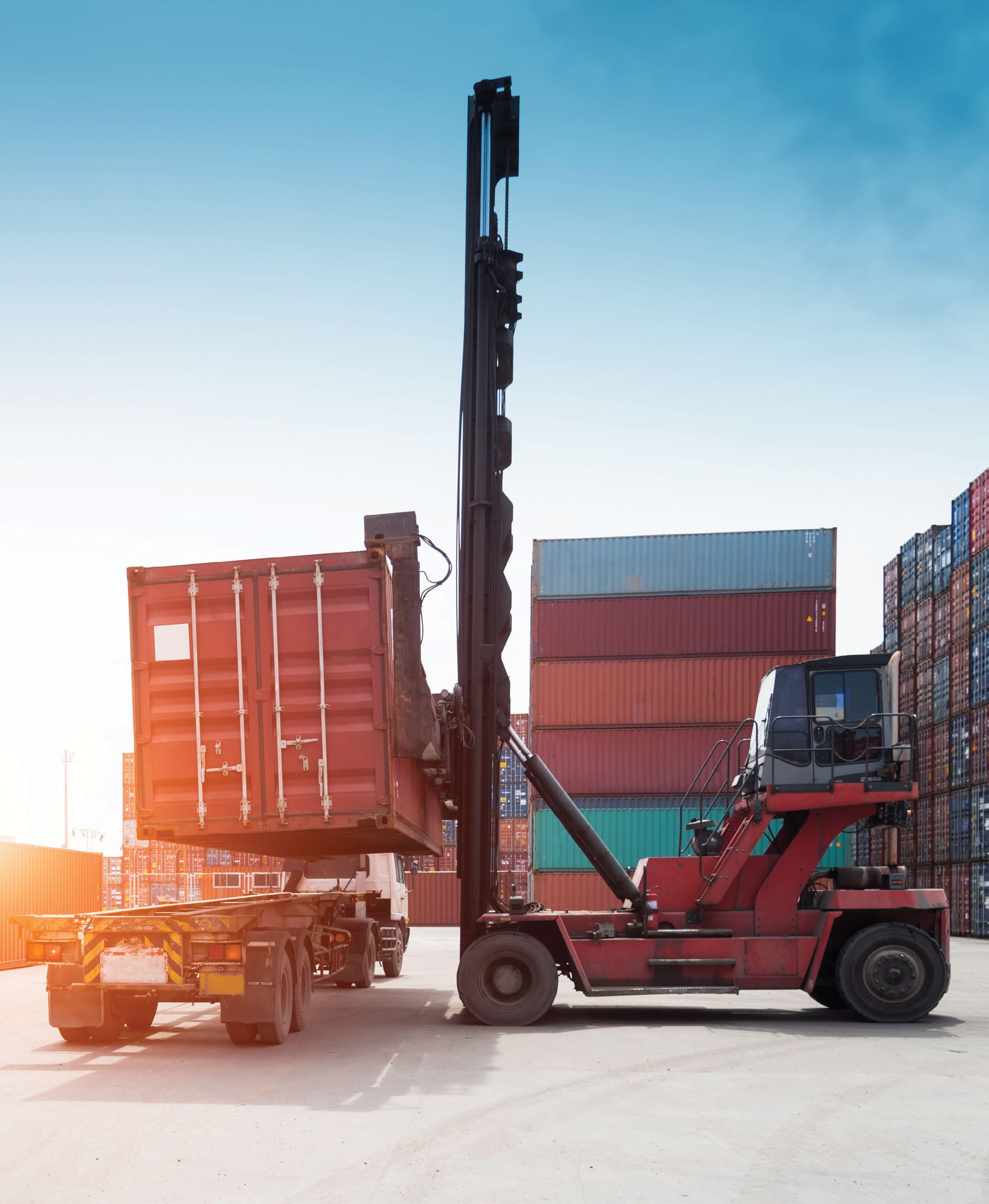

CARRY ON Fluid Power Keeps Pace with Material Handling By Wendy Wu, Product Manager Hydraulic Hose & Couplings, Industrial Europe, Gates

M

aterial handling takes place at every stage of the supply chain. It involves the movement, storage, protection, and control of raw materials and finished goods. Fluid power is a close partner with material handling. Fluid power systems are often used for advanced handling applications involving complex sequences of motion control. That control allows for mechanical tasks such as rotations, lifts, turns, and conveyer operations, or extremely difficult tasks, like tunnel excavation. Optimizing material handling and improving supply chain efficiency have been constant challenges, but their scope is shifting considerably. Acceleration of e-commerce adoption on a larger scale, increased customer expectations, the urgency of a green transition, and unexpected disruption of the supply chain ecosystem put additional pressure on both suppliers and buyers. Innovation is more critical than ever in supply chain management – and by extension, materials handling – for building resilience, tackling long-term challenges, and contributing to global CO2 emissions reduction targets. Historically, material handling was not an industry that came to mind when people thought of the disruption or adoption of technologies. Now it’s a very dynamic field. What are the focus areas and priorities for keeping up with the changing technology of the material handling industry and contributing to its future development? The answer is key for fluid power companies mapping their own innovation journey, as well as for equipment manufacturers choosing the right supplier. This article discusses major success factors of companies taking on challenges, grabbing opportunities, and thriving in this new era of material handling.

6

NOVEMBER 2022

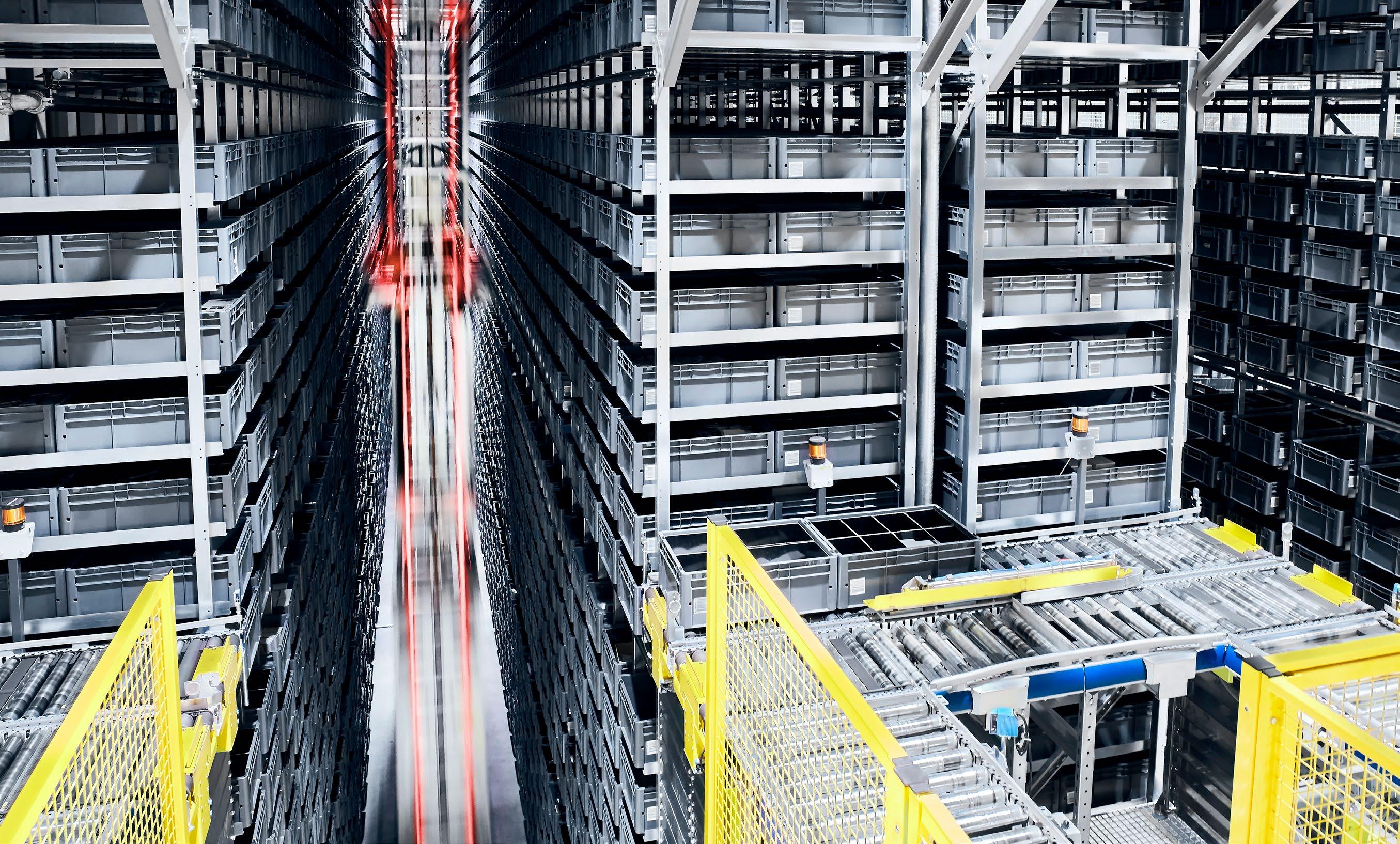

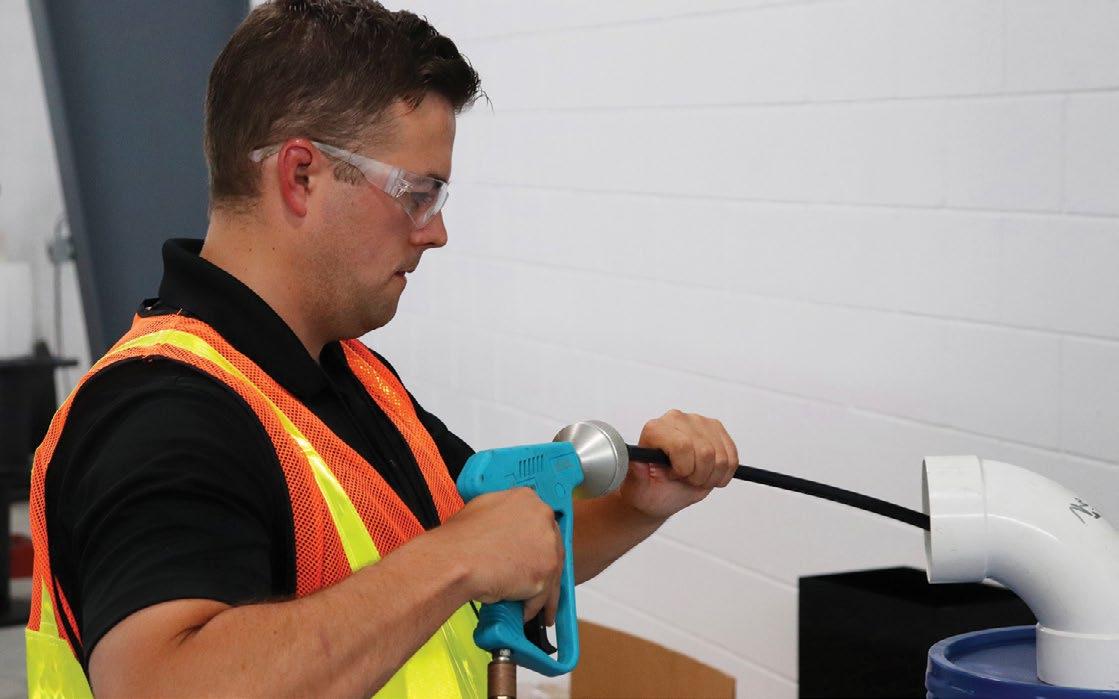

Material handling automation The speed of the material handling industry’s embrace of automation and emerging technologies in recent years has been astonishing, although it varies among subsegments. Automation technology is advancing fast and creating disruptive change in material handling for product manufacturers, retail businesses, e-commerce players, and end customers. With automated conveyors, guided vehicles, and storage and retrieval systems, along with tools like warehouse cranes, goods movement can be almost entirely automated. Furthermore, artificial intelligence and the Internet of Things have paved the way for a new era of robotic material handling. Industrial automation is not a new concept, and fluid power has several features that help automate manufacturing operations. Fluid power equipment can maintain constant and steady pressure, avoiding the overheating or failure of electric motors when exerting continuous force. This steady pressure permits the smooth motion of mechanical arms for functions such as lifting and holding heavy objects or gripping an object with a controllable force. Besides meeting technical requirements, fluid power is the preferred solution in many automation applications, especially when it is more economical than electrical power. Digital transformation means more than adding automation. Material handling is linked with advanced technologies such as self-driving, blockchain, and AI. Digital technologies are reinventing equipment, elevating it to the next level of user experience, safety, and efficiency. The industry-first Gates GC20 crimper, for example, is supported by the Gates Cortex Intelligence automation platform. It offers real-time

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


cloud connectivity and system integration, allowing operators of any skill level to intuitively crimp assemblies safely and error-free. Regardless of debates about the negative effects of digitalization, we are in a digitized economy and business environment. Digital transformation is of strategic importance to leading fluid power manufacturers and players diving into new segments.

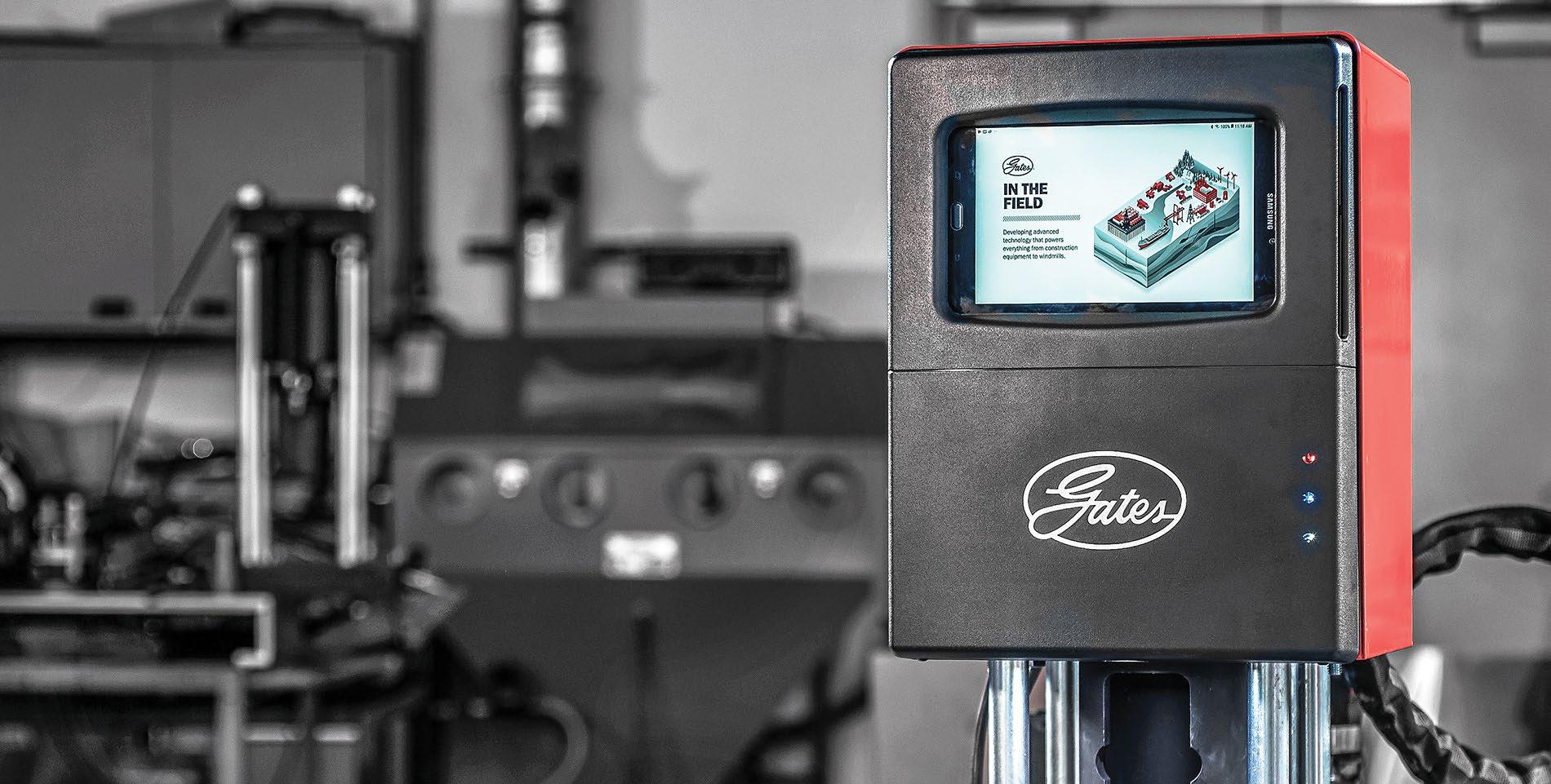

A ‘culture of innovation’ The remarkable shift toward increased automation and digitizaGates’ GC20 crimper tion of material handling requires offers real-time cloud connectivity. an accelerated adoption of technologies and adaptation to the trend. Introducing, implementing, and absorbing rapid changes in technologies can be challenging and complex. During the innovation journey, companies can fall behind simply because they do not fully understand the trend, they are reluctant to move, or they lack a system to support creativity. The driving force is a culture of innovation. It encourages creative solutions for meeting customer needs and secures the continuous innovation of products, processes, and services. For example, Gates Corporation has historically been first-to-market with innovations, including the M3K constant-pressure hydraulic hose and Quick-Lok threadless snap-in hydraulic couplings. This type of innovation culture leads people to challenge the limits, proved by the recent X-Series hydraulic innovations from Gates, featuring the MXT and MXG lines. In a disruptive age, every company needs to be a truly innovative solution provider. This is essential not only for business growth but also for surviving the transformation. Material handling capability is a focal point for operations efficiency, supply chain optimization, and manufacturing productivity. Highly automated material handling systems significantly improve process efficiency. Major benefits also lie in their scalability and accuracy. They can be programmed to handle multiple tasks simultaneously, mitigating human mistakes and errors. However, system reliability is crucial to fully realize those benefits. Automated systems, in turn, have the ability to collect accurate data of operations and working conditions. This benefits new process and model implementation to improve system reliability, such as proactive maintenance service, which largely depends on condition-based issue prediction and data-driven activity. Efficiency and reliability are inseparable because one requires the other for companies to increase profit and improve productivity. For components suppliers or producers of fluid power equipment, both efficiency and reliability need to be considered when it comes to equipment development and optimization. Innovation must be compatible with reliability, helping to eliminate or greatly reduce any risk for customers who are early users of innovative practices. Fluid power applications can impact efficiency and reliability in several ways. To illustrate, consider how the Gates MXG 5K hose contributes to system competency and dependability. It is 25% more flexible than

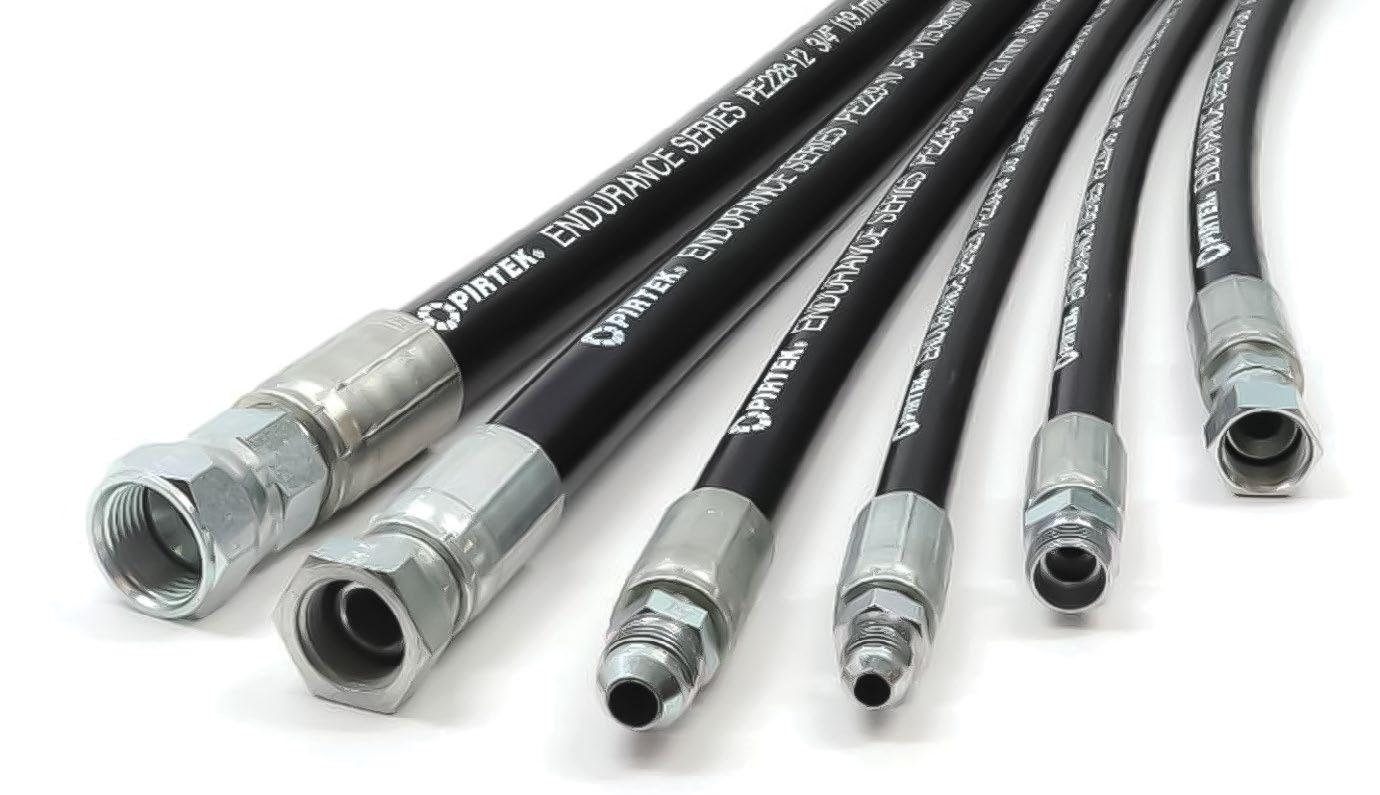

legacy hydraulic hoses. A more flexible hose makes it easier to get a flush mount at the manifold during installation, which reduces the risk of hydraulic fluid leaks. In dynamic applications, more flexibility means less power goes into moving the hose, so more power can be used for actual work. Tested to 1 million impulse cycles, the MXG 5K comes with an XtraTuff Plus cover that is both abrasion- and ozone-resistant, delivering long-lasting performance and reliability on the inside and the outside. Most original equipment manufacturers find a simple solution to reduce downtime, mitigate risks, and tackle future uncertainty to increase the strength and longevity of the system. Premium-quality materials often equate to long-term durability and life. Selecting premium products is an effective way to attain product reliability and eliminate downtime in the field. High quality doesn’t mean high cost. Companies need to carefully evaluate the total cost of ownership, factoring in the original purchase price of the component, the installation time and effort, plus any maintenance costs during the operational life.

Long-term value Mechanical reliability relies heavily on materials science and engineering, plus operating conditions and environment. When fluid power components – fittings, hose, and tubing for hydraulic or pneumatic systems – all come from the same manufacturer, it hedges against the risk of shutdown caused by incompatible components. The Gates MXT wire braid hose and Gates MegaCrimp couplings are qualified to work together as matched systems. When assembled per Gates specifications, they are warrantied to exceed 600,000 impulse cycles, which is more than three times the industry standard. A Gates customer in Malaysia faced a leaking problem in its logistics operations every two months due to mix-and-match hose and couplings. The company resolved the issue by selecting and using the Gates MXT series and validated couplings. The Gates engineering process pays strict attention to minimizing the number of components, which reduces the number of leak paths and offers optimal longevity, efficiency, and reliability. While efficiency and reliability improvements are primary focuses for business growth, to increase long-term business value sustainability is unignorable. It is of special concern today. In the context of business uncertainty, it raises new challenges. Every market has experienced a Continued to Page 8

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

NOVEMBER 2022

7


Continued from page 7 surge in energy prices due to rebounding demand after the COVID-19 pandemic. Global supply chains are expected to struggle amid constant volatility, and it is hard to predict when the backlog will end. Investment for establishing green supply chain or material handling systems undoubtedly creates value in the long term. Material handling systems consume substantial amounts of energy over time. Electric consumption due to direct movements of products or materials by material handling is a macro-category in logistics chains. Obtaining and transporting energy is increasingly expensive. Energy savings are a strategic factor for many businesses, so the features of automated and robotic equipment they desire include energy efficiency and compact size.

Fluid power is the preferred solution in many automation applications, especially when it is more economical than electrical power.

A human-robot interaction environment requires new health and safety measures.

In terms of energy conversion, pneumatics and hydraulics are efficient solutions for a number of applications. Converting the energy of compressed air into motion, pneumatic actuators are highly efficient sources of motion control. Pneumatic control systems are economical and can be advantageously applied to other forms of power. In hydraulics systems, pressurized fluids are transmitted over long distances and through complex machine configurations with little loss in power. An important contributor to sustainability improvement is an increased system life, reducing the impact of production and decommissioning. The leading trend in fluid power machinery is continuous improvement in product flexibility, compactness, and weight. Hydraulic hoses are a shining example; high flexibility helps achieve high efficiency, allowing for shorter assembly time and easier routing during installation. As examples, Gates MXT hoses (with braided high-tensile steel wire reinforcement) and the recently launched Gates MXG series hoses (with patented Xpiral woven spiral technology) are remarkably more lightweight – for improved fuel economy and longer time in the field before refilling – extremely more flexible, and much more compact compared to their premium legacy equivalents.

8

NOVEMBER 2022

Sustainability dynamics Smart material handling enables automated procedures that employ less energy, provide real-time operational visibility, and turn data into actionable insights. There is no denying that using renewable energy in industry and power generation is a trend, but this transition will likely take some time. So the quickest way to tackle an energy crisis is with energy savings, where the adoption of lighter components of equipment can play a big role. Forklifts are one of the most widely used pieces of equipment for moving and managing materials in a warehouse and are typically outfitted with over 10 meters (32 feet) of hoses. Large scissor lifts can have hundreds of meters of hydraulic lines on one application. Weight reduction brings considerable energy-saving potential and is important for building energy-efficient hydraulic systems. Every industry’s sustainable development relies on ecological sustainability. Fluid power is no different. There is still a lot to be done to accelerate the transition toward sustainability dynamics. Steps in that direction include the formation of standards and principles in the design of green fluid power systems and advocating for environmentally safe fluids. Players with far-reaching vision have invested more in products that lessen environmental impacts, mainly by reducing noise emissions, heat generation, and oil leaks and spills from fluid power applications. Gates was an early adopter of environmentally friendly materials in products. In 2003, Gates launched the EFG hose series. “EF” stands for EnviroFluid, indicating the product is compatible with even the most aggressive biodegradable hydraulic fluids, such as synthetic esters, polyglycols, and vegetable oils. Key players in fluid power go beyond product designs to implement energy-saving manufacturing practices that reduce their ecological footprint. Gates facilities in Belgium and Thailand employ solar energy to lower carbon footprints. The Belgium facility is 100% solar powered and generates up to 739 kilowatts peak. The Thailand facility achieved an energy savings of 24,336 kilowatt hours per year. Last but not least, don’t forget about people. As companies progress to an era of highly automated manufacturing and distribution, the journey can be sustainable only when we prioritize people every step along the way. The design of fluid power systems, whether in manual or automated form, must consider improved ergonomics and mitigate new health and safety risks for people who interact with robots in so-called cobotic environments. Highlighting attention paid to ergonomics during the design process, Gates fluid power products are lighter weight and more flexible for ease of installation and to help reduce stress and strain when handling. Fluid power, material handling, and supply chain share key benchmarks: efficiency, reliability, and sustainability. Driven by components manufacturers, equipment and machinery OEMs, and industry organizations, fluid power innovation is essential for companies to cope with supply chain issues and win in the new reality. Advancements in material handling offer opportunities for fluid power to make a positive impact. Along with emerging technologies reshaping virtually every industry, material handling has fast become the objective for a steady, nonstop flow of goods, which prompts fluid power to accelerate along its road to innovation. Innovation is a journey, not a guarantee for success. A truly innovative culture leads to sound strategy and a well-developed actions framework. Companies must identify their focus areas, coordinate efforts, and leverage sources to hurdle current obstacles and be ready to respond to future challenges. •

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


SCAN FOR INFO

SAFE  SMART  STRONG

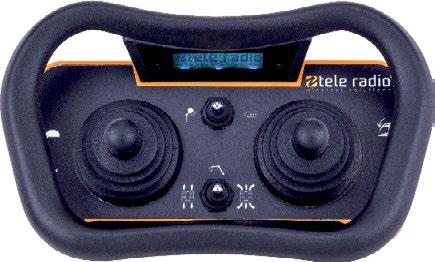

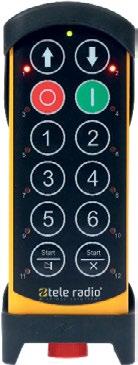

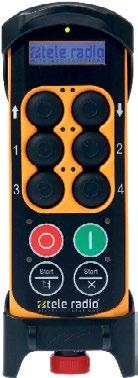

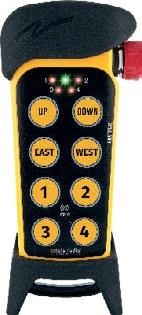

REMOTE CONTROL FOR HYDRAULIC APPLICATIONS PLd

+1 305 459 0763

AN

COMPANY

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

www.teleradio.com

sales@teleradio.com Tele Radio America, LLC NOVEMBER 2022

9


TEST YOUR SKILLS

SIZING AND SELECTING VACUUM PADS V

acuum pads are primarily used for handling smooth-surfaced material but can be used with textured or irregularly shaped material as well. Because sheet glass and other products that have a smooth surface generally have few to no places for attaching mechanical hooks and grippers, vacuum pad technology enables the material to be efficiently and safely moved. Because of the many applications for using vacuum pad lifting technology, and the many possibilities of surfaces and working environments encountered, vacuum pads come in various shapes, sizes, and materials to allow a wide selection range. The principle behind vacuum pad technology is simple. The area of the pad multiplied by the pressure applied results in a holding force. The pressure within the pad is less than atmospheric (vacuum). The differential pressure between atmospheric and the vacuum level within the pad is the effective pressure against the area of the pad contacting the surface of the material. This results in a force holding the material to the pad. The pad is attached by placing it against the surface and then drawing a vacuum. The force required to pull the cup away from the surface is proportional to the vacuum and size of the pad. The higher the vacuum, or larger the vacuum pad, the stronger the pull force required to detach the vacuum pad. If the vacuum is provided in units of negative pressure (-psi or -kPa) then the calculation is the standard formula for force. If the vacuum is provided in a different unit of measure, the simplest solution is to convert the units to the equivalent negative pressure first. Proper selection of vacuum pads is much more involved than the simple pressure-times-area calculations. The effective force used in the calculation must include the acceleration forces in all directions in addition to the weight of the workpiece. The interface between the vacuum pad and the workpiece is not a 100% seal. The accepted practice is to add a safety factor to the load based on the orientation and direction of movement. For applications that include only static holding, a safety factor of 2:1 is

(MM MERCURY)

PSIA, (LB/IN²) ABSOLUTE

INCHES MERCURY ABSOLUTE

INCHES MERCURY VACUUM GAUGE

760

14.7

29.92

0

101.4

700

13.5

27.6

2.32

93.5

600

11.6

23.6

6.32

79.9

500

9.7

19.7

10.22

66.7

400

7.7

15.7

14.22

53.2

300

5.8

11.8

18.12

40

TORR

KPA ABSOLUTE

200

3.9

7.85

22.07

26.6

100

1.93

3.94

25.98

13.3

50

0.97

1.97

27.95

6.7

1

0.01934

0.03937

29.88

0.13

0

0

0

29.92

0

acceptable. Vertical lifting and horizontal movement (which are shear forces) should use a minimum safety factor of 4:1. If the vacuum pads are positioned horizontally with the workpiece positioned vertically a minimum safety factor of 8:1 is recommended. Example 1: The combined force for lifting and moving a workpiece is 24 pounds. The vacuum is 7.8 in-Hg absolute (200 torr). The oval-shaped pad has dimensions of 3 inches x 1 inch. Using a minimum safety factor of 4:1, how many pads should be used? Use atmospheric pressure of 14.7 psia. Solution Calculate pressure difference between atmospheric conditions and the vacuum: 1 in-Hg = 0.491 psi 7.8 • 0.491 = 3.83 psia Pressure differential = 14.7 – 3.83 = 10.87 psi differential. Calculate the area of the vacuum pad. The area of an oval pad is found by multiplying the major radius by the minor radius then multiplying by pi (π): The oval pad has dimensions of 3 x 1 inch. The major radius is 1.5 inches and the minor radius is 0.5 inches. Area = 1.5 • 0.5 • π (3.14) Area = 2.36 inches Calculate the force of one vacuum pad: F = p • a = 10.87 • 2.36 = 25.65 lb per pad. Total force (required including safety factor) = 96 lb Number of pads = 96 lb / 25.65 lb per pad = 3.74 pads. Number of pads required = 4. Example 2: What is the lifting capacity of a quantity of 10 vacuum pads, each with an effective diameter of 30 mm using a vacuum of -55 kPa? The recommended safety factor is 8:1. Solution Calculate the total area of the pads. Each pad = 30² • 0.7854 = 707 mm². Total area = 10 • 707 = 7,070 mm². Calculate the theoretical lifting force. (55 • 7,070) / 1,000 = 388.85 N. Determine lifting capacity including safety factor. 388.85 / 8 = 48.61 N.

Note: Chart is referenced to sea level.

10

NOVEMBER 2022

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


The surface of the workpiece will affects the quantity and profile of the vacuum pads that should be used. Multiple pads distribute the force to prevent damage due to deflection. Multiple pads also provide an additional margin of safety in the event of a pad's failure. Pads that have a bellows or oblong shape provide for a better sealing surface on rounded or uniquely shaped parts. The surface of the workpiece influences the pad's material. Softer materials form a better seal to reduce the amount of leakage, but they are subject to more wear. Residue of the workpiece manufacturing process and temperature also influence the material selection. Other considerations that should not be overlooked are nonmarking and antistatic requirements. Using pivoting ball mounts at the interface between the vacuum pad and the tooling, the vacuum pad can be positioned perpendicular to an oddly shaped workpiece. Nonrotating mounts ensure that oval-shaped pads maintain proper orientation. Mounts with springs permit greater positioning flexibility. An example would be a transfer line that removes product from a

stack. As the stack height is reduced, the spring takes up the movement, rather than adding an actuator to sequentially lift the stack, or a complicated control that either monitors the height of the stack or the number of parts transferred, to reposition the height of the pad. A vacuum check is a simple solution to ensure that a momentary loss of vacuum will not cause the part to drop. However, it may hinder the release of the vacuum once the process completes. Additional circuitry may be

required, including redundant systems applying vacuum from separate vacuum generators to multiple pads. The actual application of the vacuum pad has many other unknowns that cannot be easily identified. Excessive dust or inconsistent surface finishes affect leakage that adversely impacts the vacuum level. Before approving the final design, the fixture must be extensively tested with several different workpieces to ensure proper long-term operation. •

Safety tip: Regular inspection of vacuum pads is necessary for continued safe performance. Any damaged pad should be replaced immediately to maintain proper safety margin.

TEST YOUR SKILLS 1.

2.

With a flat piece of sheet metal that weighs 100 lb and with atmospheric pressure at sea level – using 4 circular vacuum pads that each have a diameter of 4 in. What is the minimum required vacuum needed for static holding, with standard safety factor of 2:1, on each cup? a. 10.2 in-Hg gauge. b. 26 in-Hg absolute. c. 8.1 in-Hg gauge. d. 14.7 psia. e. 700 torr. What is the equivalent pressure of 300 torr in kPa (a) absolute? a. 40.0 kPa (a). b. -45.3 kPa (a). c. 56.0 kPa (a). d. -56.0 kPa (a). See page 31 for the solutions.

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

NOVEMBER 2022

11


N F PA U P D AT E

Shipments Up in August Rebound After dropping slightly in July, shipments of fluid power products increased in August, according to data from the National Fluid Power Association. NFPA’s raw index data shows pneumatic, mobile hydraulic, and industrial hydraulic shipments all grew in August when compared to July. The year-to-date change for total fluid power shipments in August was 16.4%. The 12-month moving average of shipments for pneumatics, hydraulics, and total fluid power continues to grow. The data is from fluid power manufacturers in NFPA’s Confidential Shipment Statistics (CSS) program.

Hydraulic and Pneumatic Shipments

SHIPMENTS

Raw Index Data, Index: 2018=100

MONTH

TOTAL FLUID POWER

TOTAL HYD.

TOTAL PNEU.

Jun 2022

15.5

18.1

7.6

Jul 2022

15.2

17.8

7.1

Aug 2022*

16.4

19.0

8.1

*Preliminary data subject to revision.

Shipments – Cumulative year‐to‐ date % change (2022 vs. 2021)

This graph of raw index data is generated by the total dollar volume reported to NFPA by CSS participants and compared to the average monthly dollar volume in 2018. For example, the August 2022 total dollar volume for pneumatic shipments is 119.8% of the average monthly dollar volume in 2018. (Base Year 2018 = 100)

The table above is expressed in terms of cumulative percent changes. These changes refer to the percent difference between the relevant cumulative total for 2022 and the total for the same months in 2021. For example, August 2022 pneumatic shipments figure of 8.1 means that for the calendar year through August 2022, pneumatic shipments increased 8.1% compared to the same time-period in 2021.

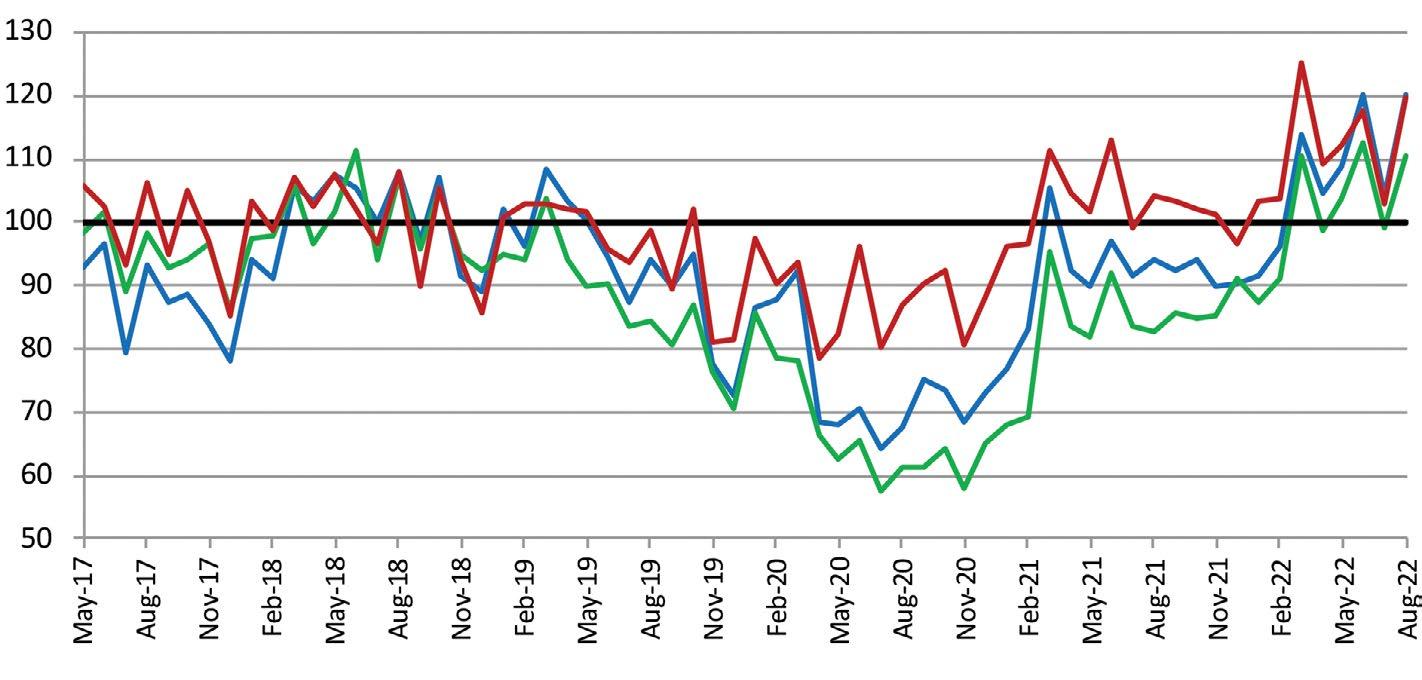

Pneumatic, Mobile and Industrial Hydraulic Orders 12/12 Ratio Each point on this graph represents the most recent 12 months of orders compared to the previous 12 months of orders. Each point can be read as a percentage. For example, 125.0 (the August 2022 level of the industrial hydraulic series) indicates that industrial hydraulic orders received from September 2021 to August 2022 were 125.0 % of the orders received from September 2020 to August 2021. (Base Year 2018 =100)

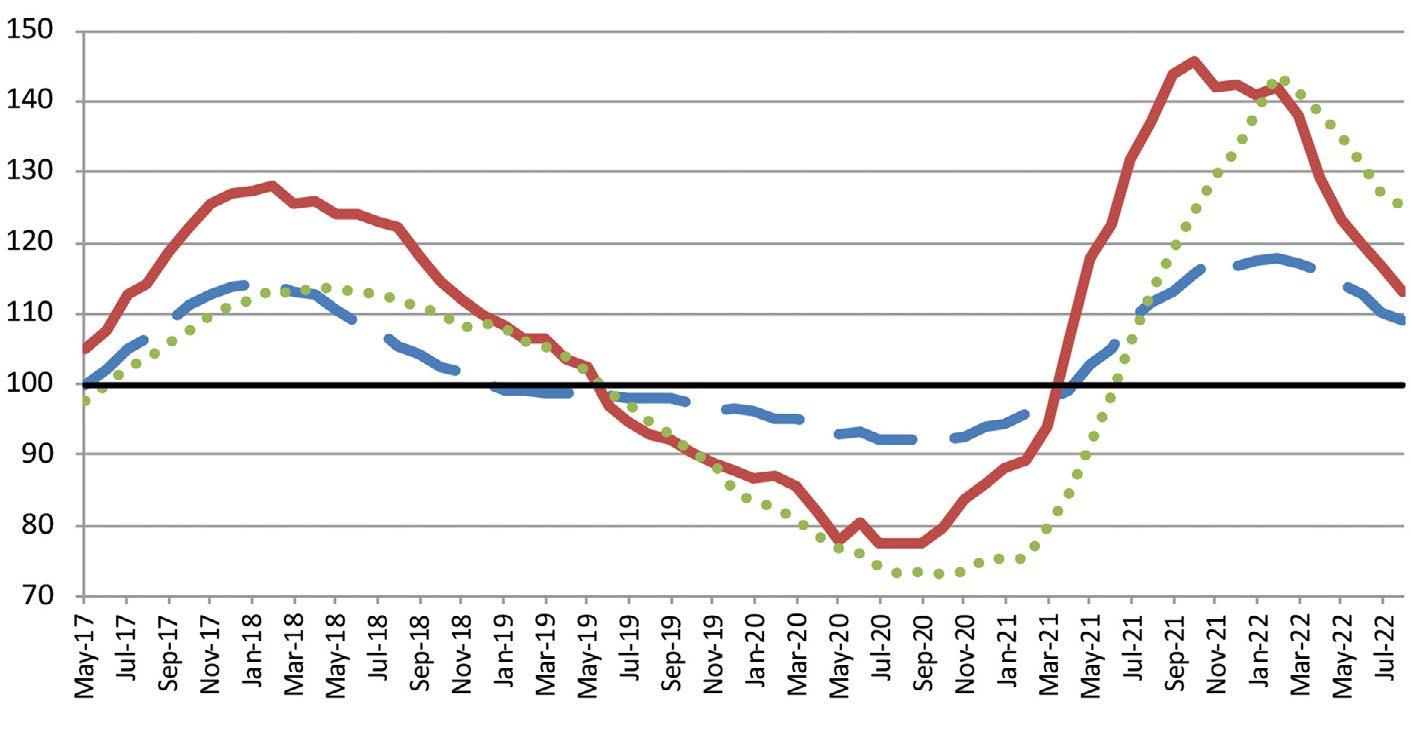

Total ‐ Hydraulic and Pneumatic Shipments 12 Month Moving Average

This graph of 12-month moving averages shows that in August 2022, total fluid power, total pneumatic, and total hydraulic all increased. (Base Year 2018 = 100)

12

NOVEMBER 2022

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


I F P S U P D AT E

Newly Certified Professionals August 2022 ACCREDITED INSTRUCTORS David Rowe, Altec Industries Seth Davis, Pueblo Community College Kevin Lynk CONNECTOR AND CONDUCTOR Travis Barthalow, Manitowoc Crane Group Joe Hege, Manitowoc Cranes ELECTRONIC CONTROLS SPECIALIST Andrew Patience Evan Dimmerling Erick Garza, HydraForce Quinn Schmidt, HydraForce Cole Yungerman, HydraForce Orlando Arvelo HYDRAULIC SPECIALIST Andrew Blackstock William Kapherr, Altec Industries Tyler Miller Jason Stewart David Wyandt, Motion Industries Andrew Duncan, Altec Industries

MOBILE HYDRAULIC MECHANIC Trevor Swanson, Altec Industries Matt Barnes, Ameren Corporation Jacob Cook, Ameren Corporation Dale Hendricks, Ameren Corporation Caleb Krotz, Ameren Corporation Stephen Lindewirth, Ameren Corporation Aaron Stengel, Ameren Corporation Rolando Casas, AEP William Bower Jr., Southern California Edison Kyle Kemper, Altec Industries Kyle Rush, Motion & Flow Control Products Tyler Coots, Altec Industries Matt Moreman, Altec Industries John Ronkainen, Altec Industries Nicolas Heredia, Altec Industries Juan Vega, Altec Industries Bryce Trone, Altec Industries PNEUMATIC SPECIALIST Alana Torres Vidal, Norgren Ryan Bumgarner, SMC Corporation of America Gloriana Urdaneta Azuaje, IMI Precision Engineering Bradley Wagner, Manitowoc Crane Group Matthew Eckert, Gulf Controls Company Joshua Pilkin, IMI-Norgren LLC SPECIALIST Holds HS and PS Certifications Bradley Wagner, Manitowoc Crane Group Matthew Eckert, Gulf Controls Company

WEB SEMINAR: THE CONSTRUCTION, OPERATION, SIZING, AND APPLICATIONS OF USING ACCUMULATORS Dec. 21, 12-1 p.m. ET Presented by Medhat Khalil, CFPAI, CPFHS

IFPS ANNUAL MEETING AND HALL OF FAME AWARDS CEREMONY Sept. 25-28, 2023, Milwaukee For more information, visit www.ifps.org.

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

TRAINING

AND CERTIFICATION FOR: Hydraulic Techs & Engineers Electrical Techs & Engineers Pneumatic Techs & Engineers Multicraft Techs & Engineers

UPSKILL YOUR WORKFORCE! CFC provides direct, Industry and/or Machine-specific training to companies the world over. Our Hands-On Training Equipment is mobilized directly to your facility with Certified Instructors traveling on-site.

Mark Your Calendar

IFPS SPRING MEETING Feb. 27-March 2, 2023, New Orleans

ONSITE

This turnkey approach includes all books, materials, equipment, and travel arrangements. INTERNATIONAL FLUID POWER EXPOSITION March 14-18, 2023, Las Vegas (Visit us at booth SL80126!) IFPS SPRING 2024 MEETING March 11-14, 2024, San Antonio, Texas

We have the capability to upskill your entire workforce NOW! CFCINDUSTRIALTRAINING.com 7042 Fairfield Business Drive Fairfield, Ohio 45014 +1 513.874.3225 info@cfcindustrialtraining.com NOVEMBER 2022

13


I F P S U P D AT E

IFPS Online Training Opportunities IFPS has a range of online resources for professional study and training.

Interactive Hydraulic Specialist Study Manuals Whether studying for the hydraulic specialist certification test, or you simply want to enhance your existing hydraulic skills in a convenient and flexible environment, the new interactive Hydraulic Specialist Study Manual can help. The cost is $349. Visit https://www.ifps.org/online-training to order.

Animated Hydraulic Circuits Visually seeing a circuit perform along with a description of operation can increase the comprehension of a particular component’s operation and its function within the circuit. These animated presentations can be used by: • Anyone interested learning component function and circuit operation. • Instructors to assist in hydraulic specialist certification review training. • Individuals to enhance their preparation to take the hydraulic specialist certification test.

Online Hydraulic Safety Awareness Training IFPS offers online self-paced hydraulic safety awareness training courses. They provide an awareness of hydraulic hazards in the workplace,

Air Compressors

Certification Empowers Opportunity.

in-depth reviews of potential exposures to injury from hydraulic systems, and ways to reduce risk and eliminate hazards for workers, equipment, companies, and the environment. IFPS offers four online hydraulic safety awareness training courses: • Exposure Level • High Risk Maintenance Level • Hydraulic Safety in Construction • Fluid Injection Awareness

Online Training Each self-paced course delivers a broad-based understanding of the most important fluid power subject matter concepts. Courses begin with the basics: physics laws, systems basics and design, basic analysis, and basic components. The courses demonstrate how these systems apply to fluid power and how they interact with each other. Each training course features 12 to 16 hours of trade-specific e-training that uses simulations, assessments, quizzes, tests, learning labs, and more. Completing online training courses does not result in IFPS certification. However, completing courses better prepares you for certification tests. Available online courses include: • Mobile Hydraulics Course* • Industrial Hydraulics Course ** • Industrial Mechanical Course * • Mobile Electrical Course * • Industrial Pneumatics Course * • Industrial Electrical Course * • Electrical Theory * • AC/DC Motors and Drives * • Diesel Engines * • PLC Fundamentals + *available in metric, ** available in metric, Spanish, and Spanish (metric), + available in Spanish

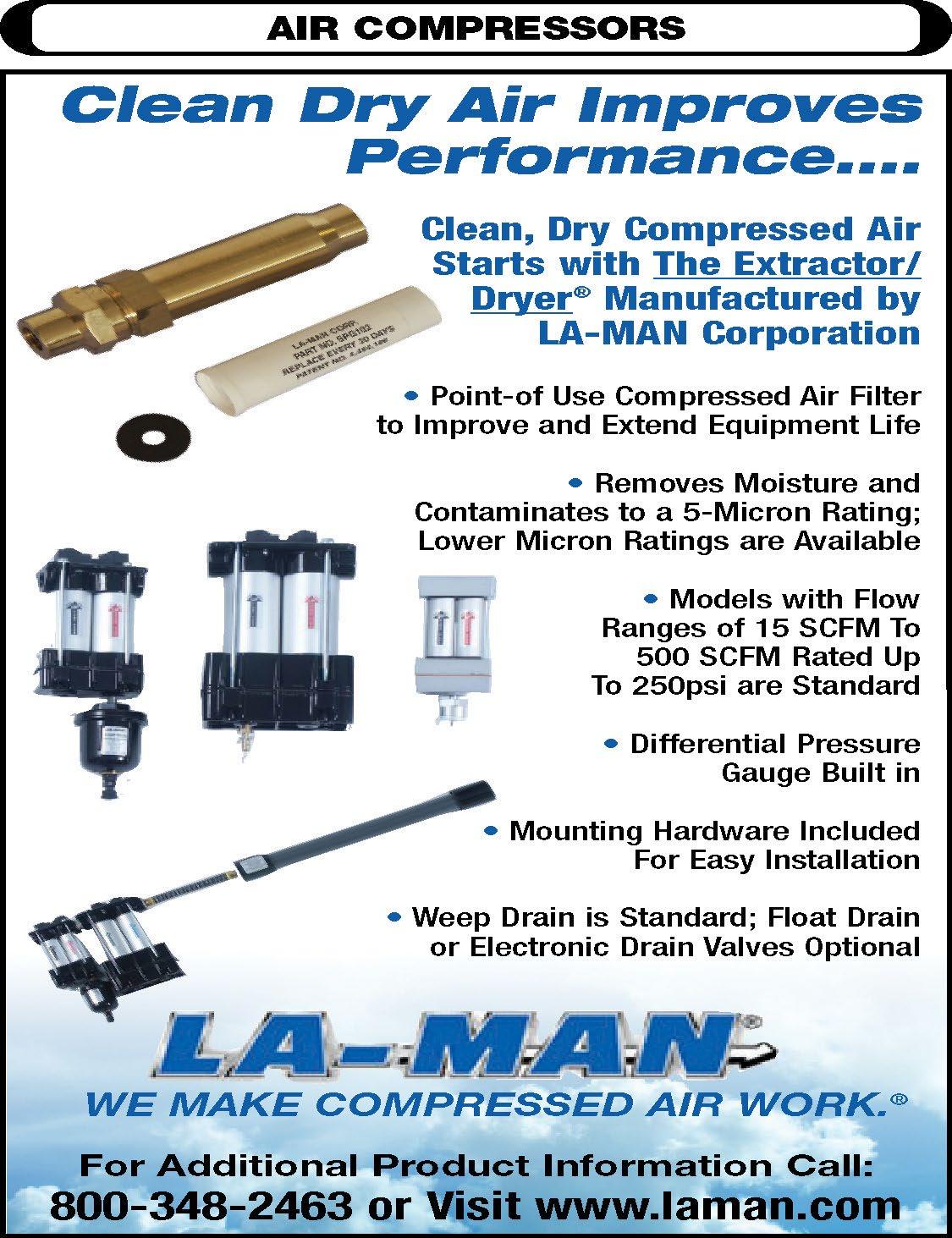

Clean Dry Air Improves Performance... Clean, Dry Compressed Air Starts with The Extractor/Dryer® Manufactured by LA-MAn Corporation

• Point of Use Compressed Air Filter to Improve and Extend Equipment Life

Laman

• Removes Moisture and Contaminates to a 5-Micron Rating: Lower Micron Ratings are Available • Models with Flow Ranges of 15 SCFM to 500 SCFM Rated Up To 250psi are Standard

• Differential Pressure Gauge Built in • Mounting Hardware Included for Easy Installation • Weep Drain is Standard; Float Drain or Electronic Drain Valves Optional

Online Certification Review Training Here’s an excellent tool to prepare for IFPS certification at your own pace and from your own computer. You can enroll for this self-paced online certification review training through CFC Industrial Training’s Learning Management System. IFPS members receive a discount. Training is available for these certifications: • Job Performance (for mechanic and technician certifications) • Mobile Hydraulic Mechanic (written test review) • M obile Hydraulic Mechanic written and Job Performance (as a bundle) • Connector and Conductor

Online Web Seminars IFPS holds web seminars every month. View a list of archived webinars at www.ifps.org.

14

NOVEMBER 2022

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


I F P S U P D AT E

Revised Handbook Now Available

»

A SECOND EDITION of the Fluid Power Reference Handbook is now available. Highlights of the second edition include: • An expanded symbology section ISO 1219 compliant. • New and enhanced graphics. • Expanded topics. • Updated charts that are ISO, ANSI, and SAE compliant. The 388-page Fluid Power Reference Handbook is the gold standard on-the-job reference tool of choice for any fluid power professional. IFPS has sold over 2,000 copies since its first publication in 2020. Soft-cover: Members - $74.95 | Retail - $125.95 Hard-cover: Members - $149.99 |Retail - $165.99 For more information and to purchase, visit www.ifps.org/training-resources-handbook.

IFPS Seeking Web Presenters IFPS is looking for web presenters to conduct hour-long online presentations.

Some of the advantages of participating include: • You’ll receive recertification points. • You’ll receive a free thank-you golf shirt. • It's a great promotion for you and for your company. • IFPS provides a template to use. • You’ll be able to rehearse before going live.

If you are interested or would like more information, contact vpiro@ifps.org.

IFPS Names Pollander CEO

Donna Pollander, executive director of the International Fluid Power Society, has been promoted to CEO of the organization. IFPS’s board of directors approved the move during its annual meeting in September. According to an IFPS press release, Pollander will continue to serve as key liaison to the board of directors and be responsible for dayto-day operations. She will continue to ensure the consistent achievement of IFPS’s mission and financial objectives, provide leadership in developing certification programs and other educational opportunities, and execute organizational and financial plans with the board of directors and staff. “Donna was in reality performing the duties as CEO for quite a while,” Denis Poirier, IFPS board president, said in the press release. “So the board felt it was time to acknowledge her efforts.” Pollander started her career in fluid power in 1995, working part time with the company that managed the Fluid Power Distributors Association. She’s held various positions in the management company until her promotion to IFPS executive director in 2003. IFPS decided to hire the staff in 2014.

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

“IFPS is part of the fiber of who I am, and I am proud to see it flourishing,” Pollander said in the press release. “IFPS’s future is bright, and I am very excited to be at the helm of such an integral part of the fluid power industry!” IFPS is a nonprofit 501(c)(3) professional organization of individuals dedicated to enhancing the quality of certifications, educational opportunities, technology evolution, and professionalism within the fluid power industry. IFPS was founded in Detroit in 1960 by a group of 30 professionals interested in supporting the future of the fluid power industry and the ever-changing technologies involved. Beginning with the first Fluid Power Hydraulic Specialist Certification in 1980, IFPS has become the recognized industry leader in fluid power and motion control certifications. Fifteen different certifications are currently offered, and two are in development. The certifications cover diverse job descriptions, including mechanic, technician, specialist, system designer, and engineer. To date, IFPS has issued over 34,000 certifications. For more information, visit www.ifps.org.

NOVEMBER 2022

15


I F P S U P D AT E

Written Certification Test Locations Individuals wishing to take any IFPS written certification tests can select from convenient locations across the United States and Canada. IFPS is able to offer these locations through its affiliation with the Consortium of College Testing Centers provided by National College Testing Association. Contact headquarters if you do not see a location near you. Every effort will be made to accommodate your needs. If your test was postponed due to the pandemic, please contact headquarters so that we may reschedule.

TENTATIVE TESTING DATES FOR ALL LOCATIONS: December 2022 Tuesday 12/6 • Thursday 12/15 January 2023 Tuesday 1/10 • Thursday 1/26 February 2023 Tuesday 2/7 • Thursday 2/23 March 2023 Tuesday 3/7 • Tuesday 3/28

JOB PERFORMANCE TEST LOCATIONS Arizona Nova Scotia Pennsylvania California Texas Colorado Washington Florida Georgia Wyoming Maine Western Michigan Australia Minnesota Montana New Jersey

16

NOVEMBER 2022

ALABAMA Auburn, AL Birmingham, AL Calera, AL Decatur, AL Huntsville, AL Jacksonville, AL Mobile, AL Montgomery, AL Normal, AL Tuscaloosa, AL ALASKA Anchorage, AK Fairbanks, AK ARIZONA Flagstaff, AZ Glendale, AZ Mesa, AZ Phoenix, AZ Prescott, AZ Scottsdale, AZ Sierra Vista, AZ Tempe, AZ Thatcher, AZ Tucson, AZ Yuma, AZ ARKANSAS Bentonville, AR Hot Springs, AR Little Rock, AR CALIFORNIA Aptos, CA Arcata, CA Bakersfield, CA Dixon, CA Encinitas, CA Fresno, CA Irvine, CA Marysville, CA Riverside, CA Salinas, CA San Diego, CA San Jose, CA San Luis Obispo, CA Santa Ana, CA Santa Maria, CA Santa Rosa, CA Tustin, CA Yucaipa, CA COLORADO Aurora, CO Boulder, CO Springs, CO Denver, CO Durango, CO Ft. Collins, CO Greeley, CO Lakewood, CO Littleton, CO Pueblo, CO DELAWARE Dover, DE Georgetown, DE Newark, DE FLORIDA Avon Park, FL Boca Raton, FL Cocoa, FL Davie, FL Daytona Beach, FL Fort Pierce, FL Ft. Myers, FL Gainesville, FL Jacksonville, FL Miami Gardens, FL Milton, FL New Port Richey, FL Ocala, FL Orlando, FL Panama City, FL Pembroke Pines, FL Pensacola, FL Plant City, FL Riviera Beach, FL Sanford, FL

Tallahassee, FL Tampa, FL West Palm Beach, FL Wildwood, FL Winter Haven, FL GEORGIA Albany, GA Athens, GA Atlanta, GA Carrollton, GA Columbus, GA Dahlonega, GA Dublin, GA Dunwoody, GA Forest Park, GA Lawrenceville, GA Morrow, GA Oakwood, GA Savannah, GA Statesboro, GA Tifton, GA Valdosta, GA HAWAII Laie, HI IDAHO Boise, ID Coeur d ‘Alene, ID Idaho Falls, ID Lewiston, ID Moscow, ID Nampa, ID Rexburg, ID Twin Falls, ID ILLINOIS Carbondale, IL Carterville, IL Champaign, IL Decatur, IL Edwardsville, IL Glen Ellyn, IL Joliet, IL Malta, IL Normal, IL Peoria, IL Schaumburg, IL Springfield, IL University Park, IL INDIANA Bloomington, IN Columbus, IN Evansville, IN Fort Wayne, IN Gary, IN Indianapolis, IN Kokomo, IN Lafayette, IN Lawrenceburg, IN Madison, IN Muncie, IN New Albany, IN Richmond, IN Sellersburg, IN South Bend, IN Terre Haute, IN IOWA Ames, IA Cedar Rapids, IA Iowa City, IA Ottumwa, IA Sioux City, IA Waterloo, IA KANSAS Kansas City, KS Lawrence, KS Manhattan, KS Wichita, KS KENTUCKY Ashland, KY Bowling Green, KY Erlanger, KY Highland Heights, KY Louisville, KY Morehead, KY

LOUISIANA Bossier City, LA Lafayette, LA Monroe, LA Natchitoches, LA New Orleans, LA Shreveport, LA Thibodaux, LA MARYLAND Arnold, MD Bel Air, MD College Park, MD Frederick, MD Hagerstown, MD La Plata, MD Westminster, MD Woodlawn, MD Wye Mills, MD MASSACHUSETTS Boston, MA Bridgewater, MA Danvers, MA Haverhill, MA Holyoke, MA Shrewsbury, MA MICHIGAN Ann Arbor, MI Big Rapids, MI Chesterfield, MI Dearborn, MI Dowagiac, MI East Lansing, MI Flint, MI Grand Rapids, MI Kalamazoo, MI Lansing, MI Livonia, MI Mount Pleasant, MI Sault Ste. Marie, M Troy, MI University Center, MI Warren, MI MINNESOTA Alexandria, MN Brooklyn Park, MN Duluth, MN Eden Prairie, MN Granite Falls, MN Mankato, MN MISSISSIPPI Goodman, MS Jackson, MS Mississippi State, MS Raymond, MS University, MS MISSOURI Berkley, MO Cape Girardeau, MO Columbia, MO Cottleville, MO Joplin, MO Kansas City, MO Kirksville, MO Park Hills, MO Poplar Bluff, MO Rolla, MO Sedalia, MO Springfield, MO St. Joseph, MO St. Louis, MO Warrensburg, MO MONTANA Bozeman, MT Missoula, MT NEBRASKA Lincoln, NE North Platte, NE Omaha, NE NEVADA Henderson, NV Las Vegas, NV North Las Vegas, NV Winnemucca, NV

NEW JERSEY Branchburg, NJ Cherry Hill, NJ Lincroft, NJ Sewell, NJ Toms River, NJ West Windsor, NJ NEW MEXICO Albuquerque, NM Clovis, NM Farmington, NM Portales, NM Santa Fe, NM NEW YORK Alfred, NY Brooklyn, NY Buffalo, NY Garden City, NY New York, NY Rochester, NY Syracuse, NY NORTH CAROLINA Apex, NC Asheville, NC Boone, NC Charlotte, NC China Grove, NC Durham, NC Fayetteville, NC Greenville, NC Jamestown, NC Misenheimer, NC Mount Airy, NC Pembroke, NC Raleigh, NC Wilmington, NC NORTH DAKOTA Bismarck, ND OHIO Akron, OH Cincinnati, OH Cleveland, OH Columbus, OH Fairfield, OH Findlay, OH Kirtland, OH Lima, OH Maumee, OH Newark, OH North Royalton, OH Rio Grande, OH Toledo, OH Warren, OH Youngstown, OH OKLAHOMA Altus, OK Bethany, OK Edmond, OK Norman, OK Oklahoma City, OK Tonkawa, OK Tulsa, OK OREGON Bend, OR Coos Bay, OR Eugene, OR Gresham, OR Klamath Falls, OR Medford, OR Oregon City, OR Portland, OR White City, OR PENNSYLVANIA Bloomsburg, PA Blue Bell, PA Gettysburg, PA Harrisburg, PA Lancaster, PA Newtown, PA Philadelphia, PA Pittsburgh, PA Wilkes-Barre, PA York, PA

Certification Empowers Opportunity.

SOUTH CAROLINA Beaufort, SC Charleston, SC Columbia, SC Conway, SC Graniteville, SC Greenville, SC Greenwood, SC Orangeburg, SC Rock Hill, SC Spartanburg, SC TENNESSEE Blountville, TN Clarksville, TN Collegedale, TN Gallatin, TN Johnson City, TN Knoxville, TN Memphis, TN Morristown, TN Murfreesboro, TN Nashville, TN TEXAS Abilene, TX Arlington, TX Austin, TX Beaumont, TX Brownsville, TX Commerce, TX Corpus Christi, TX Dallas, TX Denison, TX El Paso, TX Houston, TX Huntsville, TX Laredo, TX Lubbock, TX Lufkin, TX Mesquite, TX San Antonio, TX Victoria, TX Waxahachie, TX Weatherford, TX Wichita Falls, TX UTAH Cedar City, UT Kaysville, UT Logan, UT Ogden, UT Orem, UT Salt Lake City, UT VIRGINIA Daleville, VA Fredericksburg, VA Lynchburg, VA Manassas, VA Norfolk, VA Roanoke, VA Salem, VA Staunton, VA Suffolk, VA Virginia Beach, VA Wytheville, VA WASHINGTON Auburn, WA Bellingham, WA Bremerton, WA Ellensburg, WA Ephrata, WA Olympia, WA Pasco, WA Rockingham, WA Seattle, WA Shoreline, WA Spokane, WA WEST VIRGINIA Ona, WV WISCONSIN La Crosse, WI Milwaukee, WI Mukwonago, WI

WYOMING Casper, WY Laramie, WY Torrington, WY CANADA ALBERTA Calgary, AB Edmonton, AB Fort McMurray, AB Lethbridge, AB Lloydminster, AB Olds, AB Red Deer, AB BRITISH COLUMBIA Abbotsford, BC Burnaby, BC Castlegar, BC Delta, BC Kamloops, BC Nanaimo, BC Prince George, BC Richmond, BC Surrey, BC Vancouver, BC Victoria, BC MANITOBA Brandon, MB Winnipeg, MB NEW BRUNSWICK Bathurst, NB Moncton, NB NEWFOUNDLAND AND LABRADOR St. John’s, NL NOVA SCOTIA Halifax, NS ONTARIO Brockville, ON Hamilton, ON London, ON Milton, ON Mississauga, ON Niagara-on-the-Lake, ON North Bay, ON North York, ON Ottawa, ON Toronto, ON Welland, ON Windsor, ON QUEBEC Côte Saint-Luc, QB Montreal, QB SASKATCHEWAN Melfort, SK Moose Jaw, SK Nipawin, SK Prince Albert, SK Saskatoon, SK YUKON TERRITORY Whitehorse, YU UNITED KINGDOM Elgin, UK GHAZNI Kingdom of Bahrain, GHA Thomasville, GHA EGYPT Cairo, EG JORDAN Amman, JOR NEW ZEALAND Taradale, NZ

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


I F P S U P D AT E

AVAILABLE IFPS CERTIFICATIONS CFPAI Certified Fluid Power Accredited Instructor CFPAJPP Certified Fluid Power Authorized Job Performance Proctor CFPAJPPCC Certified Fluid Power Authorized Job Performance Proctor Connector & Conductor CFPE Certified Fluid Power Engineer CFPS Certified Fluid Power Specialist (Must Obtain CFPHS & CFPPS) CFPHS Certified Fluid Power Hydraulic Specialist CFPPS Certified Fluid Power Pneumatic Specialist CFPECS Certified Fluid Power Electronic Controls Specialist CFPMT Certified Fluid Power Master Technician (Must Obtain CFPIHT, CFPMHT, & CFPPT) CFPIHT Certified Fluid Power Industrial Hydraulic Technician CFPMHT Certified Fluid Power Mobile Hydraulic Technician CFPPT Certified Fluid Power Pneumatic Technician CFPMM Certified Fluid Power Master Mechanic (Must Obtain CFPIHM, CFPMHM, & CFPPM) CFPIHM Certified Fluid Power Industrial Hydraulic Mechanic CFPMHM Certified Fluid Power Mobile Hydraulic Mechanic CFPPM Certified Fluid Power Pneumatic Mechanic CFPMIH Certified Fluid Power Master of Industrial Hydraulics (Must Obtain CFPIHM, CFPIHT, & CFPCC) CFPMMH Certified Fluid Power Master of Mobile Hydraulics (Must Obtain CFPMHM, CFPMHT, & CFPCC)

Tentative Certification Review Training IFPS offers onsite review training for small groups of at least 10 persons. An IFPS accredited instructor visits your company to conduct the review. Contact kpollander@ifps.org for details of the scheduled onsite reviews listed below. HYDRAULIC SPECIALIST Onsite review training for small groups. Contact IFPS for details. Nov. 28-Dec. 1, Fairfield, OH. CFC Industrial Training. Written test: Dec. 2. Contact info@cfcindustrialtraining.com for more information and to register. May 1-3, 2023, Mukwonago, WI, MSOE. Written test: May 4, 2023 PNEUMATIC SPECIALIST Onsite review training for small groups. Contact IFPS for details. Dec. 12-16, Fairfield, OH, CFC Industrial Training. Written test: Dec. 16. CONNECTOR & CONDUCTOR Onsite review training for small groups. Contact IFPS for details Nov. 15-16, Fairfield, OH, CFC Industrial Training. Written and JP test: Nov. 17. ELECTRONIC CONTROLS SPECIALIST Onsite review training for small groups. Contact IFPS for details. INDUSTRIAL HYDRAULIC MECHANIC Onsite review training for small groups. Contact IFPS for details. INDUSTRIAL HYDRAULIC TECHNICIAN Onsite review training for small groups. Contact IFPS for details. MOBILE HYDRAULIC TECHNICIAN Onsite review training for small groups. Contact IFPS for details. Call CFC Industrial Training, Fairfield, OH, for dates: (513) 874-3225. PNEUMATIC TECHNICIAN and PNEUMATIC MECHANIC Onsite review training for small groups – contact IFPS for details Call CFC Industrial Training, Fairfield, OH, for dates: (513) 874-3225. JOB PERFORMANCE TRAINING Online Job Performance review. CFC Industrial Training offers online JP Reviews that include stations 1-6 of the IFPS mechanic and technician job performance tests. Members may e-mail askus@IFPS. org for a 20% coupon code off the list price. Test fees are not included. For more information, contact info@cfcindustrialtraining.com. LIVE DISTANCE LEARNING JOB PERFORMANCE STATION REVIEW For more information, contact info@cfcindustrialtraining.com.

CFPMIP Certified Fluid Power Master of Industrial Pneumatics (Must Obtain CFPPM, CFPPT, & CFPCC) CFPCC Certified Fluid Power Connector & Conductor CFPSD Fluid Power System Designer CFPMEC (In Development) Mobile Electronic Controls CFPIEC (In Development) Industrial Electronic Controls

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

NOVEMBER 2022

17


All Around the World

Circular Sustainability for Fluid Power By Michael Cook, Global Segment Director for Off-Highway & Segment Manager Fluid Power in the Americas, Trelleborg Sealing Solutions

I

n today’s environmental and economic landscape, it is critical for fluid power component manufacturers and seal suppliers to incorporate sustainable methods into design, manufacturing, and production practices through design thinking for circularity and circular products. For a long time, our economy had been a linear concept. This meant taking the needed resources, making a product, using it, and then, at the end of its life, sending it to a landfill or to be recycled. Until recently, sustainability focused on recycling and energy usage. At the forefront of sustainability is the concept of product circularity and a circular economy. Circularity is more than developing a product that can be recycled; it is about designing extended value into a product, for the customer, for their customer, and for the first, second, and even third users of the product. It is not a step-by-step linear process with a clear end but a continuous cycle.

The circular economy Seal suppliers and OEMs should consider the circular economy in the design phase of their products, materials, and solutions instead of using the traditional linear economy approach to manufacturing – taking a raw material, making it into something, and at the end of its life disposing of it. Creating circular products that last longer and use less energy, can be repaired, refurbished, or recycled, and have a useful second life supports the circular economy and sustainability. In a circular economy, OEMs aim to reduce waste through the reuse, recycling, and repurposing of a product. Leading component manufacturers do this through design thinking for circularity.

As opposed to a disposable design that has no consideration of what happens to the product at the end of its life, design thinking for circularity shifts the way products are developed. It is thinking about product design from the very start, with a desire to develop solutions that are part of the circular economy and designed with the environment and sustainability in mind. Design thinking for circularity at Trelleborg Sealing Solutions is not about designing a product for recycling; it’s about designing seals that last longer, use less energy, and support easy repair and replacement. It’s critical that seal manufacturers create high-performance seals with a long life so that customers replace them less often, resulting in less waste, reduced raw material use, and a greater return on investment. High performance starts at the design phase. Seal manufacturers like Trelleborg model seal performance through finite element analysis and simulations across a range of application conditions and materials. This allows manufacturers to modify designs prior to testing, reducing the number of prototype loops, lowering development costs, reducing material waste, and speeding up the time to market. The extensive testing ensures seals perform as expected in an application.

Design for the environment When possible, raw materials should come from sustainable and renewable sources. Regrinding production waste into a material blend for noncritical components such as wipers and wear rings gives this material a second life, reducing material sent to landfills.

CIRCULAR ECONOMY

Circular Products

Raw Material Sustainable sourcing from renewable sources is the best-case scenario.

Recycle Recycling is a great way to reduce dependence on raw materials. Recycled material becomes the new raw material.

Minimal Waste Eco-friendly compostable materials.

18

NOVEMBER 2022

Manufacture Minimizing energy usage, minimizing waste, and maintaining quality are core to a sustainable future.

Reuse Equipment and products are too often replaced long before the useful life has expired. Use it longer, sell it, donate it.

Remanufacture Make it new again significantly reduces waste and carbon usage compared to making it new from scratch.

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


FACTS ABOUT THE CIRCULAR ECONOMY The earth takes almost 1.5 years to regenerate what we use in a year. After burning, 80% of waste from consumer goods goes to a landfill because of poor design or lack of end-of-life collection options. Over 80% of a product’s environmental impact is determined at the design stage. Currently, only 9% of our world economy is circular.

By creating virtually leak-free seal designs, fluid power seal manufacturers minimize the risk of contamination to ground and water resources, protecting the environment from contaminants. The extended product life of seals has a clear impact on sustainability. Fewer parts to replace means using fewer consumables and raw materials. The transport and logistics involved in moving parts and people to remote locations also have a massive impact on the environment. Extending product life reduces CO2 emissions in the supply chain. When seal manufacturers provide robust lubrication management programs and technology, it reduces friction, wear, and heat generation in linear tandem sealing applications by allowing just the right amount of fluid film to reach the secondary seal and prevent dry running conditions. This reduces the energy needed to power the system and can support the downsizing of drive components, in turn reducing the overall amount of energy the equipment uses. In rotary applications, Trelleborg uses Turcon Varilip PDR, a single-acting low friction seal with no stick-slip. The seal provides long-lasting seal efficiency and can withstand dry running conditions. When compared to a standard radial oil seal, the low friction characteristics mean the seal uses less energy and lowers the risk of environmental contamination as a result of premature failure.

Sixty to 70% of the world’s ecosystems are degrading faster than they can recover.

Modularity

Lightweight advanced composite materials. Trelleborg’s Automated Fiber Placement (AFP) technology is part of a special continuous-fiber manufacturing process that produces strong, lightweight components for a wide range of applications. This technology uses thermoplastic composite materials that are recyclable and suitable for repurposing at the end of life, unlike traditional thermoset composites.

Utilizing industry-standard design profiles and sizes ensures that designers and end users can easily specify sealing components, allowing the reuse of hardware designs. Standardization supports ease of repair, refurbishment, and reuse with readily available replacement parts, to give the hardware a second or third life. During the design phase of a seal, seal manufacturers work with customers to design solutions that can be easily disassembled to enable repair of parts. Seals that are easy to remove and replace minimize damage to equipment and reduce downtime. The less material we put into landfills, the better. Methane gas that releases as waste decomposes in landfills creates a greenhouse gas that contributes to global warming and climate change. When seals for fluid power applications are designed to last as long as possible, it reduces the need for replacement parts and the waste that gets placed in landfills. •

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

We recycle less than 20% of electronic waste. Recycling electronics uses less energy in production and conserves resources like copper and aluminum.

TRELLEBORG CIRCULAR PRODUCT DESIGNS Here are two examples of circular product designs from Trelleborg.

Organically sourced materials. The development of bio-friendly materials using renewable plant-based compounds such as sugar cane and natural oils is something we are looking to explore in the future. These materials could allow Trelleborg to create sealing solutions that not only provide high-performance sealing with a long life but also use less energy and have a significantly reduced carbon footprint during manufacturing.

NOVEMBER 2022

19


SPECIAL AD SECTION

PRODUCT SPOTLIGHT Contact us to showcase your products and services in the Product Spotlight. This special section is a high-profile area offering product-specific advertising. Visit fluidpowerjournal.com for more information or to view our media guide.

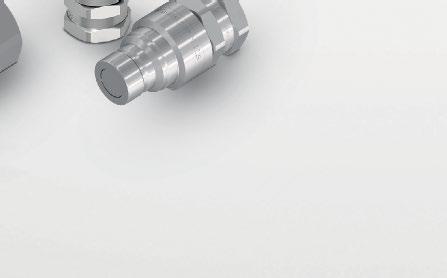

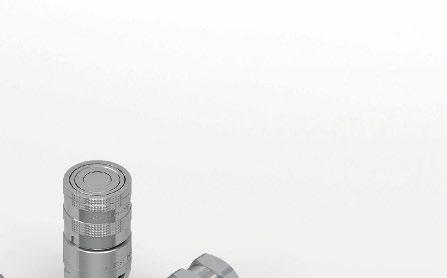

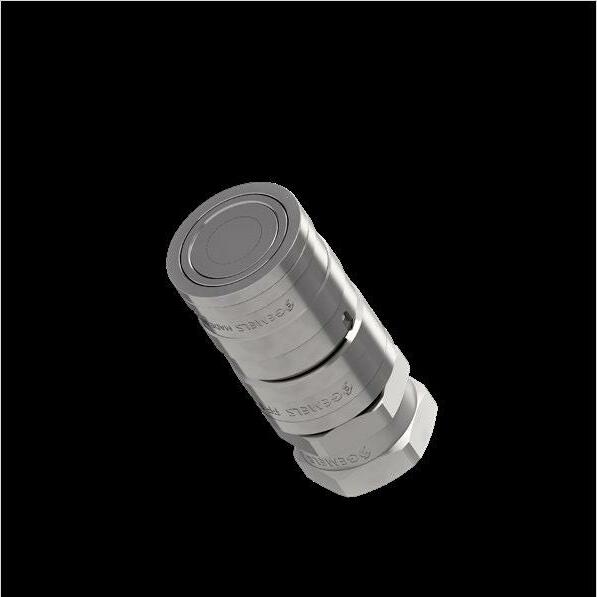

New—Flat Face Design "TVF" Series Quick Disconnect • Up to 6,000 PSI Operating Pressure— Coupled or Uncoupled • Full 4:1 Safety Factor • Superior Flow Characteristics—Minimal Pressure Drop • RoHS Compliant Plating • Multiple Port Options—Female NPTF, Female SAE O-Ring, Female BSPP, Code 61 & 62 Flange Port/Head P.O. Box 6479 • Fort Worth, TX 76115 817.923.1965 • www.hydraulicsinc.com

Genuine Donaldson Internormen-Eaton Velcon-Parker We're hydraulic filter experts. We've been doing it for over 30 years. We're very competitive and happy to serve your needs. If you need hydraulic filter application help, we know the right questions, and we can give you the right answers. J/T Hydraulics & Service Co. Inc. 1601 W. 25th Street • Houston, TX 77008 Local: 713.984.9727 • Toll Free: 800.591.8280 Fax: 713.861.2250 • www.jthydraulics.com

Protection for All Things Hydraulic, Pneumatic and Fluid Power Vac Cubes Multi Venturi Vacuum Pumps With over 30 years of proven results Vac Cubes and our multi stage venturi vacuum pumps are a great fit for your vacuum application. They are designed to provide higher vacuum flows with less air consumption. Multiple models available with maximum vacuum up to 27”hg and vacuum flows up to 25CFM and the ability to manifold together.

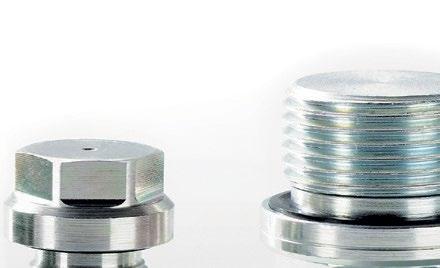

MOCAP manufactures an extensive range of protective closures to guard pipes, hoses, and hydraulic fittings from dirt, moisture, and damage to help maintain equipment reliability. Included are a variety of sizes and styles of Threaded and Non-Threaded plastic Caps and Plugs for Metric, NPT, BSP, JIC and SAE Threaded Connections, Ports and Fittings. These are in addition to MOCAP’s already extensive lines of low-cost Caps, Plugs, Grips, Netting, Tubing and Tapes for general Product Protection, Finishing and Masking. All of our stocked items are ready for immediate shipment and available in Box, Mini-Pack and Micro-Pack quantities. Free Samples are always available for testing purposes.

info@vac-cube.com 727.944.3337 www.vac-cube.com sales@mocap.com www.mocap.com

20

NOVEMBER 2022

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


SPECIAL AD SECTION

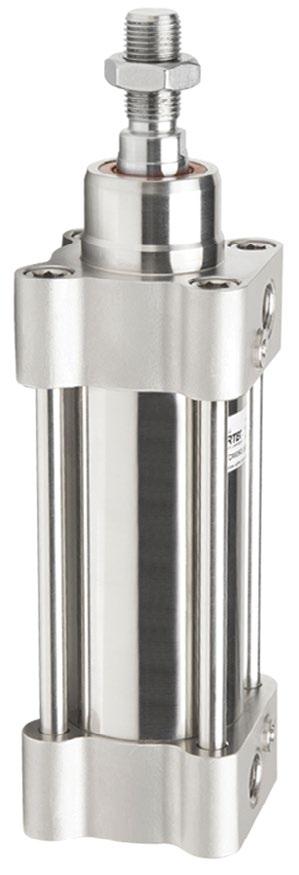

New Partnership Makes for Easier Access to ISO Pneumatic Rod Cylinders W.C. Branham teams up with Artec SRL in the U.S. and Canada. Artec is a leading 40-year Italian rod cylinder manufacturer with ISO9001:2015 certification. Cylinders are their passion!

High Quality Art On The Inside. Standard and Stainless Steel Cylinders ISO 6432 Micro Round | ISO 15552 ISO 21287 | UNITOP | Compact | Guided Compact | Short Stroke | Cartridge We at Branham Listen, Let Us Help You Today

715.426.2000 AskWCB@WCBranham.com www.WCBranham.com

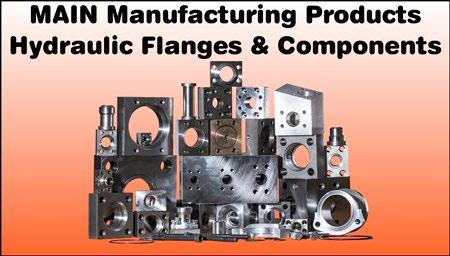

Don’t Compromise – that hydraulic flange you want maybe at MAIN MAIN stocks 10,000+ hydraulic flanges and manufactures components in 4-7 days in the USA. SAE J518 Code 61 and J518 Code 62, JIS, DIN, ISO 6162, ISO 6164, and specials with socket-weld, butt-weld, ORB, BSPP, etc.; all geometries, flange heads, flange adapters; in carbon, stainless, cupro-nickel, ductile, aluminum, etc. Sixty years’ experience plus SAE and ISO technical committee experience. MAIN Manufacturing Products, Inc. 800.521.7918 https://mainmanufacturing.com/block-categories

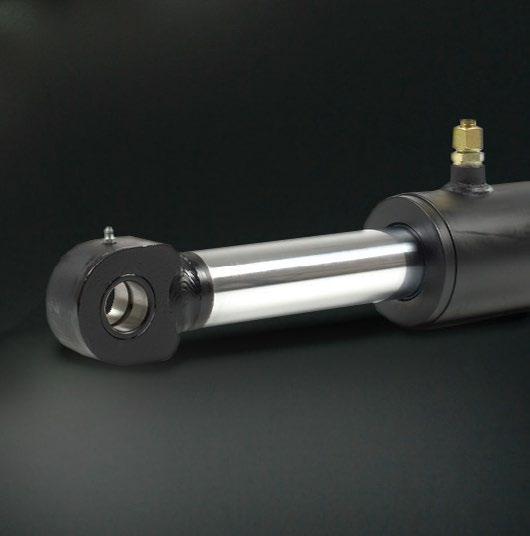

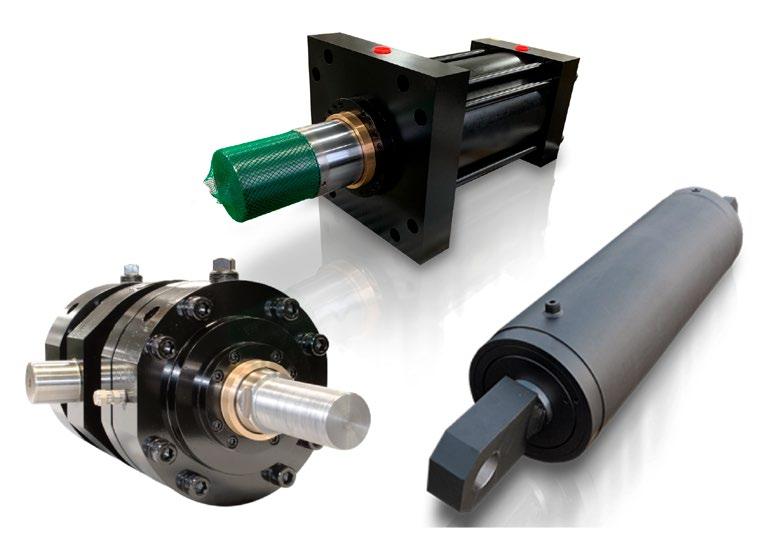

Go ahead. Push me. Ordinary heavy duty not heavy enough? Heavy-Duty Mill Cylinders for: • Induction-Hardened, Chrome-Plated Rods • Heavy Wall Tubing • Replaceable Glands & Retainer Rings • High-Load Piston Design Think indestructible and call Yates. www.yatesind.com

Yates Industries (HQ) 586.778.7680 Yates Cylinders Alabama 256.351.8081

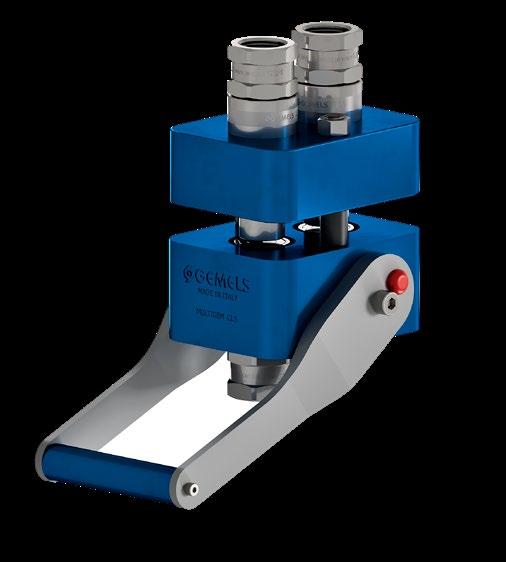

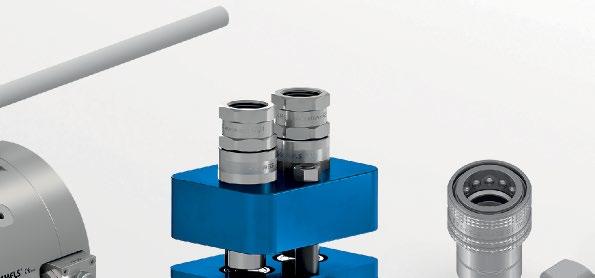

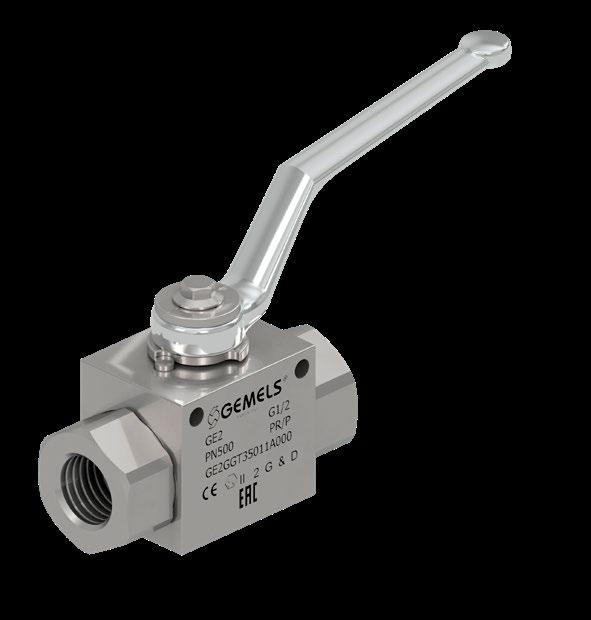

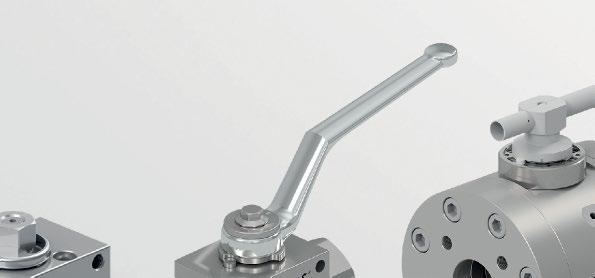

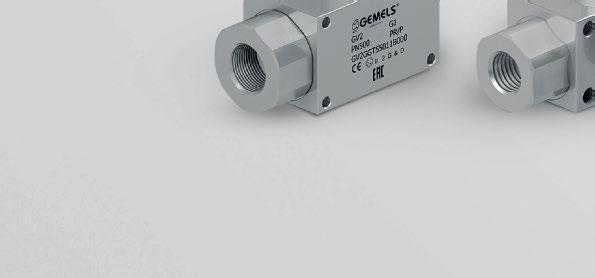

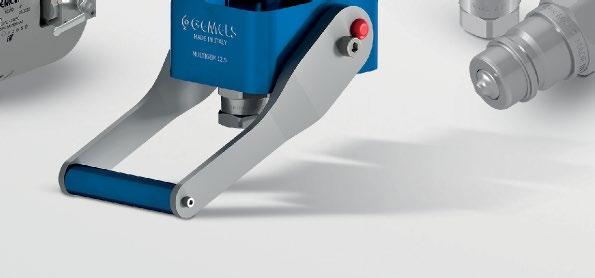

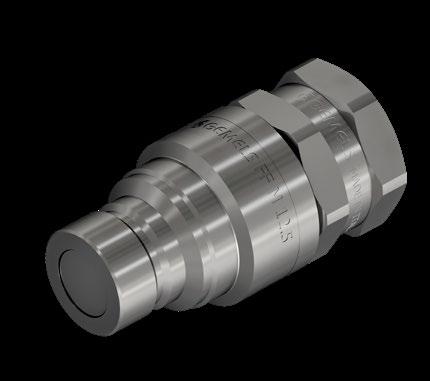

GEMELS IS THE WORLD'S LEADING MANUFACTURER OF HIGH PRESSURE VALVES & QUICK COUPLINGS.

Yates Cylinders Georgia 678.355.2240 Yates Cylinders Ohio 513.217.6777

GEMELS NORTH AMERICA INC. northamerica@gemels.com gemels.com

Contact us to showcase your products and services in the Product Spotlight. This special section is a high-profile area offering product-specific advertising. Visit www.fluidpowerjournal.com for more information or to view our media guide.

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

NOVEMBER 2022

21


SPECIAL AD SECTION

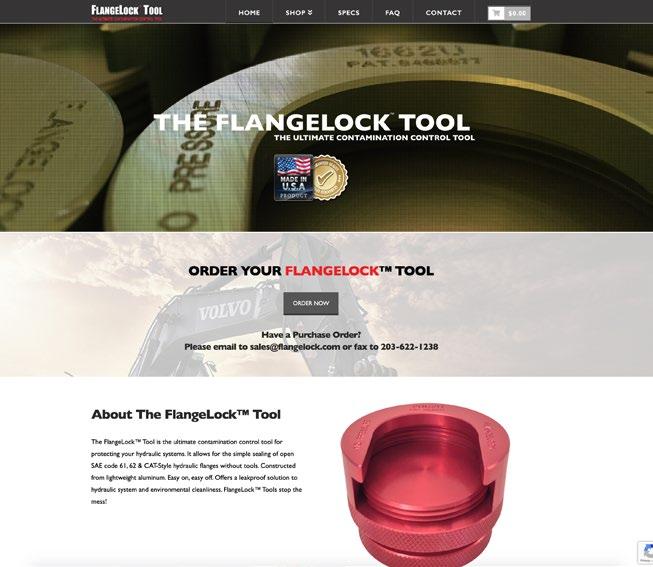

www.mainmanufacturing.com www.flangelock.com The FlangeLock™ Tool is the ultimate contamination control tool for protecting your hydraulic systems. It allows for the simple sealing of open SAE code 61, 62 & CAT-Style hydraulic flanges without tools. Constructed from lightweight aluminum. Easy on, easy off. Offers a leakproof solution to hydraulic system and environmental cleanliness. FlangeLock™ Tools stop the mess!

Web

Have a Purchase Order? Please email to sales@flangelock.com or fax to 203-622-1238

Main's website provides quick access to the 120 page catalog that includes popular styles of MAIN Manufacturing’s extensive offering of carbon and stainless Hydraulic Flanges and Components – ready for immediate shipment. Metric ordering information, weld specs, and dimensional information included. The “Quick Reference Guide” helps specify less popular items often stocked or quickly manufactured (generally 3-4 days) at our US plant. “Create-AFlange” offers more parts than the catalog — by picture. If it’s not here, or for questions, E-mails may be sent to get your answer quickly. 1-800-521-7918 info@mainmfg.com

MARKETPLACE

www.laman.com

www.texcelhydraulics.com

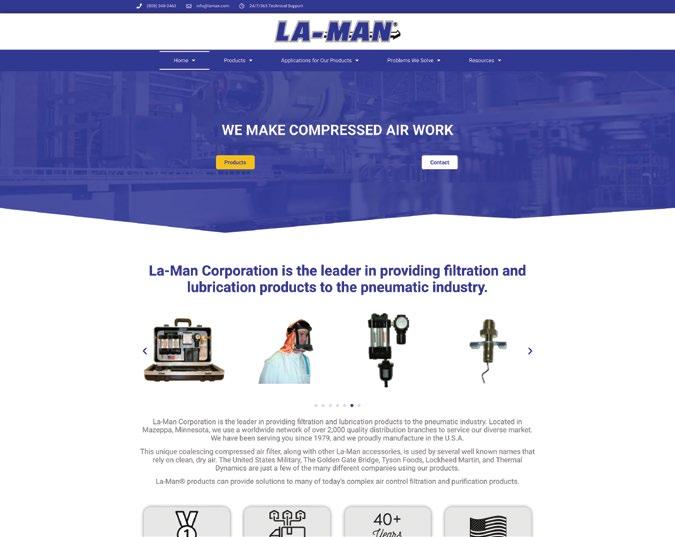

La-Man Corporation is a leading manufacturer of compressed air filtration products. With over 30 years of experience, we truly understand the importance of protecting valuable machinery, tools, and finished products from dirty, wet, contaminated air. La-Man’s line of products include the patented Extractor Dryer, .01 micron filter, as well as, LA-MAN-Air Breathing Systems™, SuperStar™ Membrane Dryers, and the Refrigerated Extractor/Dryer.

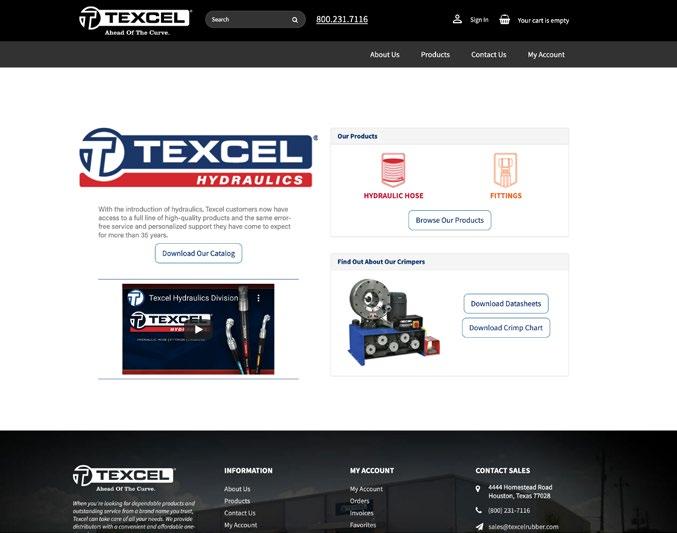

At Texcel, our cutting-edge line of hydraulic hose and fittings is not just a product division. It’s a promise of superior service, quality, technical support and availability. We’ve built our company on impeccable customer service. Let us know how we can make a difference for your business.

PO BOX 328 • Mazeppa, MN 55956 800-348-2463

22

NOVEMBER 2022

4444 Homestead Road • Houston, Texas 77028 (800) 231-7116 • sales@texcelrubber.com

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


SPECIAL AD SECTION

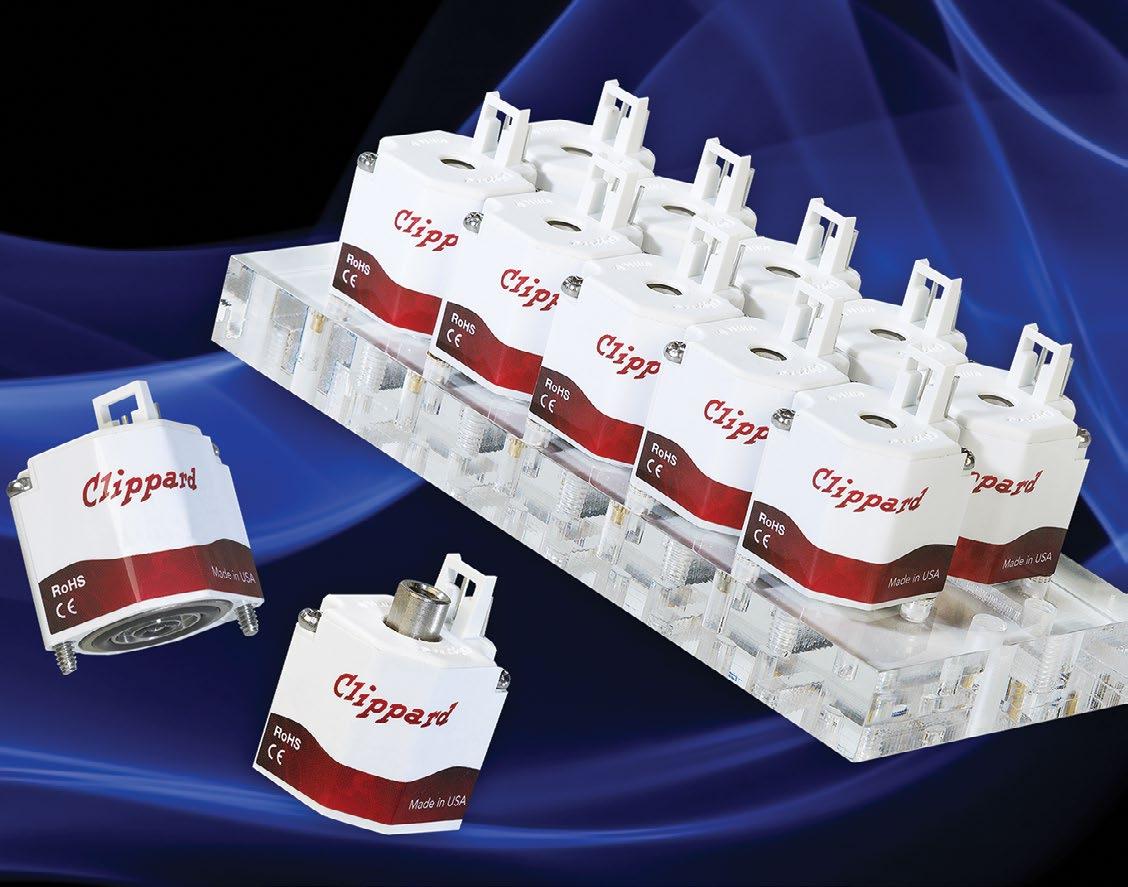

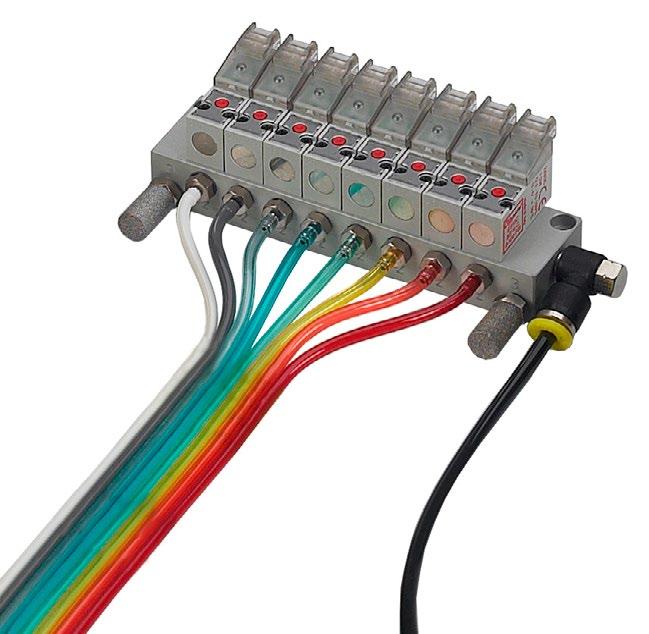

COMPONENT SHOWCASE ES SERIES MINIATURE ELECTRONIC VALVES

Spider technology is renowned worldwide for exceptional leak resistance and long life. Clippard developed, patented and perfected this spider technology. Ideal applications have exceeded 1,000,000,000 cycles with this technology which utilizes one moving part that travels a mere 0.007” during operation. This single moving part with a short stroke enables the ES series to operate with exceptional reliability. The ES series features large cross sectional o-rings, minimal leak points, and proven poppet designs. All mounting hardware is outside of the flow path for the ES, and no internal parts are threaded during assembly to reduce the possibility of contamination. The ES has the best performance-to-price ratio for low leak valves. The compact footprint coupled with the long life, and exceptional leak resistance make the ES line suited to improve reliability in a wide range of applications including biomedical, dental, test equipment, oxygen control, textile, packaging, pressure control, automation and portable systems. Over 1 billion cycles (under ideal conditions)

No threads in flow path

Close mounting - 7/8” on center. Overall height less than 1”

Ideal for ultra-low leak applications

0.01 sccm leak rate

Fast response - 5 to 10 ms (nominal)

No anaerobic sealant

Made in USA

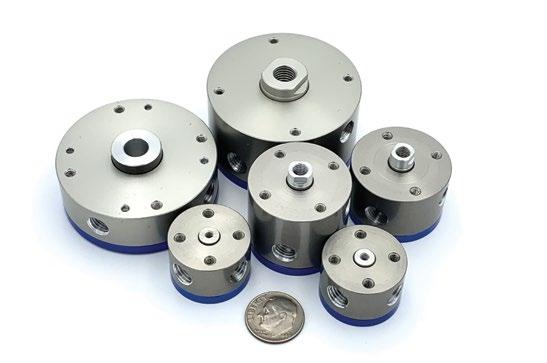

MINIATURE, DOUBLE ACTING, PNEUMATIC ACTUATORS

Small solutions to big problems. We carry the smallest pneumatic double acting actuator on the market. Our miniature pneumatic actuators are manufactured to tight tolerances with premium quality and variations for travel, mounting, porting, and piston rods. The components are hard anodized aluminum with other materials available upon request. OD sizes from 1″ – 2.50″and up to 2″ of travel is standard in 1/8″ increments. Miniature pneumatic actuators are often used in testing or production of; electronic components, medical devices, and high-end composite materials.

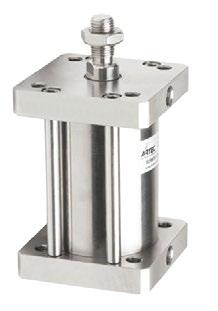

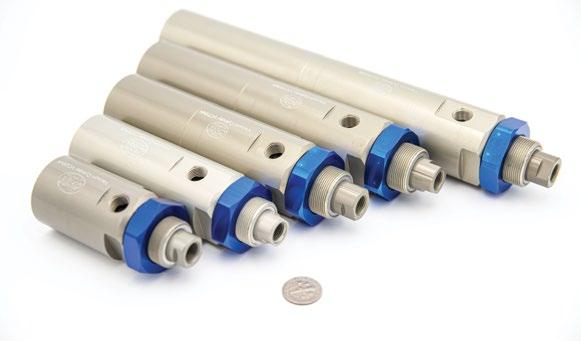

AUTOMATIC (RETURN) VACUUM CYLINDER Pick up with ease! Our automatic vacuum cylinders are non-rotating with a stable z axis actuation and automatic stroke compensation. The cylinder piston extends when vacuum is applied, and it automatically retracts when the rod end is sealed against the surface of the load. When vacuum is turned off, the load is released. Be free of maintenance and lubrication through our hard anodize and Teflon coating on materials. Say yes to fast production and have our vacuum cylinders speed things up for you with rapid cycle rates.

Mack Automation LLC • www.mackcorp.com • 928-526-1120 • info@mackcorp.com WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

NOVEMBER 2022

23


CHECKED CHECKED CHECKED CHECKED FC H E C K E D Avoiding Hydraulic Hose Disasters By Mike Rutan, Product Development Manager, PIRTEK USA

or essential businesses everywhere, equipment is their lifeline. If one piece isn’t working, it can put projects on hold and set your whole business back. Hydraulic hoses are a crucial equipment component in industries such as construction, engineering, manufacturing, agriculture, transportation, logistics, pharmaceuticals, rail, and automotive. If something happens to a hydraulic hose, quick replacement is of the utmost importance. Luckily, there are preventative steps businesses can take to protect their equipment, operations, and company as a whole. There are many reasons a hose fails. The most common one is simply old age. The life clock of a hydraulic hose starts ticking even before the hose is assembled, installed, and put into service. Like many products, hydraulic hoses have a “best before” date. As that date approaches, hoses become more susceptible to breakage. Environmental factors like temperature, humidity, and exposure to UV and ozone can alter the life expectancy of a hydraulic hose, as can storage methods. Additionally, some hoses are built to withstand extremely high temperatures, but when exposed to temperatures higher than what they’re made for, they can quickly become compromised. Another reason hoses may fail is due to abrasions. Hoses that constantly rub against other machine parts compromise the outer cover, exposing the reinforcement layer to elements that can weaken the steel, reducing its ability to withstand pressures. Hoses sometimes come into contact with chemicals that can erode their structure. How your hoses are secured can make a big difference when it comes to lifespan. Clamps often secure the hose in place, aid in proper flexion, and protect it from rubbing on adjacent parts. If clamps are missing or broken, it can drastically reduce the life expectancy of the hose. Finally, many components break due to extreme amounts of pressure. Each hose is graded for how much pressure it can sustain. Even though hydraulic hoses have a 4:1 safety factor (burst pressure is four times the working pressure), significant pressure spikes can cause a hose to fail prematurely. If you install a hose that isn’t built to withstand the machine’s pressure requirements, it’s only a matter of time before you need to replace it.

Preventative maintenance It has been said that an ounce of prevention is worth a pound of cure. This is never truer than when dealing with hydraulic and industrial equipment maintenance. In an environment with a high demand for employees and a short supply of people power, it is critical to maximize the efficiency of your human resources. Sending employees home or having employees reassigned to less productive work because of unplanned equipment downtime is just one of the many costs associated with hydraulic hose failures. Running your systems without regularly checking and performing maintenance is risky. Think of your car. What would happen if you went a year or more without an oil change, tire rotation, or a scheduled inspection when the “check engine” light is on? 24

NOVEMBER 2022

Prevention can also help you avoid other costs associated with unexpected equipment failures, including: • Lost productivity potentially resulting in lost revenue. • Environmental spill clean-up, contamination removal, and revitalization (such as replacing sod). • Potential fines for late project completion, which are common in the construction industry. • Damage to nearby sensitive equipment, such as computers and other technology. • Damage to products from oil spraying onto assembly lines. • Legal expenses if an employee is injured due to an equipment failure on a job site. • Hydraulic hose failures can cause other failures in the system’s pumps or valves. Inspecting the hydraulic hose before putting it into service is imperative. Often, covers on the equipment need to be removed to visually inspect the hoses hidden inside the machine. On skid steer loaders, the rollover protection system needs to be removed or raised regularly to access the hoses on the pump, valves, drive motors, and so on. I have occasionally raised the rollover protection system on an older piece of equipment only to see that I am the first person in over a decade to have done so. On excavators, the drive motors to the tracks are behind plates. I have removed the plates and found the entire compartment completely packed with sand, dirt, silt, and years of sediment that corroded the fittings. Excavators are sometimes used for dredging ponds and waterways, and the water can be very corrosive when tracks are submerged. Another preventative measure is knowing when to replace hoses. I have replaced multiple hoses on a piece of equipment because the customer declined my recommendation to replace those hoses on my initial service visit. Instead, he only wanted the failed hose replaced. I have also replaced hoses on an interstate highway where the tow truck owner not only had to pay for the replacement of the failed hose but also for spill cleanup and remediation, which cost thousands of dollars. The best way to ensure that a system will last its full lifespan is to take care of it. Some modern hydraulic hoses can last one million impulse cycles when managed correctly.

Protecting workers One reason to keep up with the maintenance of your hydraulic hoses is to prevent work-related injuries. Your equipment is key to making your company a safe place to work, and the failure of hydraulic hoses can result in several hazardous scenarios. For example, when fluid at high pressure exits through a pinhole in a hose, it can cause a fluid injection injury to an employee. Fluid can cut through clothing and skin, enter the body and potentially cause a dangerous reaction or infection. For hydraulic hoses operating at high temperatures, fluid leakage can cause severe burns. WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


Meanwhile, faulty hydraulic hoses can cover a surface in oil, causing the most common types of workplace injuries: slips and falls. Depending on the work environment, hydraulic fluid can be flammable or even explosive, enhancing the risk of fire if a hose fails. Similarly, if a hose holding a mechanical load in the air fails, it can cause mechanical movement of the equipment, potentially resulting in serious injury to workers under or around the equipment. Of course, if one part of a system fails, it can damage other components. If a hose failure is not discovered and mitigated right away, the whole machine can malfunction, posing a significant financial burden. You may also lose precious time waiting for new equipment to be delivered or installed. Your business itself is also a machine. If your equipment is compromised, you’ll be forced to shut down operations until you can repair it. Just because emergency hose replacement is available around the clock doesn’t mean you can wait until the last minute to inspect your hydraulic hoses. Waiting will almost guarantee that your business may end up closed for repairs and leave your projects in a precarious position. Not only can faulty hydraulic hoses be dangerous for your people and machinery, they can also pose a hazard to the environment. A compromised hose increases the potential for oil spills and other occurrences. Keeping up with hose maintenance can prevent a company from damaging ecosystems and putting wildlife and fellow humans at risk. In today’s day and age, we have a lot of information about the greater impact of industrial activities on our environment. Hydraulic hose maintenance can help preserve the health and well-being of residents, wildlife, groundwater, and the area around the recovery site. From a professional perspective, environmental damage also equates to poor social responsibility, bad press, fines, and major cleanup costs. Even if you have budgeted for these scenarios, avoiding them at all costs is better. If your company has experienced poor hydraulic hose maintenance that led to environmental hazards, this negative reputation can follow your business in future projects and jobs.

Maintaining hydraulic hoses There are a few essential steps to keeping up with hose maintenance. First, look at the hose’s manufacturing date, which is typically printed on its outer cover. The age of the hose tells you if it needs to be inspected further. Keep a record of when each hose is put into service. Hose assemblies have a predetermined life expectancy and should be replaced before their expected expiration. Track when specific hoses are removed from service. This establishes a standard replacement interval for each machine, averting future hose failures. Finally, tagging hoses during installation helps signal when a hose needs replacement. An easy way to tell if a hose needs replacement is by regular visual inspection. Look for things like oil leaks and improper hose routing. Look for loose, corroded, or damaged fittings, improperly matched components, brittleness, oil permeation, or color changes to the outer cover of each hose. Look for small physical changes, like poorly crimped ends, abrasions, nicks, cuts, blisters, or cracks. Make sure hoses are not rubbing each other or surrounding objects that can damage the hose’s outer cover. Check whether they are twisted or in a bind. A 5° twist in a hydraulic hose can reduce life expectancy 70%, while a 7° twist reduces it up to 90%. Next, look for missing or damaged clamps, sheaves, pullies, tie wraps, guards, or other vital parts. Hoses may need to be secured to prevent rubbing and allow for proper movement of the hose throughout the machine’s normal range of motion. WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

Lastly, make sure the hose is protected. Place a spring guard where hoses can get smashed by falling debris, a burst sleeve if hoses are near a machine operator, a nylon sleeve to prevent rubbing and exposure to UV light, and plastic wrap to prevent hoses from rubbing on surroundings endangering people working around hose ends. Finding any of these “red flags” on hydraulic hoses requires action. Replace any hoses that show signs of damage, misuse, abuse, premature wear, or are past their expected service life.

Check the oil Get in the habit of checking the hydraulic oil. If it’s discolored, milky, or foamy, it may be contaminated with water, air, or other substances. Contaminated oil can cause failures throughout a hydraulic system, including premature hose failures. Perform regular hydraulic fluid analysis. Analyzing the fluid in a professional lab can prevent component failures. The hydraulic fluid is the lifeblood of the machine; ensure that it’s in good condition. Finally, to ensure there are no leaks, test the equipment at its full operating pressure and normal operating temperature. Make sure no hoses are rubbing, twisting, or stretching beyond their limits throughout the machine’s normal range of motion. Repairing hydraulic hoses is not an option. Only professionals should attempt to perform maintenance or replace hydraulic hoses to minimize health and safety risks. Many workplace accidents, equipment failures, and hazardous environmental mishaps are preventable. Investing in hose maintenance significantly saves on future replacement costs and ensures a business continues running smoothly. Acknowledging your role in running an essential business, the last thing you need is a major, preventable disruption caused by equipment failure. • NOVEMBER 2022

25


A L L A B O U T VA C U U M

Pneumatic Versus Vacuum Component Design By Dane Spivak, Engineering Manager, Davasol Inc.

»

A PNEUMATIC SYSTEM is defined as an application that uses a positive

pressure gas to perform an operation. A typical air compressor can generate over 100 psi greater than atmospheric pressure. Since atmospheric pressure at sea level has an expected value of 14.7 psi, pneumatic systems have available pressures of many multiples of atmospheric pressure. A vacuum system is one in which gas is removed to create a pressure lower than atmospheric pressure. Therefore, theoretically, the maximum available vacuum pressure at sea level is -14.7 psi relative to atmospheric pressure. This is a state of “perfect vacuum,” in which all gas and matter are removed from the system. It is referred to as absolute pressure. The key takeaways from the above paragraph are that pneumatic pressures are many multiples higher than vacuum, and that pneumatic pressure is a pressure greater than atmospheric, while vacuum is less than atmospheric. These two differences play a significant role in the design and implementation of their respective components. Before we discuss components, it is important to understand flow and pressure losses within fluid power. No system is perfectly sealed, so leakage is a relatively common occurrence. Using the appropriate components can provide near zero leakage, which is the common goal of most applications. Leaks affect pneumatics and vacuum much differently. Consider a situation in which a fitting is leaking in both a pneumatic system and a vacuum system, resulting in a pressure drop of 2 psi for each. Although 2 psi may seem fairly insignificant, a vacuum system is much more impacted. The table below shows the comparative results of these losses when vacuum has a 15% drop in pressure, compared to the pneumatic drop of 2%.

SYSTEM PRESSURE

LOST PRESSURE

RESULTANT SYSTEM PRESSURE

LOSS PERCENTAGE

PNEUMATIC

100 psi

2 psi

98 psi

2%

VACUUM

13 psi

2 psi

11 psi

15%

Pressure losses of pneumatic and vacuum systems.

Above all else, pneumatic systems are designed for air consumption, as most applications are frequently exhausted during cycles, such as with pneumatic actuators. Leaks, losses, and use are essentially an expectation and built into the system design. On the other hand, users expect vacuum systems to be nearly perfectly sealed, and the vacuum pump is sized according to this logic. Therefore, small leaks in vacuum could have a much larger impact. For the component analysis, a good introduction is to start with the basics of fittings, tubing, and hose. Many of these parts are interchangeable within pneumatics and vacuum, though there are subtle design differences that play an important role. Push-to-connect fittings are the preferred connection technology for air systems for tubing a half-inch and smaller. Push-in fittings are functionally designed for pneumatic applications, though not all are suited well for vacuum. The primary reason is the internal O-ring that seals against the tubing. Figure 1 shows two fitting models with different 26

NOVEMBER 2022

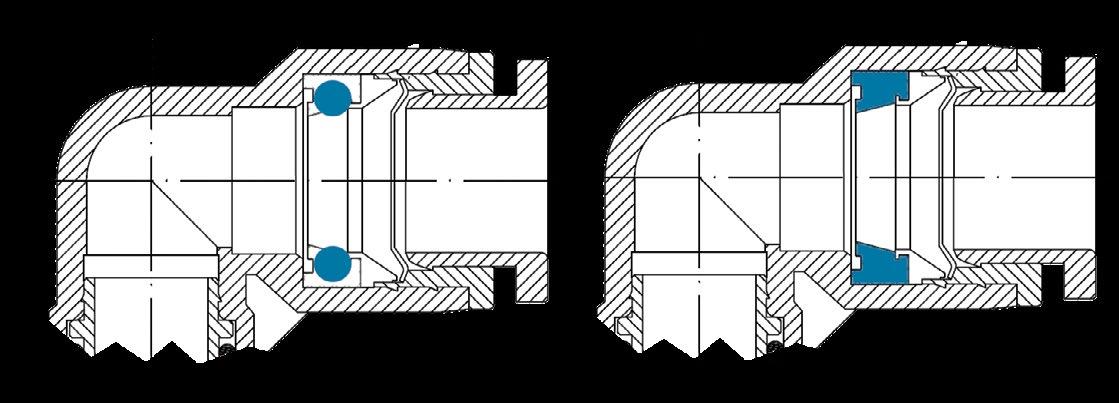

O-rings. The fitting on the left has a standard round O-ring, while the fitting on the right has a flap shape. Under positive pneumatic pressure, tubing expands, and both seals would work well. However, under vacuum, the tubing would collapse slightly. This could result in potential leaks with the rounded O-ring, but the flap style would push out and compensate to maintain an airtight seal.

Figure 1: Round and flap-shaped internal O-ring designs for push-to-connect fittings.

Generally speaking, all pneumatic tubing of a half-inch and under is used for vacuum as well. Arguably, harder tubing would be ideal as it seals more confidently with push fittings and collapses less to maintain maximum cross-sectional flow areas. But for the most part, these concerns are negligible or nonexistent if the components are specified and installed correctly. A difference worth noting is a preference for clear tubing in vacuum systems to help identify any build up or blocks in the lines. This is a more frequent occurrence in vacuum due to lack of point of use or prefiltration. Fittings larger than a half-inch often play in favor of vacuum, since a typical connection would be made by press fitting the inner diameter of a hose over top of a barbed fitting and clamped down. In this scenario, vacuum would suck the hose end down onto the fitting, resulting in a tighter fit, but pneumatic pressure would push it outward by expanding the hose. Unlike tubing of a half-inch and under, larger hose reacts much differently under pneumatic and vacuum pressure. Because of the larger diameters, there are greater forces being applied to the hose (see figure 2). Pneumatic hoses often have mesh reinforced walls, which adds strength to combat the outward pressure inside the hose. However, the mesh design does not handle vacuum pressure well and tends to collapse the hose, restricting the flow of the system. Coiled reinforced hose is preferred for vacuum for this reason. It is ideal, as the coil shape provides the needed support of atmospheric air pushing the hose from the outside diameter due to the vacuum state within. Much like tubing, clear hose is preferred for vacuum to have a visual of the internal lines.

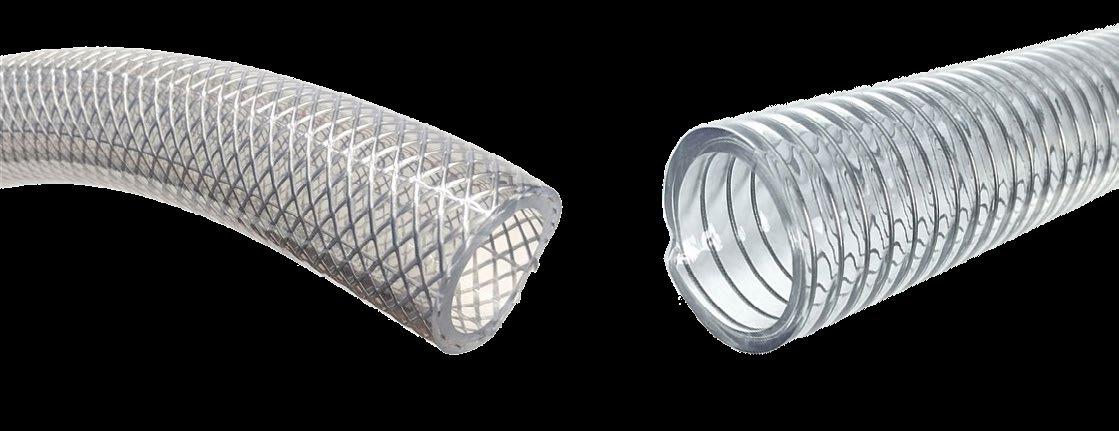

Figure 2: Mesh pneumatic hose versus coil vacuum hose.

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG

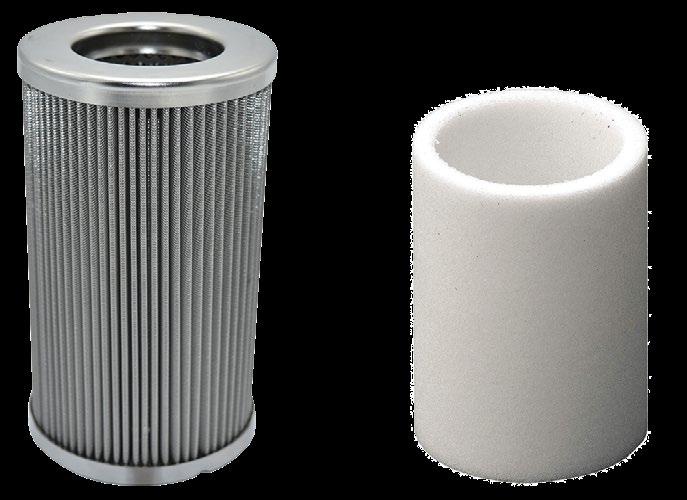

Filtration units and systems are common in most fluid applications. In pneumatics, compressor manufacturers often suggest very fine centralized filtration, from 1 micron to as low as 0.01 micron. The finer filtration allows for cleaner systems and exhausted air, which is a benefit for maintenance and safety. The nature of compressed air pressure allows for ease of pushing through finer filters of reasonable physical sizes and without negatively impacting the compressor or system performance. Vacuum filtration is quite different, as a 5-micron filter element would be regarded a finer porosity. Figure 3 shows the difference between filter elements. Lower micron ratings could either restrict the flow or require a filter too large relative to the rest of the system. Given that most vacuum components and pumps can operate well under these filtration conditions, vacuum filter ratings are in the 5-to-40-micron range for a typical industrial application. However, finer and Figure 3: (Left) 40-micron and specialized filtration is (right) 0.01-micron elements. applicable to certain vacuum applications. It is important to note that pneumatic and vacuum filters are often not interchangeable. Using the wrong filter could result in restricted flows, system leaks, or improper filtration altogether. Control valves in pneumatics and vacuum each have their unique design features. Many pneumatic valves are internally piloted, meaning there needs to be compressed air inside the line to help the valve power and move positions. This is the typical design for the common spool valves found on pneumatic manifolds. The concept is efficient for pneumatic controls but, of course, would not work under vacuum. Since internal pilot valves would not work under vacuum, external piloted models are a popular design choice. As the name suggests, an external pneumatic source helps power the valve and shift positions. With this design, both vacuum and pneumatic pressure in the system would be accepted since the external pneumatic source helps control the valve as a separate function. Figure 4 illustrates internal and external pilot valve models with the external pilot port indicated by the arrow.

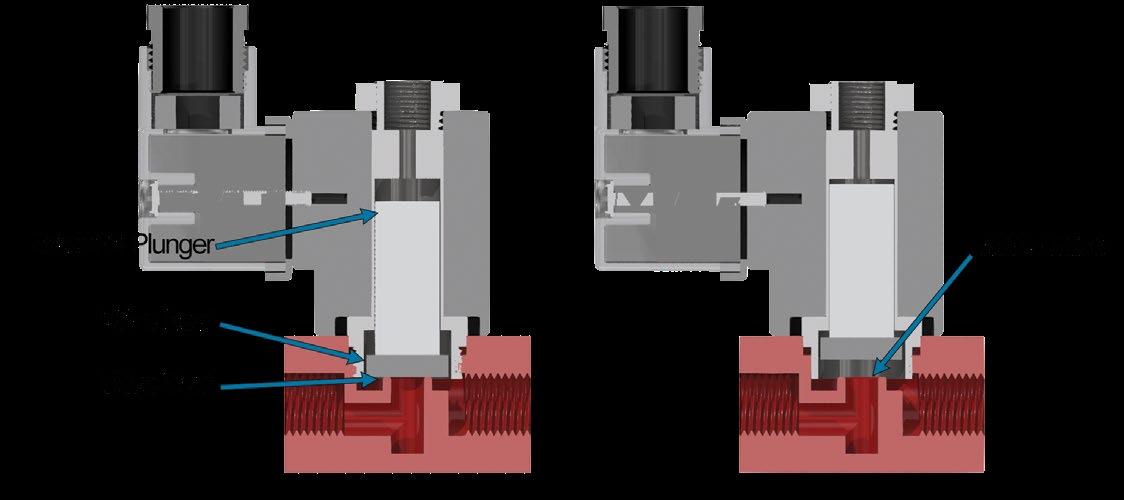

Direct-acting valves work when pure electrical energy from a solenoid controls the valve position with no other form of assistance. Direct-acting valves can work for both pneumatics and vacuum. But depending on the valve design, vacuum may require significantly more power. Figure 5 shows a cross-sectional view of a direct-acting normally closed poppet valve. The normally closed condition means the valve is closed at its rest position and opens when powered. Under pneumatic pressure, the valve seat pushes upward and helps the valve remain open when powered on. However, under vacuum, the pressure attempts to suck the seat back down and close the valve. For this reason, vacuum valves often require larger solenoids and more power to open valves. Some small direct-acting valves may work under both pneumatic and vacuum conditions, but the dual compatibility becomes increasingly difficult with larger sizes, since more force is applied to the valve seat. Therefore, larger direct-acting poppet vacuum valves have much larger coils than their pneumatic counterpart.

Figure 5: Cross-sectional direct-acting poppet valve.

As with many components, compared to pneumatics, vacuum requires larger flow-through areas, and that is no different when it comes to valves. Valves designed specifically for vacuum usually have much larger orifices. Even if a valve is considered vacuum rated, the orifice size and flow capacities should be understood to ensure it works well with the system as a whole. The same would apply to pneumatics, of course. Additionally, the manufacturer should confirm that the valve models are specified for pneumatic and vacuum pressures. Although theoretically a valve should work, the internal designs may experience leaks or damage. This article touched on many design considerations for pneumatic and vacuum components, including fittings, tubing, hose, filtration, and valves. It was intended as a conceptual analysis only. Automation manufacturers and design defaults often favor pneumatics, so it is imperative to understand the functionality and specifications of each part in a vacuum system. Every application is unique and professional assistance is always recommended. This article is the opinion of the author, Dane Spivak of Davasol Inc., an industrial brand management firm. One of Davasol’s clients, Vacuforce LLC, based in Indianapolis, partnered with the author on this article. Contact Dane Spivak at dspivak@davasol.com.

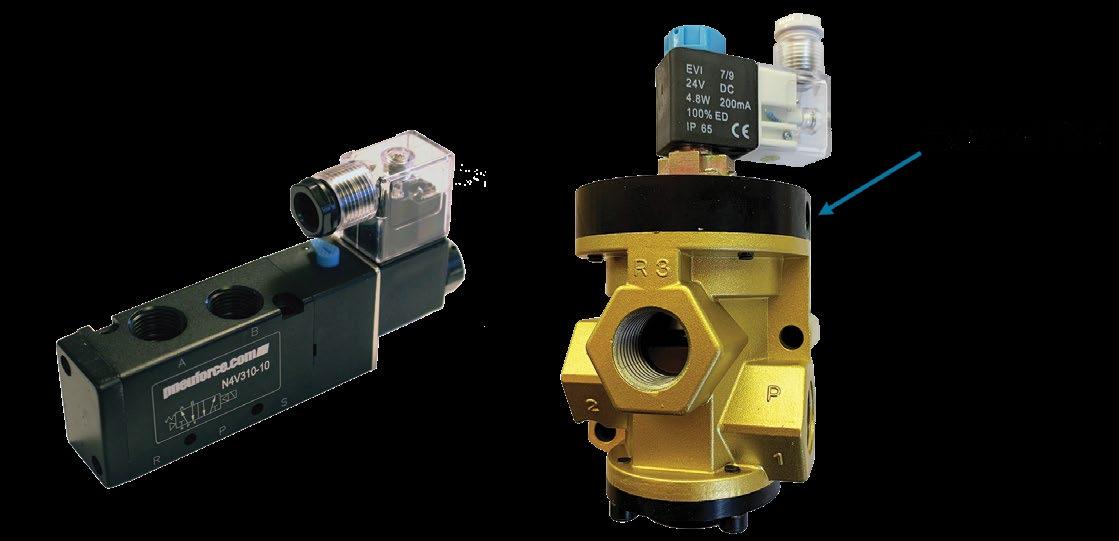

Figure 4: (Left) internal and (right) external pilot valves.

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

NOVEMBER 2022

27


Without Skilled Tradespeople,

Who Builds It? By Gordon Kolasingh, Chief Operating Officer, Orange Seal

28

NOVEMBER 2022

I

magine for a moment you’re an architect or an engineer meticulously drafting your grand design. You have an insatiable desire to see your plan become something tangible, but you’re stymied; there are simply no individuals with the skills to build it. No welders, carpenters, plumbers, electricians, masons, or specialists of any kind. There are no tradespeople, so now what? Although this isn’t yet a reality, it’s not far removed from the difficulty we face finding individuals with these skills. The problem isn’t exclusive to architects and engineers either. Finding qualified plumbers or electricians to help with problems in your home can be time consuming and expensive. The worker shortage has impacted fluid power companies too. Industry leaders have long talked about the challenges of finding and retaining employees to do all the work that swamps many of them. For years our culture has encouraged young people to pursue costly college-level education as the only pathway to success. Meanwhile, trade skills continue to be stigmatized. It’s an easy dichotomy to understand. After all, why choose a career steeped in manual labor when a temperature controlled, high-rise corner office overlooking the city is possible? There are merits to this way of thinking, but many of the arguments against skilled trades quickly fall apart. Wages are comparable if not better in the trades, career pathways are plentiful and varied, and technology in the trades is rapidly advancing and not nearly as antiquated as some might believe. Becoming certified in a trade incurs little financial debt. Many of those working in the trades report that their jobs are highly fulfilling. WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


A study conducted by Stanley Black & Decker in August and September 2021 among 801 high school sophomores, juniors, and seniors found that 85% of them saw trades as a good career choice, but only 16% were very likely to consider it themselves. According to the study, a major inhibiting factor was a lack of awareness about trade skills, including how they provide financial stability and overall job satisfaction. It isn’t entirely surprising that college educations and white-collar careers are lauded as superior to the trades while vocational careers are labeled as “dirty work.” These attitudes persuade young people that the trades require laborious, backbreaking work and aren’t nearly as lucrative as careers requiring a degree, when the truth of the matter is that trade careers provide a high quality of life and job satisfaction.

The outlook

Fluid power’s two major bodies – the National Fluid Power Association and the International Fluid Power Society – have put forward their own efforts to lure young people into careers in fluid power. IFPS offers pathways to certification in fluid power by providing materials and testing. IFPS also offers courses, workshops, and seminars in fluid power. NFPA manages its Education and Technology Foundation to meet the needs of the future’s fluid power workforce. These organizations have made gargantuan efforts in their own niches. More and more, we need to provide a space for their members and encourage the development of students who may one day be members themselves.

Flip side of the coin Many employers hold values and operate in ways that are in tension with younger generations. There is no denying that some employers instituted practices and working environments that left their workers disgruntled and bitter. Some things that arise tend to gain a lot of attention. We’ve seen this with the recent fervor for unionization. It’s no surprise that it is happening because of the disconnect between those with skills and the organizations that need them. We need to devote our efforts to removing the stigma surrounding the trade skills. We should not hide the reality that some trades require significant effort. But if we demonstrate the substantial payoffs, perhaps we’ll see the renewed interest that is so desperately needed. We must show younger generations how trade skills are the hallmark of true craftspeople. They need exposure to the advantages of the skills in ways with which they can connect on a personal level. Trade skills and working with one’s hands were once considered the realm of the artisan. With trends and nature being as cyclical as they are, perhaps it’s time for that cycle to begin again. •

The push toward college and away from trade skills has led to a widening chasm between the available jobs requiring these skills and the number of individuals capable of filling them. This is a serious problem. Skilled trades are a major contributor to the backbone of society, and if this problem isn’t addressed, the ramifications will be far reaching and detrimental. For example, in the U.S. in 2022, an estimated 650,000 jobs remained open in the construction industry, according to Stanley Black & Decker’s CEO Jim Loree. We’re already seeing the impact of the growing skills gap. As the current workforce ages, measures may be needed to ensure the continuance of some fundamental services. Technology has helped compensate. Contrary to the belief that manufacturing operations are antiquated, manufacturing has been at the forefront of integrating sophisticated technological components. Running these systems efficiently requires skilled technicians and operators whose knowledge and abilities are more and more specialized. The challenge remains to treat the underlying cause of the trade skills gap: young people's lack of interest in vocational education. Numerous efforts are underway to encourage interest in the skilled trades. That was the progenitor for a response to the crisis by my company, Orange Seal, which launched Project Dragonfly, an online platform built to re-educate younger people about the positives of learning trade skills. The Project Dragonfly platform presents an easy pathway to learning these skills and features a growing online database of nationwide training programs. The project aims to shift the perception of trade skills, encouraging young people to embrace them as a career pathway. Many large entities with the necessary clout and capital for large-scale training and outreach programs still sometimes fail to connect with the audiences they’re trying to reach. Younger Plugs with integrated molded NBR or FKM seal. generations tend to view their futures holistiHN 10-WD | SCREW PLUG cally, tying together financial stability and overall Automatically assembled with integrated conOur solution sense of fulfillment, with the latter often holding trol. Our products can be found worldwide in greater importance. They need, therefore, to be hydraulic applications and drive technology. We approached in ways that demonstrably define stock for you. pathways highlighting both ambitions. They need to be shown that college debt isn’t necessary to being a high earner, nor is it a requirement to It’s our turn. mail@heinrichs-usa.com | +1 859 371-4999 heinrichs-usa.com advancement and a high level of satisfaction.

efficient reliable tight

WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

NOVEMBER 2022

29


CONTAMINATION CONTROL

Routine and scheduled maintenance of hydraulic systems are vital to getting the most out of your Hitachi Mining Excavator. While maintenance plays the largest role in the prevention of unnecessary machine downtime, it can also expose the hydraulic system to high levels of contamination rapidly decreasing component longevity. The importance of contamination control is sometimes overlooked when performing maintenance due to incorrect practices being used.

CO U T CO NTA LTIM HE NT M A RO INA TE L T TI OO ON L

Stop the Mess

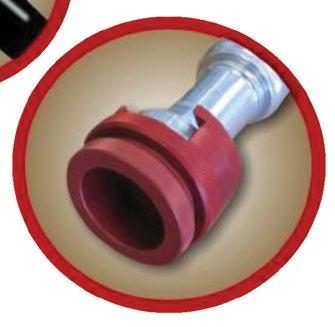

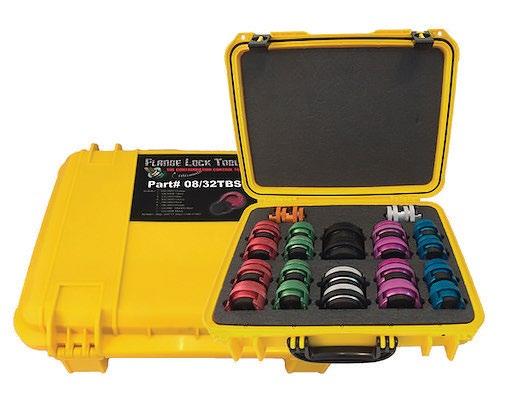

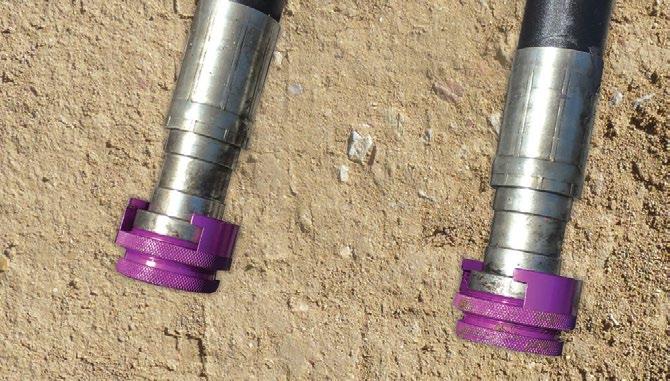

THE FLANGELOCK™ TOOL AND CIRCUIT BLANKING CAPS

The FlangeLock™ tool and caps are the ultimate contamination control tools for protecting your hydraulic system. The FlangeLock™ allows for the simple sealing of open hydraulic flanges without tools while the caps can be bolted in place of a flange connection. Easy on, easy off, they offer a leak-proof solution to hydraulic systems and environmental cleanliness. FlangeLock™ tools and caps stop the mess.

The FlangeLock™ Tool is the ultimate contamination control tool for protecting HITACHI MAKING systems. CONTAMINATION CONTROL EASY sealing of open SAE code 61, 62 your hydraulic It allows for the simple Hitachi have packaged FlangeLock™ tool and caps specifically for Hitachi mining excavators. The Hitachi customised & make CAT-Style hydraulic without Constructed from lightweight aluminum. kits sure no matter whichflanges component routine tools. maintenance is being performed on, you will always have the exact Easyofon, easy off.™*Offers to hydraulic system and environmental number FlangeLocks and capsatoleakproof help reducesolution contamination. cleanliness. FlangeLock™ Tools stop the mess! ™ *Note: FlangeLocks are not to be used under pressure

SAVE SAVE SAVE SAVE

TIME MONEY LABOR OIL

• No tools required • One hand installation Call you local Hitachi Muswellbrook representative or • No expensive hardware needed • Eliminate hydraulic oil spills & clean up the branch on 02 6541 6300 for more information. • No more rags stuffed into hoses • Quick installation & ease of usage • No more messy plastic caps • Safe for personnel & environment • The ultimate contamination control tool • Industry acclaimed

This product is Patented, other Patents pending.

For more information, call (203) 861-9400 or email sales@flangelock.com. www.flangelock.com

Introducing!

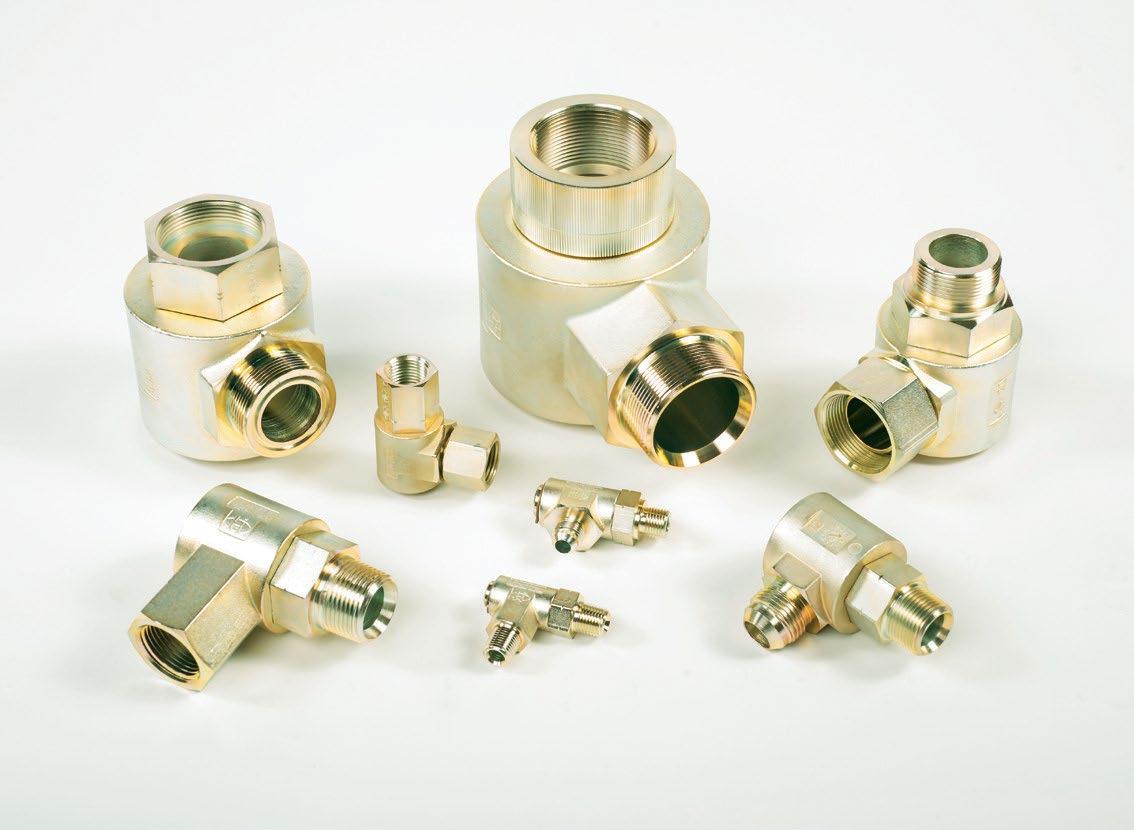

9S SERIES INVESTMENT CAST SWIVELS The “9S” Series swivels represent one of the most complete range of sizes and configurations available to the industry. This series has been redesigned to incorporate a one piece barrel arrangement thus eliminating the need for braze joints. These swivels are pressure balanced with operating pressures up to 5,000 psi. All configurations are designed with a 4:1 Safety Factor and include RoHS compliant zinc plating. P.O. Box 6479, Fort Worth, TX 76115 V. 817/923-1965 www.hydraulicsinc.com

30

NOVEMBER 2022

WWW.FLUIDPOWERJOURNAL.COM • WWW.IFPS.ORG


CLASSIFIEDS

10 & 15 mm Electronic Valves Compact, quick, powerful!

Technical Support

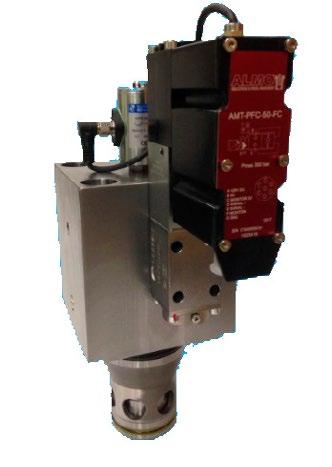

HIGH FLOW PROPORTIONAL FLOW CONTROL • 16MM to 50mm • Standard ISO 7368 and DIN 24342 cavity • High performance 5,000 psi • On board amplifier • 0-10 volt command

almomanifold.com

Large Inventory

Phone: 989.984.0800 Toll Free: 1.877.ALMO. NOW Fax: 989.984.0830

Standard, High Flow, Latching & ISO Series

HYDRAULIC FLANGES and COMPONENTS

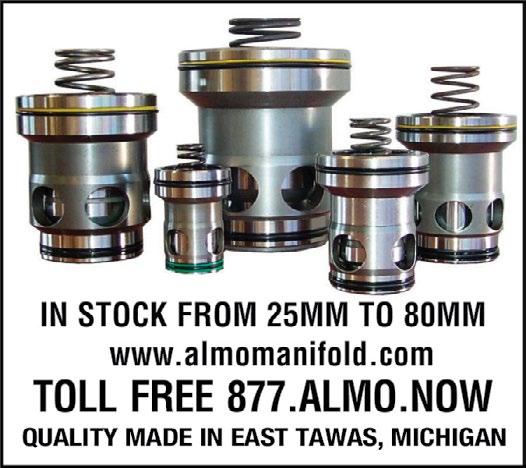

877-245-6247 IN STOCK FROM 25MM TO 80MM

The correct answers to Test Your Skills on page 11 are 1-c and 2-a.

MANY COVERS IN STOCK • Pressure, Flow, Directional • Large Flow 90° Valves

almomanifold.com

• Single DIN blocks • Active Valves • Monitored Poppets

Phone: 989.984.0800 Toll Free: 1.877.ALMO. NOW Fax: 989.984.0830

THE “SPECIAL” YOU WANT IS PROBABLY ON OUR SHELVES MAIN Mfg. Products, Inc. 800.521.7918 fax 810.953.1385 www.MAINMFG.com/fpj

ADVERTISER INDEX Company................................................................... Page......................................................... Phone................................................................................Web

AEM.................................................... Inside Front Cover....................................................................................................................................www.IFPE.com Almo Manifold.............................................................. 31........1-989-984-0800, 1-800-ALMO-NOW..............................................www.AlmoManifold.com CFC-Solar...................................................................... 13.............................................513-874-3225........................www.CFCINDUSTRIALTRAINING.com Clippard................................................................... 23, 31..........................................1-877-245-6247........................................................ www.Clippard.com Flange Lock............................................................ 22, 30.............................................203-861-9400.................................................. www.FlangeLock.com Fluidyne Fluid Power .................................................. 31..........................................1-586-296-7200.................................................... www.FluidyneFP.com Gemels spa............................................................... 9, 21.............................................................................................................................. www.Gemels.com Heinrichs....................................................................... 29............................................. 859-371-4999............................................. www.Heinrichs-USA.com Hydraulics, Inc........................................................ 20, 30.............................................817-923-1965...............................................www.HydraulicsInc.com J/T Hydraulics & Service Co....................................... 20..........................................1-800-591-8280.................................................. www.jtHydraulics.com La-Man Corp........................................................... 14, 22.............................................800-348-2468...........................................................www.LaMan.com Lubriplate.........................................................................3.............................................800-733-4755..................................................... www.Lubriplate.com Mack Automation........................................................ 23.............................................928-526-1120.....................................................www.MackCorp.com Main Manufacturing Products....................... 21, 22, 31..........................................1-800-521-7918..................................................... www.MainMFG.com MOCAP INC.................................................................. 20..........................................1-800-633-6775......................................................... www.MOCAP.com Norgren ...........................................Outside Back Cover..........................................1-800-514-0129.........................................................www.Norgren.com Peninsular Cylinder Co. Inc......................................... 11..........................................1-800-526-7968.................................... www.PeninsularCylinders.com Tele Radio LLC ................................................................9............................................ 866-629-0780.............................................www.Tele-Radio.com/us/ TEXCEL.........................................22, Inside Back Cover.............................................800-231-7116............................................... www.TexcelRubber.com Vac Cubes............................................................... 30, 20.............................................727-944-3337......................................................www.Vac-Cube.com W.C. Branham Inc......................................................... 21.............................................715-426-2000.................................................www.WCBranham.com Yates, Inc................................................................... 1, 21..........................................1-586-778-7860....................................................... www.YatesInd.com WWW.IFPS.ORG • WWW.FLUIDPOWERJOURNAL.COM

NOVEMBER 2022

31


SUBSCRIBE BY MAIL FILL OUT THIS CARD COMPLETELY, DETACH, AND MAIL OR FAX IT TO START YOUR SUBSCRIPTION MAIL TO: PO BOX 2548 • ORLANDO, FL 32802-9830 • FAX: 1-866-207-1450 YOU CAN ALSO SUBSCRIBE ONLINE AT WWW.FLUIDPOWERJOURNAL.COM. 01  YES! Please start/continue my complimentary subscription to the Fluid Power Journal Signature (required)

Title (required)

Date (required)

Telephone

Fax

E-mail

02  NO. Not interested. /

/

Please Type or Print Clearly: First Name

Middle Initial

Last Name

Company

Division

Web Address

Address

Mail Stop

City

State

Zip Code

 Check here if you would like to keep your name, address, phone and fax numbers confidential, and not released to third parties The address above is my:  Home Address  Business Address Which edition would you like to receive?  Print  Digital  Both (View a sample of our PAPERLESS digital edition at www.fluidpowerjournal.com) 1. Do you specify, select or influence the purchase of components & systems, on new or existing machinery? If yes, which technologies? (check all that apply) 05  Hydraulic 06  Pneumatic 07  Vacuum 08  Electronic Controls

03  Yes

04  No.

09  None of These

2. What is your primary job title? (check only one) 10  Administration: Chairman, President, V.P., Secretary, Treasury, General Manager, Owner, Business Manager, Director, etc. 11  Plant Operations: VP of Manufacturing/ Operation/ Production, Plant Management/ Director/ Manager/ Supervisor/ Superintendent/ Foreman/ Safety Director, etc. 12  Engineering: V.P. Eng., Eng., Design Eng., Director of Eng., Staff Specialist, Chief Eng., Senior Eng., Maintenance/Production Eng., etc. 13  Technical: Chief Tech., Fluid Power Tech., etc. 14  Mechanical: Chief Master Mech., Master Mech., Fluid Power Mech., etc. 15  Purchasing: VP/Director of Purch., Procurement Manager, Buyer, Purch., etc. 16  Other: (please specify)_________________________________________________________________________________________________ 3. Number of employees at this location? A  1-19 B  20-49 C  50-99

D  100-249

E  250-499

F  500-999

4. What is the primary business activity at this location? In the Fluid Power Industry, Outside the Fluid Power Industry 56  Manufacturer 57  Distributor 58  Education 59  Original Equipment Manufacturer (OEM) 61  Other: (please specify)__________________________________________ 5. Which of the following best describes your market focus? A  Aerospace A  Marine & Offshore Equipment B  Agricultural Machinery B  Material Handling Equipment C  Automotive C  Mining Machinery D  Civil Engineering D  Packaging Machinery E  Cranes E  Plastic Machinery F  Drills & Drilling Equip. F  Presses & Foundry G  Flame Cutting/Welding Equip. G  Railroad Machinery H  Food Machinery H  Road Construct/Maint. Equip. I  Forestry I  Simulators & Test Equipment J  Furnaces J  Snow Vehicles, Ski Lifts K  Gas & Oilfield Machinery K  Steel Plants & Rolling Mills L  Heavy Construction & Equip. L  Truck & Bus Industry M  Military Vehicles M  Textile Machinery N  Construction & Utility Equip. N  Woodworking Machines O  Machine Tools O  Other (specify)_____________ P  Government Related P  Fluid Power Industry

G  1000+

60  End User of Fluid Power Products

MY COMPANY SHOULD BE ADVERTISING IN OR SUBMIT AN ARTICLE TO THE FLUID POWER JOURNAL. PLEASE CONTACT THIS PERSON: NAME:______________________________________ TITLE:_______________________________________

SCAN HERE

PHONE:_____________________________________


Testing | Certification | Secure Online Portal | Technical Support | 24-Hour Response Team

One Fluid Solution For Your Hydraulic Needs. We offer high-quality hydraulic hoses, fittings, and accessories with unmatched customer service to keep your business Ahead Of The Curve.

Your Partner For Over 40 Years Rely on Texcel’s experienced and knowledgeable team for sales, technical support, customer service, and more.

Extensive & Premium Product Range Our broad range of high-performing hydraulic hoses and fittings are designed to exceed your toughest applications.

Swift Service & Exceptional Inventory Explore our U.S. hydraulic inventory, and buy everything you need on one Purchase Order with a 99.9% error-free rating.

Streamline Your Productivity With Premium Hydraulic Products & Services. TexcelHydraulics.com | 800.231.7116 | sales@TexcelRubber.com

SCAN TO GET STARTED
