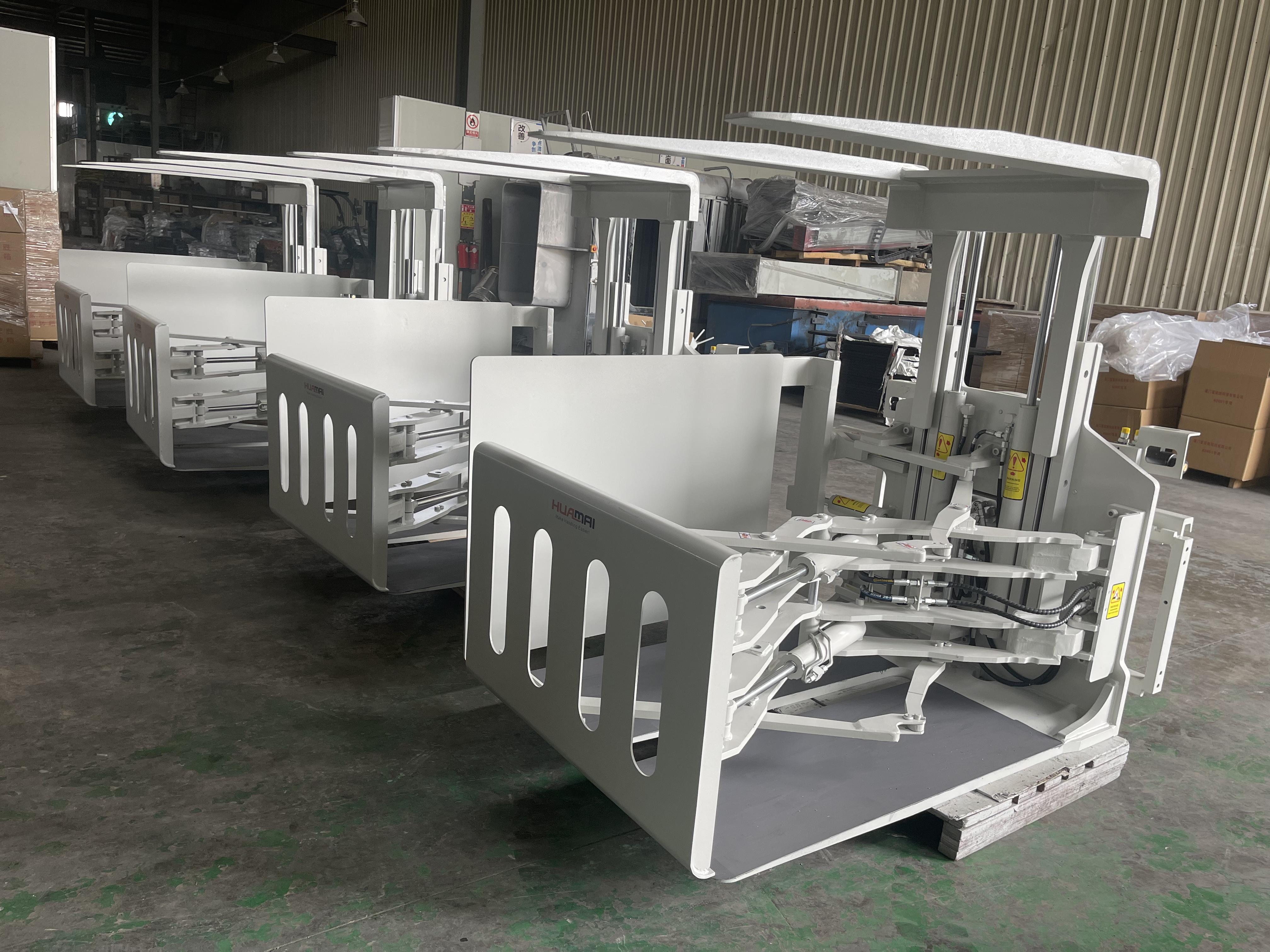

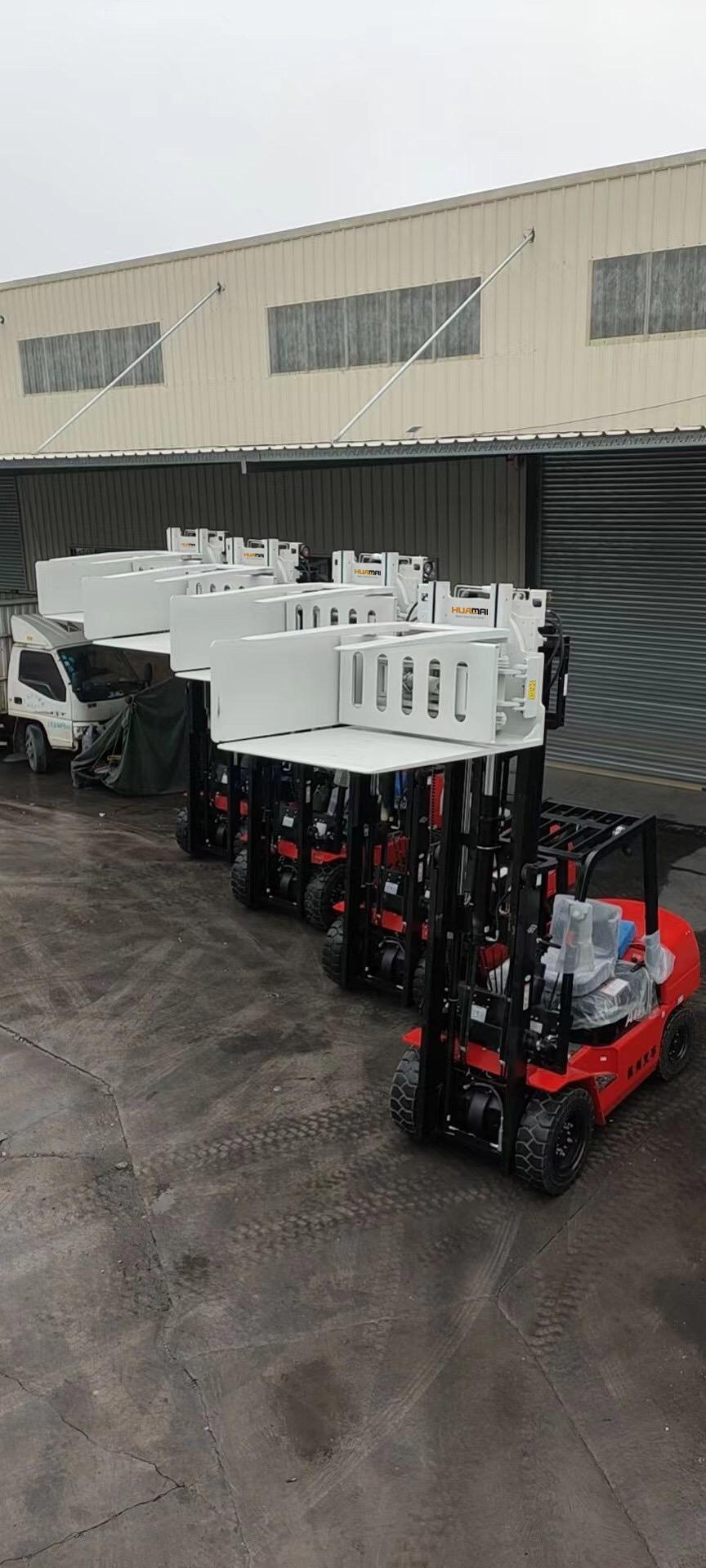

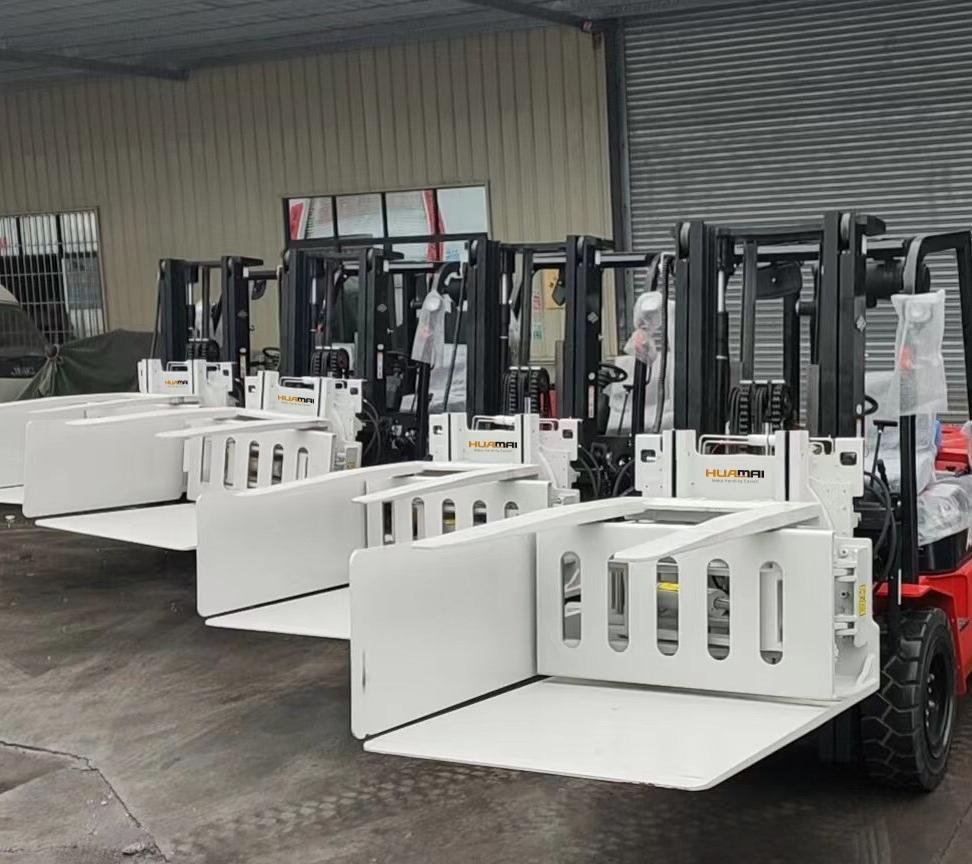

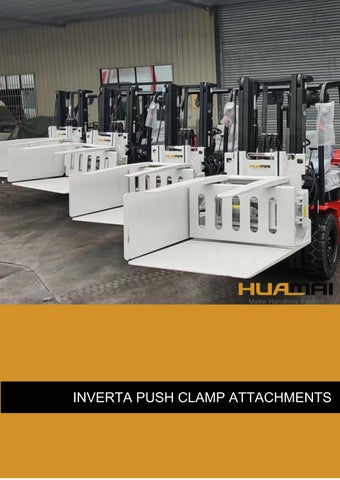

INVERTA PUSH CLAMP ATTACHMENTS

INVERTAPUSHCLAMPATTACHMENTS

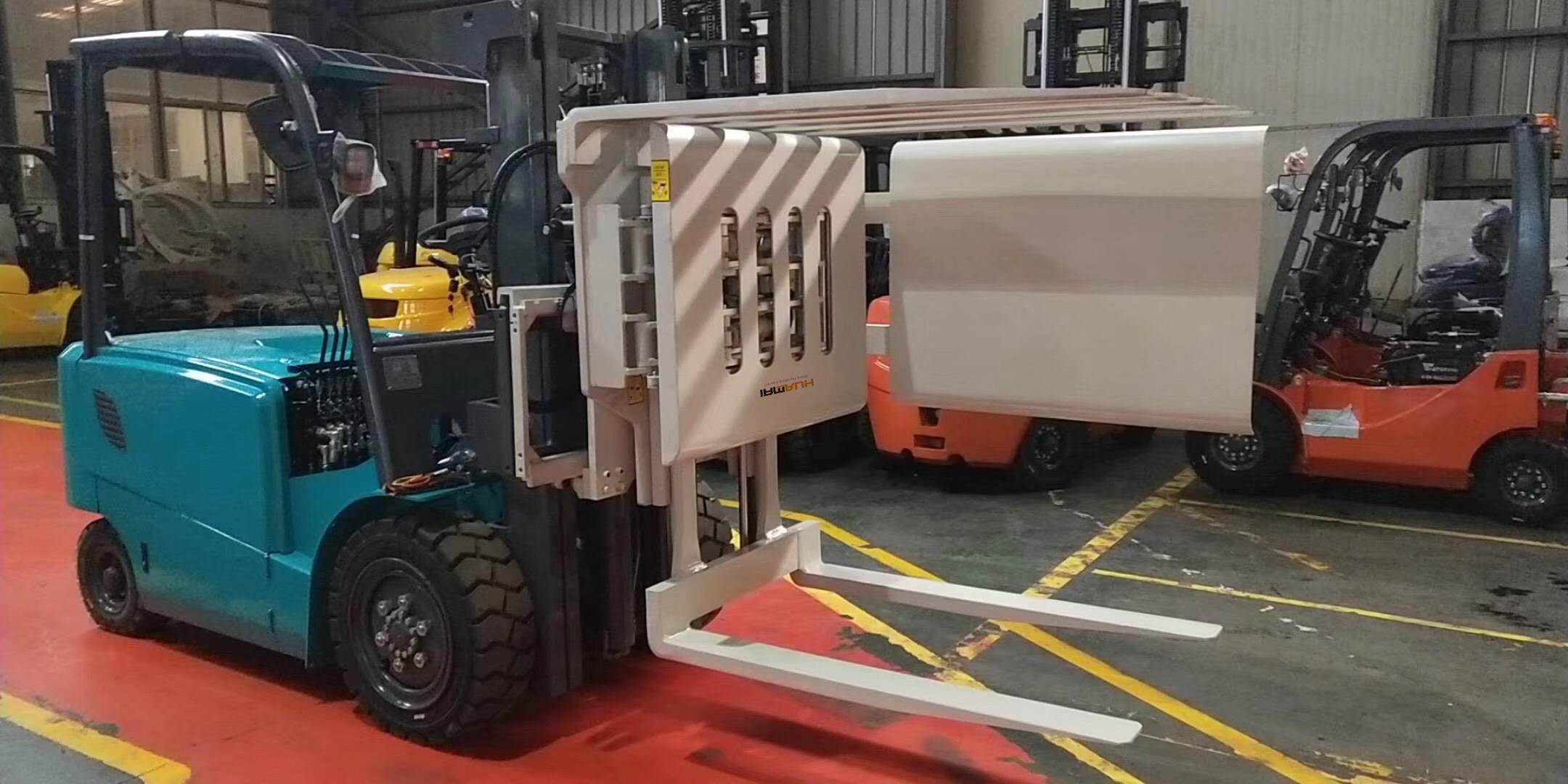

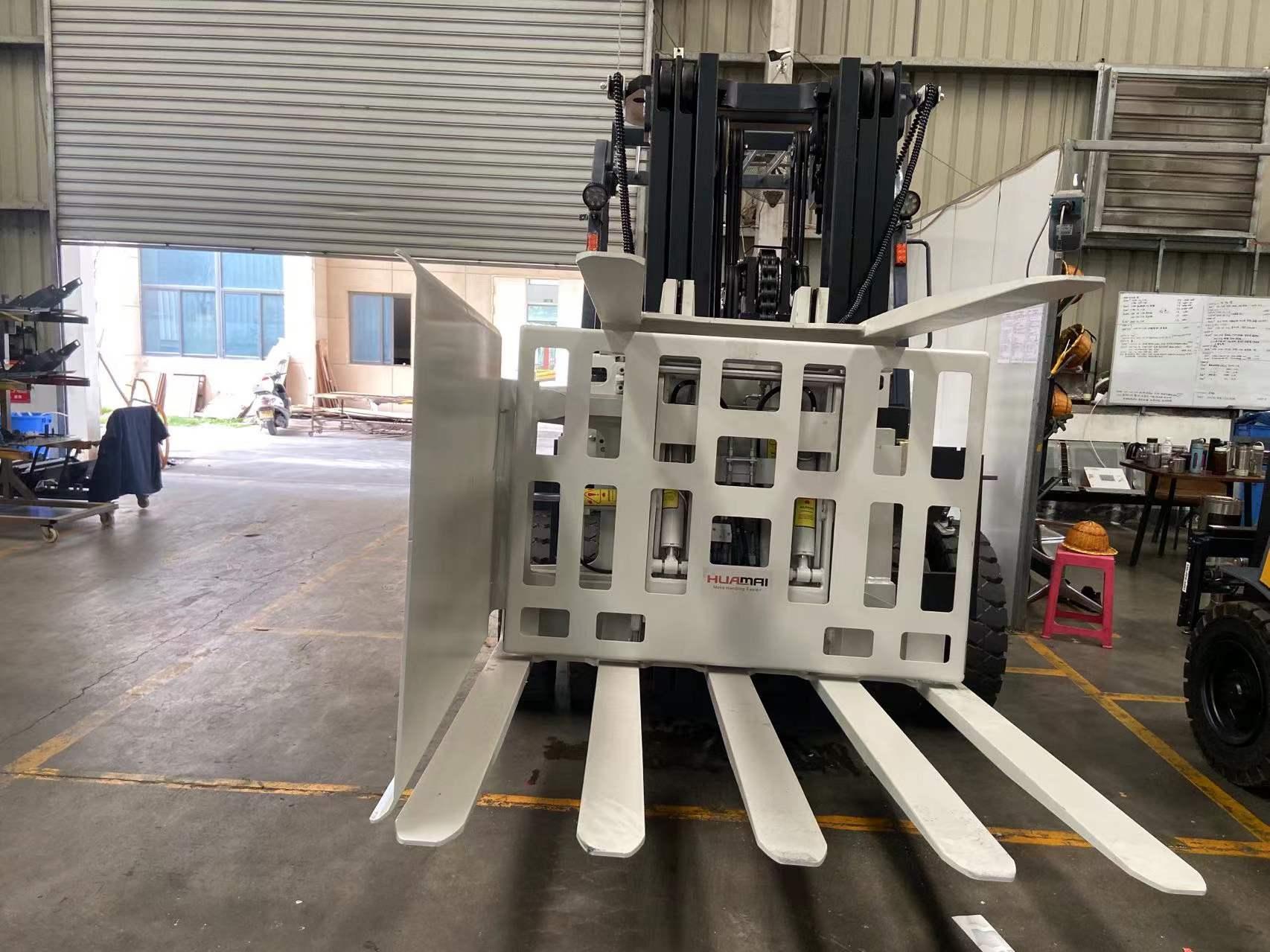

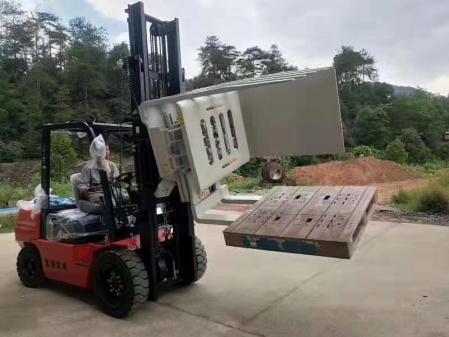

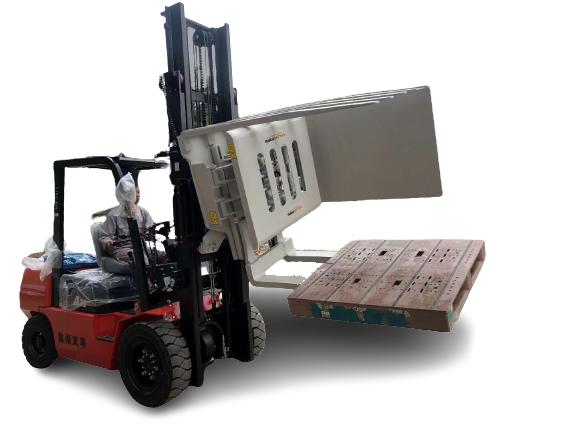

Bottomforksareinsertedinpallet.Loadisclampedagainstupperforks.Side stabilizerengagesloadtosecureitforrotation. Astruckmovestoload-outpoint,InvertaPushturns180°sopalletisontopofload. Thepalletisnowonbottom.Forksliftpalletoffload.Operatorpushesoffandbacks

Itissuitableforhandling,loadingandunloadingandpalletstackingofbagged goods(especiallysoftbaggoods)suchasplasticgranules,cement,fertilizer,feed ,rice,etc.withoutmanualoperation,thegoodscanberotated180°andpushedaway ,andthepalletcanbetakenout.Efficientandlabor-saving. awaysimultaneously.

ubleeffecthydrauliccylinder Varioustypes,sizesandspreadsofarms s

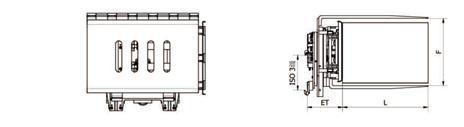

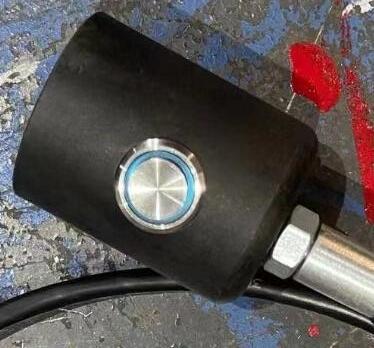

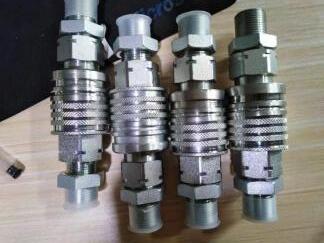

ElectricValva Specifications OPTIONS Center@Load Center (kg@mm) Catalog Order No Mounting Class Opening Range (mm) A1A2BC1C2Weight (kg) Effective Thickness ET(mm) Horizontal CenterOf Gravity CGH(mm) Sideshifting 1500 IVS15D001BIII600-750 1100 127076010608601380480 475 2000 IVS20D001BIII600-750 1100 127076010608601480480 475 Non-Sideshifting 1500 IVP15D001BIII600-750 1100 127076010608601320460 475 2000 IVP20D001BIII600-750 1100 127076010608601420460 475 QuickConnectKit

Thedetails,descriptionsandillustrationscontainedhereinareintendedtoserveas guidelineonlyandcannotbebindingonthemanufacturesHUAMAI reservetherighttomakeanychangesdeemednecessary,withoutnotice FujianHuamaiMachineryCo.,Ltd. Add:Room501,No4053,DianqianVillage, HuliDistrict,XiamenCity,FujianProvince,China attachments@huamaiglobalcom wwwhuamaiattachmentscom
