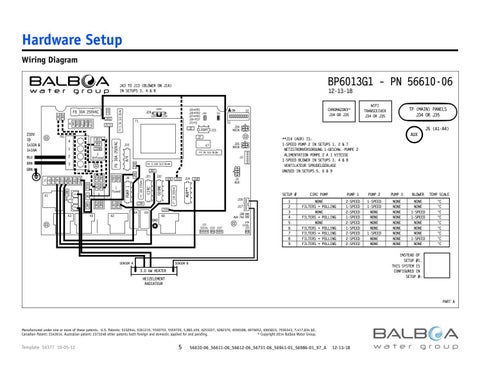

Hardware Setup Wiring Diagram
BP6013G1 – PN 56610-06
K3
J109
F3 0.5A SLO-BLOW
1 Fused
J81 J13
J14
K9
J18
J5 AUX
K8
J16 J17 J28 AUX FRZ
K6 J23 SERIAL J101 J107
SENSOR A
TP (MAIN) PANELS J34 OR J35
J108
J11
AUX
J5 (A1-A4) OR J8 (A5-A8)
J8 AUX
J40 REMOTE J50
J19
GND
K12
J20
AUX**
J32
J39
K4
K2
J21
F7 10A 250VAC
J62 J88
K5
J9
J22
OZONE
J53 J12 J58 J36
J110 J6
3
J49
3 2
K1
J44 J48
2
J1 J3 J4 J37 J42 J47 J61 J72
GRN
WIFI TRANSCEIVER J34 OR J35
**J14 (AUX) IS: 1-SPEED PUMP 2 IN SETUPS 1, 2 & 7 NETZSTROMVERSORGUNG 1-GESCHW.-PUMPE 2 ALIMENTATION POMPE 2 A 1 VITESSE 1-SPEED BLOWER IN SETUPS 3, 4 & 8 VENTILATEUR SPRUDELGEBLASE UNUSED IN SETUPS 5, 6 & 9
J35 MAIN
F5 3.15A SLO-BLOW
CIRC
3
CHROMAZONE™ J34 OR J35
J34 MAIN
LIGHT J15
F4 2A SLO-BLOW
J38
BRN
IR RECEIVER J40
10
S1
K7
J46
1 Unfused
ON
J7 J33
F2 10A 250VAC
2
120V
J2
PUMP 1
BLU
J25=HTR1 J26=HTR2 J30 J26 J31 J27=HTR3 J30=TEST J25 J27 J91 J31=CE
T1
F6 30A 250VAC
1
J51 J52 J198
4
120V
J55 J56
TB1
J111
240V
J24
J57 J59
230V 1þ 1x32A & 1x16A
J45 J54 J77 J78 J79
J43 4
12-13-18
A/V
J41 J60
F8 30A 250VAC
J10
J43 TO J13 (BLOWER ON J14) IN SETUPS 3, 4 & 8
HTR DISBL J29
SETUP #
CIRC PUMP
PUMP 1
PUMP 2
PUMP 3
BLOWER
TEMP SCALE
1 2 3 4 5 6 7 8 9
NONE FILTERS + POLLING NONE FILTERS + POLLING NONE FILTERS + POLLING FILTERS + POLLING FILTERS + POLLING FILTERS + POLLING
2-SPEED 1-SPEED 2-SPEED 1-SPEED 2-SPEED 1-SPEED 2-SPEED 2-SPEED 2-SPEED
1-SPEED 1-SPEED NONE NONE NONE NONE 1-SPEED NONE NONE
NONE NONE NONE NONE NONE NONE NONE NONE NONE
NONE NONE 1-SPEED 1-SPEED NONE NONE NONE 1-SPEED NONE
°C °C °C °C °C °C °C °C °C
INSTEAD OF SETUP #1, THIS SYSTEM IS CONFIGURED IN SETUP #:
SENSOR B
3.0 kW HEATER HEIZELEMENT RADIATEUR
PART A
NEEDS 3 X 16A / 2 x 16A / 1x16A & 1&32A VERSION OF TB1 STICKER.
