KUKUI’ULA HAWAIIAN RESIDENCE SET

Technician Design Work at Daizen Joinery Manager: Juergen Poepsel, Fall 2019

Size: 4,915.73 sq.ft Location: Koloa, Kaua’i, HI, US

Project in Charge: Timber frame structure and joinery design Status: Design phase is done, pieces are under fabrication

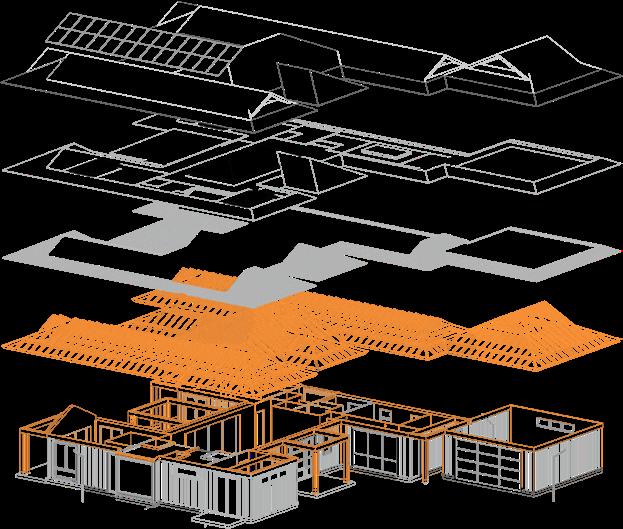

Exploded Axonmetric Diagram

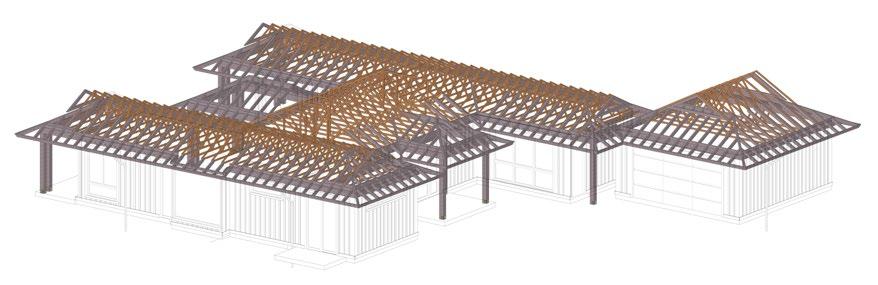

Roof Structure - Rafter Tails attached to Tusses with Insulation underneath Cladding Beam and Post with Concrete Base, Plywood Shelving, and Windows Doors

Cross Section Views

West Elevation

Exposed heavy timber rafters add great value to the look of the house. These rafter tails have slot on top and bird mouth underneath that slide up to extend to truss rafter end.

Entry

South Elevation

To prevent termite damage, post beams material all get change to Western Red Cedar. When large size clear WRC cannot be found with enough source material, our answer is getting some treated Glulam core and add WRC as a veneer around it.

Garage

Invisible Wood to Wood Timber Frame Connections

Invisible Wood to Steel Timber Frame Connections
