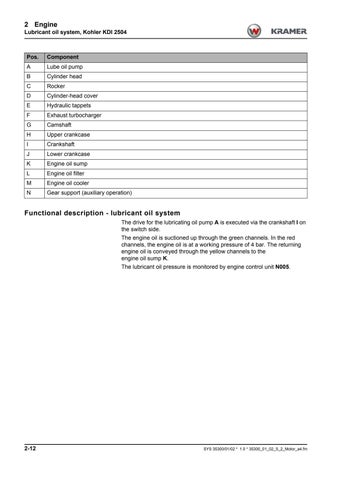

2 Engine Lubricant oil system, Kohler KDI 2504
Pos.
Component
A
Lube oil pump
B
Cylinder head
C
Rocker
D
Cylinder-head cover
E
Hydraulic tappets
F
Exhaust turbocharger
G
Camshaft
H
Upper crankcase
I
Crankshaft
J
Lower crankcase
K
Engine oil sump
L
Engine oil filter
M
Engine oil cooler
N
Gear support (auxiliary operation)
Functional description - lubricant oil system The drive for the lubricating oil pump A is executed via the crankshaft I on the switch side. The engine oil is suctioned up through the green channels. In the red channels, the engine oil is at a working pressure of 4 bar. The returning engine oil is conveyed through the yellow channels to the engine oil sump K. The lubricant oil pressure is monitored by engine control unit N005.
