Refuelling

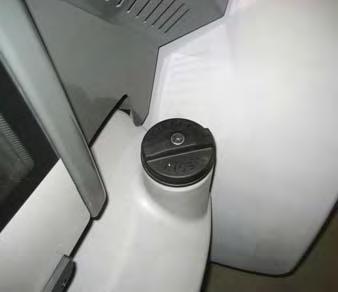

Fig. 17: Fuel filler inlet

A

Fuel tank filler inlet A is located on the right-hand side of the machine (cab access).

Danger!

Danger of fire and suffocation! ☞ Do not refuel in closed rooms!

☞ Proceed as follows before filling up the fuel tank: •Lower the loader unit to the ground •Stop the diesel engine and remove the ignition key •Apply the parking brake •Clean the area around the filler opening before opening the filler cap •Open the filler cap and fill the fuel tank through the filling screen

Notice!

Fuel may be drained and the fuel tank may be cleaned only by an authorised workshop!

Bleeding the fuel system

Notice!

If the fuel tank has been run empty, or after having carried out maintenance work on the fuel system (filter replacement, water separator cleaned), the fuel system bleeds itself automatically when starting the engine!

Checking/cleaning the water separator

1

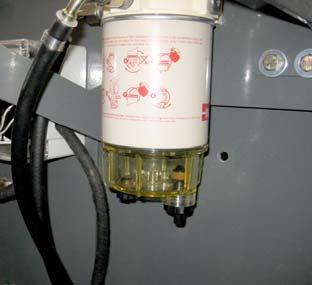

Fig. 18: Bleeding the fuel system

A

B Drain the condensation water every 50 s/h (service hours)

Drain the condensation water in the additional fuel filter at the latest if indicator light 1 on the indicating instrument comes on. ☞ Proceed as follows: •Lower the loader unit to the ground •Stop the diesel engine and remove the ignition key •Apply the parking brake •Place a container to collect the fuel •Open drain cock A on the additional fuel filter and drain the condensation water •Close drain cock A •Start the diesel engine and check the additional fuel filter for leaks

Notice!

Have the additional fuel filter A (cartridge) replaced by an authorised workshop every 500 s/h!
