2.17Dimensions with bucket

a b c d

e

f

1780

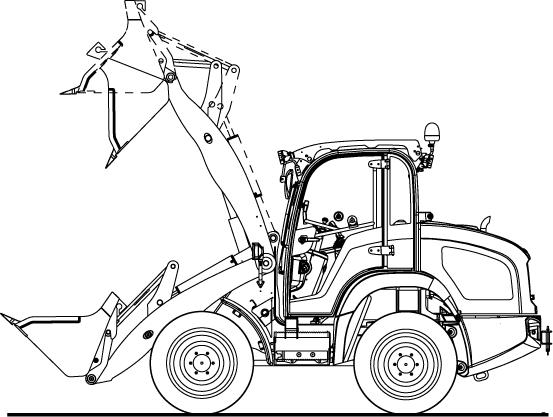

Fig. 14: Machine dimensions with bucket

1850

4950 280

1320 1700 2390 2470 2590

250

1262 1650

Wheel loader models 349-00/349-01

– Overall length1, 2 – Overall width1

– Overall height with cab3, 4, 5 – Overall height with protective FOPS screen3, 5

4950 mm (194.9 in) 1650 mm (64.9 in) 2390 mm (94 in) 2470 mm (97.24 in) – Overall height, upper edge of engine cover3, 5 1700 mm (67 in) – Ground clearance in transport position of loader unit 250 mm (9.85 in) – Ground clearance3, 5 280 mm (11 in) a Pin height3, 5 3050 mm (121 in) b Load-over height3, 5 2900 mm (114.7 in) c Dump height3, 5 2330 mm (91.7 in) d Dump reach1 300 mm (11.8 in) e Dump-out angle1 42° f Dump-in angle1 45° – Front/rear track width3 1262 mm (49.7 in) – Wheelbase (front/rear axles) 1850 mm (72.8 in)

–

Turning radius between kerbs3 Between walls1 2700 mm (106.3 in) 3550 mm (139.7 in)

1. With standard bucket 2. With towing gear 3. With tyres 12.0-18 4. With rotating beacon + 200 mm (+7.9 in) 5. With tyres 10.5-18 (−10 mm) (−0.39 in)/with tyres 325/70 R18 (−10 mm) (−0.39 in)/ with tyres 365/70 R18 (+10 mm) (+0.39 in)/with tyres 335/80 R18 (+30 mm) (+1.81 in)/ with tyres 340/80 R 18 (+25 mm) (+0.98 in)
