Numberplate bracket with light (option

43 44 45 46

38

37 55 54 47

53 48

49

50

51

52 56

58 59 60 61 62 57

63

64 65 35

73 74 75 76 77

A

70

71 11 66

67

68

69

78 79 80 81 83

82

B 1.3 Instrument panel, multifunctional lever, switch consoles (overview)

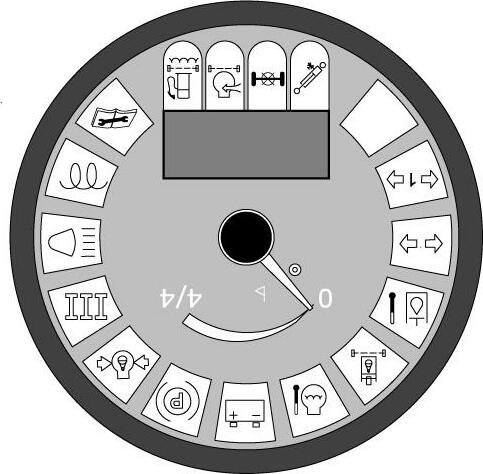

Pos. Indicator lights on indicating instrument

37 Differential lock indicator light (green) 38 Load stabiliser, hose burst valve (option) indicator light (yellow) 39 Not assigned 40 Right/left turn indicator light (green) for rear attachments/trailer 41 Right/left turn indicator light (green) 42 Hydraulic oil temperature indicator light (red) 43 Hydraulic oil filter indicator light (red) 44 Diesel engine coolant temperature indicator light (red) 45 Alternator charge function indicator light (red) 46 Parking brake indicator light (red) 47 Engine oil pressure indicator light (red) 48 Tank gauge (fuel) 49 Indicator light (red) – 3rd control circuit (hydraulics) 50 High beam indicator light (blue) 51 Cold starter indicator light (yellow) 52 Service interval indicator light (yellow), 53 Water separator (fuel filter) indicator light (red) 54 Air filter indicator light (red) 55 Hour meter

Heating/ventilation switch consoleFor more information see page

56 Rotary switch – heating temperature 57 Rotary switch – heater fan (heating, ventilation)

Front left/right switch consoleFor more information see page

58 Tip switch (grey) – front socket with two circuits (option) 59 Air conditioning (option) switch (grey) 60 Switch with lock (green) – front/rear additional control circuit (option) 61 Drive range selection switch (blue) 62 Switch with lock (blue) – 4 wheel/front axle steering (option) 63 Indicator light (green) – front axle steering/4 wheel steering (option)

Multifunctional lever turn indicators, wipers, hornFor more information see page

64 Horn tip switch 65 Rotary switch and tip switch – front wiper, washer pump

Control lever (joystick)For more information see page

66Front socket tip switch (option) 67 Switch – front additional control circuit (option) 68 Switch – forwards/reverse driving direction 69 Tip switch – driving direction in neutral 70 Switch – 3rd control circuit (quickhitch lock/unlock) (option) 71 Differential lock tip switch (option for model 349-00)

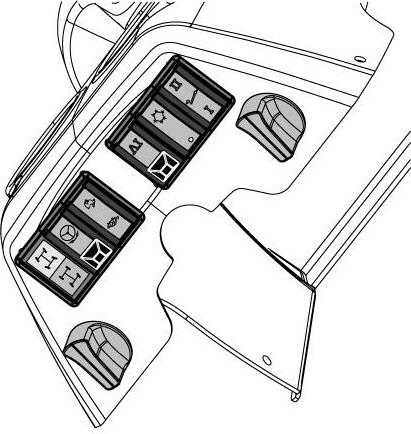

Switch console (A) For more information see page

72 Lights switch (grey) 73 Switch with lock (green) – switching the 3rd control circuit ON/OFF (option) 74 Switch with lock (green) – continuous operation of 3rd control circuit (option) 75 Switch (green) – emergency lowering of loader unit with hose burst valve (option)/ quickhitch lock (option) 76 Switch (grey) – heated rear window (option) 77 Switch (green) – front or rear additional control circuit (option)

Switch console (B) For more information see page

78 Switch (green) – load stabiliser (option) 79 Switch (grey) – front working light (option) 80 Switch (grey) – rotating beacon (option) 81 Switch (grey) – front working light (standard on left, option on right) 82 Not assigned 83 Tip switch (green) – raise/lower hydraulic tipping trailer during trailer operation (option)
