Quickhitch couplers for additional control circuit (option

Type labels and component numbers Explanation of “Book” symbol

The “Book” symbol on the signs and type labels indicates that the Operator’s Manual contains more detailed information and explanations.

Fig. 2: Explanation of “Book” symbol

Serial number

A

1 2 3 4 5 6 7 8 9 10 11

12 13 14 15

16

Fig. 3: Type label: location

17

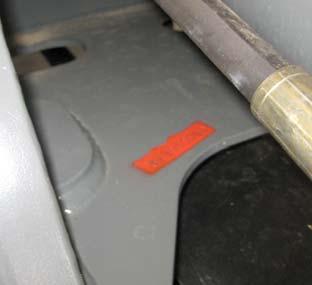

The serial number A is stamped on the machine frame (next to the mudguard attachment, at the front right). It is also located on the type label B. The CE mark on the type label means that the machine meets the requirements of the Machine Directive (2006/42 EC) and that the conformity procedure has been carried out.

Example: type label

1 Machine designation Wheel loader (650) 2 Serial no. 349 01 0020 3 Machine model 349 4 Output (kW) 35 (46.94 hp) 5 Machine model/version 349-01 6 Dead weight (kg) 3800 (8377.4 lbs.) 7 Transport weight (kg) –8 Gross weight rating (kg) 4500 (9920.6 lbs.) 9 Maximum payload (kg) –10 Front gross axle weight rating (kg) 3200 (7054.7 lbs.) 11 Rear gross axle weight rating (kg) 3200 (7054.7 lbs.) 12 Gross unbraked trailer weight rating1 (kg) –13 Gross braked trailer weight rating1 overrun brake (kg) 14 Gross braked trailer weight rating1 (kg) overrun brake (1 axle) 15 Gross trailer weight rating1 (kg) (compressed-air brake) –

16 Check number of EU approval for machines with agricultural or forestry licence

See also the General Certification for Vehicles (Germany) or the data confirmation (Germany) 17 Year of construction 2012 Other information –seechapter2“Specifications” on page2-1

1. The trailer coupling option is only for machines with agricultural or forestry registration
