Removing the Speakers

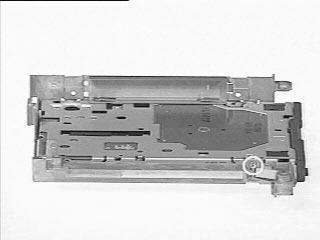

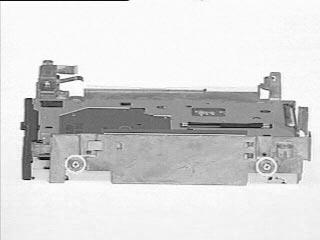

8. Remove the three screws from the floppy drive.

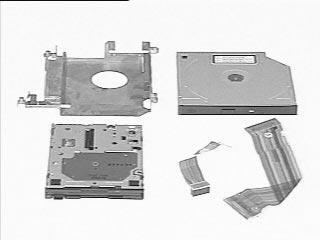

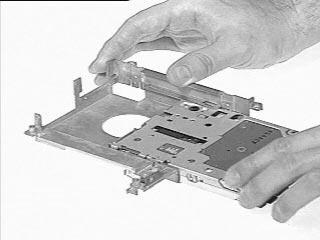

9. Slide out the floppy drive from the CD/ROM and diskette drive module. 10. This completes the disassembly procedure of the CD-ROM and diskette drive module.

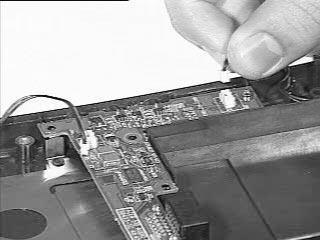

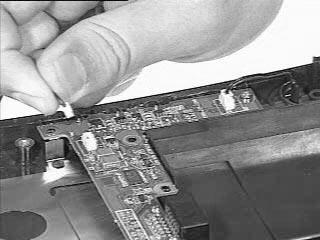

1. Disconnect the left and right channel speaker cables at CN1 and CN2 from the audio-I/O and battery connection board.
