Removing the LCD Module

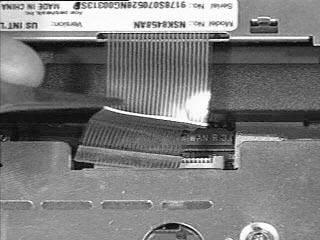

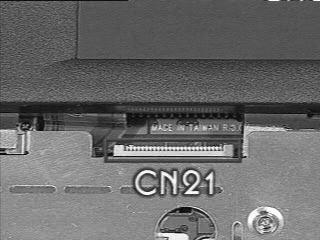

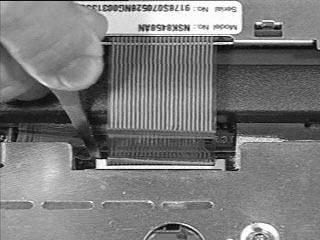

5. To remove the keyboard, release the keyboard connector at CN21 as shown below.

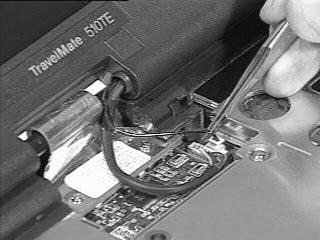

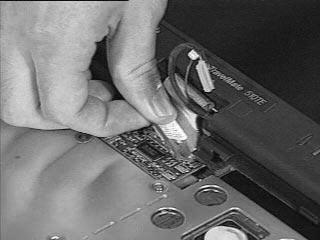

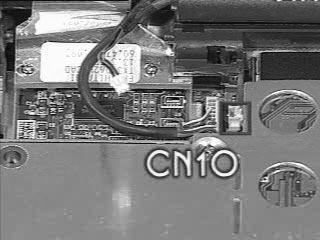

1. Disconnect the internal microphone cable from the system board at CN10.

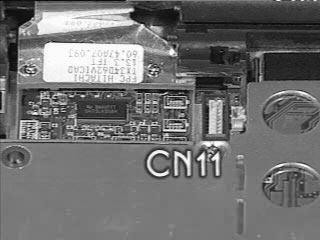

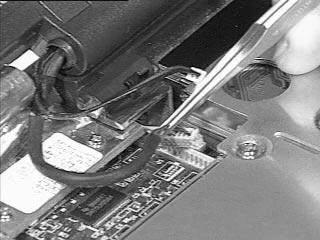

2. Disconnect the LED cable from the system board at CN11.

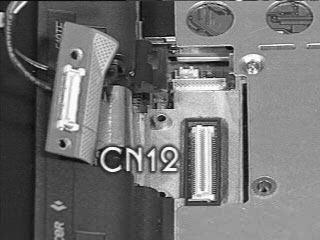

3. Remove the two screws as shown below then disconnect the LCD FPC cable from the LVDS board at CN12.

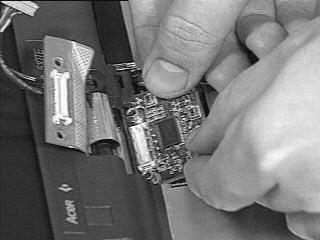

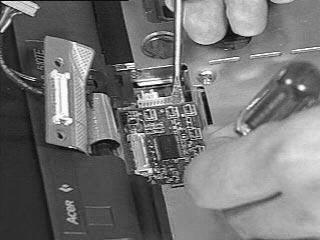

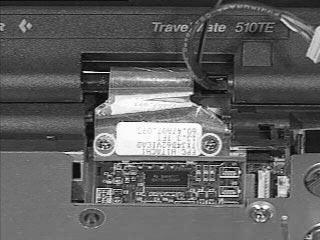

4. Disconnect the LVDS board from the system board using two flat-bladed screwdriver.

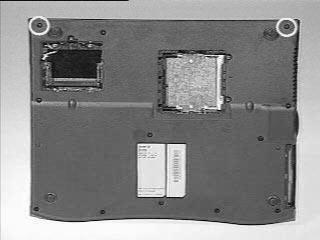

5. Remove the two screws at the base of the unit, then carefully detach the

LCD module from the main unit.
