Removing the CD-ROM/ Diskette Drive Module

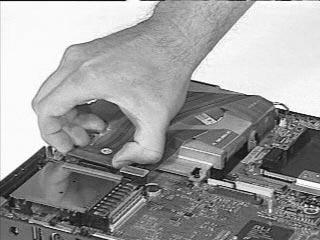

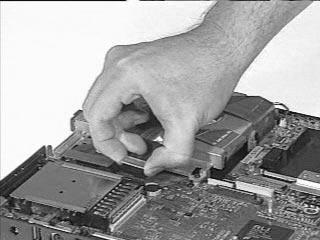

1. Slide out the CD-ROM drive from the CD-ROM and diskette drive module.

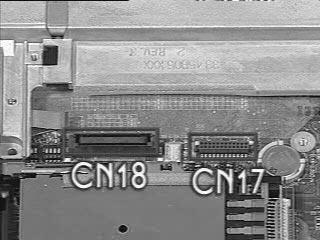

2. Disconnect the CD-ROM cable at CN18 and diskette drive cable at CN17 from the system board.

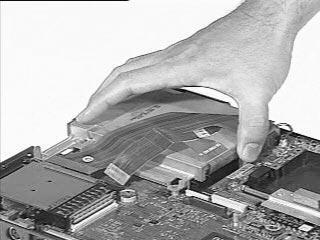

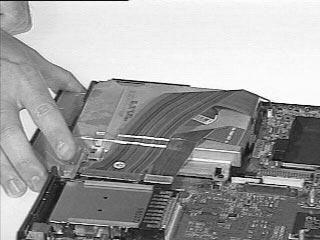

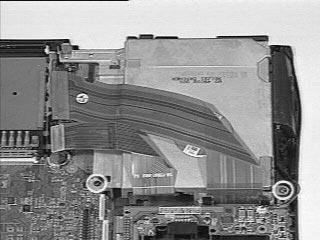

3. Remove the two screws from the CD-ROM and diskette drive module. 4. Gently, pull out the CD-ROM and diskette drive module from the lower case.
5. Peel the tape off. 6. Release the CD-ROM cable from the CD-ROM and diskette drive module.

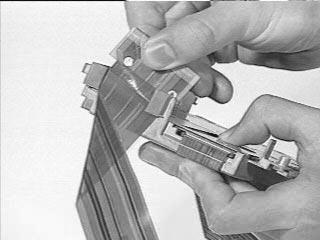

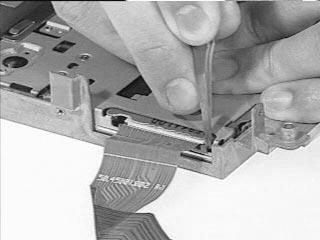

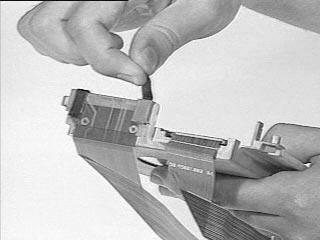

7. Disconnect the floppy drive cable from the floppy drive.
