Tigercat X822D/LX822D/X830D/LX830D Feller Buncher
Safety
WARNING
• When approaching an operating machine on foot, stay at least 150 m (500 ft) away until the operator recognizes your presence. All harvesting equipment must be shut down before advancing to the machine.
Wear a suitable hearing protective device such as earmuffs or earplugs to protect against noise. Prolonged exposure to loud noise can cause impairment or loss of hearing.
NOTE: Opening the cab front door will stop machine functions. Opening the cab side door will NOT stop machine functions.
DANGER
• Use the handrails and steps provided when mounting and dismounting from the machine.
The safety of persons outside the cab is the responsibility of the machine operator.
• Do not jump off the machine at any time. • Do not try to climb on or off a moving machine.
150m /500ft
• Do not use the seat armrest or joystick as a handle when entering or leaving the cab.
68197BUNI R0

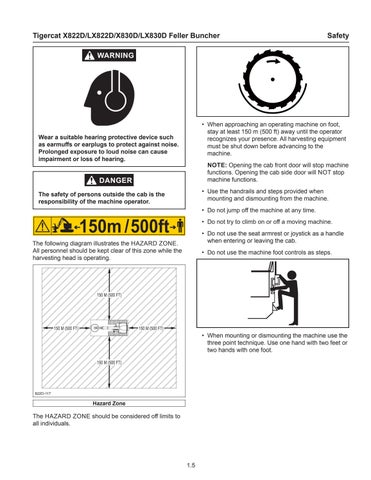

The following diagram illustrates the HAZARD ZONE. All personnel should be kept clear of this zone while the harvesting head is operating.
• Do not use the machine foot controls as steps.
150 M (500 FT)
150 M (500 FT)
150 M (500 FT)
• When mounting or dismounting the machine use the three point technique. Use one hand with two feet or two hands with one foot. 150 M (500 FT)
822D-117
Hazard Zone
The HAZARD ZONE should be considered off limits to all individuals.
1.5
