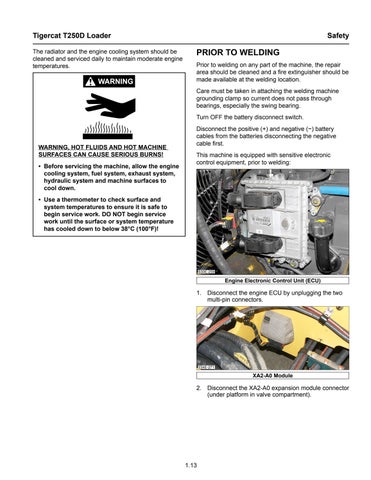

Tigercat T250D Loader The radiator and the engine cooling system should be cleaned and serviced daily to maintain moderate engine temperatures.
WARNING
Safety
PRIOR TO WELDING Prior to welding on any part of the machine, the repair area should be cleaned and a fire extinguisher should be made available at the welding location. Care must be taken in attaching the welding machine grounding clamp so current does not pass through bearings, especially the swing bearing. Turn OFF the battery disconnect switch.
WARNING, HOT FLUIDS AND HOT MACHINE SURFACES CAN CAUSE SERIOUS BURNS! • Before servicing the machine, allow the engine cooling system, fuel system, exhaust system, hydraulic system and machine surfaces to cool down.
Disconnect the positive (+) and negative (−) battery cables from the batteries disconnecting the negative cable first. This machine is equipped with sensitive electronic control equipment, prior to welding:
• Use a thermometer to check surface and system temperatures to ensure it is safe to begin service work. DO NOT begin service work until the surface or system temperature has cooled down to below 38°C (100°F)!
630E-259
Engine Electronic Control Unit (ECU)
1. Disconnect the engine ECU by unplugging the two multi-pin connectors.
234E-271
XA2-A0 Module
2. Disconnect the XA2-A0 expansion module connector (under platform in valve compartment).
1.13
