SYSTEM / Hydraulic System

Neutral Circuit

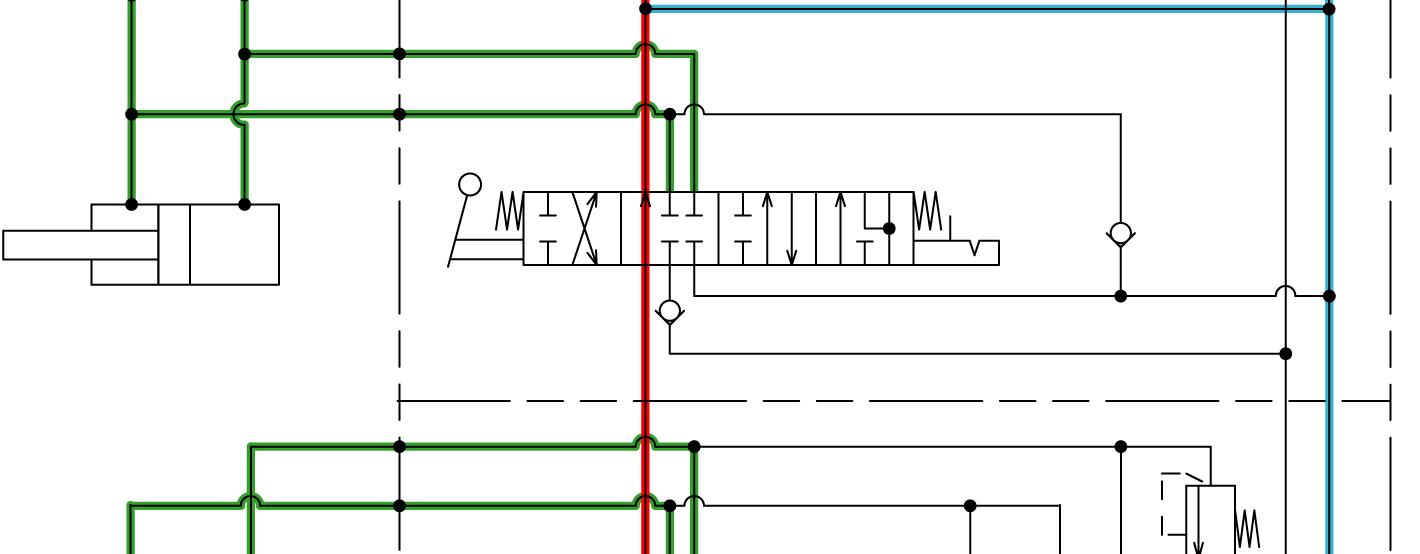

• When the loader control lever is in neutral, pressure oil from the main pump returns to the hydraulic oil tank through the neutral circuit of the control valve.

NOTE: The illustration shows oil flow without operation while the engine is running.

Front Attachment Circuit

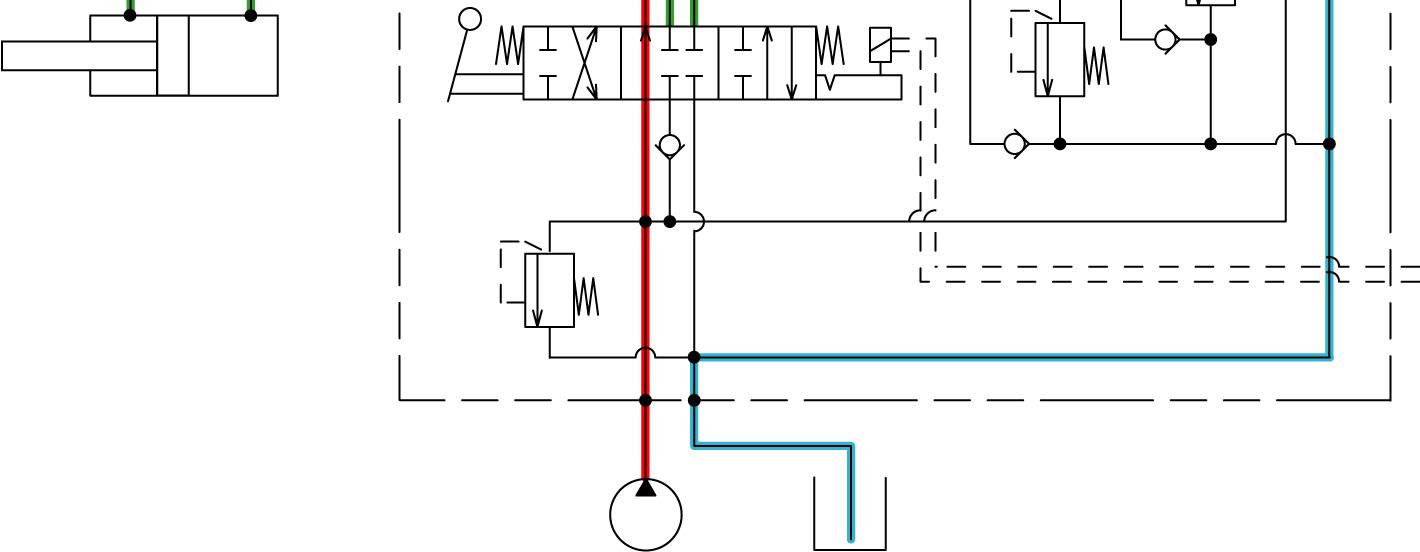

• Pressure oil from the main pump flows to the control valve, and flows to the each spool of lift arm and bucket.

Auxiliary Front Attachment Operation Circuit (Optional)

Auxiliary Actuator (Optional) Auxiliary Actuator (Optional)

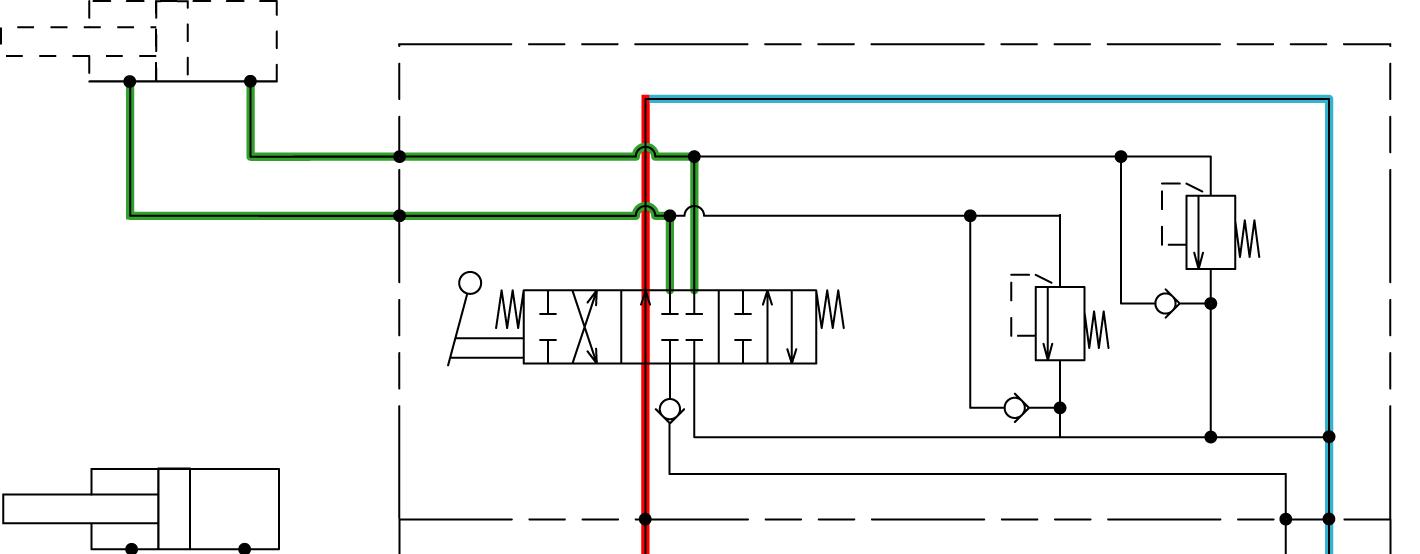

• Pressure oil from the main pump flows to the control valve, and flows to the auxiliary actuator (optional) spool. T4FG-02-02-002

T2-2-4

Steering Circuit

Outline:
