COMPONENT OPERATION / Others

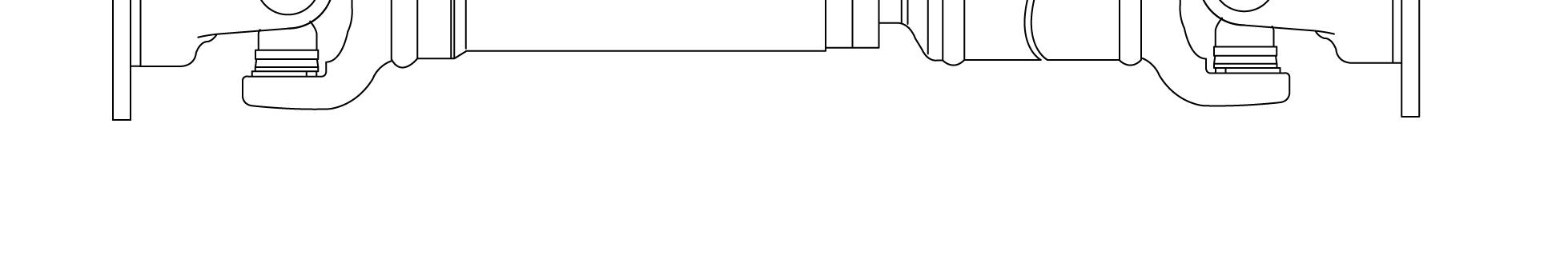

Propeller Shaft

The propeller shaft is installed between the reduction and the front axle.

The propeller shaft transmits the power from the reduction to the front axle. The universal joint, most commonly used, is provided.

Between Front Axle and Reduction

T3-9-2

COMPONENT OPERATION / Others

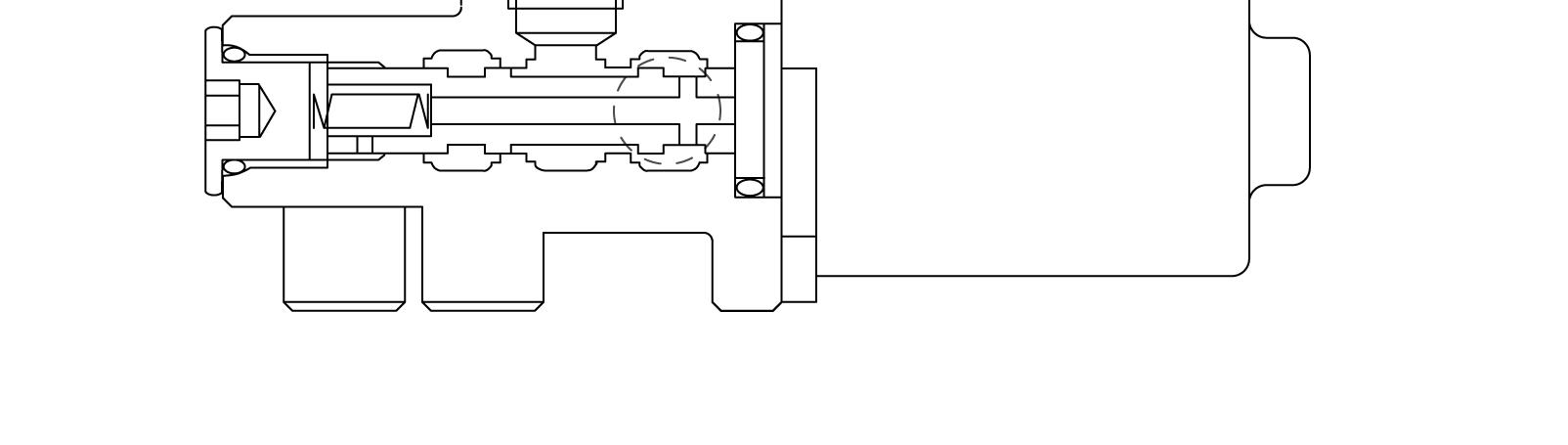

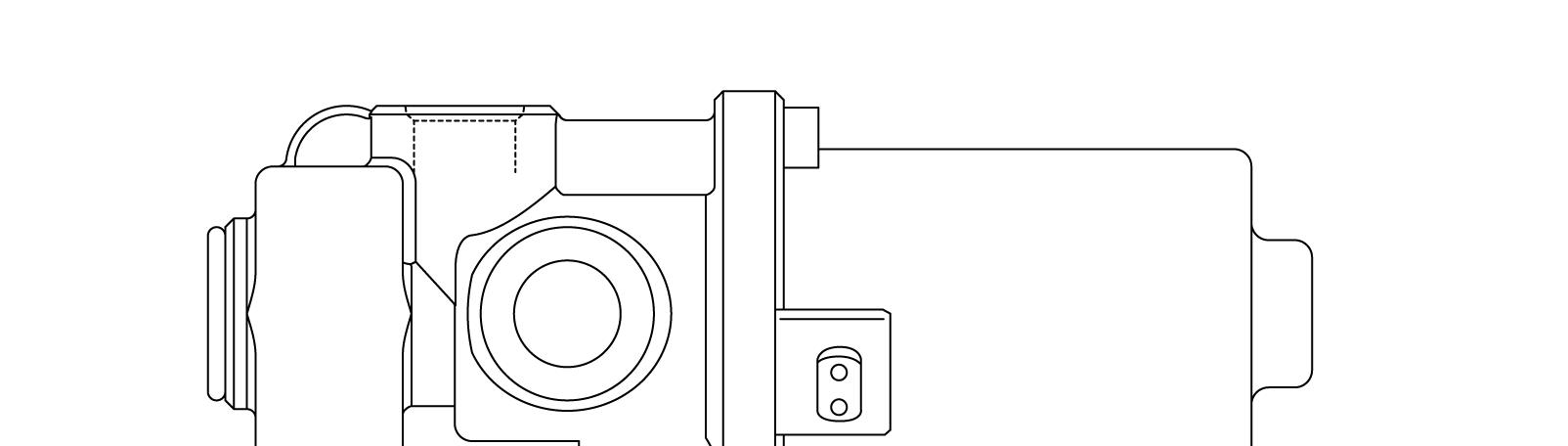

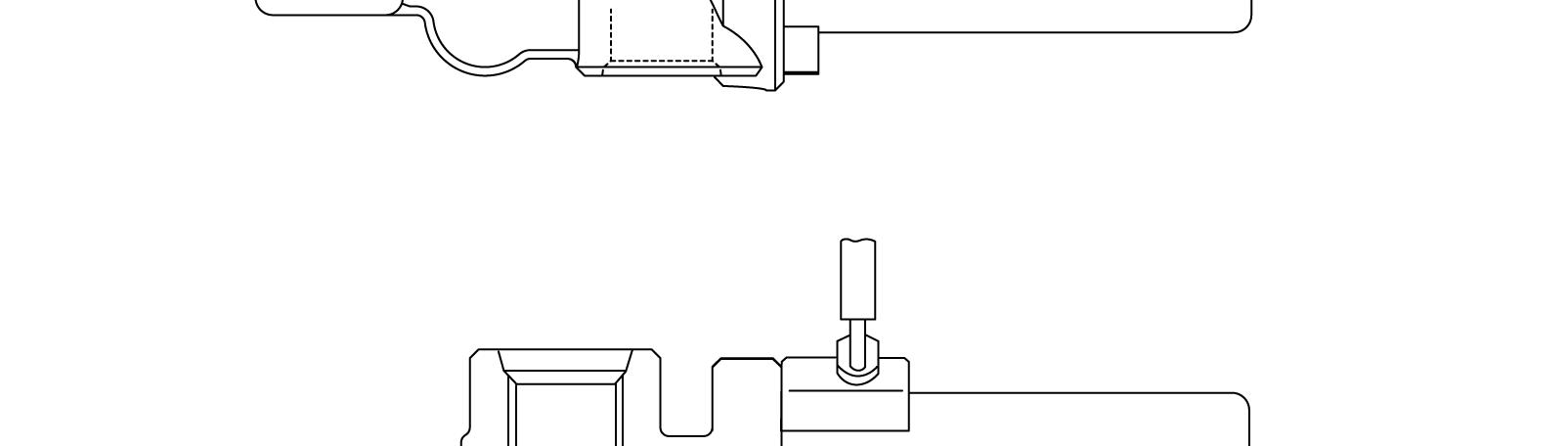

Parking Brake Solenoid Valve

Pressure oil from the HST charging pump is accumulated in the HST pump and its pressure always acts on the inlet of the parking brake solenoid valve.

When the parking brake solenoid valve is activated, pressure oil in the HST charging pump flows to the parking brake through the spool and releases the parking brake.

T3-9-3
