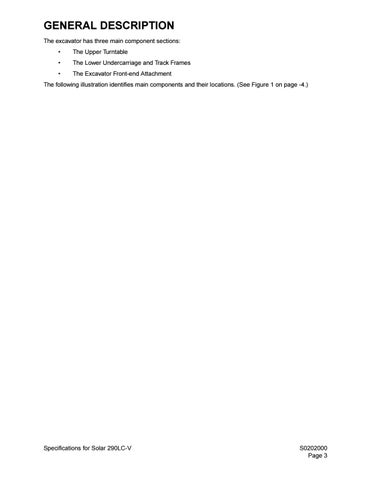

GENERAL DESCRIPTION The excavator has three main component sections: •
The Upper Turntable
•
The Lower Undercarriage and Track Frames
•
The Excavator Front-end Attachment
The following illustration identifies main components and their locations. (See Figure 1 on page -4.)
Specifications for Solar 290LC-V
S0202000 Page 3
