OPERATORS SEAT

INSTRUMENTS/CONTROLS

GROUP 4

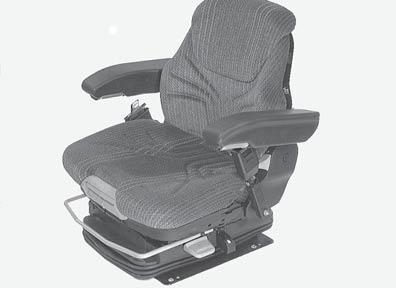

Standard Seat

OPERATORS SEAT

2 2

1

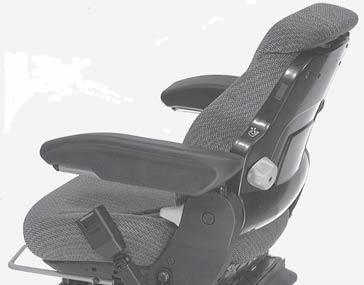

1. LUMBAR ADJUSTMENT KNOB

Turn the knob clockwise to increase the lumbar support, turn the knob counterclockwise to decrease the lumbar support.

2. ARMREST HEIGHT CONTROL ADJUSTMENT

Turn the knob to raise or lower the armrest to the desired position. NOTE: Each armrest will pivot to the up position.

4. SLIDE ADJUSTMENT LEVER

Pull this lever up and adjust the seat forward or rearward as required. Release the lever to lock the seat in position.

5. WEIGHT ADJUSTMENT KNOB

Toadjust the seat for your weight you must pull the release lever out of the knob, Use the release lever to turn the knob clockwise to increase the weight resistance. Turn the knob counterclockwise to decrease the weight resistance.

6. HEIGHT ADJUSTMENT, STANDARD SEAT

Lift the seat all the way up, drop the seat to the lowest position. Lift the seat to the desired position. The seat will lock into accepted positions.

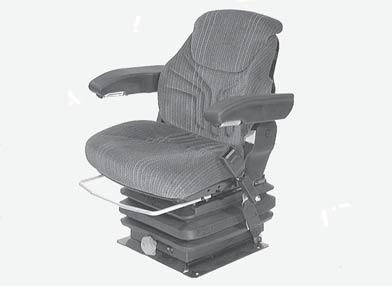

Optional Air Ride Seat

2

2 1

5 4

6 3

3. RECLINER ADJUSTMENT HANDLE

Lift up on the handle, move the backrest to the desired position, release the handle to lock the backrest in position.

1. LUMBAR ADJUSTMENT KNOB

Turn the knob clockwise to increase the lumbar support, turn the knob counterclockwise to decrease the lumbar support.

2. ARMREST HEIGHT CONTROL ADJUSTMENT

Turn the knob to raise or lower the armrest to the desired position. NOTE: Each armrest will pivot to the up position.

4 6

7

INSTRUMENTS/CONTROLS

5 3

6. SEAT DEPTH HANDLE

Lift handle up and move the cushion to the desired position. Release the handle to lock the cushion in position.

7. SEAT CUSHION ANGLE ADJUSTMENT HANDLE

Lift up on the handle. Move the seat to the desired angle. Release the handle to lock the cushion angle.

3. RECLINER ADJUSTMENT HANDLE

Lift up on the handle, move the backrest to the desired position, release the handle to lock the backrest in position.

4. SLIDE ADJUSTMENT LEVER

Pull this lever up and adjust the seat forward or rearward as required. Release the lever to lock the seat in position. NOTE: When adjusting the seat height for the first time or for a different operator. Sit in the operators seat, lift up momentarily on the height adjustment handle. The seat will automatically adjust to the operators weight. See height adjustment handle for final adjustments.

5. HEIGHT ADJUSTMENT HANDLE

A.(Automatic Adjustment): With the operator sitting in the seat. Lift the handle UP and release. The seat will automatically adjust UP and then bleed off air pressure to the optimum air pressure for the weight of the operator. B.(Manual Adjustment): The seat can be raised or lowered by increasing or decreasing the air pressure in the seat. Lift the handle UP to increase the air pressure. Push the handle DOWN to decrease the air pressure and lower the seat. 5

8

8. DAMPENING ADJUSTMENT LEVER

The dampening adjustment lever has four positions from soft to hard. The first adjustment is with the small end of the adjustment lever pointing toward the front of the seat, as shown. The other three adjustments can be obtained by rotating the small end of the adjustment lever out away from the seat. Each of the adjustments has a slight detent. The suspension can be adjusted to various operating conditions.
