TRANSMISSION
LUBRICATION/FILTERS/FLUIDS
TRANSMISSION
Service Specifications
Total system filling capacity with filters................................................................25 liters (6.6 U.S. Gallons) Type of oil............................................................................................................See Fluids and Lubricants Oil level check interval....................................................................................................................10 hours Filter replacement interval....................................................................After the first 100 hours of operation and then every 500 hours there after. Breather screen cleaning interval................................................................................................1000 hours Oil change interval...............................................................................After the first 100 hours of operation and then every 1000 hours there after. IMPORTANT: If the machine is new or the transmission has been replaced or rebuilt, change the transmission oil and replace the filter after the first 100 hours of operation.
WARNING: Never drain oil or remove oil filter while engine is running.!
Transmission Oil Level Check
EACH 10 HOURS OR DAILY SERVICES
Check the transmission oil level when the oil is hot and the system is charged. Place transmission in NEUTRAL, keep the engine idling and apply parking brake. Turn the handle counterclockwise to loosen the cap. Remove the cap and check oil level with the dipstick. Add oil as necessary to bring it to the proper level. Make sure the cap is tight in the filler neck after checking oil. 1

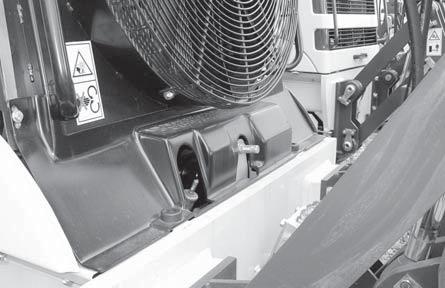

1. TRANSMISSION OIL LEVEL DIPSTICK
LUBRICATION/FILTERS/FLUIDS
Transmission Oil Filter Change
EACH 500 HOURS
WARNING:Never use gasoline, solvent or other flammable fluids to clean parts. Use authorized commercial, nonflammable, nontoxic solvents.
Clean filter and surrounding area. Then remove the filter housing (1), change the elements and gaskets. Clean the inside of the filter housing (1) and contact surface. Install the new filter.
1
Transmission Oil Change and Screen Cleaning
EACH 500 HOURS
Run engine until transmission oil reaches operating temperature. Park motorgrader on a level surface, apply parking brake, lower moldboard to ground and shut-off engine. Remove the drain plug and screen, and let the oil drain into a container that holds at least 25 liters (6.6U.S. Gallons). Clean the suction screen completely. Reinstall the screen and drain plug. The transmission oil filter, should be changed at this time. Fill the system to the level mark with the specified oil. Operate transmission to warm oil and top off as necessary.

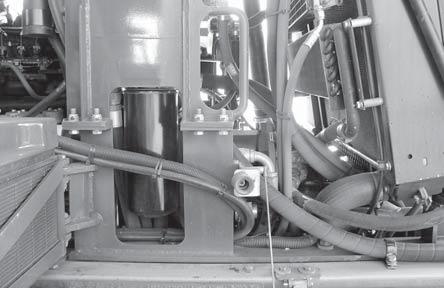

1. TRANSMISSION OIL FILTER
1. DRAIN PLUG 2. SCREEN
