844/642 Telehandler LIFT CYLINDER REMOVAL

Step 3

Step 5

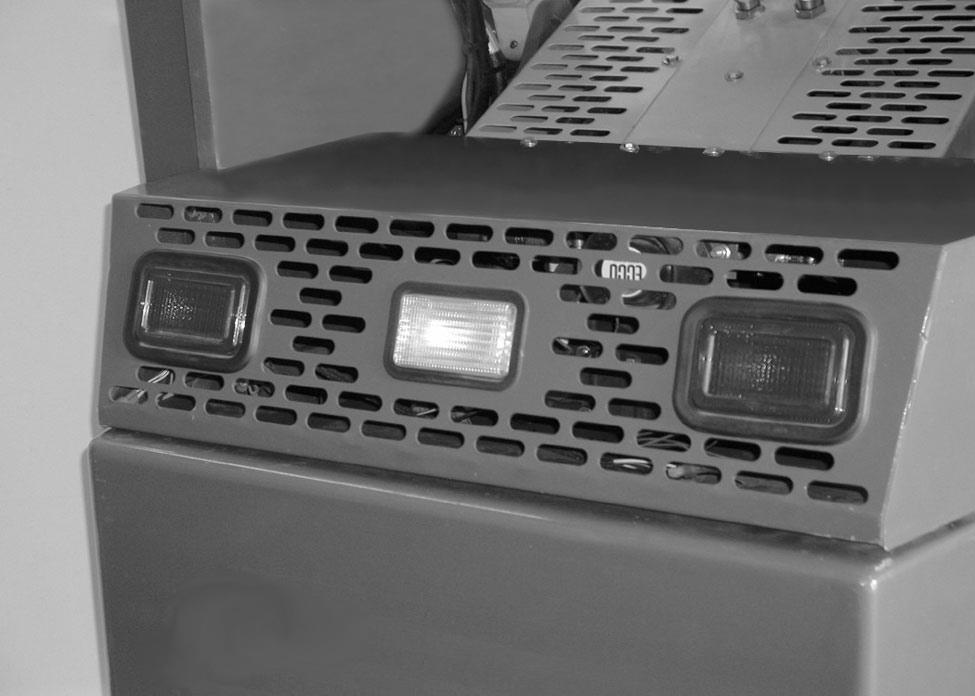

Remove the rear hood. Complete Steps 10 and 11 of Section 800 for correct procedures.

Step 4

Remove the radiator cover that corresponds to the cylinder to be removed. Complete Steps 14, 15 and 16 of Section 800 for the correct procedures.

NOTE: If removing the left lift cylinder perform Step 5.

Remove the three window retainers and the operator’s right side window.

Step 6

Using a chain hoist and lifting strap, position the lifting strap to support the weight of the lifting cylinder when the upper pivot pin is removed. Apply upward pressure to remove slack in the lifting strap.

Step 7

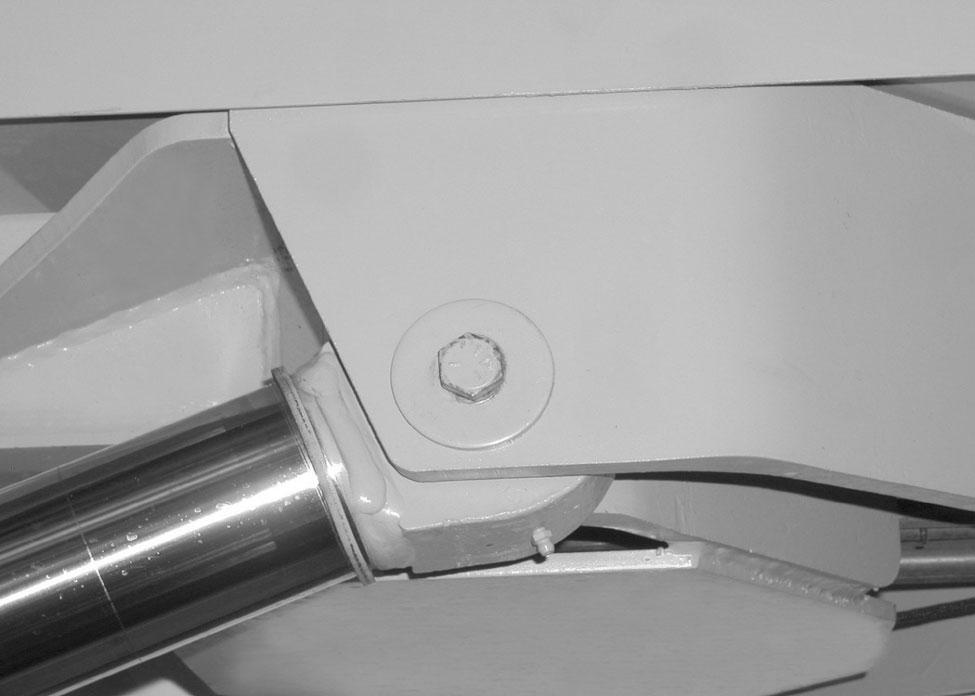

Remove the bolt (1) and the retainer washer (2) from both sides of the upper pivot pin.

913250
