844/642 Telehandler INTERMEDIATE BOOM

Step 5

Step 7

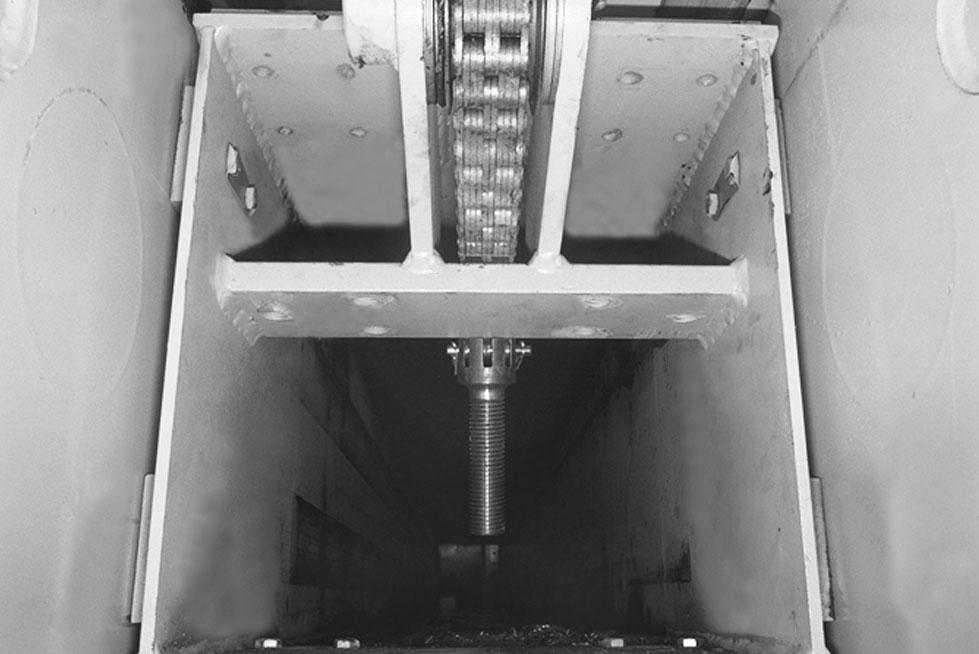

Loosen and remove the bolts (1) and lockplates (2) from the two side slide pads on the rear of the intermediate boom.

Remove the two side slide pads and shims (3) from the rear of the intermediate boom.

Step 6

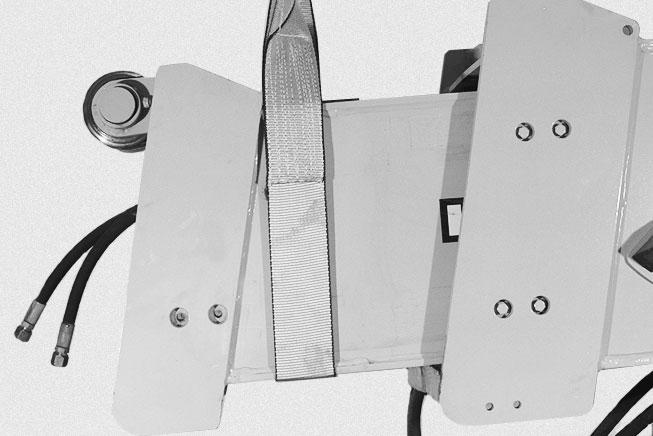

Use a hoist and lifting strap around the intermediate boom section, pul the intermediate boom from the outer boom section approximately 12 inches (30 cm).

Loosen and remove the two bolts and lower side slide pad and shim from the front of the outer boom section.

Step 8

Loosen and remove the two bolts and washers securing the hose tray bracket to the intermediate boom. Lower the hose tray and hose tray bracket.

Step 9

Loosen and remove the two bolts and upper side slide pad and shim from the front of the outer boom.
