844/642 Telehandler TILT CYLINDER

Step 4

Step 6

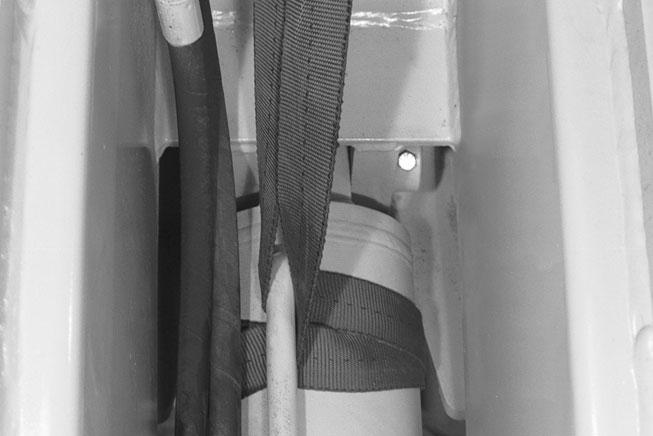

Using a chain hoist and lifting strap, position the lifting strap around the tilt cylinder and apply upward pressure.

Step 5

Remove the retainer bolt and nut from the pivot pin.

Remove the upper pivot pin from the tilt cylinder. Use care not to damage the grease fitting while removing the pivot pin.

IMPORTANT: Protect the chrome finish on the cylinder rod at all times. Damage to surface of the rod can cause premature seal failure.

Step 7

Remove the rod end of the cylinder from the bracket first, then raise the chain hoist and remove the base end of the cylinder.

Template Name: OML_2_col 907872

Template Date: 1994_04_22

Tilt Cylinder Installation

STEP 8

Using a chain hoist and lifting strap, put the rod end of the cylinder in the bracket first, and position the base end of the cylinder in the mounting bracket using a floor jack to apply upward pressure on the cylinder.

STEP 9

Align the pivot pin retainer bolt holes, with the holes in the cylinder mount. Reinstall the upper pivot pin using care not to damage the grease fitting while installing the pin.

STEP 10

Install the retainer bolt and nut in the pivot pin and tighten.

STEP 11

Remove the caps and plugs from the valve block fittings and hydraulic hoses.

STEP 12

Reconnect the two hydraulic hoses to the valve block fittings and tighten.
