844/642 Telehandler HYDRAULICS

Step 66

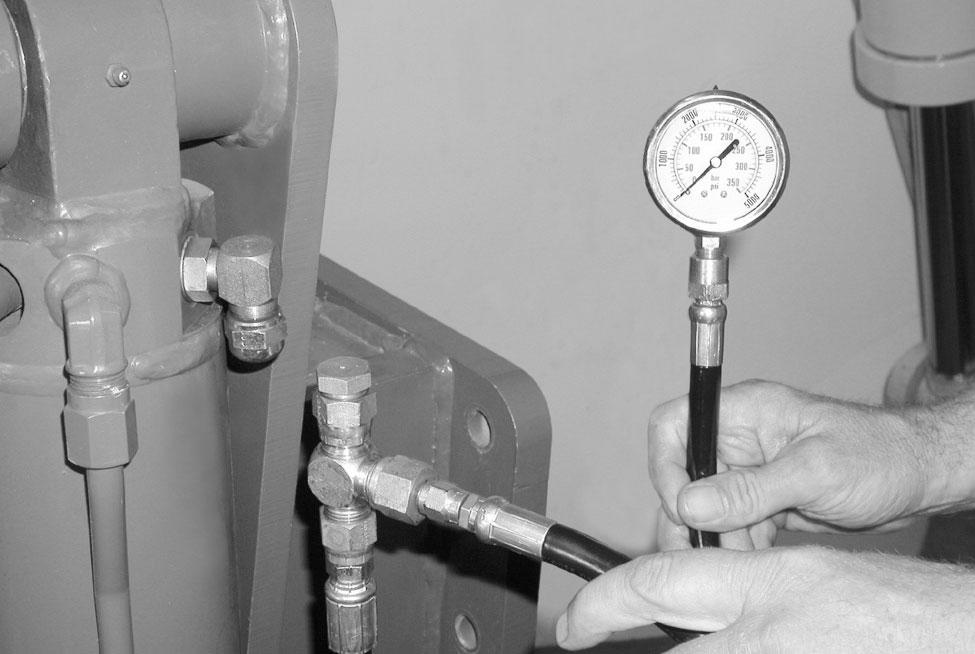

Shut off the engine. Remove the pressure gauge from the cylinder port (1). Cap the port (1) and plug the gauge tee adapter (2).

Start the engine and run at 1000 RPM. Hold the frame leveling joystick in the TILT RIGHT position. The pressure gauge should read 2500 psi (172 bar)

If the pressure is 2500 psi (172 bar), repair or replace the tilt cylinder.

If the pressure is less than 2500 psi (172 bar), proceed to the next step.

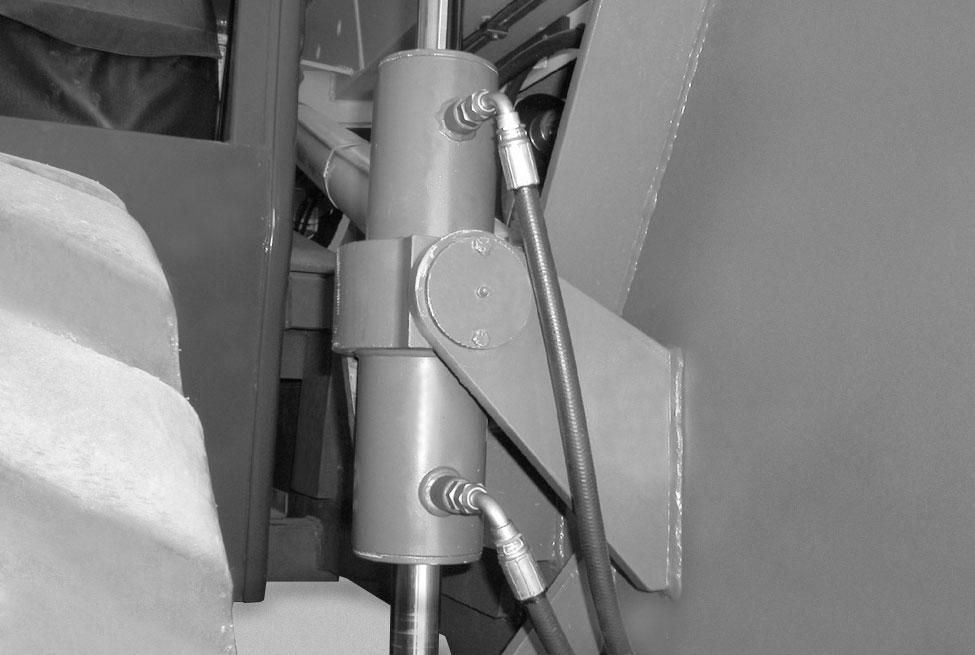

Shut off the engine. Remove the two hoses from the stabilizer cylinder. Install caps on the cylinder elbow fittings and plugs in the hose ends.

Remove the two hoses from the stabilizer cylinder. Install caps on the cylinder elbow fittings and plugs in the hose ends.
