844/642 Telehandler FRONT

Relieving Hydraulic Pressure

Step 3

Axle

1.Fully retract the telescoping boom.

2.Raise the telescoping boom far enough to be able to remove the axle out from under the frame.

3.Turn the keyswitch to the OFF position to shut down the engine. (See above Mandatory Safety Shutdown Procedure.)

4.Move the frame leveling joystick several times to relieve hydraulic pressure in that circuit.

Step 2

Place wood blocks under both tilt stops on the rear of the machine, to prevent the frame from rotating when the frame leveling cylinder is disconnected.

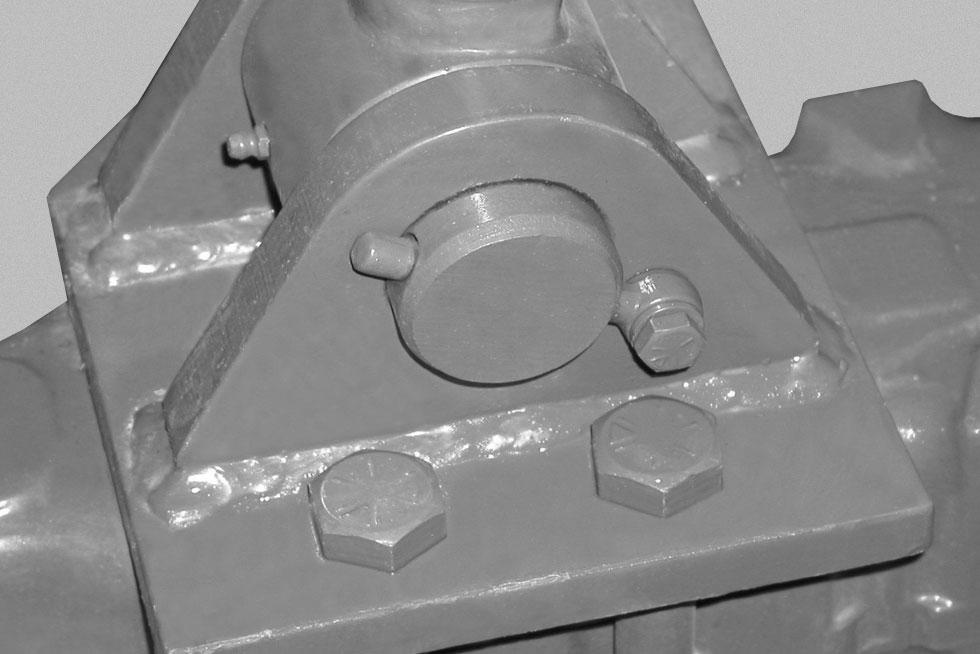

Remove the bolt (1) and retaining pin (2) from the lower pivot pin on the frame leveling cylinder.

Step

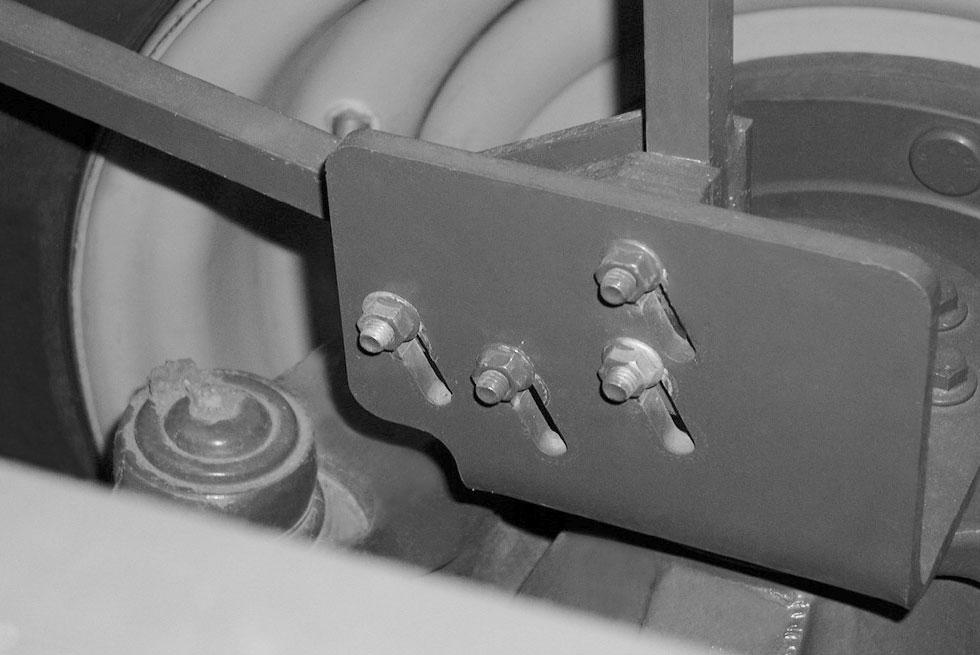

While supporting the fender, loosen and remove the four bolts and nuts from the fender bracket. Remove the fender from the machine.

Template Name: OML_2_col 907871

STEP 6

STEP 9

Install caps and plugs on all hoses and hydraulic fittings to prevent contaminating the hydraulic system.

STEP 10

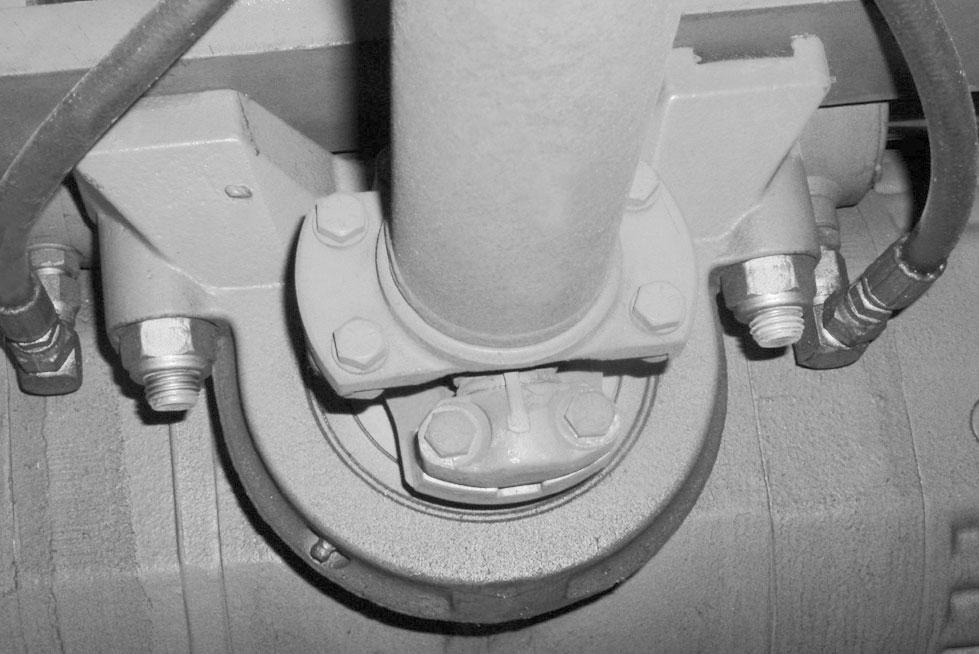

Disconnect the driveshaft from the front axle by removing the four bolts and lock washers.

STEP 7

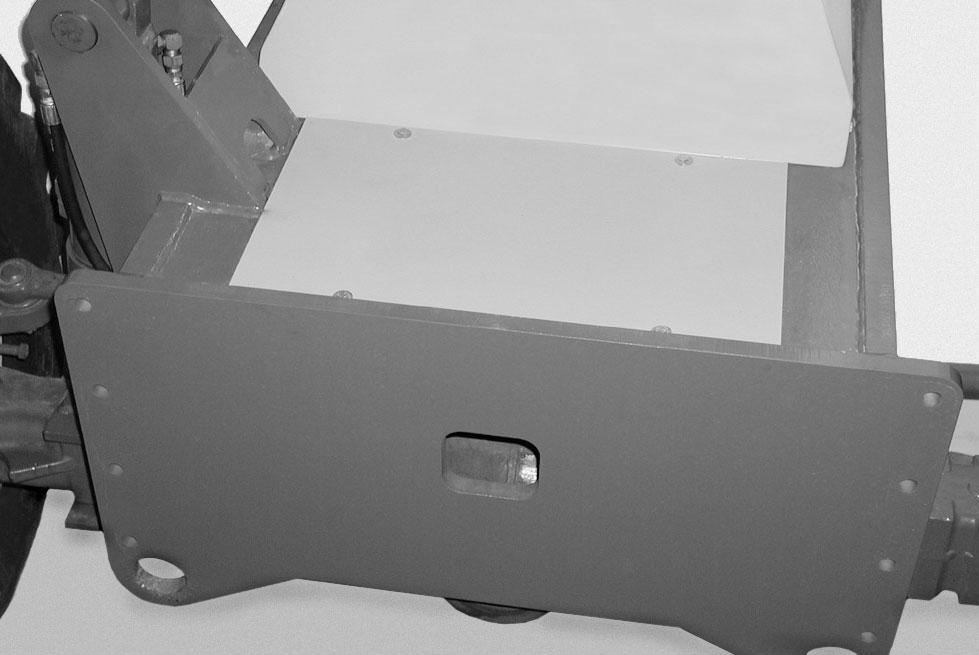

Remove the four bolts (1) and the front cover (2).

STEP 11

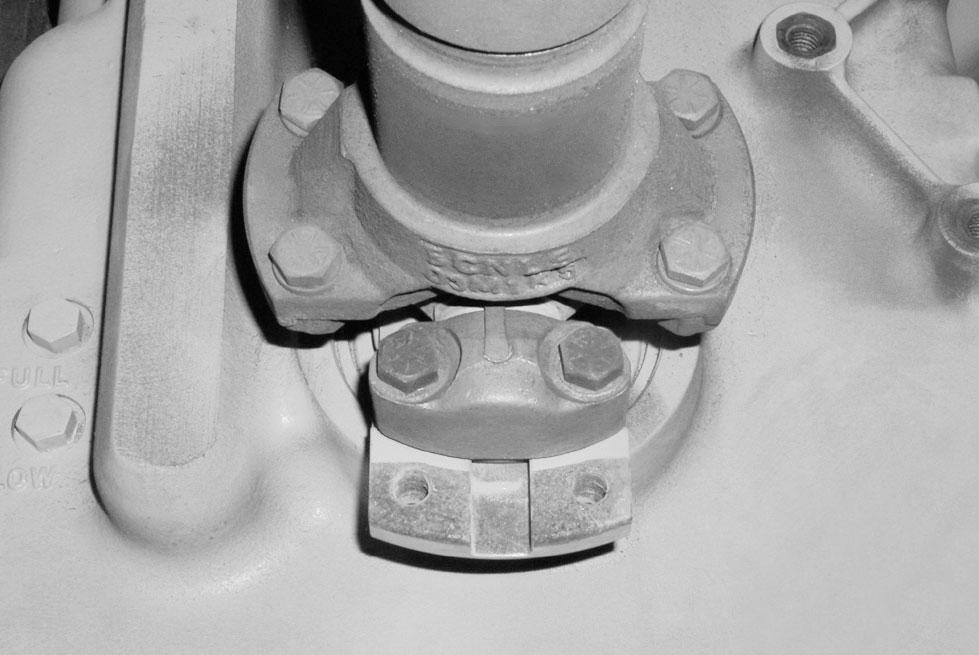

Disconnect the driveshaft from the transmission by removing the four bolts and lock washers. Remove the driveshaft from the machine.

STEP 8

Mark the two steering cylinder hydraulic hoses for correct assembly. Loosen and remove the two hydraulic hoses from the steering cylinder.

Mark the two hydraulic hoses for correct assembly. Loosen and remove the two hydraulic hoses from the brake connectors.

STEP 12

Install caps and plugs on all hoses and hydraulic fittings to prevent contaminating the hydraulic system.

Template Name: OML_2_col

Template Date: 1994_04_22

844/642

STEP 13
