844/642 Telehandler REAR AXLE

STEP 30

STEP 32

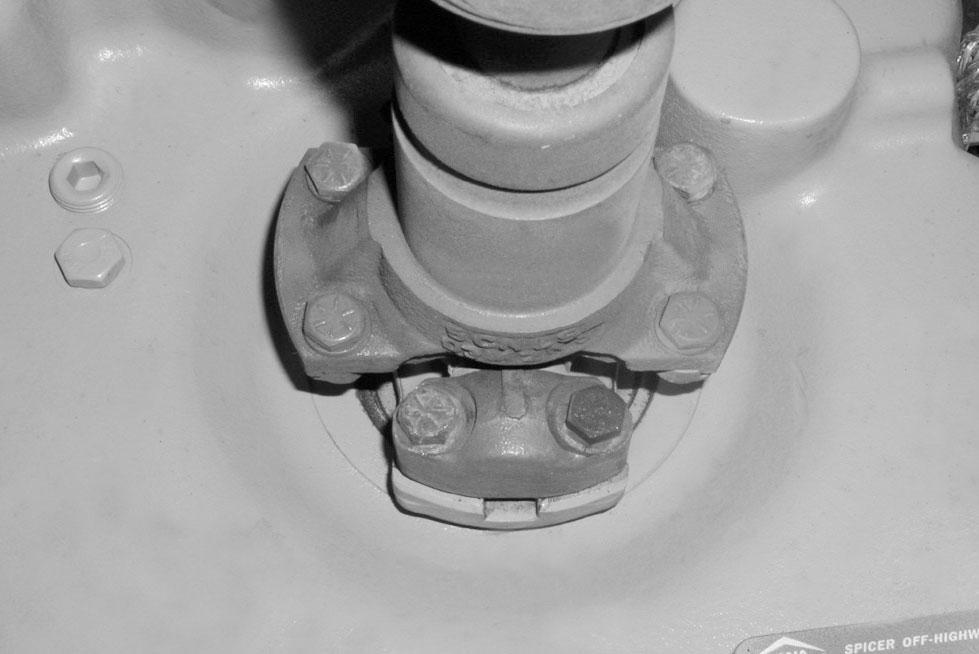

Reinstall the driveshaft to the transmission and to the rear axle using the bolts and lock washers.

NOTE: Use Loctite 271 Thread Lock (or equivalent) on the ends of the bolts.

STEP 31

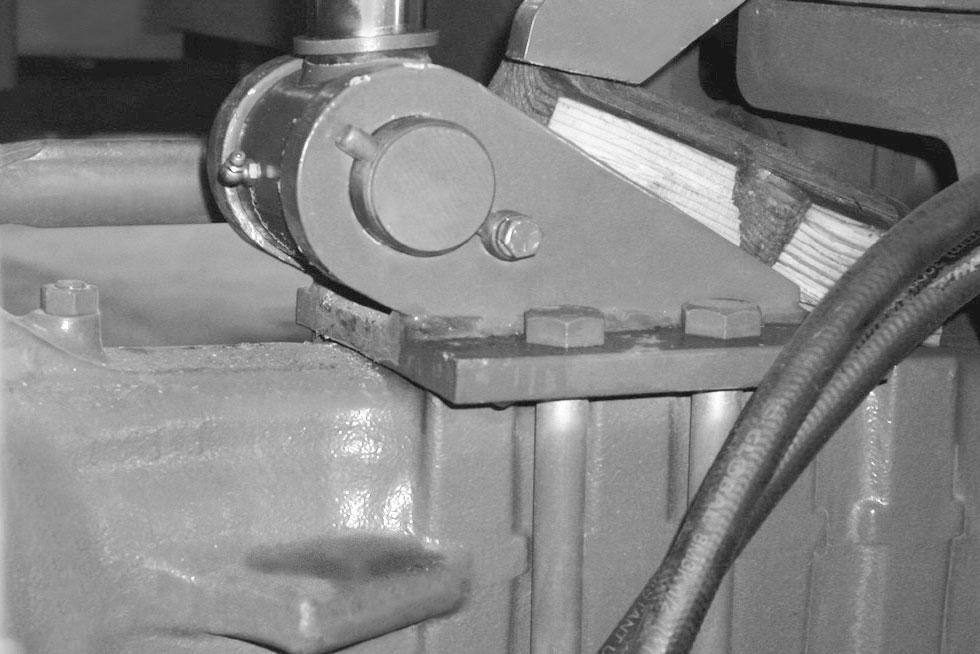

Reinstall the retainer pin (1) and bolt (2) in the lower pivot pin and tighten.

STEP 33

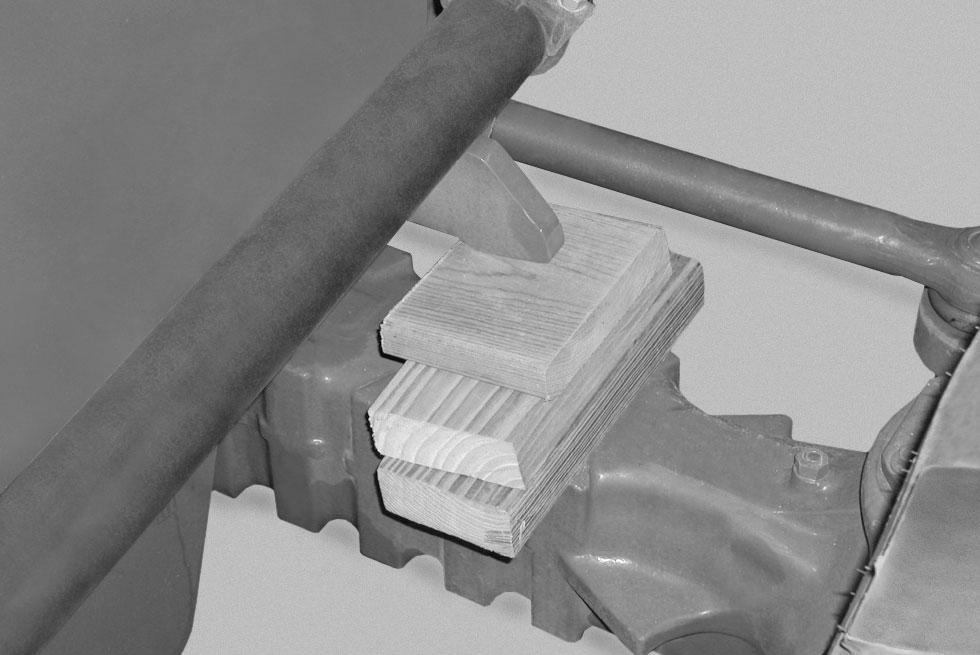

Remove the wood blocks under both tilt stops on the rear of the machine.

Using a pry bar, extend the stabilizer cylinder rod enough to install the lower pivot pin. Be sure to align the retainer bolt holes.

Template Name: OML_2_col 907871

Step 34

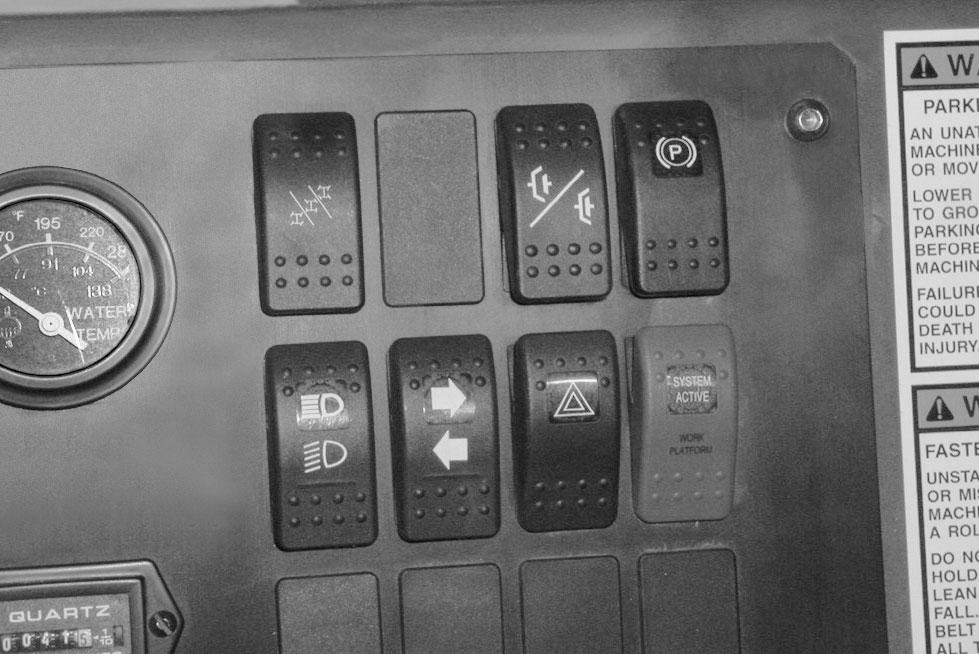

Start the engine, apply the park brake. Move the steer mode switch to the 4-wheel steering position. Turn the steering wheel in one direction until the wheels reach their travel limits and back the other way to its travel limit. Repeat this procedure several times until the air is removed from the circuit.

Step 35

Shut down the engine. Check for leaks. Correct any leakage found. Check fluid level, add fluid if needed.
