844/642 Telehandler TRANSMISSION

STEP 28

Step 31

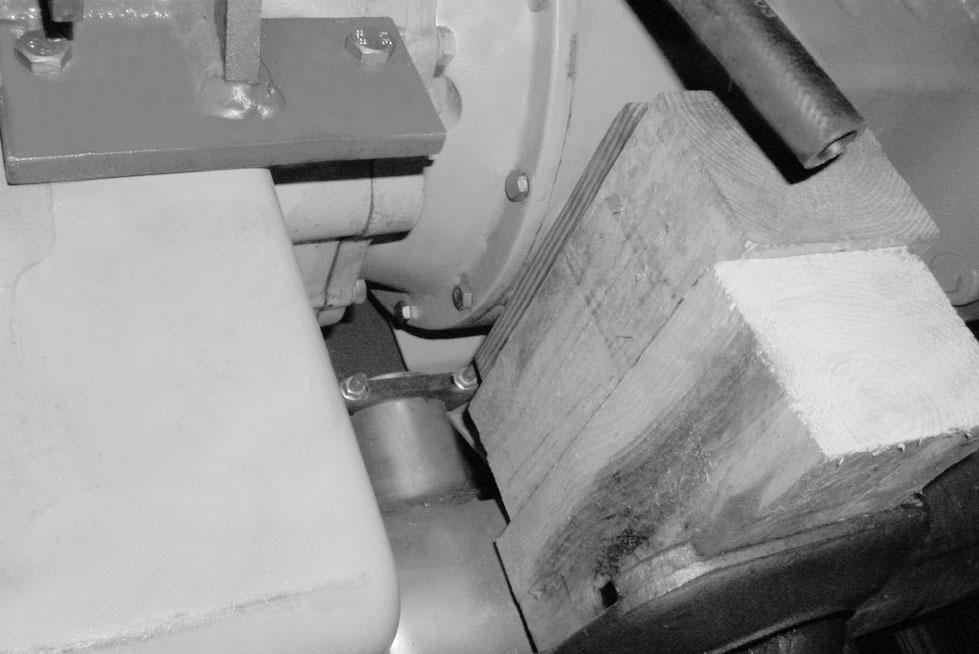

Place a suitable jack under the engine, closest to the transmission. Raise the jack to support the weight of the engine when the transmission is removed.

Step 29

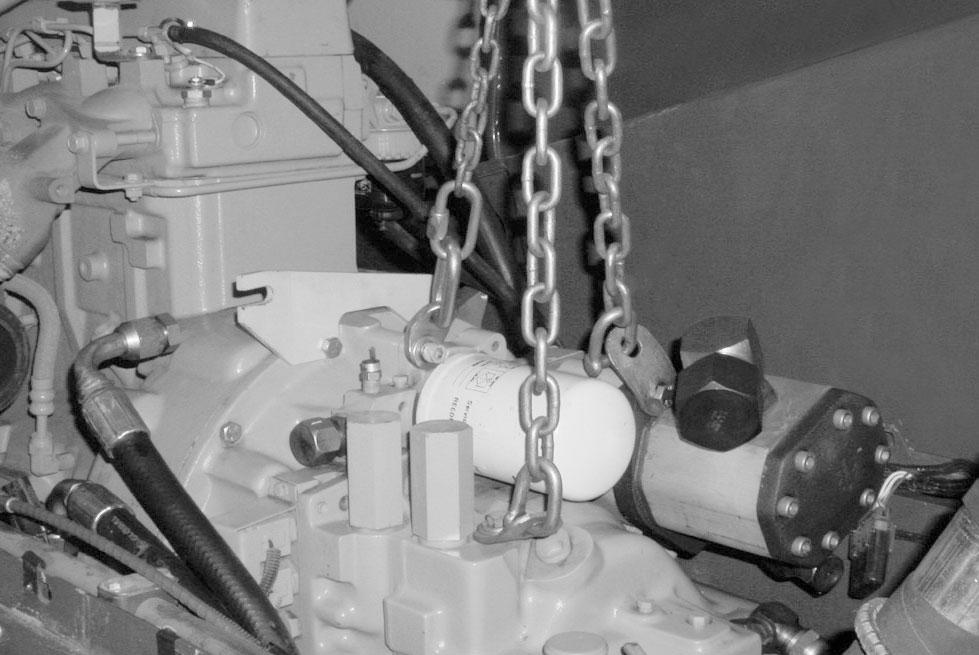

Attach lifting chains to the transmission as shown. Attach the lifting chain to the hoist, apply enough upward pressure to support the transmission.

STEP 30

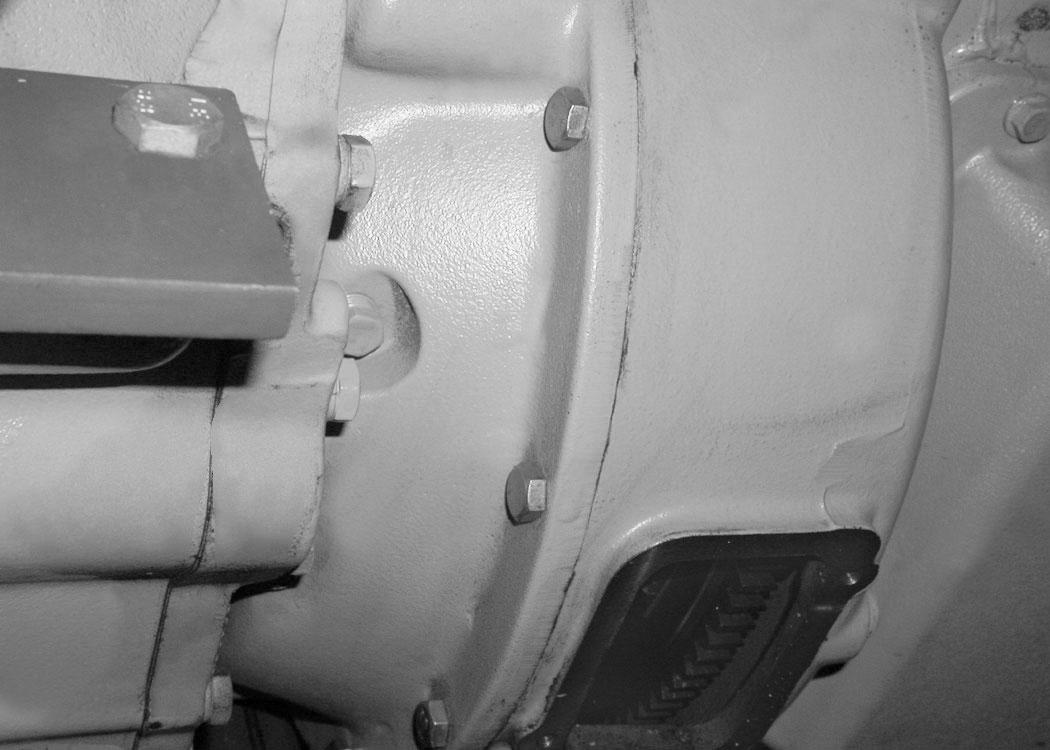

Remove the lower bell housing bolts.

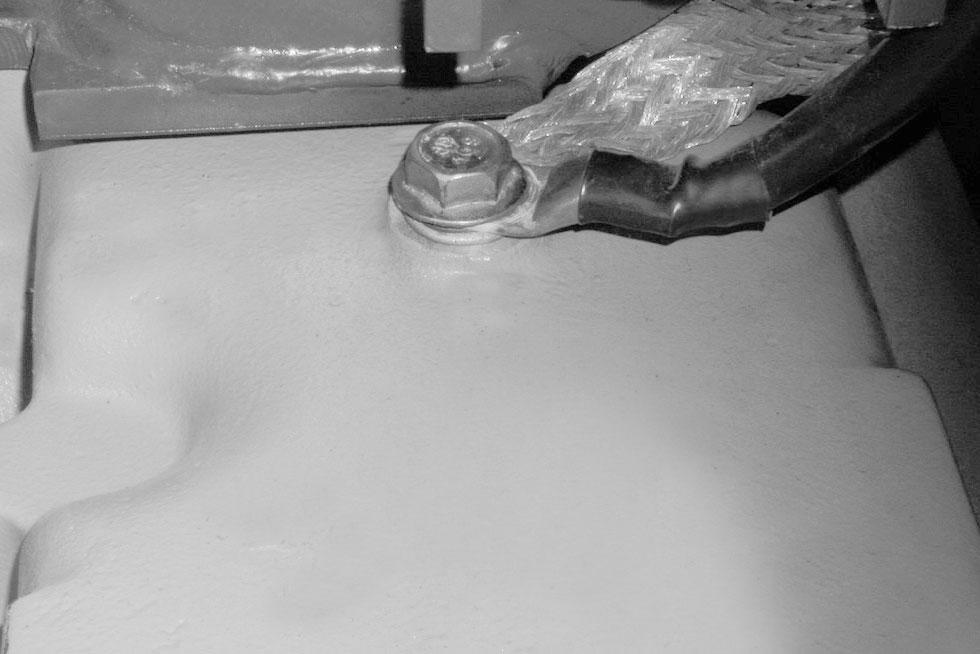

Remove the bolt securing the battery ground cable (1) and the chassis ground cable (2) to the right side of the transmission.

Step 32

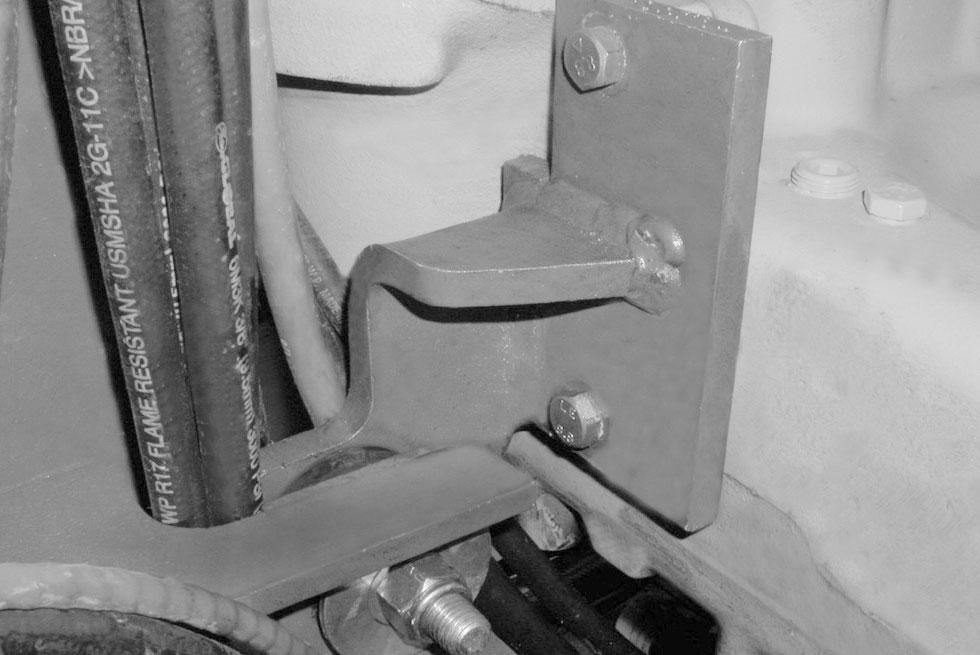

Remove the two bolts securing the left side mounting bracket to the transmission.

Step 33

Loosen the lock nuts from both transmission mount bolts.
