844/642 Telehandler ELECTRICAL

STEP 36

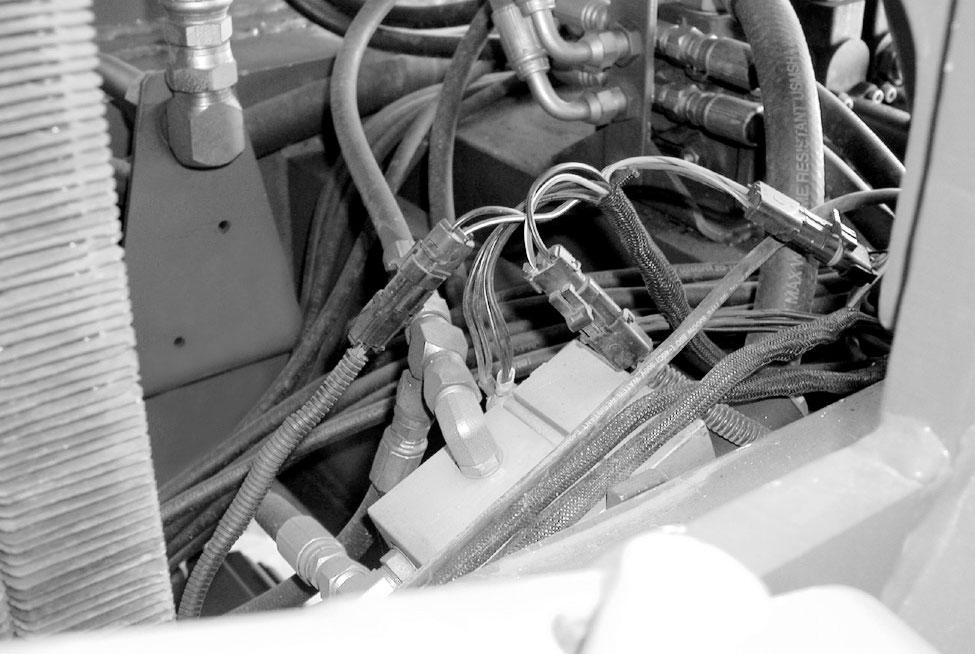

Connect the frame wire harness to t he stabilizer cylinder solenoid wire connectors. Repeat Step 33 for the other stabilizer cylinder solenoid valve.

Proximity Switch Tests

STEP 37

Check the park brake/stabilizer cylinder fuse (#2) (1) and test the power to the fuse (Step 4) and ignition relay (2) (Steps 5 and 6).

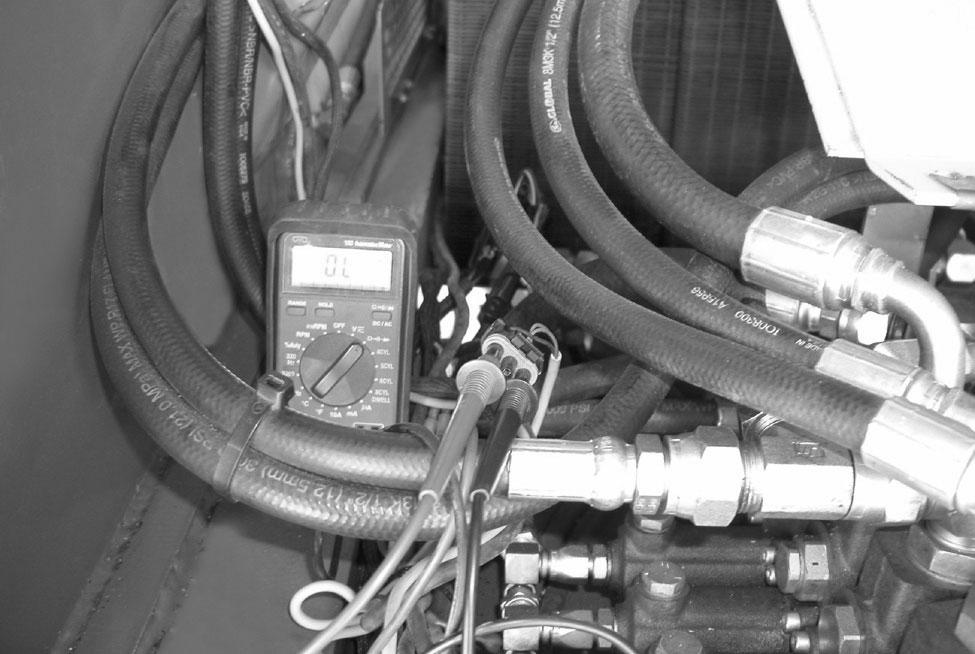

Disconnect the proximity switch from the frame wire harness. Install the positive (+) test lead in the brown wire recepticle of the wire harness plug and the negative (-) test probe in the black wire recepticle. With the key switch ON the multimeter should read 12 to 13 volts.

If there is no voltage repair or replace the brown wire between the stabilizer cylinder and the fuse. If there is 12 to 13 volts proceed to the next step.

Set the multimeter to OHMs or CONTINUITY. Install the positive (+) test lead in the brown wire prong of the proximity switch connector and the negative (-) test lead in the black wire prong. The multimeter should read an open circuit.

If the multimeter shows a closed circuit replace the proximity switch.

If the multimeter shows an open circuit, but the stabilizer cylinder is restricting the frame leveling operation, replace the solenoid valves on the stabilizer cylinder.

Connect the frame wire harness to the proximity switch wire connector.
