844/642 Telehandler ELECTRICAL

Park Brake Circuit Tests

Step 22

Check the park brake fuse (#2) (1) and test for power to the fuse (Step 4) and the ignition relay (2) (Steps 5 and 6).

If there is 12 to 13 volts at the park brake fuse, proceed to the next step.

Step 23

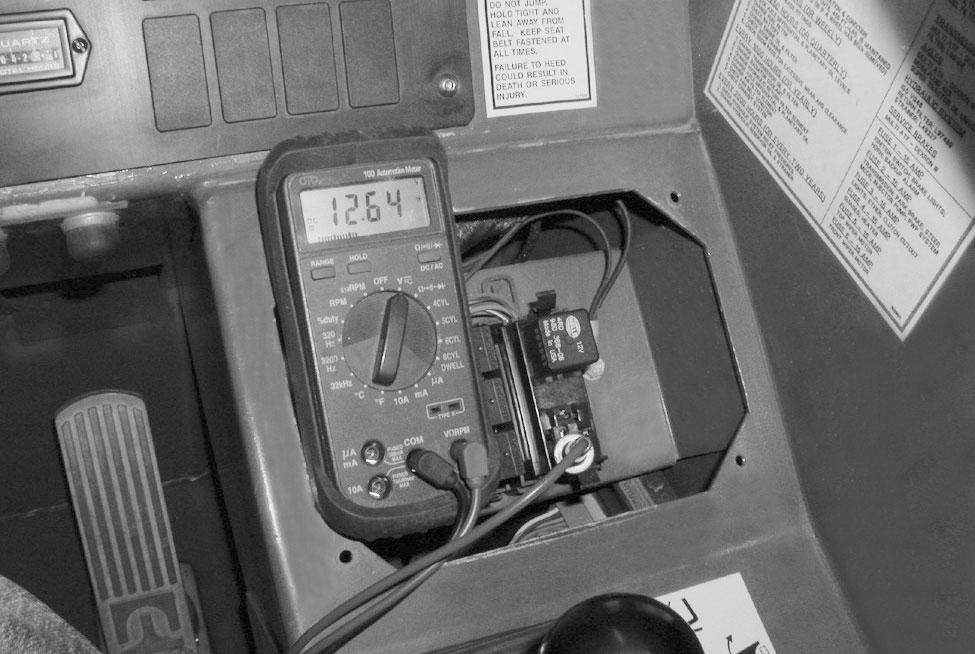

Remove the park brake relay. Connect the positive (+) test lead to the right side terminal (#4) of the park brake relay socket. Turn the key switch to the ON position.

If there is no voltage, replace the red wire between the fuse and the relay.

If there is 12 to 13 volts, proceed to the next step.

Step 24

Connect the positive (+) test lead to the bottom terminal (#2) of the relay socket. With the key switch and park brake switch in the ON position, the multimeter should read 12 to 13 volts.

If there is no voltage, proceed to Step 31.

If there is 12 to 13 volts, proceed to the next step.

Step 25

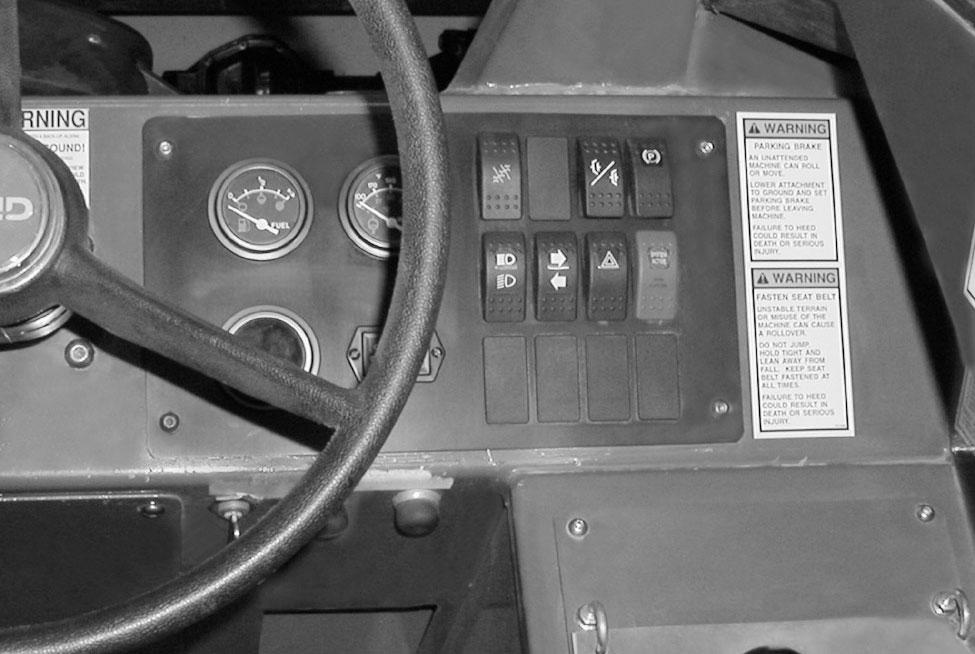

Move the park brake switch to the OFF position. The multimeter should read 0 volts.

If there is no voltage, proceed to the next step. If there is 12 to 13 volts, proceed to Step 28.
